Thermaltake Pacific RL360 Plus User manual

Parts List
Bridge Cable
Power Cable Controller Cable
Ax 1
Cx 1
Bx 1
Ex 1 Fx Dx Jx Gx Hx 8 Ix 8
Installation Guide
1
3
2
C
B
E
Install the LED Module on the radiator.
Connect the fan cable onto the controller.
11 112
Set the DIP switch on the back side of the controller to assign the
number of the controller
NO.1
ON
1 2 3 4
NO.3
ON
1 2 3 4
NO.2
ON
1 2 3 4
NO.4
ON
1 2 3 4
NO.9
ON
1 2 3 4
NO.11
ON
1 2 3 4
NO.10
ON
1 2 3 4
NO.12
ON
1 2 3 4
NO.5
ON
1 2 3 4
NO.7
ON
1 2 3 4
NO.6
ON
1 2 3 4
NO.8
ON
1 2 3 4
4
A
BC
C
More Language (Deutsch, Español, Français, Italiano, Português,
Русский, Türkçe, 简体中文, 正體中文, 日本語, ภาษาไทย)
Please visit www.thermaltake.com
123
45
ON
1 2 3 4
Support
16.8 Million Color
Pacific Plus
RL360
E
NO.13
ON
1 2 3 4
NO.15
ON
1 2 3 4
NO.14
ON
1 2 3 4
NO.16
ON
1 2 3 4
Connect the controller cable onto the mainboard (USB 2.0 9 pin) and
controller.
65
If you want to connect two or more connectors, you can use the bridge
cable to connect the controllers.
Connect the power cable to the 4pin Molex connecter and controller.
D D F F

© 2017 Thermaltake Technology Co., Ltd. All Rights Reserved.
www.thermaltake.com

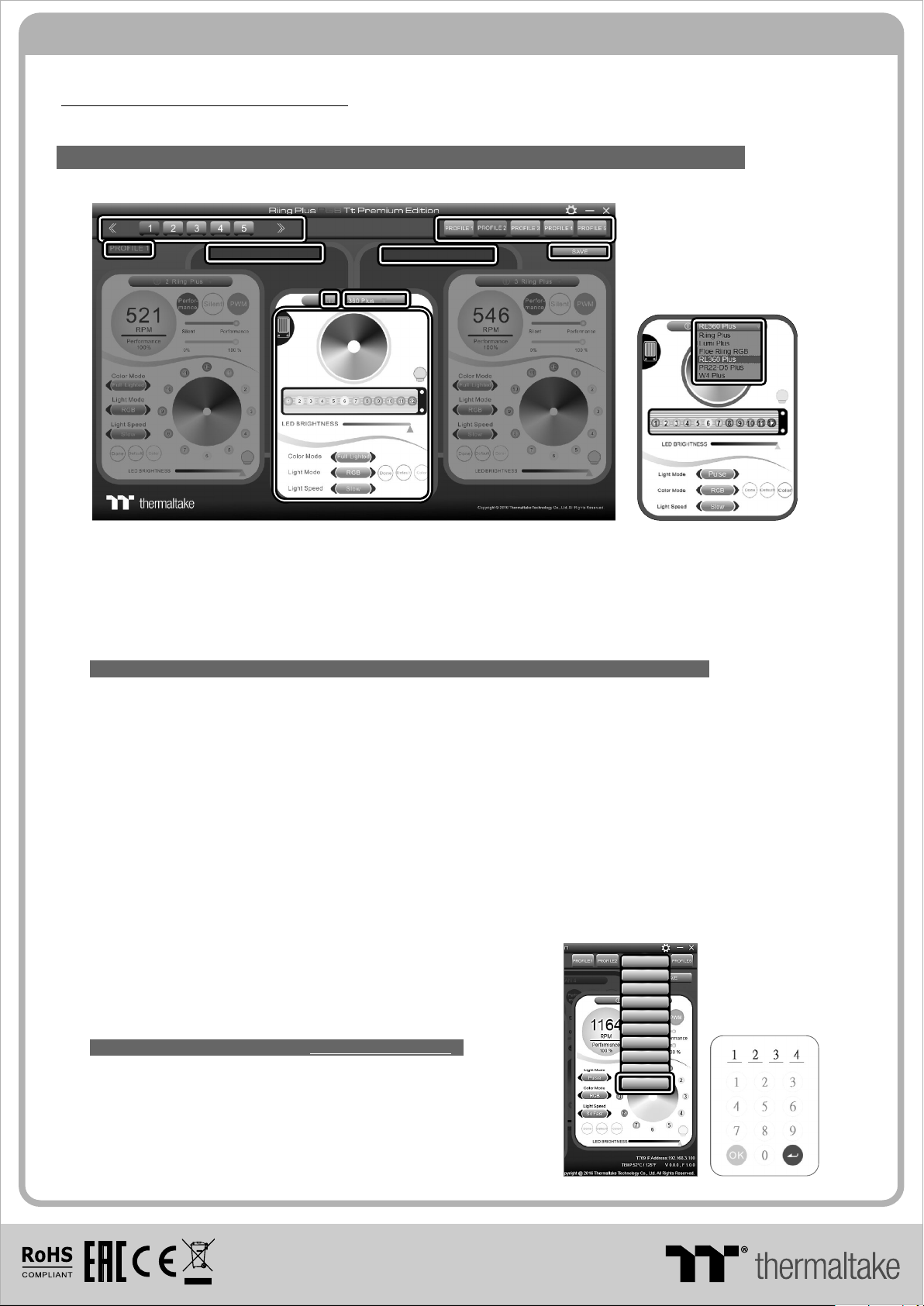

Riing Plus RGB Software control interface
Please download software from Thermaltake Official website.
www.thermaltake.com/home.aspx
and search " RL360 Plus " on the official website.
OS compatibility: Windows 7 / 8 / 8.1 / 10
1. Software User Interface
A. Riing Plus RGB software Profile Setting
A-1 Set up a profile: Choose a Profile and set up the LED Lighting Mode,
then click the SAVE icon(A-3) to store your settings to the software.
A-2 Save a profile to controller: Select a profile and a controller,
then click the Save icon to assign the profile to the controller.
B. Follow the Installation Guide step 3, you can set up the number of the controller
C. LED Lighting Mode
C-1 LED Selection: set up the LEDs lighting, color, and speed.
Light Mode: Choose a lighting mode
Color Mode: Choose the LEDs color
Light Speed: Set up the speed of the LEDs light
LED Spot & Color Palette: Choose the color of each of the individual LEDs by clicking the color palette
Done: Save your setting
Default: Reset the LED setting back to the default
Brightness: Drag the mouse to adjust LED light brightness.
LED On/Off: Click the LED Light icon to turn on or off the LED light
RGB Color Code: Enter the Decimal Code of Red, Green, and Blue to set the LEDs color
C-2 LED On/Off: User can switch off the LED control function in the software if the fan is not plug into the controller.
C-3 Drop-down list: click the product name to choice another you want.
D-1 & D-2. Product Selection: click the control panel to rotate it to the front
Full Lighted / Wave / Pulse / Ripple / Blink / Sound Control / RGB Spectrum / Flow / Thermal
2. Mobile APP Connection Password
To connect the Riing Plus RGB APP, please connect the PC to your
wireless first, and click the Password setting under the software
setting menu, set up your connection password. The Riing Plus RGB
APP will ask for your password every time when starting the APP.
For more information please visit www.thermaltake.com
正體中文
English
English
正體中文
簡體中文
簡體中文
Deutsch
Deutsch
Français
Français
日本語
日本語
ไทย
ไทย
Auto Update On
Auto Update On
Password On
Password On
Password :8888
Password :8888
A-1A-1
A-2A-2
A-3A-3
BB
D-1D-1 D-2D-2
C-1C-1
C-2C-2 C-3C-3
When you open the software, choose the “RL360 Plus” in the drop-down list(C-3) first.
