Thermo Scientific 50FREETSA User manual

Flammable Materials Storage
Refrigerator
Model 50FREETSA
LT1527X2 Rev. B

Ta ble of Contents
Safety Information ..............................................................................................................................................3
Alert Signals..................................................................................................................................................3
Unpacking ..........................................................................................................................................................4
Visible Loss or Damage................................................................................................................................4
Concealed Loss or Damage ........................................................................................................................4
Performance Characteristics ..............................................................................................................................5
T
emperature Ranges ....................................................................................................................................5
Electrical Requirements................................................................................................................................5
Installation ..........................................................................................................................................................6
Selecting a Location ....................................................................................................................................6
Leveling The Unit ..........................................................................................................................................6
Shelves ........................................................................................................................................................6
Electrical Connection ....................................................................................................................................7
Operation ............................................................................................................................................................8
Initial Startup ................................................................................................................................................8
Temperature Control ....................................................................................................................................8
Temperature Display ....................................................................................................................................8
Material Compatibility ..................................................................................................................................9
Troubleshooting ................................................................................................................................................10
Maintenance......................................................................................................................................................11
Cabinet Cleaning ........................................................................................................................................11
Condenser ..................................................................................................................................................11
Warranty ............................................................................................................................................................12

Safety Information
Your satisfaction and safety are important to Thermo Scientific and a complete understanding of this unit
is necessary to attain these objectives.
As the ultimate user of this apparatus, it is your responsibility to understand its proper function and
operational characteristics. This instruction manual should be thoroughly read and all operators given
adequate training before attempting to place this unit in service. Awareness of the stated cautions and
warnings, and compliance with recommended operating parameters – together with maintenance
requirements – are important for safe and satisfactory operation. The unit should be used for its intended
application; alterations or modifications will void the Warranty.
This product is not intended, nor can it be used, as a sterile or patient connected device. In addition, this
apparatus is not designed for use in Class I, II or III locations as defined by the US National Electrical
Code, unless otherwise noted.
Alert Signals
DANGER RISK OF CHILD ENTRAPMENT
Before you throw away your old refrigerator or freezer:
Take off doors

Leave the shelves in the place so that children may not easily climb inside.
If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
ON
OFF
Safety Alert
Important operating instructions. To reduce the risk of injury
or poor performance of the unit. Read the user manual before
putting the equipment into operation.
WARNING
Indicates an immediately hazardous situation, which if
not avoided, will result in death or serious injury.
CAUTION
Indicates an immediately hazardous situation, which if
not avoided, may result in minor to moderate injury.
(No symbol)
CAUTION
(Without Safety Alert Symbol) indicates a situation that
may result in property damage.
Shock Hazard
Use of this equipment involves power supplies which convert
line voltage to low voltage power. Do not modify or use power
supplies other than OEM equipment. Connection of the
power supply may require a properly grounded receptacle.
Potential for electrical shock or equipment damage exists if
precautions are not followed.
Frost bite/
Low
Temperature
Avoid contact with cold freezer surfaces potential for
cold burns or skin sticking to cold surfaces.
3

4
Unpacking
Save all packing material if apparatus is received dam-
aged. This merchandise was carefully packed and thor-
oughly inspected before leaving our factory.
Responsibility for its safe delivery was assumed by the
carrier upon acceptance of the shipment; therefore, claims
for loss or damage sustained in transit must be made
upon the carrier by the recipient as follows:
Visible Loss or Damage
Note any external evidence of loss or damage on the
freight bill, or express receipt, and have it signed by the
carrier’s agent. Failure to adequately describe such
exter-nal evidence of loss or damage may result in the
carrier’s refusing to honor your damage claim. The form
required to file such a claim will be supplied by the carrier.
Concealed Loss or Damage
Concealed loss or damage refers to loss or damage,
which does not become apparent until the merchandise
has been unpacked and inspected. Should either occur,
make a written request for the carrier’s agent within 15
days of the delivery date; then file a claim with the carrier
since the damage is the carrier’s responsibility.
If you follow the above instructions carefully, we will
guarantee our full support of your claim to be compensat-
ed for loss from concealed damage.
DO NOT – FOR ANY REASON – RETURN THIS UNIT
WITHOUT FIRST OBTAINING AUTHORIZATION.

Temperature Ranges
1° to 12°C (34° to 53.6°F)
Electrical Requirements
115 Volts ±10%, 60 Hz, 9.1 Amps
5
Performance Characteristics

6
Selecting a Location
Choose a location for the refrigerator that
will
provide at
least three inches of clearance between the cabinet and
any adjacent vertical surface at
the sides and rear.
Twelve
inches of clearance is required above the grille.
Appropriate electrical power must
be available. Locate the
refrigerator within eight feet of
the power outlet
so that no
extension cord is required.
Leveling the Unit
The refrigerator must be level in order to provide ade-
quate condensate drainage as well as proper door align-
ment and operation. The refrigerator should be in its final
operating location and set so that it is firmly positioned on
the floor.
There are four leveling legs – one for each corner.
These
legs are packed in the accessory carton from which they
must be removed and installed onto the cabinet. In order
to install the legs, carefully tip the cabinet rearward and
add (4) two inch blocks underneath and simply screw the
threaded leg studs into the case bottom front leg holes.
Repeat this procedure by tilting the cabinet in the oppo-
site direction and install the remaining legs.
Make sure
that the legs are tightened extremely well or the entire unit
will sway or rock with each opening or closing of the
doors, possibly causing damage to the case bottom.
Level
the cabinet front to rear and side-to-side using the corner
leveling screws located at the bottom of the legs.
Shelves
Shipped inside each cabinet are shelves packed in plastic
and a bag of shelf supports. Two different types of shelf
supports are used. Refer to figure 1 for installation.
Shelf
spacing is adjustable to suit user requirements.
Replacement shelves are available individually for the
Laboratory Refrigerators.
Installation
Use 1/4” support in front of
shelf and 1/2” support here
Figure 1 Shelf Support
Tab Length

Electrical Connection
Determine the total amount of current presently being
used by other apparatus connected to the circuit that will
be used by this refrigerator. It is critical that this added
current demand and other equipment on this circuit not
exceed the rating of the fuse or circuit breaker in use.
The frequency and nominal voltage requirements for the
unit are specified on the data plate, which is located on
the interiors upper left side. Only plug the unit into a
power source that meets these requirements. Low line
voltage is often the cause of service complaints. With the
unit running, check that the line voltage is within ±10% of
that specified on the data plate.
The power cord of this instrument is equipped with a three
prong (grounding) plug (NEMA 5-15P). This plug mates
with a standard three prong (grounding) wall recep-tacle
(NEMA 5-15R) to minimize the potential of an elec-trical
shock hazard. The customer should have the wall
receptacle and circuit checked by a qualified electrician to
verify the receptacle is properly grounded and is connect-
ed to a minimum 15 amp service.
Warning
Do not under any circumstances cut or
remove the third (ground) prong from the
power cord.
Do not use a two-prong adapter plug.
Where a two-prong wall receptacle is encountered, it is
the personal responsibility and obligation of the user to
have it replaced with a properly grounded three-prong
receptacle.
7
INSTALLATION
Warning
For personal safety this unit must be
properly grounded.
Caution
Be sure that the power supply is the
same voltage that is specified on the
refrigerator’s data plate.
Caution
Do not use an extension cord. Use of
an ungrounded cord or an overloaded
circuit VOIDS the compressor
warranty.

Initial Startup
Turn power on and verify that the condenser fan is running.
This model has a condenser fan located on the condensing
unit on top of the cabinet.
Temperature Control

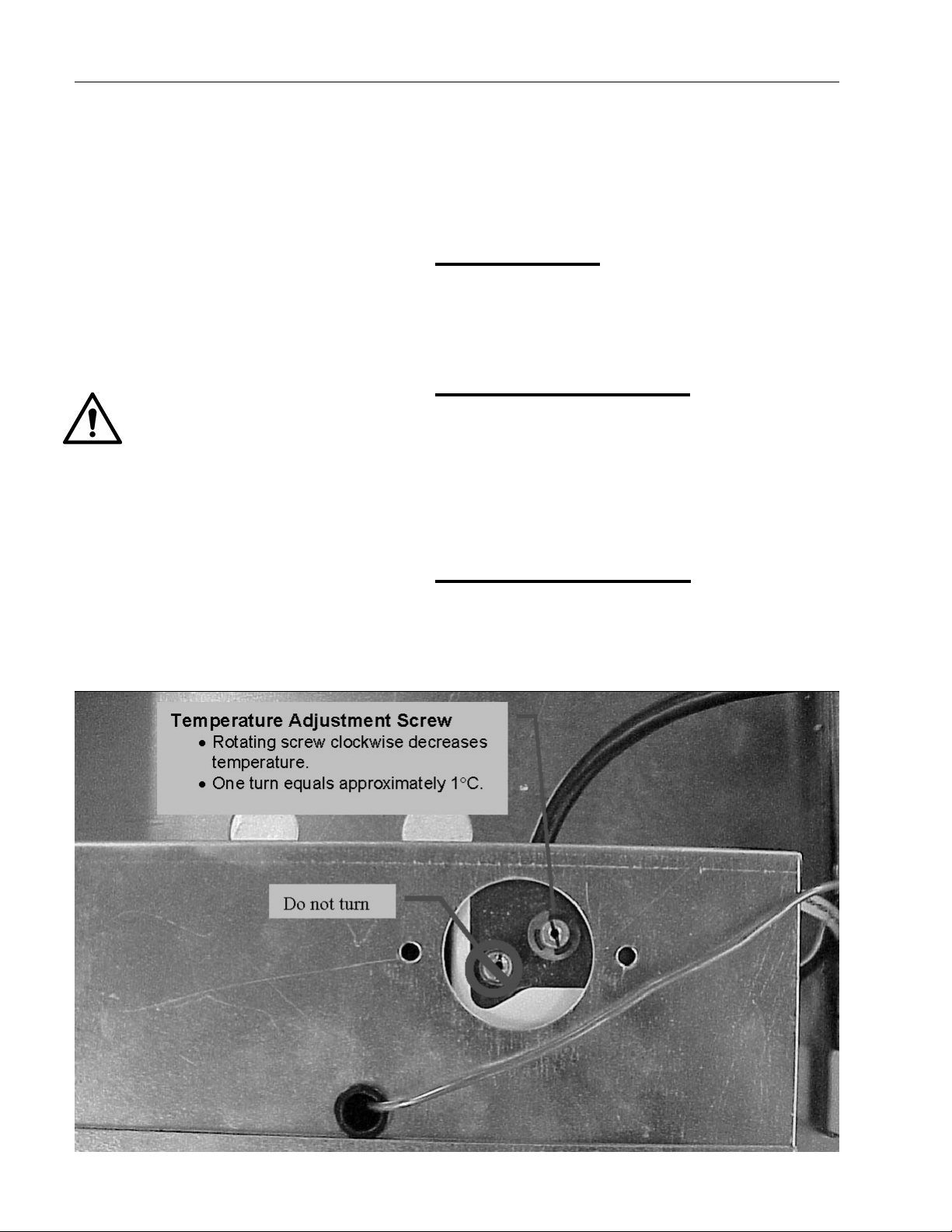

The thermostat is factory set to provide an interior
temperature of 38°F (4°C). To adjust the interior
temperature, there is a hole in the top of the case to allow
access the adjustment screw. For operation above an alti-
tude of 3000 ft., have the thermostat adjusted by a techni-
cian. See photo below.
Temperature Display
Interior temperature is indicated in degrees C by the solar
powered LCD display mounted in the header panel.
8
Operation
Warning
If the unit is tilted in excess of 30
degrees, do not apply electrical power
for a minimum of 12 hours.
Temperature Adjustment Instructions-
Model 50FREETSA FMS Refrigerator

Material Compatibility
The interior cabinet of this unit is constructed of anodized
aluminum. Care must be exercised when determining
which chemicals may be stored in the refrigerator and
freezer sections and which type of storage materials
should be employed.
ABS Plastic deteriorates when exposed to, but not limited
to, the following:
Aliphatic Hydrocarbons; Aromatic Hydrocarbons; Fully
and Partially Halogenated Hydrocarbons; Alcohols
Monohydric; Phenols; Ketones; Esters; Ethers; Organic
Acids (concentrates and dilute); and Concentrated
Oxidizing Acids. This information is taken from Plastics
Edition 8 Thermoplastics and Thermosets published by
D.A.T.A. and The International Plastics Selector, Inc.
Cordura Companies
9889 Willow Creek Road
P.O. Box 26637
San Diego, California 92126
Aluminum Alloys are susceptible to corrosion when
exposed to but not limited to most inorganic acids, bases
and salts with a pH outside of their passive range of pH 4
to 9. It is also important to recognize that the compatibili-
ty of aluminum alloys with mixtures of organic compounds
cannot always be predicted from their compatibility with
each of the compounds. For example, some aluminum
alloys are corroded severely in mixtures of carbon tetra-
chloride and methyl alcohol, even though they are resist-
ant to each compound alone. This information is taken
from Corrosion and Corrosion Protection Handbook
Second Edition
Published by
Marcel Dekker, Inc.
270 Madison Ave.
New York, NY 10016
9
OPERATION

This table is intended to assist in resolving user-correctable Refrigerator problems by relating symptoms to
their likely causes. If service beyond the scope of this table is required, contact Customer Service at
1-800-438-4851.
10
Troubleshooting
Action Symptom
Does Not Run
Probable Cause
Unit Unplugged Plug in Unit
Blown fuse or tripped
circuit breaker
Check fuse or circuit breaker at
breaker box
Runs Continuously Frost buildup on refrigeration coils Defrost unit
Clicking Sound Disconnect power and call
for service.
The compressor is equipped
with a thermal protector. This
device shuts off the
compressor when it
becomes too hot. A clicking
sound occurring about
every 30 seconds indicates
this protector is working
Insufficient Cooling Thermostat set too high
Condenser coil dirty
Unit frosted
Reduce thermostat setting
Clean condenser coil with a vacuum
cleaner
Defrost unit

Cabinet Cleaning
The cabinet interior should be cleaned frequently. Any
spilled liquid should be wiped off immediately. Stains
resulting from some spills can be permanent if not quickly
removed. The most convenient time to clean the interior is
after defrosting. The cabinet exterior should be cleaned
occasionally. A mild detergent and lukewarm water or a
solution of bicarbonate of soda (1 tablespoon per gallon of
water) is recommended for cleaning the interior and
exterior of the cabinet. All surfaces should be rinsed and
thoroughly dried.
Condenser
The condenser coil is located behind the header panel.
This should be cleaned at least once a year. Disconnect
the refrigerator’s electrical power. Remove the header
panel and vacuum the condenser coil to remove any dirt
build-up that may have accumulated there.
11
Maintenance
Caution
Do not use any type of abrasive
such as steel wool, or fluids such as
gasoline, Naphtha, and thinner.
These materials could be harmful to
aluminum, plastic materials, door
gasket, and painted surfaces.
Warning
When servicing the unit, disconnect
from the electrical power source.

One Year Limited Warranty
This Thermo Scientific product is warranted to be free of defects in materials and workmanship for one (1)
year from the first to occur of (i) the date the product is sold by the manufacturer or (ii) the date the product is
purchased by the original retail customer (the “Commencement Date”). Except as expressly stated above, the
MANUFACTURER MAKES NO OTHER WARRANTY, EXPRESSED OR IMPLIED, WITH RESPECT TO THE
PRODUCTS AND EXPRESSLY DISCLAIMS ANY AND ALL WARRANTIES, INCLUDING BUT NOT LIMITED
TO, WARRANTIES OF DESIGN, MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
An authorized representative of the manufacturer must perform all warranty inspections. In the event of a
defect covered by the warranty, we shall, as our sole obligation and exclusive remedy, provide free replace-
ment parts to remedy the defective product. In addition, for products sold within the continental United States
or Canada, the manufacturer shall provide free labor to repair the products with the replacement parts, but
only for a period of ninety (90) days from the Commencement Date.
The warranty provided hereunder shall be null and void and without further force or effect if there is any (i)
repair made to the product by a party other than the manufacturer or its duly authorized service representa-
tive, (ii) misuse (including use inconsistent with written operating instructions for the product), mishandling,
contamination, overheating, modification or alteration of the product by any customer or third party or (iii) use
of replacement parts that are obtained from a party who is not an authorized dealer of Thermo Scientific prod-
ucts.
Heating elements, because of their susceptibility to overheating and contamination, must be returned to the
factory and if, upon inspection, it is concluded that failure is due to factors other than excessive high tempera-
ture or contamination, the manufacturer will provide warranty replacement. As a condition to the return of any
product, or any constituent part thereof, to the factory, it shall be sent prepaid and a prior written authorization
from the manufacturer assigning a Return Materials Number to the product or part shall be obtained.
IN NO EVENT SHALL THE MANUFACTURER BE LIABLE TO ANY PARTY FOR ANY DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, OR FOR ANY DAMAGES RESULTING FROM
LOSS OF USE OR PROFITS, ANTICIPATED OR OTHERWISE, ARISING OUT OF OR IN CONNECTION
WITH THE SALE, USE OR PERFORMANCE OF ANY PRODUCTS, WHETHER SUCH CLAIM IS BASED ON
CONTRACT, TORT (INCLUDING NEGLIGENCE), ANY THEORY OF STRICT LIABILITY OR REGULATORY
ACTION.
Web: www.thermofisher.com
