Thermo Scientific 151R-AEV-TS User manual

1
ES Series Laboratory
Refrigerators User's Manual
Laboratory Refrigerator Range
Applicable models:
151R-AEV-TS
151R-AEW-TS
288R-AEV-TS
288R-AEW-TS

2
Contents
Intended Use and Special Warning 3
Before first use 3
Positioning of refrigerator 3
Transportation and moving of refrigerator 4
Energy saving tips 4
Important information 4
Product information 4
Product details 5
Controller overview 6
Viewing and resetting minimum and maximum temperatures 7
Changing the factory set point 8
Changing the temperature scale 8
Changing the remote alarm contacts 9
Alarms 10
Remote alarm contacts 10
Maintenance and Servicing 12
Defrosting 12
Cleaning 12
Reversing the door 13
Storage 14
Electrical Connection 15
Disposal 16
Troubleshooting 17
Warranty 18
Contact Information 18

3
Intended Use and Special Warning
This equipment is tested in compliance with established regulations and then shipped ready
for use. This equipment is intended for general purpose cold storage and is not to be used in
the presence of explosive gases or mixtures and / or close to sources with high magnetic or
electric fields. Not intended for flammable material storage.
If the equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Thank you for purchasing this ES Series cold storage equipment. Before you first use this
laboratory refrigerator please carry out the following actions:
•Check that the refrigerator has not been damaged in any way during transportation.
•If any damage is found it must be reported to your local dealer immediately
•Ensure all packaging has been removed, including cardboard, polystyrene and any
tape used to hold shelves in place for transportation.
•The refrigerator has been cleaned prior to despatch; however, we advise that it should
be cleaned using lukewarm water containing a mild detergent and a soft cloth.
•We recommend that the refrigerator should be left in an upright position for 24 hours
prior to switching on.
•This equipment is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the equipment by a
person responsible for their safety.
•Children should not be allowed to play with the equipment.
Positioning and safely using your ES series refrigerator
•Warning to reduce the risk of the unit falling over, do not tip beyond 10 degrees
•Make sure the equipment is placed in a dry, well ventilated site, away from heat
sources.
•The equipment must be placed on a level surface. If necessary, adjust the feet on the
product so the equipment remains level during operation.
•The equipment should have sufficient clearance around it to provide adequate
ventilation – 10cm at each side, 6cm at the rear and 2.5cm at the top.
•Before ANY maintenance activity, pull the plug out of the socket by gripping the
plug, DO NOT pull on the plug cord.
•DO NOT use double-wire extension cords. If an extension cord is necessary make
sure it is a cord, which possess a protection safety certificate.
•If the main power supply cord is damaged, it should be replaced by a qualified service
engineer.
•DO NOT attempt any repairs to the equipment yourself (apart from those highlighted
in the Maintenance and Service Section). Repairs carried out by someone without the
relevant training are putting their personal safety at risk and will invalidate your
warranty.
•WARNING: this equipment is only to be operated by authorised personnel or
personnel who have correct knowledge on how the equipment operates.

4
Transporting and moving your ES series refrigerator
The refrigerator must always be moved in the vertical position. The cabinet must not be tilted
anymore than 10°. In the event that the cabinet is tilted more than 10°, the power supply must
not be connected until the equipment has stood upright for at least 24 hours.
Energy saving tips
This equipment is cooled by energy-efficient R600a refrigerant. To keep running costs as low
as possible always:
•Position the equipment away from heat sources.
•Make sure the air can circulate freely around the equipment, don’t block ventilation
grid.
•Ensure that products being stored are below room temperature upon entry.
•Make sure the door is opened as little as possible whilst in use and closed as quickly
as possible to prevent unnecessary temperature fluctuations.
Important Information
The refrigerator contains environment-friendly, non ozone depleting refrigerant R600a. As
R600a is a flammable gas, it is important to avoid damage to the refrigeration circuit during
transport and installation. If the refrigeration circuit is damaged, avoid using a naked flame in
the vicinity of the refrigerator and connecting power to the refrigerator. Also make sure there
is good ventilation in the room. If you are in doubt please contact your supplier.
– WARNING: Keep ventilation openings, in the equipment enclosure or in the built-in
structure, clear of obstruction.
– WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
– WARNING: Do not damage the refrigerant circuit
Product Information
This refrigerator has been designed and built with the intention of the product being used
within a Laboratory and is designed to store contents between +1°C to +10°C.
Please see below for specific product information:
Model Height
(mm) Width (mm) Depth (mm) Weight (Kg) Refrigerant type Ambient/Room working
temperature
No. of
shelves Door Type
151R 845 595 635 36 R600a +10°C
to
+32°C
3Solid
288R 1565 595 670 58 3 Solid

5

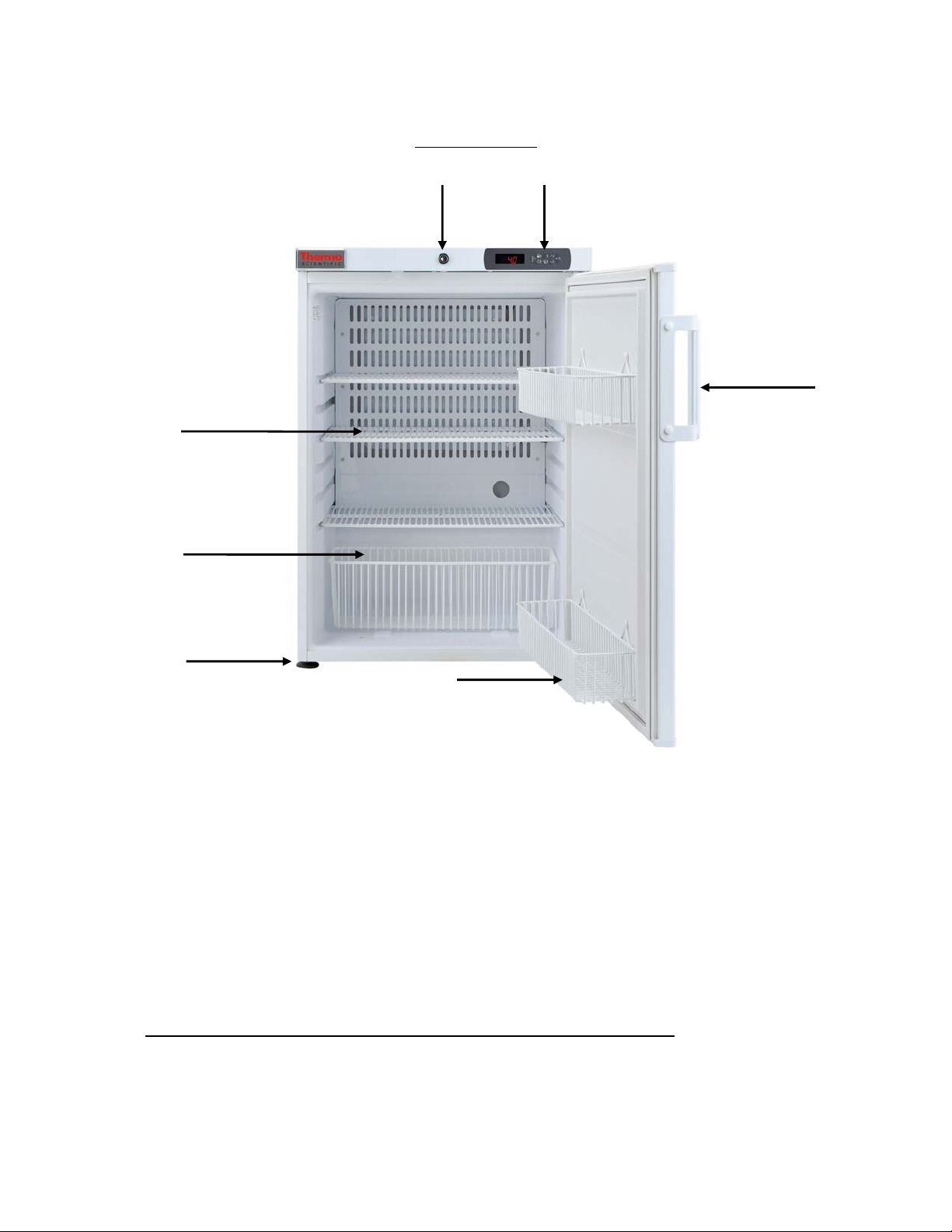

Product details
1. Lock
2. Electronic Controller
3. Door Handle
4. Wire Shelf
5. Wire Basket
6. Adjustable foot (2 at front of equipment)
7. Door furniture
There are also 2 roller castors at the rear of the equipment to ease product movement.
Please contact your local representative for information on spare parts
1 2
3
4
5
6 7

6
Controller overview and operation
1. Menu
2. Lock keypad
3. Maximum temperature / Up
4. Power
5. Mute
6. Minimum temperature / Down
7. Set / Enter
1 2 3
45 6 7

7
Viewing & resetting minimum and maximum temperatures

8
Changing the factory set point
(the set point is the point at which the refrigerator normally holds the temperature at; in rare
circumstances such as high/low room temperatures it may be necessary to adjust this slightly.
Changing the factory setting is not recommended.)
Function Press Holdbutton(s)
downfor Examplescreen
Tochangethesetpoint 3seconds
followedby Once
followedby 1second
(currentsetpoint)
followedby /
(Increase/Decrease)
upto10times
followedby 1second
Note:setpointcanbeincreasedordecreasedin+/‐0.1°incrementsbyaMAXIMUMof1°C
Changing the temperature scale between Celsius (°C) and Fahrenheit (°F)
Function Press Holdbutton(s)
downfor Examplescreen
Tochangetemperaturescale 3seconds
followedby Twotimes
followedby 1second
(currentscale)
followedby /Once
followedby 1second

9

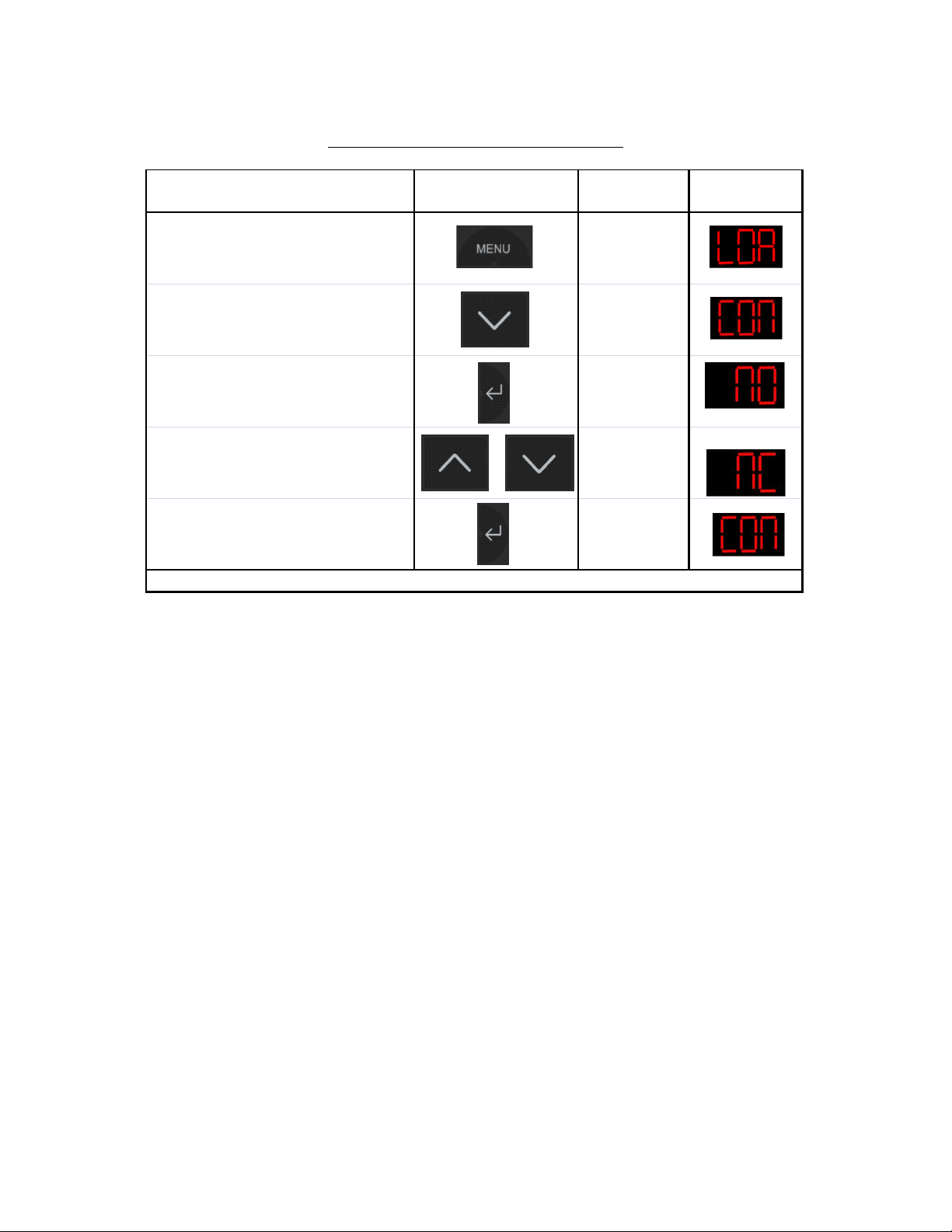

Changing the remote alarm contacts
Function Press Holdbutton(s)
downfor Examplescreen
Tochangethealarmcontactstate 3seconds
followedby Threetimes
followedby 1second
(currentstate)
followedby /Once
followedby 1second
Note:NO=NormallyOpen,NC=NormallyClosed

10
Warning Alarms
This refrigerator has been designed to provide both an audible and visual alarm should any of
the following situations occur:
•Door is left open for a set period
•Internal air temperature goes outside the set parameters, either too high or too low
•Internal ‘load’ temperature goes outside the set parameters, either too high or too low
Should one of these alarms occur this can be muted by pressing on the controller.
The ‘load’ temperature is a simulated temperature which is intended to provide an indication
of the temperature of the refrigerator’s contents (e.g. a 5ml sample). The temperature of a
refrigerator’s contents will change more slowly (up or down) than the air temperature within
that refrigerator should there be a fault or the door is left open.

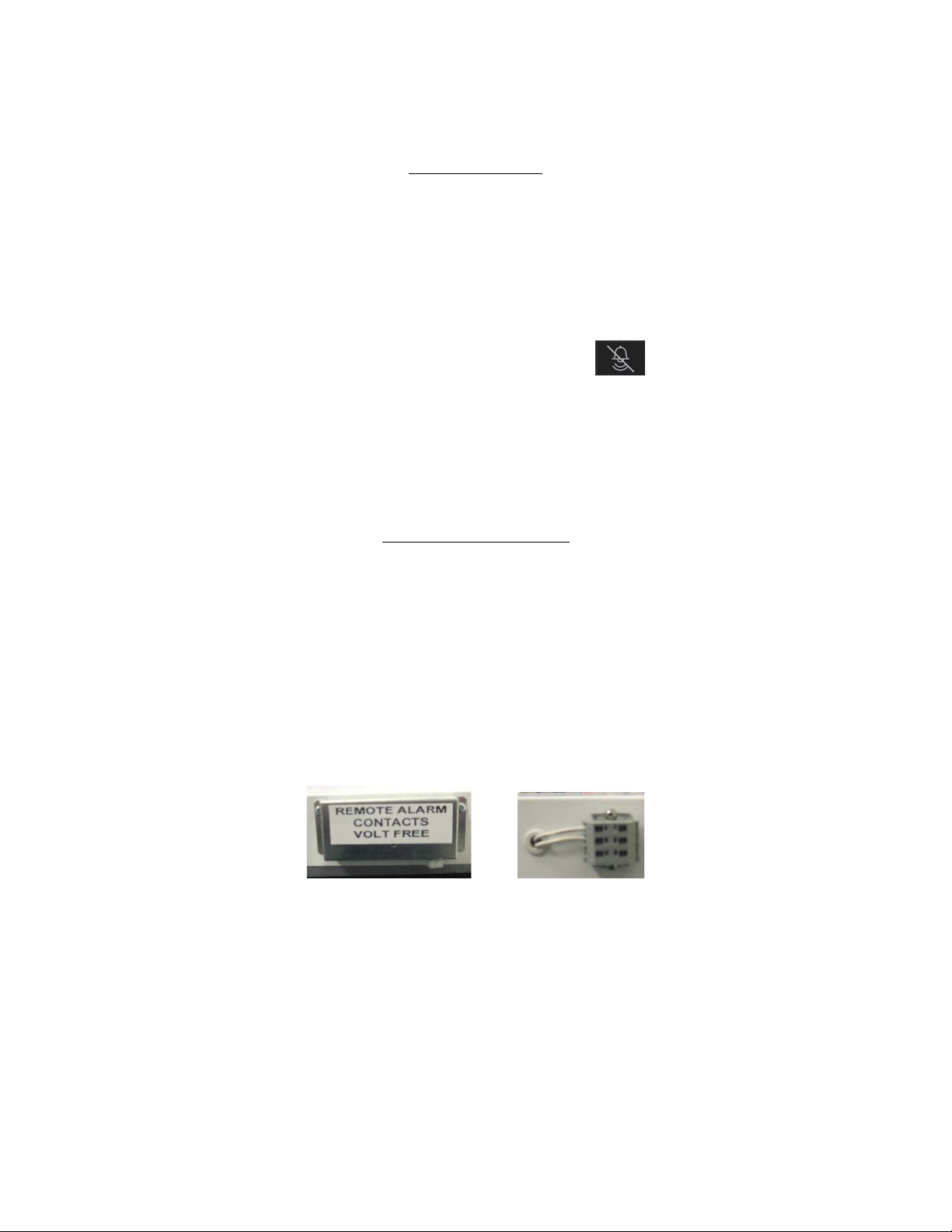

Remote alarm contacts
All ES series laboratory refrigerators include remote alarm contacts and these terminal
contacts enable the user to connect to a remote control station; these contacts can be found on
the rear of the cabinet. WARNING: These contacts must only be accessed by a competent
electrician.
In order to use these contacts the following must be carried out:
1. The refrigerator MUST be disconnected from the power supply before removing the
terminal cover.
2. Unscrew the cover (figure 1) on the right hand side of the rear of the cabinet to expose
the connectors (figure 2).
3. Use the right hand outer positions that correspond to the left hand cable positions for
your connections using 0.75mm cable stripped to 0.6mm.
4. Depress the larger slot above the cable entrance on the right hand side with a small
electrical screwdriver. This allows the cable to be inserted into the slot directly below.
In the event of a door open alarm, high or low temperature alarm or power failure a remote
relay will switch within the controller to make an electrical circuit.
Figure 1 Figure 2

11
Please note that the contacts supplied are voltage free. A voltage of between 12V DC and
230V AC can be connected at the contacts. The maximum load must not exceed 2A. The
minimum power rating is 500mA / 12V AC.
In a normal condition (i.e. no alarm) the relay OPENS the contact for the remote alarm
facility.
In an alarm condition the relay CLOSES the contact for the remote alarm facility.

12
Maintenance and Service of your Thermo Refrigerator
Defrosting
All laboratory refrigerators feature automatic defrosting and, in normal conditions, means
that no manual defrosting is required. However, in certain conditions (e.g. when the
refrigerator is very full or when any new items of are stored in the refrigerator) frost may
form on the rear wall of the equipment as the compressor must run for long periods of time.
As automatic defrosting takes place while the compressor is not running the refrigerator may
not defrost completely before the compressor restarts. In these instances some manual
defrosting may be required.
Before manually defrosting the cabinet, make sure the power lead is disconnected from the
mains. Any loose frost found on the evaporator can be removed carefully using a wooden or
plastic scrapper.
WARNING: Do not use any knives or sharp metallic objects to remove frost.
Alternatively a non-scheduled defrost can sometimes be carried out as follows:
Cleaning
•Your refrigerator should be cleaned regularly.
•Before cleaning you MUST switch off and disconnect your refrigerator from the
power supply.
•The whole refrigerator except the door gasket can be cleaned with mild cleaning
detergent.
•The door gasket should be cleaned with water only and wiped dry.
•The handle should be cleaned regularly with soap and water.
•Remove shelves/basket/door furniture and wipe with a soft cloth. DO NOT put then
in a dishwasher.
•Detergents containing abrasives or acids are not suitable for the cleaning.
•When all cleaning has been completed and accessories replaced, reconnect the plug
with dry hands.
Function Press Holdbutton(s)
downfo
r
Examplescreen
Tocarryoutanon‐scheduleddefrost 3seconds
followedby Fourtimes
followedby 1second
followedby 1second
N.B.Thisdoesnotreplacetheautomaticdefrostfunctiononreleva ntmodels

13
Reversing the door
In order to reverse the door please follow the below instructions. This should be carried out
by 2 people for safety purposes.

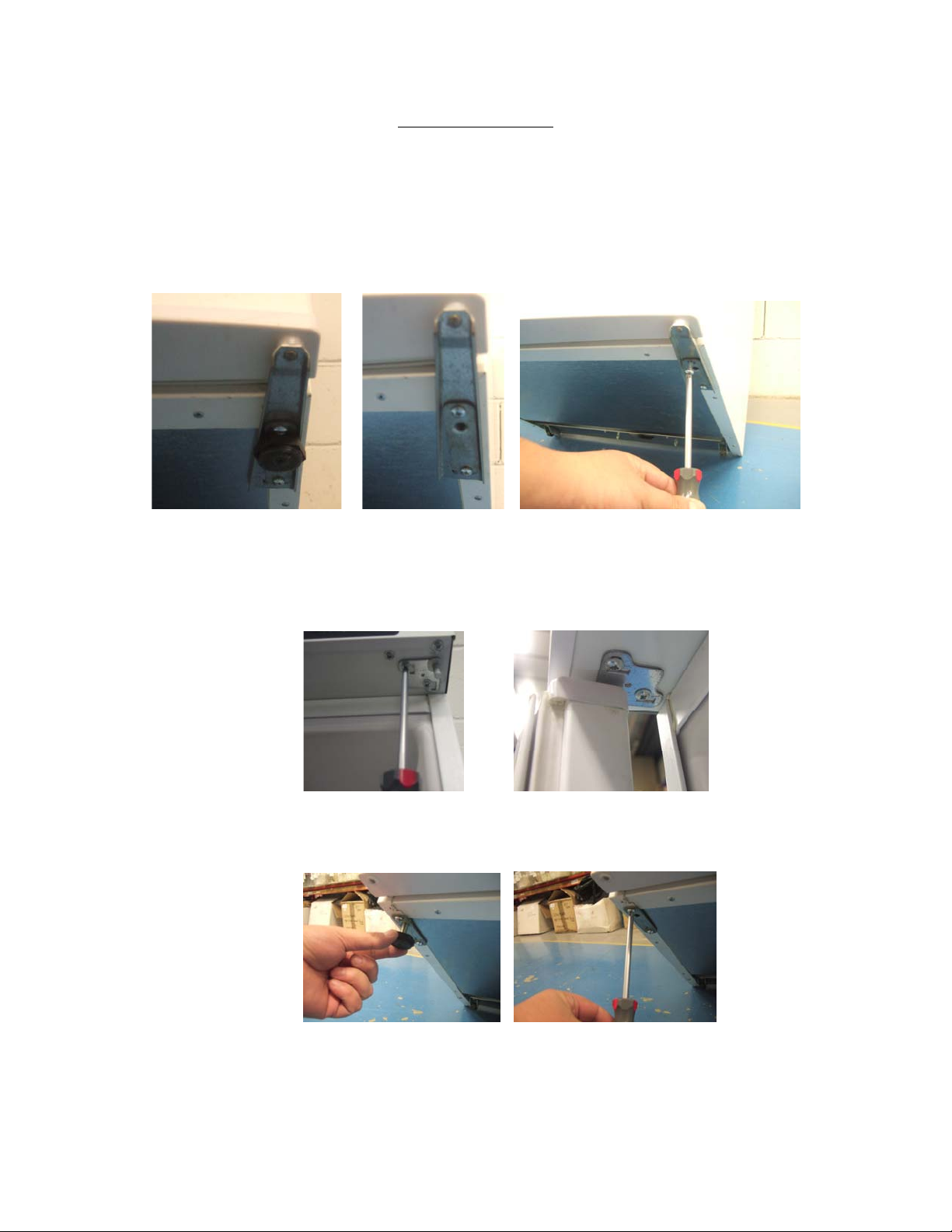

1. Tilt the refrigerator backwards by 45° and lean on a vertical, hard surface such as a wall.
2. Remove the feet from the bottom, right hand hinge (figures 1 and 2).
3. Remove the screws from the hinge (figure 3) and remove hinge.
4. Pull the door from the bottom to remove from the refrigerator.
5. Remove the top, right hand hinge (figure 4).
6. Install the hinge on the top, left hand side (figure 5).
7. Remove the bottom, left hand feet and base plate (figures 6 and 7).
Figure 1 Figure 2 Figure 3
Figure 4 Figure 5
Figure 6 Figure 7

14
8. Insert the door into the top, left hand hinge (figure 8).
9. Install the bottom, left hand hinge (figure 9) and screw in the feet.
10. Add the feet and base plate to the bottom, right hand side.
11. Remove the caps from the screws holding the handle in position.
12. Remove the handle screws.
13. Remove the caps on the opposite side of the door.
14. Screw the handle into position and add the caps to cover the screws.
Storage
If the refrigerator is to remain unused for a period of time (e.g. during refurbishment work)
switch the equipment off by pressing the power button and disconnect the power
supply to the cabinet at the wall socket. It is also advised that the equipment is unplugged
from the power supply. Empty, defrost and clean the refrigerator. Make sure the door is left
slightly ajar to prevent any bad odours forming within the cabinet.
Figure 8 Figure 9

15
Electrical Connection
The equipment is intended for connection to alternating current. The connection values for
voltage (V) and frequency (Hz) are declared on the name plate in the cabinet. Power must be
connected via a wall socket with a switch. It is strongly recommended that the wall socket is
easily accessible. All earthing requirements stipulated by the local electricity authority. The
cabinet plug and wall socket should give correct earthing. If in doubt, contact your local
supplier or an authorised electrician.
WARNING: THIS EQUIPMENT MUST BE EARTHED
The flexible cord (mains lead) fitted to this equipment has three cores for use with a 3-pin 13
amp plug. If a BS 1363 (13-amp) fused plug is used it should be fitted with a 13-amp fuse.
The cores in the mains lead are coloured in accordance with the following code:
GREEN AND YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
These colours might not correspond with the colour markings identifying the terminals in
your plug.
Note:
First Connection to the mains
The equipment provides information about the higher temperature (Hi alarm) till the moment
of cooling.
The alarm is signalised by a sound signal and “Hi” caption on the display. To cancel the
alarm, press any button.
Until the moment of cooling, the alarm is repeated every 15 minutes. Such an operating mode
is normal until the required temperature settings are reached.

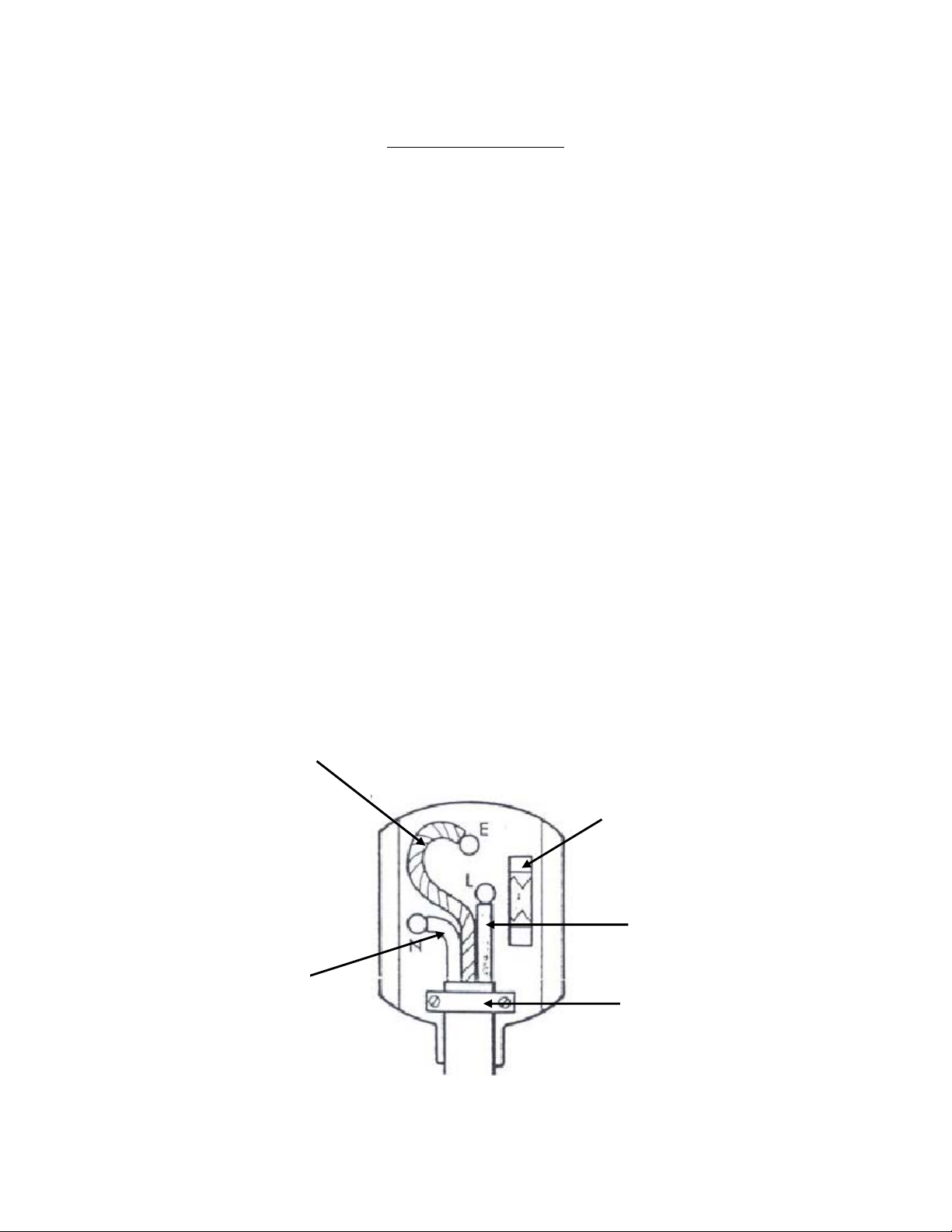

Green & Yellow
Blue
Brown
13 Amp Fuse
Cord clamp

16
Disposal of your refrigerator
When disposing your refrigerator do not take it to regular municipal waste containers.
Instead, take it to an electrical/electronic waste recycling and re-use centre. A relevant
label has been placed on the refrigerators packaging (see below). The product has been
manufactured of recyclable materials. Ask your local environmental care authority for
information concerning location of such facilities.

17
Troubleshooting
PROBLEM REASON SOLUTION
The equipment does
not work
A gap in the electric
system circuit
1. Make sure the plug is properly
inserted into the socket
2. Make sure the socket is not faulty
3. Make sure the power supply cord is
not damaged
The compressor hardly
ever activates 1. Check to see if the ambient temperature is below +10C
The temperature
inside the equipment
is not low enough
(the compressor
operates
continuously)
The door doesn't shut tight
or is opened too often
1. Rearrange the products so they don't
hamper the door
2. Shorten the time the door is open for
The ambient temperature
is above that which has
been outlined in the
product specification
1. Check that the equipment is
operating at an ambient temperature
that meets the product specification
Air circulation at the back
of the equipment is
hampered
1. Move equipment further away from
the wall
The equipment is placed
such that it is subject to
constant sunlight, or
another heat source e.g.
Radiator
1. Move the equipment to a different
place away from heat sources or
direct sunlight
Water collects at the
bottom part of the
refrigerator
The contents touch the
back wall of the cabinet 1. Move the products so they aren't in contact with the back wall
The drain opening is
clogged 1. Take the cleaning plug and unclog the condensate opening
The equipment
makes too much
noise
The equipment is not level 1. Place the equipment on an even
surface or use adjustable feet
The equipment is touching
another object 1. Reposition the equipment so it is detached from any other objects

18
WARRANTY
Thermo Scientific ES Series
Refrigerators and Freezers
European Warranty Policy
Thermo Scientific ES Series Refrigerators • European Warranty • 12 Months Full Warranty Parts and
Labor
During the first twelve (12) months from shipment, Thermo Fisher Scientific Inc, through its authorized Dealer or service organizations, will
at its option and expense repair or replace any part found to be non-conforming in material or workmanship. Thermo Fisher Scientific Inc
reserves the right to use replacement parts, which are used or reconditioned. Replacement or repaired parts will be warranted for only the
unexpired portion of the original warranty.
This warranty does not apply to damage caused by (i) accident, misuse, fire, flood or acts of God; (ii) failure to properly install, operate or
maintain the products in accordance with the printed instructions provided, (iii) causes external to the products such as, but not limited to,
power failure or electrical power surges, (iv) improper storage and handling of the products, (v) use of the products in combination with
equipment or software not supplied by Thermo Fisher; or (vi) installation, maintenance, repair, service, relocation or alteration of the
products by any person other than Thermo Fisher or its authorized representative. To obtain proper warranty service, you must contact the
nearest authorized service center or Dealer. Thermo Fisher Scientific, Inc’s own shipping records showing date of shipment shall be
conclusive in establishing the warranty period. At Thermo Fisher’s option, all non-conforming parts must be returned to Thermo Fisher
postage paid and replacement parts are shipped FOB Thermo Fisher’s location.
Limitation of Liability
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER WRITTEN, ORAL, OR
IMPLIED. NO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY. THERMO
FISHER DOES NOT WARRANT THAT THE PRODUCTS ARE ERROR-FREE OR WILL ACCOMPLISH ANY PARTICULAR
RESULT.
THERMO FISHER SHALL NOT BE LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT
LIMITATION, DAMAGES TO LOST PROFITS OR LOSS OF PRODUCTS.
CONTACT INFORMATION
For technical or sales support please contact your local distributor or Thermo Scientific at the
following numbers:
Europe: Austria [phone], Belgium [phone], France [phone],
Germany national toll free 08001-536 376,
Germany international [phone], Italy [phone]-254-375, Netherlands
[phone], Nordic/Baltic countries [phone],
Russia/CIS [phone], Spain/Portugal [phone], Switzerland [phone]
12, UK/Ireland [phone]

19
Laborkühlschränke der ES-Reihe
- Benutzerhandbuch
Laborkühlschrankmodelle
Zutreffende Modelle:
151R-AEV-TS
151R-AEW-TS
288R-AEV-TS
288R-AEW-TS

20
Inhalt
Vorgesehene Nutzung und besondere Warnhinweise 21
Vor der ersten Nutzung 21
Positionierung des Kühlschranks 21
Transport und Bewegen des Kühlschranks 22
Energiespartipps 22
Wichtige Informationen 22
Produktinformationen 23
Einzelheiten zum Produkt 23
Regler-Übersicht 24
Anzeige und Neueinstellung der Mindest- und Höchsttemperatur 25
Ändern der Werksvoreinstellung des Sollwerts 26
Ändern der Temperaturskala 27
Ändern der Fernalarmkontakte 27
Alarme 28
Fernalarmkontakte 28
Wartung und Service 30
Abtauen 30
Reinigung 30
Türanschlagumsetzen 31
Lagerung 32
Elektrischer Anschluss 33
Entsorgung 34
Fehlerbehebung 35
Garantie 36
Kontaktangaben 36
