Thermofilm Heatstrip THH-AU Series Instruction Manual

R A D I A N T O U T D O O R H E A T E R S
OPERATION, INSTALLATION AND MAINTENANCE MANUAL
HEATSTRIP® Indoor
The heater that is a design f e a ture!
R A D I A N T O U T D O O R H E A T E R S
HEATSTRIP® Class ic ( T H H -AUL)
The heater that is a design f e a ture!
OPERATION, INSTALLATION AND MAINTENANCE MANUAL

2
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
1 Read all instructions before installing or using this heater.
2 This heater is hot when in use . To avoid burns, do not let bare skin touch hot surfaces.
Keep combustible materials, such as furniture, pillows, bedding, papers, clothes,
etc. and curtains at least feet (0.9mm) from the front of the heater and keep them away
from sides and rear restrictions apply to location dedicated heaters only.)
3 Extreme caution is necessary when any heater is used by or near children or invalids
and whenever the heater is left operating and unattended.
4 Do not operate any heater after it malfunctions. Disconnect power at service panel and
have heater inspected by a reputable electrician before reusing .
5 To disconnect heater, turn controls to off, and turn off power to heater circuit at main
disconnect panel ( or operate internal disconnect switch if provided)
6 A heater has hot and arcing or sparking parts inside. Do not use it in areas where gaso-
line, paint, or flammable vapours or liquids are used or stored.
7 Use this heater only as described in this Manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons .
“SAVE THESE INSTRUCTIONS”

INSTALLATION 3
1 This equipment shall be installed only by qualified personal who are familiar with the
construction and operation of the apparatus and hazard involved.
2 The heater is fitted with an electrical connection box and should be connected as a fixed
installation by a licensed electrical professional in accordance with the relevant electrical
code.
3 Within USA, electrical installation shall be made in accordance with the National Electri-
cal code.
4 Within Canada, electrical installation shall be made according to the provisions of section
62 of the Canadian electrical code Part 1.
5 This appliance must be grounded.
6 An over current protection device (or circuit breaker) is required for proper installation.
The rating of the device should be 150% of the rating of the product.
7 The THX series heaters are designed for domestic/ commercial heating applications
within indoor or outdoor area and should not be used for any other purpose. Any other use
not recommended by the manufacturer may cause fire, electric shock or injury to persons.
8 Before commencing installation make sure the electrical supply voltage is the same as
that shown on the rating plate of the heater.
9 The heater must be mounted at least 6 feet(1.8m) above ground level when installed in
USA and 8 feet (2.4) above ground level when installed in Canada . For other clearances

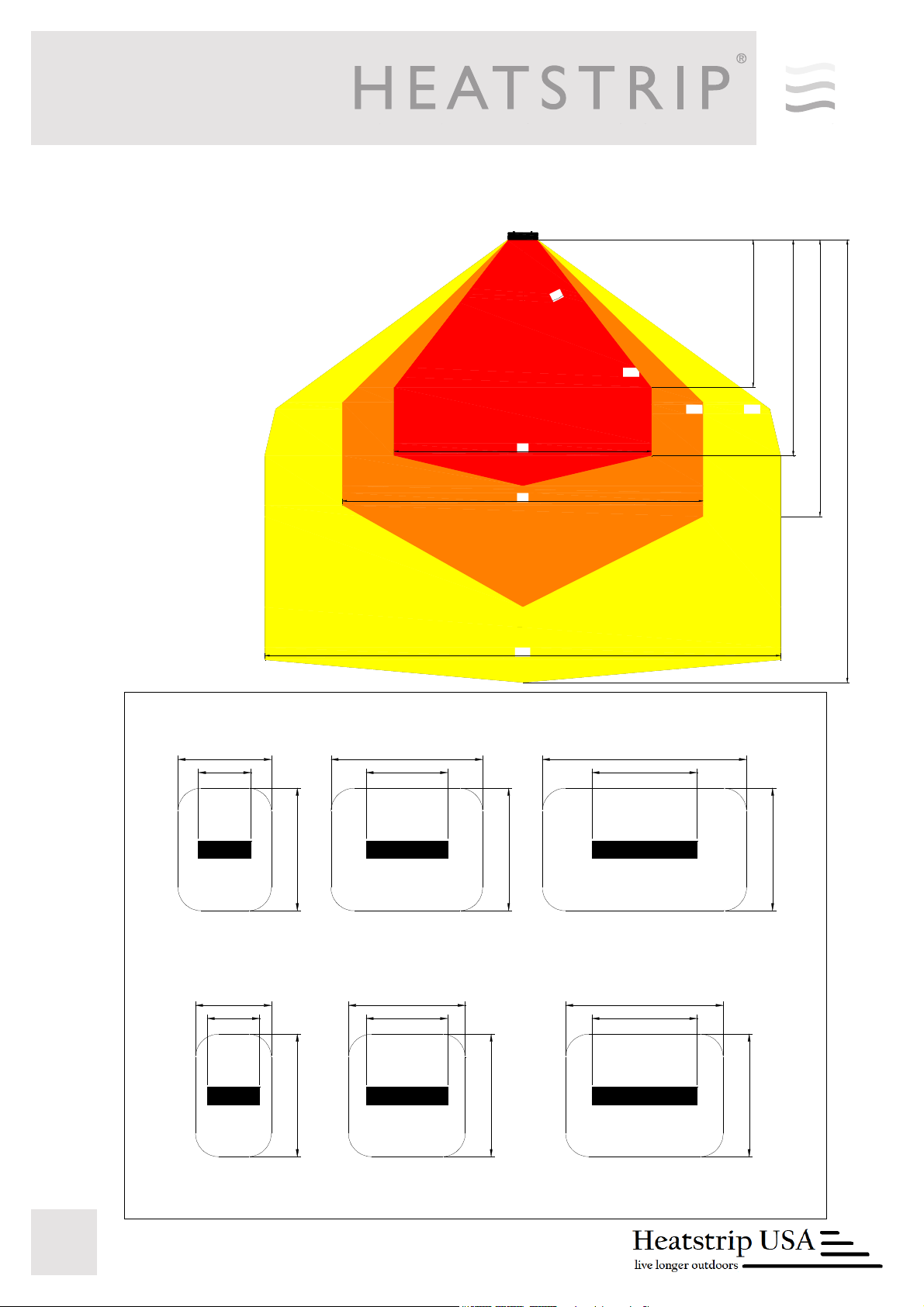

please refer to the diagram included in these instructions.
10 Do not use heater in areas where gasoline, paint or flammable liquids are used or
stored.
11 The heater is not intended for use in bathrooms, laundry areas or similar indoor areas.
Never locate heater where it may fall into a bathtub, pool, spa or other water container.
12 Do not operate the heater after the heater malfunctions, or has been dropped or dam-
aged in any manner. Return heater to authorised service facility for examination or me-
chanical adjustment or repair.
13 There are no user serviceable parts inside the heater any servicing other then cleaning
of the heater should be performed by an authorised service representative
CAUTION:
High temperature risk of fire, keep electrical cords, drapery, furnishings and other
Combustibles At least feet (0.9m) from front of heater and away from side and rear of
heater.

R A D I A N T O U T D O O R H E A T E R S
4
Product Overview Rev B MAR14
Why choose Heatstrip
®
electric radiant heaters for your outdoor or hard-to-heat indoor area?
As there is typically constant air movement in an outdoor or open indoor area, many conventional patio heaters rely on
convection heating which works by heating the surrounding air. This can be quite impractical for these areas, as this
heated air can easily blow away with natural air movement. Radiant style heaters transfer heat directly to objects through
infra-red waves.
Whilst convection heaters heat the air in between objects, radiant heaters heat the surface of the objects themselves.
HEATSTRIP
®
electric radiant heaters are more effective within an outdoor or uninsulated indoor area because they
provide targeted warmth directly to the people and objects in their path.
Discrete, stylish heating for undercover outdoor and indoor open areas
Using the radiant heating principle, HEATSTRIP
®
can provide effective and energy efficient comfort heating for undercover
outdoor and indoor open areas. HEATSTRIP
®
has successfully enabled many entertainment venues such as restaurants,
pubs and clubs to utilise their outdoor dining areas day and night, through all seasons. Within your workplace or business,
HEATSTRIP
®
can provide comfort heating for designated outdoor smoking and leisure areas, as well as for workstation
spot heating in factories, warehouses and showrooms. Within your home, HEATSTRIP
®
can provide comfort heating for
undercover alfresco dining and BBQ area, patios, verandas, courtyards and balconies.
Subtle, minimalist design
The stylish, slimline black face of the HEATSTRIP
®
does not emit light or glow when in use, blending elegantly into your
décor. Ceiling, wall and umbrella mounting options ensure that your valuable floor and table space is not wasted.
APPLICATION THH
Indoor insulated areas, classrooms, offices, bathrooms, wet areas, drying rooms √
Outdoor under cover, café, veranda, patio, balcony ceiling height 3m or less √
Indoor open area, warehouse, factory, production areas, sports facilities √

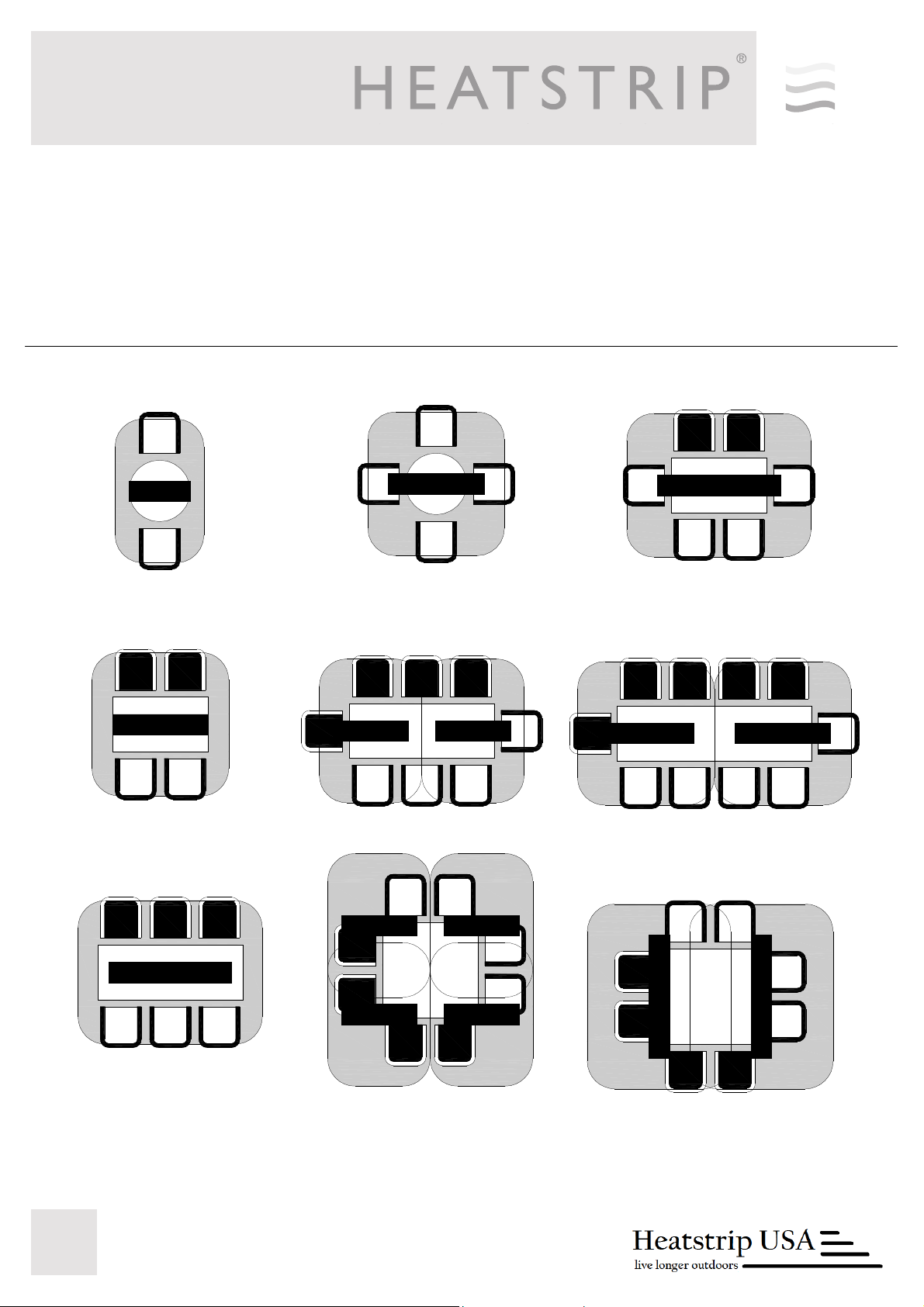

Indoor spot heating, above tables, assembly areas √
This is a general guide only, please refer to the Product Manual for each product, for more information.
HEATSTRIP
®
Classic (THH models) is a premium high temperature heater and is primarily used for outdoor rooms where
there is 1,2 , or 4 enclosed sides, with an ideal mounting height of 82” to 105” (2.1 m to 2.7m.)

R A D I A N T O U T D O O R H E A T E R S
5
Efficient, cost effective electric heating
The innovative design of the HEATSTRIP
®
enables comfortable and even heat dispersion from the surface with minimal
operating costs.
Design flexibility

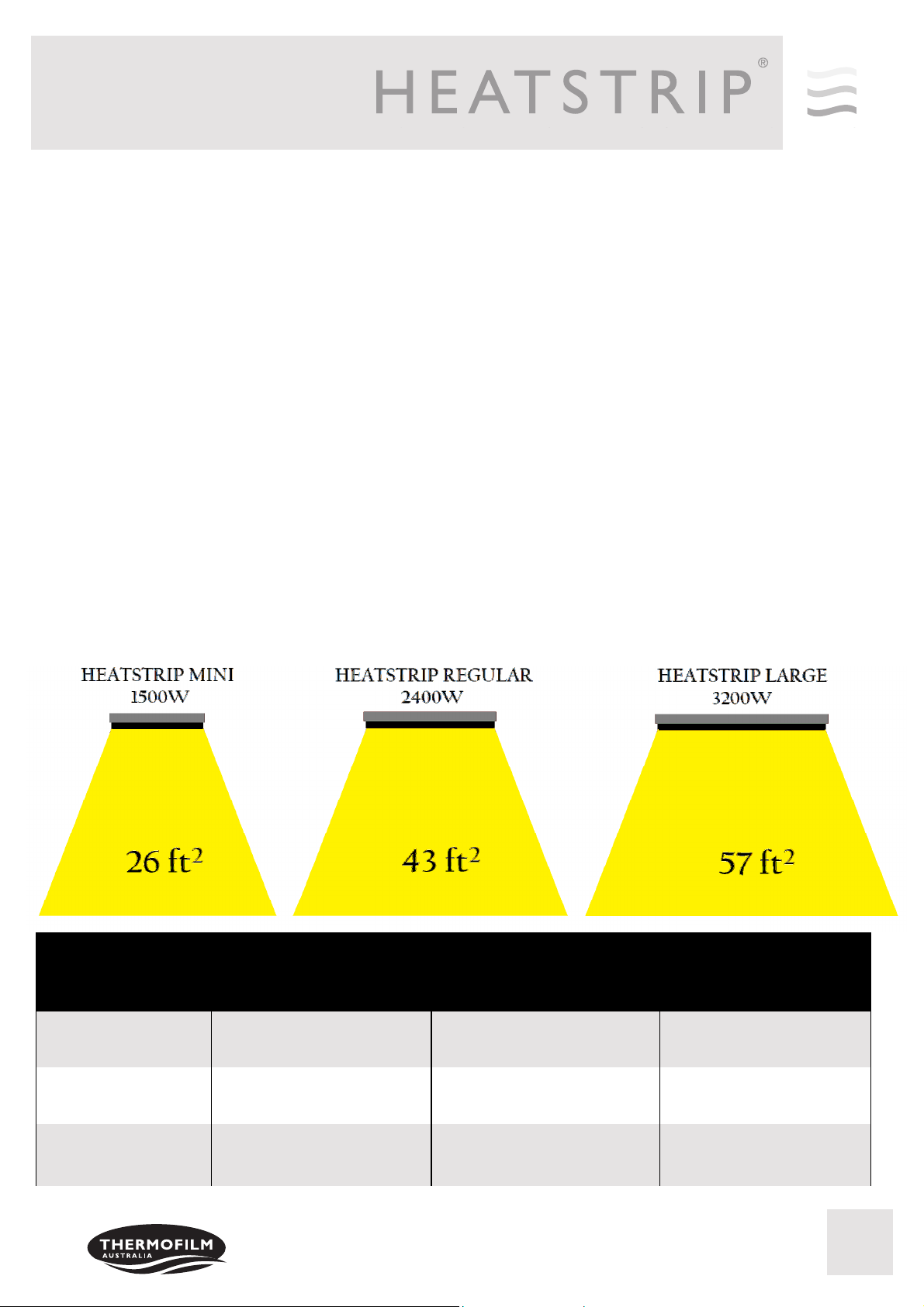

Three HEATSTRIP
®
models are available, ensuring the heating requirements of any undercover outdoor or open
indoor area is possible. Brackets for direct ceiling or wall/ceiling angled mounting are supplied as standard.
Optional HEATSTRIP
®

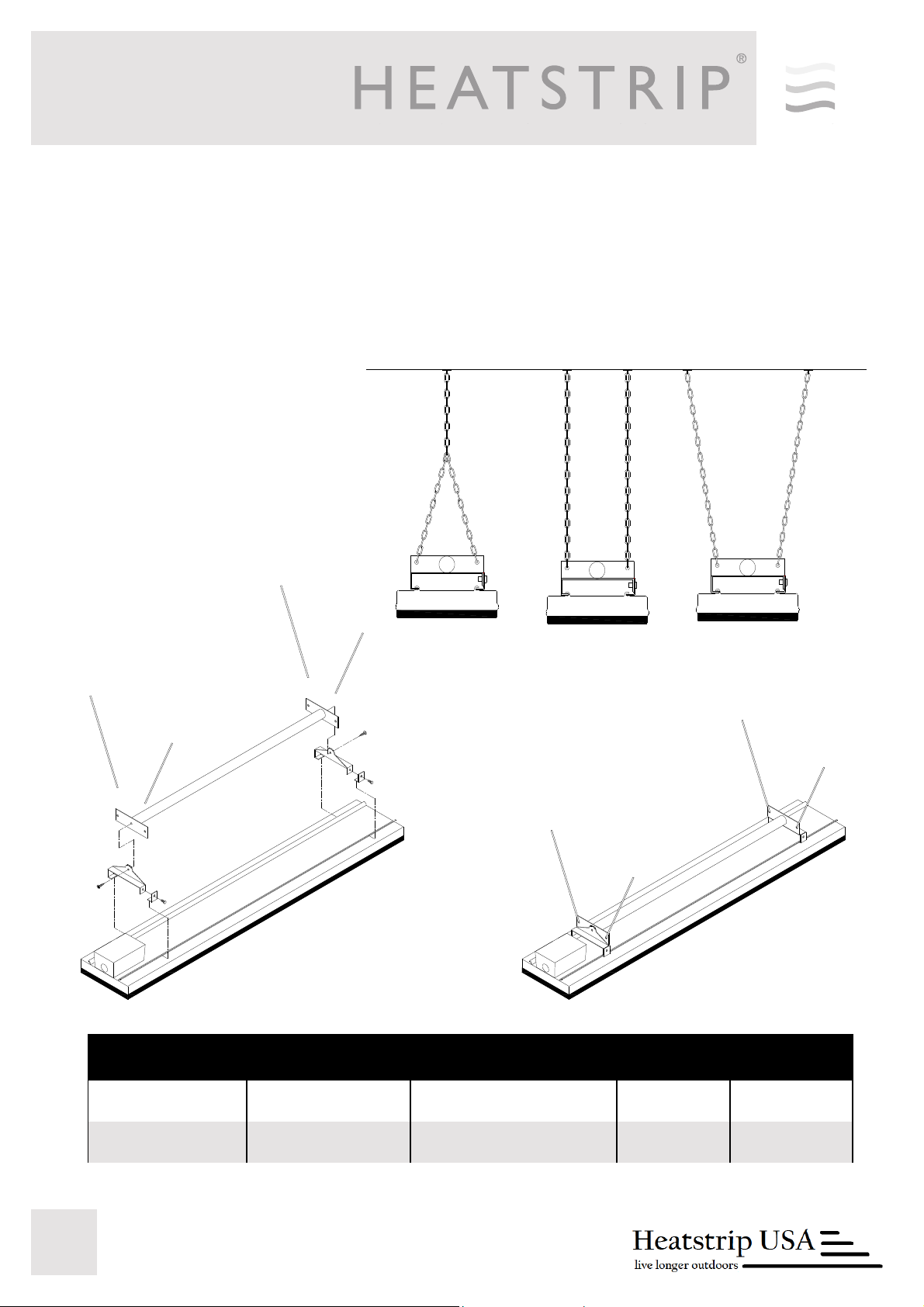

accessories include beam or fixed umbrella mount brackets, extension mount brackets,
chain suspension brackets, twin mount brackets and flush mounting enclosures.
Minimal maintenance
The HEATSTRIP
®
incorporates no internal moving parts ensuring quiet and virtually maintenance free operation.
Australian made
Designed, engineered and assembled in Australia the HEATSTRIP
®
,is fully backed by a 12 month warranty.
Stylish design— The Heater that is a Design Feature!
The attractive HEATSTRIP
®
comes with a standard black face and anodised alloy rear casing.
Easy to use
The standard HEATSTRIP
®
is controller by a simple on/off operation, either when plugged directly into a power point, or
hard-wired via a wall mounted on/off switch. The unit takes approximately 15 minutes to heat up to maximum temperature
and approximately 0 minutes to cool down, depending upon the ambient temperature. Please don’t forget to turn it off.
