Thetford S OG72000Z SD Operating instructions

INS 1002Z– Issue 3
USER AND INSTALLATION INSTRUCTIONS
PLEASE READ THOROUGHLY AND KEEP FOR FUTURE REFERENCE
FOR USE IN AUSTRALIA
THETFORD AUSTRALIA PTY LTD
41 LARA WAY CAMPBELLFIELD VIC
TEL: [phone] FAX: [phone]

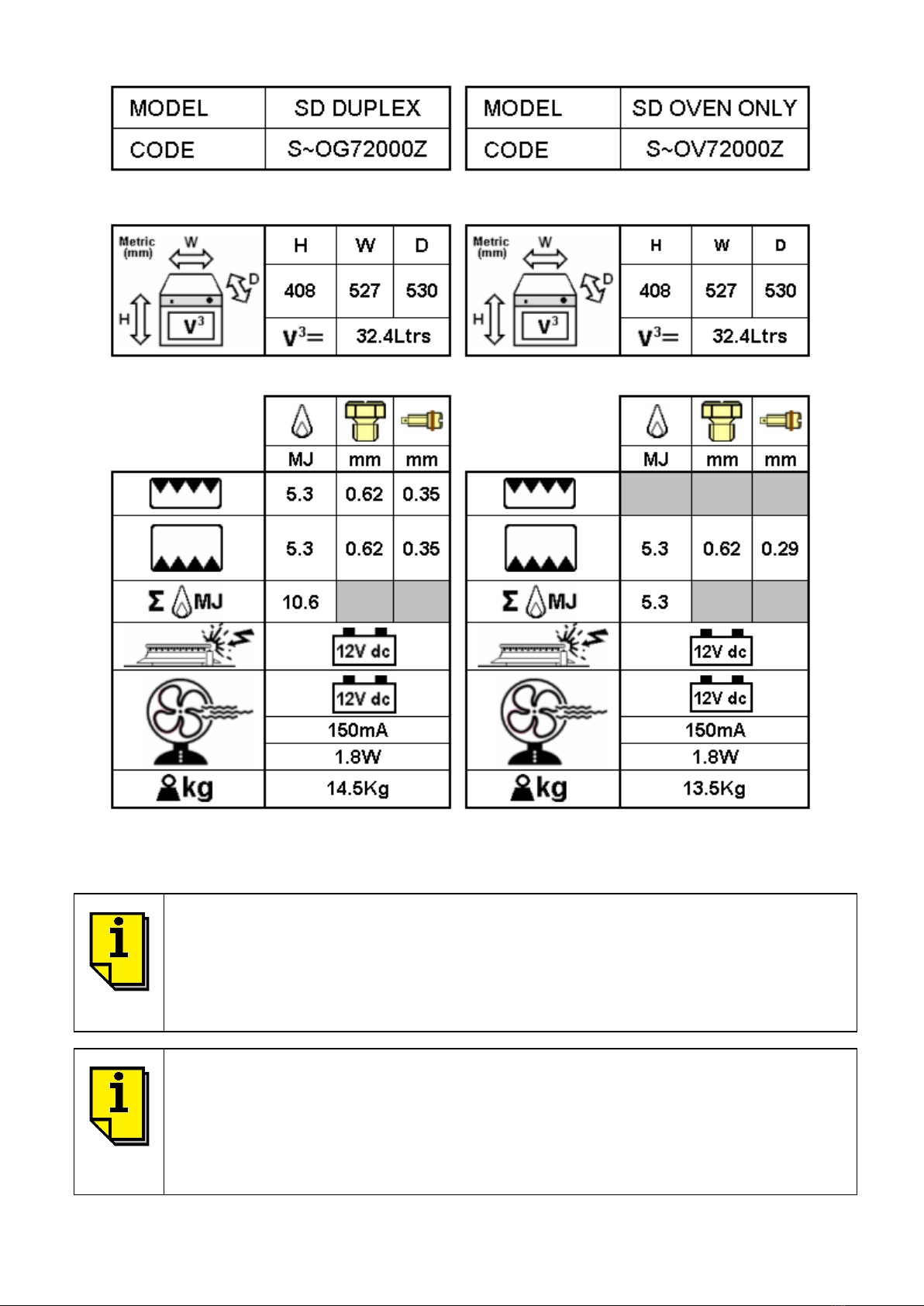

Models
S~OG72000Z SD Duplex Oven&Grill
S~OV72000Z SD Oven Only
BUILD IN APPLIANCES
FOR USE WITH UNIVERSAL LPG ONLY
CAUTION – ALL OUTER SURFACES WILL GET HOT WHEN IN USE

2
Gas - Universal LPG Only 2.75 Kpa
•This appliance is designed for use with Universal LPG and should not
be converted for use with any other gas
•Use only the Gas Pressures specified
•This appliance MUST be earthed
All cooking appliances become hot during use. It is important the installer
verifies the furniture construction material and that it is suitable for the
application - i.e. Plastic materials used in the construction may have a
softening point lower than the maximum allowable temperature rise
specified in the Australian Standard (AS4551 - 2008).

3

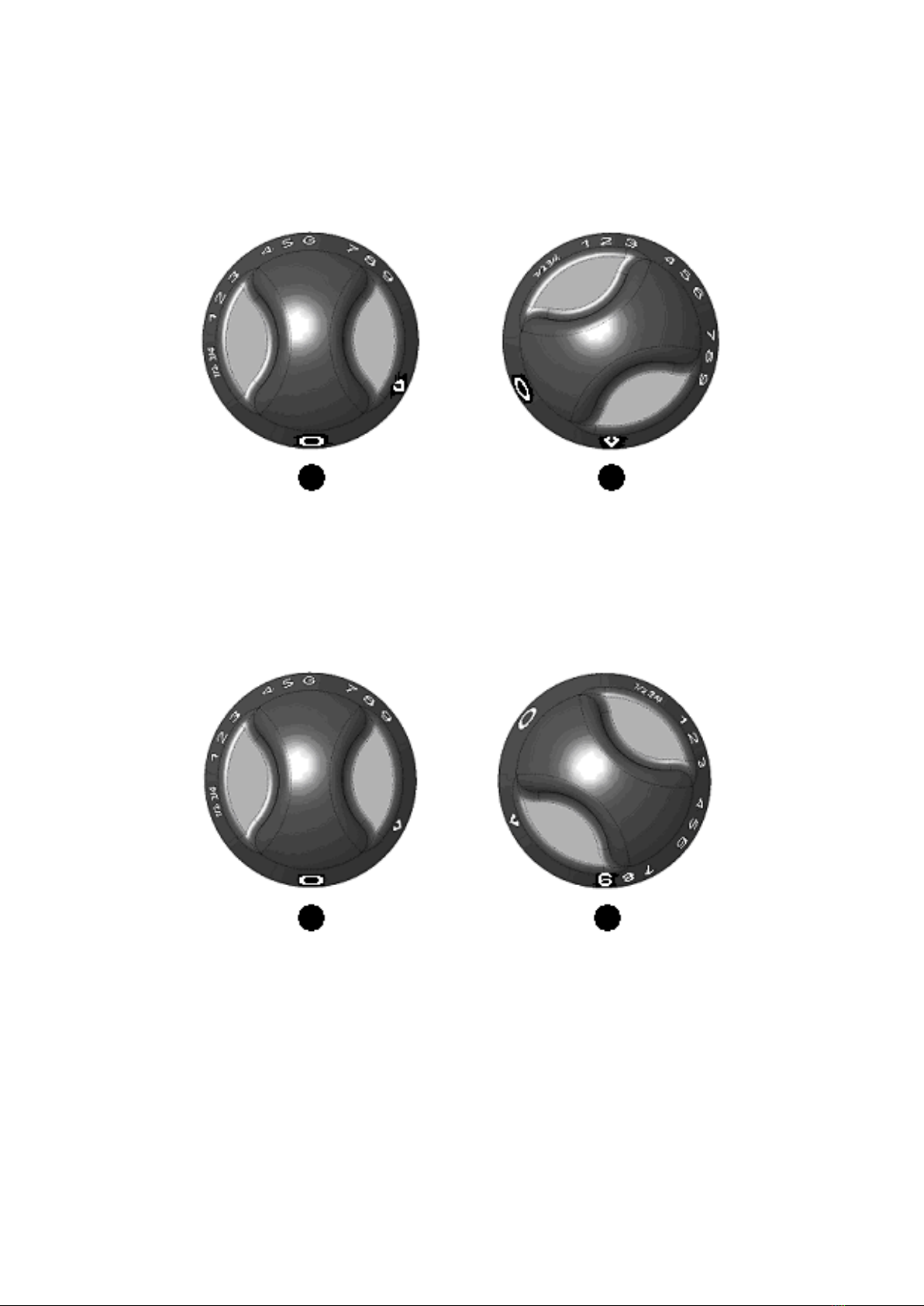

Fig. 1 Control Positions for Grill Operation
OFF ON
Fig. 2 Control Positions for Oven Operation
OFF ON (FULL)

4

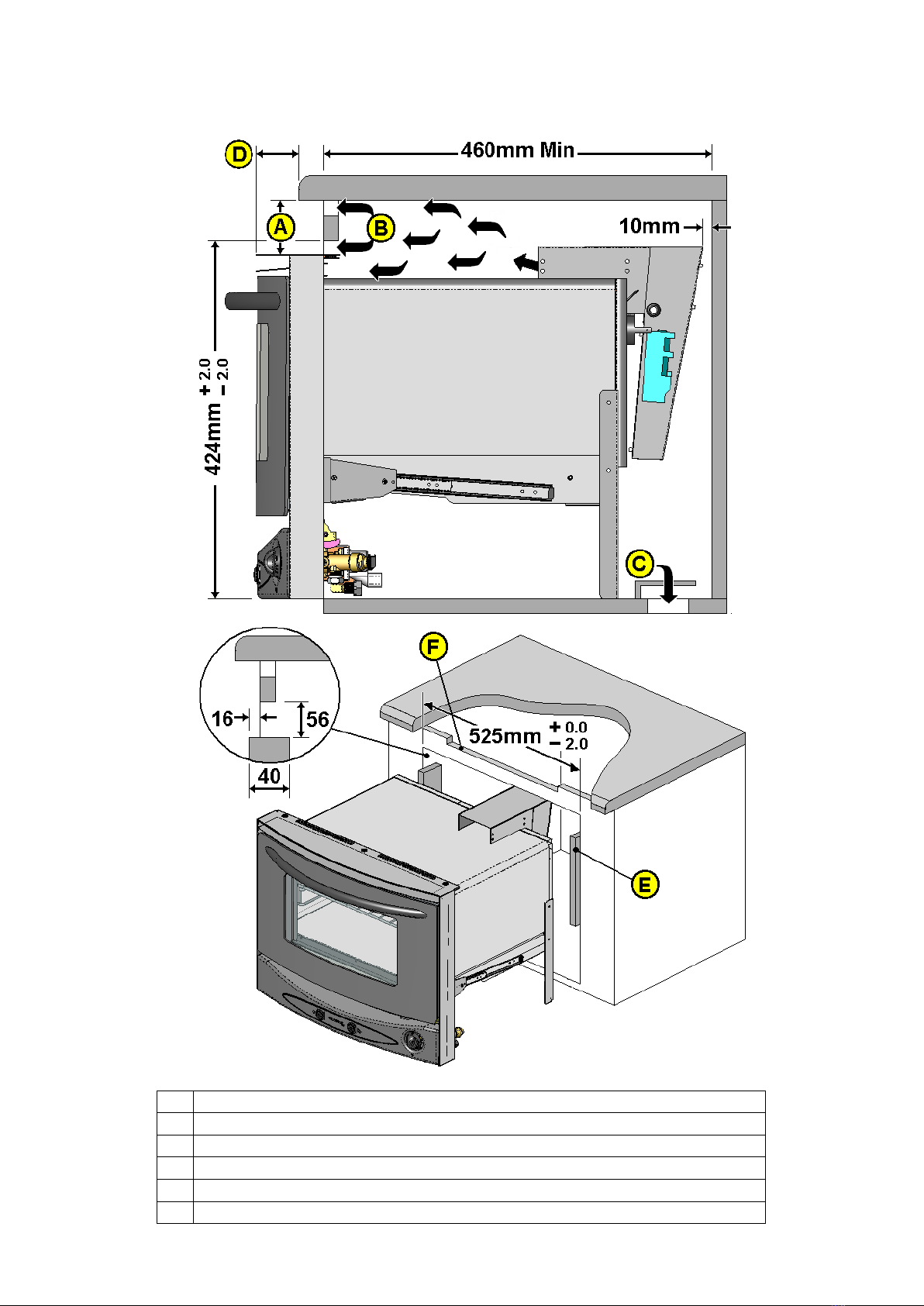

Fig. 3 LOW LEVEL / UNDER WORKTOP INSTALLATION
A
65mm minimum
B
Air gaps must be maintained
C
Gas escape hole, baffled
D
50mm minimum
E
18 x 40 x 230mm Wood Battens fitted each side
F
Minimum 18 x 400mm Air gap central to appliance

5
Fig. 4 HIGH LEVEL / ABOVE FRIDGE INSTALLATION
A
Dimensions between 110mm (Min) & 170mm a protective heat shield MUST be
fitted. Above 170mm we advise verification test before installing without plate
B
Air gaps must be maintained
C
Gas escape hole, baffled - Caravan side. Refer to Thetford if side vent not possible
D
280 x 340mm Heat Shield central to appliance
E
When fitted above a fridge the shelf must be sealed to prevent unburnt gas from
entering the compartment below
F
Caravan / RV ceiling

6
In your own interest of safety, gas appliances should be installed by competent persons.
Failure to install the appliance correctly could invalidate any warranty or liability claims.
This appliance shall be installed in accordance with the manufacturer’s installation
instructions, local gas fitting regulations, municipal building codes, AG5601 and any other
relevant statutory regulations.
Data Label
The data label is located on the right hand side front of the oven compartment, behind the
oven door. A duplicate data label is supplied to adhere to an accessible area next to the
appliance. This appliance is designed for use with Universal LPG only and should not be
converted for use with any other gas.
Provision of Ventilation
The use of a gas cooking appliance results in a production of heat and moisture in a room
in which it is installed. Ensure that the kitchen is well ventilated and in accordance with
AG5601 Installation Code. In general, the appliance should have adequate ventilation for
complete combustion of gas, proper flueing and to maintain temperature of immediate
surroundings within safe limits.
Location
Chose a location free of draughts away from open doors and clear of combustible
materials or other fire hazards. The location should ensure convenience of operation and
service.
INTRODUCTION
•Before using the appliance for the first time, remove all accessories and
packing in the oven, including surface protection film, ie plastic coating.
•Clean all interior surfaces with hot soapy water to remove any residual
protective covering of oil and rinse carefully.
IMPORTANT SAFETY PRECAUTIONS
•The appliance is not intended for use by young children or infirm persons,
without supervision.
•When finished, check that all controls are in the off position.
•This appliance must not in any circumstances be used as a space heater.
•If fitted in a touring caravan or motor van, all burners should be
extinguished when the vehicle in which the appliance is installed is
moving. It is preferred that the cylinder valve to the appliance be turned
off.

7
Operation of the Door
This appliance is fitted with our unique slide under door. As you open the door fully, it
slides neatly under the oven. This feature maximises the space in the kitchen area by
reducing the protruding door, giving easy access to the inside of the oven.
To open the door:-
1. Pull the handle forward and down, as with any other drop down door
2. When in fully open position push the door horizontally to slide the door in.
3. Continue pushing until door stops in the parked position below the oven.
To close the door
4. Grasp handle and slide door out from parked position.
5. Continue until door fully extended.
6. Rotate door upwards into the closed position.
Operation
The burners on this appliance have fixed aeration and no adjustment is required. The
burners should flame quietly with a blue/green colour with no sign of yellow tips.
On the SD Duplex model the single control tap operates both the grill and oven burners.
To ensure safe operation it is not possible to operate both burners at the same time.
The burners on all SD models are controlled individually and each is monitored by a
thermocouple probe (FFD). In the event the burner flames are accidentally extinguished,
turn off the burner control and do not attempt to re-ignite the burner for at least one minute.
Using the Grill
1. Ensure gas supply is connected and turned on.
2. To light: Open door and slide under, push in the control knob and turn clockwise to
full rate – large flame on control knob () Fig. 1.
3. Continue holding the knob depressed whilst holding a lighted match or taper to the
burner. For models fitted with Spark Ignition the procedure is similar except that the
burner can be ignited by depressing the ignition button located on the fascia.
Ignition must be carried out with the door open.
4. After the burner is lit continue depressing the knob for approximately 10 - 15
seconds before release.
5. If burner has not lit within 15 seconds, release knob and wait at least 1 minute
before repeating operations (2) to (4).
6. To turn off, rotate the control knob anti-clockwise until the circle on the knob is
aligned with the dot on the fascia panel.
OPERATION
WARNING
Pans or utensils MUST NOT be placed on the door when in its open position.

8
Using the Grill - cont.
On first use of the grill, it should be heated for about 20 minutes to eliminate any residual
factory lubricants that might impart unpleasant smells to the food being cooked. A non-
toxic smoke may occur when using for the first time so open any windows and turn on
mechanical ventilators to help remove the smoke.
Although the grill does heat up quickly, it is recommended that a few minutes preheat be
allowed. It is normal for the flames on this burner to develop yellow tips as it heats up.
Grilling should be carried out with the grill pan on the middle shelf position. A reversible
grill pan trivet enables the correct grilling height to be achieved.
Fast Toasting trivet in high position
Grilling Sausages trivet in high position
Grilling Steak/Bacon trivet in high position
Grilling Chops, etc trivet in low position
Slow Grilling trivet removed
The grill MUST only be used with the door open.
Using the Oven
1. Ensure gas supply is connected and turned on.
2. To light: Open door and slide under, push in the control knob and turn anti-clockwise to
full rate – Mark 9 on control knob Fig. 2.
3. Continue holding the knob depressed whilst holding a lighted match or taper to the
burner. For models fitted with Spark Ignition the procedure is similar except that the
burner can be ignited by depressing the ignition button located on the fascia.
Ignition must be carried out with the door open.
4. After the burner is lit continue depressing the knob for approximately 10 - 15 seconds
before release.
5. If burner has not lit within 15 seconds, release knob and wait at least 1 minute before
repeating operations (2) to (4).
6. Place the oven shelf in the required position and close the door. Rotate the control
knob to the required gas mark 5 setting. Although the oven does heat up quickly, it is
recommended that a 10 minutes preheat be allowed. The oven should be up to full
temperature in about 15-20mins.
OPERATION
WARNING
Care should be taken when removing pans from the grill, i.e. use of oven
gloves, and by making use of the removal grill pan handle.
IMPORTANT
•The appliance is fitted with a fan cooling system. The cooling fan will
automatically switch on after lighting the grill or oven burner.
•The fan will automatically switch off a few minutes after the burner is
extinguished, when the front of the appliance has cooled sufficiently.

9
7. To turn off: turn the control knob clockwise until the circle on the control knob is aligned
with the dot on the control panel.
8. To remove a shelf, pull forward until it stops, raise at front and remove.
On first use of the oven, it should be heated for about 30 minutes at gas mark 5 to
eliminate any residual factory lubricants that might impart unpleasant smells to the meals
being cooked. A non-toxic smoke may occur when using for the first time so open any
windows and turn on mechanical ventilators to help remove the smoke.
Oven Temperature Control
The temperature in the oven is controlled by a thermostatic gas tap and is variable over
the range 130°C to 260°C. Approximate temperatures for the settings on the control knob
are shown in the table below. The temperatures indicated refer to the centre of the oven
and at any particular setting the oven will be hotter at the top and cooler towards the base.
The variation between each shelf position is approximately equivalent to one gas mark.
Good use can be made of this temperature variation if several dishes requiring different
temperatures are to be cooked at the same time. In this way maximum benefit can be
obtained from the gas used to heat the oven. Care should be taken not to overload the
oven, adequate spacing being used to allow free circulation for heat.
Cooking Guidelines
Best results will be obtained by the shelf positions in this guide – please see chart on next
page. It is not necessary to preheat the oven but advisable for a range of dishes. The oven
is capable of full temperature in 15-20 minutes.
Most cookery books give details of the shelf positions and gas mark settings for each
recipe. If in doubt about a recipe you intend to use, study the recipe carefully then find a
similar dish in our guide and use our shelf position and gas mark setting recommendation.
Shelf positions are from the top down. When roasting with aluminium foil care must be
taken that the foil does not impair circulation or block the oven flue outlet.
Cooking Guidelines
Gas
Mark Temperature
¼ - ½
265-275ºF
130-135ºC
Very cool
Meringues
1
285
140
Cool
Stewed fruit
2
300
150
Cool
Rich fruit cake
3
330
165
Warm
Baked custard
4
355
180
Moderate
Victoria sandwich
5
385
195
Fairly hot
Whisked sponges
6
410
210
Hot
Short crust pastry
7
430
220
Hot
Bread, scones
8
445
230
Very hot
Puff pastry
9
500
260
Very hot
Quick browning
Dish
Gas
Mark
Shelf
Position
Cooking Time
Scones
7
2
8-15mins
Small cakes
5
2
15-25mins
Victoria sandwich
4
2
20-30mins
Very rich fruit cake
2
2
Approx. 60mins per 500g
Puff pastry
8
2
15-30mins
Flaky pastry
7
2
15-30mins
Shortcrust pastry
6
2
15-55mins
Shortbread fingers
3
2
25-30mins
Ginger nuts
5
2
12-16mins
Rice pudding
2
3
100-120mins
Baked custard
3
3
50-60mins
Fruit crumble
5
3
30-40mins
Beef
3
7
3
3
25mins per 500g plus 25mins
15mins per 500g plus 20mins
Pork
3
7
3
3
30mins per 500g plus 35mins
25mins per 500g plus 25mins
OPERATION
IMPORTANT
Always ensure food is properly cooked prior to serving.

10
Do's and Don'ts
DO read the user instructions carefully before using appliance for the first time.
DO allow the oven to heat before using for the first time, in order to expel any
smells before the introduction of food.
DO clean the appliance regularly.
DO remove spills as soon as they occur.
DO always use oven gloves when removing food shelves and trays from
the appliance.
DO check that controls are in the off position when finished.
DO NOT allow children near the cooker when in use. Turn pan handles away
from the front so that they cannot be caught accidentally.
DO NOT allow fats or oils to build up in the oven trays or base.
DO NOT use abrasive cleaners or powders that will scratch the surfaces of the
appliance.
DO NOT under any circumstances use the oven as a space heater.
DO NOT put heavy objects onto open grill or oven doors.
DO NOT use or store flammable materials near this appliance.
DO NOT spray aerosols in the vicinity of this appliance while in operation.
Leaks
If a smell of gas becomes apparent, the supply should be turned off at the cylinder
IMMEDIATELY. Extinguish naked lights including cigarettes and pipes. Do not operate
electrical switches. Open all doors and windows to disperse any gas escape.
Butane/Universal LPG is heavier than air; any escaping gas will therefore collect at a low
level. The strong unpleasant smell of gas will enable the general area of the leak to be
detected. Check that the gas is not escaping from an unlighted appliance. Never check for
leaks with a naked flame, leak investigation should be carried out using a leak detector
spray.
Abnormal Operation
Any of the following are considered to be abnormal operation and may require servicing.
•Yellow flames.
•Soot on cooking pans.
•Burners not igniting properly.
•Burners failing to remain alight
•Gas valves difficult to turn
Who to Contact
For service and replacement parts, please contact your authorised local Service Agent
giving full details of the model, serial number and date of purchase.
Manufactured by: THETFORD Limited.
Unit 6 Brookfields Way, Manvers
Rotherham S63 5DL. England
OPERATION
•The grill pan supplied is multi functional, for use in grill or oven.
•The handle design allows removal or insertion whilst the pan is in use.
•Always remove the handle when the pan is in use.
•The grill MUST only be used with the door open.

11
Regulations and Standards
In your own interest of safety, gas appliances should be installed by competent persons.
Failure to install the appliance correctly could invalidate any warranty or liability claims.
This appliance shall be installed in accordance with the manufacturer’s installation
instructions, local gas fitting regulations, municipal building codes, AG5601 and any other
relevant statutory regulations.
Data label.
The data label is located on the right hand side front of the oven compartment, behind the
oven door. A duplicate data label is supplied to adhere to an accessible area next to the
appliance. Ensure that the gas supply is Universal LPG. This appliance is designed for
use with Universal LPG and should not be converted for use with any other gas.
Ventilation
This appliance is suitable for installation into Holiday Homes, Touring Caravans and Boats.
In all cases the national standards with regard to ventilation for the particular vehicle into
which the appliance is to be installed must be adhered to.
The installation must include adequate provision to avoid the accumulation of un-burnt
gases. We recommend a low level vent, discharging to the outside, Size 130mm2 Min,
3850mm2 Max - see Figs. 3 & 4.
Location of Appliance
This appliance maybe installed in a kitchen/kitchen diner but NOT in a room containing a
bath or a shower. LP gas appliances must not be fitted below ground level. e.g. in a
basement.
Position
The appliance must be installed in such a way that the furniture fitted around the unit
follows the minimum dimensions detailed within these instructions for either Low level
installation (Fig. 3) or High level installation (Fig. 4)
All cooking appliances become hot during use, it is important the installer verifies the
furniture construction material and that it is suitable for the application - i.e. plastic
materials used in the construction may have a softening point lower than the maximum
allowable temperature rise specified in the Australian Standard AS5601.
ALL combustible materials such as curtains and shelves must be kept well clear of the
appliance, and their installation should meet all relevant local and national standards in
force.
INSTALLATION
IMPORTANT
•This appliance must be installed into an aperture, sealed off at either side
in order to prevent draughts from adjoining cupboards/vents. Ensure that
air vents and gas escape holes are kept clear, holes for cables and pipes
must be sized to minimize air leakage between compartments.
•Under no circumstances should the ventilation hole exceed 3850mm2or
other low level ventilation located in the compartment, including vents in
kickboards. Low level vents in adjacent compartments are permitted.
•Cupboards beneath the appliance MUST be sealed to prevent a gas
escape entering the living area.

12
Fixing
Fixing screw positions are located on each side of oven opening and are accessed by
opening the door. Screw into place using a flange head No 6 woodscrew
Connection
A ¼ BSP female connection is provided for gas inlet, on the rear of the appliance. It is
recommended that the appliance be connected by copper tubing, a rubber or hose
connection must not be used. After connection the appliance must be tested for
soundness.
This appliance is suitable for use on –
Universal LPG Only 2.75 Kpa.
It is important that the regulator should be set to the correct pressure for the type of gas
being used. Excessive pressure must not be permitted.
If the flame on either burner has a tendency to lift, it is probable that the line pressure is
too great. Should there be excessive yellow tips (resulting in soot) then it is probable that
the line pressure is too low and, in either case, the burners should not be used until the
line pressure has been checked.
This appliance is fitted with the following injectors:-
GRILL 0.62mm 5.3 MJ/h
OVEN 0.62mm 5.3 MJ/h
The burners on this appliance have fixed aeration and no adjustment is necessary.
After installation the appliance MUST be tested for soundness, when satisfied with
the appliance, please instruct the user on the correct method of operation. If the
appliance fails to operate correctly after all checks have been made, refer to the
authorised service provider in your area.
WARNING
When installing DO NOT lift appliance using the door handles.
INSTALLATION
IMPORTANT
•This appliance MUST be earthed
•A constant 12V supply is necessary at all times to ensure the cooling
system operates correctly.
•Test ALL burners on high and low flame for flame stability.
•The gas supply input pressure MUST not rise or fall significantly from
nominal when ALL appliances connected to the supply are operated
simultaneously. If NOT installed to the manufacturers instructions detailed
herein, we the manufacturer can not be held responsible for any problems
that occur, or poor performance that is perceived/witnessed.

13
This appliance needs little maintenance other than cleaning. All parts should be
cleaned using warm soapy water. Do not use abrasive cleaners, steel wool or
cleansing powders. When cleaning the burner it is essential to ensure that the holes do
not become blocked. The control knobs are a push fit and can be removed for cleaning.
A pressure test point is fitted to the end of the gas manifold. Pressure is measured with
the oven burner on high flame and supply pressure regulator set to 2.75 kPa (Universal
LPG).
Service Instructions
ALL SERVICING MUST BE CARRIED OUT BY AN AUTHORISED PERSON
1. Disconnect from gas supply
Shut off gas supply at isolating valve. Open the oven door and remove the 3 screws
from each side trim. Carefully slide the appliance out one third and disconnect the
gas supply from the front left hand side of the appliance.
2. Remove appliance from housing
Check for any possible snagging of wires or pipes. If OK, lift appliance out onto a
suitable surface.
3. Control replacement
Disconnect from gas supply (1). Remove appliance from housing (2).
Open the oven door and unscrew the 2 screws holding the thermostat probe in
position and push the probe back out through the hole in the rear of oven. Remove
the 4 retaining screws from the bottom of the appliance and to the rear of the
control. This will remove the front curved fascia panel and allow access to the two
retaining screws on the front trim. Disconnect the inlet pipe and two burner supply
pipes. Remove the fittings off the old control and fit on the replacement.
4. Remove the grill burner
Disconnect from gas supply (1). Remove appliance from housing (2).
Remove the top/sides insulation sheet. Open the oven door and support the burner
whilst levering off the 2 star lock washers retaining the grill burner.
5. Spark Ignition (where fitted)
Disconnect from gas supply (1). Remove appliance from housing (2).
Grill burner - Trace the electrode wire back to the generator and pull off the
connector. Unscrew the fixing screw on the spark electrode and remove the
electrode.
Oven burner -Trace the electrode wire up the back of the cooker to the generator
and pull off the connector. Unscrew the fixing screw on the spark electrode inside
the oven cavity, then carefully pull the electrode from inside the oven and remove.
MAINTENANCE & SERVICING
IMPORTANT
•Shut off gas supply at isolating valve, switch off electric supply and ensure
all parts are cool before cleaning or servicing
•All servicing must be carried out by an approved competent person.
•After each service the appliance must be checked for gas soundness
•This appliance must not be modified or adjusted unless authorized and
carried out by the manufacturer or his representative. No parts other than
those supplied by the manufacturer should be used on this appliance.

14
6. Grill burner injector (No62)
Disconnect from gas supply (1). Remove appliance from housing (2).
Release injector holder from bracket, disengage the grill pipe from the control and
remove the injector.
7. Oven burner injector (No62)
Open the oven door and unscrew the burner retaining screw, slide the burner to the
left and lift out. The injector is exposed to the right hand side of the cut out.
Unscrew the injector.
8. Thermocouple replacement
Disconnect from gas supply (1). Remove appliance from housing (2).
Grill burner -Remove the push on female terminal of the thermocouple from the
right hand side thermal switch, located on the rear of front trim (viewed from front of
appliance) Unscrew the nut at the burner.
Oven burner -. Remove the push on female terminal on the thermocouple from the
right hand side thermal switch, located on the rear of front trim (viewed from front of
appliance). Inside the oven cavity, the thermocouple is located above the burner on
the rear wall. Unscrew the locknut and pull out the thermocouple from the rear of
the appliance.
9. Removing Drop Down Oven Door
Open the door and engage 1 pin in each hinge (3.2 x 9.5mm pop rivets ideal). Lift
the door and pull out of front trim.
10.Removing Thermal Switches
The thermal switches are used to activate the cooling fan system, and to stop the
supply of gas in the event of fan failure. The switches are located between the oven
roof and top trim, fixed to the rear of the front trim, one is positioned centrally and
the other to the right (viewed from front of appliance).
Disconnect from gas supply (1). Remove appliance from housing (2). Open oven
door and remove the 2 retaining screws from the heat deflection trim situated just
below the appliance top trim, then remove. Disconnect all thermocouple wires from
thermal switches and drill out the 4 pop rivets (2 on each thermal switch) to remove.
11.Cooling Fan Replacement
Disconnect from gas supply (1). Remove appliance from housing (2). Disconnect
fan power leads from generator. Unclip generator from side of fan housing. Remove
the two fan housing retaining screws and lift off the complete assembly. Fitting of
the replacement fan assembly is achieved by following above procedure in reverse.
MAINTENANCE & SERVICING
