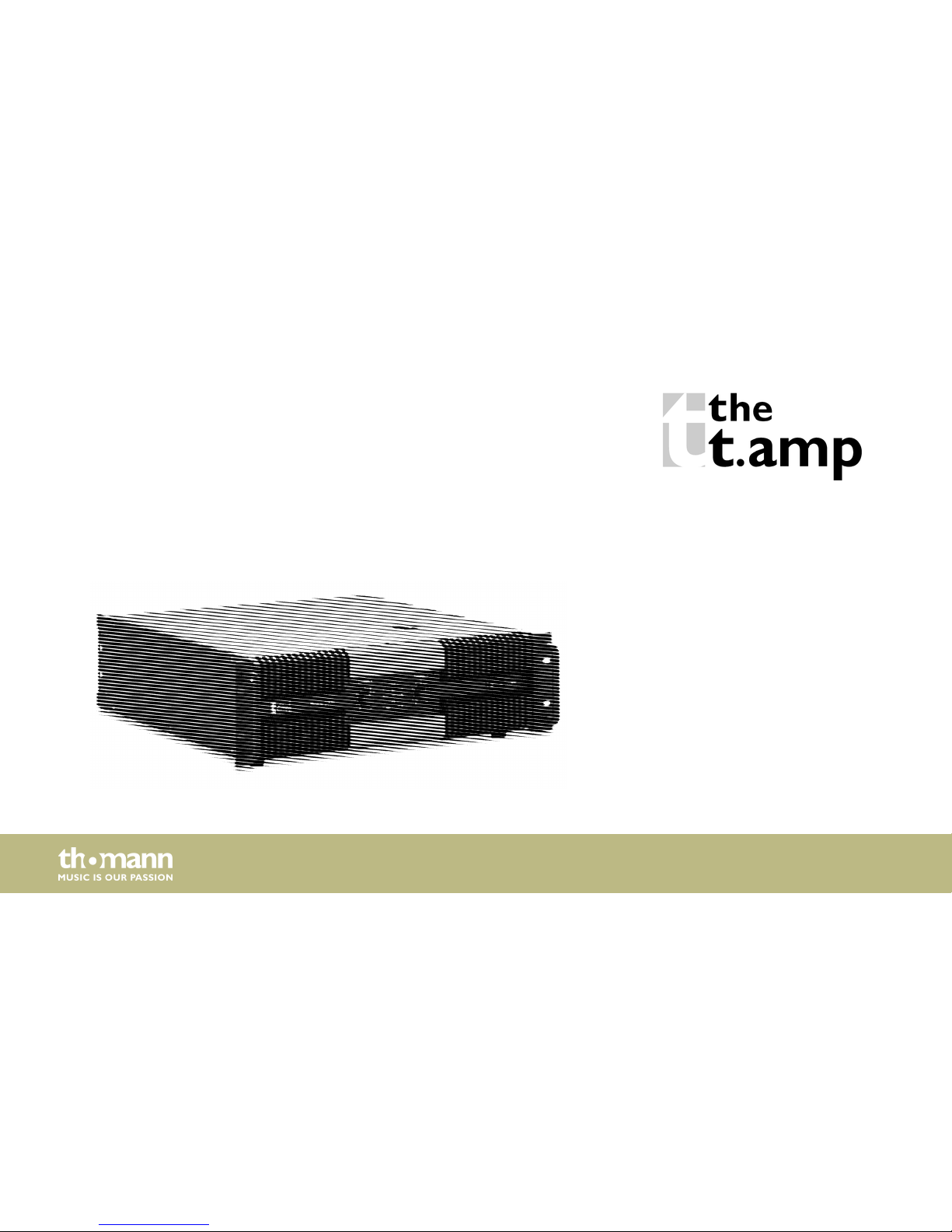

thomann the t.amp Proline 3000 User manual

Proline 3000
power amplifier
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
06.06.2018, ID: 168990 (V2)

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Installation and starting up................................................................................................................ 13
4 Connections and controls................................................................................................................... 17
5 Technical specifications....................................................................................................................... 22
6 Plug and connection assignment.................................................................................................... 24
7 Cleaning....................................................................................................................................................... 27
8 Protecting the environment.............................................................................................................. 28
Table of contents
Proline 3000
3

1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
power amplifier
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
Proline 3000
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
power amplifier
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
Proline 3000
7

2 Safety instructions
This device amplifies electric audio frequency signals to operate passive speakers. Use the
device only as described in this user manual. Any other use or use under other operating con-
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
power amplifier
8

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro-
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis-
tered electrician.
Safety instructions
Proline 3000
9

CAUTION!
Possible hearing damage
With loudspeakers or headphones connected, the device can produce volume
levels that may cause temporary or permanent hearing impairment.
Do not operate the device permanently at a high volume level. Decrease the
volume level immediately if you experience ringing in your ears or hearing
impairment.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans-
port and installation.
Safety instructions
power amplifier
10

NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
Proline 3000
11

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
NOTICE!
Magnetic fields
The device generates strong magnetic fields that can interfere with the function
of poorly shielded devices. The strongest magnetic fields are directly above and
below the power amplifier. Therefore, never place sensitive devices such as pre-
amplifiers, radio transmission systems, or tape decks directly above or below the
power amplifier. When installing the power amplifier into a rack, you should place
it in the lowest position, and further equipment such as pre-amplifiers in the
highest position.
Safety instructions
power amplifier
12

3 Installation and starting up
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
DANGER!
Electric shock caused by high voltages at the power amplifier output
The output voltages of modern high-performance amplifiers may result in death
or serious injury.
Never touch the bare ends of loudspeaker cables when the amplifier is on.
Installation and starting up
Proline 3000
13

CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans-
port and installation.
NOTICE!
Magnetic fields
The device generates strong magnetic fields that can interfere with the function
of poorly shielded devices. The strongest magnetic fields are directly above and
below the power amplifier. Therefore, never place sensitive devices such as pre-
amplifiers, radio transmission systems, or tape decks directly above or below the
power amplifier. When installing the power amplifier into a rack, you should place
it in the lowest position, and further equipment such as pre-amplifiers in the
highest position.
The unit has been designed for rack mounting in a standard 19-inch rack; it occupies three rack
units.
Rack mounting
Installation and starting up
power amplifier
14

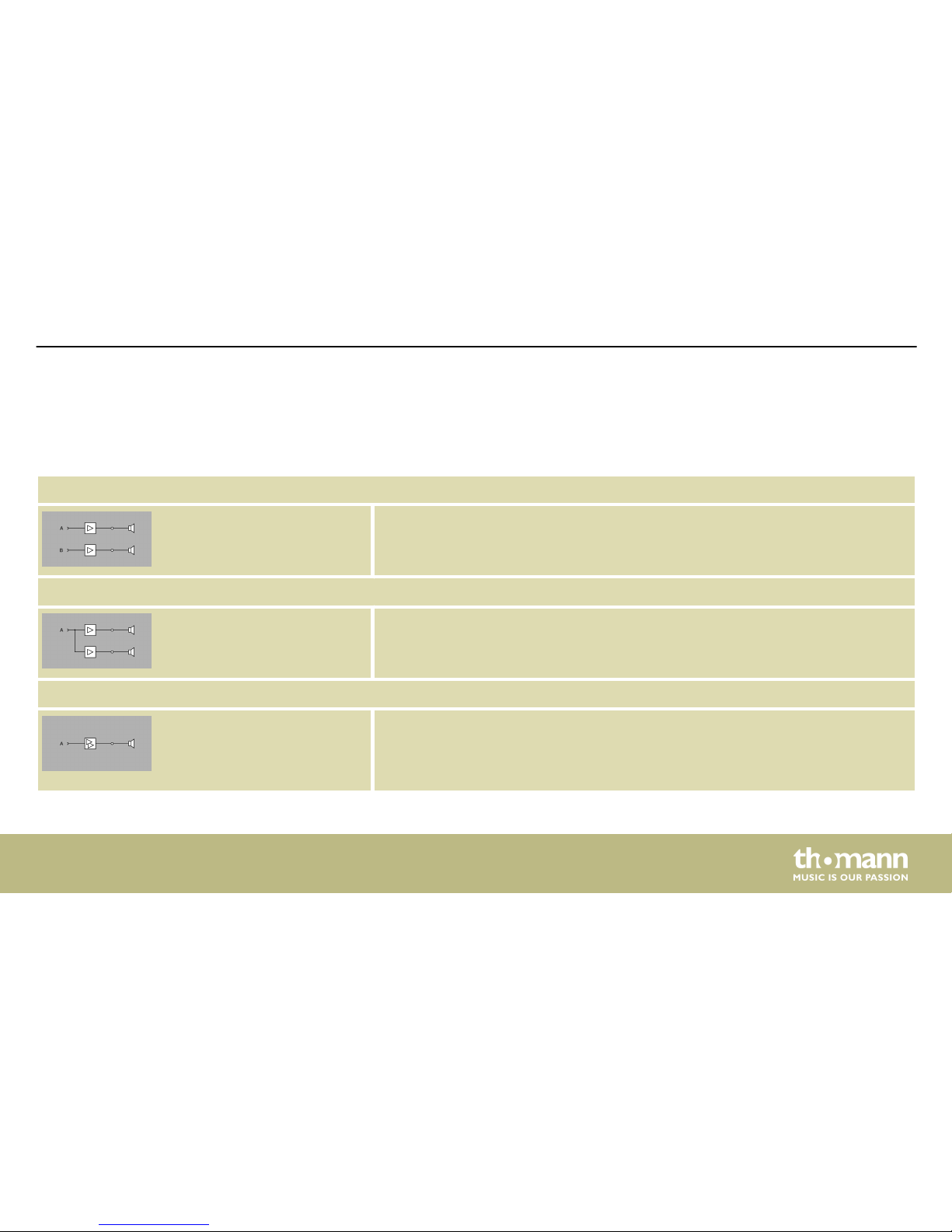

Depending on the individual application, the amplifier can be used in different operation
modes:
Stereo mode
The two amplifier channels operate independently of one another, either
channel (A and B) is amplified and connected to loudspeakers, the volume can
be controlled separately for the two outputs.
Parallel mode
The two amplifier channels receive the same input signal from channel A and
loudspeakers are connected to each amplifier. The volume is controlled via the
control knob for channel A.
Bridged mode
Both power amp channels are internally wired for providing double the output
power. Only the input signal from channel A is amplified and loudspeakers are
connected only to the correspondingly marked output. The volume is con-
trolled via the control knob for channel A.
Possible operation modes
Installation and starting up
Proline 3000
15

On each output of the amplifier, the overall impedance resulting from the individual impe-
dances of the connected speakers must not fall below the minimum allowable impedance of
the amp's output. If you want to connect multiple speakers to one amplifier output, note the
following:
nwhen connecting speakers in series, the impedances add up.
nwhen connecting speakers in parallel, the reciprocal value of the total impedance is equal
to the sum of the reciprocal values of the individual impedances.
This means, for example with two speakers with the same impedance: In series connection,
impedance is doubled. In parallel connection, it's halved.
Detailed information on this topic can be found in our online guide ‘Speakers’
(www.thomann.de).
Installation and starting up
power amplifier
16

4 Connections and controls

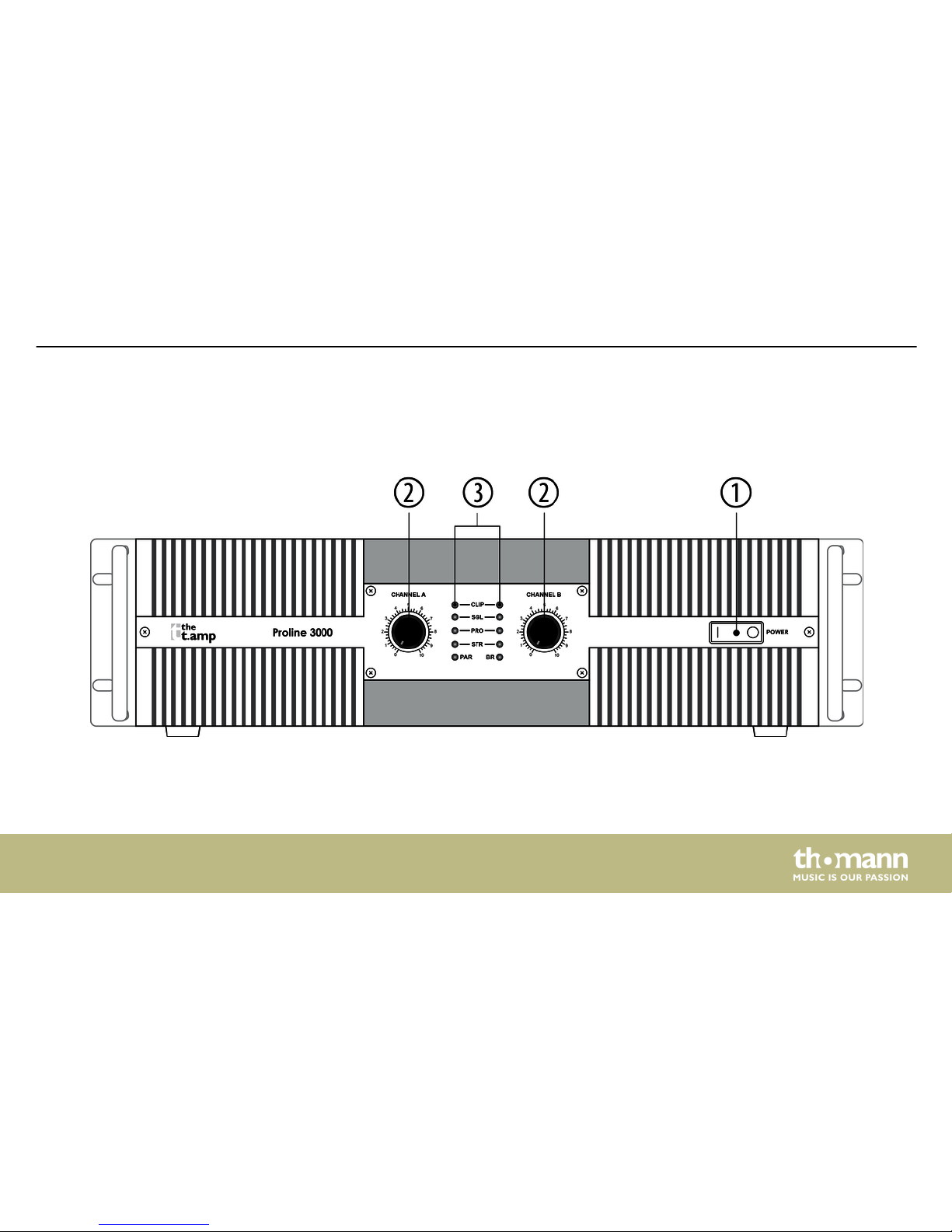

Front panel
Connections and controls
Proline 3000
17

1[POWER]
Power on/off switch. Turns the device on and off.
2[CHANNEL A ]/ [CHANNEL B]
Volume control for the respective channel
3 LED panel
[CLIP] Lights under the following conditions:
nChannel overdrive.
In this case, reduce the volume until the LED turns off.
nShort-circuit at the output.
Immediately turn off the device, fix the short-circuit and turn on the device again.
[SGL] Indicates the presence of an input signal.
Connections and controls
power amplifier
18

[PRO] Lights under the following conditions:
nThree to five seconds after turning on or off when the device is in an unstable state.
nThe temperature of the amplifier blocks has reached 85°C.
nOne or more protection circuits have been triggered or the device is defective.
[STR] Lights when the device is operated in stereo mode.
[PAR] Lights when the device is operated in parallel mode.
[BRI] Lights when the device is operated in bridged mode.
Connections and controls
Proline 3000
19

4 XLR mounting socket for the input signal in channel A
5 1/4" phone socket for the input signal in channel A
6 XLR mounting socket for the input signal in channel B
7 1/4" phone socket for the input signal in channel B

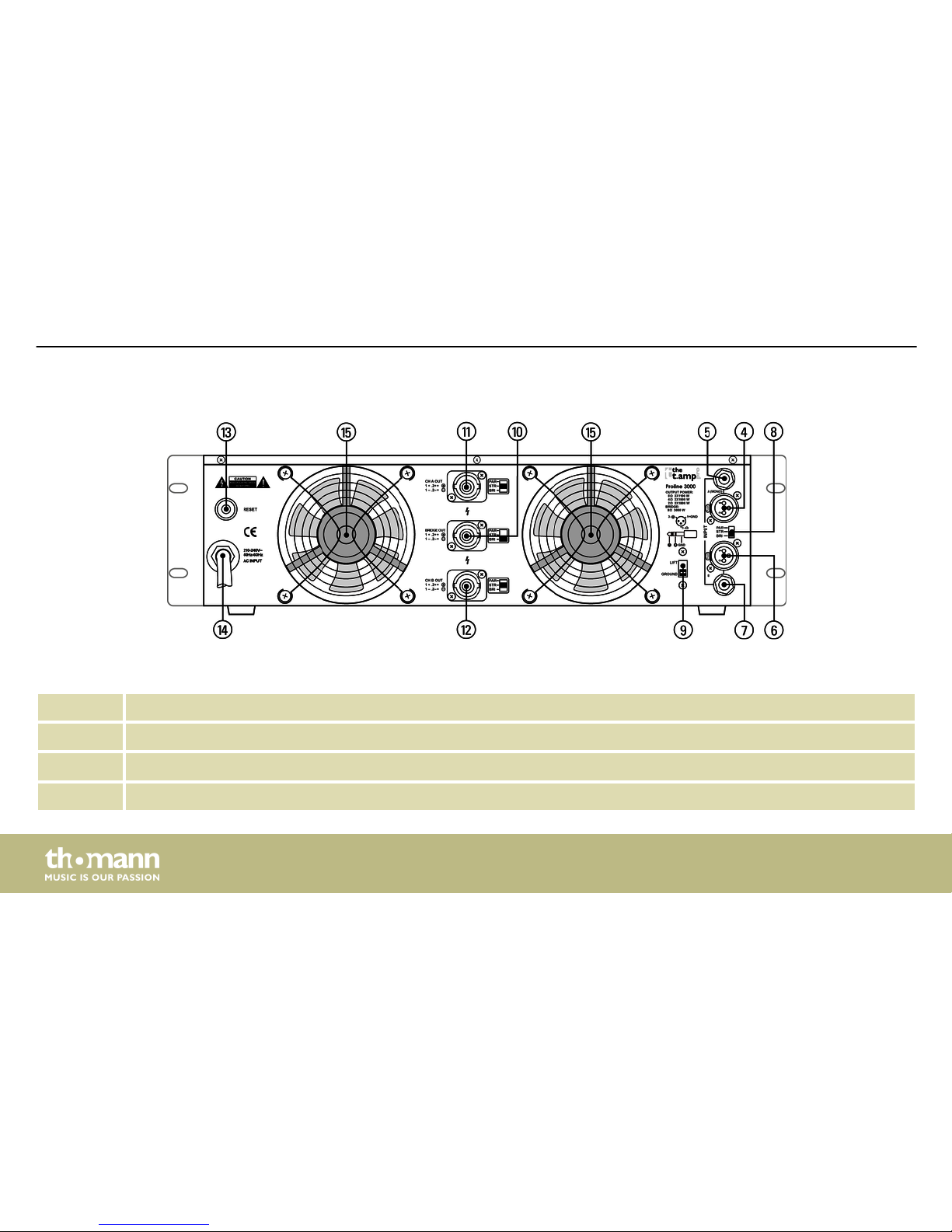

Rear panel
