thomann Harley Benton PA-100 User manual

Harley Benton PA-100
power attenuator
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
07.12.2020, ID: 406679 (V3)

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 13
4 Connections and controls................................................................................................................... 14
5 Technical specications....................................................................................................................... 17
6 Plug and connection assignment.................................................................................................... 19
7 Cleaning....................................................................................................................................................... 21
8 Protecting the environment.............................................................................................................. 22
Table of contents
Harley Benton PA-100
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
power attenuator
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
Harley Benton PA-100
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
power attenuator
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
Harley Benton PA-100
7

2 Safety instructions
This device is used to attenuate the output level of guitar amps. Use the device only as
described in this user manual. Any other use or use under other operating conditions is consid‐
ered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
power attenuator
8

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Safety
Safety instructions
Harley Benton PA-100
9

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
CAUTION!
Possible hearing damage
With loudspeakers or headphones connected, the device can produce volume
levels that may cause temporary or permanent hearing impairment.
Do not operate the device permanently at a high volume level. Decrease the
volume level immediately if you experience ringing in your ears or hearing
impairment.
Safety instructions
power attenuator
10

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctua‐
tions and do not switch the device on immediately after it was exposed to tem‐
perature uctuations (for example after transport at low outside temperatures).
Dust and dirt inside can damage the unit. When operated in harmful ambient
conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other
malfunction.
Safety instructions
Harley Benton PA-100
11

NOTICE!
Damages caused by the connection to an enabled amplier
Always connect the device to a disabled amplier, otherwise the amplier may be
damaged.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC oor and after some
time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the oor, but use felt-pad
oor protectors or a carpet.
Safety instructions
power attenuator
12

3 Features
Power soak for tube ampliers, ideal for use in rehearsal rooms, recording studios and on
stage.
nInput power handling: max. 100 Watt
nInputs for 4 Ω, 8 Ω, 16 Ω
nOutputs: Mic (low-Z), line, speaker
nLED as overload indicator
nControls: Speaker level, line level
nSilent fan
Features
Harley Benton PA-100
13

4 Connections and controls
Connections and controls
power attenuator
14

1[Full Power]
LED as overload indicator
2[Line level]
Rotary control for adjusting the signal attenuation at the line out.
3[SPK Level]
Rotary control for adjusting the signal attenuation at the speaker out. Turn this knob counter-clockwise to reduce the
volume of the output signal.
The output signal will also be reduced by approx. 3 dB when the knob is open ([SPK Level] in position ‘9’). When the
knob is closed ([SPK Level ] in position ‘0’), a very low signal may remain audible through the connected speakers
when the device is used with a very high amp output signal.
4[MicMod]
Low-impedance XLR output for connecting a mixing console or recording device.
5[Out Line]
Line output for connecting an eects processor or power amp.
Connections and controls
Harley Benton PA-100
15

6[Out Speaker]
Output jack for connecting a passive speaker box.
The device can be used as a load resistor when operated with tube amps without speaker box.
If you do not connect a loudspeaker and use one of the other two outputs set the knob to ‘2’ – ‘3’.
7[Input from Amplier]
Input socket for connecting an amplier.
Always use only one of the three connectors at a time, according to the output impedance of the connected amplier
4 Ω, 8 Ω or 16 Ω!
Always connect the device to a disabled amplier, otherwise the amplier may be damaged.
Connections and controls
power attenuator
16

5 Technical specications
Max. input power handling 100 watt
Inputs 3 × 1/4" phone socket
Input impedance 4 Ω, 8 Ω, 16 Ω
Outputs 1 × XLR (low-Z)
2 × 1/4" phone socket
Dimensions (W × H × D) 126 mm × 93 mm × 155 mm
Weight 950 g
Ambient conditions Temperature range 0 °C…40 °C
Relative humidity 50 %, non-condensing
Technical specications
Harley Benton PA-100
17

Noise reduction No
DI box Yes
Speaker simulation Yes
Dummy load (usable without box) Yes
Further information
Technical specications
power attenuator
18

6 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a
plug ts into the socket, an incorrect connection may result in a destroyed power amp, a short
circuit or ‘just’ in poor transmission quality!
1 Signal
2 Ground, shielding
Introduction
1/4" TS phone plug (mono,
unbalanced)
Plug and connection assignment
Harley Benton PA-100
19

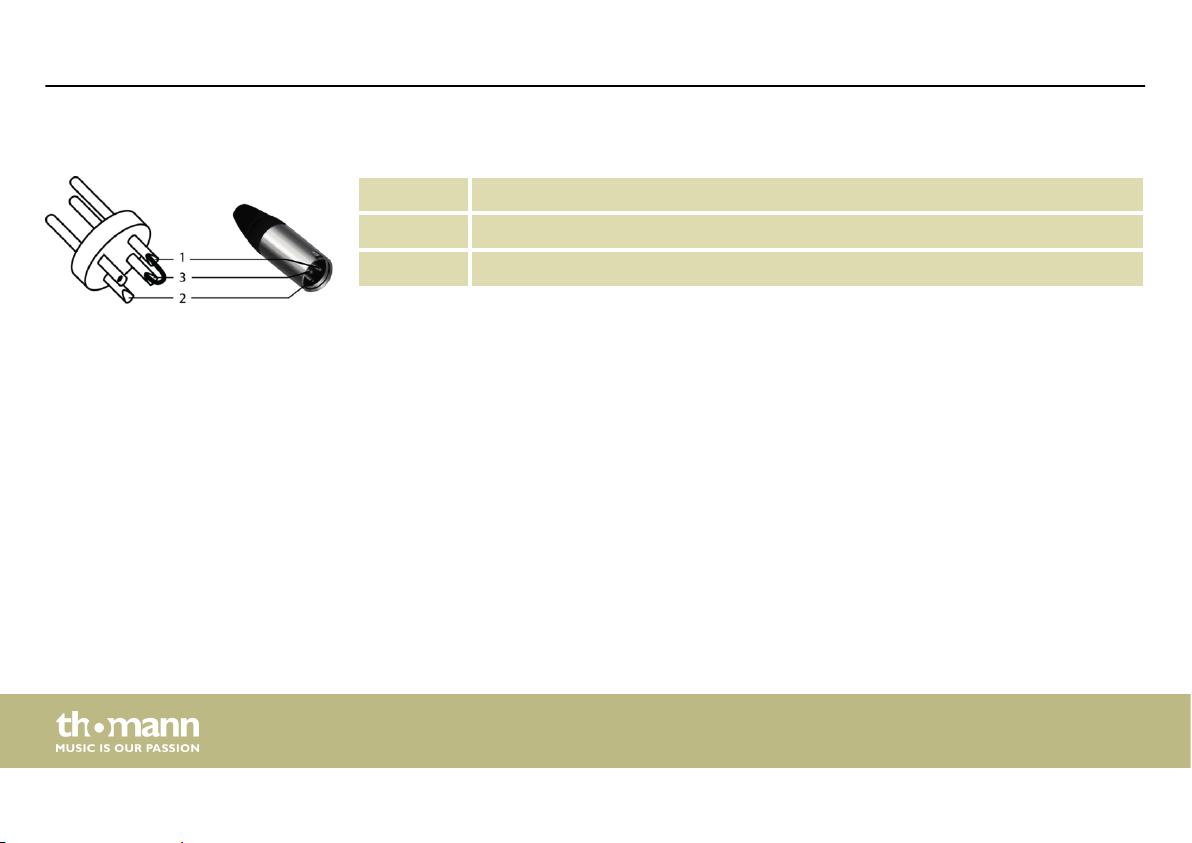

1 Ground, shielding
2 Signal
3 Bridged to pin 1
XLR plug (unbalanced)
Plug and connection assignment
power attenuator
