D610H, D610H MKII,
D610S, D610T
dimmerpack
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Deutschland
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
16.11.2017, ID: 163737, 190914, 171141, 327885 (V4)

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 13
4 Installation and starting up................................................................................................................ 15
5 Connections and operating elements........................................................................................... 18
6 Operating.................................................................................................................................................... 25
7 Technical specifications....................................................................................................................... 34
8 Plug and connection assignment.................................................................................................... 35
9 Protecting the environment.............................................................................................................. 36
Table of contents
D610H, D610H MKII, D610S, D610T
3

1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
dimmerpack
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
D610H, D610H MKII, D610S, D610T
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’, ‘OFF’.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Displays
General information
dimmerpack
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
D610H, D610H MKII, D610S, D610T
7

2 Safety instructions
This appliance is designed for professional use only and is intended to be used to control the
brightness of connected spotlights. Use the device only as described in this user manual. Any
other use or use under other operating conditions is considered to be improper and may result
in personal injury or property damage. No liability will be assumed for damages resulting from
improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
dimmerpack
8

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
D610H, D610H MKII, D610S, D610T
9

DANGER!
Hazardous voltage
Hazardous voltage may be present at cable ends and screw terminals.
The connection of screw terminals as well as all maintenance and repair work on
the electrical installation of the device must only be performed by qualified elec-
trical personnel in volt-free condition. Failure to do so may result in electric shock
and risk of fire and loss of life.
By all means you have to observe all electrical safety instructions applicable at the
place of operation.
DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
Safety instructions
dimmerpack
10

NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
D610H, D610H MKII, D610S, D610T
11

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
dimmerpack
12

3 Features
n6 dimmer channels
nDigital control system
nControl via DMX 512
nPreheat, dimmer curve and maximum voltage can be adjusted individually
nIndicators for temperature and operation
nTest function
nIntelligent cooling control, large cooling ribs
nSingle channel fuse (10 A)
nMade in Europe
General features
Features
D610H, D610H MKII, D610S, D610T
13

D610H (item no. 163737)
nOutput: 1 × industrial multi-pin connector, 16 pins
nVoltage supply via CEE plug (32 A)
D610H MKII (item no. 190914)
nOutputs: 2 × industrial multi-pin connector, 16 pins
nVoltage supply via CEE plug (32 A)
D610S (item no. 171141)
nOutputs: 6 × outlets with hinged lid
nVoltage supply via CEE plug (32 A)
D610T (item no. 327885)
nOutputs: 2 × screw terminal blocks
nVoltage supply via three-phase screw terminal block (32 A)
Device-specific features
Features
dimmerpack
14

4 Installation and starting up
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Installation and starting up
D610H, D610H MKII, D610S, D610T
15

The device is designed for mounting in 19" racks, it occupies two rack units (RU).
First, connect the loads to the terminals on the back of the device. Establish the DMX link to
the controller. Finally, connect the mains power plug of the unit to a 32 A CEE socket (D610H,
D610H MKII, D610S) or connect the device via the three-phase phoenix-terminal to the power
supply (D610T).
Connection options for blocks L1, L2 and L3 (D610T):
none block per phase
none block to one phase, two blocks to a second phases
nall blocks to one phase
Regardless of the actual use, all three blocks should always be connected.
Installation and starting up
dimmerpack
16

Connect the DMX input of the device to the DMX output of a DMX controller or other DMX
device. Connect the output of the first DMX device to the input of the second and so on, to
form a series connection. Make sure that the output of the last DMX device in the chain is ter-
minated by a resistor (110 Ω, ¼W).
Connections in ‘DMX’ mode
Installation and starting up
D610H, D610H MKII, D610S, D610T
17

5 Connections and operating elements

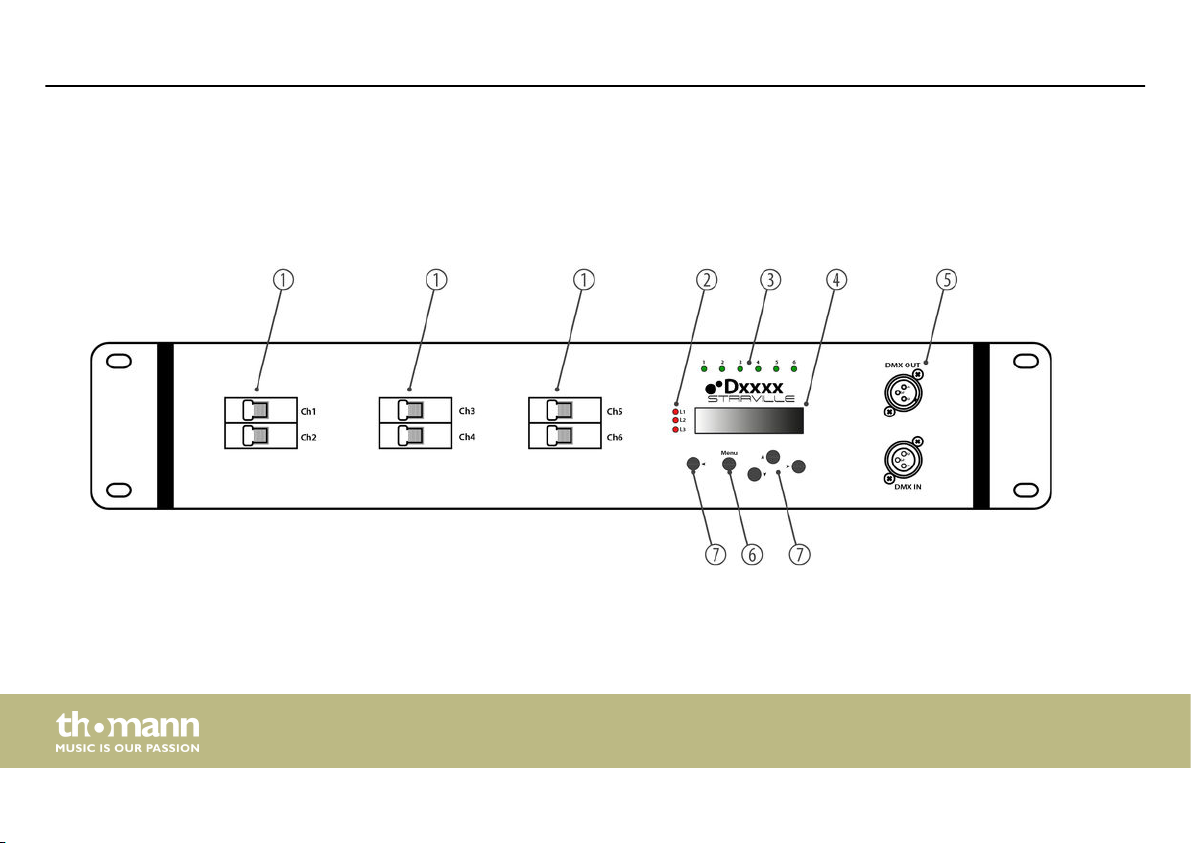

Front panel D610H, D610H MKII,
D610S, D610T
Connections and operating elements
dimmerpack
18

1[Ch1]…[Ch6]
Circuit breakers for channels 1…6, arranged in three blocks (L1…L3).
With the circuit breakers, the desired channels are being activated ([I - ON]) or deactivated ([O - OFF]).
2[L1]…[L3]
Voltage indicators of blocks L1…L3.
The LEDs of the connected blocks light red as soon as mains power is applied to the device.
3[1]…[6]
Voltage indicators of channels 1…6.
The LEDs of active channels light solid green during operation.
4 Display.
5[DMX IN] | [DMX OUT]
DMX input, DMX output.
Connections and operating elements
D610H, D610H MKII, D610S, D610T
19

6[Menu]
Button to open the main menu and confirm display values.
7 Navigation buttons
Buttons to navigate the device menu.
