thomann Thon Studio Producer Desk 1750 User manual

Thon Studio Producer Desk 1750 / curved
studio desk
assembly instructions

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
01.10.2021, ID: 507338, 507336, 507339, ...

Table of contents
1 Safety instructions.......................................................................................................................................................................................................... 4
2 Scope of delivery.............................................................................................................................................................................................................. 5
3 Installation.......................................................................................................................................................................................................................... 6
3.1 Thon Studio Producer Desk 1750 / Thon Studio Prod.Desk 1750 curved............................................................................................ 6
3.2 Optional accessories................................................................................................................................................................................................ 6
3.3 Mounting options for optional accessories.................................................................................................................................................... 8
3.3.1 Thon Studio Producer Desk 1750.................................................................................................................................................................... 8
3.3.2 Thon Studio Prod.Desk 1750 curved........................................................................................................................................................... 10
3.4 Thon Studio Extension Desk 3U / Thon Studio Ext. Desk 3U curved................................................................................................... 12
4 Technical specications............................................................................................................................................................................................. 17
5 Protecting the environment.................................................................................................................................................................................... 19
Table of contents
Thon Studio Producer Desk 1750 / curved
3

1 Safety instructions
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children.
Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from the product. They could swallow the pieces
and choke!
Never let children play unattended with the product.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the studio desk, at least two persons are required for transport and assembly.
CAUTION!
Risk of injury to the hands
When assembling and screwing the individual parts, pay attention to sharp edges on tools, screws and components.
Safety instructions
studio desk
4

2 Scope of delivery
Before you assemble the studio desk, make sure the contents of package is complete according to the following list.
Thon Studio Producer Desk 1750 / Thon Studio Prod.Desk 1750 curved
n1 × table top, 19 mm chipboard
n3 × cable feed-through
n4 × screw M8 × 30
n4 × washer
n20 × Euro screw
n2 × tapping screw
n1 × assembly instruction
Optional accessories
Thon Studio Extension Desk 3U
n1 × monitor bridge, 19 mm chipboard
n4 × side panel
n6 × rack rails with 12 × wood screw
n8 × wood screw, long
n8 × connector housing
n8 × connector bolts
n3 × cable feed-through
n1 × assembly instruction
Thon Studio Ext. Desk 3U curved
n1 × monitor bridge, 19 mm chipboard
n6 × side panel
n6 × rack rails with 12 × wood screw
n12 × wood screw, long
n12 × connector housing
n12 × connector bolts
n3 × cable feed-through
n1 × assembly instruction
nRoadworx Multi Electric Stand (item # 491963) incl. control unit
nThon Studio Producer Drawer (item # 507364)
nThon Studio Cable bridge (item # 507362)
nthe t.racks Power 3 USB (item # 437416)
nthe t.racks Power 8 (item # 415280)
Scope of delivery
Thon Studio Producer Desk 1750 / curved
5

3 Installation
Place all components on a suitable mounting surface for mounting. Use a soft padding to prevent damages to the surfaces.
3.1 Thon Studio Producer Desk 1750 / Thon Studio Prod.Desk 1750 curved
Overview
The following gure shows an overview of the individual components.
ö#
AB C
D E
1 Table top
2 Table top curved
A Screw M8 × 30
B Washer
C Euro screw
D Tapping screw
E Cable feed-through
3.2 Optional accessories
Roadworx Multi Electric Stand (item # 491963)
Place the table top on the Roadworx Multi Electric Stand and fasten the table top with four M8 × 30 screws and four washers in
the ush-mounted threaded sleeves for M8 threads.
Fasten the control unit of the Roadworx Multi Electric Stand to the pre-punched positions on the left or right on the underside of
the table top with two tapping screws.
Installation
studio desk
6

Thon Studio Producer Drawer (item # 507364)
Slide the shelf of the keyboard extension into the drawers and fasten the components together with the screws provided. Attach
the brackets to the drawers at the required height with four M4 × 4 screws (F) each.
Fasten the assembled keyboard drawer with eight raised countersunk screws M6 × 14 (G) in the ush-mounted threaded sleeves
for M6 threads on the underside of the table top.
F
G
Thon Studio Cable bridge (item # 507362)
Fasten the cable duct with four Euro screws to the drill holes provided on the underside of the table top.
the t.racks Power 3 USB (item # 437416)
Fasten the power strip with four Euro screws to the drill holes provided on the underside of the table top.
the t.racks Power 8 (item # 415280)
Fasten the power strip with four Euro screws to the drill holes provided on the underside of the table top.
Installation
Thon Studio Producer Desk 1750 / curved
7

3.3 Mounting options for optional accessories
3.3.1 Thon Studio Producer Desk 1750
( ( (
(
))
(
'
* * *
+
C
D
A
C
C
B
Installation
studio desk
8

*
**
,
C
G
6 Roadworx Multi Electric Stand (item # 491963)
7 the t.racks Power 3 USB (item # 437416)
8 Operating element Roadworx Multi Electric Stand (item # 491963)
9 Thon Studio Cable bridge (item # 507362)
10 the t.racks Power 8 (item # 415280)
11 Thon Studio Producer Drawer (item # 507364)
Installation
Thon Studio Producer Desk 1750 / curved
9

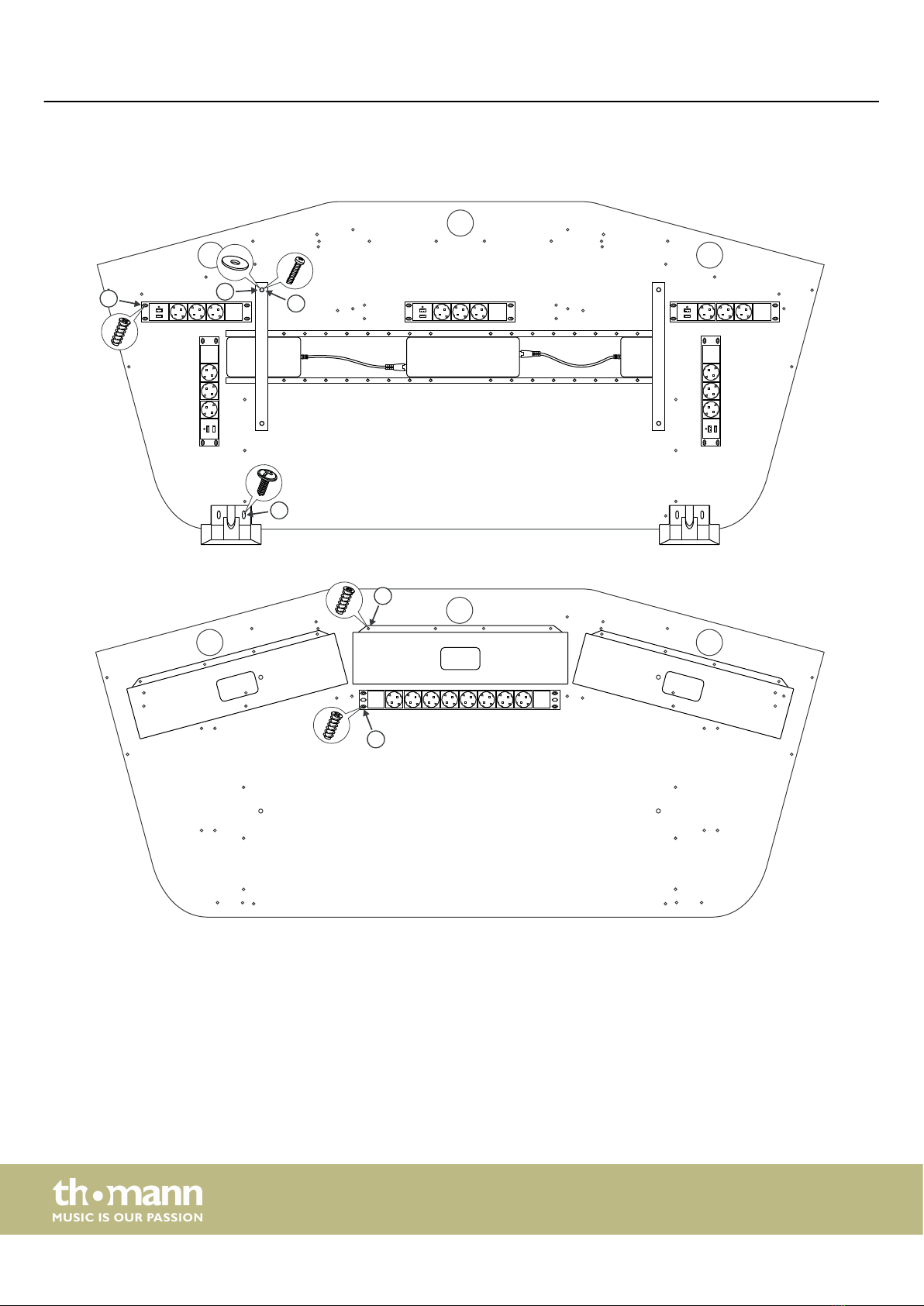

3.3.2 Thon Studio Prod.Desk 1750 curved
D
( ( (
(
))
(
'
*
**
+
A
C
C
C
B
Installation
studio desk
10

C
* *
,
G
6 Roadworx Multi Electric Stand (item # 491963)
7 the t.racks Power 3 USB (item # 437416)
8 Operating element Roadworx Multi Electric Stand (item # 491963)
9 Thon Studio Cable bridge (item # 507362)
10 the t.racks Power 8 (item # 415280)
11 Thon Studio Producer Drawer (item # 507364)
Installation
Thon Studio Producer Desk 1750 / curved
11

3.4 Thon Studio Extension Desk 3U / Thon Studio Ext. Desk 3U curved
Overview
The following gure shows an overview of the individual components.
$&
%&
H I J K L E
3 Monitor bridge J Wood screw long
4 Monitor bridge curved K Wood screw
5 Side panel L Rack rail
H Connector bolt E Cable feed-through
I Connector housing
Installation
studio desk
12

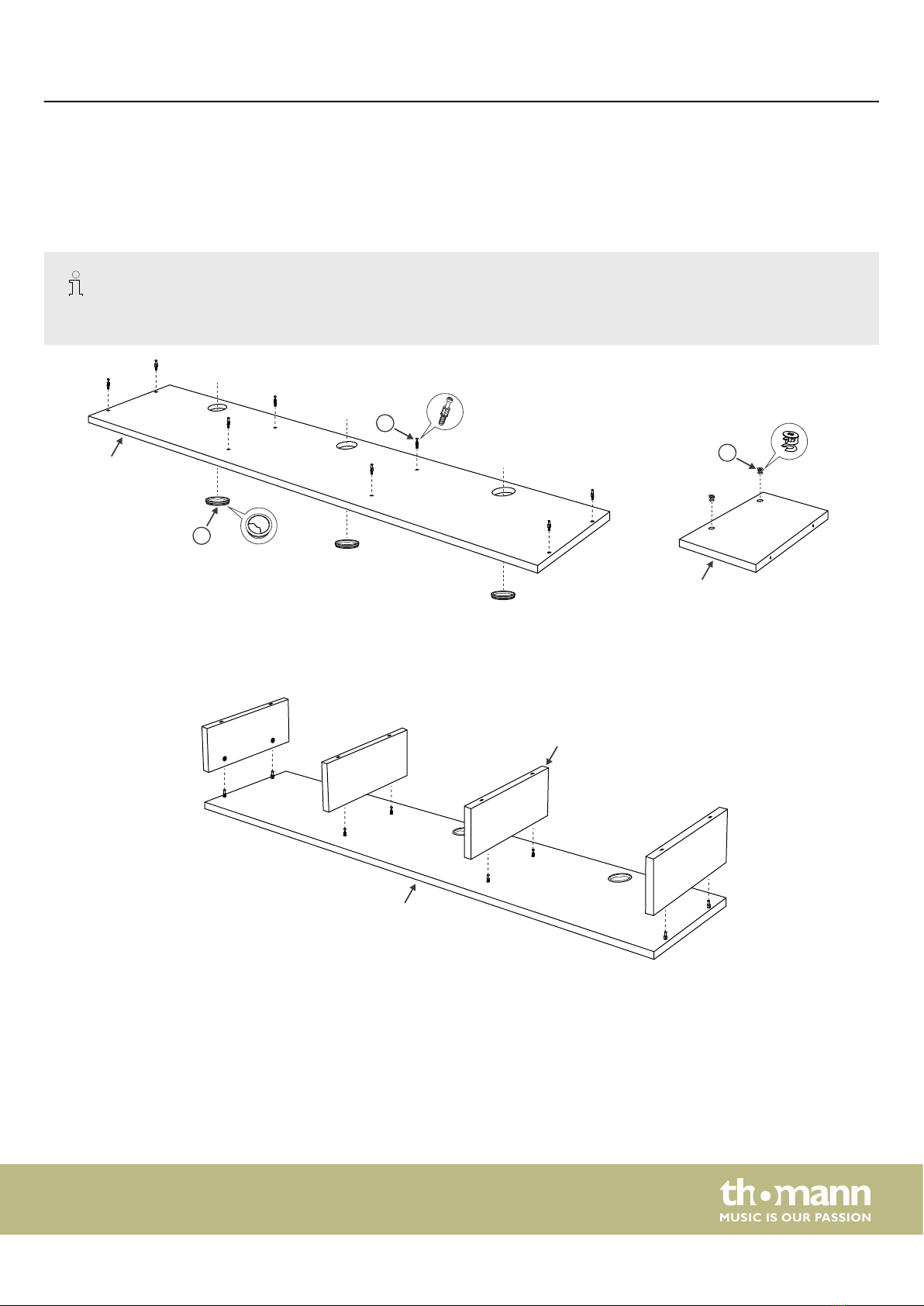

Mounting Thon Studio Extension Desk 3U
Put the connecting bolts into the drill holes provided in the monitor bridge (8 × connecting bolts) and the connector housings
into the drill holes provided in the side panels (2 × connector housings each).
Insert the cable feed-throughs into the recesses of the monitor bridge from above.
After insertion, the connecting bolts sit loosely in the drill holes and only spread apart when the connector housings on the associ‐
ated component are tightened.
&
$
E
H
I
Put the four side panels on the connecting bolts of the monitor bridge and tighten the connector housings of the side panels
clockwise to lock the connection with the inserted connecting bolts.
$
&
Installation
Thon Studio Producer Desk 1750 / curved
13

Turn the tabletop over so the bottom is facing up. Place pieces of wood under the drill holes to prevent the coating from cracking
out when drilling. Using a 4mm bit, drill the eight holes through the pre-punched positions on the underside of the table top.
Turn the tabletop over so the top is facing up. Insert the long wood screws from below through the drill holes in the table top and
attach the assembled unit consisting of the monitor bridge and side panels to the table top.

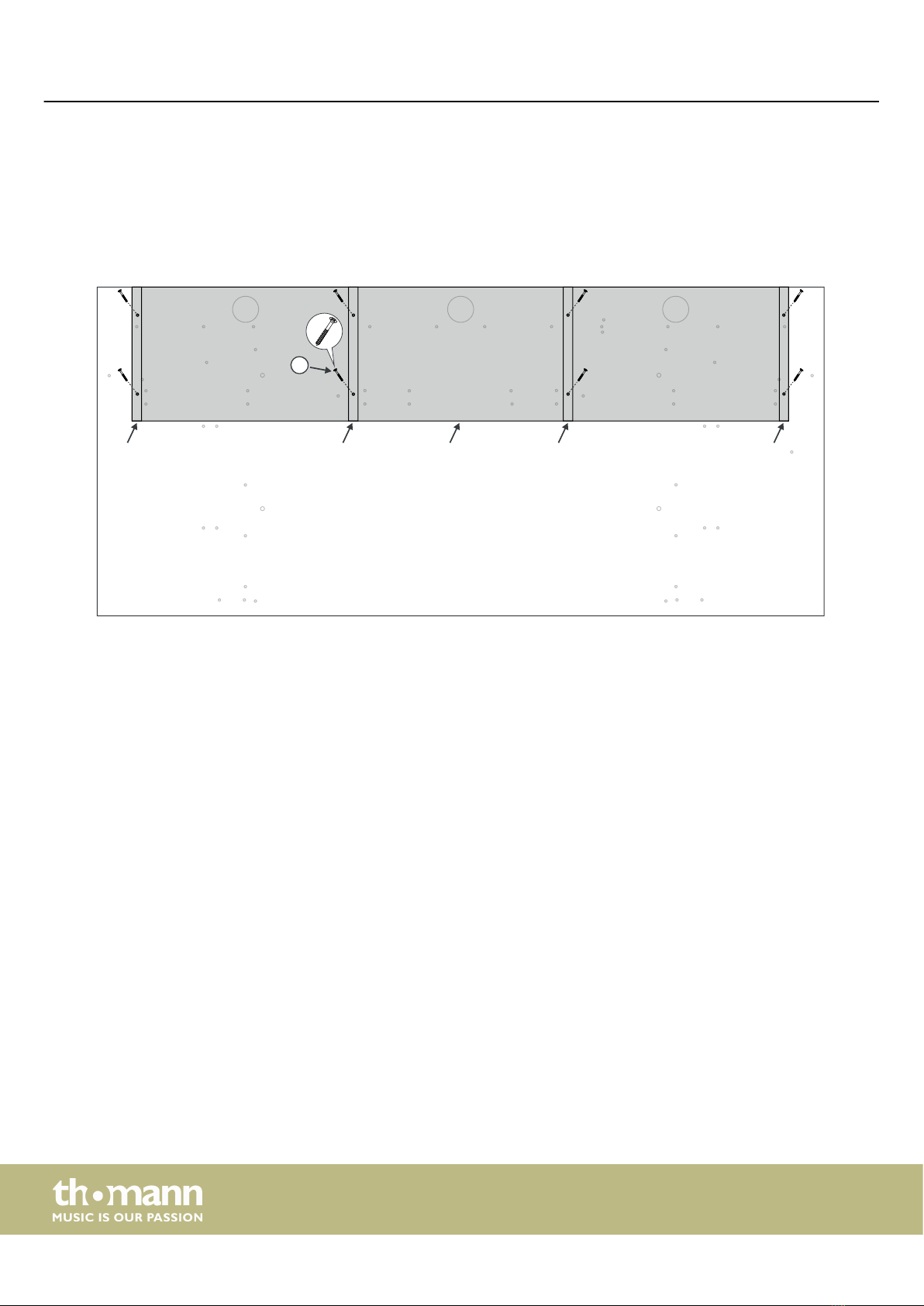

Screw the rack rails (L) with the help of the supplied wood screws (K) on the inside in parallel to the front edge of the side panels.
We recommend a distance of approx. 1 cm from the front edge.
J
& & &$ &
Installation
studio desk
14

Montage Thon Studio Ext. Desk 3U curved
Put the connecting bolts into the drill holes provided in the monitor bridge (12 × connecting bolts) and the connector housings
into the drill holes provided in the side panels (2 × connector housings each).
Insert the cable feed-throughs into the recesses of the monitor bridge from above.
After insertion, the connecting bolts sit loosely in the drill holes and only spread apart when the connector housings on the associ‐
ated component are tightened.
&
%
E
H
I
Put the six side panels on the connecting bolts of the monitor bridge and tighten the connector housings of the side panels
clockwise to lock the connection with the inserted connecting bolts.
%
&
Installation
Thon Studio Producer Desk 1750 / curved
15

Turn the tabletop over so the bottom is facing up. Place pieces of wood under the drill holes to prevent the coating from cracking
out when drilling. Using a 4mm bit, drill the twelve holes through the pre-punched positions on the underside of the table top.
Turn the tabletop over so the top is facing up. Insert the long wood screws from below through the drill holes in the table top and
attach the assembled unit consisting of the monitor bridge and side panels to the table top.
Screw the rack rails (L) with the help of the supplied wood screws (K) on the inside in parallel to the front edge of the side panels.
We recommend a distance of approx. 1 cm from the front edge.
J
%
&
&
&
&
Installation
studio desk
16

4 Technical specications
Thon Studio Producer Desk 1750
Thon Studio Producer Top 1750 BK, graphite black Item number 507338
Thon Studio Producer Top 1750 WH, white Item number 507336
Thon Studio Producer Desk 1750 oak Item number 507339
Thon Studio Prod. Desk 1750 maple Item number 528673
Thon Studio Prod. Desk 1750 beech Item number 528672
Dimensions (W × H × D) 1750 mm × 19 mm × 790 mm
Weight approx. 17.3 kg
Thon Studio Prod.Desk 1750 curved
Thon Studio Prod.Desk 1750 curved, graphite black Item number 507344
Thon Studio Prod. Top 1750 W curved, white Item number 507343
Thon Studio Prod.Desk 1750 O curved, oak Item number 507345
Thon Studio Prod.Desk 1750 maple curved Item number 528670
Thon Studio Producer Desk 1750 Beech curved Item number 528669
Dimensions (W × H × D) 1750 mm × 19 mm × 790 mm
Weight approx. 15 kg
Thon Studio Extension Desk 3U
Thon Studio Extension Desk 3U BK, graphite black Item number 507349
Thon Studio Extension Desk 3U WH, white Item number 507350
Thon Studio Extension Desk 3U OAK Item number 507351
Thon StudioExt.Desk3UMaple straight, maple Item number 528667
Thon StudioExt.Desk3UBeech straight, beech Item number 528679
Dimensions (W × H × D) 1750 mm × 159 mm × 324 mm
Weight approx. 9.1 kg
Technical specications
Thon Studio Producer Desk 1750 / curved
17

Thon Studio Ext. Desk 3U curved
Thon Studio Ext. Desk 3U BK curved, graphite black Item number 507358
Thon Studio Ext. Desk 3U WH curved, white Item number 507357
Thon Studio Ext. Desk 3U oak curved Item number 507359
Thon Studio Ext.Desk3U Maple curved Item number 528677
Thon Studio Ext.Desk3U Beech curved Item number 528674
Dimensions (W × H × D) 1750 mm × 159 mm × 324 mm
Weight approx. 10.2 kg
Accessories
Roadworx Multi Electric Stand Item number 491963
Thon Studio Producer Drawer Item number 507364
Thon Studio Cable bridge Item number 507362
the t.racks Power 3 USB Item number 437416
the t.racks Power 8 Item number 415280
Technical specications
studio desk
18

5 Protecting the environment
Disposal of the packaging material
For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal
recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
Please follow the notes and markings on the packaging.
Protecting the environment
Thon Studio Producer Desk 1750 / curved
19
