DNAfx GiT Pro multi eects unit
Quick Start Guide
This quick start guide contains important information on the safe operation of the
product. Read and follow the safety advice and instructions given. Retain the quick
start guide for future reference. If you pass the product on to others please include
this quick start guide.
Safety instructions
Intended use
This device is intended to be used for sound processing of signals from musical ins-
truments with electromagnetic pickups. Any other use or use under other operating
conditions is considered to be improper and may result in personal injury or property
damage. No liability will be assumed for damages resulting from improper use.
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are
not within reach of babies and young children. Choking hazard! Ensure
that children do not detach any small parts (e.g. knobs or the like) from the
unit. They could swallow the pieces and choke! Never let unattended chil-
dren use electrical devices.
Where to use the product
Never use the product
• in direct sunlight
• in conditions of extreme temperature or humidity
• in extremely dusty or dirty areas
General handling
• To prevent damage, never use force when operating the switches and controls.
• Never immerse the appliance in water. Just wipe it with a clean dry cloth. Do not use
liquid cleaners such as benzene, thinners or ammable cleaning agents.
Features
• Professional Amp Modelings
• IR cabinet simulations
• 153 guitar eects
• Digital and analogue eects, even in stereo
• 3 footswitch control modes
• Stereo FX Loop for external eects
• 80 drum rhythms and 10 metronome rhythms
• Looper with 52 seconds recording time
• 256 presets
• Native Expression Pedal and support for external Expression Pedal
• AMP control for channel switching
• USB connectivity for connecting a PC or MAC
• Playback of les from smartphones or other audio devices
• Audio interface for recording and playback via USB
• Editor software

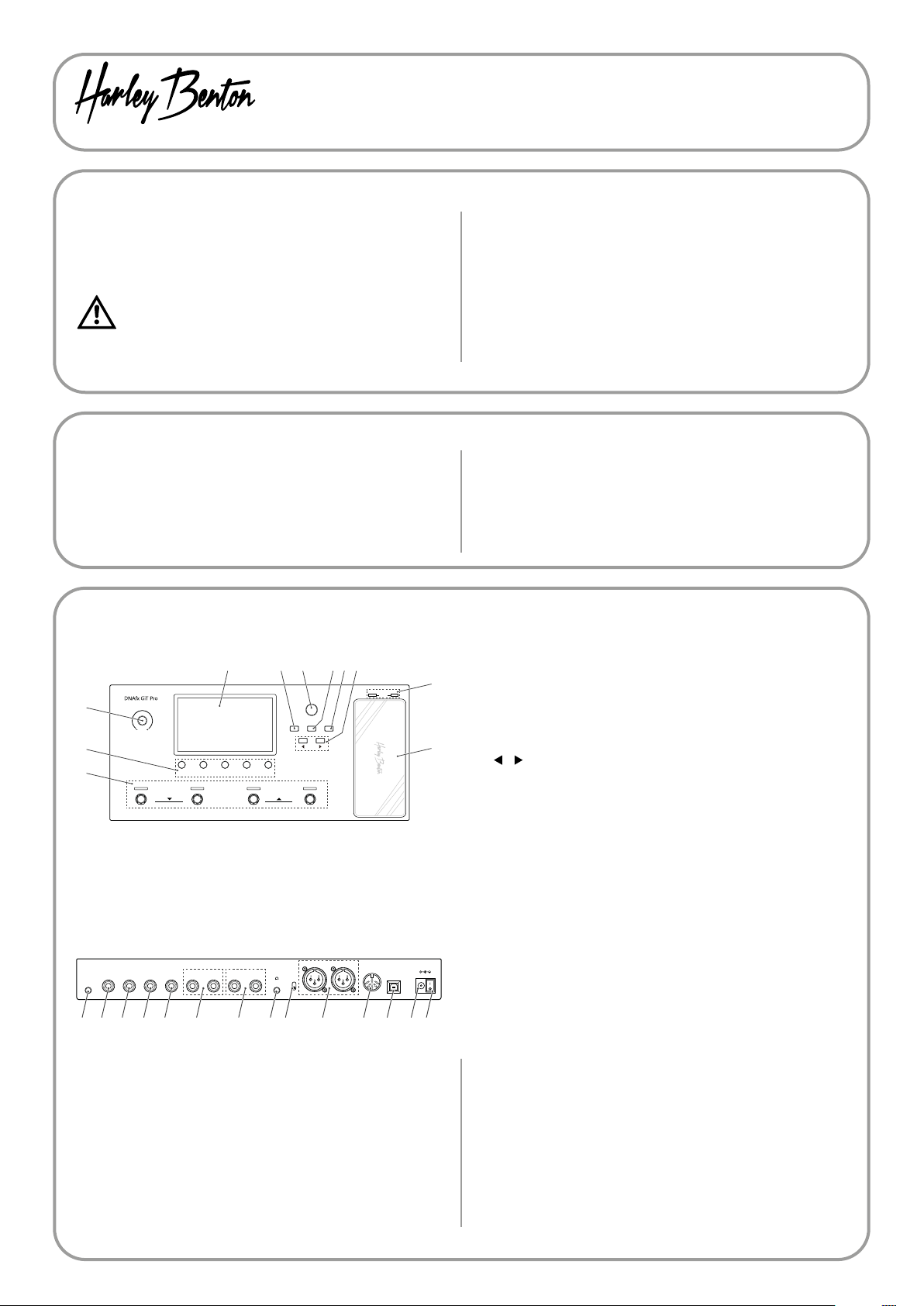

Operating elements and connections
Top side
1 OUTPUT Rotary volume control
2 Display
3 STORE Button to enter save menu
4 SELECT Rotary control to switch between preset patches, to select a
module in the eects chain, or to navigate in the settings menu
5 MENU Button to enter the system settings
6 EXIT Button to quit the current page and return to home display
7 / Buttons to navigate in the display parameters and the current
eect modules
8 PEDAL / 1 / 2 Expression Pedal indicator LEDs
9 Expression Pedal
10 A / B / C / D Footswitches to switch between preset patches, preset banks
and other control functions
11 1 ... 5 Rotary controls to adjust settings/parameters in the menus
OUTPUT
12345
ABCD
HOLD FOR LOOPER HOLD FOR TUNER
SELECT
STORE MENU EXIT
1 2
PEDAL
ö
,
+
# % &'
)
*
$(
Rear panel
19 Headphone socket (1/8" jack socket, stereo)
20 LFT / GND Ground/Lift switch for XLR output, balanced
21 OUTPUT L XLR output socket, 3-pin, mono, balanced
OUTPUT R
22 MIDI IN MIDI socket, 5-pin
MIDI OUT
23 USB USB port type B for a PC or MAC or audio device
24 DC IN Connection socket for external power adapter
25 Main switch
AUX IN
AMP CTRL PEDAL 2 INPUT SEND RETURN L RETURN ROUTPUT L OUTPUT R
LIFT
GND
OUTPUT LOUTPUT R
MIDI IN/
MIDI OUT
USB
DC IN
9V 1A
-
4. / 0 1 5 236 7 8 9 :
12 AUX IN 1/8" jack socket (stereo) for connecting an audio device
(e.g. MP3 player or smartphone)
13 AMP CTRL 1/4" jack socket (mono) for connecting a footswitch or amplier
14 PEDAL 2 1/4" jack socket (mono) for connecting an external Expression
Pedal
15 INPUT 1/4" jack socket for connecting a guitar or output of other
pedals
16 SEND 1/4" jack socket (mono) for eect looper
17 RETURN L 1/4" jack socket (mono) for eect looper return
RETURN R
18 OUTPUT L 1/4" jack sockets (mono), unbalanced
OUTPUT R

Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • www.thomann.de • [email protected] DocID: 517099_29.09.2021
Multieektgerät DNAfx GiT Pro
Technical specications
Impulse Response IR format WAV
IR sampling rate 44.1 kHz
IR sampling accuracy 24 bit
IR sampling points 512
Power supply external power adapter, 100 - 240 V 50/60 Hz
Operating voltage 9 V / 1000 mA, centre negative
EN
Dimensions (W × H × D) 346mm×58mm×162mm
Weight 1.8kg
Ambient conditions Temperature range 0 °C…40 °C
Relative humidity 20 %…80 %
(non-condensing)
Connection options
AUX IN
AMP CTRL PEDAL 2 INPUT SEND RETURN L RETURN ROUTPUT L OUTPUT R
LIFT
GND
OUTPUT LOUTPUT R
MIDI IN/
MIDI OUT
USB
DC IN
9V 1A
Amplier
footswitch connection
Guitar
Headphones
Studio monitor, stage monitor
amplier, mixer or other FRFR device
External
expression pedal
External audio
playback devic
e
Input/return of amplier
Individual power amplier
External pedal or
four-cable method
Computer
External
MIDI device
The detailed user manual and the included editor software are available to download on the product website on our homepage www.thomann.de and the
website www.harleybenton.com.
For the transport and protective packaging, environmentally friendly materials have
been chosen that can be supplied to normal recycling. Ensure that plastic bags, packag-
ing, etc. are properly disposed of. Do not just dispose of these materials with your nor-
mal household waste, but make sure that they are collected for recycling. Please follow
the notes and markings on the packaging.
Remove replaceable lithium batteries from the device before disposal. Protect used lith-
ium batteries from short circuits, for example by covering the poles with adhesive tape.
Permanently installed lithium batteries must be disposed of together with the device.
Please inquire about a suitable acceptance point.
This product is subject to the European Waste Electrical and Electronic Equipment Direc-
tive (WEEE) in its currently valid version. Do not dispose of your old device with your
normal household waste. Dispose of this product through an approved waste disposal
rm or through your local waste facility. Comply with the rules and regulations that apply
in your country. If in doubt, consult your local waste disposal facility.
