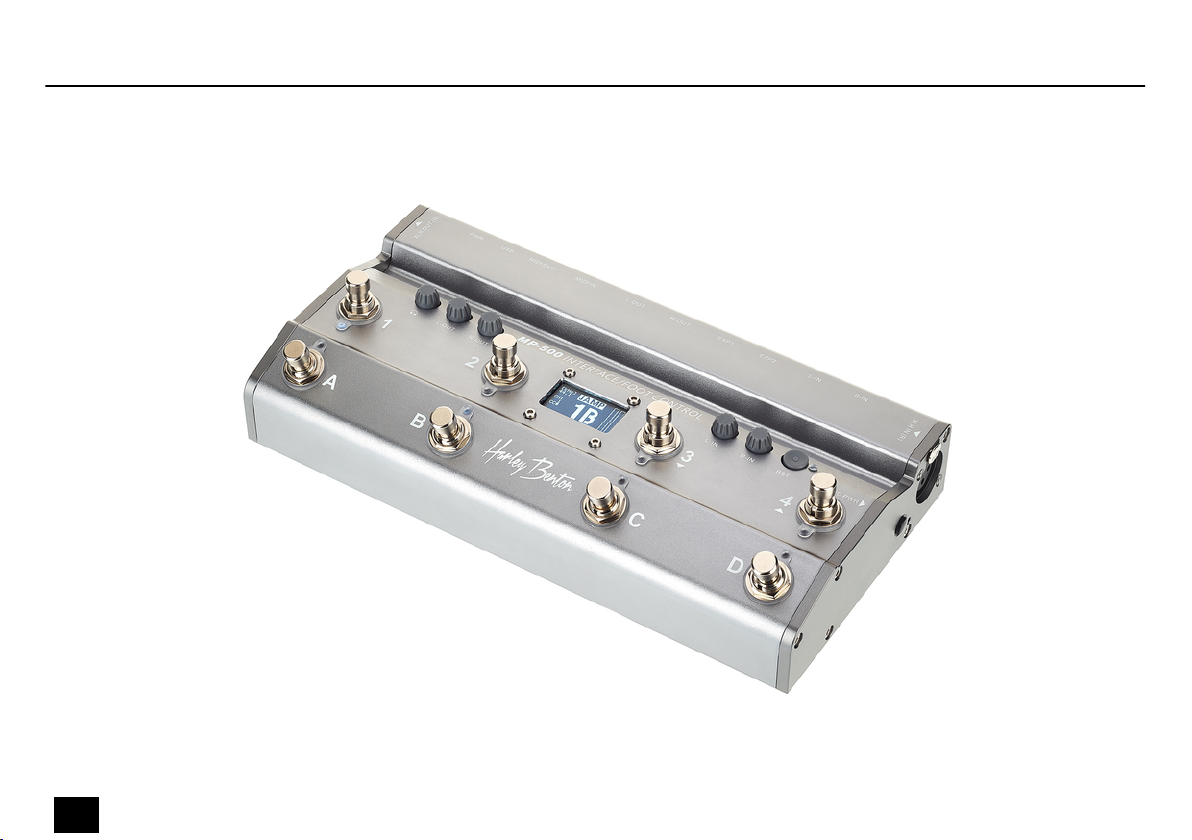

1 General information
1.1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
MP-500 5
MIDI Foot Switch

1.1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Letterings
General information
6MP-500
MIDI Foot Switch

Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
1.1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Displays
Instructions
General information
MP-500 7
MIDI Foot Switch

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General information
8MP-500
MIDI Foot Switch

2 Safety instructions
This device is used to control guitar ampliers or eect devices via footswitches and MIDI as
well as an interface for mobile devices. Use the device only as described in this user manual.
Any other use or use under other operating conditions is considered to be improper and may
result in personal injury or property damage. No liability will be assumed for damages resulting
from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
MP-500 9
MIDI Foot Switch

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC
outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do
so could result in damage to the device and possibly the user. Unplug the external power supply before electrical storms occur and
when the device is unused for long periods of time to reduce the risk of electric shock or re.
Safety instructions
10 MP-500
MIDI Foot Switch

3 Features
nAudio interface with MIDI foot switch for controlling guitar amps or eects devices via
mobile end devices and apps (iOS, Mac OS and Android systems)
nUSB MIDI control and standard MIDI control
n8 programmable foot switches
n2 inputs for eect pedals to control the eect parameters (eect pedals not included)
nHigh-speed data transmission of up to 192 kHz/24 bits
nPre-programmed congurations for common software or devices, e.g. Bias FX, JamUp,
Kemper or Axe FX
nPreamplied microphone input with +24 V phantom power, designed as XLR connector
nAdjustable instrument and microphone input, designed as a 6.35 mm jack plug (stereo)
nPower supply via USB
nMIDI cable, USB cable (type B) for data exchange and charging, USB micro cable (type B)
only for charging, 1.0 mm guitar pick, adapter 3.5 mm stereo mini jack to 6.35 mm stereo
jack plug included in delivery
Features
MP-500 11
MIDI Foot Switch

4 Installation
NOTICE!
Danger of short circuit
Switching on phantom power will damage the device if unbalanced XLR cables
are connected.
Only turn on phantom power when exclusively balanced XLR cables are con‐
nected.
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Installation
12 MP-500
MIDI Foot Switch

5 Connections and controls
XLR OUT (R)
XLR IN (R)
PWR USB MIDI OUT MIDI IN L-OUT R-OUT EXP1 EXP2 L-IN R-IN
L-OUT R-OUT L-IN R-IN BST
34
12
CD AB
<kHz>
192
CH:
CC#
1
19
64 5A
MIC PWR
ö#$ %&'
0 1 2 3 4
,
+
*
-
/
(
)
.

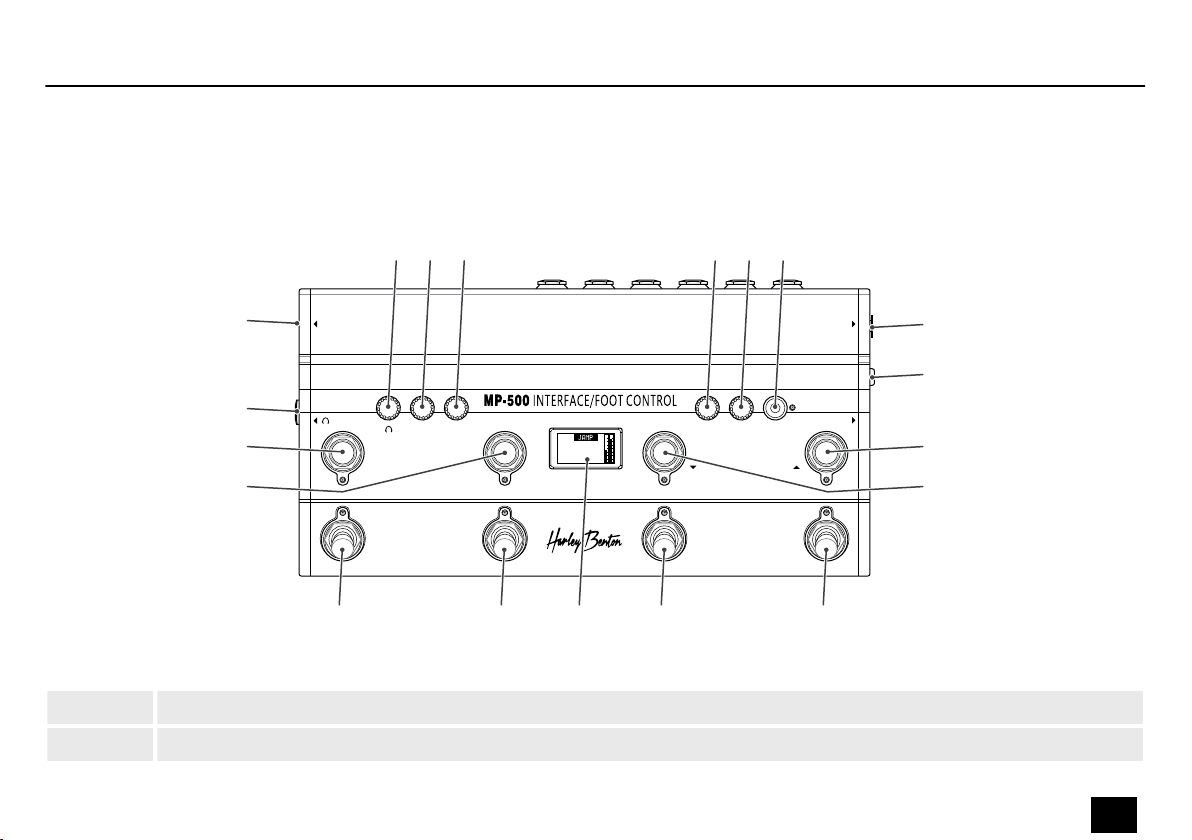

1 Volume control for the microphone input
2[L-OUT] | Volume control for the left output channel. Pressing the rotary knob mutes the channel.
Front panel
Connections and controls
MP-500 13
MIDI Foot Switch

3[R-OUT] | Volume control for the right output channel. Pressing the rotary knob mutes the channel.
4[L-IN] | Volume control for the left input channel. Pressing the rotary knob mutes the channel.
5[R-IN] | Volume control for the right input channel. Pressing the rotary knob mutes the channel.
6[BST] | Analogue boost eect for the left input channel
7[XLR IN (R)] | Input for condenser microphone or dynamic microphone, designed as XLR jack
8[MIC PWR] | Switch for switching on 24 V phantom power for microphones
9[XLR OUT (R)] | Outputs for the right channel, designed as XLR chassis plugs
10 Headphones output, designed as 6.35 mm jack plug
11 [1] | Foot switch for sending program change and control change MIDI commands
Press the foot switch, keep the foot switch pressed, and turn on the unit by connecting the USB cable to the power
supply to activate the ‘JAMP’ conguration.
12 [2] | Foot switch for sending program change and control change MIDI commands
Press the foot switch, keep the foot switch pressed, and turn on the unit by connecting the USB cable to the power
supply to activate the ‘BIFX’ conguration.
13 [3] | Foot switch for sending program change and control change MIDI commands
Press the foot switch, hold the foot switch down, and turn on the unit by connecting the USB cable to the power
supply to activate the ‘KMPA’ conguration.
Connections and controls
14 MP-500
MIDI Foot Switch

14 [4] | Foot switch for sending program change and control change MIDI commands
Press the foot switch, keep the foot switch pressed, and turn on the unit by connecting the USB cable to the power
supply to activate the ‘AXEF’ conguration.
15 [A] | Foot switch for sending program change and control change MIDI commands
Press the foot switch, keep the foot switch pressed and turn on the device by connecting the device to the power
supply via the USB cable to activate the ‘ATOM’ conguration.
16 [B] | Foot switch for sending program change and control change MIDI commands
Press the foot switch, keep the foot switch pressed, and turn on the unit by connecting the USB cable to the power
supply to activate the ‘PC-8x’ conguration.
17 Display
18 [C] | Foot switch for sending program change and control change MIDI commands
Press the foot switch, keep the foot switch pressed, and turn on the unit by connecting the USB cable to the power
supply to activate the ‘CUS1’ conguration.
19 [D] | Foot switch for sending program change and control change MIDI commands
Press the foot switch, keep the foot switch pressed, and turn on the unit by connecting the USB cable to the power
supply to activate the ‘CUS2’ conguration.
Connections and controls
MP-500 15
MIDI Foot Switch

567 8 9 : ; < = >

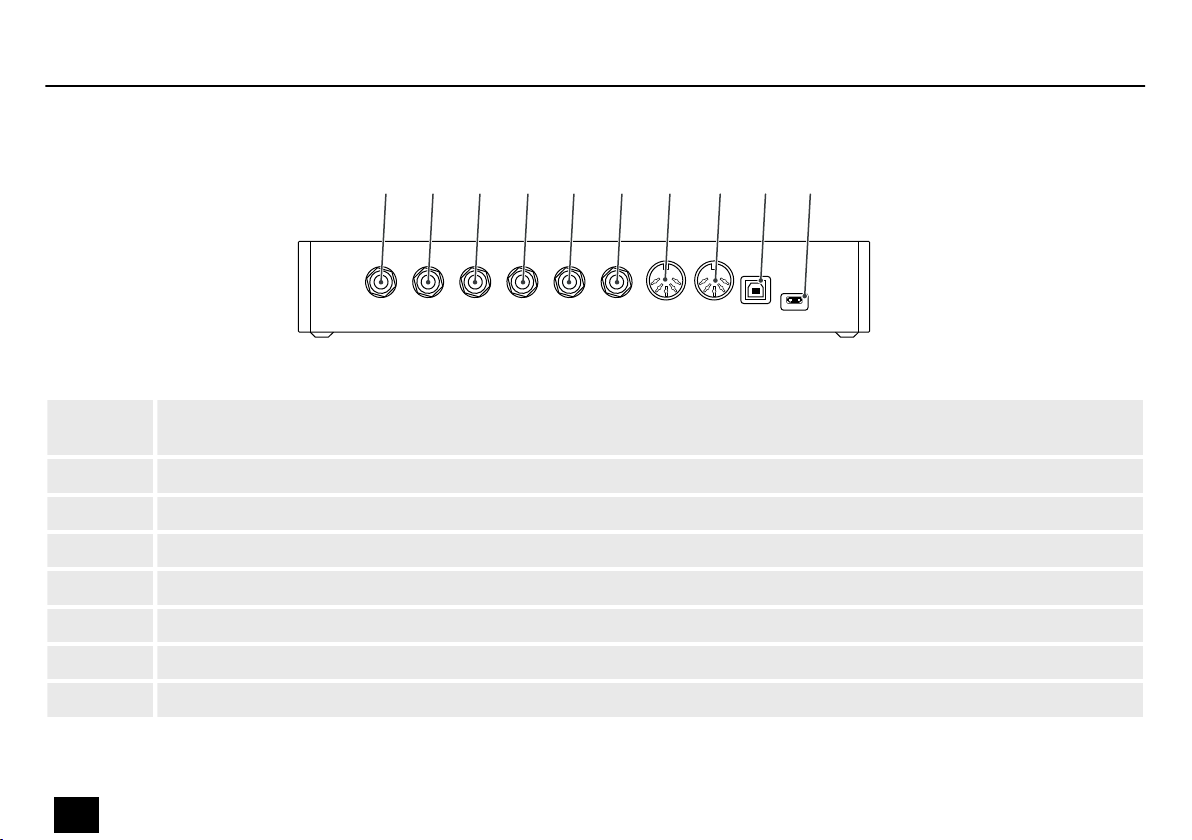

20 [R-IN] | Balanced input for connecting condenser microphone or dynamic microphone, designed as 6.35 mm jack
plug
21 [L-IN] | Unbalanced input for connecting a guitar or dynamic microphone, designed as a 6.35mm jack plug
22 [EXP2] | Input for connecting an eect pedal, designed as a 6.35 mm jack plug
23 [EXP1] | Input for connecting an eect pedal, designed as a 6.35 mm jack plug
24 [R-OUT] | Balanced output, designed as a 6.35 mm jack plug (stereo)
25 [L-OUT] | Balanced output, designed as a 6.35 mm jack plug (stereo)
26 [MIDI IN] | MIDI input for connecting external devices, designed as DIN connector (5-pin)
27 [MIDI OUT] | MIDI output for connecting external devices, designed as DIN connector (5-pin)
Rear panel
Connections and controls
16 MP-500
MIDI Foot Switch

28 [USB] | USB port for connecting a mobile device and power supply
29 [PWR] | USB micro port for power supply
If noise is caused by connecting the USB ports, connect the micro USB port using an
adapter directly to the mains plug and not to a computer.
28 Conguration
29 Dynamic display for [EXP1] (empty if no eect pedal is connected to EXP1)
Dynamic display for [EXP2] (empty if no eect pedal is connected to EXP2)
30 Current number of the program change MIDI command
31 Sub-parameter of the sent control change MIDI command (updated only if
changed and held for 0.5 s)
32 Sent control change MIDI command (updated only when changed and held for
0.5 s)
33 MIDI channel used
34 Sampling rate
Display
<kHz>
192
CH:
CC#
1
19
64 5A
= >
D
C
B
A
Connections and controls
MP-500 17
MIDI Foot Switch

6 Operating
Connect the device to a voltage source using the supplied USB micro cable (type B).
ðThe device is operational. The LEDs under the push buttons light up briey. The dis‐
play shows the current status of the device.
1. Connect the device to your mobile end device, e.g. an iPad or tablet, using the supplied
USB cable (type B).
2. Insert your mobile end device into the provided groove of the device. This way you have
an optimal view of the display of your mobile end device while playing.
3. Set the volume of your mobile end device to 80 to 90 per cent.
4. Connect your instrument to the [L-IN] input jack and set the default gain value to 0 dB.
5. Connect headphones to the headphone output or connect a monitor to the line
output[(L-OUT], [R-OUT]).
6. Start an audio software of your choice on the mobile end device and set an extremely
low latency time.
Activate the MIDI controller the rst time you use the software.
ðYou can now control the device with the app of your mobile end device.
Turning the unit on
Using a device with mobile end
devices
Operating
18 MP-500
MIDI Foot Switch

You can switch between six preset and two individually programmable congurations.
1. Depending on the desired conguration, press [1]…[4] or [A]…[D] and keep the button
pressed.
2. Enable the device by connecting the supplied USB micro cable (type B) to a voltage
source.
ðThe selected conguration is activated. The display will show the selected congura‐
tion.
Foot switch Conguration Function
1 JAMP Control of eects of the iOS software JamUp
2 BIFX Control of eects of the Biax FX software
3 KMPA Control of eects of the Kemper proling amp
4 AXEF Control of AXE FX eects
A ATOM Control of the ATOMIC amplier eects
B PC-8x [1]…[4] and [A]…[D] for sending program change MIDI commands. 8 patches are a
group. 8 dierent patches can be switched.
C CUS-1 Individually programmable conguration
D CUS-2 Individually programmable conguration
Select conguration
Operating
MP-500 19
MIDI Foot Switch

You can program and save two individual congurations.
1. Press [4] and [D] simultaneously and keep the buttons pressed.
2. Enable the device by connecting the supplied USB micro cable (type B) to a voltage
source.
ðThe setup for individual congurations is activated. The display shows the sub‐
menus ‘MIDI.CH’ , ‘CUS1’ and ‘CUS2’ .
3. Press [2] r [3] to switch between the submenus.
In the ‘MIDI.CH’ submenu, MIDI channels can be assigned to the preset congurations.
1. Press [4] or [D] to select the desired conguration.
2. Press [B] or [C] to select the desired MIDI channel for the conguration.
ðThe selected settings remain stored even after the device is turned o.
In the submenus ‘CUS1’ and ‘CUS2’ , parameters for individually set congurations can be set.
1. Press [4] or [D] to select the desired parameter.
2. Press [B] or [C] to select the desired option for the parameter.
ðThe selected settings remain stored even after the device is turned o.
Programming the conguration
Operating
20 MP-500
MIDI Foot Switch
