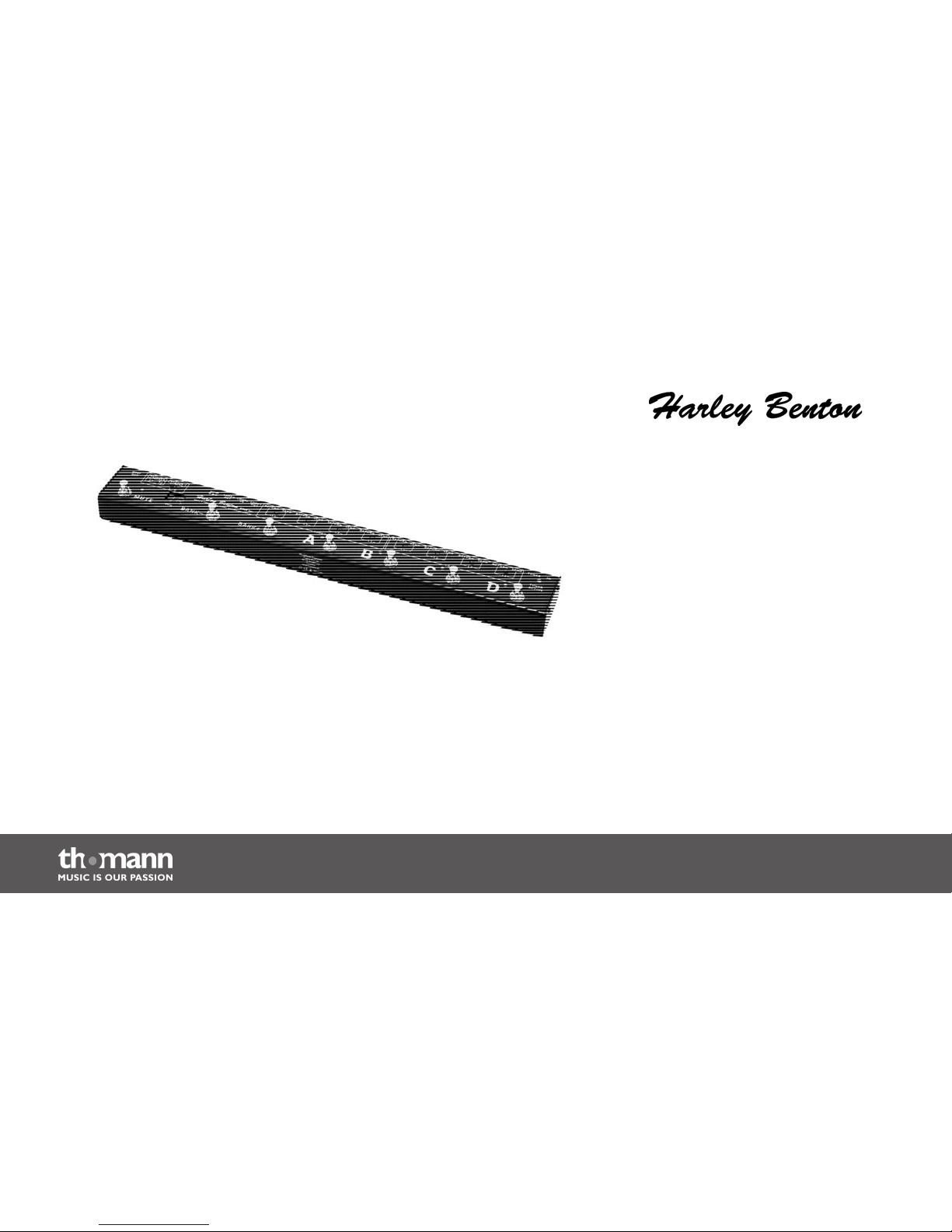

thomann harley Benton FXL8 Pro User manual

FXL8 Pro
effects looper
user manual

Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
15.09.2014, ID: 337603

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 12
4 Installation.................................................................................................................................................. 13
5 Connections and operating elements........................................................................................... 20
6 Operating.................................................................................................................................................... 27
7 Technical specifications....................................................................................................................... 39
8 Plug and connection assignment.................................................................................................... 40
9 Protecting the environment.............................................................................................................. 42
Table of contents
FXL8 Pro
3

1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
effects looper
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
General information
FXL8 Pro
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’, ‘OFF’.
Letterings
Displays
General information
effects looper
6

The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch off the device.
Text inputs that are carried out on the device are indicated by typewriter font.
Example: 2323
References to other locations in this manual are identified by an arrow and the specified page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specified location.
Example: See Ä ‘Cross-references’ on page 7.
Instructions
Text input
Cross-references
General information
FXL8 Pro
7

1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General information
effects looper
8

2 Safety instructions
This device is intended to be used to integrate multiple effects devices into the signal path
between instrument and amplifier. Different configurations can be stored. Use the device only
as described in this user manual. Any other use or use under other operating conditions is con‐
sidered to be improper and may result in personal injury or property damage. No liability will
be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
FXL8 Pro
9

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety
Safety instructions
effects looper
10

NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
fire.
Safety instructions
FXL8 Pro
11

3 Features
The unit is ideal for use and switching of up to eight effects devices in your guitar setup. It is
characterized by:
ntwo separately or jointly usable signal loops for up to four effects units
npremium footswitch with True Bypass function
nOption to store settings for loops in eight memory banks
ntwo programmable trigger (switching outputs) with which other audio devices can be
controlled
na MIDI output for triggering MIDI compatible devices
nrobust metal housing
Features
effects looper
12

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Establish all connections as long as the unit is switched off. Use the shortest possible high-
quality cables for all connections.
Installation
FXL8 Pro
13

8-channel mode with usage of
the MIDI output
Installation
effects looper
14

If your instrument is connected to the input [IN] and your amplifier to the output [LOOP2 OUT],
eight effects processors can be looped into the signal path. In this example, the MIDI output
controls an audio processor that is arranged behind the preamp in the signal path.
Installation
FXL8 Pro
15

8-channel mode without usage
of the MIDI output
Installation
effects looper
16

If your instrument is connected to the input [IN] and your amplifier to the output [LOOP2 OUT],
eight effects processors can be looped into the signal path. In this example, an audio processor
arranged behind the preamp in the signal path is controlled by a third device.
Installation
FXL8 Pro
17

2×4-channel mode
Installation
effects looper
18

Connect your instrument to the input [IN] of the device and the effects input of your amplifier
to output [LOOP1 OUT]. Connect the effects output of your amplifier to the input [LOOP2 IN]
and the power stage of your amp to the output [LOOP2 OUT]. Connect the inputs, that can be
used to control the effects on your amplifier to the programmable trigger outputs
[TRIGGER T1], [TRIGGER T2]. In this setup, you can use and programme built-in effects of your
amp in the same way as effects pedals.
Installation
FXL8 Pro
19

5 Connections and operating elements
Top side
Connections and operating elements
effects looper
20
