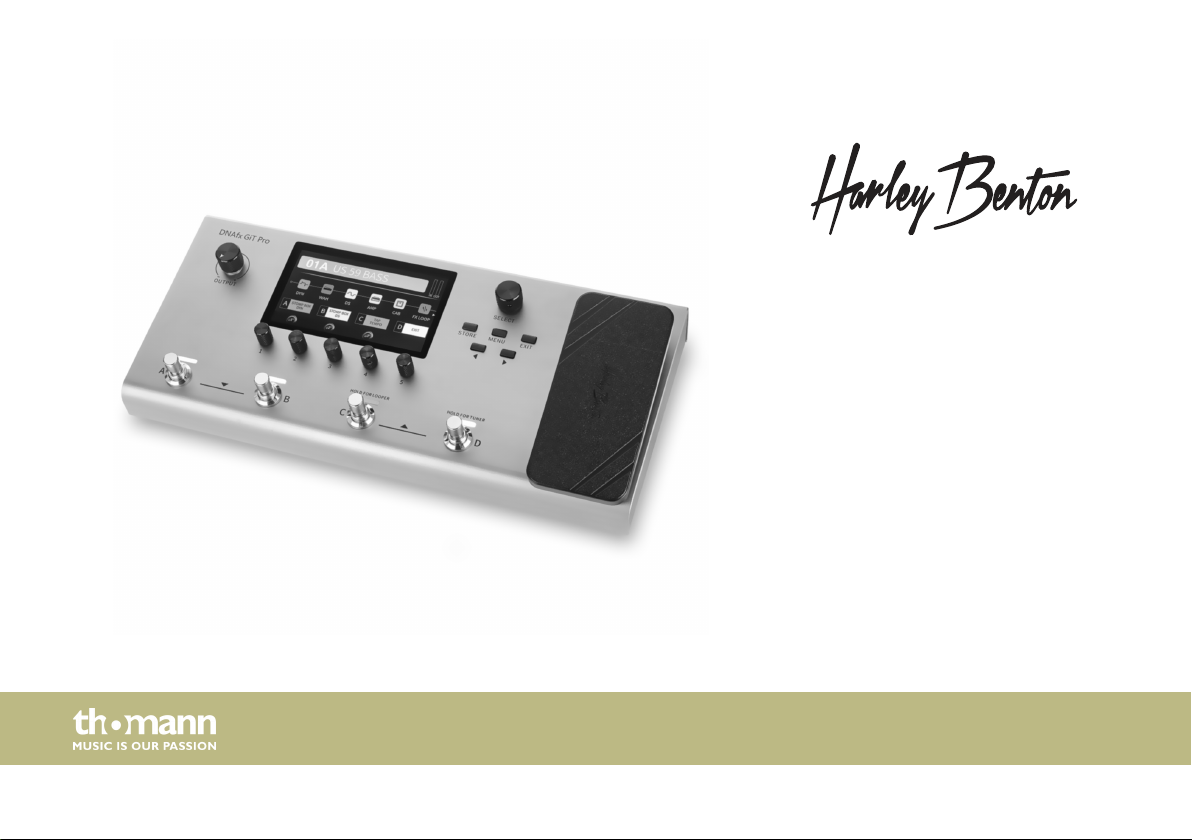

thomann Harley Benton DNAfx GiT Pro User manual

DNAfx GiT Pro
multi eects unit
user manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
11.01.2022, ID: 517099

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 9
2 Safety instructions.................................................................................................................................. 10
3 Features....................................................................................................................................................... 12
4 Installation.................................................................................................................................................. 14
4.1 Connection options......................................................................................................................... 15
5 Connections and operating elements........................................................................................... 24
6 Operating.................................................................................................................................................... 29
6.1 Presets.................................................................................................................................................. 30
6.2 Footswitch modes........................................................................................................................... 35
6.3 FX LOOP............................................................................................................................................... 39
6.4 Expression pedal.............................................................................................................................. 40
6.5 Setting ‘LOOPER / RHYTHM’ ......................................................................................................... 43
Table of contents
DNAfx GiT Pro
3

6.6 Tuner..................................................................................................................................................... 48
6.7 System settings................................................................................................................................. 48
6.8 Editor software.................................................................................................................................. 65
6.9 Software update............................................................................................................................... 66
7Eects list.................................................................................................................................................... 67
8 Technical specications....................................................................................................................... 84
9 Plug and pin assignments................................................................................................................... 87
10 Protecting the environment.............................................................................................................. 90
Table of contents
multi eects unit
4

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
DNAfx GiT Pro
5

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
multi eects unit
6

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
Letterings
Displays
General information
DNAfx GiT Pro
7

The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
References to other locations in this manual are identied by an arrow and the specied page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specied location.
Example: See Ä ‘Cross-references’ on page 8.
Instructions
Cross-references
General information
multi eects unit
8

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General information
DNAfx GiT Pro
9

2 Safety instructions
This device is intended to be used for sound processing of signals from musical instruments
with electromagnetic pickups. Any other use or use under other operating conditions is con‐
sidered to be improper and may result in personal injury or property damage. No liability will
be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
multi eects unit
10

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC
outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do
so could result in damage to the device and possibly the user. Unplug the external power supply before electrical storms occur and
when the device is unused for long periods of time to reduce the risk of electric shock or re.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt-pad oor protectors or similar.
Safety instructions
DNAfx GiT Pro
11

3 Features
Special features of the device:
nWide variety of professional Amp Modelings
nIR cabinet simulations (Impulse Response) for recording and FOH application (max. 30 IR
les) can be loaded
n153 dierent guitar eects in 11 eect modules
nDierent high quality digital and analogue eects, even in stereo
nSelectable order of the eects in the eects chain
n3 footswitch control modes
nStereo FX Loop for external eects
n80 drum rhythms and 10 metronome rhythms
nLooper with 52 seconds recording time
n256 presets (64 preset banks, each with 4 preset patches)
nNative Expression Pedal and support for external Expression Pedal
nAMP control for channel switching
n5" LED colour display
nUSB connectivity for connecting a PC or MAC
nPlayback of les from smartphones or other audio devices
Features
multi eects unit
12

nAudio interface for recording and playback via USB
nEditor software
nRobust aluminium housing
nPower adapter supplied
Features
DNAfx GiT Pro
13

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Installation
multi eects unit
14

4.1 Connection options
NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
re.
1. Make the desired connection between the guitar and the equipment.
2. Connect the supplied mains adapter to the power supply input of the device and then
plug the adapter into a properly wired mains wall outlet.
Connection to the power
supply.
Installation
DNAfx GiT Pro
15

This setup can be used on any amplier with FX LOOP or individual power amp.
AUX IN
AMP CTRL PEDAL 2 INPUT SEND RETURN L RETURN R OUTPUT L OUTPUT R
LIFT
GND
OUTPUT L OUTPUT R
MIDI IN/
MIDI OUT
USB
DC IN
9V 1A
Amplier Power Amplier
Guitar
1. Connect the guitar to the input socket [INPUT] of the unit.
2. Connect the RETURN interface of the amplier to the output socket (jack) [OUTPUT L] of
the unit.
3. Connect the input of the amplier to the output socket (jack) [OUTPUT R] of the unit.
4. Enable the eect module ‘AMP’ in the eects chain for best results.
Connection to the amplier and
the power amp
Installation
multi eects unit
16

This setup can be used, if the amplier does not have an FX LOOP. The unit is placed in front of
the amplier. The signal from the unit goes to the preamp of an amplier.
AUX IN
AMP CTRL PEDAL 2 INPUT SEND RETURN L RETURN R OUTPUT L OUTPUT R
LIFT
GND
OUTPUT L OUTPUT R
MIDI IN/
MIDI OUT
USB
DC IN
9V 1A
Amplier
Guitar
1. Connect the guitar to the input socket [INPUT] of the unit.
2. Connect the input of the amplier to the output socket (jack) [OUTPUT L] of the unit.
3. Disable the eect modules ‘AMP’ and ‘CAB’ to avoid unexpected tone colouring.
Connection to the input socket
of the amplier
Installation
DNAfx GiT Pro
17

This setup can be used, if the amplier has an FX LOOP and the unit is to be used with an
amplier as a post eect. The unit is placed between preamp and power am of the amplier.
AUX IN
AMP CTRL PEDAL 2 INPUT SEND RETURN L RETURN R OUTPUT L OUTPUT R
LIFT
GND
OUTPUT L OUTPUT R
MIDI IN/
MIDI OUT
USB
DC IN
9V 1A
Amplier
Guitar
1. Connect the guitar to the input of an amplier.
2. Connect the SEND interface of the amplier to the input socket [INPUT] of the unit.
3. Connect the RETURN interface of the amplier to the output socket (jack) [OUTPUT L] of
the unit.
Connection to the FX LOOP of
an amplier
Installation
multi eects unit
18

4. Disable the eect modules ‘AMP’ and ‘CAB’ for best results.
This setup can be used to use the unit as Distortion/Overdrive/Boost pedal in front of the
preamp of an amplier and as Modulation/Delay/Reverb pedal between the preamp and
power amp of an amplier.
AUX IN
AMP CTRL PEDAL 2 INPUT SEND RETURN L RETURN R OUTPUT L OUTPUT R
LIFT
GND
OUTPUT L OUTPUT R
MIDI IN/
MIDI OUT
USB
DC IN
9V 1A
Amplier
Guitar
1. Connect the guitar to the input socket [INPUT] of the unit.
Four-cable method
Installation
DNAfx GiT Pro
19

2. Connect the RETURN interface of the amplier to the output socket (jack) [OUTPUT L] of
the unit.
3. Connect the SEND interface of the amplier to the input socket [RETURN L] of the unit.
4. Connect the input of the amplier to the output socket [SEND] of the unit.
5. Place the dynamic eects, Rah eects, EQ and Distortion/Overdrive eects before the
preamp.
6. Place the Noise Gate, Modulation, Delay and Reverb eects between the preamp and
the power amp.
7. Enable the FX LOOP module in the unit and disable the eect modules ‘AMP’ and ‘CAB’
for best results.
8. Set the FX LOOP module to serial mode. Move the pre-eects in front of the FX LOOP in
the eects chain. Move the post-eects after the FX LOOP in the eects chain.
Installation
multi eects unit
20
