thomann Harley Benton DNAfx GiT User manual

DNAfx GiT
multi eects unit
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
27.11.2019, ID: 478040

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 10
3 Features....................................................................................................................................................... 14
4 Installation.................................................................................................................................................. 15
5 Connections and operating elements........................................................................................... 25
6 Operating.................................................................................................................................................... 31
6.1 Presets.................................................................................................................................................. 31
6.2 Expression pedal.............................................................................................................................. 35
6.3 Tap Tempo.......................................................................................................................................... 39
6.4 Drum machine.................................................................................................................................. 40
6.5 Tuner..................................................................................................................................................... 42
6.6 Looper.................................................................................................................................................. 43
Table of contents
DNAfx GiT
3

6.7 OTG function...................................................................................................................................... 45
6.8 System settings................................................................................................................................. 46
6.9 Software............................................................................................................................................... 47
7Eects list.................................................................................................................................................... 48
8 Technical specications....................................................................................................................... 64
9 Plug and connection assignment.................................................................................................... 66
10 Protecting the environment.............................................................................................................. 68
Table of contents
multi eects unit
4

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
DNAfx GiT
5

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
multi eects unit
6

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
Letterings
Displays
General information
DNAfx GiT
7

The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Instructions
General information
multi eects unit
8

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General information
DNAfx GiT
9

2 Safety instructions
This device is intended to be used for sound processing of signals from musical instruments
with electromagnetic pickups. Any other use or use under other operating conditions is con‐
sidered to be improper and may result in personal injury or property damage. No liability will
be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
multi eects unit
10

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Safety
Safety instructions
DNAfx GiT
11

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctua‐
tions and do not switch the device on immediately after it was exposed to tem‐
perature uctuations (for example after transport at low outside temperatures).
Dust and dirt inside can damage the unit. When operated in harmful ambient
conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other
malfunction.
Safety instructions
multi eects unit
12

NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
re.
Safety instructions
DNAfx GiT
13

3 Features
Special features of the device:
n55 high-quality amp simulations
n26 IR (Impulse Response) simulations
n151 dierent guitar eects
nup to 9 types of eects at the same time
n40 drum rhythms and 10 metronome rhythms
nPhrase Looper with 80 seconds recording time
nTap Tempo function
nup to 200 storable presets
nbuilt-in expression pedal
nLarge LED colour display
nUSB connectivity for editing via PC or MAC
nrobust aluminium housing
Features
multi eects unit
14

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Installation
DNAfx GiT
15

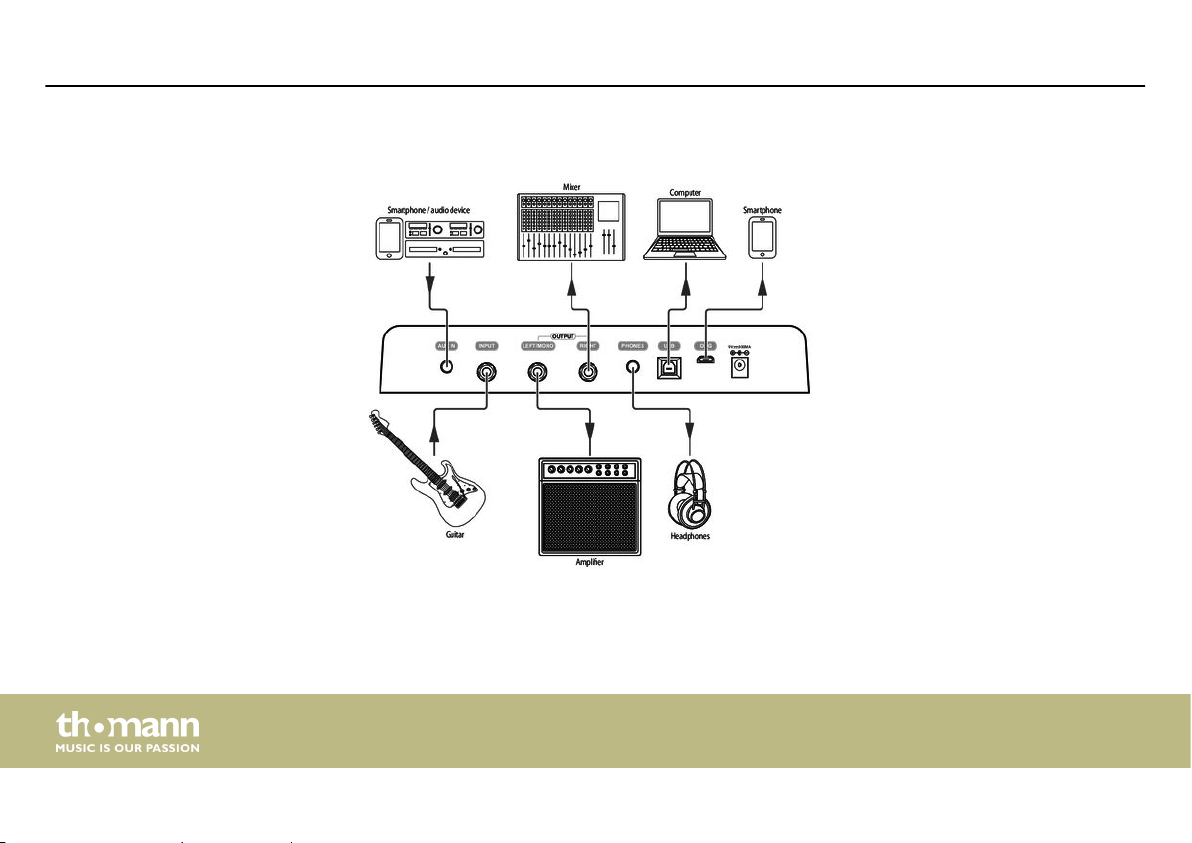

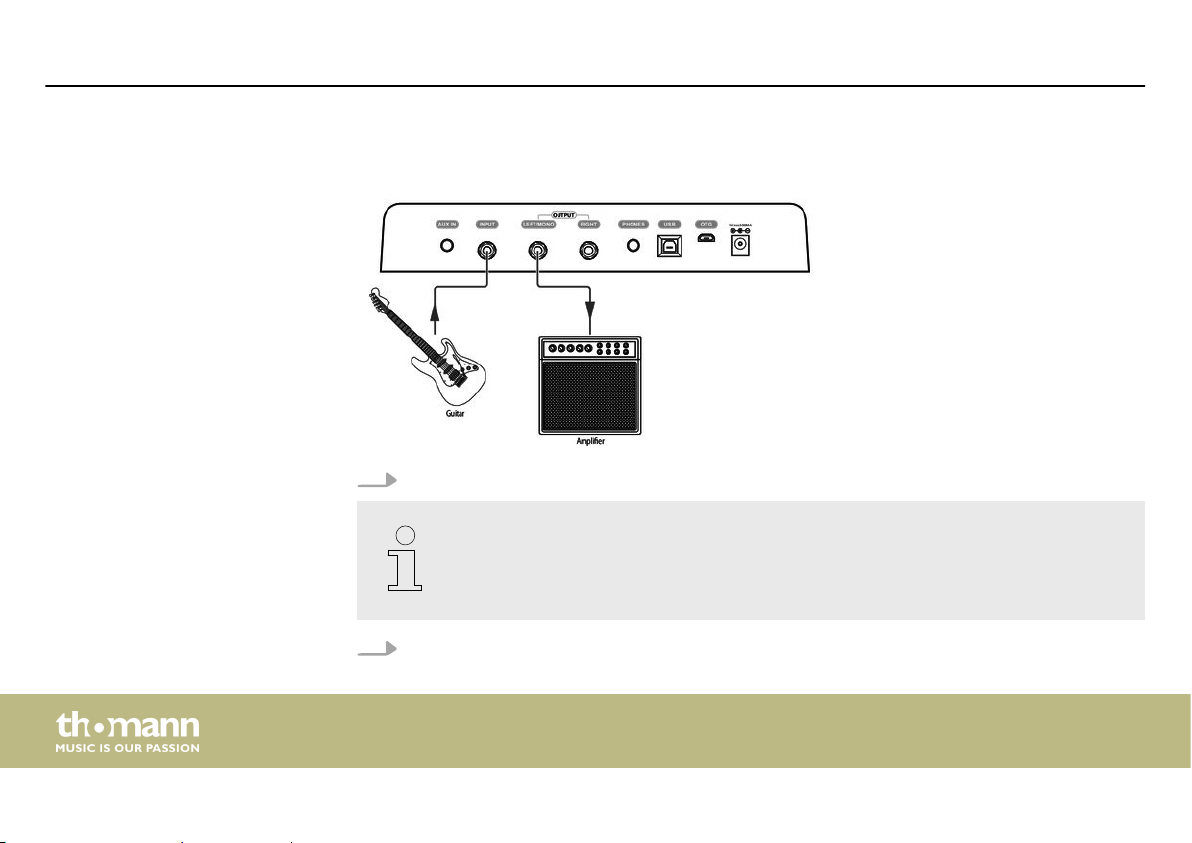

Connection options
Installation
multi eects unit
16

1. Make the desired connection between the guitar and the equipment.
The device is powered by an AC adaptor plug. Before connecting the AC adaptor plug,
ensure that the input voltage (AC outlet) matches the voltage rating of the device and
that the AC outlet is protected by a residual current circuit breaker. Failure to do so
could result in damage to the device and possibly the user.
2. Connect the supplied mains adapter to the power supply input of the device and then
plug the adapter into an AC outlet.
Connection to the power
supply.
Installation
DNAfx GiT
17

1. Connect the guitar to the input jack [INPUT] of the unit.
Turn o the [AMP] and [CAB] eects.
2. Connect the input of the amplier to the output jack [LEFT MONO] of the unit.
Connection to the input jack of
the amplier
Installation
multi eects unit
18

1. Connect the guitar to the input jack [INPUT] of the unit.
Turn o the [CAB] eect.
2. Connect the RETURN interface of the amplier to the output jack [LEFT MONO] of the
unit.
Connection to the power ampli‐
er
Installation
DNAfx GiT
19

1. Connect the guitar to the input of an amplier.
2. Connect the SEND interface of the amplier to the input jack [INPUT] of the unit.
3. Connect the RETURN interface of the amplier to the output jack [LEFT MONO] of the
unit.
Connection to a eect looper
Installation
multi eects unit
20
