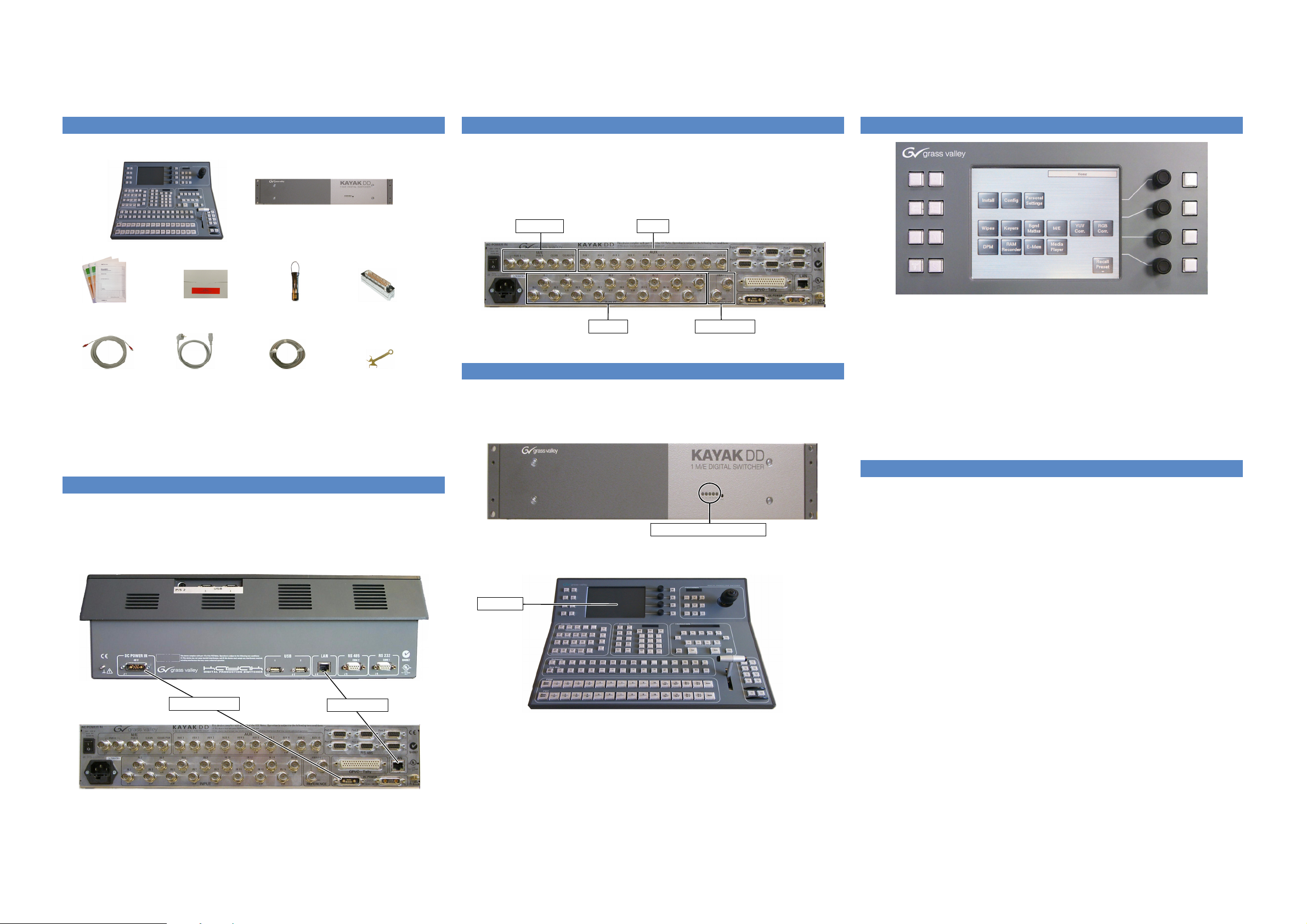

GENLOCK SETUP (Menu Install -- E--Box -- Genlock)
By default your KayakDD is set for analog (Blackburst) Reference -- on the
REFERENCE loop--through connectors and ’AutoDetect’ for 625Lines/50Hz and
525Lines/60Hz.
DFirst make sure that an analog reference is connected to the reference
input of the frame or select the input for Digital reference.
DTo adjust genlock settings, bring up the install menu by pressing the ”Install”
button in the main menu.
DMake sure that the right video standard and genlock input type (analog or
digital) is selected.
DIf not, change them by pressing the ”Video Std.” / ”GL Inp. Type” buttons.
DIf the input type is digital, choose the desired input source using the ”GL Dig.
Inp. Src.” button.
DCheck that the displayed ”Ext. Ref.” standard matches the ”Video Std.”
setting.
DThe Genlock Phase shifts the switcher timing with respect to the reference
signal.
DWhether the source signals are within the auto--timing window can be
checked by selecting them on AUX bus 1.
DTo adjust the genlock phase, turn the digipot to the left or to the right.
DThe source is within the auto--timing window when the marker is displayed
in the middle of the timing bar on a green background.
KEYING TIPS
KEYING a Character Generator.
DUse ADD KEY if you use a character generator that produces
ANTI--ALIASED lettering or an external Digital Effects device that produces
soft borders on its video output.
DIn the Keyer Mode Menu check that the key signal is being used correctly
by going to the setup menu.
DSwitch to Clip High/Low and set Clip High to 100% and Clip Low to 0%. If
you prefer Clip and Gain control set the value of Clip to 50% and Gain to
100%.
DIf you have problems with a keyer setup, press the KEY PVW button in the
Keyer Area. It will automatically switch your Preview Monitor to show only
the currently delegated keyer over the background.
DPressing it again will display the monochrome key signal (Show Key).
DFor a CG this should match exactly the key signal from the unit.
DPressing KEY PVW a third time will restore the Preview Monitor to
Look--ahead Preview mode.
DUse LUM key for a caption camera.
DUse SELF KEY for a caption camera and other selfkey sources, like
Chromakey cameras.
CHROMAKEY AUTOSETUP
DTo perform a chroma key using auto setup, first select one of the four keyers
by using the key delegation buttons or the keyer menu.
DPush the chroma key button at the keyer subpanel.
DMake sure “FGD Fade” is switched off.
DChose a chroma key source on the key bus corresponding to the
selected keyer.
DUse the PGM bus to select the desired background signal.
DPress the cursor button at the keyer subpanel to enter the automatic cursor
assisted key adjustment.
DAfter pressing the cursor button the preview output will display the chroma
key source with a superimposed crosshair cursor.
Dwith the Positioner move the cursor to the colour to key on.
DPress “Auto” or the button on the Positioner to start the auto--adjustment.
MASKING TIPS
DPress INHIB(inhibit) or FORCE MASK in the Keyer Area to go to the mask
menu.
DThe switcher will highlight FORCE or INHIBIT Mask control databox for
you.
DChoose the MASK SOURCE.
DFor WIPES choose the pattern. (Don’t forget each keyer has a wipe
generator and a box mask).
DSet the SIZE of a Wipe, and SOFTNESS. The Positioner will only work if
you switch it on in the wipe selection menu.
DFor a BOX MASK set each edge position and softness.
DIf you need to see through the mask use OPACITY (100% = full masking).
TRANSITION MODES
You can select any combination of BGND, KEY1, KEY2, KEY 3, KEY 4 and PRIOR
TRANS for any transition. Just press the buttons simultaneously.
DTo change only Background from PGM to PST use BGND transition.
DTo change whether a keyer is ON or OFF select the desired KEY n.
DAny combination you can press is good -- just check on Preview to see your
result.
DMove the Lever arm in the direction of the blue arrow, or press CUT or
AUTO to make your transition.
DKeyers also have CUT and MIX buttons that can be used even if the lever
arm is doing a different transition. This operates the keyers like being DSKs.
To change AUTO transition duration.
DPress and Hold the TRANS DUR Button in the EFFECTS subpanel.
DThe AUTO, KEY1 MIX, KEY2 MIX, KEY3 MIX, KEY4 MIX and the FTB
AUTO buttons will blink.
DPress the AUTO button for which you want to alter the transition duration.
Use the Effects Keypad to type the number of frames you want it to be and then
ENTER.
E--MEMtTIPS
DE--Mem operates in ”Normal Mode” and ”Bank” Mode. Bank Mode is more
similar to traditional E--Mem operation than Normal Mode.
Modes are switched with the BANK button. If it is lit Bank Mode is active.
The display also shows a ”B” in front of the register number.
DStore a snapshot in Normal Mode: Press STORE, type in register number
(two digits), press ENTER. Switcher confirms with ”Stored”.
DRecall a snapshot in Normal Mode: Type in register number (two digits),
press CUT for recall, or press AUTO for Effects Dissolve.
DStore a snapshot in Bank Mode: Press STORE, press register number
(0--9), press ENTER. Switcher confirms with ”Stored”.
DRecall a snapshot in Bank Mode: Press register number (0--9).
DChanging Bank in Bank Mode: hold down BANK and press Bank number
(0--9) KayakDD E--Mem can also do timelines.
Please see the User Manual how to work with timelines.
EXPLORE
If you wish to explore Look in the Menu
DGenlock or uncal indications Install -- E--Box -- Genlock
DReset to factory settings Home -- Recall Preset --
Factory Preset
DVideo Input mapping Config -- Panel Assign
DTally Assignment Install -- E--Box -- GPO
DDVE capability DPM
DRAMRecorder capability RAMRecorder
DInstalled options Install -- E--Box -- Licenses
TECHNICAL SUPPORT NUMBERS
For other issues, please refer to the KayakDD Installation or User Manuals.
Otherwise contact your Thomson Customer Support.
Thomson Worldwide
Headquarters
17 rue du Petit Albi -- BP 8244
95801 Cergy Pontoise Cedex
FRANCE
North America Pacific
Sales/Support +1 800 547 8949 Sales +852 2531 3000
+1 530 478 4148 Support +852 2531 3056
Fax +1 530 478 3347 Fax +852 2802 2996
Latin America Rest of the World
Sales +1 305 477 5488 Sales +33 (0) 1 34 20 70 00
Support +1 530 478 4148 Support +800 80 80 20 20
Fax +1 305 477 5385 (West/North Europe only)
Fax +33 (0) 1 48 25 20 20
(East Europe, Middle East, Africa)
Fax +33 (0) 1 34 20 70 47
Website
www.thomsongrassvalley.com
For general KayakDD information navigate to Products area.
For support and software download navigate to Support/Training area.
