THOMSON Grass Valley Triton TTN-HDS-1616 User manual

MANUAL PART NO. 071-8223-00 Rev. 0
MARCH 14, 2003
INSTALLATION MANUAL
TRITON routing switcher
High Definition Serial Digital Video Router 16x16
Product model no. TTN-HDS-1616
the most watched worldwide

ii
Headquarters
Thomson Broadcast Systems
17 rue du Petit Albi - BP 8244
95801 Cergy Pontoise Cedex
FRANCE
Thomson Broadcast and
Media Solutions, Inc.
P.O. Box 599000
Nevada City, CA 95959-7900
USA
Copy
r
ight 2003 Thomson Broadcast and Media Solutions, Inc. All rights reserved. Grass Valley, Jupiter, and
Triton are trademarks of Thomson. Specifications subject to change without notice.
For customer service, please call [phone]. For comments or questions concerning this manual, please
contact: Technical Publications Department, P.O. Box 30816, Salt Lake City, Utah 84130 USA. Phone: (801)
972-8000. Fax: [phone]. Email: [e-mail]

iii
Contents
Electromagnetic Radiation Notice v
Hardware Warranty and Software License vi
Parts and Service vi
Revision history vii
1General 1
1.1 Specifications 1
1.2 Connection drawing 2
2Power connection 2
3Connecting the HDS-1616 to your PC 3
3.1 Selection of router level 3
3.2 Pin-out of RS-232 connector 3
3.3 Maximum cable length 3
4NCB connection 4
4.1 Several routers in one system 4
4.2 Connecting control panels 4
4.3 Pin-out and cable type 5
4.3.1 RJ45 connectors 5
4.3.2 5-pin DIN connectors 5
4.3.3 RJ45 to 5-pin DIN converter 6
4.4 Control bus structure 6
4.5 Maximum distance between NCB devices 6
4.6 Control Bus configuration notes 6
5Router configuration 8
5.1 Router level 8
5.2 Router mode 8
5.3 Vertical interval trigger 11
5.4 Power up mode 12
6Connecting video signals to the HDS-1616 12
7Control and connection of Triton systems, interface protocol 13
7.1 Important notes regarding the Triton Control Protocol 13
7.1.1 Binary Code 13
7.1.2 Echo 13
7.1.3 RS-422 Matrixes 13
7.1.4 Timeout 13
7.2 Basic principles 13
7.2.1 Example: A single unit with no NCB connected 13

iv
7.2.2 Example: Several units connected by NCB 14
7.3 RS232 14
7.4 NCB 14
7.5 Commands 15
7.5.1 Audio crosspoint set 15
7.5.2 Audio crosspoint set acknowledge 15
7.5.3 Video crosspoint set 15
7.5.4 Video crosspoint set acknowledge 16
7.5.5 Crosspoint status request 16

v
Electromagnetic Radiation Notice
The following information is given to note compliance with the United States Government Federal Communications
Commission (FCC) Rules (47 CFR Part 15) designed to limit interference to radio and TV reception. The ruling establishes
measurement procedures and frequency criteria for Class A computing devices (commercial and industrial applications) with
the following conduction and radiation limits:
CLASS A COMPUTING DEVICE: CONDUCTION LIMIT (Part 15.812)
Frequency (MHz) Maximum RF Line Voltage (uV)
0.45 - 1.6 1000
1.6 - 30 3000
CLASS A COMPUTING DEVICE: RADIATION LIMIT (Section 15.810)
Frequency (MHz) Distance (meters) Field Strength (uV/m)
30 - 88 30 30
88 - 216 30 50
216 - 1000 30 70
The policy of Thomson is one of continual development and improvement. For that reason Thomson uses components and
manufacturing techniques that provide the current state-of-the-art suppression of electromagnetic radiation. This equipment, in
production before October 1, 1981, has not been tested to the above listed measurements. However, equipment such as this
delivered after October 1, 1983 will have the measurements on record at the factory. Therefore, in compliance with the stated
FCC Regulation, the following information is provided for the user:
NOTE
Interference to Radio Communications
This equipment generates, uses, and can radiate radio frequency energy and if not installed and used
in accordance with the instruction manual, may cause interference to radio communications. As
temporarily permitted by regulation it has not been tested for compliance with the limits for Class A
computing devices pursuant to Subpart J of of Part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference. Operation of this equipment in a residential area
is likely to cause interference in which case the user at his own expense will be required to take
whatever measures may be required to correct the interference.

vi
Hardware Warranty and Software License
Please contact your local Thomson representative for
hardware warranty and software license information.
Parts and Service
Thomson maintains a full stock of replacement parts available for immediate shipment.
NORTH AMERICA PARTS AND SERVICE
Please call toll-free 1-800-547-8949.
You will be switched automatically to the parts and service representative nearest you.
For email correspondence: [email protected]
Internet: http://www.thomsongrassvalley.com
INTERNATIONAL PARTS AND SERVICE
Contact your Thomson representative.

vii
Revision history
Current revision of this document is the uppermost in the table below.
Revision Replaces Date Change Description
0 - 14/03/03 Initial Revision

HDS-1616 Rev. 0
1
1 General
The HDS-1616 is a 16x16 high definition serial digital video router with universal wideband technology
to allow simultaneous switching of digital video signals from 143Mbps up to 1.5Gbps. HDS-1616 has
automatic cable equalizing on all inputs and re-clocking with automatic standard selection on all outputs.
Vertical interval switching is provided on a video reference input with PAL/NTSC colour black. The
HDS-1616 is well suited for all demanding routing tasks in digital studio and broadcast environments.
The built-in RS-232 interface allows the user to control the router via the Triton Router Control System,
with its many operational features. The control bus technology allows linking the unit with the BAS-1616
or BES-1616 to create an AFV router. One or several Triton remote control panels can control the
HDS-1616 as well. Another unique feature of the Triton 16x16 series is the possibility to reconfigure the
router via the configuration switch on the back plane to create several formats of routers:
16x16 Serial Digital Video 1 layer
8x8 Serial Digital Video 2 layer
5x5 Serial Digital Video 3 layer
4x4 Serial Digital Video 4 layer
1.1 Specifications
Data rate: 143Mbps – 1.5Gbps
VIT input: Comp. Video 1Vpp, 300mV sync, 75 ohms
Number of inputs: 16 terminated
Equalisation: Automatic up to 100m @ 1.5G ( Belden 1694A )
Number of outputs: 16
Re-clocking: On outputs, auto standard select
Impedance: 75 ohms
Return-loss: > 15dB (5MHz-1.5GHz)
Signal level: 800mV ±10%
Connector: BNC
AC power: External power supply 100 - 260 VAC
DC power: +5V, connector DB9 male
Dimensions: 483 x 88 x 35 mm (19”, 2RU)

HDS-1616 Rev. 0
2
1.2 Connection drawing
Vertical interval trigger
Video output section Video input section RS-232 port
Power connector NCB1
Configuration Switch
2 Power connection
Do not connect mains to the desktop power supply before connecting the power supply to the
router.
Connect the DB9 female connector from the desktop power supply to the main unit. Tighten the screws to
assure a proper contact. To connect mains to the desktop power supply you need a mains cord with IEC
320 connector.
The HDS-1616 is normally delivered with the desktop power model AC ±5V / 30W. Upon customer
request, HDS-1616 can also be delivered with DC ±5V / 30W, which may be fed by a 36 – 72 VDC
mains power source. A Frame mounted power supply solution is also available.
Please refer to the latest Triton Product Catalogue for power supply types, or call Thomson Grass Valley
for this information.
If any third party power supply is used the HDS-1616 router requires +5V DC with a minimum current of
3.0A. The following pin-out is used on the DB9 male power connector:
Pin 1 and 9 0V
Pin 2 and 5 +5V
1Network Control Bus. The protocol of this bus is equal, and compatible to the MIDI bus protocol.

HDS-1616 Rev. 0
3
3 Connecting the HDS-1616 to your PC
For connection to a PC with Triton Router Control System, the RS-232 interface is used. The RS-232 port
on all Triton devices uses the standard DCE pin-out, see pin-out table under 4.3.
A standard modem cable can be used for connecting the router to the PCs serial port.
3.1 Selection of router level
The router level depends on the system configuration the router is going to work with. See chapter 5 for
more information. All routers are delivered with default level 1. Triton Router Control System offers the
control of up to 16 different routers or combinations of routers.
3.2 Pin-out of RS-232 connector
The DB9 female connector for the RS-232 port has the following pin-out:
Pin 2 Tx
Pin3 Rx
Pin 5 GND
3.3 Maximum cable length
The maximum cable length for an RS-232 connection is per definition 15m. Longer distances can be
installed depending on the environmental conditions of the installation site. It is the responsibility of the
installer / user to secure a proper installation of the RS-232 connection.

HDS-1616 Rev. 0
4
4 NCB connection
Via the Network Control Bus system several routers and control panels can be interconnected.
The HDS-1616 router utilises RJ45 connectors for connecting to the NCB. This means that when you
connect your HDS-1616 router to other Triton devices, with 5-pin DIN connectors, an RJ45 to 5-pin DIN
interface is necessary.
This converter can be ordered from Thomson Grass Valley.
The NCB system allows connection of up to 16 routers with different levels on the same bus. Control
panels dedicated to work with a specific router must be configured to the same level as the router. Several
panels can work together with one specific router. Up to 16 single routers or combinations of routers can
be controlled from the Triton Router Control System. The NCB system and all RS-232 ports interchange
the system status.
4.1 Several routers in one system
The NCB system allows the interconnection of up to 16 routers with different levels in one system. A
combination of routers working married counts as one level. This might for example be 1 audio router + 1
video router working as an audio follows video system or 3 video routers working as an RGB (YUV)
system. The routers in such a constellation must be configured to the same level.
4.2 Connecting control panels
To get a control panel working with a specific router, configure the control panel to the same level as the
router. Several panels can be configured to control the same router. The Triton panels can control 2 levels
with breakaway function. If it is necessary to control more levels with breakaway an additional panel
must be used. Panels can also be connected to a router via the RS-232 interface. Please refer to your
control panel manual for installation.

HDS-1616 Rev. 0
5
4.3 Pin-out and cable type
4.3.1 RJ45 connectors
On some Triton devices, including the HDS-1616, the NCB cable can be connected to RJ-45 connectors.
The following pin-out is used:
Pin 1 = Not Connected
Pin 2 = Not Connected
Pin 3 = Not Connected
Pin 4 = data
Pin 5 = data
Pin 6 = Not Connected
Pin 7 = Not Connected
Pin 8 = Not Connected
4.3.2 5-pin DIN connectors
However, the pin-out of most Network Control Bus ports follows the standard MIDI specification. A 1:1
cable with 5pin DIN connector is used. The following pin-out is used:
Pin 1 = Not Connected
Pin 2 = shield
Pin 3 = Not Connected
Pin 4 = data
Pin 5 = data
The standard MIDI specification recommends the use of shielded twisted pair cable types for
interconnection between the units.

HDS-1616 Rev. 0
6
4.3.3 RJ45 to 5-pin DIN converter
In configurations that include both devices with RJ45 connectors, and devices with 5-pin DIN connectors,
an RJ45 to 5-pin DIN converter may be used to complete the control loop. This converter holds both
connector types, and may work both ways, thus from RJ45 to 5-pin DIN, as well as from 5-pin DIN to
RJ45.

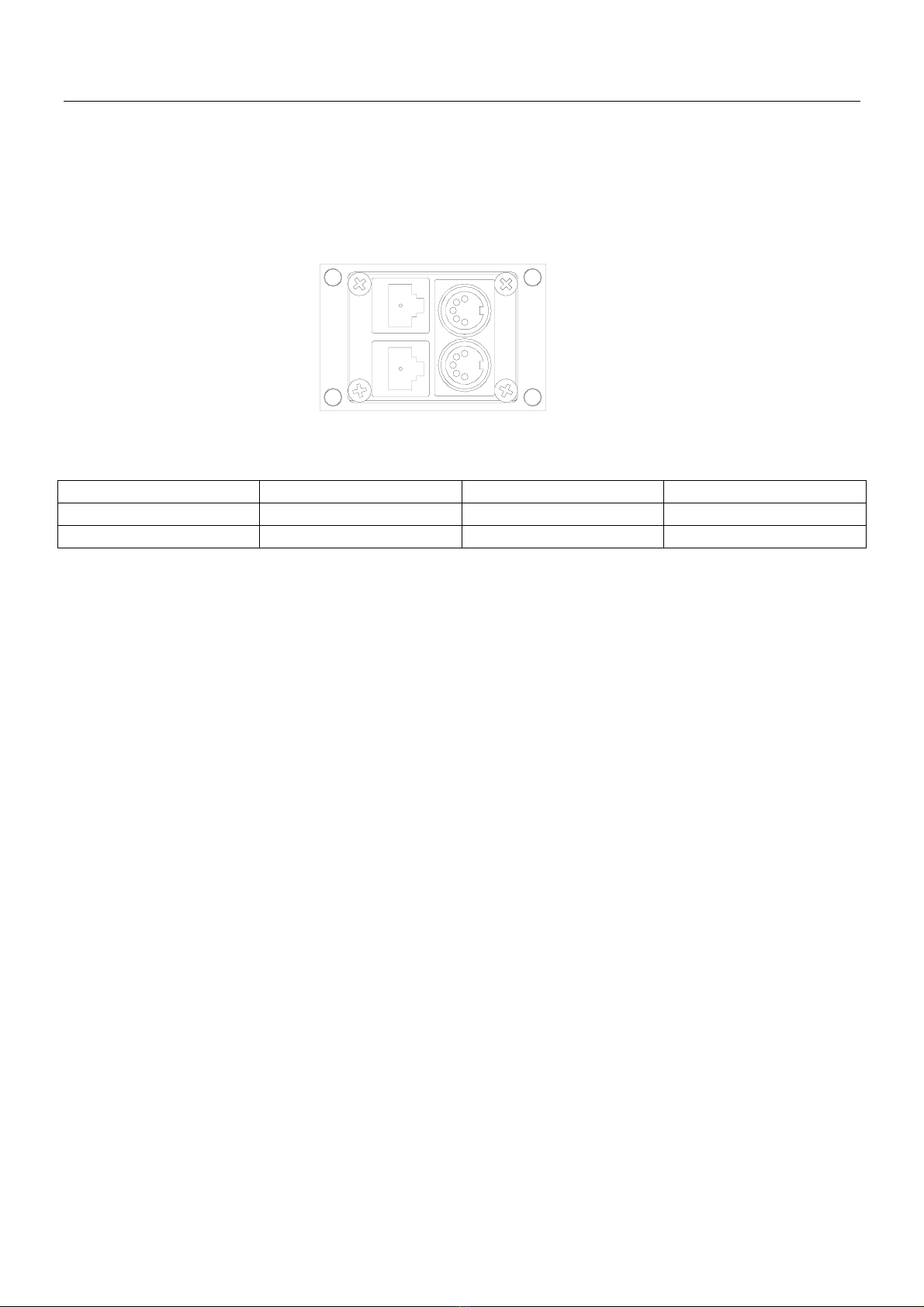

The converter is connected as follows:
RJ45 (Router/CP) RJ45 (Converter) 5-pin DIN (Converter) 5-pin DIN (Router/CP)
IN IN IN OUT
OUT OUT OUT IN
4.4 Control bus structure
The Network Control Bus structure follows the standard MIDI bus definition. The NCB is defined as a
closed chain of units. This means that the NCB OUT of the last unit must be connected to the NCB IN of
the first unit in the NCB chain. To avoid problems with the control of Triton units the installer/user has to
assure that the bus structure is installed according to this definition. The total number of Triton devices in
an NCB chain is limited to 20.
4.5 Maximum distance between NCB devices
The standard MIDI definition allows a maximum cable length of 250 meters between two devices.
Longer distances can be made with MIDI repeater units. To avoid grounding problems all NCB ports
have opto-coupled inputs.
4.6 Control Bus configuration notes
In order to achieve a system that is easy to maintain and control, follow the important notes, presented
hereunder.
• Avoid using routers of different size, but same signal type (audio/video), on the same level.
Example: Do not configure a system with a BVS-1616 and a BVS-0808 on the same level. If they
were on the same level, crosspoint commands that were sent to the BVS-1616 lying outside the
range of the BVS-0808 would not be executed; the BVS-0808 would throw them off the bus.
However, a combination of a BVS-1616 and an BAS-0808 will work well, because commands are
different for video- and audio routers.
• Try to limit the number of devices on one Control Bus loop. If possible, separate systems that are
not to be controlled by one central control panel.
If you need to have several systems in one loop, try to separate as follows, using the DIP switches
on the rear of the devices:
o Analogue Video + Analogue Audio + CP for analogue system on Level 1
o SDI + AES/EBU + CP for digital system on Level 2
o RS-422 Data + CP for data on Level 3

HDS-1616 Rev. 0
7
o Universal Control Panel to control all devices above, with user configurable default level.
• Pay attention to the figure below, in order to achieve full controllability of all devices in the loop.
Triton - RCS
• Complete the Control loop, by connecting all Control bus connections to all Triton devices, before
powering up any Triton device.

HDS-1616 Rev. 0
8
5 Router configuration
5.1 Router level
Switches 2 - 4 on the configuration switch set the router’s level for communication with the Triton Router
Control System, and other units in the NCB system. The panels on the NCB dedicated to operate with the
router must be configured to the same level as that router.
If several routers are combined to form an audio follows video, RGB or similar system, these routers
must be configured to the same level.
The levels can be switched according to the following pattern:
- means switch down
* means switch up
Default level is 1.
Switch 2 3 4 Level
- - - 1
- - * 2
- * - 3
- * * 4
* - - 5
* - * 6
* * - 7
* * * 8
5.2 Router mode
The HDS-1616 router allows switching in different modes. You can choose among:
16x16 Serial Digital Video 1 layer
8x8 Serial Digital Video 2 layer
5x5 Serial Digital Video 3 layer
4x4 Serial Digital Video 4 layer
Switch 5 - 6 on the configuration switch set the router’s mode. The Triton Router Control System
software must be configured according to the mode chosen on the router.
The modes can be switched according to the following pattern:
- means switch down
* means switch up

HDS-1616 Rev. 0
9
Switch 5 6 Mode
- - 16x16 Serial Digital Video 1 layer
- * 8x8 Serial Digital Video 2 layer
* - 5x5 Serial Digital Video 3 layer
* * 4x4 Serial Digital Video 4 layer
Default mode is 16x16 Serial Digital Video 1 layer.
Serial Digital Video 1 layer
SDV Signal Input SDV Signal Output
1 1 1 1
2 2 2 2
3 3 3 3
4 4 4 4
5 5 5 5
6 6 6 6
7 7 7 7
8 8 8 8
9 9 9 9
10 10 10 10
11 11 11 11
12 12 12 12
13 13 13 13
14 14 14 14
15 15 15 15
16 16 16 16
Serial Digital Video 2 layer
SDV layer 1 Input SDV layer 1 Output
1 1 1 1
2 2 2 2
3 3 3 3
4 4 4 4
5 5 5 5
6 6 6 6
7 7 7 7
8 8 8 8
SDV layer 2 Input SDV layer 2 Output
1 9 1 9
2 10 2 10
3 11 3 11

HDS-1616 Rev. 0
10
4 12 4 12
5 13 5 13
6 14 6 14
7 15 7 15
8 16 8 16
Serial Digital Video 3 layer
SDV layer 1 Input SDV layer 1 Output
1 1 1 1
2 2 2 2
3 3 3 3
4 4 4 4
5 5 5 5
SDV layer 2 Input SDV layer 2 Output
1 6 1 6
2 7 2 7
3 8 3 8
4 9 4 9
5 10 5 10
SDV layer 3 Input SDV layer 3 Output
1 11 1 11
2 12 2 12
3 13 3 13
4 14 4 14
5 15 5 15
Serial Digital Video 4 layer
SDV layer 1 Input SDV layer 1 Output
1 1 1 1
2 2 2 2
3 3 3 3
4 4 4 4
SDV layer 2 Input SDV layer 2 Output
1 5 1 5
2 6 2 6
3 7 3 8
4 8 4 8

HDS-1616 Rev. 0
11
SDV layer 3 Input SDV layer 3 Output
1 9 1 9
2 10 2 10
3 11 3 11
4 12 4 12
SDV layer 4 Input SDV layer 4 Output
1 13 1 13
2 14 2 14
3 15 3 15
4 16 4 16
5.3 Vertical interval trigger
The HDS-1616 router allows VIT switching for both SDTV and HDTV.
The HDS-1616 accepts only standard analogue black-burst/composite sync/composite video signals in
525/30, 525/29.97 or 625/25 format as the VIT reference.
In order for VIT switching of HDTV signal to work, the HDTV signal must have both the same frame-
rate and Vertical sync timing (Ov incident) as the applied VIT reference.
Since the line duration is different for the HDTV signals and the VIT reference, the actual switching time
is timed from the Ov incident.
Switch 1 and 7 on the configuration switch set the VIT mode. The modes can be switched according to
the following pattern:
- means switch down (OFF)
* means switch up (ON)
DIP-SW pos. 1 DIP-SW pos. 7 VIT 525/625 line Switch timing
Don't care ON (SDTV) 525 30uS ±5uS after Oh line 10
Don't care ON (SDTV) 625 30uS ±5uS after Oh line 6
OFF (line 4) OFF (HDTV) 525 10-15uS after Ov. *
OFF (line 1) OFF (HDTV) 625 12-17uS after Ov. **
ON (line 6/7) OFF (HDTV) 525 187-192uS after Ov. ***
ON (line 4) OFF (HDTV) 625 225-230uS after Ov. ****
* May be used for line 4 switching for the 30Hz and 29.97Hz frame-rates of SMPTE 260M and SMPTE
274M.
** May be used for line 1 switching for the 25Hz frame-rate of SMPTE 274M and SMPTE 295M.
*** May be used for line 6/7 switching for the 30Hz and 29.97Hz frame-rates of SMPTE 260M and
SMPTE 274M.
**** May be used for line 4 switching for the 25Hz frame-rate of SMPTE 274M.

HDS-1616 Rev. 0
12
5.4 Power up mode
Switch 8 on the configuration switch defines the power up mode. The HDS-1616 router provides two
modes for powering up the system.
Mode 1 switches all outputs to input 1.
Mode 2 switches all outputs according to the buffered information in the routers processor system.
The power up reset can be switched according to the following pattern:
- means switch down
* means switch up
Switch 8 Power Up Reset
- Mode 2
* Mode 1
Default is Mode 2.
6 Connecting video signals to the HDS-1616
The HDS-1616 router offers standard 75 ohms BNC connectors for video in- and outputs. All video
inputs are terminated with 75 ohms.
