Thor Broadcast H-12HDMI-QAM-IPLL User manual

12 Channel HDMI or SDI CATV RF Modulator
IP Encoder QAM/ATSC/DVB-T/ISDB-T
H-12HDMI-QAM-IPLL
H-12HDMI-QAM-IPLL
H-12HDMI-ATSC-IPLL
H-12HDMI-DVB-T-IPLL
H-12HDMI-ISDB-T-IPLL
H-12SDI-QAM-IPLL
H-12SDI-QAM-IPLL
H-12SDI-ATSC-IPLL
H-12SDI-DVB-T-IPLL
H-12SDI-ISDB-T-IPLL

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
IntendedAudience
About This Manual
This user manual has been written to help people who have to use, to integrate and to
install the product. Some chapters require some prerequisite knowledge in electronics
and especially in broadcast technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written permission
of the copyright owner.
The contents of this document are subject to revision without notice due to continued
progress in methodology, design and manufacturing. We shall have no liability for any
error or damage of any kind resulting from the use of this document.
Copy Warning
This document includes some confidential information. Its usage is limited to the
owners of the product that it is relevant to. It cannot be copied, modified, or translated
in another language without prior written authorization from us.

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Directory
CHAPTER 1 INTRODUCTION ...................................................................................................................1
PRODUCT OVERVIEW....................................................................................................................................................................... 1
KEY FEATURES...............................................................................................................................................................................................1
SPECIFICATIONS ................................................................................................................................................................................. 2
FLOW CHART...................................................................................................................................................................................... 3
CHAPTER 2 INSTALLATION GUIDE ...........................................................................................................5
GENERAL PRECAUTIONS.......................................................................................................................................................5
POWER PRECAUTIONS............................................................................................................................................................5
DEVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWING ..................................................................5
ENVIRONMENT REQUIREMENT ...........................................................................................................................................6
GROUNDING REQUIREMENT................................................................................................................................................6
CHAPTER 3 WEB NMS OPERATION.........................................................................................................7
LOGIN .........................................................................................................................................................................................7
OPERATION.......................................................................................................................................................................................................8
CHAPTER 4 TROUBLESHOOTING...........................................................................................................27
CHAPTER 5 PACKING LIST .....................................................................................................................28

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Chapter 1 Introduction
Product Overview
The Thor Broadcast H-12HDMI-QAM-IPLL Encoder-RF Modulator is a professional
high capacity solution for any headend that requires integration of encoding,
multiplexing, scrambling and modulating. It supports 12 HDMI and 12 CC inputs, one
DVB-C tuner input and 512 IP input through Data1 (GE) port. It also supports DVB-C
RF out with 16 non-adjacent carries and supports 16 MPTS which mirror the 16
carriers through the Data2 (GE) output port. Tomeet customers’ various requirements,
it is also equipped with 1 ASI output as mirror of one of RF output carriers. Managed
through any modern web browser, each encoder can be independently adjusted for
bitrate, codecs, and video image qualities. Encoding support for the MPEG-2, or
H.264, codec along with Dolby AC/3 audio ensure that the programs generated by this
encoder can be used around the world on a global scale.
Key Features
12 HDMI inputs with MPEG2 & MPEG4 AVC/H.264Encoding
12 CC (Closed Caption) inputs
1DVB-C (ATSC optional) tuner input for re-mux
512 IP(DATA1 port only) input over UDP and RTPprotocols
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3(2.0)
encoding (Optional), AC3 (2.0/5.1)passthrough
16 groups multiplexing/Scrambling/DVB-C modulating
1 ASI out as mirror of one of RF outputcarriers
16 MPTS IP (DATA2 port only) output over UDP,RTP/RTSP
PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
Control via web management, and easy updates via web

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Specifications
Input
12 HDMI inputs
12 CC(closed caption) input, BNC interface
1 DVB-C(ATSC optional) Tuner for re-mux, F type interface
512 IP input over UDP and RTP, DATA1, RJ45
Video
Resolution
Input
1920*1080_60p, 1920*1080_50p,1920*1080_60i,
1920*1080_50i, 1280*720_60p, 1280*720_50P,
720*480_60i, 720*576_50i
Output
1920*1080_60p, 1920*1080_50p,1920*1080_60i,
1920*1080_50i, 1440*1080_60i, 1440*1080_50i,
1280*720_60p, 1280*720_50P, 720*576_50p,
720*576_50i, 720*576_30p, 720*576_25p,
720*480_60p, 720*480_60i,720*480_30p,
720*480_25p,320*240_60p,320*240_50p,
320*240_30p, 320*240_25p,320*180_60p, 320*180_50p,
320*180_30p, 320*180_25p,
960*540_50i, 704*576_50i,704*480_60i, 640*576_50i
640*480_60i, 544*576_50i,544*480_60i,
Encoding
MPEG2 & MPEG4 AVC/H.264
Bit-rate
0.8~19Mbps for H.264 encoding
1~19Mbps for MPEG-2 encoding
Rate Control
CBR/VBR
GOP Structure
GOP B Frame: 0-3, GOP P Frame: 0-6
Advanced
Pretreatment
De-interlacing, noise reduction
Audio
Encoding
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,
Dolby Digital AC3 (2.0) encoding (Optional),
AC3 (2.0/5.1) passthrough
Sampling rate
48KHz
Bit-rate
64Kbps-320kbps each channel
Multiplexing
Maximum PID
Remapping
180 input per channel
Function
PID remapping ( automatically or manually)
Accurate PCR adjusting
Generate PSI/ SI table automatically
Scrambling
Maximum
simulcrypt CA
4
Standard
ETR289, ETSI 101197, ETSI 103197
Connection
Local/remote connection
Modulation
QAM Channel: 16 non-adjacent carriers output (maximum bandwidth
192MHz)

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
HDMI #1
Encoding
MUX 1#
SCR1#
Carrier 1
DVB-C 1#
IP 1
HDMI #12
Encoding
IP1-256
MUX 16#
SCR16#
DVB-C 16#
Carrier 16
DVB-C Tuner
IP 16
1 ASI (asmirror of one of RF output carriers)
DVB-C
Standard: EN300 429/ITU-T J.83A/B
MER: ≥40db
RF frequency: 50~960MHz, 1KHz step
RF output level: -20~+10dbm, 0.1db step
Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping
J.83A
J.83B
Constellation
16/32/64/128/256QAM
64/256 QAM
Bandwidth
8M
6M
Stream output
RF output (F type interface)
1 ASI output as mirror of one of RF output carriers
16 MPTS output over UDP and RTP/RTSP as mirror of 16 DVB-C carriers,
1*1000M Base-T Ethernet interface
System function
Network management (WEB)
English
Ethernet software upgrade
Miscellaneous
Dimension (W×L×H)
482mm×440mm×44mm
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
Flow Chart

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Appearance and Description
Front and Rear Panel Illustration
1
RF test and RF out port
2
Power supply and Grounding Pole
3
12 HDMI and 12 CC input port
4
Reset Key
5
LED Indicators
6
ASI output port
7
DATAPort (DATA1 and DATA2for IP stream input/output, DATA3 for
upgrading modules)
8
NMS port for web-based management
9
RF in and Loop out port

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Setting
Parameter
Connecting
Signal
cable
Connectin
g Grouding
Wire and
Power
Cord
Installing
Device
Device
Check
Running
Device
Chapter 2 Installation Guide
Please use caution when operating this device in order to abstain from any possible injuries during
installation. For this reason, please read all details listed below and make sure you use caution before
proceeding to operate and use this device.
General Precautions
Must be operated and maintained free of dust or debris.
The cover should be securely fastened, do not open the cover of the products when the power
is on.
After installation, securely stow away all loose cables, external antenna, and others.
Power precautions
When you connect the power source, make sure it is grounded correctly so it doesn’t cause an
overload.
Avoid operating on a wet floor in the open. Make sure the extension cable is in good
condition.
Make sure the power switch is off before you start to install the device.
Device’s Installation Flow Chart Illustrated as following

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Environment Requirement
Item
Requirement
Machine Hall
Space
When user installs machine frame array in one machine hall,
the distance between 2 rows of machine frames should be
1.2~1.5m and the distance against wall should be no less than
0.8m.
Machine Hall Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:
1X107~1X1010，Grounding current limiting resistance:1M
(Floor bearing should be greater than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Humidity
20%~80% sustainable 10%~90% short time
Pressure
86~105KPa
Door & Window
Installing rubber strip for sealing door-gaps and dual level
glasses for window
Wall
It can be covered with wallpaper, or paint.
Fire Protection
Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and lighting
power are independent to each other. Device power requires
AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz.Please
carefully check before running.
Grounding Requirement
It is important to keep this device grounded to ensure all of the modules
function correctly. Correctly grounding the device will also help prevent any
electrical interference, lightening. Etc. Also it helps reject minor interferencethat
may disrupt the devices ability to function smoothly. General rule of them, make
sure the device is grounded when installing anywhere.
Always use copper wire. When applied correctly the ground must be wrapped

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
device setting.
well to ensure maximum conduction so it can reduce any high frequencies. The
copper ground wire should also be as short and thick as possible
Installer must make sure that the two ends of the ground are well conducted
and have appropriate anti-rust properties.
It is prohibited to use any other device as part of the grounding electric
circuit.
The area of the conduction between the ground wire and device’s frame
should be no less than 25 ㎡.
Chapter 3 WEB NMS Operation
You must connect the Encoder Modulator to a PC in order to setup the configuration, to
control and set configure the settings you must plug the device into web NMS Port. Users
should ensure that the computer’s IP address is different from this device’s IP address;
otherwise, it would cause IP conflict.
Login
The default IP address of this device is 192.168.0.136.
Connect the PC (Personal Computer) and the device with net cable, and use ping
command to confirm they are on the same network segment.
I.G. the PC IP address is 192.168.99.252, we then change the device IP to 192.168.99.xxx
(xxx can be 1 to 254 except 252 to avoid IP conflict).
Use web browser to connect the device with PC by inputting the Encoder Modulator’s IP
address in the browser’s address bar and press Enter.

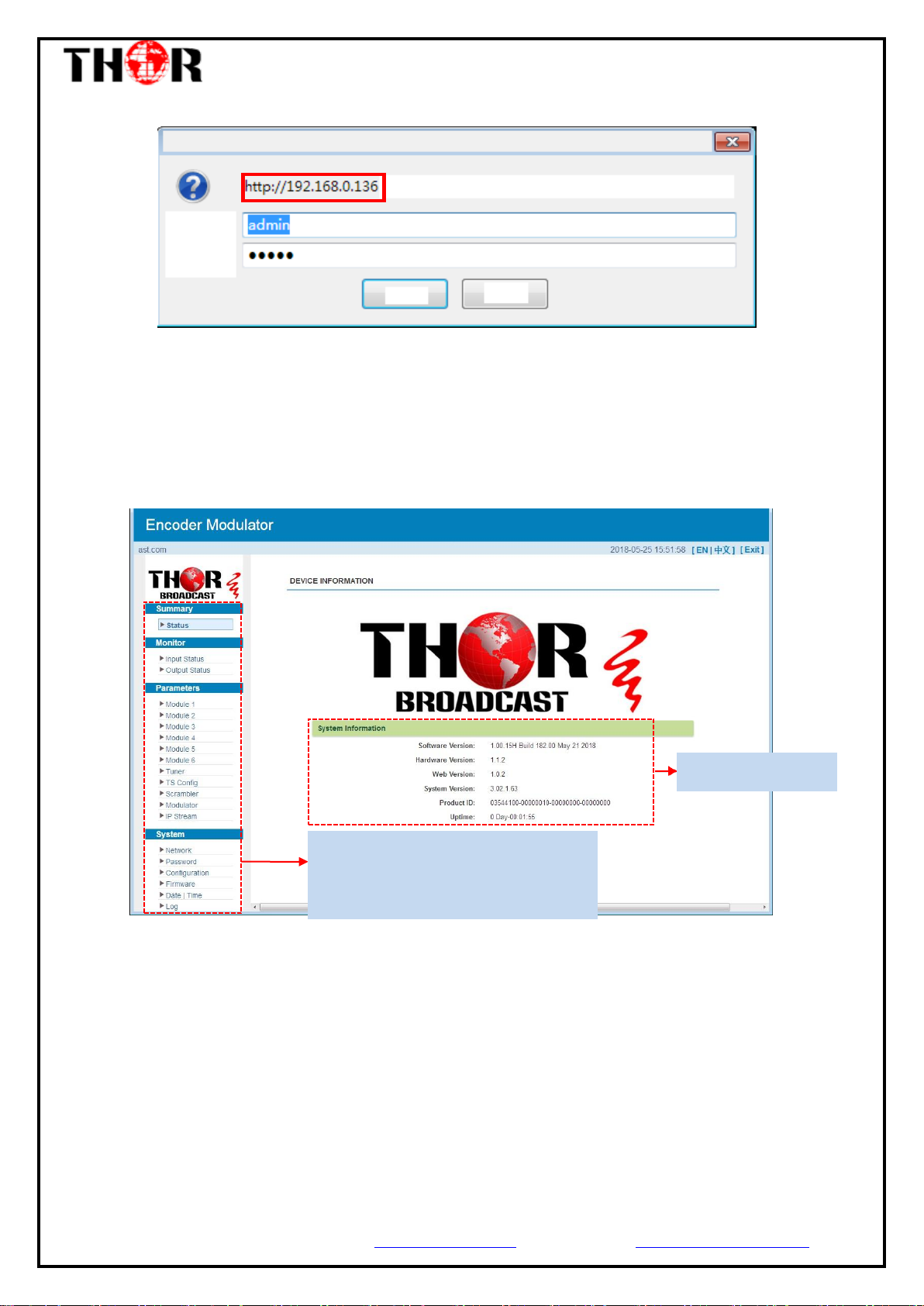

It will display the Login interface as Figure-1. Input the Username and Password (Both
the default Username and Password are “admin”.) and then click “LOGIN” to start the

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Figure-1
Operation
Summary→Status
When we login into encoder module, it displays the status interface as Figure-2.
Monitor→Input Status
Figure-2
Module

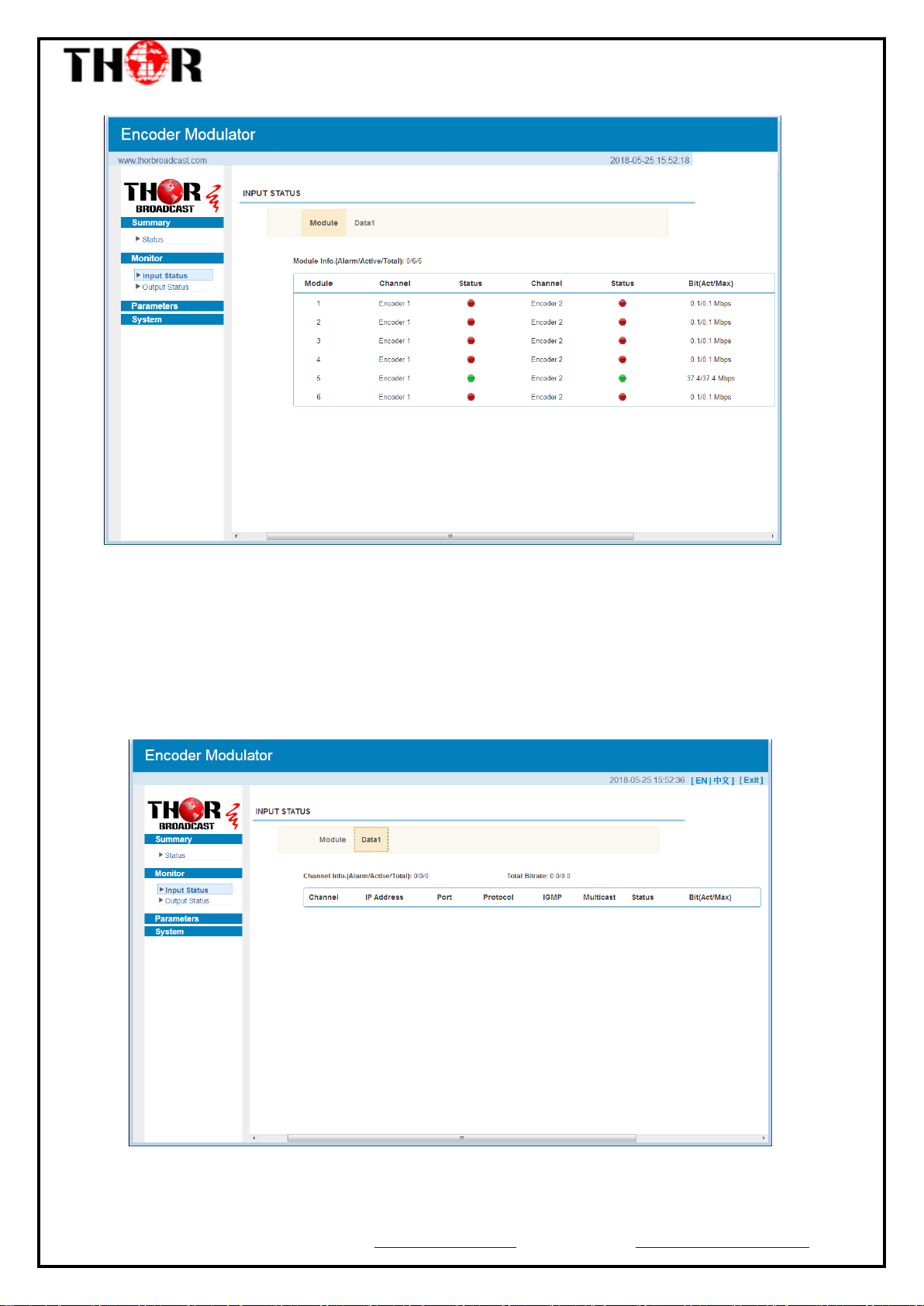

Clicking “Input Status→Module”, it displays the interface where users can check the
encoding status of each module as Figure-3.
User can click any item here to enter
the corresponding interface to check
information or set the parameters.
System information

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Data1
Figure-3
Clicking “Input Status→Data1”, it displays the interface where users can check the Data1
input status after adding IP input from data1 port in the “TS Config”, and the interface
displays the following as shown in Figure-4.
Figure-4

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Monitor→Output Status
QAM

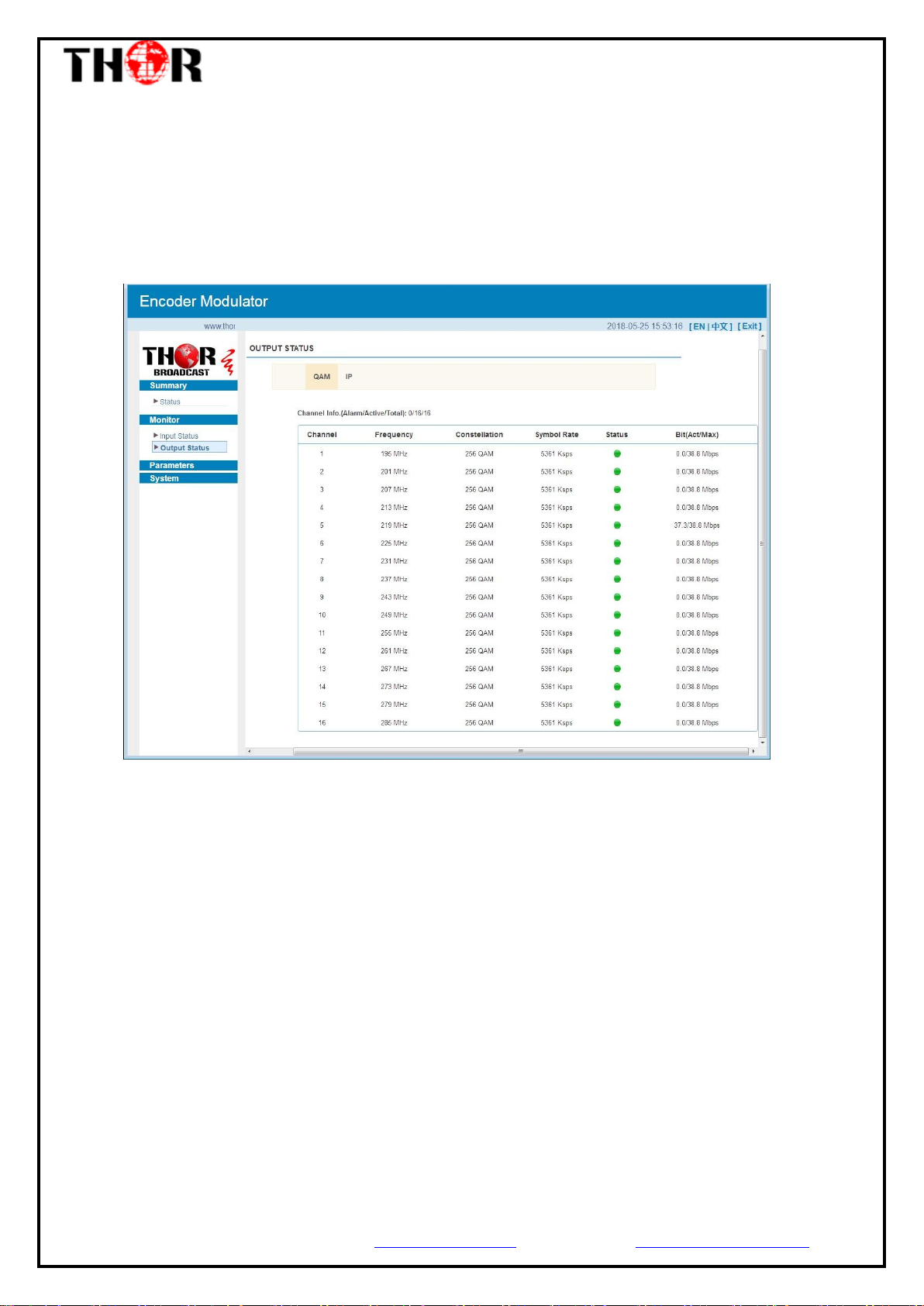

Clicking “Output Status→QAM”, it displays the interface where users can check the
QAM output status of each carrier as Figure-5.
IP
Figure-5
Clicking “Output Status→IP”, it displays the interface where users can check the IP
output status after adding IP output in the “IP stream” interface, and it displays as
Figure-6.

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Parameters → Module 1-6
Figure-6
Encoder 1
This encoder modulator supports up to 6 modules, and each module has 2 HDMI inputs.

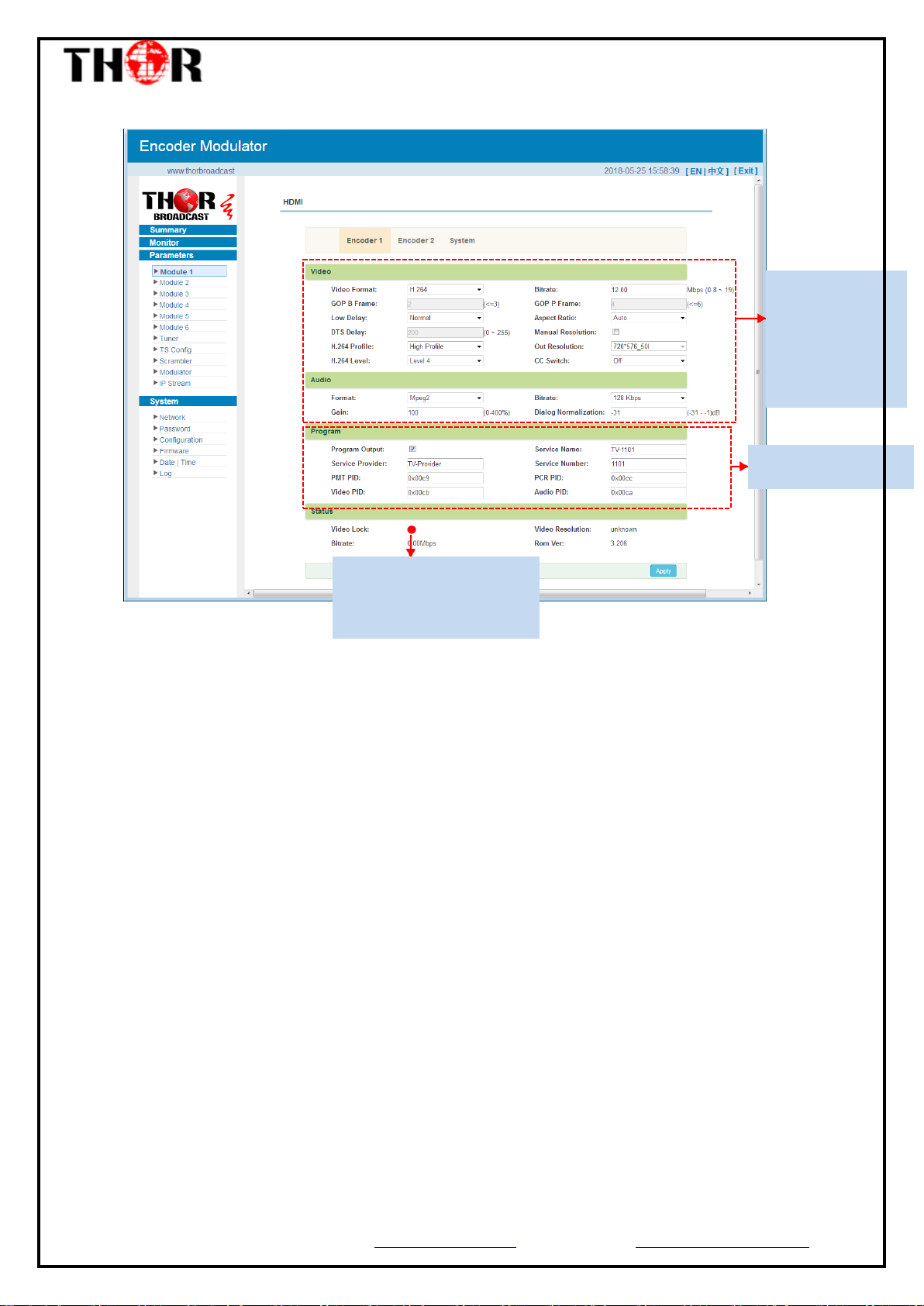

From the menu on left side of the webpage, clicking “Module1-6→Encoder 1”, it
displays the information of 1st encoding channel ( Figure-7) where users can configure
the video and audio encoding parameters.

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
General settings
for the Encoding
program: User
can edit any item
listed asneeded.
Program information
read area
The light will turn green if
there is source inputting
from module.
Figure-7
Similarly, clicking “Encoder 2”, it displays the information of the 2nd encoding channel
System
Clicking “System”, it displays the interface where users can check module and TS out
information, and save or restore the module configuration as Figure-8.

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Parameters → Tuner:
Figure-8

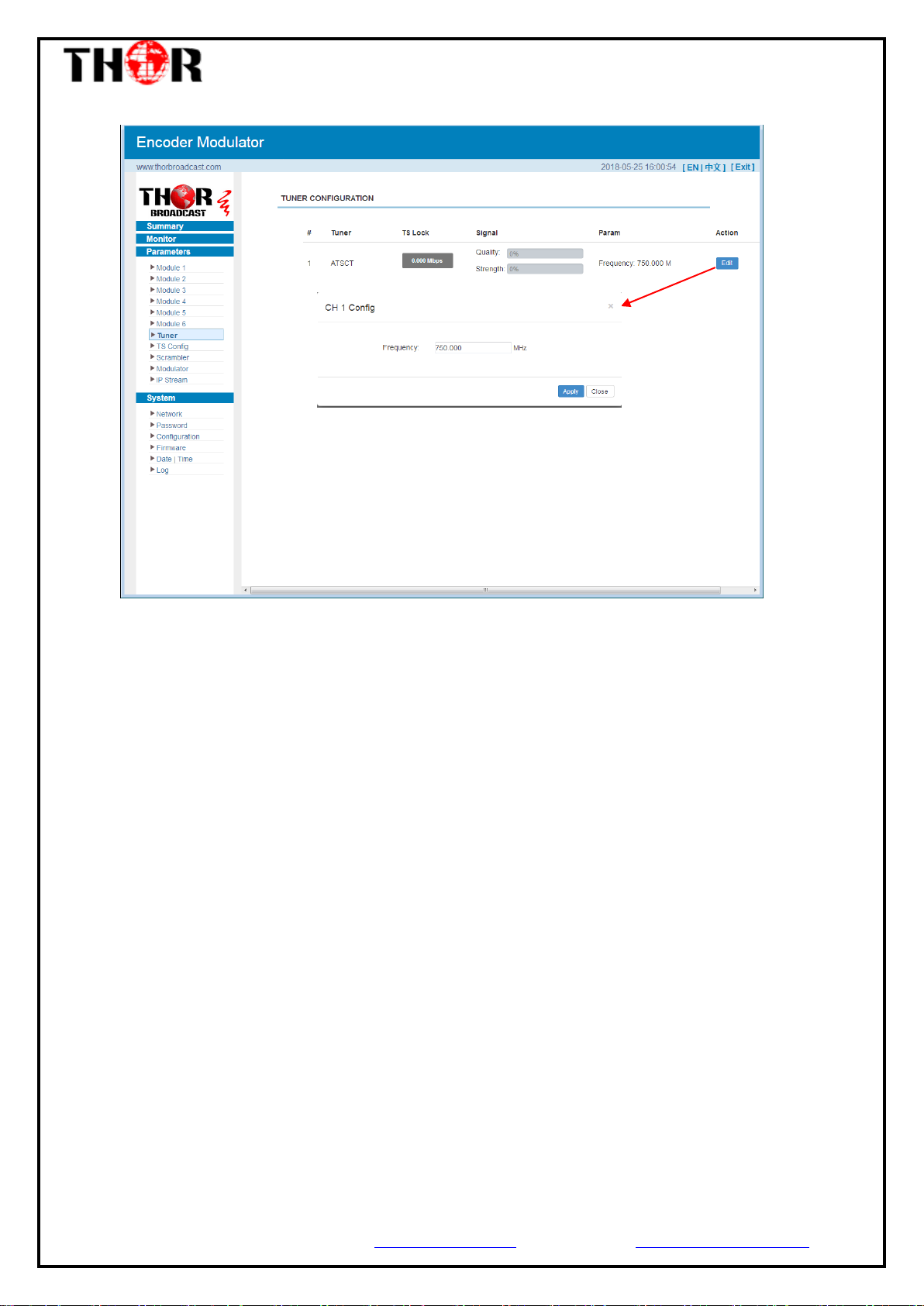

Clicking “Tuner”, it displays the interface where users can configure the Tuner input
parameters as Figure-9.

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Parameters → TS Config:
Figure-9
Clicking “TS Config”, it displays the interface where users can configure the TS output
parameters.
TS Config→Output TS X:
Clicking “Output TS X”, it displays the interface where users can select the TS output
carrier (Figure-10)

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Operation Area
Output Area
Input Area
TS Config→Streamselect:
Figure-10
Clicking “Stream select”, it displays the interface where users can select program(s) to
multiplex out and modify program info. (Figure-11)
Figure-11

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are
as below:
: To add input channel which come from Data 1
: Toedit the input channel
: Todelete the input channel
: Todelete all inputs channel
: To check input IP lock or not, green means current IP locked
: To check current TS overflow or not, red color means current TS
overflow, need to reduce program
: To filter/not filter the source CA information
: To enable/disable the PID remapping
Torefresh the input program information
To refresh the output program information
Select one input program first and click this button to transfer the selected
program to the right box to output.
Similarly, user can cancel the multiplexed programs from the right box.
To select all the input programs
Toselect all the output programs
To parse programs time limitation of parsing input programs
Program Modification:
The multiplexed program information can be modified by clicking the program in the
‘output’ area. For example, when clicking , it triggers a dialog box
(Figure 12) where users can input new information.

H-12HDMI/SDI - QAM/ATSC/DVB-T/ISDB-T
Tel: [phone] Email: [e-mail] https://thorbroadcast.com
TS Config→General:
Figure-12
Clicking “General”, it displays the interface where users can set stream output
information, NIT insert/VCT insert and other information. (Figure-13)
TS Config→PID Bypass:
Figure-13
Clicking “PID Bypass”, it displays the interface as Figure-14 where user can add PIDs to
be passed, click the “+” symbol, input current IP channel number, then input current IP
source Pid and output Pid which is customer needed , then click “set”
