User Manua l
IRD - Satellite orATSC Decoder to SDI, IP,
ASI, Closed Captions
H-IRD-V3
Tuner Input Options: DVS/S2; ATSC; QAM; DVB-T; ISDB-T

2
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
About This Manual
Intended Audience
This user manual has been written to help people who have to use, to integrate and to install the
product. Some chapters require some prerequisite knowledge in electronics and especially in
broadcast technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written permission of the
copyright owner.
The contents of this document are subject to revision without notice due to continued progress
in methodology, design and manufacturing. THOR shall have no liability for any error or damage
of any kind resulting from the use of this document.
Copy Warning
This document includes some confidential information. Its usage is limited to the owners of
the product that it is relevant to. It cannot be copied, modified, or translated in another language
without prior written authorization from THOR.

3
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
DIRECTORY
IRD - Satellite or ATSC Decoder to SDI, IP, ASI, Closed Captions....................1
Chapter 1 Product Outline ............................................................................... 4
1.1 Outline......................................................................................................................4
1.2 Key Features ....................................................................................................4
1.3 Principle Chart .................................................................................................5
1.4 Technical Specifications....................................................................................5
1.5 Appearance and Description.......................................................................................8
Chapter 2 Installation Guide ............................................................................ 9
2.1 In The Box................................................................................................................9
2.2 Installation Preparation.............................................................................................10
2.3 Wire’s Connection ...................................................................................................11
2.4 Signal Cable Connection ..........................................................................................12
Chapter 3 Front Panel Operation ................................................................... 14
3.1 General Setting........................................................................................................14
Chapter 4 Web-based NMS Management ....................................................... 24
4.1 Login......................................................................................................................24
4.2 Operation................................................................................................................25
Chapter 5 Troubleshooting............................................................................. 39

4
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
Chapter 1 Product Outline
1.1 Outline
H-IRD-V3 is a Thor decoder which can receive signals from RF (DVB-C, DVB-
T/T2, DVB-S/S2/S2X, ATSC-T, ISDBT optional), ASI and IP. After
demodulating, de-scrambling, re-multiplexing and decoding, it gives content out
through various video/audio interfaces (HDMI, CVBS, 3G-SDI) or ASI or IP.
This IRD is featured with two CAM/CI slots and BISS which supports to
descramble encrypted Tuner, ASI or IP signals.
1.2 Key Features
Demodulator + descrambler +re-mux+ decoder in one box
1 Tuner input (DVB-C/T/T2/S/S2/S2X/ATSC-T/ISDB-T optional)
2ASI & 16 IPUDP/RTP input for re-mux
1ch HDMI/CVBS/3G-SDI video out (SDI1 and SDI2 mirrored out)
2ch Audios out
HD/SD MPEG2, MPEG4AVC/H.264, HEVC/H.265 and AVS/AVS+ decoding
MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/Dolby Digital
Plus decoding and AC3 passthrough
IP(1 *MPTS & 16* SPTS) output over UDPand RTP/RTSP; 2 ASI mirrored out as
a copy of the IPMTPS
Each CAM can decrypt multiple programs from Tuner/ASI/IP
BISS descrambling (Up to 120Mbps)
CC (EIA608, EIA708) & Teletext (Applicable for SDI port)
Support maximum 128 PID mapping per input
LCD/Keyboard and web-based NMS management
Updates via web

5
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com

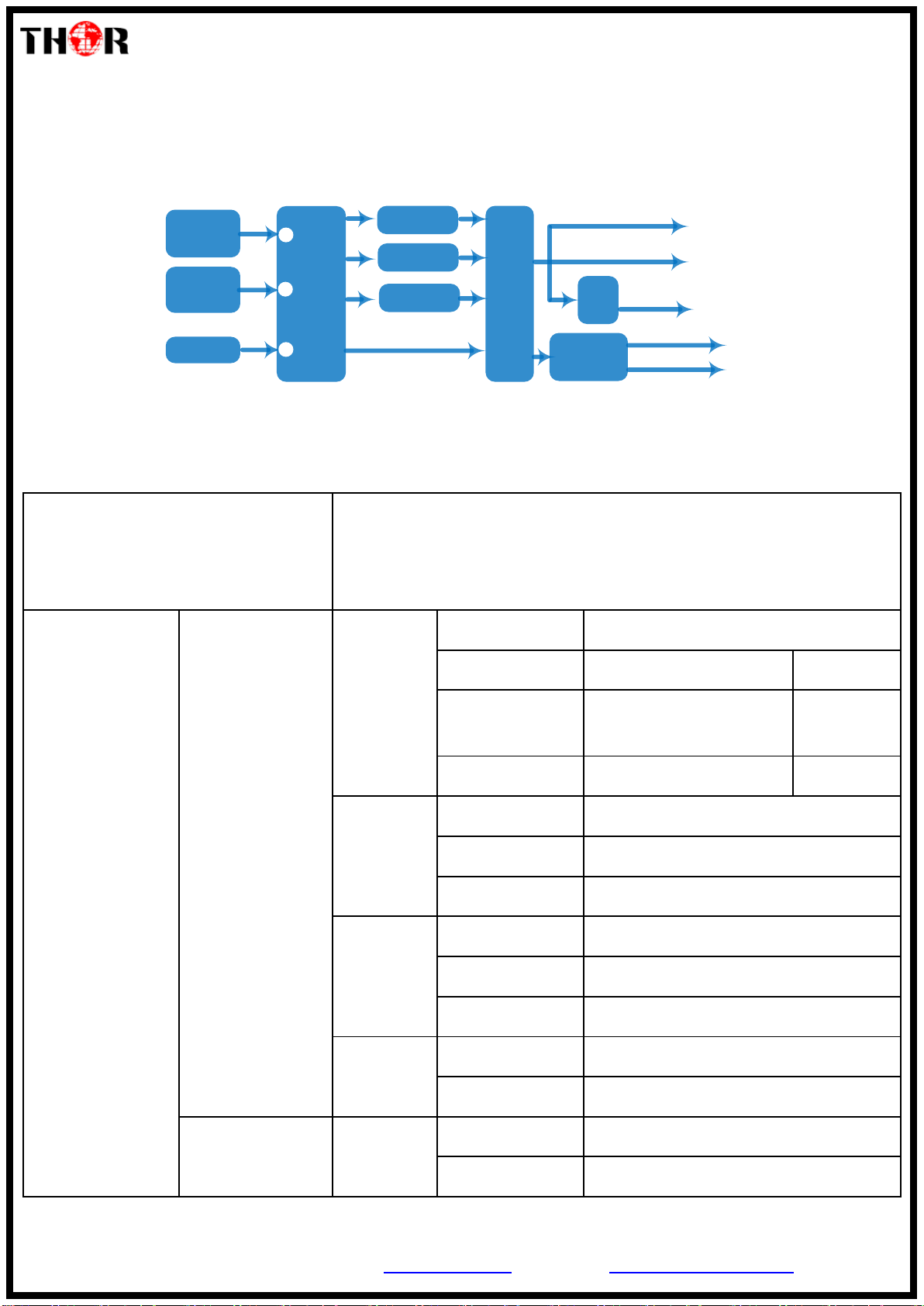

1.3 Flow Chart
IP Output (1 MPTS)
CAM/CI 1
IP
Tuner 1
and/or 2
ASI 1
and 2 MUX
Mux
ASI Output
1*Video
1 or 2*Audio
CAM/CI 2
BISS IP Output
(16 SPTS)
DE-
MUX
Decoder
Module
1.4 Technical Specifications
Input
1 Tuner option, F type, (DVB-C/T/T2/S/S2/S2X/ATSC-T/ISDB-T)
2*ASI input for re-mux, BNC interface
16*IP input for re-mux (UDP/RTP), RJ45
Tuner Section
Multi-mode tuners
switchable
Cable QAM
Input Frequency
60~890 MHz
Standard
DVB-C/J.83A, J.83C
J.83B
Constellation
16/32/64/128/256 QAM
64/256
QAM
Symbol rate
1.0~7.0Msps
DVB-T
Input Frequency
60~890 MHz
Constellation
QPSK, 16QAM, 64QAM
Bandwidth
6/7/8 M
DVB-T2
Input Frequency
60~890 MHz
Constellation
QPSK, 16QAM, 64QAM, 256QAM
Bandwidth
5/ 6/7/8 M
ISDB-T
Input Frequency
60~890 MHz
Constellation
DQPSK, QPSK, 16QAM, 64QAM
Satellite
DVB-S
Input Frequency
950~2150MHz
Symbol rate
0.5~45Msps

6
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
Signal Strength
- 65- -25dBm
FEC
1/2, 2/3, 3/4, 5/6, 7/8
Constellation
QPSK
DVB-S2
Input Frequency
950~2150MHz
Symbol rate
QPSK/8PSK/16APSK: 0.5~45Msps
32APSK: 0.5~40Msps;
FEC
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
Constellation
QPSK, 8PSK, 16APSK, 32APSK
DVB-S2X
Input Frequency
950~2150MHz
Symbol rate
QPSK/8PSK/16APSK: 0.5~45Msps
8APSK/32APSK: 0.5~40Msps
FEC
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,
13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L,
8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45,
23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45,
11/15, 7/9
Constellation
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
ATSC
Input Frequency
54~858MHz
Bandwidth
6M
Constellation
8VSB
Descrambling
CAM/CI
Quantity
2
BISS Mode
Mode 1, Mode E (up to 120Mbps)

7
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
Output
IP (1*MPTS & 16*SPTS) out over UDP, RTP/RTSP.
1000Base-T Ethernet interface (unicast / multicast)
2×ASI mirrored out, BNC interface
Decode Output
Video
Interface: 1* CVBS/HDMI/3G-SDI (SDI1
and SDI2 mirrored out)
Decode: MPEG-2, MPEG4 AVC/H.264,
HEVC/H.265 and AVS/AVS+
Resolution:1920×1080_60p,
1920×1080_60i, 1920×1080_50p;
1920×1080_50i; 1280×720_60P,
1280×720_50P; 480i, 576i
Chroma: 4:2:0
Audio
Interface: HDMI, SDI, DB15 to (XRL, RCA,
AES, S/PDIF）
Number of channels: 2
Decode: MPEG 1 Layer II, LC-AAC, HE-
AAC, HE-AAC V2, Dolby Digital/ Dolby
Digital Plus
Audio Output Mode: Left, Right, Stereo
audio
System
Local interface
LCD + control buttons
Remote management
Web Management
Language
English
Upgrade
USB, web management
Miscellaneous
Dimension
482*300*44.5mm (W×L×H)
Approx weight
3.5kg
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
100~240VAC, 50/60Hz
Power consumption
20W

8
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
Order Guide
Please specify both Tuner Input option when you place order:
1.5 Appearance and Description
Front Panel Illustration:
1
LCD display for device control and configuration
2
Indicator Area (to indicate locking status of tuner, ASI and IP
input; Decoder: to indicate the decoding status)
3
Up/Down/Left/Right Buttons
Enter Key Menu Key Lock Key
4
CAMs /Smart card slots A & B
Tuner Input
H-IRD-V3S
1*DVB-S/S2/S2X tuner
H-IRD-V3-ISDBT
1*DVB-ISDB-T tuner
H-IRD-V3A
1*ATSC-T tuner
H-IRD-V3Q
1*DVB QAM
H-IRD-V3-DVBT
1*DVB-T
1 2 3 4

9
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com

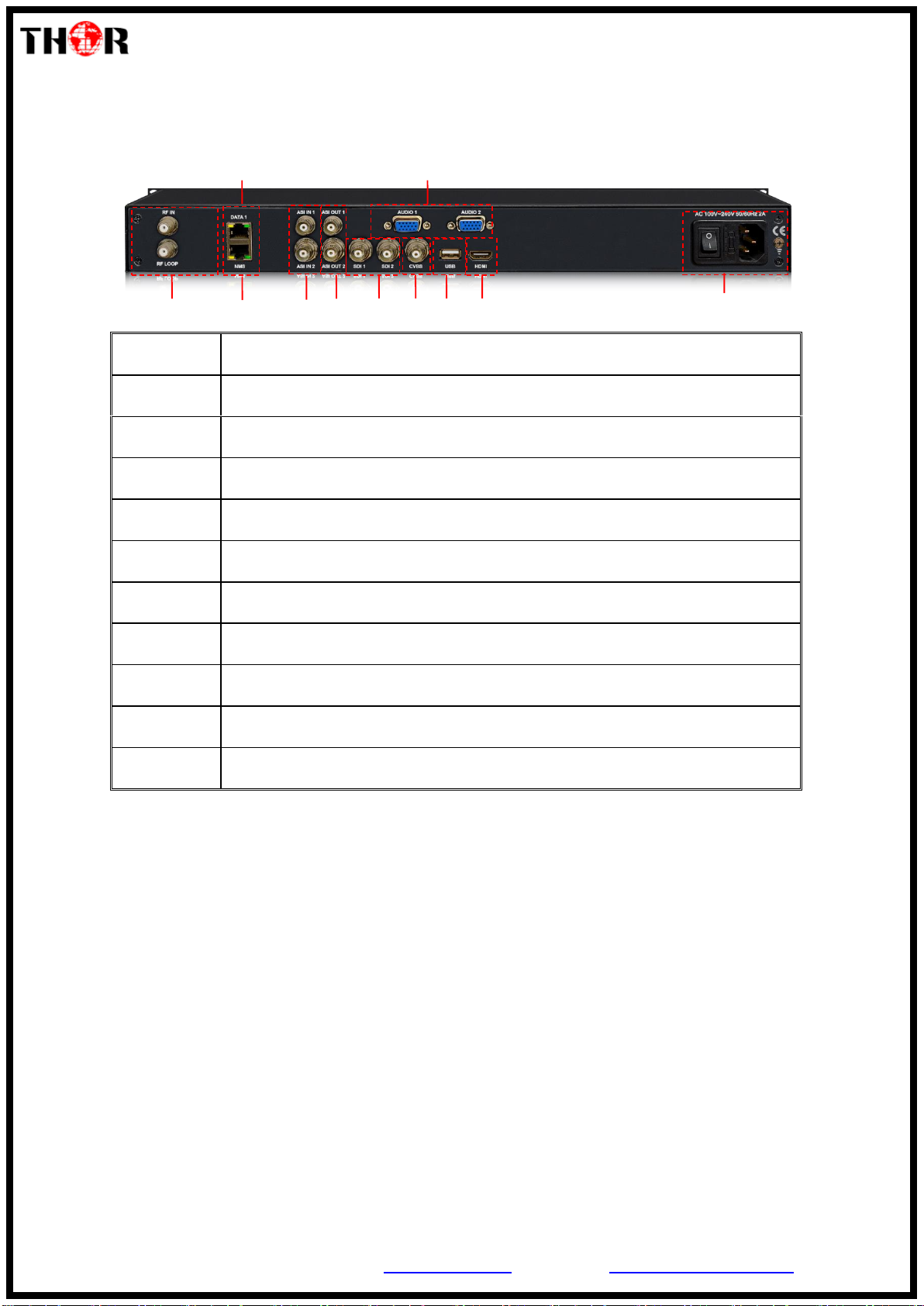

Rear Panel Illustration:
1
RF signal input
2
NMS port for management
3
Data port for IP in and out
4
ASI input Port for re-mux
5
ASI mirrored output ports
6
Analog audio output interface
7
SDI video/audio output interfaces, SDI2 out as mirror of SDI1
8
Composite video output interface (CVBS)
9
USB upgrade port
10
HDMI video/audio output interface
11
Power switch/Fuse/Socket/ Grounding Wire
Chapter 2 Installation Guide
2.1 In the Box
Make sure that everything is in the box prior to installation
H-IRD-V3
HDMI Cable
CVBS Cable
SDI Cable
1 2 4 5 7 8 9 10 11
36

10
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
Audio adapt cables
Power Cord
Ground Cable
If any item is missing or mismatching with the list above, please contact our company.
2.2 Installation Preparation
The main content of this chapter includes:
Checking the device for missing parts or damage during transport
Preparing environment for installation
Connecting signal cables
Connecting communication port with PC
2.2.1 Device's Installation Flow Chart Illustrated as following：
Connecting
Grouding
Wire and
Power
Cord
Acquisition
Check Fixing Device Setting Parameter Running Device
Connecting
Signal Wire
2.2.2 Environment Requirement
Item
Requirement
Spacing
During install make sure the area has plenty of space and
ventilation, especially if installed in rack
Environment
Temperature
5~40℃(sustainable ), 0~45℃(short time)
installing air-conditioning is recommended
Relative Humidity
20%~80% sustainable 10%~90% short time
Pressure
86~105KPa

11
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
Power
Requiring device power, air-conditioning power and lighting
power are independent to each other. Device power requires
AC power 100-240V 50-60Hz. Please carefully check before
running.
2.2.3 Grounding Requirement
Coaxial cables outer conductor and isolation layer should keep proper electric conducting
with the metal housing of device.
Grounding conductor must adopt copper conductor in order to reduce high frequency
impedance, and the grounding wire must be as thick and short as possible.
Users should make sure the 2 ends of grounding wire are well conducted and be antirust.
It is prohibited to use any other device as part of grounding electric circuit
The area of the conduction between grounding wire and device’s frame should be no less
than 25mm2.
2.2.4 Frame Grounding
All the machine frames should be connected with protective copper strip. The grounding wire
should be as short as possible and avoid circling. The area of the conduction between
grounding wire and grounding strip should be no less than 25mm2.
2.2.5 Device Grounding
Connecting the device’s grounding rod to frame’s grounding pole with copper wire.
2.3 Wire’s Connection
Connecting Power Cord
User can insert one end into power supply socket, while insert the other end to AC power.
Connecting Grounding Wire

12
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
When the device solely connects to protective ground, it should adopt independent way,
say, share the same ground with other devices. When the device adopts united way, the
grounding resistance should be smaller than 1Ω.
Caution:
Before connecting power cord to H-IRD-V3, set the power switch to “OFF”.
2.4 Signal Cable Connection
The signal connections include the connection of input signal cable and the connection of
output signal cable. The details are as follows:

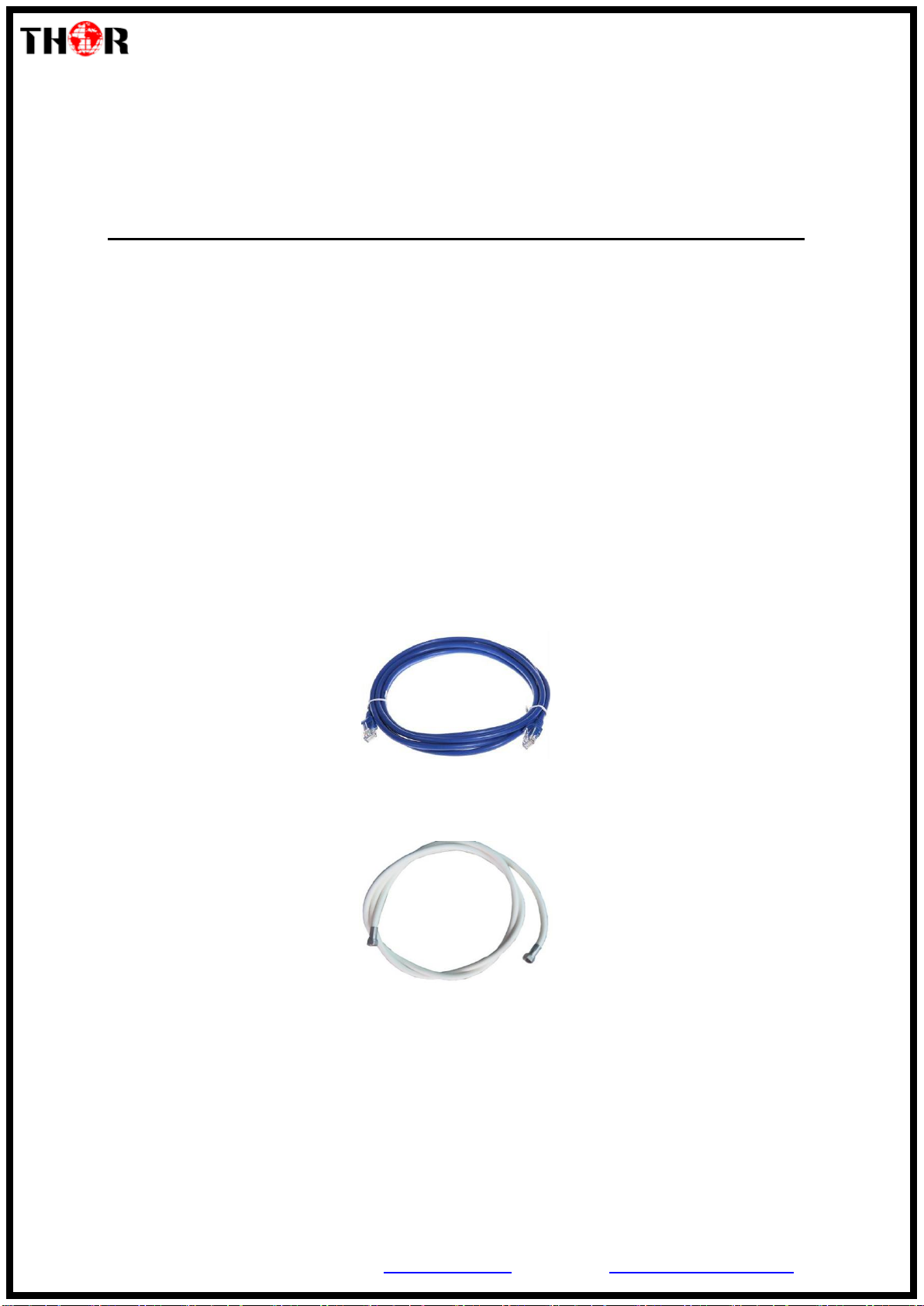

2.4.1 H-IRD-V3 Cables Illustration:
IP Input/output Cable Illustration:
Tuner Cable Illustration:

13
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
ASI Input/output Cable Illustration:

Video & Audio output Cable Illustration:
CVBS Cable
HDMI Cable SDI Cable

14
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
Audio adapt cables Illustration:
Chapter 3 Front Panel Operation
The front panel of the H-IRD-V3 is the interface used to conveniently operate and manage the
device without connecting to a PC; displayed on the LCD:
Keyboard Function Description:
MENU: Cancel current entered value, resume previous setting; Return to previous menu.
ENTER: Activate the parameters which need modifications, or confirm the change after
modification.
LEFT/RIGHT: Choose and set the parameters.
UP/DOWN: Modify activated parameter or paging up/down when parameter is inactivated.
LOCK: Lock the screen/cancel the lock state. After pressing the lock key, the LCD will
display the current configuring state.
3.1 General Setting
Switch on the device and after a few seconds’ initialization, it presents start-up pictures as
below:
HD IRD: Device’s name
HD IRD
192.168.0.136
Updating config
Please wait…

15
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
192.168.0.136 indicates the current NMS IP address.
Press LOCK key on the front panel to enter the main menu. The LCD will display the
following pages where user can configure the parameters for the device:
User could do all the settings according to the 7 directions displayed on the LCD. User can
press UP/DOWN buttons to specify menu item, and then press ENTER to enter the submenus
as below:
1 Input
H-IRD-V3 can support 1 tuner input, 2 ASI inputs and 16 IP stream inputs. Users can enter
‘Input Sets’to configure the tuner/IP parameters to receive the transport streams and select
programs to mux out. It displays as below:
Main menu
1 Input
2 Mux
3 Descramble
4 Decoder
5 Output
Input
1.1 Tuner
1.1.1 DVB-T2
1.1.2 DVB-T2
DVB-C(J.83A/C)/J.83B/DVB-T/T2/
ISDB-T switchable tuner,
here DVB-T2 as an example

16
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
Tuner DVBS/S2:
Press ENTER key to enter ‘1 Tuner DVB-S2’(or ‘2 Tuner DVB-S2’), it displays as below:
Tuner Parameters:
Users can enter this menu to configure the tuner parameters separately to receive the tuner
programs.
Input
1.1 Tuner
1.1.1 DVB-S2
1.1.2 DVB-S2
DVB-S2
Tuner Parameters:
1.1.1.1 Frequency
1.1.1.2 LNB freq
1.1.1.3
Symbol rate
1.1.1.4 LNB U(v)
1.1.1.5 22K
1.1.1.6 Satellite
Settable via Enter/UP/DOWN button
Settable via Enter/UP/DOWN button
Settable via Enter/UP/DOWN button
0V,13V or 18V
On or Off
1-4 settable

17
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
IP input parameters:
2 Mux
You can parse the Tuner input program list and select program(s) to mux out in this menu.
NOTE: Multiplexing operation can take effect only on condition that the “MPTS output
mode”is set to “Mux”under ‘Output’. (i.e.: Output → MPTS output mode → Mux)
DVB-T2
Tuner Parameters:
1.1.1.1 Frequency
1.1.1.2 Symbol rate
1.1.1.3
Constellation
Settable via Enter/UP/DOWN button
Settable via Enter/UP/DOWN button
16/32/64/128/256 QAM
6/7/8M
IP input 1:
1.2.1 Input IP
1.2.2 Input Port
1.2.3 Protocol
1.2.4 Unicast
Settable via Enter/UP/DOWN button
Settable via Enter/UP/DOWN button
UDP or RTP
On or Off
Mux:
2.1 Mux Tuner 1
2.2 Mux Tuner 2
2.3 Mux ASI 1

18
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
3 Descrambling
H-IRD-V3 supports 2 CI cards (Card A & Card B) to descramble programs from either
encrypted RF, ASI or IP. Users can press ENTER key to enter ‘CI Card’to configure the 2
cards respectively.
Press ENTER key to enter Card A (or Card B):
Mux Tuner 1:
2.1.1 TS Status
2.1.2 Parse Prog
2.1.3 Mux to CAM-A
2.1.4 Mux to CAM-B
Tuner 1 as an Example here,
the other inputs are same
Enter the sub-menu to mux the programs
to CAM-A/CAM-B/BISS/Other for next step via
Enter/Left/Right button.
Descramble:
3.1 CI Card A
3.2 CI Card B
Card A
3.1.1 Max Bitrate
3.1.2 Clock Mode
3.1.3 Error Check
3.1.4 Default Set

19
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
Max Bit rate
CI Max Bitrate options range from 48-108Mbps. Move the triangle to select a value as
principle: Actual Input Bitrate≤ Max Bitrate≤CI Max decrypting capacity
Clock Mode
Error Check
Users can decide whether to enable or disable the card error check function in this menu.
Default set
Card Status
Max Bitrate
* 48 Mbps
Clock Mode
►Mode 1
Mode 2
Error Check
On *Off
Default Set
Yes *No
Card Status
Abnormality

20
H-IRD-V3
Tel: [phone] Email: [email protected] http://www.thorbroadcast.com
4 Decoder
Press ENTER key to enter ‘Decoder’to set the video to be decoded. H-IRD-V3 IRD supports
one channel program to output at various interfaces at the same time (HDMI/SDI/CVBS).
Video format: 1920×1080_60p, 1920×1080_60i, 1920×1080_50p; 1920×1080_50i;
1280×720_60P, 1280×720_50P; 480i, 576i
Decoder
4.1 Prog Select
4.2 Decoder Config
4.3 Update Decoder
4.4 Device Info
Enter this menu to select one program
for decoding output.
4.3.1 From USB
00.02.02.00 The current decoder
version
Decoder Config
►4.2.1 Video Format
4.2.2 Volume
4.2.3 Audio 1 Mode
4.2.4 Audio 1 Select
4.2.5 Audio 2 Mode
4.2.6 Audio 2 Select
4.2.7 CC 608
4.2.8 CC 708
4.2.9 AFD
4.2.10 TeletextLine
4.2.11 AC3 pass
4.2.12 Default set
Disable or Enable
Yes or No
