THORLABS PM10-3 User manual

PM103, PM103A, PM103U, PM103E
Optical Power Meter Interfaces
2023
User Guide

Version:
Date: 1.1 22-Jun-2023
Copyright © 2023 Thorlabs

PM103x Optical Power Meter Interfaces
Table of Contents
Chapter 1 Safety 1
Chapter 2 General Information 2
3
2.1 PM103x Model Comparison 4
2.2 Ordering Codes and Accessories
5
2.3 Requirements
Chapter 3 Getting Started 6
6
3.1 Parts List
Chapter 4 Operating Instructions 6
6
4.1 How To 6
4.1.1 PM103x Setup
7
4.1.1.1 Connecting a Power Sensor
8
4.2 Power Meter Interface Features 8
4.2.1 PM103x Sensor Connector 9
4.2.2 PM103 /A /U
10
4.2.2.1 PM103
11
4.2.2.2 PM103A
11
4.2.2.3 PM103U
11
4.2.2.4 USB Operation
12
4.2.2.5 UART Operation
12
4.2.2.6 RS232 Operation
13
4.2.2.7 Reset Button
13
4.2.2.8 Baud Rate
13
4.2.2.9 Non-Volatile Memory
13
4.2.2.10 Digital I/O Ports
14
4.2.2.11 Analog Output
14
4.2.2.12 Autonomous Operation to Analog Output
14
4.2.2.13 NTC Input 15
4.2.3 PM103E
15
4.2.3.1 Ethernet Connection
4.2.3.1.1 Introduction and Prerequisites 15
4.2.3.1.2 Establish an Ethernet connection via LAN 15
4.2.3.1.3 Open point-to-point Ethernet between PC and PM103E - static IP 15
24
4.2.3.2 RS232 Operation
25
4.2.3.3 Baud Rate
25
4.2.3.4 Reset Button

PM103x Optical Power Meter Interfaces
25
4.2.3.5 Non-Volatile Memory
25
4.2.3.6 Digital I/O Ports
25
4.2.3.7 Analog Output
26
4.2.3.8 Autonomous Operation to Analog Output
26
4.2.3.9 NTC Input
26
4.2.4 Power Supply
27
4.3 Software 27
4.3.1 Software Requirements 27
4.3.2 PM103x Specific Software Functions
27
4.3.2.1 PM103 Specific Software Functions
27
4.3.2.2 PM103A Specific Software Functions 28
4.3.3 Sensor Calibration 28
4.3.4 Firmware Update
Chapter 5 Specifications 28
28
5.1 PM103/A /U 31
5.2 PM103E 34
5.3 Pin Sensor Connector 35
5.4 Pin Output Connector DA-15 35
5.5 Pin Output Connector DMC 0,5/7
Chapter 6 Maintenance and Service 36
Chapter 7 Certifications and Compliances 37
Chapter 8 Warranty 38
38
8.1 Return of Devices 38
8.2 WEEE Policy
Chapter 9 Manufacturer Address 38
Chapter 10 Copyright and Exclusion of Liability 39
Chapter 11 Thorlabs Worldwide Contacts - WEEE Policy 40

Rev: 1.1, 22-Jun-2023 © 2023 Thorlabs Page 1
PM103x Optical Power Meter Interfaces Chapter 1 Safety
Chapter 1 Safety
Attention
The safety of any system incorporating the equipment is the responsibility of the assembler of the
system.
All statements regarding safety of operation and technical data in this instruction manual will only
apply when the unit is operated correctly as it was designed for.
The PM103x must not be operated in explosion endangered environments!
Only with written consent from Thorlabs may changes to single components be made or components
not supplied by Thorlabs be used.
All modules including control inputs / outputs and the sensor must be connected with duly shielded
connection cables.
Attention
The following statement applies to the products covered in this manual, unless otherwise specified
herein. The statement for other products will appear in the accompanying documentation.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15of the FCC Rules and meets all requirements of the Canadian Interference-Causing
Equipment Standard ICES-003 for digital apparatus. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
·Reorient or relocate the receiving antenna.
·Increase the separation between the equipment and receiver.
·Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
·Consult the dealer or an experienced radio/T.V. technician for help.
Thorlabs GmbHis not responsible for any radio television interference caused by modifications of this
equipment or the substitution or attachment of connecting cables and equipment other than those
specified by Thorlabs GmbH. The correction of interference caused by such unauthorized modification,
substitution or attachment will be the responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to any and all optional
peripheral or host devices. Failure to do so may violate FCC and ICES rules.
Attention
Mobile telephones, cellular phones or other radio transmitters are not to be used within the range of
three meters of this unit since the electromagnetic field intensity may then exceed the maximum
allowed disturbance values according to IEC 61326-1.
This product has been tested and found to comply with the limits according to IEC 61326-1 for using
connection cables shorter than 3meters (9.8 feet).

Page 2 MTN023788_D02
PM103x Optical Power Meter Interfaces Chapter 2 General Information
Chapter 2 General Information
The PM103x Optical Power and Energy Meter interfaces measure the optical power of laser light or
other monochromatic or near monochromatic light detected by a connected sensor. Their high
repetition rate up to 80 kHz supports even fast pyroelectric sensors. The PM103x power meter
interfaces are compatible with all Thorlabs “C-Series” Photodiodes, Pyroelectric sensors, and
respective custom sensors.

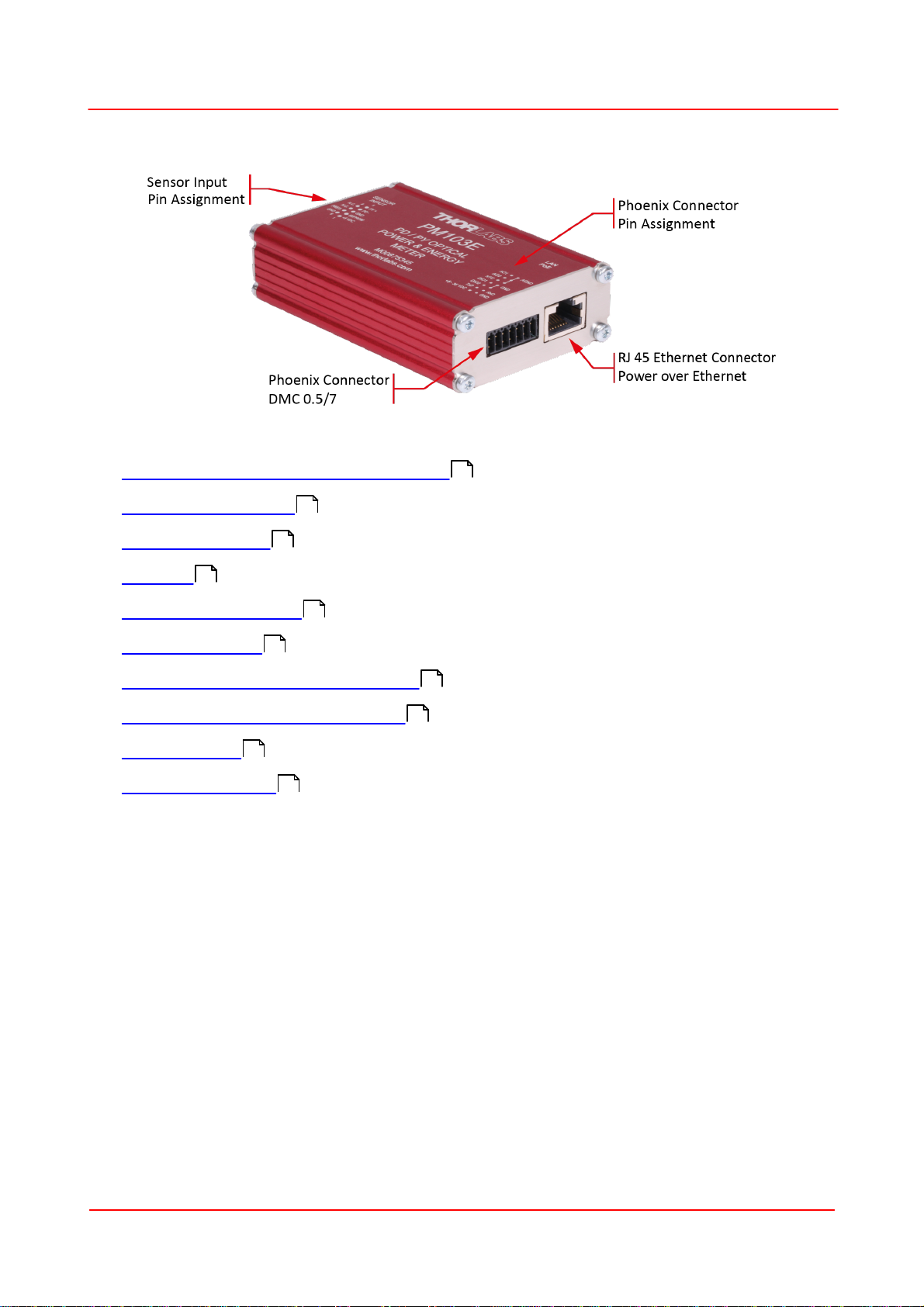

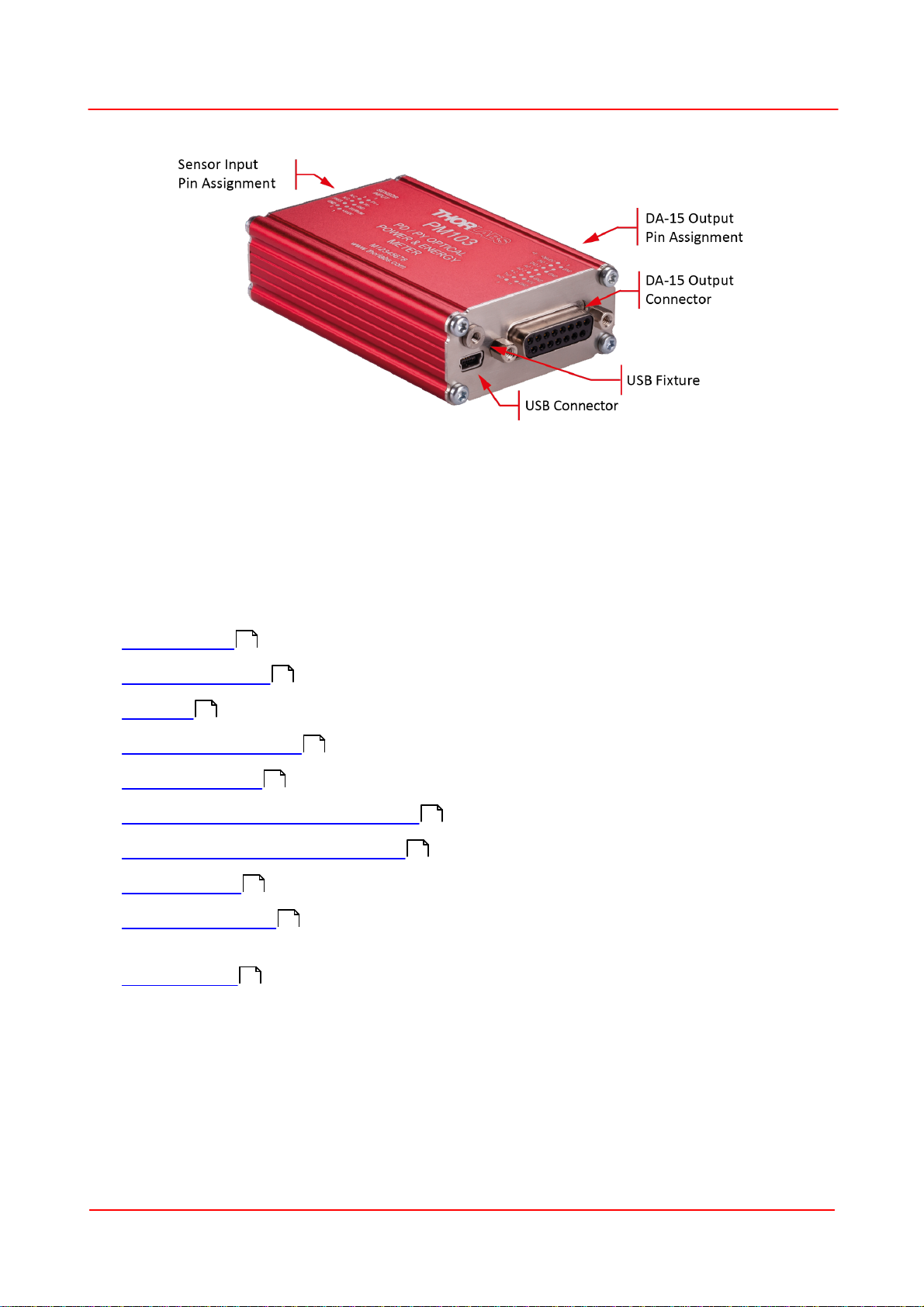

To flexibly integrate the PM103x into a setup, the PM103x models offer different electronic
interfaces for instrument control and output:
·PM103: USB port, Dual I/O port, and DA-15connector
·PM103A: USB port and SMA analog interface (Output only)
·PM103U: USB port only
·PM103E: Ethernet Port, Phoenix DMC Connector, Dual I/O port
The USB port features a fixture for secure connection of the cable to the housing.
For the PM103U and PM103A power meters, instrument control, and power supply are facilitated via
the USB port. The PM103 can alternatively use the DA-15 interface for instrument control and to
connect a power supply. Furthermore, the PM103 can be controlled via an external micro-controller,
supplied by the customer.
The PM103E can use the ethernet cable for power supply, if the network supplies Power over Ethernet
(PoE). Alternatively the PM103E can be powered via its Phoenix DMC Connector. For more information
on the special features of the PM103x models, please see the table PM103x Model Comparison
below.
For instrument control and data analysis through a connected PC, tablet or laptop, Thorlabs offers the
Optical Power Monitor (OPM) software. Instead of the OPMsoftware, the user can write custom made
software. For this, information on driver and SCPI commands are provided in the manual
WriteYourOwnApplication (WYOA) for the PM103x.
In summary, the PM103x models give the customer the choice of different interfaces, provide a
supplied control and analysis software, and have the option to use custom made software. These
features allow for maximum flexibility to integrate the instrument in test and measurement systems
and a wide range of industrial and scientific applications in manufacturing, quality control, quality
assurance, and R&Dfor stationary and field use.
The PM103x offers the customer to implement a large number of powermeters parallel and at the same
time into their application.
Attention
Please find all safety information and warnings concerning this product in the chapter Safety .
3
3
1

Rev: 1.1, 22-Jun-2023 © 2023 Thorlabs Page 3
PM103x Optical Power Meter Interfaces Chapter 2 General Information
2.1 PM103x Model Comparison
PM103
PM103A
PM103U
PM103E
Ethernet Connection and Operation
Ö
USB Connector and Operation
Ö
Ö
Ö
SMA Connector
Ö
DA-15 Universal Connector
Ö
DMC 0,5/7 connector
Ö
RS232Operation
Ö
Ö
Analog Output Operation
Ö
Ö
Ö
Autonomous Operation to
Analog Output
Ö
Ö
Ö
Real Analog Output
Ö
Ö
Ö
Sensitivity Configurable
Analog Output
Ö
Ö
Ö
UART Operation
Ö
2Digital I/O Ports
Ö
Ö
1Digital I/O Ports
Ö
NTC Input
Ö
Ö
Power Supply +5V to +36V
Ö
Ö
9 11 11 15
15
11
11
35
13
12
14
14
14
14
12
13
13
14
26

Page 4 MTN023788_D02
PM103x Optical Power Meter Interfaces Chapter 2 General Information
2.2 Ordering Codes and Accessories
PM103
Power and Energy Meter Interface with DA-15 Connector; USB, RS232, or UART
Operation. Digital or Analog Signal Output; Two Digital I/O Ports; NTC Input; USB
Interface for Control and Power Supply.
PM103A
Power and Energy Meter Interface with SMA Connectors for two Analog Outputs and one
Digital I/O Port; USB Interface for Control and Power Supply.
PM103U
Power and Energy Meter Interface with USB Connector and USB Operation for Control,
Read Out, and Power Supply.
PM103E
Power and Energy Meter Interface with Ethernet Connector for Control and Power
Supply (Power over Ethernet, PoE) and Phoenix DMC Connector 0,5/7 with RS232
Interface, Two Digital Configurable In/Outputs, Two Analog Outputs; NTC Input, and
Connection for External Power Supply.
Included Accessories:
The PM103x Power and Energy Meters include certain cables. Further cables are recommended in
Optional Accessories .
PM103: DA-15 Connector and Connector Housing
USB Cable, Type A to Mini B, with locking screw, 1.5m
PM103A: USB Cable, Type A to Mini B, with locking screw, 1.5m
PM103U: USB Cable, Type A to Mini B, with locking screw, 1.5m
PM103E: RJ45 Patchcable 1.5m,
Phoenix DFMC Connector with 2x7pins: DFMC 0,5/ 7-ST-2,54 - PCB connector
Optional Accessories:
To run the PM103x power and energy meter, additional cables or mounting devices may be required.
Cables
·PM103: Cable to attach to the provided DA-15 connector housing.
·PM103A: SMA cable: please provide a cable with a SMA connector for your PM103A.
Thorlabs offers a variety of SMA connector cables.
·PM103E: Wires (AWG 26-20; 0.14 mm² - 0.5 mm²) to connect with the DFMC 0,5/7 push-in
spring contacts.
·CABRU15: Adapter Cable: USB to Serial Flying Leads, 60'' (1.5 m) long. Suitable for PM103E,
PM101R, and PM5020, and any device with an RS232 interface to adapt it to a USB
interface.
Mounting
·Horizontal Mounting Clamp (ECM225) to mount the PM103x onto a post.
·Vertical Mounting Clamp (ECM100) to mount the narrow side of the PM103x onto a post.
4

Rev: 1.1, 22-Jun-2023 © 2023 Thorlabs Page 5
PM103x Optical Power Meter Interfaces Chapter 2 General Information
·Double Sided Horizontal Mounting Clamp (EPS225) to securely mount two devices on top of each
other.
Please visit our homepage http://www.thorlabs.com for various accessories like power and energy
sensors, fiber adapters, posts and post-holders.
2.3 Requirements
Hardware Requirements
PM103: Please provide an appropriate cable to be attached to the DA-15connector.
PM103A: Please provide appropriate cables to connect to the SMA ports.
PM103E: Please provide an appropriate cable to be attached to the Phoenix DMC connector,
(DMC 0,5/7).
Software Requirements
All models of the PM103x can be run with the Thorlabs' OPMsoftware. Please see the requirements for
the OPMon the website.
Sensor Requirements
Thorlabs C-Series Sensors
The PM103x supports all Thorlabs C-Series photodiode and pyroelectric sensors. The C-Series can be
easily identified by the red connector-housing of the DE-9 connector, compared to older versions of
Thorlabs power sensors.
Please refer to the chapter Connecting a Power Sensor on how to use older Thorlabs sensors or
custom sensors.
7

Page 6 MTN023788_D02
PM103x Optical Power Meter Interfaces Chapter 2 General Information
Chapter 3 Getting Started
Please inspect the shipping container for damage. Please do not cut through the cardboard. You might
need the box for storage or for returns.
If the shipping container seems to be damaged, inspect the contents for completeness and test the
PM103x mechanically and electrically. Keep the container for storage or in order to return the product
in case of future problems.
Verify that you have received the following items within the package:
3.1 Parts List
1. PM103x Optical Power and Energy Meter Interface
2. PM103 /A /U: USB Cable, Type A to Mini B, with Locking Screw, 1.5m
3. PM103: DA-15 Connector and Connector Housing
4. PM103E: RJ45 Patch Cable 1.5 m, Phoenix DMC connector DFMC 0,5/7-ST-2,54 with 2x7
pins
5. Quick Reference
6. Certificate of Calibration
Chapter 4 Operating Instructions
4.1 How To
This chapter describes how to install the PM103x for standard measurements.
4.1.1 PM103x Setup
·Download and install the Optical Power Monitor software on the device that will be used to
control the power meter interface (PC, laptop or tablet).
Note
Install the software prior to connecting the power meter interface to the PC (see Software ).
·Connect the PM103x to a PC (Status LED turns yellow) or other power source (status LED power
supply turns green) via the USB port or with power over ethernet in case of the PM103E.
oThe PM103accepts external power supplies with 5 V to 36V via the DA-15 interface (see Pin
Output Connector DA-15 ). When connecting the USB port while using an external power
supply via the DA-15 port, connecting the USB port will automatically switch to the 5 V power
supply via USB.
oThe PM103E accepts external power supplies with 5V to 36V via the phoenix DMC connector
(see Phoenix Output Connector DMC 0,5/7 ).
oThe status LED for the power supply is green when connected to an external power supply via
the DA-15 connector or in case of the PM103E, the phoenix DMC connector.
·Connect the PM103x to a readout instrument (PC) using the USB cable or a matching cable for the
respective output port (SMA or DA-15). For PM103A and PM103, please provide cables.
·Connect a suitable sensor to the PM103x.
The sensor status LED indicates, when a sensor has been detected (green) or when no sensor or
no recognizable sensor is connected (red).
The Power Meter is now ready for operation and is recognized by the OPM software.
27
35
35
7

Rev: 1.1, 22-Jun-2023 © 2023 Thorlabs Page 7
PM103x Optical Power Meter Interfaces Chapter 4 Operating Instructions
Note
For detailed instructions on controlling the PM103x through the OPMsoftware, please download the
OPMmanual.
4.1.1.1 Connecting a Power Sensor
The PM103x supports all Thorlabs C-Series photodiode and pyroelectric sensors, that can be identified
by the red connector-housing of the DE-9 connector, compared to older versions of Thorlabs power
sensors. Sensor type and calibration data are saved in the non-volatile memory of the DE-9 connector.
Upon connection, this information is automatically sent to the PM103x and to the controlling device (PC
or else) and software. The software will automatically recognize the sensor.
To plug-in or remove a sensor, slightly press on the two bolts in the connector housing, that fix it by
tension.
DE-9connector
Sensors can be hot-swapped to the power meter interface. After recognizing a new valid sensor, the
type and calibration datawill be downloaded to the power meter interface in approximately 2 seconds
and the unit is ready to operate with the new sensor.
Note
Older Thorlabs Sensors without aDE-9connector
The PM103x will NOTautomatically recognize sensors lacking aDE-9connector, as for the case of the 'A'
and 'B' series. Please contact Thorlabs for an upgrade of old sensors with DE-9connectors.
Note
Custom Sensors
To use sensors without a DE-9 connector, manufactured by Thorlabs or else, the user may provide an
appropriate adapter. To build the adapter, refer to the Pin-out of the DE-9 connector shown in the
Specifications . The adapter will per default automatically be recognized by the application Optical
Power Monitor as "Photodiode adapter" or "Pyro adapter". The sensor type can then be adjusted in the
software.
40
34

Page 8 MTN023788_D02
PM103x Optical Power Meter Interfaces Chapter 4 Operating Instructions
4.2 Power Meter Interface Features
PM103x optical power meters offer full functionality to process signal from compatible photodiode or
pyroelectric sensors to be displayed and analyzed on a connected PC.
PM103x general features
·All PM103x models have a non-volatile memory which prevents power meter settings from being
lost upon shutting down or rebooting.
·A fast readout rate of 100 kS/s permits online signal monitoring.
·Finely graduated power and energy ranges permit optimal resolution for power measurements.
·A Reset Button allows quick rebooting of the micro controller.
·The PM103/A /Uare powered via the USB interface. Additionally, PM103can be powered via the DA-
15 interface. Similar, the PM103E is powered either via the ethernet interface or via the phoenix DMC
connector.
The status LED indicates appropriate connection to a power supply. It turns yellow when the PM103x
is connected to the PC or green after connecting to an external power supply.
·All PM103x can calibrate up to sensors with the help of the OPM software. Please see the software
manual for more information.
·Different electrical interfaces in PM103x models for integration into different systems in industrial
and scientific applications. The different electrical interfaces come with further functions ,
described in the following chapters.
4.2.1 PM103x Sensor Connector

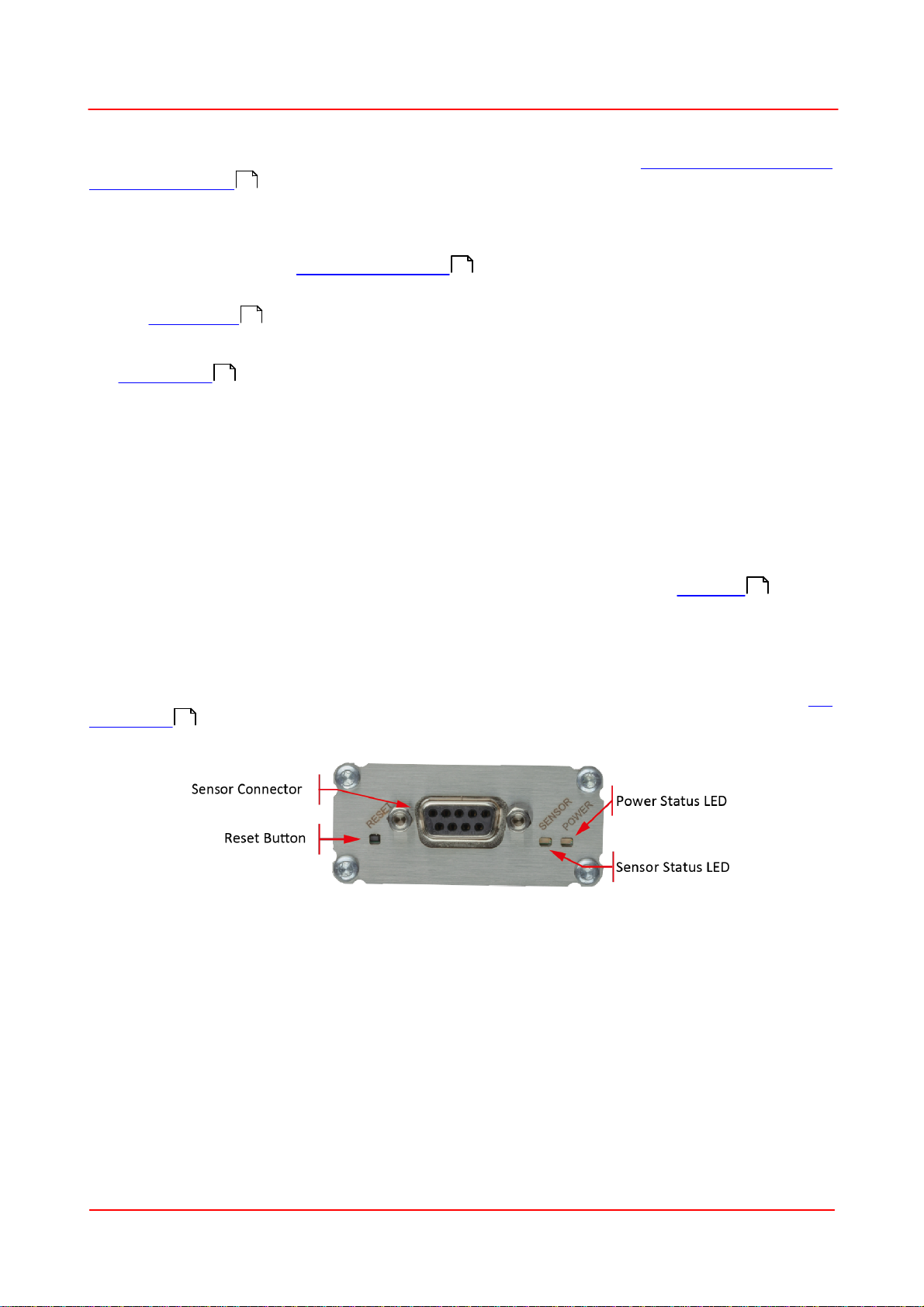

All models of the PM103x have the same powermeter-sensor connector shown below. The Pin
assignment is engraved on the front of the PM103x.
7
13
13
13
3
34

Rev: 1.1, 22-Jun-2023 © 2023 Thorlabs Page 9
PM103x Optical Power Meter Interfaces Chapter 4 Operating Instructions
4.2.2 PM103 /A /U
PM103
PM103A
PM103U
PM103 /A /U Special Features
In the following is a description of the special features of the PM103 /A /U /E powermeter sensors.
While the PM103 /A /U are equipped with an USB-connector, the PM103E features an ethernet
connector.
Due to further differences, the characteristics of PM103 /A /U are described in this chapter
PM103 /A /U , while the PM103E has its own description chapter PM103E .
9 15

Page 10 MTN023788_D02
PM103x Optical Power Meter Interfaces Chapter 4 Operating Instructions
4.2.2.1 PM103
PM103 Special Features
The PM103 version of PM103x features a number of additional options, due to the DA-15 output
connector.
The PM103 is per default configured to RS232 configuration (+/- 5 V voltage level). This can be changed
to a UART configuration (0/5 V voltage level) such that the PM103 can be accessed by external micro-
controllers for instrument control and data export. The PM103 can also be adjusted to accommodate
micro-controllers using 3.3 V.
1. DA-15Interface
2. Two Digital I/O ports
3. NTC input
4. Two Analog Output Ports
5. Real Analog Output
6. Autonomous Operation to Analog Output
7. Optional Use of 5V - 36V Power Supply
8. RS232 Operation
9. Adjustable Baud Rate via USB or Serial Communication (SCPI commands); The default BAUD
Rate is 115200Bit/s.
10. UART Operation (i.e. for Control via an External Micro-Controller)
11. Instrument Control using SCPI commands (Serial Communication)
12. Power Meter Control and Output via USB
35
13
14
14
14
14
26
12
13
12

Rev: 1.1, 22-Jun-2023 © 2023 Thorlabs Page 11
PM103x Optical Power Meter Interfaces Chapter 4 Operating Instructions
4.2.2.2 PM103A
PM103A Special Features
1. Autonomous Operation to analog output.
2. Configurable Analog Output
3. Configurable Digital In/Output
4. Power Meter Control and Output via USB
4.2.2.3 PM103U
PM103U Special Features
·Power Meter Control and Output via USB
4.2.2.4 USB Operation
The PM103 /A /U models can be run via the USB port. The USB interface on all PM103x models also
serves to connect a power supply and to update firmware of the PM103x.
The PM103U uses the USB interface as the only port for control and output.
Note USB vs UART operation for PM103
14
14
13

Page 12 MTN023788_D02
PM103x Optical Power Meter Interfaces Chapter 4 Operating Instructions
In case a USB communication is established in addition to the DA-15 connection, the PM103 switches to
USB-Mode and the DA-15 serial interface becomes inactive. Only after actively closing the USB
connection, the serial communication is reestablished.
When switching the PM103 in the opposite direction, from USB to RS232 operation or to UART
operation, PM103uses the DA-15interface for control and output.
4.2.2.5 UART Operation
The PM103is delivered in RS232operation but can be switched to UART operation.
UARTdependent PM103 functions:
The PM103 may need to be switched from RS232 to UART operation when using an external micro
controller for PM103control. In RS232 operation the PM103 uses voltage levels of +/-5 V, while in UART
mode the voltage level is shifted to 0/5 V. The PM103 can also be adjusted to accommodate micro-
controllers using 3.3 V. When switched to 3.3 V, UART operation is tolerant for 5 V input signal.
For instructions on how to change the voltage level for UART operation, please refer to the document
Write-Your-Own-Applications (WYOA) for PM103x.
For UART operation, please use standard protocols for UART communication and the SCPI commands
listed in WYOA for PM103x.
4.2.2.6 RS232 Operation
The power meter PM103 can be operated with serial communication via RS232.
Please use a RS232 standard protocol for RS232 communications. For questions, please contact our
engineers at Thorlabs .
Please set up the port as follows:
Parameter
Setting
Baud Rate
115.200 Bit/s (default)
Supported range of Baud Rate: 9600to 230400 Bit/s
Data Bits
8
Parity
None
Stop Bits
1
Flow Control
None
Termination Character
LF (x0A; \n). The termination character needs to be enabled.
Note
PM103:
To operate the PM103 via RS232, RxD, TxD, and GND need to be wired from the DA-15 connector to a 9
Pin female connector to perform the connections.
PM103 DA-15Pin
Male DE-9Pin
Female DE-9Pin (PC)
Pin7: TxD
Pin2
Pin2: RxD
Pin8: RxD
Pin3
Pin3: TxD
40

Rev: 1.1, 22-Jun-2023 © 2023 Thorlabs Page 13
PM103x Optical Power Meter Interfaces Chapter 4 Operating Instructions
PM103 DA-15Pin
Male DE-9Pin
Female DE-9Pin (PC)
Pin15: GND
Pin5
Pin5: GND
4.2.2.7 Reset Button
The reset button reboots the internal micro controller of the PM103x. To press the button, please
use a small device that will not break inside the instrument. All settings are saved due to the internal
non-volatile memory.
4.2.2.8 Baud Rate
For PM103, the Baud Rate can be adjusted from 9600to 230400Bit/s. This can be done either via the USB
interface or via the serial interface using SCPI commands or driver functions. Please see the document
Write-Your-Own-Applications (WYOA) for PM103x. The default Baud Rate is 115200.
Note
After adjusting the Baud Rate via RS232 or UART, close the RS232 or UART connection and reconnect
with the desired Baud Rate in order for the Baud Rate to communicate it via RS232/UART. This is not
required for operation via USB.
4.2.2.9 Non-Volatile Memory
All PM103x models have an internal non-volatile memory for all settings (i.e. wavelength setting,
ranging, analog output configuration). The PM103x will start in the same configuration as prior to shut-
down.
4.2.2.10 Digital I/O Ports
PM103
The PM103 has two configurable gerneral purpose digital ports, DIO1 (DA-15 Pin2 ) and DIO2 (DA-15
Pin3 ). Both ports can be configured as digital input or output and queried per remote control
command. These digital I/O ports use 3 V logic for output and are tolerant for 5V input signal.
DIO1 can additionally be configured as trigger in and output, when reading the data in the 100 kS/s
mode. The trigger function is supported by the Optical Power Monitor software. Alternatively, the DIO1
port can be controlled or monitored through SCPI commands in custom made software, as described in
the document WYOA for PM103x.
DIO2can be configured as pass/fail analysis flag and queried per remote control command.
PM103A
The PM103A has one auxiliary digital port, DIO1 , with an SMA connector.
The port can be configured as digital input or output and queried per remote control command.
The DIO1port can be configured as trigger in and output, when reading the data in the 100 kS/s mode.
The trigger function is supported by the Optical Power Monitor software. Alternatively, the DIO1 port
can be controlled or monitored through SCPI commands in custom made software, as described in the
document WYOA for PM103x.
8
35
35
11

Page 14 MTN023788_D02
PM103x Optical Power Meter Interfaces Chapter 4 Operating Instructions
4.2.2.11 Analog Output
PM103
The PM103has two analog outputs, AO1and AO2(please see Pin assignment ).
The Analog Output ports provide the amplified photo-diode current or the pyroelectic sensor voltage,
depending on the sensor. The signal from the analog output AO1is not wavelength- or zero- corrected.

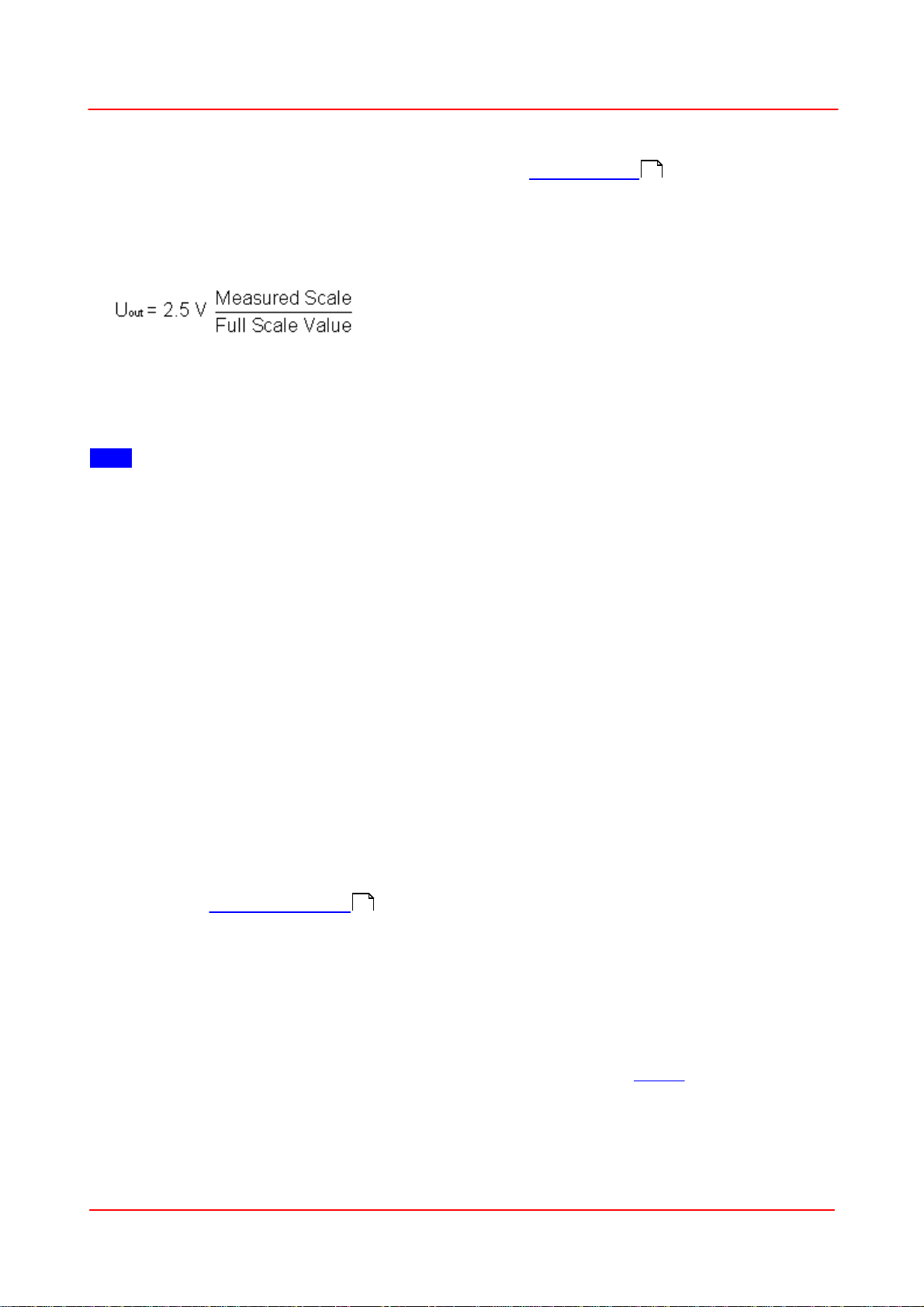

The signal is measurement range dependent and can be calculated to:
AO1: The AO1 (DA-15 Pin 4) delivers the amplified direct real analog signal without a Digital-Analog-
Converter (DAC). Therefore, the AO1 delivers a proportional output voltage for each measurement
range. This analog output voltage can range from -0.25 V to +2.5 V. The real analog signal is not
wavelength- or zero- corrected and offers the full bandwidth (up to 1 MHz) without quantization error.
Note
The bandwidth is in accordance with the settings of the sensor and power meter.
AO2: The AO2(DA-15Pin 5) delivers a range independent voltage which is DAC controlled. The output
voltage is proportional to a configured value in V/W or V/J. This constant can be adjusted via the OPM
software or, for custom made software, using the SCPI/driver commands in the WYOA for PM103x. The
constant can be set in the Thorlabs software OPM under the Settings tab: AO2 Responsivity. The signal
of the AO2is generated with a 16-bit DAC with an update rate of 1 kHz. The analog output voltage can
range from -0V to +2.5V.
The analog signal following the DAC is of advantage when large signal dynamics are expected because
the DAC range changes and the output signal stays largely the same. Additionally, the output signal is
wavelength corrected and corrected regarding the sensor calibration data.
PM103A
The PM103A has two analog output ports with a SMA output connectors. The functions match the
function of AO1and AO2 of the PM103 respectively.
4.2.2.12 Autonomous Operation to Analog Output
Power meters PM103 and PM103A can be run autonomously by simply connecting a power supply and
using one of the analog output ports . In that case, no control device is required.
4.2.2.13 NTC Input
To monitor the temperature in a test environment, the PM103 has an NTC Input (DA-15, Pin 14) which
allows connection of an NTC thermistor. To connect the ground of the TSP-TH, please use one of the
GND connectors DA-15 Pin 10 through Pin13. The measurement range is 0.1 – 100 kW. The set range R0
and the bandwidth B for the NTC thermistor can be adjusted in the OPM software or through SCPI
commands. The default settings are 10 kWand 3988K to directly access the TSP-TH temperature probe.
The measurement range with the PM103is then -10 °C to 80°C with the TSP-TH.
35
14

Rev: 1.1, 22-Jun-2023 © 2023 Thorlabs Page 15
PM103x Optical Power Meter Interfaces Chapter 4 Operating Instructions
4.2.3 PM103E
PM103E Special Features
1. Power Meter Control and Output via Ethernet
2. Phoenix DMC connector
3. Two Digital I/O ports
4. NTC input
5. Two Analog Output Ports
6. Real Analog Output
7. Autonomous Operation to Analog Output
8. Optional Use of 5V - 36V Power Supply
9. RS232 Operation
10. Adjustable Baud Rate via USB or Serial Communication (SCPI commands); The default BAUD
Rate is 115200Bit/s.
11. Instrument Control using SCPI commands (Serial Communication)
4.2.3.1 Ethernet Connection
This powermeter features an ethernet connector port, which can also be used to provide power to the
device (PoE, provided if the network used is accordingly configured.)
This chapter provides in-depth explanation concerning the ethernet connection. The following
chapters describe functionalities similar to the other PM103x-series devices, but here accessible via the
Phoenix DMC connector.
15
35
25
26
25
25
26
26
24
25

Page 16 MTN023788_D02
PM103x Optical Power Meter Interfaces Chapter 4 Operating Instructions
4.2.3.1.1 Introduction and Prerequisites
Ethernet is the universal communications protocol commonly used for building Local and Wide Area
Networks (LAN & WLAN). Over 40 years ago commercially introduced, this connectivity technology is
still the most widely adopted.
With well-established industry standards, the configuration and adaptation of Ethernet is made easy.
There are supported different technologies to establish point-to-point, hub & spoke, or any-to-any
connections.
Note Important Terms:
OSI and TCP/IP
The OSI (Open System Interconnection) model is a conceptual layer model that characterizes and
standardizes how various software and hardware components involved in a network communication
should divide the work and interact with each other.
TCP/IP is also a layered model, but also describes the commonly used data transfer protocol. In fact, it
is a set of protocols. TCP/IP stands for Transmission Control Protocol and Internet Protocol.
LAN
The abbreviation LAN stands for Local Area Network and describes a network, that is limited to a local
area in terms of its spatial extent.
WLAN
The term WLAN is the abbreviation for Wireless Local Area Network
VPN
A Virtual Private Network (VPN) is a network that imitates a private network using a public one. Thanks
to the VPN connection, it is guaranteed that your internet traffic, including your IP address, remains
encrypted.
IP address. An IP address is an address in computer networks which – like the internet – are based on
the internet protocol. It is assigned to devices that are connected to the network, making the devices
addressable and therefore accessible.
Port
A port is the part of a network address that causes operating systems to assign TCP connections and
data packets to server and client programs. Ports are primarily a feature used to distinguish multiple
connections between the same pair of endpoints.
Thorlabs devices use the standardized TCP port number 80 for http protocols, the registered ports 2000
for SCPI command-based communication with the instrument, and 27007for firmware updates.
Subnet-mask
In computer networks, the subnet mask or network mask, in conjunction with the IP address,
determines which IP addresses a device in its own network can reach without the aid of a router
Hostname
The hostname is the unique name of a device within a network.
MAC address
The MAC (Media Access Control) address is the number of a device on a data connection. This number is
used to assign data running over the connection to the devices. The MAC address is the hardware
address of each individual network adapter, which serves as a unique identifier for the device in a
computer network.
DHCP
DHCP stands for Dynamic Host Configuration Protocol. It is a standardized
