Tiger TWR-120 User manual

An Operators Manual with IMPORTANT Safety, Assembly, Operation
and Maintenance information was packaged with this Parts Manual
during final inspection at the factory. If the Operators Manual is
missing at any time, please contact Tiger Corporation to receive your
free replacement manual.
TWR-180
TWR-120
ROTARY CUTTER
Published 2006-06-29 Serial #C31400382705-C31400552806 Inclusive Part No. C314TG010P
Serial #C31500030705-C31500039806 Inclusive
PARTS MANUAL
Tiger Corporation
3301 N. Louise Ave.
Sioux Falls, SD 57107
1-800-843-6849
1-605-336-7900
www.tiger-mowers.com
©2006 Alamo Group Inc.

-1-
The following instructions are offered to help eliminate delay and error in processing
purchase orders for the equipment in this section.
1. The Purchase Order must include the name and address of the person or organization ordering
the parts, who should be charged, and if possible, the serial number of the machine for which the
parts were ordered.
2. The Purchase Order must clearly list the quantity of each part, the complete and correct part
number, and the description of the part.
3. The Manufacturer reserves the right to substitute parts where applicable.
4. The Manufacturer reserves the right to change prices without prior notice.
NOTE: Please refer to the Safety Section in the front of the Operators Manual for the proper
Part Number when ordering Replacement Safety Decals. Safety decals are
available free of charge from the Manufacturer.
NOTE: If the Operators Manual does not accompany this Parts Manual please obtain one,
free of charge from the Manufacturer. DO NOT operate this implement unless you
READ, UNDERSTAND, and FOLLOW the Safety and Operation instructions
contained in the Operators Manual
NOTE: Please note that the appearance of some parts may vary from the artwork shown
in the Manual.
For maximum safety and to guarantee optimum product reliability, always use genuine
OEM Parts. The use of inferior replacement parts may cause premature or
catastrophic failure which could result in serious injury or death. Direct any questions
regarding parts to:
Tiger Corporation
3301 N. Louise Ave.
Sioux Falls, SD 57107
1-800-843-6849
1-605-336-7900
www.tiger-mowers.com
PARTS ORDERING GUIDE

-2-
CENTER SECTION FRAME .................................................. -3-
WINGFRAME,RIGHT ....................................................... -5-
WINGFRAME,LEFT ........................................................ -7-
HITCH FRAME AND CENTER WHEEL STANDARD ............................... -9-
10' SKIRT ASSEMBLY ...................................................... -11-
HITCH JACK, 15" SIDE WIND (232-800) ........................................ -12-
HUB, AXLES & TIRES ...................................................... -13-
DRIVELINESHIELDING .................................................... -15-
CHAIN GUARDS .......................................................... -17-
BLADE CARRIERS ........................................................ -19-
WING WINCH KIT (C312-300) ................................................ -21-
WING LIFT CIRCUIT, SINGLE ACTING ........................................ -22-
WING LIFT CYLINDER, MONARCH (100-3701) .................................. -23-
PHASING CIRCUIT ........................................................ -24-
PHASING CYLINDERS, MONARCH ........................................... -25-
SPOOL VALVE KIT, S150 (C301-805) ......................................... -26-
SPOOL VALVE KIT, S100 (C302-805) ......................................... -28-
TRACTOR UNIVERSAL JOINT W/ 80oC.V., SIZE 8 (340-850) ...................... -29-
TRACTOR UNIVERSAL JOINT W/ 80oC.V., SIZE 6 (340-648) ...................... -31-
WING UNIVERSAL JOINT, SIZE 6 (340-6013) ................................... -33-
CENTER UNIVERSAL JOINT, SIZE 6 .......................................... -35-
SLIP CLUTCH (341-6322, 341-6323) .......................................... -36-
SLIP CLUTCH (341-6324) ................................................... -38-
DIVIDER GEARBOX ....................................................... -39-
CW GEARBOX, WING (330-7030) ............................................ -41-
CCW GEARBOX, WING (330-7031) ........................................... -43-
CW GEARBOX, CENTER, 540 RPM (330-7035) .................................. -45-
CW GEARBOX, CENTER, 1000 RPM (330-7036) ................................. -47-
TRANSPORT KITS ........................................................ -49-
PARTS INDEX ............................................................ -50-
TABLE OF CONTENTS

-3-
June 27, 2006
CENTER SECTION FRAME

-4-
June 27, 2006
Ref. Part No. Description Qty.
1 C314-101 Center section assembly 1
2 228-012 Hose organizer 2
3 250-112 Bolt, 3/4 x 3 UNC 6
4 270-004 Lock nut, 5/8 UNC 10
5 250-093 Bolt, 5/8 x 1-3/4 UNC 2
6 256-006 Flat washer, 5/8 2
7 C310-112 Skid mount assembly 2
8 250-084 Bolt, 5/8 x 4-1/2 UNC 4
9 C301-113 Wing lift spacer plate 2
10 250-060 Bolt, ½ x 1-3/4 UNC 3
11 C310-144 Retainer pin, 1 x 5-3/16 U.L 1
12 256-011 Flat washer, 1/2 3
13 270-007 Lock nut, 1/2 UNC 3
14 256-001 Flat washer, 1 3
15 262-006 Roll pin, 3/8 x 2 3
16 C310-143 Retainer pin, 1 x 2-3/4 U.L. 2
17 250-112 Bolt, 3/4 x 3 UNC (light truck tire) 2
250-111 Bolt, 3/4 x 4 UNC (laminated & aircraft) 2
18 C310-105 Cylinder lug adjustment assembly. 1
19 C310-120 Spacer plate, 1" (light truck tire) 1
C310-120 Spacer plate, 1" (laminated & aircraft tire) 2
* See “Fixed Knife Shredder Kit” parts page for additional spacer plates required
* See “Sod Kit” parts page for special spacer plate requirements
20 C301-118 Wing lock pin, 1 x 5-9/16 U.L. 2
21 250-023 Bolt, 3/8 x 1-3/4 UNC 5
22 256-017 Flat washer, 3/8 4
23 300-012 Lynch pin, 1/4 3
24 C312-119 Slow moving vehicle sign stand 1
25 270-017 Lock nut, 3/8 UNC 8
26 250-019 Bolt, 3/8 x 1-1/4 UNC 2
27 270-001 Lock nut, 3/4 UNC 8
28 C310-115 Bolt access cover plate 1
29 255-013 Lock washer, 3/8 2
30 250-018 Bolt, 3/8 x 1 UNC 4
31 330-7035 Gear box, 540 RPM 1
330-7036 Gear box, 1000 RPM 1
33 150-32 Complete, SMV sign 1
34 330-930 Splitter box, 540 RPM 1
330-931 Splitter box, 1000 RPM 1
35 250-090 Bolt, 5/8 x 2 UNC 4
36 C310-127 Transport lock pin, 1 x 5-5/16 U.L. 1
37 280-200 Manual Box 1
38 256-018 Washer, 1/4" 2
39 250-002 Bolt, 1/4" x 1" UNC 2
40 270-025 Locknut, 1/4" UNC 2
41 C000-001 Hose clamp 1
42 262-005 Roll Pin, 3/8 x 2-1/2" 1
CENTER SECTION FRAME

-5-
June 27, 2006
WING FRAME, RIGHT

-6-
June 27, 2006
Ref. Part No. Description Qty.
1 C314-155 Wing assembly, right 1
2 752-014 Hinge pin, 15" O.A. 4
3 C310-140 Hinge spacer tube, 13-7/8" O.A. 2
5 262-011 Roll Pin, 3/8 x 1-3/4 6
6 C310-141 Hinge spacer tube, 10-3/8" O.A. 1
7 262-006 Roll pin, 3/8 x 2 5
8 256-001 Flat washer, 1 6
9 C301-140 Pin, 1 x 3-13/32" O.A. 2
10 C301-114 Floating lug 2
13 330-7031 Gearbox, CCW 1
* CW Gearbox (330-7030) is required for fixed knife, material distribution, and sod kits.
See your Schulte Dealer
14 250-201 Plow bolt, ½ x 1-1/2 UNC 3
16 C310-135 Outer wing skid, standard 1
17 270-007 Lock nut, ½ UNC 10
18 256-011 Flat washer, 1/2 4
19 255-020 Lock washer, 1-1/4" 1
20 257-054 Half nut, 1-1/4" UNC 2
21 C310-145 Retainer pin, 1 x 6-15/16 U.L. 1
22 250-059 Bolt, ½ x 1-1/2 UNC 1
23 302-015 Clevis pin, 1 x 2-7/8 1
24 250-111 Bolt, 3/4 x 4 UNC 1
25 C310-124 Wheel standard suspension plate 1
26 233-050 Rubber sandwich 1
27 C310-123 Wing wheel standard assembly 1
28 270-001 Lock nut, 3/4 UNC 9
29 250-112 Bolt, 3/4 x 3 UNC 8
30 271-005 Cotter pin, 3/16 x 1-1/2 1
31 273-006 Grease nipple, self tap 1
32 C310-115 Bolt access cover plate 1
33 255-013 Lock washer, 3/8 2
34 250-018 Bolt, 3/8 x 1 UNC 2
35 C320-132 Wing adjustment assembly 1
36 250-055 Bolt, ½ x 3/4 UNF 2
37 250-061 Bolt, ½ x 1-1/4 UNC 6
38 C312-157 Adjustable side mount, right 1
WING FRAME, RIGHT

-7-
June 27, 2006
WING FRAME, LEFT

-8-
June 27, 2006
Ref. Part No. Description Qty.
1 C314-150 Wing assembly, left 1
2 752-014 Hinge pin, 15" O.A. 4
3 C310-140 Hinge spacer tube, 13-7/8" O.A. 2
5 262-011 Roll Pin, 3/8 x 1-3/4 6
6 C310-141 Hinge spacer tube, 10-3/8" O.A. 1
7 262-006 Roll pin, 3/8 x 2 5
8 256-001 Flat washer, 1 6
9 C301-140 Pin, 1 x 3-13/32" O.A. 2
10 C301-114 Floating lug 2
13 330-7030 Gearbox, CW 1
* CCW Gearbox (330-7031) is required for fixed knife, material distribution, and sod kits.
See your Schulte Dealer
14 250-201 Plow bolt, ½ x 1-1/2 UNC 3
16 C310-135 Outer wing skid, standard 1
17 270-007 Lock nut, ½ UNC 10
18 256-011 Flat washer, ½ 4
19 255-020 Lock washer, 1-1/4" 1
20 257-054 Half nut, 1-1/4" UNC 2
21 C310-145 Retainer pin, 1 x 6-15/16 U.L. 1
22 250-059 Bolt, ½ x 1-1/2 UNC 1
23 302-015 Clevis pin, 1 x 2-7/8 1
24 250-111 Bolt, 3/4 x 4 UNC 1
25 C310-124 Wheel standard suspension plate 1
26 233-050 Rubber sandwich 1
27 C310-123 Wing wheel standard assembly 1
28 270-001 Lock nut, 3/4 UNC 9
29 250-112 Bolt, 3/4 x 3 UNC 8
30 271-005 Cotter pin, 3/16 x 1-1/2 1
31 273-006 Grease nipple, self tap 1
32 C310-115 Bolt access cover plate 1
33 255-013 Lock washer, 3/8 2
34 250-018 Bolt, 3/8 x 1 UNC 2
35 C320-132 Wing adjustment assembly 2
36 250-055 Bolt, ½ x 3/4 UNF 2
37 250-061 Bolt, ½ x 1-1/4 UNC 6
38 C312-152 Adjustable skid mount, left 1
WING FRAME, LEFT

-9-
June 27, 2006
HITCH FRAME AND CENTER WHEEL STANDARD

-10-
June 27, 2006
Ref. Part No. Description Qty.
1 271-005 Cotter pin, 3/16 x 1-1/2 3
2 256-001 Flat washer, 1 13
3 302-013 Clevis pin, 1 x 2-1/8 2
4 262-006 Roll pin, 3/8 x 2 3
5 C310-113 Hitch clevis 1
7 C310-118 Pivoting hitch assembly. 1
8 C310-119 Pivot hitch weld sleeve 1
9 250-060 Bolt, 1/2 x 1-3/4 UNC 3
10 256-011 Flat washer, 1/2 7
11 270-007 Lock nut, 1/2, UNC 3
12 273-006 Grease nipple, self tap 6
13 C310-117 Hitch frame assembly 1
14 C310-142 Retaining pin, 1 x 3-15/16 U.L. 2
16 C310-131 Lift rod, 101" O.A. 2
17 302-015 Clevis pin, 1 x 2-7/8 1
18 229-007 Compression spring, 1/2” 2
19 250-111 Bolt, 3/4 x 4 UNC 1
20 C310-125 Suspension top plate 1
21 270-001 Lock nut, 3/4 UNC 5
22 CS01-130 Leveling rod lug 2
23 257-008 Nut, 1 UNC 2
24 257-006 Half nut, 1 UNC 2
25 302-012 Clevis pin, 1 x 1-15/16 2
28 C310-108 Center section wheel standard 1
29 250-112 Bolt, 3/4 x 3 UNC 4
30 CS01-134 Retaining pin, 1 x 4-5/8 U.L. 1
31 C502-183 PTO storage support 1
32 302-034 Bent hitch pin 1
33 271-053 #10 hitch pin clip 1
HITCH FRAME AND CENTER WHEEL STANDARD

-11-
June 27, 2006
Ref. Part No. Description Qty.
1 250-060 Bolt, 1/2" x 1-3/4" UNC 2
2 250-059 Bolt, 1/2" x 1-1/2" UNC 2
3 256-011 Flat washer, 1/2" 9
4 C311-105 Chain guard, single 1
C311-106 Chain guard, double 1
5 250-145 Bolt, 1" x 4" UNC 2
7 270-007 Lock nut, 1/2" UNC 9
8 C311-102 Hinge pin, 29 1/8" O.A. 1
9 270-020 Lock nut, 1" UNC 4
10 C311-101 Skirt assembly, 10' 1
11 C311-103 Hinge pin, 5" O.A. 1
12 C302-104 Counter weight 3
13 256-001 Flat washer, 1" 4
14 250-129 Bolt, 1" x 6" UNC 2
15 250-201 Plow bolt, 1/2" x 1-1/2" UNC 5
16 C302-106 Skirt skid 1
17 270-017 Lock nut, 3/8" UNC 3
18 225-106 Chain, 5/16" proof coil, 6 links 3
225-111 Chain, 5/16" proof coil, 11 links 3
19 250-085 Bolt, 5/8" x 4" UNC 4
20 256-017 Flat washer, 3/8" 3
21 256-006 Flat washer, 5/8" 4
22 250-020 Bolt, 3/8" x 1-1/2" UNC 3
23 270-004 Lock nut, 5/8" UNC 4

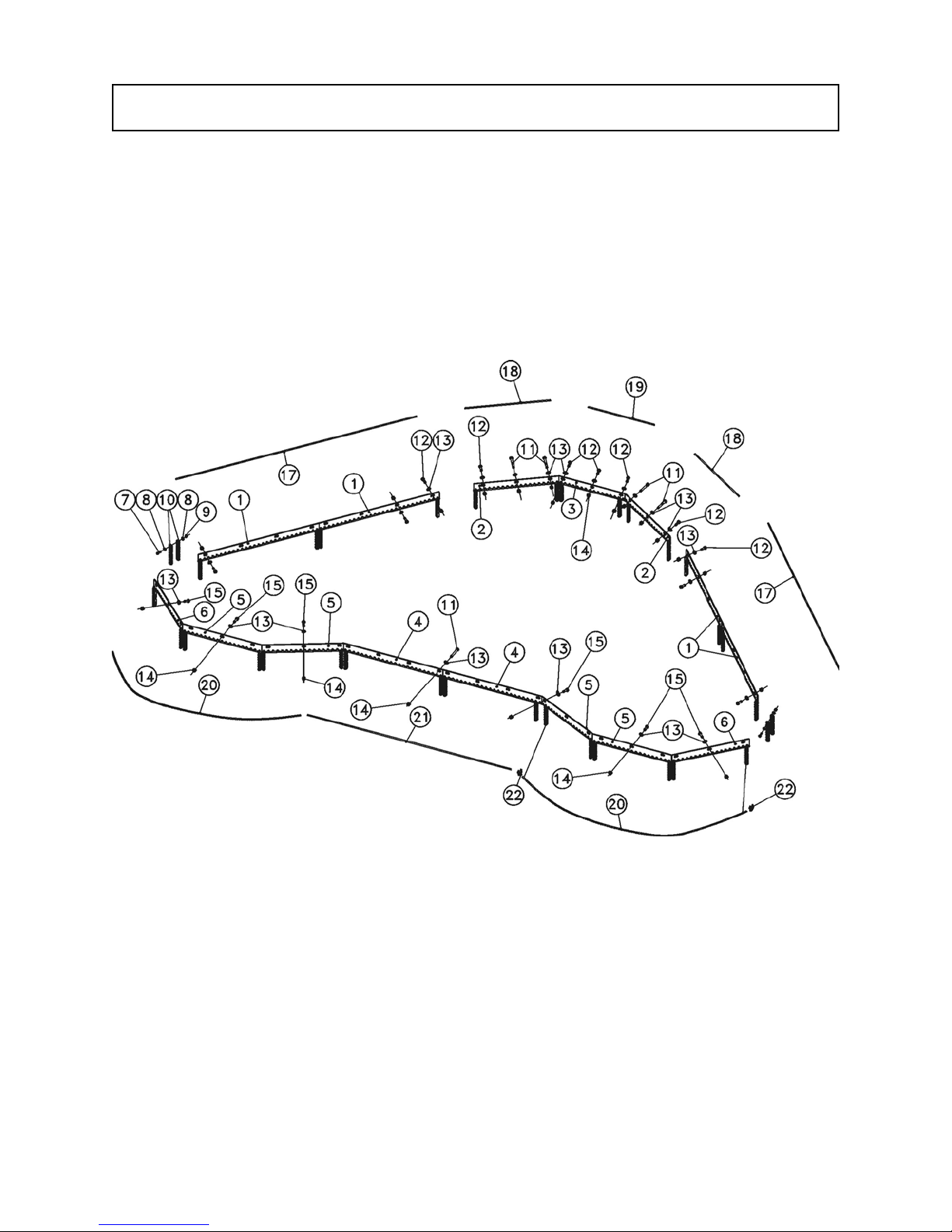

10' SKIRT ASSEMBLY

-12-
June 27, 2006
Ref. Part No. Description Qty.
1 232-621 Outer Tube and Mount 1
2 232-622 Inner Tube/ S&N Assembly 1
10 232-623 Crank, Handle 1
11 232-624 Cover 1
12 232-625 Bolt,1/4-20 x 3.12" Carriage 2
13 232-626 Locknut, 1/4" 2
14 232-627 Pull Pin Assembly 1
16 232-628 Grease Fitting 1
20 232-630 Repair Kit, c/w Ref # 3 to 9 1
NOTE: THIS JACK WILL REPLACE JACK 232-600
HITCH JACK, 15" SIDE WIND (232-800)

-13-
June 27, 2006
When attaching the wheels to the hub, be sure the lock washer is installed agianst the wheel. To
reduce the possibility of the laminations separating, the laminated tires should be installed with
the laminations oriented as shown above.
HUB, AXLES & TIRES

-14-
June 27, 2006
Ref. Part No. Description Qty.
1 208-018 Spindle, c/w #9, 15, 16, double end 1
1 208-019 Spindle, c/w #9, 15, 16, single end 1
2 207-026 Seal 1
3 207-019 Bearing 1
4 207-020 Race 1
5 273-006 Grease nipple, self-tap 1
6 205-007 Hub, c/w outer races 1
7 207-025 Race 1
8 207-024 Bearing 1
9 271-005 Cotter pin, 3/16 x 1-1/2 1
10 201-005 Wheel, 15 x 5 KB, 5 bolt, For 7.00 Tire 1
201-010 Wheel, 15 x 8 x 5, For 9.5L Tire 1
11 211-002 Valve stem 1
12 210-167 Tire, 7.00 x 15, 8 ply 1
210-157 Tire, 9.5L x 15 1
13 207-0281 Wheel bolt, 1/2-20 UNF x 1" wide shoulder 5
14 207-027 Dust cap 1
15 209-017 Castle nut, 3/4 - 16 UNF 1
17 250-018 Bolt, 3/8 x 1 UNC 5
18 210-003 Tire, solid laminated, complete 1
19 255-013 Lock washer, 3/8" 5
20 257-032 Nut, 3/8 UNC 5
21 201-008 Wheel half, 6 x 9, 5 bolt 2
22 210-004 Tire, solid laminated, 6 x 9 1
23 206-009 Hub, includes #2-8 & 14 1
23 207-055 Bearing Kit, includes #2, 3, 4, 7, 8, 14, 16 1
24 210-162 Aircraft tire 22 x 5.5 x 10 complete 1
211-010 Tube & liner for #210-162
25 255-009 Lock washer, 1/2 5
26 250-0612 Bolt, 1/2 x 1-1/4 UNF Gr. 5 5
HUB, AXLES & TIRES

-15-
June 27, 2006
DRIVELINE SHIELDING

-16-
June 27, 2006
Ref. Part No. Description Qty.
1 C314-203 Center section shield assembly CE 1
3 251-008 Bolt, M8 x 20mm 15
4 255-015 Lock washer, 5/16" 15
5 256-020 Flat washer, 5/16" 15
6 C314-202 Splitter shield mount 1
11 341-6235 Plastic shield 2
12 C314-204 Center gearbox pivot shield mount 1
13 341-600 Plastic shaft cover for splitter, 10' units 1
14 250-006 Bolt, 5/16" x 3/4" UNC, 10' units 2
15 271-008 Cotter pin, 1/8" x 1" 2
16 C301-203 Shield hinge pin 1
25 251-151 Machine Screw #10 x .75" Round Head 2
26 270-028 Locknut, 10-24 Nylock 2
27 C314-205 Spacer CE Shield 1
28 227-001 Latch 1
29 227-002 Euro Lock Key, 10 Ga Stainless Steel 1
30 271-013 Cotter Pin, 1/16" x 3/4" long (Not for CE) 1
DRIVELINE SHIELDING

-17-
June 27, 2006
CHAIN GUARDS

-18-
June 27, 2006
C310-550 Double Chain Guard Kit, S150
Ref. Part No. Description Qty.
1 C310-555 Chain guard double, wing front 4
2 C310-552 Chain guard double, center front outer 2
3 C310-551 Chain guard double, center front middle 1
4 C310-554 Chain guard double, center rear 2
5 C310-557 Chain guard double, wing rear 4
6 C310-558 Chain guard double, wing rear outer 2
7 250-026 Bolt, 3/8" x 2-1/2" UNC 2
8 256-017 Flat washer, 3/8" 4
9 270-017 Lock nut, 3/8" UNC 2
10 225-109 Chain, 5/16" proof coil, 9 links 4
11 250-050 Bolt, 1/2" x 3-1/2" UNC 12
12 250-061 Bolt, 1/2" x 1-1/4" UNC 21
13 256-011 Flat washer, 1/2" 63
14 270-007 Lock nut, 1/2" UNC 51
15 250-059 Bolt, 1/2" x 1-1/2" 18
C310-520 Cable Kit for Double Chains, S150
Ref. Part No. Description Qty.
17 221-413 Cable, 73" 2
18 221-415 Cable, 26-3/4" 2
19 221-416 Cable, 22" 1
20 221-414 Cable, 75-1/4" 2
21 221-417 Cable, 62" 1
22 222-003 Cable clamp, 1/8" 16
CHAIN GUARDS

-19-
June 27, 2006
BLADE CARRIERS
