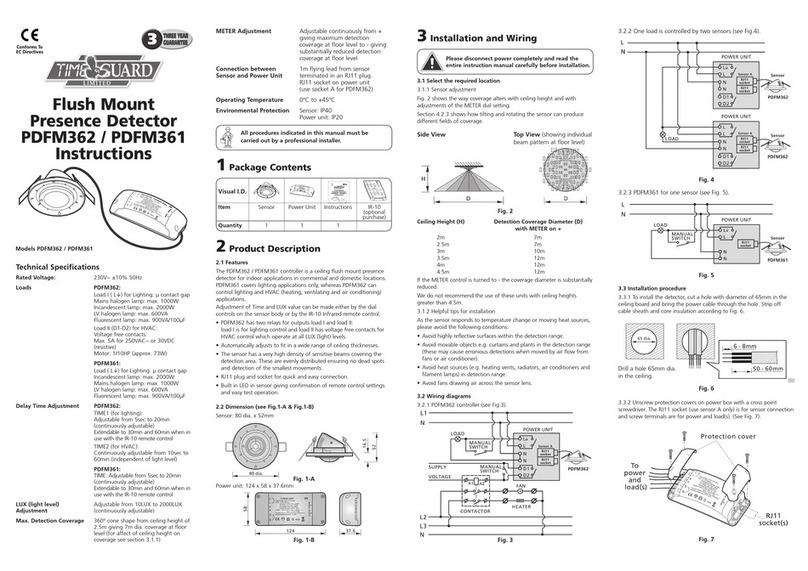

Timeguard PDSM362 User manual

Visual I.D.
Item Sensor Instructions Wood Self-tapping IR-10
screw screw (optional
Ø4 x Ø3 x purchase)
25.4mm 10mm
Quantity 1 1 2 2
Please disconnect power completely and read the
entire instruction manual carefully before installation.
3.1 Select the required location
3.1.1 Sensor adjustment
Fig. 2 shows the way coverage alters with ceiling height and with
adjustments of the METER dial setting.
Section 4.2.3 shows how tilting and rotating the sensor can produce
different fields of coverage.
Ceiling Height (H) Detection Coverage Diameter (D)
with METER on +
2m 7m
2.5m 7m
3m 10m
3.5m 12m
4m 12m
4.5m 12m
If the METER control is turned to - the coverage diameter is substantially
reduced.
We do not recommend the use of these units with ceiling heights
greater than 4.5m.
3.1.2 Helpful tips for installation
As the sensor responds to temperature change or moving heat sources,
please avoid the following conditions:
• Avoid highly reflective surfaces within the detection range.
• Avoid movable objects e.g. curtains and plants in the detection range
(these may cause erronious detections when moved by air flow from
fans or air conditioner).
• Avoid heat sources (e.g. heating vents, radiators, air conditioners and
filament lamps) in detection range.
• Avoid fans drawing air across the sensor lens.
3.2 Wiring
3.2.1 Lighting and HVAC are controlled by one PDSM362 (see Fig.3).
1Package Contents
2Product Description
3Installation and Wiring
Technical Specifications
Rated Voltage: 230V~ ±10% 50Hz
Loads PDSM362 (2 channels):
Load I ( LÈ) for Lighting: µ (contact
seperation)
Incandescent lamp: max. 2000W
Mains halogen lamp: max. 1000W
LV halogen lamp: max. 600VA
Fluorescent lamp: max. 900VA/100µF
Load II (D1-D2) for HVAC:
Max. 5A (cosØ =1) 250VAC or 30VDC
Max: 1/10HP (73W)
PDSM361 (1 channel):
Load I ( LÈ) for Lighting: µ (contact
seperation)
Incandescent lamp: max. 2000W
Mains halogen lamp: max. 1000W
LV halogen lamp: max. 600VA
Fluorescent lamp: max. 900VA/100µF
Timer Adjustment PDFM362:
(constant adjustment) TIME1 (for lighting):
Adjustable from 5sec to 20min
(continuously adjustable)
TIME2 (for HVAC):
Adjustable from 10sec to 60min
(continuously adjustable)
PDFM361:
TIME: Adjustable from 5sec to 20min
(continuously adjustable)
LUX (light level) Adjustable from 10LUX to 2000LUX
Adjustment (continuously adjustable)
Max. Detection Coverage 360º cone shape from ceiling height of
2.5m giving 7m dia. coverage at floor
level (for affect of ceiling height on
coverage see section 3.1.1)
Conforms To
EC Directives
All procedures indicated in this manual must be
carried out by a professional installer.
METER Adjustment Adjustable continuously from
+ giving maximum detection
coverage at floor level to - giving a
substantially reduced detection
coverage at floor level
Operating Temperature 0ºC to +45ºC
Environmental Protection Class II, IP40
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 1
Side View Top View (showing individual
beam pattern at floor level)
3.2.2 Lighting is controlled by two PDSM362’s to enlarge detection
range (see Fig.4).
3.2.3 Lighting is controlled by a PDSM361 (see Fig. 5).
Fig. 8
Fig. 7
Surface Mount
Presence Detector
PDSM362 / PDSM361
Instructions
2.1 Features
The PDSM362 / PDSM361 controller is a ceiling surface mount presence
detector for indoor applications in commercial and domestic locations.
PDSM361 covers lighting applications only, whereas PDSM362 can
control lighting and HVAC (heating, ventilating and air conditioning)
applications.
Adjustment of Time and LUX values can be made either by the dial
controls on the sensor body or by the IR-10 Infrared remote control.
• PDSM362 has two relays for outputs load I and load II:
load I is for lighting control and load II has voltage free contacts for
HVAC control which operate at all LUX (light) levels.
• The sensor has a very high density of sensitive beams covering the
detection area. These are evenly distributed ensuring no dead spots
and detection of the smallest movements.
• Either side or bottom cable entry.
• Built-in red LED in sensor giving confirmation of remote control
settings and easy test operation.
2.2 Dimensions (see Fig.1)
Models PDSM362 / PDSM361
3.3 Installation procedure
3.3.1 Insert large flat blade screwdriver into the groove as shown each
side in turn and twist (see Fig. 6) to remove outer cover.
3.3.2 To separate bottom case from lens body force a small flat blade
screwdriver into the hidden gap shown partially exposed in Fig. 7 then
push screwdriver in towards centre and lever bottom case assembly
away from lens body pins.
3.3.3 Remove cardboard and screws used to assemble and fix the sensor
(see Fig. 8).
PDSM361_362_Instructions_2.indd 1PDSM361_362_Instructions_2.indd 1 14/5/08 09:06:0114/5/08 09:06:01

Visual I.D.
Item Sensor Instructions Wood Self-tapping IR-10
screw screw (optional
Ø4 x Ø3 x purchase)
25.4mm 10mm
Quantity 1 1 2 2
Please disconnect power completely and read the
entire instruction manual carefully before installation.
3.1 Select the required location
3.1.1 Sensor adjustment
Fig. 2 shows the way coverage alters with ceiling height and with
adjustments of the METER dial setting.
Section 4.2.3 shows how tilting and rotating the sensor can produce
different fields of coverage.
Ceiling Height (H) Detection Coverage Diameter (D)
with METER on +
2m 7m
2.5m 7m
3m 10m
3.5m 12m
4m 12m
4.5m 12m
If the METER control is turned to - the coverage diameter is substantially
reduced.
We do not recommend the use of these units with ceiling heights
greater than 4.5m.
3.1.2 Helpful tips for installation
As the sensor responds to temperature change or moving heat sources,
please avoid the following conditions:
• Avoid highly reflective surfaces within the detection range.
• Avoid movable objects e.g. curtains and plants in the detection range
(these may cause erronious detections when moved by air flow from
fans or air conditioner).
• Avoid heat sources (e.g. heating vents, radiators, air conditioners and
filament lamps) in detection range.
• Avoid fans drawing air across the sensor lens.
3.2 Wiring
3.2.1 Lighting and HVAC are controlled by one PDSM362 (see Fig.3).
1Package Contents
2Product Description
3Installation and Wiring
Technical Specifications
Rated Voltage: 230V~ ±10% 50Hz
Loads PDSM362 (2 channels):
Load I ( LÈ) for Lighting: µ (contact
seperation)
Incandescent lamp: max. 2000W
Mains halogen lamp: max. 1000W
LV halogen lamp: max. 600VA
Fluorescent lamp: max. 900VA/100µF
Load II (D1-D2) for HVAC:
Max. 5A (cosØ =1) 250VAC or 30VDC
Max: 1/10HP (73W)
PDSM361 (1 channel):
Load I ( LÈ) for Lighting: µ (contact
seperation)
Incandescent lamp: max. 2000W
Mains halogen lamp: max. 1000W
LV halogen lamp: max. 600VA
Fluorescent lamp: max. 900VA/100µF
Timer Adjustment PDFM362:
(constant adjustment) TIME1 (for lighting):
Adjustable from 5sec to 20min
(continuously adjustable)
TIME2 (for HVAC):
Adjustable from 10sec to 60min
(continuously adjustable)
PDFM361:
TIME: Adjustable from 5sec to 20min
(continuously adjustable)
LUX (light level) Adjustable from 10LUX to 2000LUX
Adjustment (continuously adjustable)
Max. Detection Coverage 360º cone shape from ceiling height of
2.5m giving 7m dia. coverage at floor
level (for affect of ceiling height on
coverage see section 3.1.1)
Conforms To
EC Directives
All procedures indicated in this manual must be
carried out by a professional installer.
METER Adjustment Adjustable continuously from
+ giving maximum detection
coverage at floor level to - giving a
substantially reduced detection
coverage at floor level
Operating Temperature 0ºC to +45ºC
Environmental Protection Class II, IP40
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 1
Side View Top View (showing individual
beam pattern at floor level)
3.2.2 Lighting is controlled by two PDSM362’s to enlarge detection
range (see Fig.4).
3.2.3 Lighting is controlled by a PDSM361 (see Fig. 5).
Fig. 8
Fig. 7
Surface Mount
Presence Detector
PDSM362 / PDSM361
Instructions
2.1 Features
The PDSM362 / PDSM361 controller is a ceiling surface mount presence
detector for indoor applications in commercial and domestic locations.
PDSM361 covers lighting applications only, whereas PDSM362 can
control lighting and HVAC (heating, ventilating and air conditioning)
applications.
Adjustment of Time and LUX values can be made either by the dial
controls on the sensor body or by the IR-10 Infrared remote control.
• PDSM362 has two relays for outputs load I and load II:
load I is for lighting control and load II has voltage free contacts for
HVAC control which operate at all LUX (light) levels.
• The sensor has a very high density of sensitive beams covering the
detection area. These are evenly distributed ensuring no dead spots
and detection of the smallest movements.
• Either side or bottom cable entry.
• Built-in red LED in sensor giving confirmation of remote control
settings and easy test operation.
2.2 Dimensions (see Fig.1)
Models PDSM362 / PDSM361
3.3 Installation procedure
3.3.1 Insert large flat blade screwdriver into the groove as shown each
side in turn and twist (see Fig. 6) to remove outer cover.
3.3.2 To separate bottom case from lens body force a small flat blade
screwdriver into the hidden gap shown partially exposed in Fig. 7 then
push screwdriver in towards centre and lever bottom case assembly
away from lens body pins.
3.3.3 Remove cardboard and screws used to assemble and fix the sensor
(see Fig. 8).
PDSM361_362_Instructions_2.indd 1PDSM361_362_Instructions_2.indd 1 14/5/08 09:06:0114/5/08 09:06:01

PDFM362 / PDFM361 can also be
controlled by the infrared remote
controller IR-10. As well as allowing
remote setting of times and light level
the IR-10 also enables continuous
operation for 8 hours in ON or OFF
modes as well as continuously in
detection mode controlled by or
independent of light level.
The IR-10 is invaluable during
commissioning enabling changes to
be made without resorting to ladders.
Further to this the IR-10 can download
stored settings from one sensor to additional sensors in the
same area.
3.3.2 (cont). The protection covers have teeth (see Fig. 8-A) giving a
degree of cable clamping if power and load are connected by individual
wires (0.8 -1.8mm dia.).
If connection is by cable (9 - 11mm dia.) then use of a coarse rat-tailed
file to open out as many of the holes as necessary using the markings
on the inside of the protection cover as an approximate guide
(see Fig. 8-B).
Referring it to the appropriate wiring diagram insert the wires into the
correct screw terminals and tighten fully. Then plug the sensor lead into
SENSOR A socket only.
Use the coarse rat-tailed file to open a single hole (smaller than that
above) in the remaining protection cover to take the sensor cable with a
degree of strain relief. Secure down the protection covers.
3.3.3 Feed the wires/cables followed by the power unit through the
65mm dia. ceiling hole (see Fig. 9).
4.1.1 TIME control adjustment
These are delay times between the sensor being triggered and the
controller switching off assuming no further detections are made.
If there are additional detections the time delay applies from the latest
detection.
PDFM362:
TIME 1: Adjustable from 5sec to 20min (lighting). (Extendable to 30min
and 60min when in use with the IR-10 remote controller).
TIME 2: Adjustable from 10sec to 60min (HVAC).
PDFM361:
TIME: Adjustable from 5sec to 20min (lighting). (Extendable to 30min
and 60min when in use with the IR-10 remote controller).
4.1.2 LUX control adjustment
The LUX level below which the sensor will operate is adjustable from
10 LUX (operation only after dusk) to 2000 LUX (operation at any light
level).
4.1.3 METER control adjustment
This control sets the diameter of detection coverage at floor level.
Assuming a ceiling height of 2.5m at the + end of the scale the
coverage diameter will be 7m, at the - end of the scale the coverage
diameter will be 1m.
The affect of METER control at other ceiling heights is shown in section 3.1.
4.2 Test Mode
4.2.1 Sensor warm up
The detector will take a minimum of 60 seconds to warm up when the
power is connected to it for the first time or if the power is being
re-connected after being turned off.
During this period load I and the sensor LED will both be on. After the
warm up is finished the sensor will revert to operation according to the
settings of the controls on the sensor body.
4.2.2 LED function
There is a red LED (see Fig. 12) built into the sensor and visable through
the PIR lens that shows the status of the loads and enables testing to be
carried out without the loads
being connected.
If the IR-10 remote controller
is in use the LED will flash to
give confirmation of the
commands and adjustments
made by the IR-10.
3.3.4 Force the spring clips back until they can feed into the ceiling hole
(see Fig. 10-A) and then push the sensor upwards into place so that its
flange fits tightly against the ceiling (see Fig. 10-B).
Fig. 8-A
Fig. 8-B
Fig. 9
Fig. 10-A
Fig. 10-B
4Test and Operation
5Troubleshooting
6Optional Remote Control - IR-10
4.1 Time, LUX and Meter Controls
Following marked values (excepting TEST and ) are approximate,
the values are continuously adjustable over the control range
(see Fig.11-A & Fig.11-B).
Fig. 11-A (PDFM362 control dials)
Fig. 11-B (PDFM361 control dials)
4.2.3 Adjusting sensor head
The sensor head can be tilted by as much as 30º off axis as shown
in Fig. 13A. This can be achieved by using a flat blade screwdriver
as shown in Fig. 13B.
Fig. 13C shows the tilt angle markings on the sensor body. The tilt
angle is read off against the edge of the mounting flange.
Fig. 13D shows the detection coverage for various tilt angles. The
tilt angle can be used in conjunction with rotation of the sensor
head within the flange up to 350º to give the required coverage
in any direction. The markings on the sensor mounting flange (see
Fig. 13E) giving 30º per division provide a useful way of adjusting
angular position.
When the PDFM362 / PDFM361 is not working as expected go
through the troubleshooting guide below.
4.2.4 Walk test
Turn supply on and wait at least 60 seconds for the system to
settle down.
Turn Time 1 control to the Test position. This means that the sensor
LED and load I will turn on for 2 seconds after triggering and then
be off for 3 seconds after which the sensor can be re-triggered.
The triggering is independent of light level.
The installer should move around in the detection area to establish
that it is all covered. If necessary the tilt and rotation of the sensor
should be adjusted, after which the area should be walk tested
again to confirm coverage is as required.
To confirm that load 2 (HVAC) is operating correctly for a
PDFM362, carry out the following:-
Turn LUX (light level) to its minimum value (10 lux) to stop load
1 (lights) from turning on. Then turn TIME 2 (HVAC) to minimum
value (10s) and carry out a limited walk test to confirm correct
operation of load 2.
Fig. 12
Fig. 13A Fig. 13B Fig. 13C
Fig. 13D Fig. 13E
Problem Possible Suggested
Cause Solution
Problem Possible Suggested
Cause Solution
Lighting or
HVAC does not
turn off.
LED does not
turn on.
Nuisance
triggering.
Lights do not
turn on.
1. Incorrect time setting.
2. Incorrect wiring.
1. Out of detection range.
2. Power supply not on.
3. ”TIME” knob setting
isn’t on “Test”.
4. Incorrect wiring.
There are heat sources,
HVAC vents/fans, highly
reflective surfaces or
anything which may be
swayed by air movement
within the detection
coverage.
1. Power is not turned on.
2. Incorrect control dial
setting.
3. Incorrect wiring.
4. Faulty load.
1. Check that the correct
delay time is set on either
TIME 1 or TIME 2 control
dial. Then determine if
nuisance triggering is
keeping the unit turned on.
2. Make sure supply and
load wires are connected
correctly.
1. Walk within the effective
detection range.
2. Switch the power on.
3. Turn the control position
to “Test”.
4. Refer to wiring diagrams
(Fig. 3 to Fig.5).
Avoid aiming the sensor
toward any heat sources,
such as air conditioners,
electric fans, heaters or any
highly reflective surfaces.
Make sure there are no
swaying objects within the
detection coverage.
1. Switch on the power.
2. Check if control dials are
set to the correct position,
then supply the power to
check if the LED will turn on.
3. Refer to wiring diagrams
(Fig. 3 to Fig. 5)
4. Replace the faulty load.
