Panasonic FV-15CSD1 User manual

INSTALLATION AND
OPERATING INSTRUCTIONS
Model No. FV-15CSD1
CONTENTS
SAFETY INSTRUCTIONS ............................ 2
INSTALLATION INSTRUCTIONS ............ 2~3
INSTALLATION REQUESTS.........................3
SUPPLIED ACCESSORIES............................4
PARTS NAME AND DIMENSIONS...............4
HOW TO INSTALL..................................4~5
TEST RUN...................................................6
USE AND MAINTENANCE
INSTRUCTIONS......................................6~7
TROUBLESHOOTING..................................7
FURTHER INFORMATION 7~BACK COVER
SPECIFICATIONS.....................BACK COVER
Warranty card attached
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before attempting to install, operate or service the
Panasonic product. Please carefully read “INSTALLATION INSTRUCTIONS” (P.2~3) of this
instructions before installation. Failure to comply with instructions could result in personal
injury or property damage. Please explain to users how to operate and maintain the product
after installation, and this booklet should be presented to users. Please carefully read
“USE AND MAINTENANCE INSTRUCTIONS” (P.6~7) of this instructions before operation.
Please retain this booklet for future reference.
Make sure that the correct information is written on the warranty card, including the date
of purchase and the name of the distributor. Keep the warranty card in a safe place along
with the instructions for future reference.
Nanoe Generator

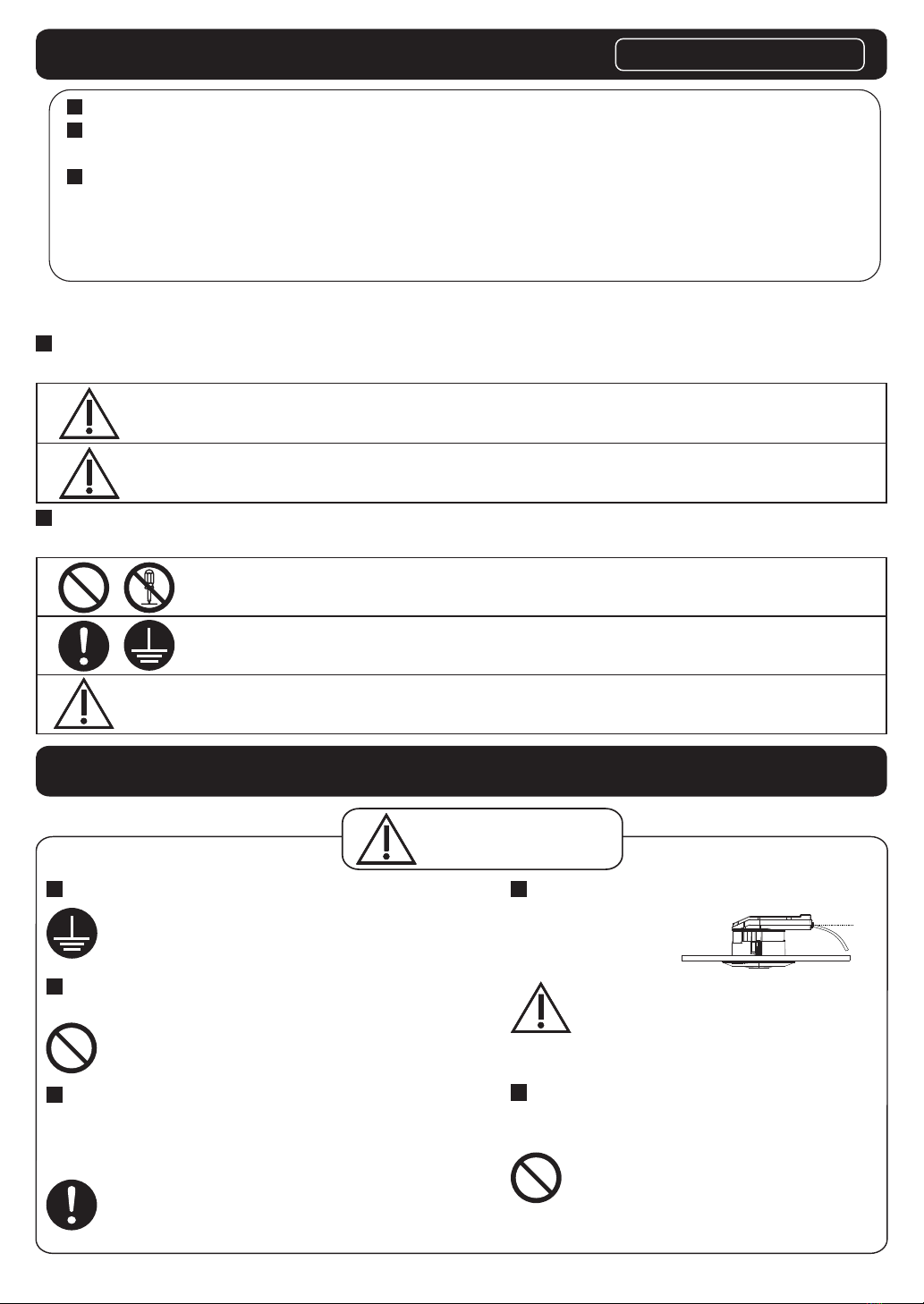

SAFETY INSTRUCTIONS Please observe strictly
This product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the product by a
person responsible for the safety. Children should be supervised to ensure that they
do not play with the product.
Disconnect power supply before maintenance.
The degrees of injury or damage that can occur when the instructions are ignored and if the
product is not used properly have been classified and described by the following indications.
The following instructions should be strictly observed in order to prevent injury to the users
and other people, or damage to property.
This indication means: Must be treated seriously that this
may result in death or serious injury.
WARNING
WARNING
This indication means: Must be treated seriously that this
may result in injury or physical damage.
CAUTION
This symbol indicates the item is “PROHIBITED” to do.
This symbol indicates the “COMPULSORY” item that must be
followed without failure.
This symbol indicates the item is “CAUTION”.
Types of instructions that should be observed have been classified and described by the
following pictorial symbols.
INSTALLATION INSTRUCTIONS
Don’t install the product with the
method which is not approved in
the instructions.
Otherwise, unreliable installation
may be caused and thus the
product may fall off, resulting in
injuries.
Don’t operate the product other than
the rated voltage (220 V-240 V~ 50 Hz).
Otherwise, it may cause damages to
the product or a fire.
The product must be grounded.
Otherwise, it may cause
electric shock when there is
any trouble or electric leakage.
The power cord must be fixed to
lower than cord exit.
Water may flow into product
through the power cord, which
will cause electric shock or result
in fire.
2
If the supply cord is damaged, it must be replaced by a special cord or assem-
bly available from the manufacturer or its service agent.
Otherwise, it may cause a short
circuit, thus resulting a fire.
Please install an all-pole switch which
the contact separation is more than
3 mm to control the power of the
product.

WARNING
CAUTION
INSTALLATION INSTRUCTIONS
Do not reconstruct this product.
Otherwise, it may cause damage
to the product.
Installation regulation concerning
local requirement should be fulfilled.
This may damage the product’s
structure and decrease its safety.
Components must be installed
tightly.
Product must be installed tightly.
Otherwise, components may fall
off to cause personal injury.
Otherwise, product may fall
off to cause personal injury.
Otherwise, product may fall off to
cause personal injury.
Do not install the product on the
window or wall.
This product must be installed by
qualified technician.
Improper installation may cause
the product to fall off.
Otherwise, short circuit
may result in fire.
Do not install the product where is
exposed to oil mist.
INSTALLATION REQUESTS
Do not install the product in
places with high temperature.
Otherwise, it may
cause the product
deformation or the
motor life shorten. Within
50 cm
Ambient
temperature
above 40 °C
Do not install product on a
slanting ceiling.
Otherwise, it may cause
the product abnormal.
Otherwise, it may cause the product
abnormal.
Do not install product where is exposed
to humidity.
Install the product at the position as
the figure show below.
Otherwise, it may cause the wall dirty.
Above 150 mm
Above 150 mm
Suggest to install the product over
1.5 m apart from the vent.
Otherwise, it may affect the
performance of the product.
Use a wall switch (supply on market)
as the power switch for product
(Turning ON/OFF to control the product).
Install the product over 1.5 m apart from the fire annunciator. Otherwise it may
cause false action of the fire annunciator. For detail, please confirm the fire
annunciator instructions.
3

LED Light (Blue)
4
6
5
7
Limiting
Screw
SUPPLIED ACCESSORIES
The following accessories are provided with the product in the package. When you unpack,
check if the accessories are all included. If not, please contact your dealer.
Drawing
No.
Installation and operating instructions
Name
Warranty card
1
1
PARTS NAME AND DIMENSIONS
Unit: mm
When install
plate open
1
3
2
4
6
5
7
9
8
1
3
2
9
10
10
8
No. Qty
Qty
Part name
Louver
Electric Case Assy
Frame
Motor
Orifice Assy
Fan
nanoeTM X unit
Install Plate
Power plug
Install Screw
※Initial position of install plate
is closed.
HOW TO INSTALL
1Take off the limiting screw, turn the
louver along the arrow to take it out.
Turn
2Ensure each install plate is at the
initial position (shown as below) and
insert product into ceiling inclined.
Install hole
Install plate
Install hole
Power cord
Ceiling
4

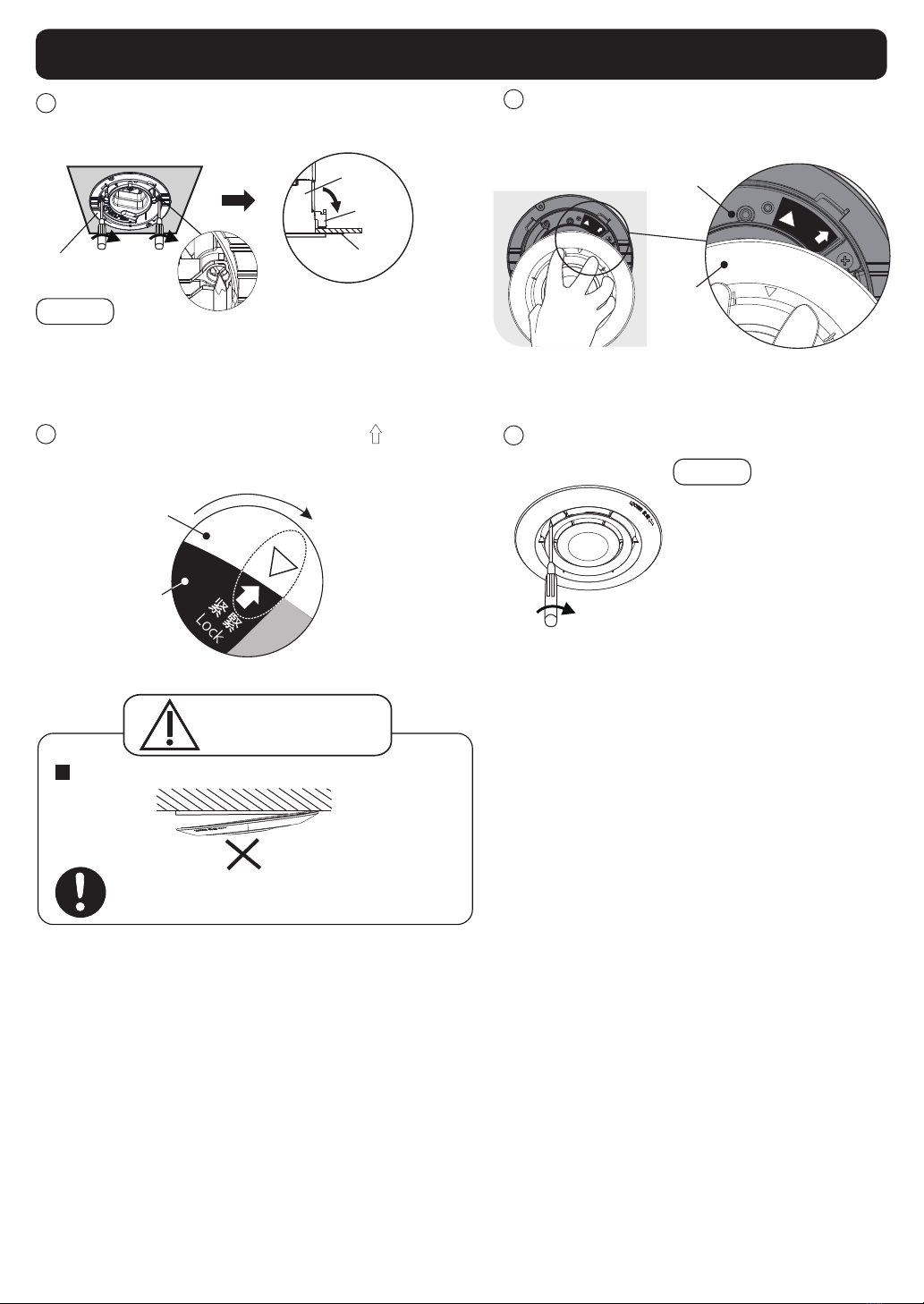

HOW TO INSTALL
Turn
34
5
Turn the install screw of product
clockwise till the install plate clamping
to ceiling.
6
Frame
Ceiling
Install
plate
Product
Product
Product
Notice
Ensure the tighten torque in the range
of 60 cN.m to 120 cN.m. Product may
fall off when torque not enough,
may damage when torque too large.
Find the “▽” mark on louver, place
louver to product aligning the “▽”
to “△“ on product.
Louver
Louver
Turn the louveruntil “▽”align to “ ”
of product and it sounds “Da” means
locked. Notice
Ensure the tighten
torque in the range
of 20 cN.m to 40 cN.m.
Product may fall off
when torque not
enough, may damage
when torque too large.
Fix the limiting screw.
CAUTION
Keep the louver close to the ceiling.
Parts may fall off and result in injury.
5

Do not inspect and maintain the
product by unqualified persons.
TEST RUN
USE AND MAINTENANCE INSTRUCTIONS
Does the fan rotate?
Does the blue LED light light?
Does it have abnormal vibration or noise?
Please check the following items by test run after connecting power.
WARNING
Otherwise, it may cause electric
shock or personal injury.
Before touching the product, ensure
that the power switch is turned off.
Otherwise, it may result in electric
shock.
The fan may rotate even when power
supply is switched off. Please make sure
the fan has been stopped before
inspection.
Otherwise, it may cause injury if finger
or object is caught into the rotating
section.
Once flammable gas leaks, do not
start any function of this product.
Otherwise, it may generate spark
and thus lead to explosion.
Do not spray or clean this product
directly with water or other liquid.
Otherwise, it may cause short
circuit or electric shock.
If you will not use this product any more,
remove the product.
This product may cause injuries once
it falls off.
Do not disassemble this product for
repair or reconstruction.
Doing this may lead to fire and
electric shock.
CAUTION
When you check or clean the product,
please wear gloves.
Otherwise, it may result in personal
injury.
Do not insert the finger to the louver
gap when cleaning the louver.
Otherwise, it may result in personal
injury.
Notice
3. Do not use petrol, benzene, thinner or any other such alkaline detergent for cleaning the
product.
1. According to the condition of using environment, routine maintenance is required at least
once a year.
2. Do not immerse blade or other resin parts in hot water over 60 °C.
petrol
thinner
benzene
6
Alkaline detergent

Clean the dust on surface of louver with a cloth adding neutral cleanser, and then dry
the louver with a soft dry cloth.
Do not insert the finger or
rarity into the nanoeTM X exit.
Otherwise, it may cause short
circuit or electric shock.
nanoeTM X exit
TROUBLESHOOTING
USE AND MAINTENANCE INSTRUCTIONS
Check the product according to the table below if a fault occurs. If the error still occurs,
disconnect all-poles switch of the product, and contact your dealer.
Symptom Cause Troubleshooting
·Fan doesn’t rotate
·No wind blows out
·Running LED light
(blue) doesn’t light
Switch is off
Incorrect wiring
Turn the switch on
Contact your dealer
Smells peculiarly
When nanoeTM X is generated,
small amount of ozone will
be release. However, it will
be not harmful to human beings
It is the performance when
product is normally running,
not function abnormal
Sounds "zi" lightly
around the orifice
The sound comes with nanoeTM X
generating. It is hard to detect
it
It is the performance when
product is normally running,
not function abnormal
LED light (blue)
blinks The product is in abnormal Contact your dealer
Abnormal shaking
or noise
Failure installation of louver
or product abnormal Contact your dealer
FURTHER INFORMATION (About nanoe
TM
X)
Room temperature: About 5 °C~40 °C (dew-point temperature: more than 2 °C)
Relative humidity: About 30%~85%
Generating environment
nanoeTM X is generated using the air in the room and hence, depending on the temperature
and humidity, there can be incidences whereby nanoeTM X is not stably generated.
Conditions for generated
Small amount of ozone will be generated
When nanoeTM X ion is generated, small amount of ozone will be release. However, the
quantity will be less than the usual level in forest or natural environment, and not
harmful to human beings.
7

The so-called nanoe™ X are particulate ions containing hydroxyl
radicals whose amount is 10 times that of nanoe™.
nanoe™ X are charged water purification particles generated by
applying high voltage to separate water molecules.
nanoe™ X features: high moisture content, small particles, stability.
1. High moisture content (the moisture content is 1,000 times the moisture content of
ordinary anions)
2. Small particles (about 5 nm - 20 nm in size)
3. Stability (nanoe™ X has a 6 times higher stability than an ordinary anions, with a 10-meter
or longer range of coverage)
4. High OH hydroxyl amount (up to 4,800 billion of OH ions are generated per second)
5. Weak acidity (with weak acidity features close to that of hair and skin)
FURTHER INFORMATION (About nanoe
TM
X)
About nanoeTM X
SPECIFICATIONS
Rated
Voltage
[V]
220 50
230 50
240 50
4.0
4.0
4.0
15
16
17
23.5
25.5
27
1.3
Rated
Frequency
[Hz]
Power
Consumption
[W]
Air Volume
[m3/h]
Noise
[dB(A)]
Net weight
[kg]
Value of power consumption, Air volume and noise are measured when the static
pressure is 0 Pa.
Air volume is the central value measured by this company with a range of ±10% tolerance.
Noise is the A weighted sound pressure level, which is the central value measured by this
company, its tolerance range is from +3 dB to -7 dB. The method to measure is as follows:
in an anechoic chamber, measure noise value 1 m away from the front, left and beneath
of the product, then get the average value.
This product comply with the IPX2 requirement against the water drop experiment.
The applicable ambient temperature of this product is in the range of -10 °C~40 °C,
using it out of this range may cause a fault.
However, please see page 7 for the generating environment of nanoe.
The above specification may be changed without prior notice.
Note: nanoeTM and the nanoeTM mark are trademarks of Panasonic Corporation.
Panasonic Corporation
©Panasonic Corporation 2021
Web Site: http://www.panasonic.com
P0621-0 15CSD1401
Issue date: 06/2021
