Tivoli Audio PAL + User manual

OWNER’S MANUAL
PORTABLE AUDIO LABORATORY™
PORTABLE DAB/DAB+/DMB/FM RADIO
PAL™ +
™

PAL+Multilanguage Manual
English.....................................................................................................4
Dansk ....................................................................................................21
Deutsch .................................................................................................38
Français.................................................................................................56
Italiano...................................................................................................73
Netherlands ...........................................................................................91
Norsk................................................................................................... 109
Suomi ..................................................................................................124

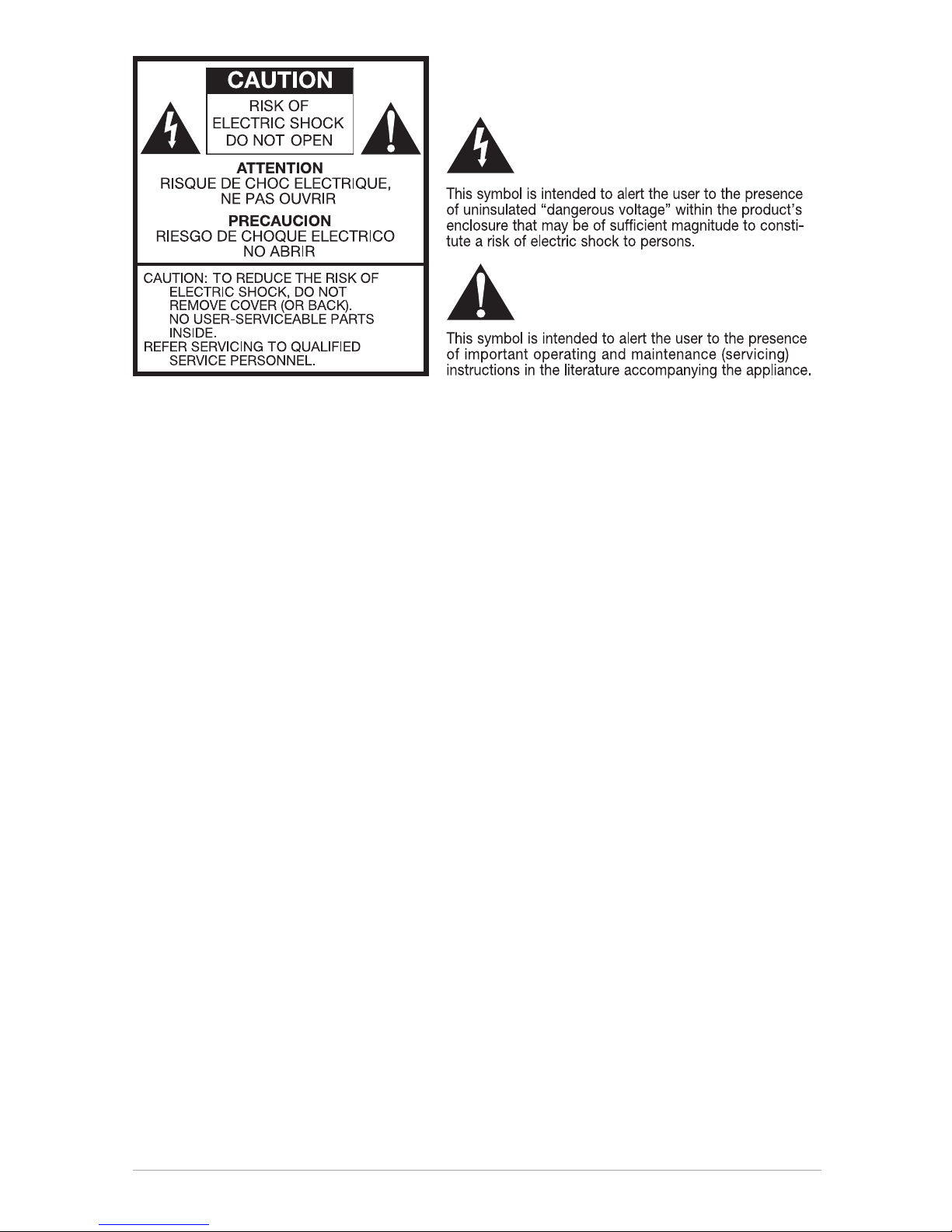

Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
6. Warning: Batteries shall not be exposed to excessive heat such as sunshine, fire, or
the like.
7. WARNING: DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD. The remote control
supplied with this product contains a coin/button cell battery. If the coin/button cell
battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to
death. Keep new and used batteries away from children. If the battery compartment
does not close securely, stop using the product and keep it away from children. If you
think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
8. Do not use this apparatus near water. For example, do not use near a bathtub, in a wet
basement, near a swimming pool, and the like. WARNING! Do not expose this product
to rain or moisture.
9. Clean only with a dry cloth.
10. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
11. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
12. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
4 – ENGLISH

13. Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from the apparatus.
14. Only use attachments/accessories specified by the manufacturer.
15. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
16. For added protection for this product during a lightning storm, or when it is left unat-
tended and unused for long periods of time, unplug it from the wall outlet. This will
prevent damage to the product from lightning and power-line surges.
17. Operate this product only from the type of power source indicated on the rear panel. For
products using an external power supply, use an exact replacement if lost or damaged.
For products operating from battery power, refer to the user manual.
18. Unplug this product from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into the product.
c. If the product does not operate normally by following the operating instructions.
d. If the product has been dropped or damaged in any way.
e. When the product exhibits a distinctive change in performance.
19. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus
20. If the LCD becomes cracked and damaged, do not touch the liquid.
21. Keep this product a safe distance away from naked flame, such as a lit candle.
22. The recommended operating temperature range is 5˚ C to 40˚ C (41˚ F to 104˚ F).
23. The external power supply must be positioned so it is readily accessible and not blocked
by furniture, etc.
24. The power cord plug serves as the disconnect device and should remain readily
accessible.
25. WARNING: The mains are not disconnected in the off position, but the circuits are
de-powered.
This product can be recycled. Products bearing this symbol must NOT
be thrown away with normal household waste. At the end of the prod-
uct’s life, take it to a collection point designated for recycling of electri-
cal and electronic devices. Find out more about return and collection
points through your local authority.
The European Waste Electrical and Electronic Equipment (WEEE) Direc-
tive was implemented to dramatically reduce the amount of waste going
to landfills, thereby reducing the environmental impact on the planet
and on human health. Please act responsibly by recycling used prod-
ucts. If this product is still useable, consider giving it away or selling it.
5 – ENGLISH

PAL+Instructions
Congratulations on your purchase. We believe the PAL+to be one of the finest portable
DAB/DAB+/DMB/FM radios on the market today. With the addition of Bluetooth wireless
technology, you can stream your music wirelessly to the PAL+.
We know you are eager to begin listening to your new radio, but in order to take full advantage
of what your PAL+is capable of, please take a moment to read this owner’s manual and the
safety instructions. If you have any questions, please do not hesitate to contact your dealer
or Tivoli Audio.
Please save the carton and original packing should you ever need to ship your radio,
as shipping damage is not covered by the factory warranty.
On behalf of all of us, thank you for choosing Tivoli Audio, and enjoy your new PAL+!
About Tivoli Audio
Tivoli Audio was founded by Tom DeVesto with the mission of bringing simple to use,
elegantly designed, high quality audio products to consumers. As CEO and head of research
and development at his former company, Cambridge SoundWorks*, Tom was responsible
for the development of many of the best selling home entertainment and multi-media products
on the market. He also held senior management positions in product development at both
Advent and Kloss Video.
*Cambridge SoundWorks is a registered trademark of Creative Labs, Singapore.
Packed with your PAL+radio you should find:
• One (1) external power supply
• One (1) NiMH battery pack (installed)
• One (1) remote control (battery installed)
• One (1) remote control holder
Please contact your dealer or Tivoli Audio if any of these items are missing.
Getting Started
1. Extend the antenna.
2. Connect the included power supply to the PAL+and plug it into a wall outlet.
3. Press the button on the remote control or briefly press the top control wheel on the
top of the PAL+. Wait for the Auto Scan to finish.
4. Press the or buttons on the remote control to view available stations and high-
light the station you wish to listen to.
5. Press the Menu/Select button on the remote control to tune the highlighted station.
6. Press the Volume or buttons on the remote control to adjust the volume level
to your preference, or rotate the top control wheel.
6 – ENGLISH

Remote Holder
A separate holder for the remote control is included.
It incorporates adhesive tape on the backside. Peel
off the backing and apply the holder to either side of
your PAL+and insert the remote bottom first.
Guide to Features (Top and Front Panels)
1. MULTI-FUNCTION CONTROL WHEEL (TOP):
The control wheel conveniently serves
many functions:
Power: When the PAL+is off, press the wheel
briefly to power the unit on. When the PAL+is
on in any source, press and hold the wheel to
power the unit off. (Note: the remote’s Power
button will not turn the PAL+on when the
unit is off and not connected to the external
power supply.)
Volume: When the PAL+is on in any source,
rotate the wheel clockwise to increase the
volume level and counter-clockwise to
decrease the volume level.
Tuning: When the PAL+is on in any source except Aux, press the wheel once and rotate
clockwise to manually tune up and counter-clockwise to manually tune down. Press
again to tune the station and return to the volume function. The letter “T” will show on
the display to indicate manual tuning mode. After about 7 seconds of no activity, the
control wheel will default back to the volume control function.
Source: When the PAL+is on in any source, press the wheel twice to see the source menu.
Rotate the wheel to the desired source and press to select the source shown. If a source is
not selected within 7 seconds, the display will default back to the last source used.
Snooze: When the alarm sounds, press the wheel to engage Snooze. A icon will
show on the display when Snooze is active. The Snooze time is fixed at 7 minute Press
again during Snooze to cancel the Snooze. The Snooze function works when the PAL+
is connected to the external power supply. When operating on battery-only power,
pressing Snooze will have no effect.
1
7 – ENGLISH

2. LCD:
: Volume level FM: FM band
:Sleep timer DAB: DAB/DAB+/DMB band
: Snooze timer AUX: Auxiliary
: Alarms 1 and 2 : Battery power/charging status
(center digits):Time : Mono/Stereo indicator for headphone output
: Reception level T: Manual tuning mode
3. PRESETS: Press and hold to store the currently tuned station. Press briefly to recall
the station associated with that specific preset. In FM mode, the preset number will
be indicated on the display. There are 5 presets for each band.
8 – ENGLISH

Guide to Features (Rear Panel)
1. 12VDC/1000mA: Use this input to operate the PAL+using its included external power
supply and to charge the battery when the PAL+is in standby. Use only the power
supply provided with this product. Should the power supply become damaged or
misplaced, use only a like replacement. Any DC adapter used must meet the requirements
of EN/IEC 60065 and be rated at 12VDC 1A and 230V 50Hz (depending on your region’s
power requirements). Use of any DC adapter not recommended by the manufacturer/not
meeting this specification may cause a safety hazard. The connector is 5.5mm/2.1mm
center positive. Keep the rubber plug inserted when this input is not in use. It is normal
for the power supply to become warm during use.
2. ANTENNA: Adjust this telescoping antenna and position it for best reception. In strong
FM signal locations, reducing the antenna’s length may provide better reception. When
the unit is not in use, keep the antenna retracted to protect it. For more, see the section
marked “Reception”.
3. HEADPHONE OUT: Connect a headset (not included) to this variable output for private
listening. Connecting a headset will mute the primary speaker. The headset’s volume is
adjusted using the top control wheel and the remote control’s volume buttons. This output
accepts a 3.5mm stereo male mini connector. Avoid using headphones at high volume
levels to prevent possible hearing damage. Do not wear headphones while operating a
vehicle. Keep the rubber plug inserted when this input is not in use.
4. AUX IN: To hear audio from another device, such as an iPod or other MP3 player,
connect said device’s audio output to this stereo input and change the source to
Auxiliary using the remote or the top control wheel. This stereo input accepts a 3.5mm
stereo male mini connector. Note: you may need to adjust the volume level differently
for an auxiliary device than the level used for radio listening. Keep the rubber plug
inserted when this input is not in use.
5. BATTERY COMPARTMENT: Houses the PAL+NiMH battery pack. A mini-B USB inter-
face is located behind the padding. This input is for service use only. Any other use of
this jack could damage the PAL+which would not be covered under the warranty.
1
2
3
4
5
9 – ENGLISH

Guide to Features (Remote Control)
(A separate holder for the re-
mote control is included. It
incorporates adhesive tape
on the backside. Peel off the
backing and apply the holder
to either side of your PAL+.)
1. POWER: Press briefly to
power the PAL+on. The
radio will power on to the last
source used. Press again
to power off. The remote’s
Power button will not turn
the PAL+on when the unit is
off and not connected to the
external power supply.
2. MUTE/SNOOZE: Press to
mute the audio (the icon will
show no volume bars) while the
unit is playing and press again
to restore sound, or adjust the
volume. Press to mute the
alarm after the alarm sounds.
A icon will show on the dis-
play when Snooze is active. The Snooze time is fixed at 7 minutes and is not adjustable.
The Snooze function works when the PAL+is connected to the external power supply.
When operating on battery-only power, pressing Snooze will have no effect.
3. ALARM: Use the pq and Select buttons to adjust and set the alarms. For very
important notes and a complete step-by-step guide, refer to the section titled “How to
set the Alarm”.
4. SLEEP: Press repeatedly to view the amount of time the radio will play before it turns
off automatically and press the Select button to select that time. When the sleep timer
is active you can check the remaining time by pressing the Sleep button on the remote.
A small clock face [ ] will show on the display when the Sleep timer is active. To
cancel Sleep, press the Sleep button until the display shows “Off”. When operating
on battery-only power (external adapter not plugged-in), if Sleep is engaged and the
alarm is set, after Sleep ends, the alarm will not sound. To use both Sleep and Alarm
features, please be sure the external adapter is connected.
5. SOURCE: Press repeatedly to change sources.
6. INFO: Press repeatedly to cycle through the information available depending on the
source mode. This function does not work in Auxiliary mode.
7. PRESETS 1-5: Press and hold to store the currently tuned station. Press briefly to recall
the station associated with that specific preset. In FM mode, the preset number will be
indicated on the display. There are 5 presets for each band.
8. VOLUME +/–: Press the Volume +button to raise the volume level or the Volume –
button to lower the volume level. If the audio ever sounds distorted, lower the volume
MONO
BAC K
4
2
3
11
8
10
13
9
7
6
1
5
12
14
10 – ENGLISH

level to avoid damaging the speaker. Adjusting the volume while the PAL+is muted
will cancel the muting.
9. pq/TUNE +/-: Press to navigate within the menus. Use these same buttons to manually
tune up or down when in FM mode and to auto scan stations. A “T” will show on the
display to indicate manual tuning mode. Press and hold to move quickly through the
frequencies. It will take a second until the frequencies begin to change. Press for 1.5
seconds and release to auto scan to the next station detected. The display will show
“Scanning…” Also refer to “Scan Setting” under the section “Menu and Specific Features”.
10. tu:The right arrow button duplicates the Select button. The left arrow button duplicates
the “Back” button in certain menu items.
11. MENU/SELECT: Press and hold to enter the main menu and press briefly to select
items within the menu. For more, see the section marked “Menu”.
12. BACK: Press to go back to the previous menu page.
13. MONO: Press to change the Stereo/Mono setting. The display will show “M” for mono
and “ST” for stereo. “Mono” or “Stereo” will also be one of the fields shown when
pressing the Info button on the remote in FM mode. If you are listening to a noisy FM
station in stereo, switching to mono may improve reception. Note: only FM mode can be
changed to Mono. Also see “Balance” under “Menu and Specific Features”.
14. BATTERY HOLDER: Remove the protective strip protruding from the battery holder
before using the remote control. Should you ever need to replace the remote’s battery,
use Lithium button cell battery model CR2025.
CAUTION: Danger of explosion if the battery is incorrectly replaced. Replace
only with the same or equivalent type. Dispose of spent battery according to your
country’s regulations.
Note: With the radio in standby, briefly press the parrow button on the remote control twice
to turn the display off. While the display is off, briefly press the parrow button once to turn
the display on for 10 seconds. Briefly press the parrow button on the remote two more times
to turn the display back on.
Menu and Specific Features
Press and hold the Menu button on the remote to enter the main menu. Use the
remote’s pq buttons and the Select button to change the items within the menu.
Use the Back button to navigate back, or wait for 15 seconds until the timeout expires.
An asterisk (*) indicates the shown menu item is currently set.
1. SCAN SETTING (FM MODE ONLY): Press the Select button and use the pq and
Select button to choose between “Strong stations only” or “All stations” when per-
forming an auto scan (see #9 (pq/Tune +/-) under “Remote Control”). Selecting “All
stations” increases the sensitivity of the scan, possibly resulting in the auto scan
stopping on noise. This feature is not accessible in Auxiliary mode.
2. TIVOLI EQ: Press the Select button and use the pq and Select buttons to adjust the
Bass and Treble. The adjusted values will be shown in “User EQ”. Use the pq and
Select buttons to turn Loudness On or Off. Turning Loudness on when listening at low
volume levels is recommended since it boosts high and low frequencies resulting in a
more natural sound. Use the pq and Select buttons to activate any one of the pre-set
11 – ENGLISH

EQ settings. Selecting a preset EQ will over-ride any adjustment made to the Bass
and Treble settings, but Loudness will be unaffected. The “Flat” EQ restores the audio
settings to the factory defaults, meaning Bass and Treble will be re-set to zero. The
“Flat” EQ also restores Loudness Off. However, if the Bass and Treble values have been
adjusted, those settings will still be shown in “User EQ”. Simply selecting “User EQ”
will reactivate the Bass and Treble settings. In the EQ menu page, the numbers to the
right hand side indicate the bass and treble settings.
3. BALANCE (FOUND UNDER TIVOLI EQ): Press the pq buttons to alter the balance.
This control only affects the Headphone Output.
4. TIME (FOUND UNDER SETTINGS):
Set 12/24 hour: Press the Select button and use the pq and Select buttons to choose
a 12 or 24 hour clock format.
Set Time/Date: Press the Select button and use the pq and Select buttons to adjust the
hour and then minutes, immediately followed by the date. You must set the Auto update
to “No update” in order to set the time manually. For more, refer to “Auto update” below.
Auto Update: Press the Select button and use the pq and Select buttons to choose
between “Update from any”, “Update from DAB”(also DMB), or “Update from FM”(RDS).
For any of the auto updates to work, you must have consistent reception of DAB or
FM RDS with a time/date signal provided. It could take up to a minute or more for the
clock to update. Tivoli Audio is not responsible for inaccurate time/date information
provided by the auto update signal.
To set the clock manually, select “No Update”, and then select “Set Time/Date” under
the “Time” menu using the pq or tu buttons and the Select button to set the hour.
Repeat to set the minutes and press Select to save. Within this same “Time” menu are
additional options to set the date format and 12/24 hour clock mode.
NOTE: During a power outage, the alarm time(s) and clock will be maintained by an inte-
grated back-up memory. When “Auto update” is set to “Update from any”, the radio may
find the clock signal from the last listened station, even when the PAL+is in standby.
Set Date Format: Press the Select button and use the pq and Select buttons to choose
the date format you prefer.
5. BACKLIGHT (FOUND UNDER SETTINGS):
Timeout: The backlight level is configured at the factory to be constant. However,
you can customize the backlight to automatically change to a “Dim level” setting after
a fixed period of time whenever no controls are used. Once a control on the unit or the
remote is pressed, the normal backlight level is restored.
Press Select and use the pq and the Select buttons to set the amount of time it will
take for the backlight to change to the dim level from 10, 20 ,30, 45, 60, 90, 120, or 180
seconds, or to keep the timeout feature Off.
On Level: Press Select and use the pq and Select buttons to choose the intensity of the
backlight.
Dim Level: If you selected a time for the backlight to change to a dim setting under
“Timeout”, press Select and use the pq and Select buttons to choose the intensity of
the backlight when it changes to this dim setting. Setting the Dim level to “Off” may be
desirable if the display backlight is bothersome while sleeping. Using the Dim level
feature may also help to maximize battery playback time.
12 – ENGLISH

6. LANGUAGE (FOUND UNDER SETTINGS): Press Select and use pq and Select
buttons to set your language.
7. FACTORY RESET (FOUND UNDER SETTINGS): Press Select and use the pq or tu
and Select buttons to confirm (Yes) or reject (No) the factory reset. A factory reset will
restore factory defaults and cancel all your personal settings, such as station presets
and language. The Factory Reset may not be accessible when operating on battery-
only power.
8. ID (FOUND UNDER SETTINGS): Press Select to view the ID. If you contact your dealer or
Tivoli Audio with a question, you may be asked to provide the number shown in this field.
9. SLEEP (FOUND UNDER SETTINGS): Press Select and use the pq arrow and the
Select buttons to set the sleep timer to one of the available times. There is also a dedi-
cated Sleep button on the remote control. A small clock face will show on the display
when the Sleep timer is active.
NOTE: When operating on battery-only power (external adapter not plugged-in), if Sleep
is engaged and the alarm is set, after Sleep ends, the alarm will not sound. To use both
Sleep and Alarm features, please be sure the external adapter is connected.
10. BT MEMORY CLEAR: If you are experiencing difficulty pairing or connecting a device,
select “Yes” to clear the memory of all paired devices and try pairing again.
How to Set the Alarm
Access the alarm setting either through the main menu or by pressing the alarm but-
ton on the remote.
1. Alarm 1 is shown first. Use the pq and Select buttons to choose between Alarm 1
and Alarm 2. Note: At any point you can navigate through the alarm menu by using
the Back or tbuttons, and the Select or ubuttons.
2. Use the pq and Select buttons to set the alarm on or off. If the time and date are not
set, the PAL+will prompt you to set the Time/Date first.
3. Use the pq buttons to set/change the hour, then press Select. Repeat this process to set/
change the minutes, followed by AM/PM (if time is set to 12 hour format), then press Select.
4. Use the pq buttons to select how long you want the alarm to sound, then press Select.
5. Use the pq buttons to select the source you wish to wake to, then press Select. If you
set the source to DAB (includes DAB+/DMB) or FM, use the pq buttons to select the
station preset or last listened, then press Select. If the alarm source is set to DAB and
the last listened or preset station is unavailable at the time the alarm sounds, the alarm
will default to the tone.
6. Use the pq buttons to set how often the alarm should be set to wake, then press Select.
If “Once” is selected, you must set the date you wish the one time alarm to sound.
7. Lastly, use the pq buttons to set the volume level of the alarm, then press Select.
8. Repeat this process for Alarm 2 if desired.
If you make a mistake at any point in the process, press the Back button on the remote
and begin again.
13 – ENGLISH

Your settings will not be saved unless you complete the entire process and the display
shows “Alarm Saved”.
IMPORTANT NOTES:
• The alarm cannot sound if the PAL+is off and not connected to the external adapter.
• The alarm volume will ramp-up over time. It will take several seconds until the
alarm reaches the volume level set in the alarm menu.
• Should power be lost or the battery becomes discharged, the alarm time will be
saved, but the alarm cannot sound without power to the PAL+.
ALARM OPTIONS:
Alarm Quick Set: With the PAL+in standby, repeatedly press the alarm button briefly to
toggle each alarm on or off.
Alarm Off: To stop the alarm, press the Alarm or Power button on the remote, or press and
hold the Multi-Function Control Wheel on top of the unit.
Snooze: To activate Snooze, press the Snooze button on the remote, or briefly press the
Multi-Function Control Wheel on top of the unit. The Snooze time is not adjustable. When
operating on battery-only power, pressing Snooze will have no effect.
Note: When in Snooze mode, you can see the remaining Snooze time by pressing the
Snooze button on the remote. If you press the Alarm or Power button on the remote,
or if you press and hold the Multi-Function Control Wheel on top of the unit, then
the Snooze countdown will be cancelled and the PAL+will go into Standby or off if
operating on battery-only power.
Digital Radio (DAB/DAB+/DMB) Mode
STATION LIST: Use the pq buttons on the remote, or press the Multi-Function Control
Wheel on top of the unit, to show all available DAB/DAB+/DMB stations. Use the pq
buttons to highlight a specific station and the Select button to tune that station. The Station
list will disappear between 7 and 15 seconds depending on whether it was accessed via
the top Control Wheel or the remote control.
Press and hold the Menu button on the remote to enter the main menu. Use the pq
buttons and the Select button to change the items within the menu. Use the Back
button to navigate back, or wait for 15 seconds until the timeout expires.
An asterisk (*) indicates the shown menu item is currently set.
Note: Upon entering Digital radio mode, if the Station list is empty, an auto scan will
initiate.
1. AUTO SCAN: Searches the entire frequency range. If you move the PAL+to another
location, you must perform a new scan so the radio will find stations in the new location.
To cancel the auto scan, press the Back button on remote.
2. TIVOLI EQ: Please refer to the section marked “Menu and Specific Features”.
3. MANUAL TUNE: Press the pq buttons to manually tune specific DAB/DAB+/DMB
frequencies, then press Select to tune the displayed frequency.
14 – ENGLISH

4. DRC: Dynamic Range Control allows you change the sound level of stations to make
quiet passages louder to compensate for a noisy environment, or when listening at a
low volume level.
5. ADVANCED MODE: If the PAL+is relocated to a different area, you may find stations
with the same name. If you enable “Advanced View”, “Long labels”, and “Show Ensemble”
under Advanced Mode, you will be able to differentiate between extended station names.
For DAB/DAB+, we suggest disabling all the Advanced Mode settings. For DMB, we
suggest enabling them.
6. UPDATE LIST: If the PAL+is relocated to a different area, some stations may become
unavailable. Select “Update List” to remove unavailable stations from the Station list. Use
the pq or tu buttons and the Select button to confirm (Yes) or deny (No) removing
unavailable stations.
NOTE: When moving the PAL+to another location where there may be different DAB
stations from the previous location, it is recommended to run an “Update List” to remove
unavailable stations.
DAB DISPLAY MESSAGES:
Secondary Services: Secondary stations will be indicated by a >> symbol next to the
station name. Secondary services may not be available in your area.
“?”: If this symbol appears next to the station name, it means the station is invalid or inactive.
“Not Available”: Shown when tuning a DAB station with an insufficient signal.
Bluetooth Operation
Prior to pairing, verify your device supports Bluetooth 2.1+EDR A2DP and your device is not
connected to any other Bluetooth product. Devices may pair differently. Below is a general
guide.
1. Change the source to Bluetooth. This will power on the Bluetooth. Turn the volume up about
¼ to start. Also turn up the volume on the source device (the device you are streaming from).
2. Turn on the Bluetooth wireless technology on your enabled device.
3. Select “Tivoli Bluetooth (Not Paired)” when it appears on your device’s screen to initiate
searching. Some devices may prompt you for a PIN. If so, enter “0000”. “Tivoli Bluetooth”
will change from “Not Paired” to “Connected”.
4. You will hear a ring tone from the PAL+ confirming connection and you can begin play-
ing your music files wirelessly. Adjust the volume level on your device. You should not
have to pair your device again. Depending on your device, you may need to make
multiple attempts at Pairing and/or Connecting to the PAL+, but please give your
device adequate time to Pair or Connect before repeating the process.
Pairing A Bluetooth Wireless Technology Enabled
iPhone/iPod Touch/iPad
1. Change the source to Bluetooth. This will power on the Bluetooth. Turn the volume
up about ¼ to start. Also turn up the volume on the source device (the device you are
streaming from).
15 – ENGLISH

2. Select “Settings” (depending on software version).
3. Select “General”.
4. Select “Bluetooth”.
5. Switch Bluetooth “On” to initiate searching.
6. Select “Tivoli Bluetooth (Not Paired)” when it appears on the display. If you are prompted
to enter a PIN, enter “0000”. “Tivoli Bluetooth” will change from “Not Paired” to
“Connected”.
7. You will hear a ring tone from the PAL+ and you can begin playing your music files wirelessly.
Adjust the volume level on your device. You should not have to pair your iPhone/iPod/iPad
again.
The volume output level of music files varies. If you prefer an even higher output level,
check the settings in your iPhone/iPod touch/iPad: Set the EQ Off, the SoundCheck Off,
and the Volume limit Off.
If you encounter a problem Pairing, press the small arrow to the right of “Tivoli Bluetooth” on your
iPhone/iPod touch/iPad display and select “Forget this Device”, then repeat the Pairing process.
Depending on your device, you may need to make multiple attempts at Pairing and/or
Connecting to the PAL+, but please give your device adequate time to Pair or Connect
before repeating the process.
When streaming music, you can press the blue arrow to the right of the next track button
>>/ on the iPhone/iPod touch/iPad display to alternate between the iPhone/iPod/iPad and
Bluetooth.
NOTE:
• The PAL+ will remember pairing information for up to 8 devices. Additional devices
can be paired, but the least-recently used device will be replaced by the newly paired
device.
• If the audio drops out or stops during playback, move your device closer to the PAL+,
or check to be sure another wireless device is not interfering with the signal.
• When switching from Bluetooth to DAB or FM, you may need to re-adjust (lower) the
radio’s volume level.
About the NiMH Battery Pack
The PAL+uses a sealed pack of 6 high capacity Nickel Metal Hydride (NiMH) cells. Unlike
Nickel Cadmium (NiCd) batteries, NiMH batteries have no memory effect, provide a longer
operating time, and are not composed of toxic metals. The battery icon on the LCD serves
both as a power and charging indicator.
CHARGING:To charge the battery, plug the PAL+in and place it in Standby. From full
discharge, the battery will be completely charged within approximately 3.5 hours. Because
the battery is new, it may take 4-5 full charge/discharge cycles until you experience aver-
age playback performance times. During charging, the battery icon on the LCD will flash.
The battery icon will stop flashing and all 3 bars will be shown on the LCD once the battery
is fully charged. The battery does not charge while the PAL+is plugged in and turned on,
but the battery icon will still show the status of the battery. In short, with the PAL+plugged in,
place it in standby whenever you want to charge the battery.
16 – ENGLISH

LOW BATTERY:When running solely on the battery, as the battery becomes discharged, the
battery icon will drop from 3 bars, to 2 bars, to 1 bar, and finally show an empty battery. The
audio will begin to sound distorted when the battery starts to reach a low level. This is
normal and is an audible warning the battery should be charged soon. Because the PAL+
NiMH battery has no memory, it is not necessary to wait until the battery is exhausted before
recharging, although recharging from a discharged battery will not harm the battery.
The battery icon is an approximation of power/charging status. It may also take several
seconds for the icon status to stabilize. If the battery is removed and the PAL+operates
solely from the external adapter, the icon on the LCD will show an empty battery.
BATTERY PLAYBACK TIME:There are many variables such as volume level and program
material that determine the amount of playback time you will get from a fully charged battery.
For instance, playing the PAL+at a low volume level will usually yield a longer playback
time than at a high volume. As you use your PAL+you will develop a good idea of what to
expect under various conditions.
There is no harm operating your PAL+continuously from the external adapter.
REPLACING THE BATTERY:Should you ever need to replace the battery, lift the antenna
up and use a philips-head screwdriver to remove the two screws holding the battery cover
in place. Lift the battery cover off and take note of how the lead is connected to the battery
pack prior to disconnecting. Replace the pack making sure to re-connect the leads correctly.
Replace the battery cover by inserting the bottom lip first, then screw the cover back on.
CAUTION: To reduce the risk of fire or personal injury, use an exact-replacement
battery pack available through Tivoli Audio or our authorized dealers and dispose of
the spent battery pack according to your country’s regulations. The battery pack must
not be exposed to excessive heat such as sunlight, fire, or the like. Use of a non-Tivoli
Audio battery pack could damage the PAL+.
For information about the remote control’s battery refer to Point 14 of the “Guide to Features
(Remote Control)”.
Digital Radio/FM Reception
When moving the PAL+to another location where there may be different DAB stations from
the previous location, it is recommended to run an “Update List” to initiate a new scan to
refresh the DAB station list.
FM: In strong signal locations, reducing the antenna’s length may provide better reception.
RDS (FM band only)
The Radio Data System (RDS) transmits text data along with the audio broadcast. Not
all FM stations utilize this service, thus text may not be present with some stations. For
stations broadcasting RDS, the text still might not appear, or might appear scrambled if
the signal is too weak. This is not a fault of the PAL+. In such cases, experiment with the
position of the FM antenna. Note RDS content is determined by each individual FM station.
Handling the PAL+
• The PAL+is weather resistant, but it is not weather proof. It should not be immersed in
water or held under running water. It also should not be exposed to extreme temperatures.
17 – ENGLISH

• The PAL+is designed to be portable, but it is not indestructible. Do not drop it, throw
it, or subject it to strong impacts.
• Always grip the PAL+using the side indentations to reduce the chance of it slipping
out of your hand.
Cleaning
Never use any harsh cleansers or solvents on your radio. Normal everyday wear and tear or
damage resulting from cleaning or chemicals is not covered under the factory warranty. To
clean the PAL+use a soft cloth and do not rub hard.
Limited Warranty
Tivoli Audio manufactures its products to very high standards and we are confident our prod-
ucts will perform well. Accordingly, we provide a limited warranty on this product against
manufacturing defects in material and workmanship to the original owner. This warranty is
non-transferable.
Products purchased in the European Union and Norway have a minimum warranty term of two
years. For countries where minimum warranty terms are determined by statute, the warranty
term is the statutory period required. In all other locations, the warranty term is one year.
This Limited Warranty covers the functionality of the product for its normal, intended use
as specified in this Owner’s Manual. It does not cover a malfunction or damage that has
resulted from improper or unreasonable use or installation, using the charger to charge
alkaline batteries, faulty ancillary equipment, modifications, unauthorized repair, shipping
damage or loss, abuse, accidents, use on improper voltage/current, power surges, light-
ning or other acts of God, excess moisture, normal wear and tear, commercial use, or pur-
chase from unauthorized dealers. Proof of purchase as evidence the unit was purchased
from an authorized dealer may be required for warranty service.
Please contact the dealer of purchase or local distributor for warranty service or repair.
Please refrain from opening this product or taking it apart as doing so will void this Limited
Warranty. There are no user serviceable parts inside. Tivoli Audio will not pay for costs in-
curred due to correction of reception problems, elimination of externally generated static/
noise, loss of time, inconvenience, loss of use of product, or damage caused by improper
use of this product.
In the event the product is returned during the warranty term and is eligible for service
under this Limited Warranty, we will repair or replace any defective parts within a rea-
sonable period of time and free of charge.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS SUBJECT TO SPECIFIED
CONDITIONS. YOU MAY ALSO HAVE OTHER LEGAL RIGHTS WHICH APPLY TO THE PROD-
UCT YOU HAVE ACQUIRED. THESE LEGAL RIGHTS VARY FROM COUNTRY TO COUNTRY.
SOME PLACES DO NOT ALLOW THE EXCLUSION, RESTRICTION, OR MODIFICATION OF
CERTAIN IMPLIED RIGHTS OR THEIR EFFECT. IN THOSE SITUATIONS THIS LIMITED WAR-
RANTY WILL ONLY APPLY TO THE EXTENT THAT THE APPLICABLE LAW ALLOWS.
The laws of your country may provide you with legal claims against the seller or manufac-
turer of this product. This Limited Warranty does not affect those rights.
18 – ENGLISH

The provisions of the Limited Warranty are in lieu of any other warranties or conditions, ex-
cept those provided by law. This Limited Warranty does not affect any legal rights provided
to you by law and does not preclude any remedy you may have under law.
In countries where liability limits are not precluded by statute, the maximum liability of
Tivoli Audio shall not exceed the purchase price paid by you for the product. In countries
where limitations of liability are precluded by law, Tivoli Audio shall be liable for no more
than the direct damages for bodily injury, and/or real or personal property arising from the
negligence of Tivoli Audio.
Where not prohibited by law, Tivoli Audio shall not be liable for special, incidental, conse-
quential, or indirect damages. Some places do not allow limitations on the exclusion or limita-
tion of relief, special, incidental, consequential or indirect damages, or the limitation of liability
to specified amounts, so the above limitations or exclusions may not apply to you.
This Limited Warranty is void if the label bearing the serial number has been removed or
defaced.
If you purchased an extended service contract from your dealer and service is required
after the term of this Limited Warranty has expired, please contact your extended service
contract provider to obtain service.
For your convenience, you may register your product for warranty service online at our
website www.tivoliaudio.com. There is no legal obligation for you to provide personal infor-
mation. However, such information allows us to maintain a record of the Tivoli Audio prod-
ucts acquired by you and better understand the purchasers of our products. The informa-
tion collected will be used for marketing purposes by Tivoli Audio and, where permitted, to
contact you in relation to the products you have acquired or other products which might
be of interest to you from Tivoli Audio or other companies. The information that you provide
may be processed in another country.
For service, please contact your dealer or local distributor.
19 – ENGLISH

Specifications
Model: PAL+
Type: Portable DAB/DAB+/DMB/FM radio with Bluetooth
wireless technology
Driver: 2.5" full range, video shielded
Receiveing Bands: FM: 87.5-108.0MHz (receiving range may vary by region)
DAB (Band III)/DAB+/DMB: 174-240MHz
Power: 12VDC nominal – 15VDC maximum, 1000mA
Battery Pack: NiMH 7.2V 2200mA
Battery Current: 1000mA
Power Supply: PALP-PS-CE : 12VDC 1A 230V 50Hz
Dimensions: 15.55cm H x 9.35cm W x 9.25cm D
(6.12" H x 3.68" W x 3.64" D)
Weight: 0.84 Kg
All specifications subject to change without notice. Tivoli Audio reserves the right to make product
changes without notice. Tivoli Audio, the Tivoli Audio logo, PAL+, and Portable Audio Laboratory are
trademarks of Tivoli Audio, LLC. The Bluetooth word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by Tivoli Audio is under license. iPod, iPod touch,
iPhone, and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. Other trade-
marks and trade names are those of their respective owners.
20 – ENGLISH
