TKT T2000-TFC-02 User manual

Portable Oil-Water Interface Detector
and Temperature Gauging
Model T2000-TFC-02
Gas-Tight(Closed) Type
MODEL : T2000-TFC-02
zPortable – one unit used for all tanks
zEconomical and affordable
zCargo contents validation
zHigh Accuracy & Response Performance
zEasy Installation & Operation
zEasy Maintenance
zEnvironmental Pollution Prevention
zPerfect Isolation of Hazardous Gas
zDetermines Interface, Ullage and
temperature (3 – in – 1)
Benefits of T2000-TFC-02
INSTRUCTION MANUAL
for PMS (Portable Tank Measuring System)

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 2
1. Table of Contents
1. Table of Contents.
2. Useful Measuring Jobs on Deck of Tanker and Applicable Rules.
3. Type of Portable Equipment for IBC BCH CODE.
4. All Kinds of TANKTECH Portable Measuring System.
5. Installation Chart for TANKTECH Portable Measuring System.
6. Three Functions.
7. Specification for Portable Oil/Water Interface Detector.
(Model : T2000-TFC-02)
8. Operating Process for Portable Oil/Water Interface Detector.
(Model : T2000-TFC-02)
9. Troubleshooting for Portable Oil/Water Interface Detector.
(Model : T2000-TFC-02)
<ATTACHMENT>
* Technical Service Manual
TANKTECH CO., LTD
HEAD OFFICE :
1506-2, SONGJEONG-DONG, GANGSEO-GU, BUSAN, 618-270, KOREA
TEL : +82-51-979-1600 FAX : +82-51-979-1601
http://www.tanktech.co.kr

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 3
2.
Useful Measuring Jobs on Deck of Tanker and Applicable Rules
zIMO MEPC.5(XIII)
ANNEX 4
SPECIFICATION FOR OIL/WATER INTERFACE DETECTORS
The instrument should be capable of providing a rapid and accurate determination of the oil/water interface
in slop tanks and/or tanks where the separation of oil and water is effected and from which it is intended to
discharge effluent direct the sea.
zMARPOL 73/78
Chap. - Reg. 15, 3 (b)Ⅱ
Effective oil/water interface detectors approved by the Administration shall be provided for a rapid and
accurate determination of the oil/water interface in slop tanks and shall be available for use in other tanks
where the separation of oil and water is effected and from which it is intended to discharge effluent direct to
the sea.
Equipment Type Function Compliance with
Ullage level
Temperature gauging
SOLAS 1974,CHAPⅡ-2 REGULATION 60 PARAGRAPH 7
IMO, MSC/Circ.551 (IBC BCH CODE)
Closed Type Portable
Oil/Water Interface
Detector ( UTI)
Oil-water interface level MARPOL 73/78 ANNEXⅠ-CHAPⅡ- REGULATION 15, (3) (b)
IMO RESOLUTION MEPC.5(XIII) ANNEX 4.
Cargo Liquid Sampling
Device
Liquid sampling OCIMF, API STANDARD
RESTRICED WITH CLOSED SAMPLING OF LIQUID SAMPLING
Inert Gas Sampling Hose
& Adapter
Oxygen and flammable gas
concentration measuring
IMO REQUIREMENT ON TANKER SAFETY AND POLLUTION
PREVENTION, 1978-RESOLUTION A.446(XI), 6.6
Pressure Gauge Inert gas press. gauging IMO REQUIREMENT ON TANKER SAFETY AND POLLUTION
PREVENTION, 1978-RESOLUTION A.446(XI), 6.6(b)
Tank Bottom Liquid and
Sediments Checking
Device
Tank bottom dryness,
& sediment checking
IMO REQUIREMENT ON TANKER SAFETY AND POLLUTION
PREVENTION, 1978-RESOLUTION A.446(XI) 4.4.4
Shut On/Off Valve Vapor lock Installation of
portable tank measuring sys.
MARPOL 1973/78 ANNEX I, REGULATION 13b(3)
SOLAS 1974,CHAPⅡ-2 REGULATION 60, PARAGRAPH 7
(REQUIREMENT OF CLOSED ULLAGE SYSTEM)
MARPOL 1973/78 ANNEX I-CHAP II-REGULATION 15, (3) (B) AND
SOLAS 1974,CHAPⅡ-2 REGULATION 62, PARAGRAPH 17

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 4
3.
Type of Potable Equipment for IBC BCH CODE
zIBC Code : (International Code for the Construction and Equipment of Ships Carrying Dangerous
Chemicals in Bulk)
zIBC Code-Chap. 17-Summary of Minimum Requirements
Mixtures of noxious liquid substances presenting pollution hazard only and which are provisionally
assessed under regulation 3 (4) of Annex II of MARPOL 73/78, may be carried under the requirements
of the code applicable to the appropriate position of the entry in this chapter for ‘noxious liquids, not
otherwise specified’.
zIBC Code-Chap. 13-1.3.1 Gauging
13.1.1 Cargo tanks should be fitted with one of the following types of gauging devices
13.1.2 Gauging devices should be independent of the equipment required under 15.19
13.1.3 Open gauging and restricted gauging should be allowed only where:
1) open venting is allowed by the code; or
2) means are provided for relieving tank pressure before the gauge is operated.
13.1.4 Types of gauging for individual products are shown in column “j” in the table of Chapter 17.
Table of IBC Code- Chapter 13 Instrumentation-13.1 Gauging
Equipment Type Function
1. OPEN DEVICE
Which makes use of an opening in the tanks and may
expose the gauge to the cargo of its vapour. An example of
this is the ullage opening.
2. RESTRICTED
DEVICE
Which penetrates the tank and which, when in use, permits
a small quantity of cargo vapour or liquid to be exposed to
the atmosphere. When not in use, the device is completely
closed. The design should ensure that no dangerous
escape of tank contents (liquid of spray) can the place in
opening the device.
3. CLOSED DEVICE
Which penetrates the tank, but which is part of a closed
system and keeps tank contents form being released.
Examples are the float-type systems, electronic probe,
magnetic probe and protected sight glass. Alternatively an
indirect device which does not penetrate the tank shell and
which is independent of the tank may be used. Examples
are weighing of cargo, pipe flow meter.

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 5
zBCH Code : (Code for the Construction and Equipment of Ships Carrying Dangerous Chemicals in Bulk)
zBCH CODE CHAP-III C-Gauging
3.9 General : Cargo tank should be fitted with one of the following types of gauging devices :
Gauging devices should be independent of the equipment required under 4.1 & 4.2 except for ships
constructed prior to 27 September 1982 where the requirements of 4.1 & 4.2 are met by a shutdown
valve which operates automatically.
3.10 Gauging for individual substances
Types of gauging for individual substances are shown in column “j” of the summary of minimum
requirements in chapter VI.
Table of BCH Code- Chapter III C-Gauging 3.9 General
Equipment Type Function
1. OPEN
DEVICE
Which makes use of an opening in the tank and may expose the gauge to
the cargo or its vapour. An example of this is the ullage opening.
2. RESTRICTED
DEVICE
which penetrates the tank and which, when in use, permits a small quantity
of cargo vapour or liquid to be exposed to the atmosphere. When not in
use, the device is completely closed. The design should ensure that no
dangerous escape of tank contents (liquid or spray) can take place in
opening the device.
3. CLOSED
DEVICE
which penetrates the tank, but which is part of a closed system and keeps
tank contents from being released. Examples are the float-type systems,
electronic probe, magnetic probe and protected sight-glass.
4. INDIRECT
DEVICE
which does not penetrate he tank shell and is independent of the tank. An
indirect measurement for determining the amount of cargo is used such as
weighing of cargo, pipe flow meter, etc.

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 6
4.
All Kinds of TANKTECH Portable Measuring System
ON
O
FF
ON
MADEINKOREA
T2000-TFS-01MODEL
0062/05
LIGHTON
MFG.NO
MFG.DATE
0062/05
LIGHTON MODEL
MFG.NO
MADEIN KOREA
ON
MFG.DATE
T2000-TFC-02
GAS:INTERMITTENTBEEP
0062/05
MFG.NO
MFG.DATE
MODEL
WATER:CONTINUOUSBEEP
PORTABLEOIL/WATERINTERFACE DE TECTO R
ON
OFF
OIL:FREQUENTBEEP
ON
OFF
T2000-TFC-01
MADEINKOREA
DISPLAY
OIL:F R E QUENT BEEP
WATER: C ONTI NUOU S B EEP
GAS:INTERMITTENTBEEP
GAS:INTERMITTENTBEEP
OIL:FREQUENTBEEP
WATER: CONTI NUOU S BEEP
ON
O
FF
O
FF
ON
ON
OFF

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 7

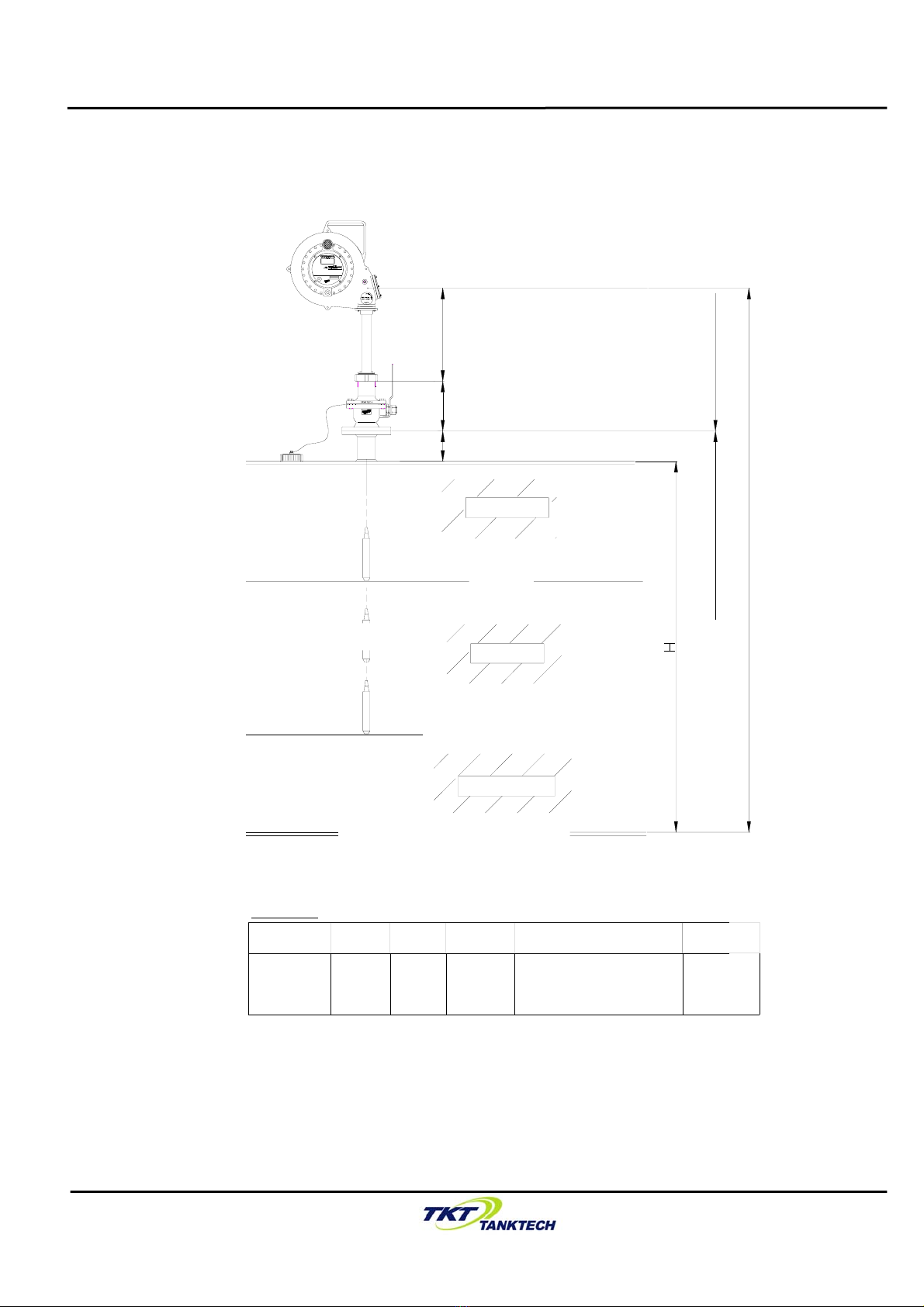

5.

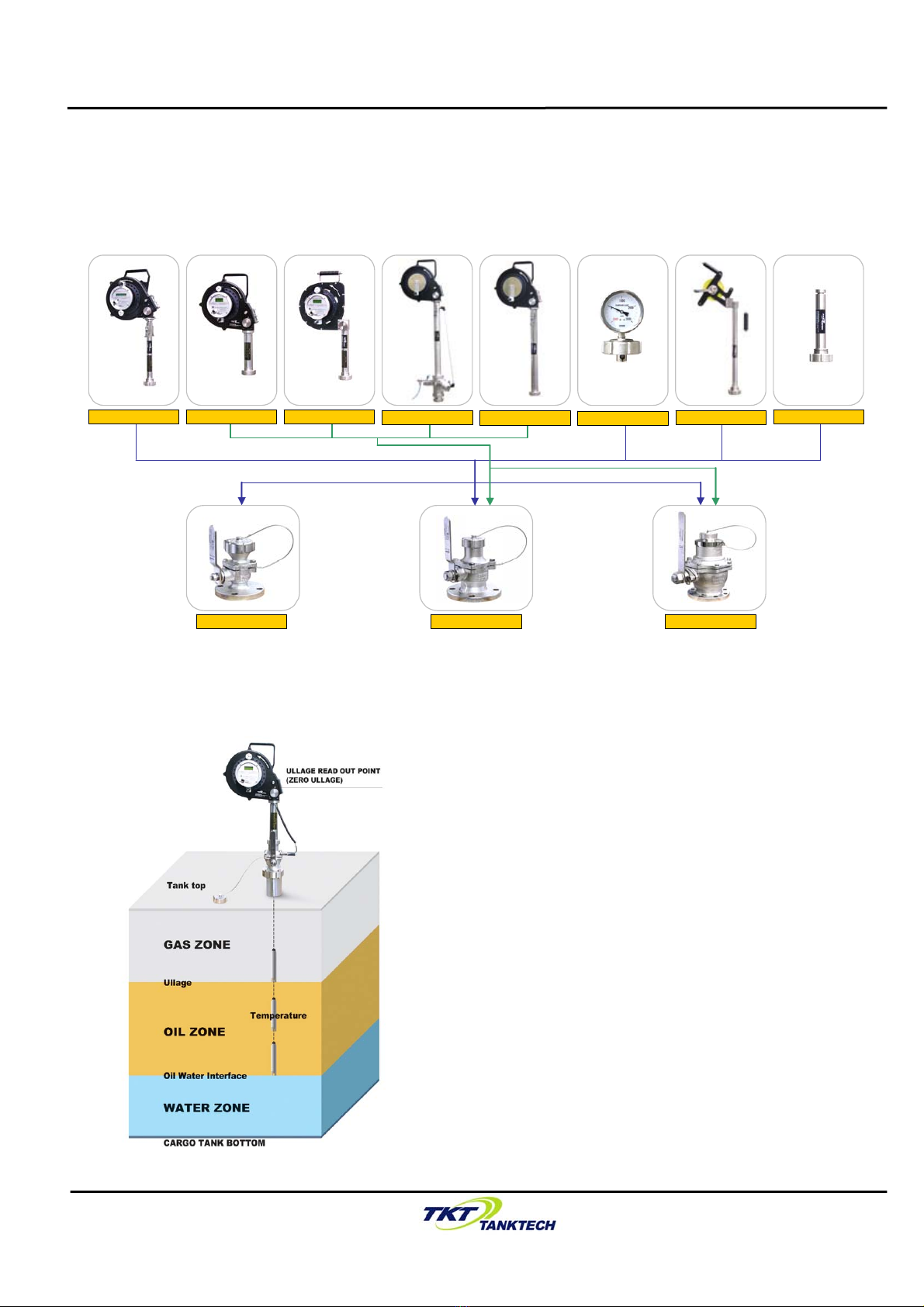

Installation Chart for TANKTECH Portable Measuring System
T2000-TFC-01
Portable Oil/Water
Interface Detector
Gas-tight Type
Portable Oil/Water
Interface Detector Portable Oil/Water
Interface Detector Cargo Liquid
Sampling Device Cargo Liquid
Sampling Device Pressure Gauge Tank Bottom Liquid &
Sediments Checking
Device Inert Gas Sampling
& Adaptor
Gas-tight Type Restricted Type
T2000-TFC-02 T2000-TFS-01 T2000-TSS-01 T2000-TSS-02 T2000-TPG-01 T2000-TLS-01 T2000-TOS-01
TVC-01 TVC-02 TVC-04
6.
Three Functions
1. Detection of Ullage
2. Detection of Interface
3. Temperature measurement

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 8
6. Specification for Portable Oil/Water interface Detector
7.
Specification for Portable Oil/Water Interface Detector
7-1. General Description
TANKTECH's Portable Oil/Water Interface Detector, T2000 series offer the total solution for management
of cargo in tanks. This device can detect and measure the Ullage, Oil/Water Interface and Temperature
of cargo at the same time.
7-2. Model : T2000-TFC-02
Accuracy of ullage, interface detection ±2 mm
Indication of level divided
by ullage and interface Visible and Audible
Tape length 15M / 30M /40M
Tape graduation Metric
Tape resolution 1 mm
Diameter of probe 34 mm
Minimum detectable level 8 mm
Ambient temperature range -20℃to 70℃
Temperature sensor measurement range -20℃to 110℃
Temperature measurement resolution 0.1℃
Accuracy over calibration range ±0.1℃( 0℃to 60℃)
Temperature reading mode ℃(Celsius) or ℉
LCD display 4-7 Segment
Ball valve coupling
(Top mounting of model : TVC-02 ) PF 2-1/4” TAP
Weight 7.4 kg / 15M
Overall dimensions
(height×width×thickness) APP. 585×346×150 mm
Battery 9 Volt (MODEL : MN1604)
Intrinsically safe type Ex ia IIB T4
7-3. Material
MODEL : T2000-TFC-02 ( Body ) ----------------- : Aluminum casting ( JIS – AC4C-T6 )
7-4. Coating
IN / OUT SIDE ----------------------------------------- : Epoxy nylon coating
COLOR -------------------------------------------------- : Black
THICKNESS ( IN/OUT SIDE ) --------------------- : 80mic.
CLOSED TYPE PORTABLE OIL/WATER INTERFACE DETECTOR
FOR ULLAGE, OIL/WATER INTERFACE, TEMPERATURE GAUGING

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 9

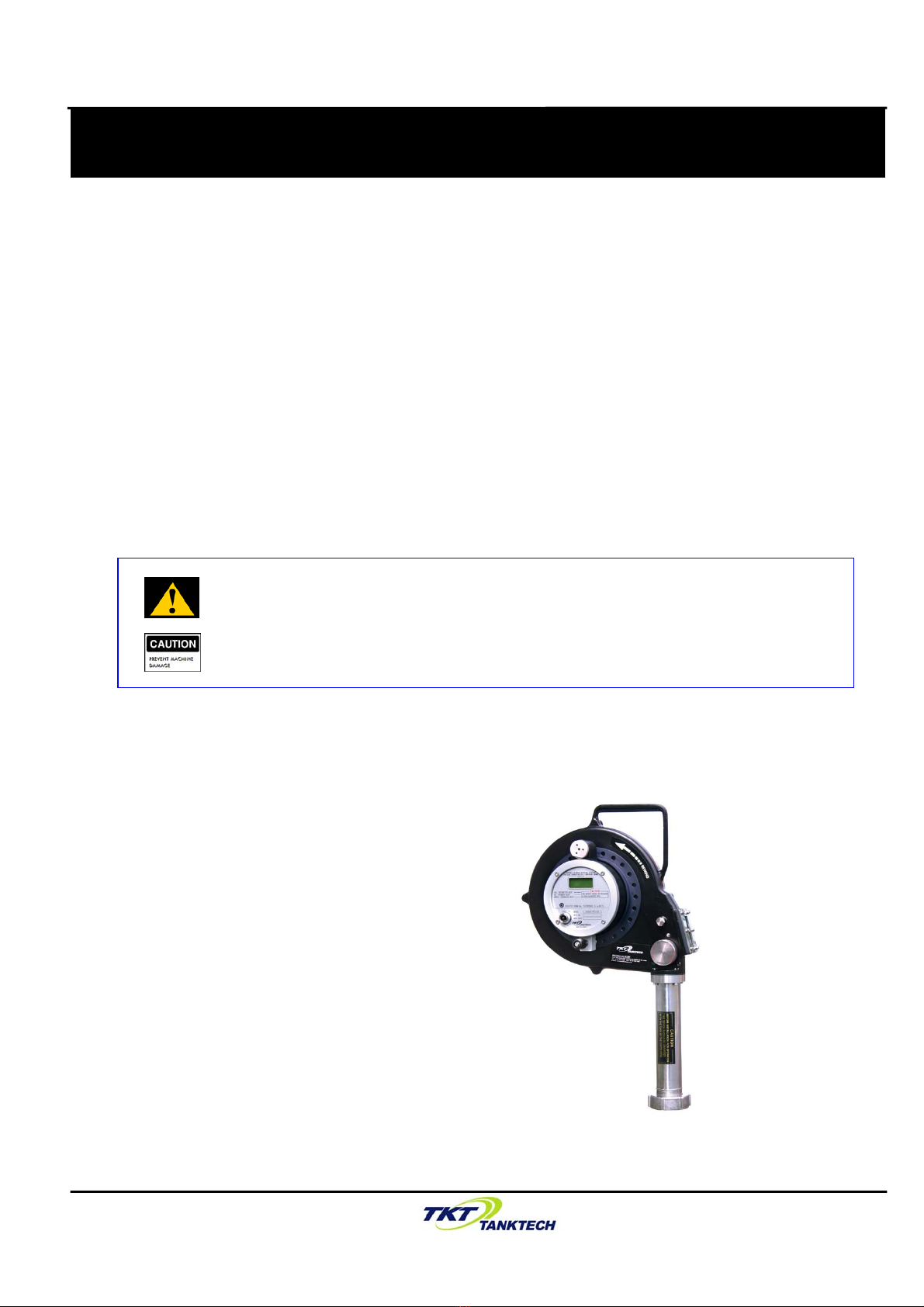

8. Operating Process for Portable Oil/Water Interface Detector
8-1. General description
Thank you for purchasing TANKTECH Portable Tank Measuring equipment.
Our products will make marine cargo tank gauging more efficiently.
Our PMS reflects the three requisites for good management: economical price, user's safety, and
environmentally friendly.
Before using our products use, Please carefully read this manual. By doing so, proper handling
of the equipment can be ascertained.
8-2. About mark of the manual
This manual is written with [Warning] and [Caution] markings. These are important for a safe operation.
These precautions stress the important matter for the prevention of the physical accident and possible
damage to the equipment.
8-3. Application for model : T2000-TFC-02
Model : T2000-TFC-02
CLOSED TYPE PORTABLE OIL/WATER INTERFACE DETECTOR
FOR ULLAGE, OIL/WATER INTERFACE, TEMPERATURE GAUGING
Warning : When wrong use of equipment may cause body harm to user.
Caution : When wrong use of equipment may cause damage to the set.

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 10
8-4. Location & Function of Controls
1. Carrying Handle
2. Tape Reading Window.
3. Cleaning Adaptor : When rewinding the tape from the tank, to clean tape, rotate this wheel clockwise to the
arrow indicates “ON”. When letting down the probe into the cargo tank, knob show be
turned towards the arrow indicating “OFF”.
4. Rotating handle & push stopper for measuring and rewinding
5. Tape Reading Point (Ullage Read Out Point)

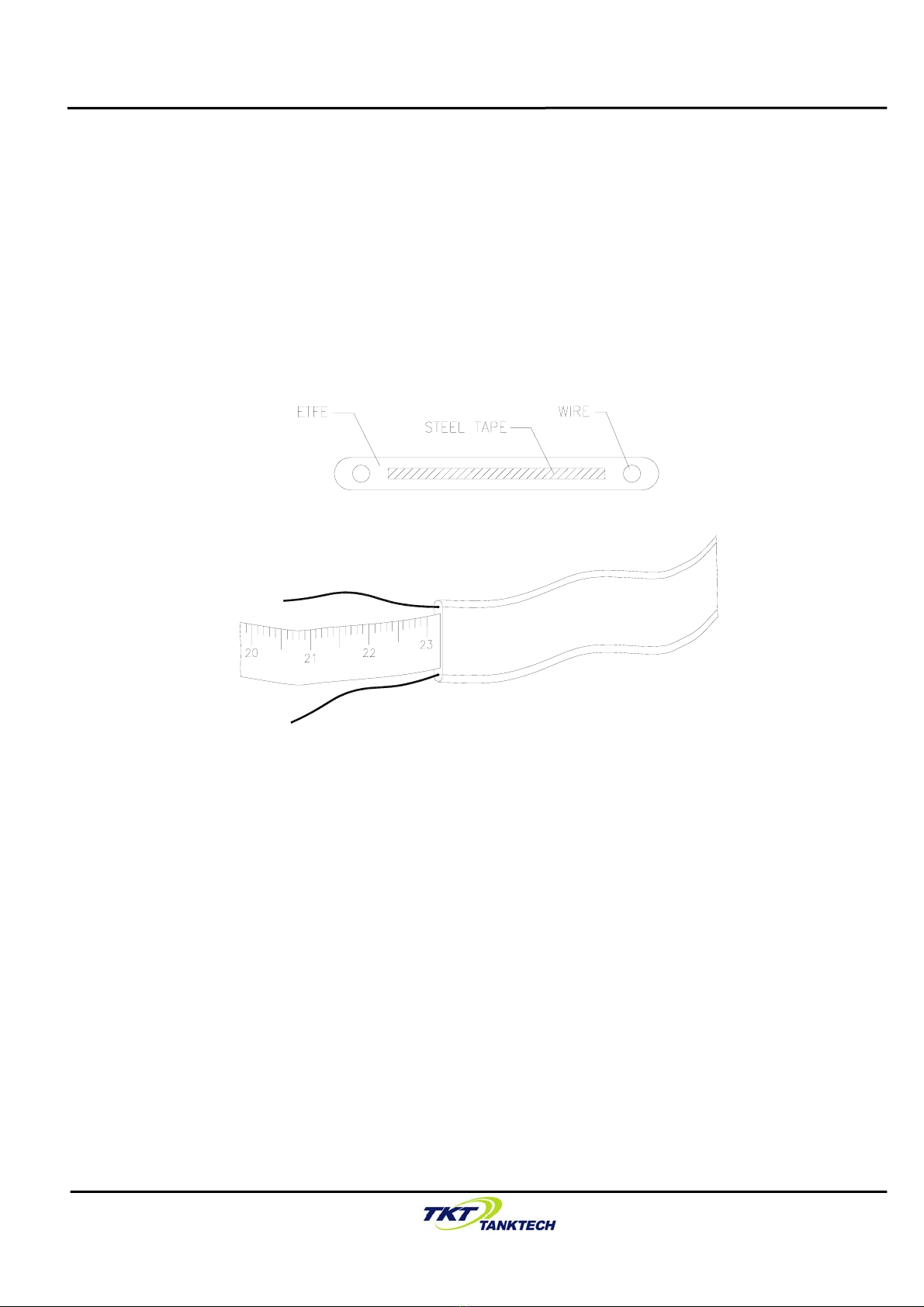

6. Sounding Tape : Non-corrosive tape scale coated by ETFE
7. Buzzer : Audible & distinguishable sound of Gas, Oil & Water
8. LCD Display
9. Display Panel
10. Power Switch
11. Tape Protection Device
12. Sensor Probe
13. Frame (Storage Barrel)
14. Grounding clamp for static discharge
TAN K TECH
Fig 1. Location & Function

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 11
The battery should be replaced in non-hazardous area.
8-5. Temperature display mode selector switch.
Also temperature display can be selected from two mode, ℃and ℉, by the inside slide switch. If display
mode changing is required, loosen the all screws of front panel and you will find the slide switch.
The temperature display mode should be changed in non-hazardous area.
TANKTECH
DIP 2
C/ F SELECTION S/W
Fig 2. Select S/W for Temperature
8-6. Low battery warning.
When the battery is almost used up and it have to be exchanged, a warning is turned on and off repeatedly
in left side of first line as Fig 3. For the accurate measurement, it is desirable that the battery is replaced
immediately after the warning is displayed.
Fig 3. Low battery warning

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 12
8-7. Tape
The tape of T2000 series consist of steel tape and two electric wires. Also, they are coated with ETFE. This
ETFE is a kind of teflon and not corroded by almost all kinds of chemical as well as crude oil.
The electric wires are used for transferring the data acquired by sensors to the display part on the deck.
And the electric power for sensors travels to the probe through the steel tape. Also, the steel tape is strong
enough to bear the live load of probe. Therefore it has the function as protector of the electric wires from
breaking.
Fig 4. Detail electric wire & Tape

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 13
8-8. Detection Principles for the accuracy and safety of measurement
1. General
Portable oil/water interface detector of TANKTECH is a portable tank measuring Instrument to detect the
Ullage, the interface and the temperature. User can know the surrounding environments of the sensor
probe and the temperature by the beep and the indication of the LCD.
User is able to measure the depth of the oil tank by the reading of the measuring tape too.
The measurement of the Ullage and the oil/water interface is used the ultrasonic sensor and the conductive
bar, the beeps are indicated the surrounding environments of the sensing probe. Measure continuously the
oil temperature in tank and indicate the temperature on LCD.
The sources is used the DC 9V alkaline battery.

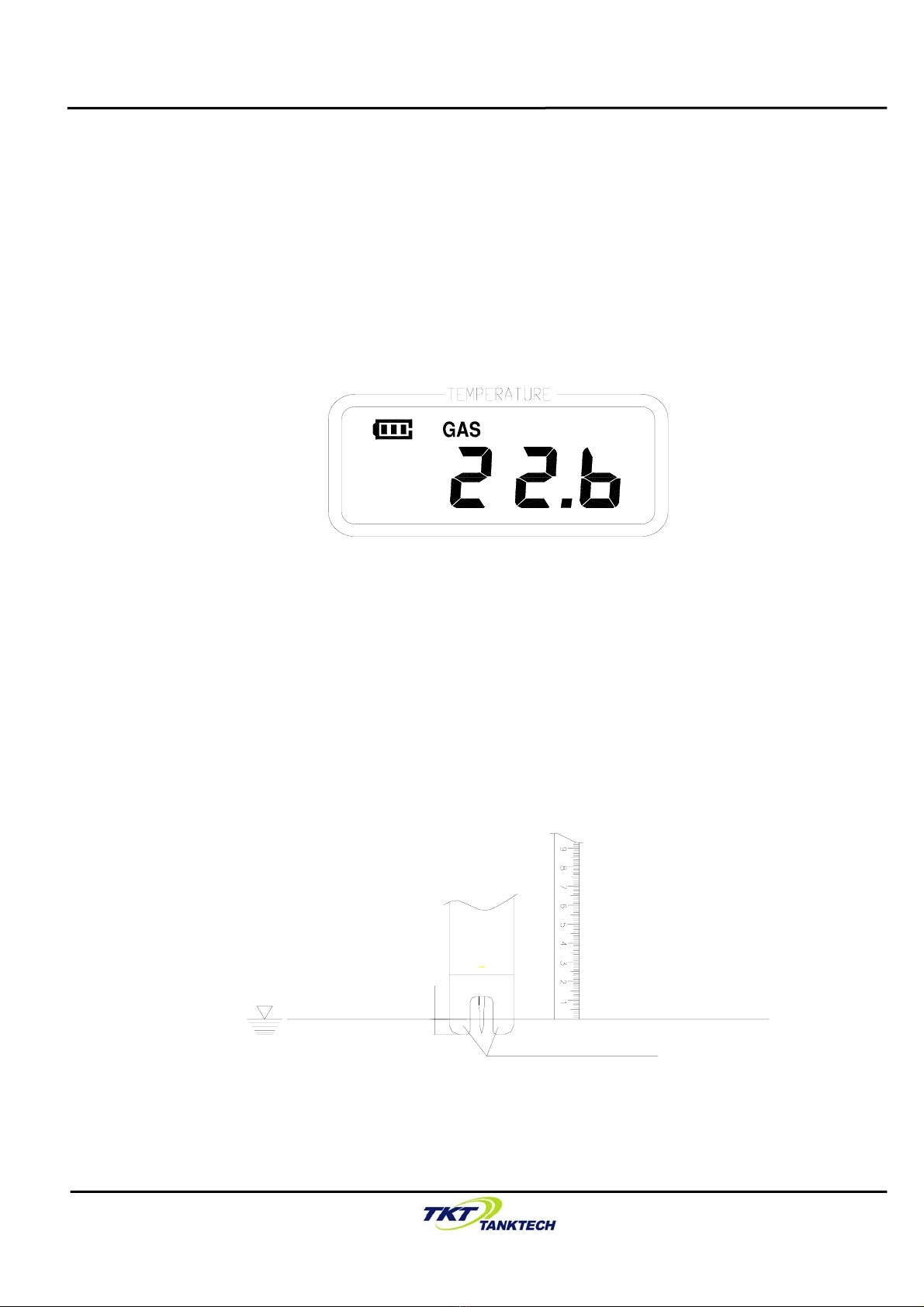

Fig 5. LCD display
2. Detection of Ullage
This is the detection method by the difference of ultrasonic receiving signal according to acoustic
impedance.
1. Ullage Level (Gas-Oil Boundary) Detection Device : Ultrasonic Sensor
2. Detection : Be determined the output of the receiver sensor, according to the acoustic impedance of the
oil and the gas. The medium is between the transmitter and the receiver
Ultrasonic Sensor
Ullage Detection Point
8mm
Oil Zone
Gas Zone
Fig 6. Ullage detection point

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 14
8-8. Detection Principles for the accuracy and safety of measurement
3. Detection of Interface
This is the detection method by the difference of voltage according to conductivity of water.
1. Interface Level (Oil-Water Boundary) Detection device Interface bar and temperature bar
2. Detection : Use to the conductivity of the water
Oil Zone
Water Zone
Interface Sensor
Interface Detection Point
8mm
Fig 7. Interface detection point
4. Temperature sensor
The PMS tape uses the PT100ΩRTD (Resistance Thermometer Device) instead of the thermistor or
semi-conductor thermal sensor. The reason for using RTD is explained below first with a linear
change in resistance over temperature.
Gas Zone
Oil Zone
Oil Zone
Water Zone
Temperature Sensor
Temperature Detection Point
8mm
Fig 8. Temperature detection point

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 15
8-9. Reading Ullage and Interface
GAS : INTER M ITTENT BE EP
WATER : CONTINUOUS BEEP
OIL : FREQUENT BEEP
T2000−TFC−02
MADE IN KOREA
TANKTECH
2. DIMENSION H2 IS WITHOUT GASKET(Gasket is Customer Scope)
1. * FILL OUT BLANK BY CUSTOMER SCOPE
TVC−02
DIMENSION
MODEL
H3=H+H1+H2+320
50 *180
Oil Water Interface
CARGO TANK BOTTOM
I.D H1 H2
Water zone
(UNIT : mm)
H3 REMARK
TANKTECH SUPPLY
Temperature Oil zone
Ullage
H1 H2
Tank top
Gas zone
CUSTOMER SUPPLY
H3 = CARGO TANK DEPTH
ULLAGE READ OUT POINT(DATUM LINE)
321
MFG. DATE
ON
MODEL
MFG. NO
NIGHT ON
Fig 9. Reading Ullage & Interface

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 16
8-10. Installation & Measurement method
Remove the cap of the shut on-off valve, Install the oil/water interface detector at 2" shut on-off valve of
TANKTECH CO. LTD.
When sensing part descend by reel, display part emits beep and indicates the surrounding environment of
the oil storage tank on the LCD.

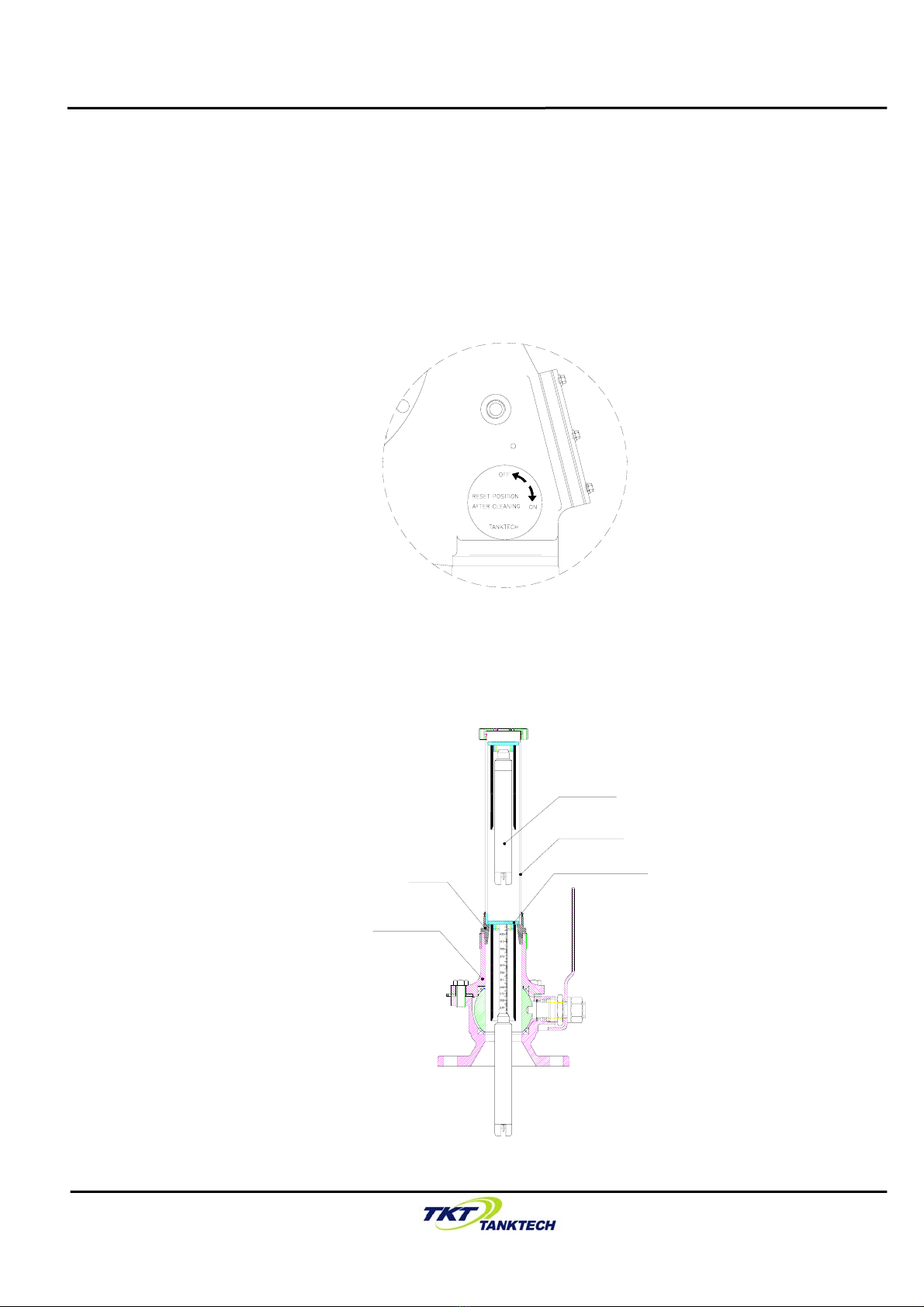

Fig 10. Direction for Open & close of cap
Fig 11. Detail of seal
MODEL TVC-02 Shut On/Off valve (Gauging Station) installed on tank top.

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 17
8-10. Installation & Measurement method
1. If user wants to measure the environment of the oil storage tank by equipment, has to ground with the
grounding cable at the tank after installation.
Connect the grounding cable at the tank before removing equipment.
Fig 12. Connect the grounding cable
2. Power switch on, check the initial state of the LCD screen and "BAT" indication.
Table of Separate zone
Position of detection Beep LCD Indication
Intermittent beep Gas zone --- --- --- --- GAS
Frequent beep Oil zone - - - - - - - - - - OIL
Continuous beep Water zone ------------------ WATER
Indicated low battery on LCD, change battery only in non-hazardous area.

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 18
8-10. Installation & Measurement method
* Measurement of the Ullage and the Oil/Water Interface
3. Toggle switch on, indicate "GAS", the buzzer emits intermittent beeping sound.

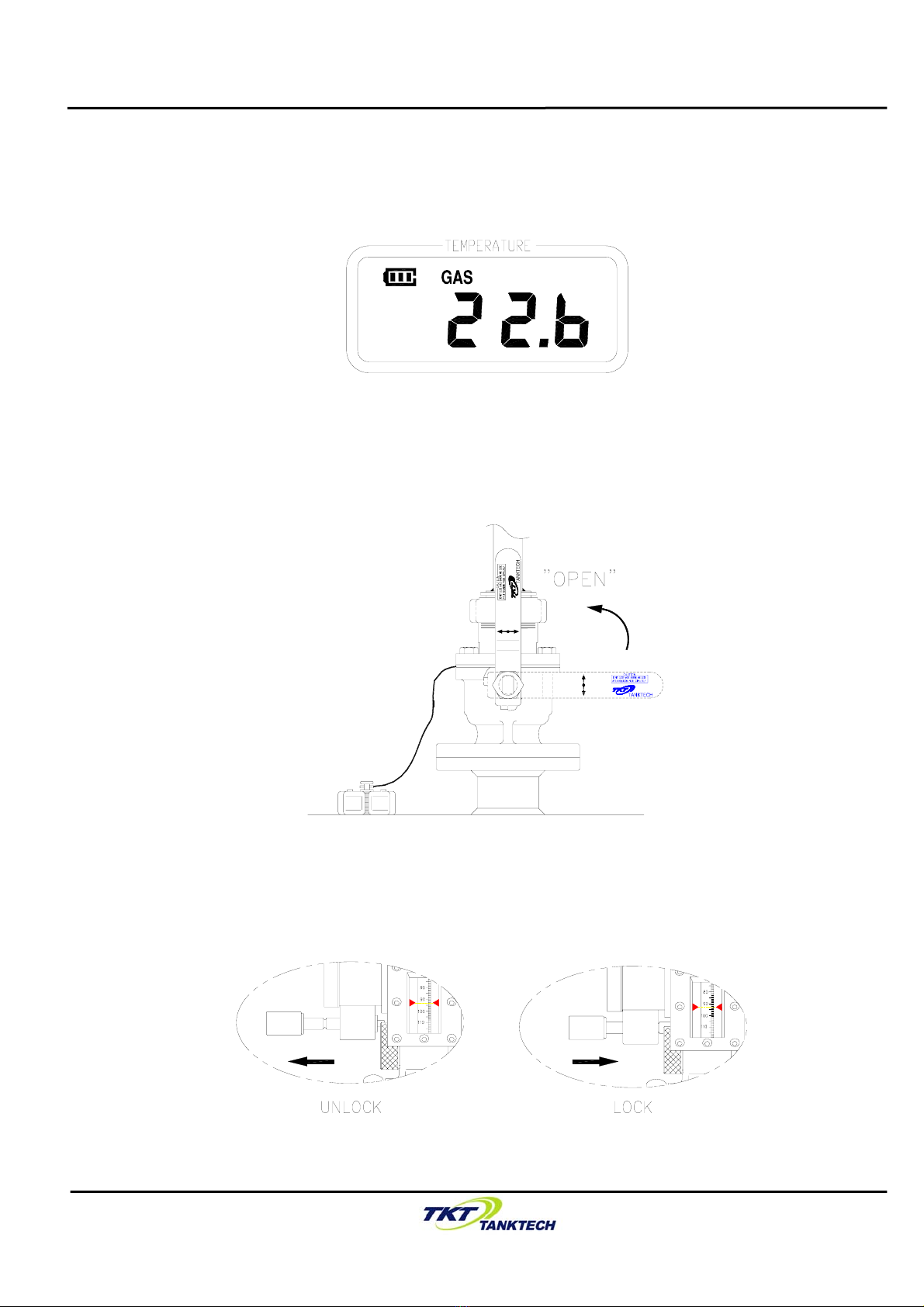

Fig 13. LCD display
4. Pull the Deck Valve lever to open position (in parallel with pipe).
OPEN
CLOSEOPEN
CLOSE
Fig 14. Open handle position
5. Pull the Deck Valve lever to open position (in parallel with pipe).
Fig 15. Reel handle breaker

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 19
Please read out above line of tape reading bar.
6. Lower the sensor until it touches the cargo. Display will change to "OIL" on LCD and emit frequent beep,
start reading the scale through transparent window. The correct reading is above the bar.
TANKTECH
REWIND
Fig 16. Arrow shows the direction to rewind
7. Pull the tape up and down slightly to determine the exact reading point on the tape.
8. Further down in the slop tank as it senses water, display changes to "WATER" on LCD and buzzer emits
continuous beep start reading the scale the transparent window.
Fig 17. View of Ullage, Interface read out point

Portable Tank Measuring System
TKT-TFC-02 (REV. 2-3) SHEET NO. : 20
* Temperature measurement
9. Temperature measurement is simultaneous and continuous, without the need to switch over.
10. The value is in degree Celsius(℃) on LCD as our standard supply. However if user wants the reading to be
in degree Fahrenheit(℉), he may request for change of temperature mode in the purchase order.
* Rewinding work after measurement
11. Turn the wiper knob to cleaning position indicated by arrow. Wind the reel slowly in anti-clockwise
direction. Check cleaning state of measuring tape through transparent window.
※ RESET POISITION AFTER CLEANING.
Fig 18. Tape Cleaner
12. Tape protection device from the cut by careless valve closing.
Sensor probe will be inserted to the protection pipe during tape rewinding and this protection device
will be completely protected by the tape.
SENSOR PROBE
STORAGE BARREL
TAPE PROTECTION DEVICE
TVC-02 BALL VALVE
FIX GUIDE
Fig 19. Tape protection device
Table of contents
