Introduction
Thank you for purchasing the TLV rapid initial air vent.
This product has been thoroughly inspected before being shipped from the
factory. When the product is delivered, before doing anything else, check the
specifications and external appearance to make sure nothing is out of the
ordinary. Also be sure to read this manual carefully before use and follow the
instructions to be sure of using the product properly.
This rapid initial air vent is for use on water-bearing pipes, and operates by
rapidly discharging the air initially present when supplying water to piping,
then closing upon completion of discharge. During operation, once it has
closed, the rapid initial air vent remains closed as long as there is internal
pressure. If air venting is necessary during system operation, install an
automatic air vent as well. When draining piping, the rapid initial air vent
automatically opens to introduce air and remove water easily.
Its simple, compact construction, with no hinges or levers and only one
moving part, the float, provides trouble-free operation and long service life.
If detailed instructions for special order specifications or options not contained
in this manual are required, please contact TLV for full details.
This instruction manual is intended for use with the model(s) listed on the front
cover. It is necessary not only for installation but for subsequent maintenance,
disassembly/reassembly and troubleshooting. Please keep it in a safe place
for future reference.

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
2
Safety Considerations
Read this section carefully before use and be sure to follow the instructions.
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
The precautions listed in this manual are designed to ensure safety and prevent
equipment damage and personal injury. For situations that may occur as a result
of erroneous handling, three different types of cautionary items are used to
indicate the degree of urgency and the scale of potential damage and danger:
DANGER, WARNING and CAUTION.
The three types of cautionary items above are very important for safety: be sure
to observe all of them as they relate to installation, use, maintenance, and repair.
Furthermore, TLV accepts no responsibility for any accidents or damage
occurring as a result of failure to observe these precautions.
Symbols
Indicates a DANGER, WARNING or CAUTION item.
Indicates an urgent situation which poses a threat of death or
serious injury
Indicates that there is a potential threat of death or serious injury
Indicates that there is a possibility of injury or equipment / product
damage
DO NOT use for toxic, flammable or otherwise hazardous
fluids.
This product is an air vent that discharges air from water piping
system. Use only for water and/or air. This product is for intended
use only. Improper use may result in such hazards as damage to
the product or malfunctions that may lead to serious accidents.
NEVER apply direct heat to the float.
The float may explode due to increased internal pressure, causing
accidents leading to serious injury or damage to property and
equipment.
Install properly and DO NOT use this product outside the
recommended operating pressure, temperature and other
specification ranges.
Improper use may result in such hazards as damage to the product
or malfunctions that may lead to serious accidents. Local
regulations may restrict the use of this product to below the
conditions quoted.
Use hoisting equipment for heavy objects (weighing
approximately 20 kg (44 lb) or more).
Failure to do so may result in back strain or other injury if the object
should fall.
Continued on the next page
DANGER
WARNING
CAUTION
WARNING
CAUTION

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
3
Take measures to prevent people from coming into direct
contact with product outlets.
Failure to do so may result in burns or other injury from the
discharge of fluids.
When disassembling or removing the product, wait until the
internal pressure equals atmospheric pressure and the
surface of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under
pressure may lead to discharge of fluids, causing burns, other
injuries or damage.
Be sure to use only the recommended components when
repairing the product, and NEVER attempt to modify the
product in any way.
Failure to observe these precautions may result in damage to the
product and burns or other injury due to malfunction or the
discharge of fluids.
Do not use excessive force when connecting threaded pipes
to the product.
Over-tightening may cause breakage leading to fluid discharge,
which may cause burns or other injury.
Use only under conditions in which no freeze-up will occur.
Freezing may damage the product, leading to fluid discharge,
which may cause burns or other injury.
Use only under conditions in which no water hammer will
occur.
The impact of water hammer may damage the product, leading to
fluid discharge, which may cause burns or other injury.
CAUTION

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
4
Features
1. The air vent has no hinges or levers: the only moving part is the precision-ground
float, which eliminates concentrated wear and provides long service life.
2. Simple construction with few parts allows for easy maintenance.
Operation
Take measures to prevent people from coming into direct contact with
product outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
1. When water is transported, air inside the piping is forced
into the air vent by the pressure of the flow.
The float inside the air vent is in the lower position, thus
the valve is fully open and allows the air that enters the
air vent and fills the area around the float to then be
discharged.
2. When discharge is completed, as water flows into the air
vent, the rising water level causes the float to rise and to
close the valve.
If there is a rapid rise in water level (caused by rapidly
opening a shut-off valve, etc.), a small amount of water
may leak with discharged air immediately before the air
vent closes.
3. Once the valve closes after discharging initial air, it will
not open again, even if air accumulates inside the air
vent, until internal pressure drops to near atmospheric
pressure.
4. When draining the piping, the air vent automatically
opens to introduce air and remove water more easily
(preventing a vacuum from forming in the piping).
Air
Water
CAUTION

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
5

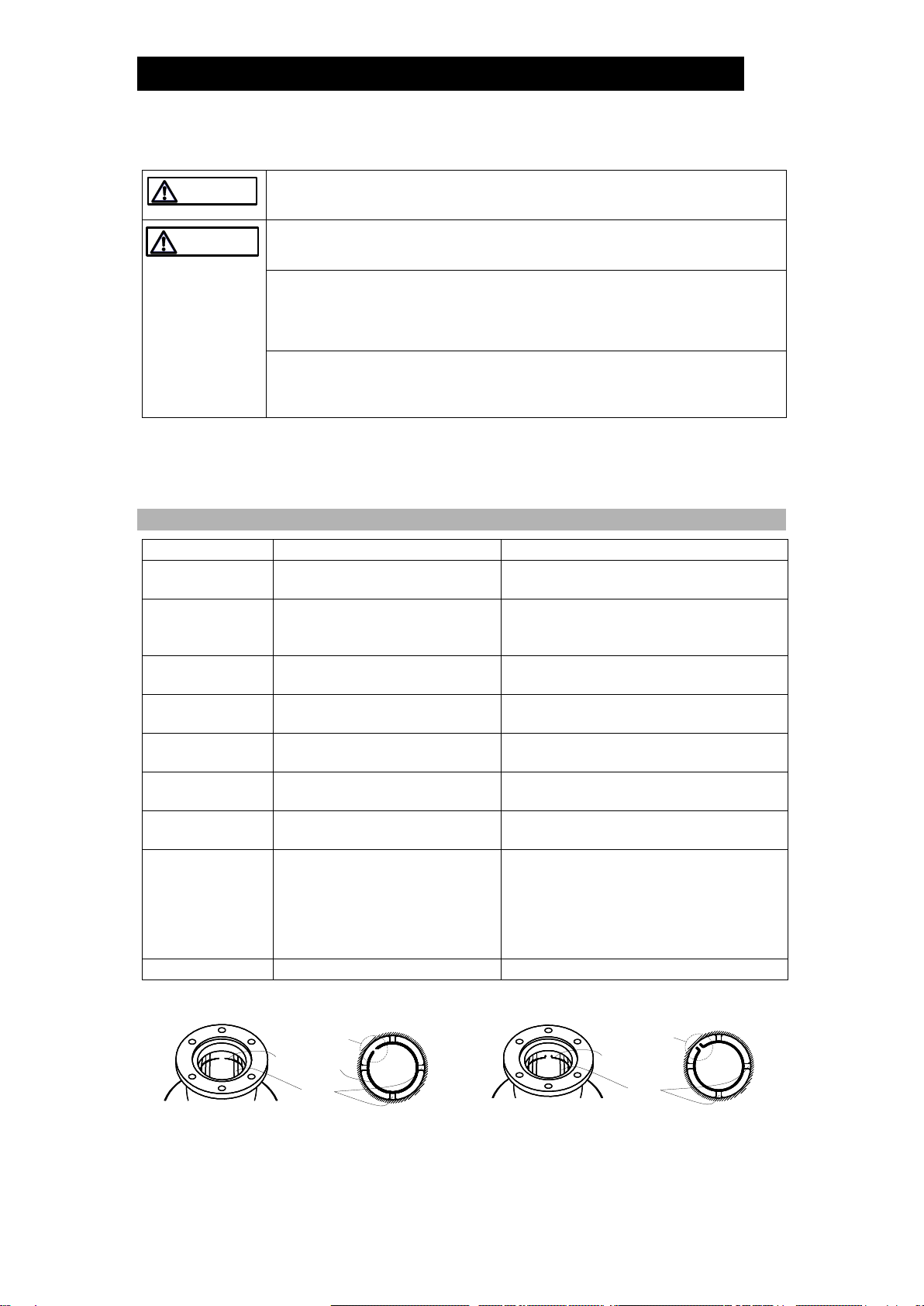

Specifications
DO NOT use for toxic, flammable or otherwise hazardous fluids.
This product is an air vent that discharges air from water piping system. Use only
for water and/or air. This product is for intended use only. Improper use may
result in such hazards as damage to the product or malfunctions that may lead to
serious accident.
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions that may lead to serious accidents. Local regulations may restrict
the use of this product to below the conditions quoted.
Use only under conditions in which no freeze-up will occur.
Freezing may damage the product, leading to fluid discharge, which may cause
burns or other injury.
Refer to the product nameplate for detailed specifications.
A Model
B Nominal Diameter
C Maximum Operating Pressure
D Maximum Operating
Temperature (TMO)
E Maximum Allowable Pressure*
F Maximum Allowable
Temperature (TMA) *
G Production Lot No.
H Valve No.**
* Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are PRESSURE
SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
** Valve No. is displayed for products with options. This item is omitted from the nameplate when there
are no options.

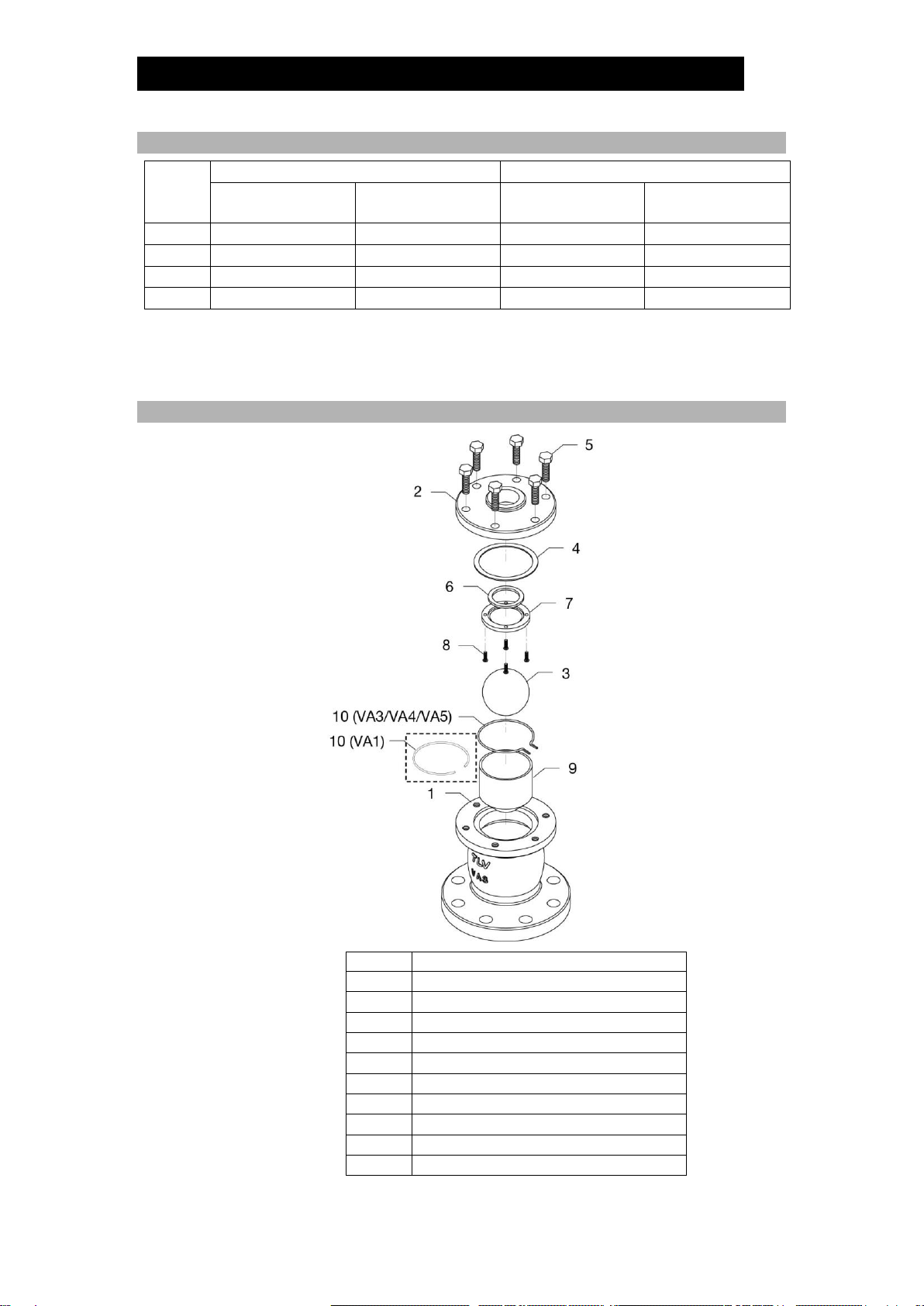

Configuration
VA1/VA3
VA4/VA5
No.
Name
No.
Name
No.
Name
1
Body
5
Cover Bolt
9
Float Guide
2
Cover
6
Valve Seat
10
Snap Ring
3
Float
7
Valve Seat Holder
11
Nameplate
4
Cover Gasket
8
Set Screw
WARNING
CAUTION

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
6
Installation
DO NOT use for toxic, flammable or otherwise hazardous fluids.
This product is an air vent that discharges air from water piping system. Use only
for water and/or air. This product is for intended use only. Improper use may
result in such hazards as damage to the product or malfunctions that may lead to
serious accident.
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions that may lead to serious accidents. Local regulations may restrict
the use of this product to below the conditions quoted.
Use hoisting equipment for heavy objects (weighing approximately 20 kg
(44 lb) or more).
Failure to do so may result in back strain or other injury if the object should fall.
Take measures to prevent people from coming into direct contact with
product outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
Do not use excessive force when connecting threaded pipes to the
product.
Over-tightening may cause breakage leading to fluid discharge, which may
cause burns or other injury.
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
1. Before installation, be sure to remove all protective seals.
2. Before installing the product, open the inlet valve and blow out the piping to
remove any piping scraps, dirt and oil. Close the inlet valve after blowdown.
3. This product must be installed vertically, with the inlet at the bottom and the outlet
at the top, and should be inclined no more than 5° horizontally and front-to-back
(Figure 2).
4. Install the product at a point where air is likely to collect, such as a bend in the
piping.
5. Install the product so that the outlet pipe reaches a drainage vessel or ditch. Make
sure the end of the pipe is above the waterline, so that dirt and water cannot be
sucked up by vacuum when the system shuts down (Figure 1).
6. Inlet piping with no horizontal portion is recommended for water/air displacement.
If there is a horizontal portion, make the pipe diameter of the horizontal portion
larger than the vertical portion or make the horizontal portion as short as possible.
7. Make sure the inlet piping diameter is at least as large as the product’s inlet
diameter.
8. Installation of an isolation valve just before the product’s main connection is
recommended as it enables maintenance during operation. A full-bore ball valve is
recommended.
9. Make sure to take measures to prevent foreign matter from flowing into the
product.
10. This is a rapid initial air vent for quickly venting large amounts of air at startup
only. If air venting is necessary during system operation, install an automatic air
vent as well.
If there is a problem, determine the cause using the “Troubleshooting” section in this
manual.
WARNING
CAUTION

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
7
Figure 1
Figure 2 Tolerance Angle for installation: 5°
VA1/VA3
VA4/VA5
Make sure the end
of the pipe is above
the waterline

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
8
Maintenance
Take measures to prevent people from coming into direct contact with
product outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way.
Failure to observe these precautions may result in damage to the product or
burns or other injury due to malfunction or the discharge of fluids.
Operational Check
A visual inspection of the following items should be done on a daily basis to
determine whether the product is operating properly or has failed.
If the product should fail, it may cause water leakage or hindrance to water flow.
Normal
:
Air is discharged as it accumulates, with the air vent
closing (with no leakage) when no air is present in the
piping.
Blocked
(Discharge Impossible)
:
No air is discharged though air accumulates in the air
vent.
NOTE: Once the air vent closes, it will remain closed until internal pressure
drops to near or below atmospheric pressure. This condition may be
confused with a malfunction (blocked). If air is expected to accumulate
in the piping during operation, use together with an automatic air vent.
Leakage
:
Water is discharged or leaks through the product outlet
during closed position.
Parts Inspection
When parts have been removed, or during periodic inspections, use the following
table to inspect the parts and replace any that are found to be defective.
Procedure
Gasket(s):
Check for warping and damage
Valve Seat:
Check for scratches or wear
Float:
Check for scratches or dents
Float Guide:
Check for damage
CAUTION

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
9
Disassembly/Reassembly
NEVER apply direct heat to the float.
The float may explode due to increased internal pressure, causing accidents
leading to serious injury or damage to property and equipment.
Use hoisting equipment for heavy objects (weighing approximately 20 kg
(44 lb) or more).
Failure to do so may result in back strain or other injury if the object should fall.
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product has
cooled to room temperature.
Disassembling or removing the product when it is hot or under pressure may
lead to discharge of fluids, causing burns, other injuries or damage.
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way.
Failure to observe these precautions may result in damage to the product or
burns or other injury due to malfunction or the discharge of fluids.
Use the following procedures to remove components. Use the same procedures in
reverse to reassemble.
(Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.)
Dissassembly/Reassembly Procedure
Part
During Disassembly
During Reassembly
Cover Bolt 5
Remove with a socket wrench
Consult the table of tightening torques
and tighten to the proper torque
Cover 2
Lift off to remove
Make sure there are no pieces of the old
gasket left on the sealing surfaces and
reattach
Cover Gasket 4
Remove the gasket and clean
sealing surfaces
Replace with a new gasket
Set Screw 8
Remove with a Philips
screwdriver
Consult the table of tightening torques
and tighten to the proper torque
Valve Seat Holder
7
Remove, take care as it may
come with the valve seat
Attach making certain that the valve
seat is in the proper position
Valve Seat 6
Remove, being careful not to
scratch the sealing surface
Replace with a new valve seat if
misshapen or damaged
Float 3
Remove, being careful not to
scratch the polished surface
Insert, being careful not to scratch the
polished surface
Snap Ring 10
VA1: With long-nose pliers,
grasp an end and pull away
from the groove and up
VA3/VA4/VA5: With long-nose
pliers, grasp both ends and pull
away from groove and up
Insert securely into the groove
Make sure that the ends of the snap ring
are set between ribs
(Figure A)
Float Guide 9
Remove without misshaping
Insert, being careful not to misshape
Figure A
VA1
VA3 / VA4 / VA5
NOTE: When inserting the snap ring into the groove on the rib inside the body, make sure
that the both ends of the snap ring are set between ribs.
WARNING
CAUTION
Snap Ring
Ends
Rib
Overhead View
Snap Ring
Ends
Rib
Overhead View

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
10
Torque Tightening Table
Model
Cover Bolt
Set Screw
Torque
Distance Across Flats
Torque
Screw Head
N∙m
(lbf·ft)
mm
(in)
N∙m
(lbf·ft)
VA1
35
(26)
17
(21/32)
0.3
(0.22)
+
VA3
35
(26)
17
(21/32)
0.5
(0.37)
+
VA4
80
(59)
24
(15/16)
0.8
(0.59)
+
VA5
200
(150)
36
(113/32)
6
(4.4)
+
(1 Nm 10 kgcm)
NOTE: - Coat all threaded portions with anti-seize.
- If drawings or other special documentation were supplied for the product, any torque
given there takes precedence over values shown here
Exploded View
No.
Part Name
1
Body
2
Cover
3
Float
4
Cover Gasket
5
Cover Bolt
6
Valve Seat
7
Valve Seat Holder
8
Set Screw
9
Float Guide
10
Snap RIng

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
11
Troubleshooting
NEVER apply direct heat to the float.
The float may explode due to increased internal pressure, causing accidents
leading to serious injury or damage to property and equipment.
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product has
cooled to room temperature.
Disassembling or removing the product when it is hot or under pressure may
lead to discharge of fluids, causing burns, other injuries or damage.
When the product fails to operate properly, use the following table to locate the cause
and remedy.
Problem
Cause
Remedy
No air is
discharged
(blocked)* or
discharge is poor
The trapped air cannot displace the
water in the piping
Correct the inlet piping
The valve seat is clogged with dirt or
foreign matter
Clean the valve seat
The inlet or outlet piping is clogged
Clean the piping
Water leaks when
the vent is closed
There is a build-up of rust or scale
on the valve seat or the valve seat is
damaged
Clean or replace with a new valve
seat
The float is misshapen, dirty or has a
film build-up
Clean or replace with a new float
The installation angle of inclination is
incorrect
Correct the installation
The vent does not
close and water is
blowing
The float is damaged or filled with
water
Replace with a new float
The specific gravity of the liquid is
outside the specifications for this
product
(This product is for water system)
Select a product with suitable
specifications for the operating
conditions
* NOTE: Once the air vent closes, it will remain closed until internal pressure drops to near or
below atmospheric pressure. This condition may be confused with a malfunction
(blocked). If air is expected to accumulate in the piping during operation, use
together with an automatic air vent.
WARNING
CAUTION

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
12
TLV EXPRESS LIMITED WARRANTY
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation
(“TLV”), warrants that products which are sold by it, TLV International Inc. (“TII”) or one
of its group companies excluding TLV Corporation (a corporation of the United States of
America), (hereinafter the “Products”) are designed and manufactured by TLV, conform
to the specifications published by TLV for the corresponding part numbers (the
“Specifications”) and are free from defective workmanship and materials. The party
from whom the Products were purchased shall be known hereinafter as the “Seller”.
With regard to products or components manufactured by unrelated third parties (the
“Components”), TLV provides no warranty other than the warranty from the third party
manufacturer(s), if any.
Exceptions to Warranty
This warranty does not cover defects or failures caused by:
1. improper shipping, installation, use, handling, etc., by persons other than TLV,
TII or TLV group company personnel, or service representatives authorized by
TLV; or
2. dirt, scale or rust, etc.; or
3. improper disassembly and reassembly, or inadequate inspection and
maintenance by persons other than TLV or TLV group company personnel, or
service representatives authorized by TLV; or
4. disasters or forces of nature or Acts of God; or
5. abuse, abnormal use, accidents or any other cause beyond the control of TLV,
TII or TLV group companies; or
6. improper storage, maintenance or repair; or
7. operation of the Products not in accordance with instructions issued with the
Products or with accepted industry practices; or
8. use for a purpose or in a manner for which the Products were not intended; or
9. use of the Products in a manner inconsistent with the Specifications; or
10. use of the Products with Hazardous Fluids (fluids other than steam, air, water,
nitrogen, carbon dioxide and inert gases (helium, neon, argon, krypton, xenon
and radon)); or
11. failure to follow the instructions contained in the TLV Instruction Manual for the
Product.
Duration of Warranty
This warranty is effective for a period of one (1) year after delivery of Products to the
first end user. Notwithstanding the foregoing, asserting a claim under this warranty
must be brought within three (3) years after the date of delivery to the initial buyer if
not sold initially to the first end user.
ANY IMPLIED WARRANTIES NOT NEGATED HEREBY WHICH MAY ARISE BY
OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE AND ANY EXPRESS WARRANTIES NOT
NEGATED HEREBY, ARE GIVEN SOLELY TO THE INITIAL BUYER AND ARE LIMITED IN
DURATION TO ONE (1) YEAR FROM THE DATE OF SHIPMENT BY THE SELLER.
Exclusive Remedy
THE EXCLUSIVE REMEDY UNDER THIS WARRANTY, UNDER ANY EXPRESS
WARRANTY OR UNDER ANY IMPLIED WARRANTIES NOT NEGATED HEREBY
(INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE), IS REPLACEMENT; PROVIDED: (a) THE CLAIMED DEFECT IS
REPORTED TO THE SELLER IN WRITING WITHIN THE WARRANTY PERIOD, INCLUDING

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
13
A DETAILED WRITTEN DESCRIPTION OF THE CLAIMED DEFECT AND HOW AND WHEN
THE CLAIMED DEFECTIVE PRODUCT WAS USED; AND (b) THE CLAIMED DEFECTIVE
PRODUCT AND A COPY OF THE PURCHASE INVOICE IS RETURNED TO THE SELLER,
FREIGHT AND TRANSPORTATION COSTS PREPAID, UNDER A RETURN MATERIAL
AUTHORIZATION AND TRACKING NUMBER ISSUED BY THE SELLER. ALL LABOR
COSTS, SHIPPING COSTS, AND TRANSPORTATION COSTS ASSOCIATED WITH THE
RETURN OR REPLACEMENT OF THE CLAIMED DEFECTIVE PRODUCT ARE SOLELY
THE RESPONSIBILITY OF BUYER OR THE FIRST END USER. THE SELLER RESERVES
THE RIGHT TO INSPECT ON THE FIRST END USER’S SITE ANY PRODUCTS CLAIMED
TO BE DEFECTIVE BEFORE ISSUING A RETURN MATERIAL AUTHORIZATION. SHOULD
SUCH INSPECTION REVEAL, IN THE SELLER’S REASONABLE DISCRETION, THAT THE
CLAIMED DEFECT IS NOT COVERED BY THIS WARRANTY, THE PARTY ASSERTING
THIS WARRANTY SHALL PAY THE SELLER FOR THE TIME AND EXPENSES RELATED
TO SUCH ON-SITE INSPECTION.
Exclusion of Consequential and Incidental Damages
IT IS SPECIFICALLY ACKNOWLEDGED THAT THIS WARRANTY, ANY OTHER EXPRESS
WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED
HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR ITS TLV
GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO LOST PROFITS, THE
COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE PRODUCT, INJURY TO
OTHER PROPERTY, DAMAGE TO BUYER’S OR THE FIRST END USER’S PRODUCT,
DAMAGE TO BUYER’S OR THE FIRST END USER’S PROCESSES, LOSS OF USE, OR
OTHER COMMERCIAL LOSSES. WHERE, DUE TO OPERATION OF LAW,
CONSEQUENTIAL AND INCIDENTAL DAMAGES UNDER THIS WARRANTY, UNDER ANY
OTHER EXPRESS WARRANTY NOT NEGATED HEREBY OR UNDER ANY IMPLIED
WARRANTY NOT NEGATED HEREBY (INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) CANNOT BE
EXCLUDED, SUCH DAMAGES ARE EXPRESSLY LIMITED IN AMOUNT TO THE
PURCHASE PRICE OF THE DEFECTIVE PRODUCT. THIS EXCLUSION OF
CONSEQUENTIAL AND INCIDENTAL DAMAGES, AND THE PROVISION OF THIS
WARRANTY LIMITING REMEDIES HEREUNDER TO REPLACEMENT, ARE INDEPENDENT
PROVISIONS, AND ANY DETERMINATION THAT THE LIMITATION OF REMEDIES FAILS
OF ITS ESSENTIAL PURPOSE OR ANY OTHER DETERMINATION THAT EITHER OF THE
ABOVE REMEDIES IS UNENFORCEABLE, SHALL NOT BE CONSTRUED TO MAKE THE
OTHER PROVISIONS UNENFORCEABLE.
Exclusion of Other Warranties
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
AND ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY DISCLAIMED.
Severability
Any provision of this warranty which is invalid, prohibited or unenforceable in any
jurisdiction shall, as to such jurisdiction, be ineffective to the extent of such invalidity,
prohibition or unenforceability without invalidating the remaining provisions hereof,
and any such invalidity, prohibition or unenforceability in any such jurisdiction shall
not invalidate or render unenforceable such provision in any other jurisdiction.

172-65167MA-10 (VA1/VA3/VA4/VA5) 1 Oct 2021
14
Service
For Service or Technical Assistance: Contact your TLV representative or your regional TLV office.
In Europe:
Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany
Tel:
Fax:
[49]-(0)7263-9150-0
[49]-(0)7263-9150-50
Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52
8TW, U.K.
Tel:
Fax:
[44]-(0)1242-227223
[44]-(0)1242-223077
Parc d’Ariane 2, bât. C, 290 rue Ferdinand Perrier, 69800 Saint Priest,
France
Tel:
Fax:
33–(0)4-72482222
[33]-(0)4-72482220
In North America:
13901 South Lakes Drive, Charlotte, NC 28273-6790, U.S.A.
Tel:
Fax:
[1]-704-597-9070
[1]-704-583-1610
In Mexico and Latin America:
Av. Jesús del Monte 39-B-1001, Col. Hda. de las Palmas, Huixquilucan,
Edo. de México, 52763, Mexico
Tel:
Fax:
[52]-55-5359-7949
[52]-55-5359-7585
In Oceania:
Unit 8, 137-145 Rooks Road, Nunawading, Victoria 3131, Australia
Tel:
Fax:
[61]-(0)3-9873 5610
[61]-(0)3-9873 5010
In East Asia:
36 Kaki Bukit Place, #02-01/02, Singapore 416214
Tel:
Fax:
[65]-6747 4600
[65]-6742 0345
Room 5406, No. 103 Cao Bao Road, Shanghai, China 200233
Tel:
Fax:
[86]-(0)21-6482-8622
[86]-(0)21-6482-8623
No.16, Jalan MJ14, Taman Industri Meranti Jaya, 47120 Puchong,
Selangor, Malaysia
Tel:
Fax:
[60]-3-8065-2928
[60]-3-8065-2923
252/94 (K-L) 17th Floor, Muang Thai-Phatra Complex Tower B,
Rachadaphisek Road, Huaykwang, Bangkok 10310, Thailand
Tel:
Fax:
[66]-2-693-3799
[66]-2-693-3979
#302-1 Bundang Technopark B, 723 Pangyo-ro, Bundang, Seongnam,
Gyeonggi, 13511, Korea
Tel:
Fax:
[82]-(0)31-726-2105
[82]-(0)31-726-2195
In the Middle East:
Building 2W, No. M002, PO Box 371684, Dubai Airport Free Zone, Dubai, UAE
Email:
In Other Countries:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-427-1818
[81]-(0)79-425-1167
Manufacturer:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-422-1122
[81]-(0)79-422-0112
Other manuals for VA1
1
This manual suits for next models
3
Table of contents
Other TLV Fan manuals
