TMG TMG-EFM80 User manual

PRODUCT MANUAL
v.2022.10.10
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or have questions on assembly?
Please call: 1-877-761-2819 or email: [email protected]
TOLL FREE: 1-877-761-2819
WARNING
www.tmgindustrial.com

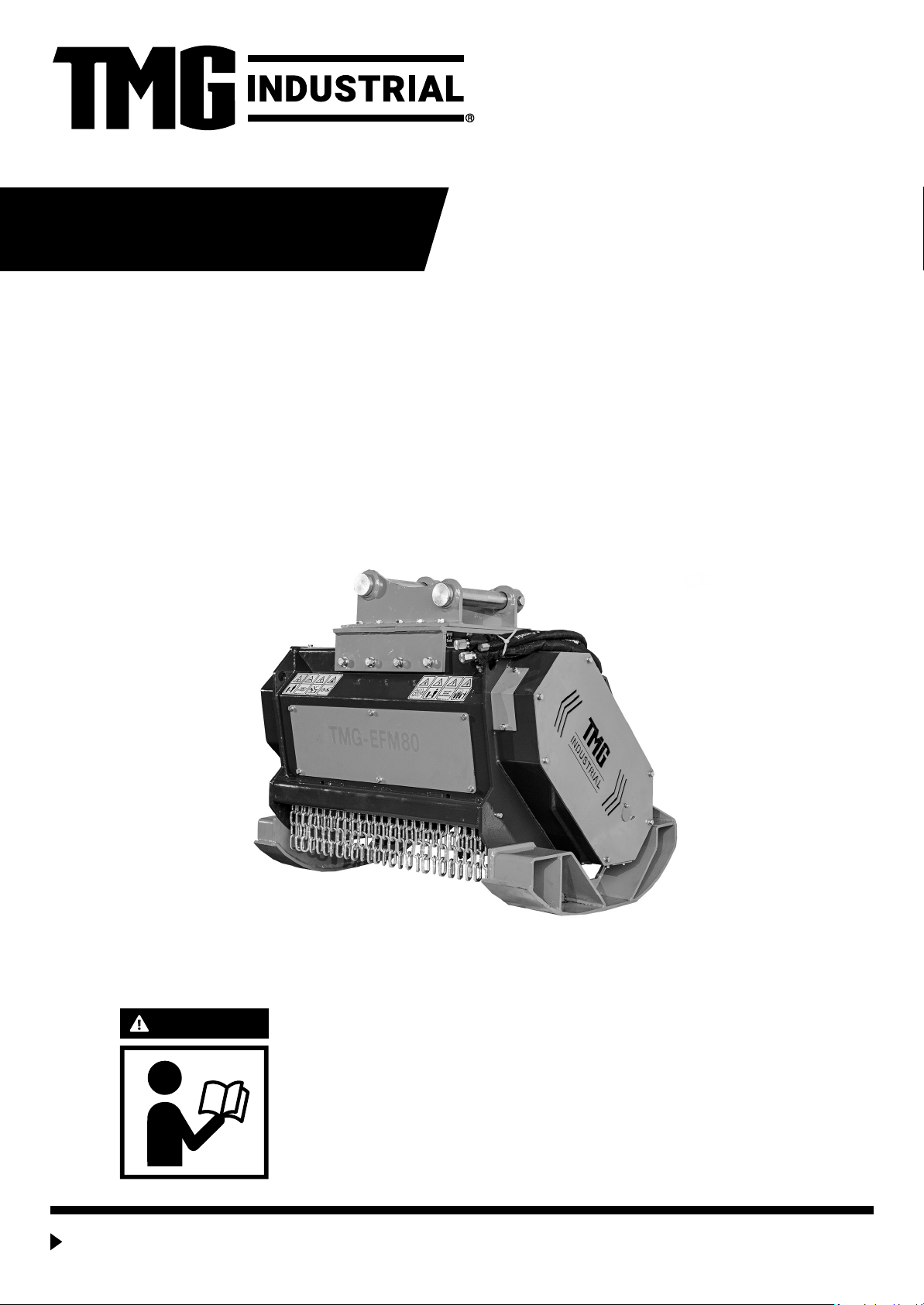

TMG-EFM80MODEL
31” EXCAVATOR
FORESTRY MULCHER

WWW.TMGINDUSTRIAL.COM 1 / 15 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
Your Safety
YOU are responsible for the SAFE operation and maintenance of your TMG Excavator Forestry Mulcher.
YOU must ensure that you and anyone else who is going to use, maintain or work around the Excavator
Forestry Mulcher be familiar with the using and maintenance procedures and related SAFETY information
contained in this manual. This manual will take you step-by-step through your working day and alerts you to
all good safety practices that should be used while using the Excavator Forestry Mulcher.
Remember, YOU are the key to safety. Good safety practices not only protect you but also the people
around you. Make these practices a working part of your safety program. Be certain that EVERYONE using
this equipment is familiar with the recommended using and maintenance procedures and follows all the
safety precautions. Most accidents can be prevented. Do not risk injury or death by ignoring good safety
practices.
• Excavator Forestry Mulcher owners must give operating instructions to operators or employees before
allowing them to operate the machine, and at least annually thereafter.
• The most important safety device on this equipment is a SAFE operator. It is the operator’s responsibility to
read and understand ALL Safety and Operating instructions in the manual and to follow these. Most
accidents can be avoided.
• A person who has not read and understood all using and safety instructions is not qualified to use the
machine. An untrained operator exposes himself and bystanders to possible serious injury or death.
• Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety
and could affect the life of the equipment.
• Think SAFETY! Work SAFELY!

WWW.TMGINDUSTRIAL.COM 2 / 15 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
General Safety
1. Read and understand the Operator’s Manual and all
safety signs before using, maintaining, adjusting or cleaning
the Excavator Forestry Mulcher.
2. Have a first-aid kit available for use should the need arise
and know how to use it.
3. Have a fire extinguisher available for use should the
need arise and know how to use it.
4. Do not allow riders.
5. Wear appropriate protective gear. This list includes but is
not limited to:
- A hard hat
- Protective shoes with slip resistant soles
- Protective glasses, goggles, or face shield
- Heavy gloves
- Wet weather gear
- Hearing Protection
- Respirator or filter mask
6. Install and secure all guards before starting.
7. Wear suitable ear protection for prolonged exposure to excessive noise.
8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake
and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging.
9. Clear the area of people, especially small children, before using the unit.
10. Review safety related items annually with all personnel who will operating or maintaining the Excavator
Forestry Mulcher.

WWW.TMGINDUSTRIAL.COM 3 / 15 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
Equipment Safety Guidelines
1. Safety of the operator and bystanders is one of the main concerns in designing and developing equipment.
However, every year many accidents occur which could have been avoided by a few seconds of thought and
a more careful approach to handling equipment. You, the operator, can avoid many accidents by observing
the following precautions in this section. To avoid personal injury or death, study the following precautions
and insist those working with you, or for you to follow them.
2. In order to provide a better view, certain photographs or illustrations in this manual may show an assembly
with a safety shield removed. However, equipment should never be used in this condition. Keep all shields in
place. If shield removal becomes necessary for repairs, replace the shield prior to use.
3. Replace any safety sign or instruction sign that is not readable or is missing. Location of such safety signs is
indicated in this manual.
4. Never use alcoholic beverages or drugs which can hinder alertness or coordination while using this
equipment. Consult your doctor about using this machine while taking prescription medications.
5. Under no circumstances should young children be allowed to work with this equipment. Do not allow persons
to use or assemble this unit until they have read this manual and have developed a thorough understanding
of the safety precautions and of how it works. Review the safety instructions with all users annually.
6. This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a
responsible, properly trained and physically able person familiar with machinery and trained in this
equipment's operations. If the elderly are assisting with work, their physical limitations need to be recognized
and accommodated.
7. Never exceed the limits of a piece of machinery.
If its ability to do a job, or to do so safely, is in question - DON'T TRY IT.
8. Do not modify the equipment in any way. Unauthorized modification may result in serious injury or death and
may impair the function and life of the equipment.
9. In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer
also to Safety Messages and operation instruction in each of the appropriate sections of the Excavator and
machine manuals. Pay close attention to the Safety Signs affixed to the Excavator and the machine.

WWW.TMGINDUSTRIAL.COM 4 / 15 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
Safety Training
1. Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to
provide safe equipment can be wiped out by a single careless act of an operator or bystander.
2. In addition to the design and configuration of equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence, and proper training of personnel involved in the
operation, transport, maintenance, and storage of this equipment.
3. It has been said, "The best safety feature is an informed, careful operator." We ask you to be that kind of an
operator. It is the operator's responsibility to read and understand ALL Safety and Using instructions in the
manual and to follow these. Accidents can be avoided.
4. the machine. If this machine is used by any person other than yourself, or is loaned or rented, it is the
machine owner's responsibility to make certain that the operator, prior to using:
a. Reads and understands the operator's manuals.
b. Is instructed in safe and proper use.
5. Know your controls and how to stop the Excavator tractor and machine quickly in an emergency. Read this
manual and the one provided with Excavator tractor.
6. Train all new personnel and review instructions frequently with existing workers. Be certain only a properly
trained and physically able person will use the machinery. A person who has not read and understood all
using and safety instructions is not qualified to use the machine. An untrained operator exposes himself and
bystanders to possible serious injury or death. If the elderly are assisting with the work, their physical
limitations need to be recognized and accommodated.

WWW.TMGINDUSTRIAL.COM 5 / 15 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION

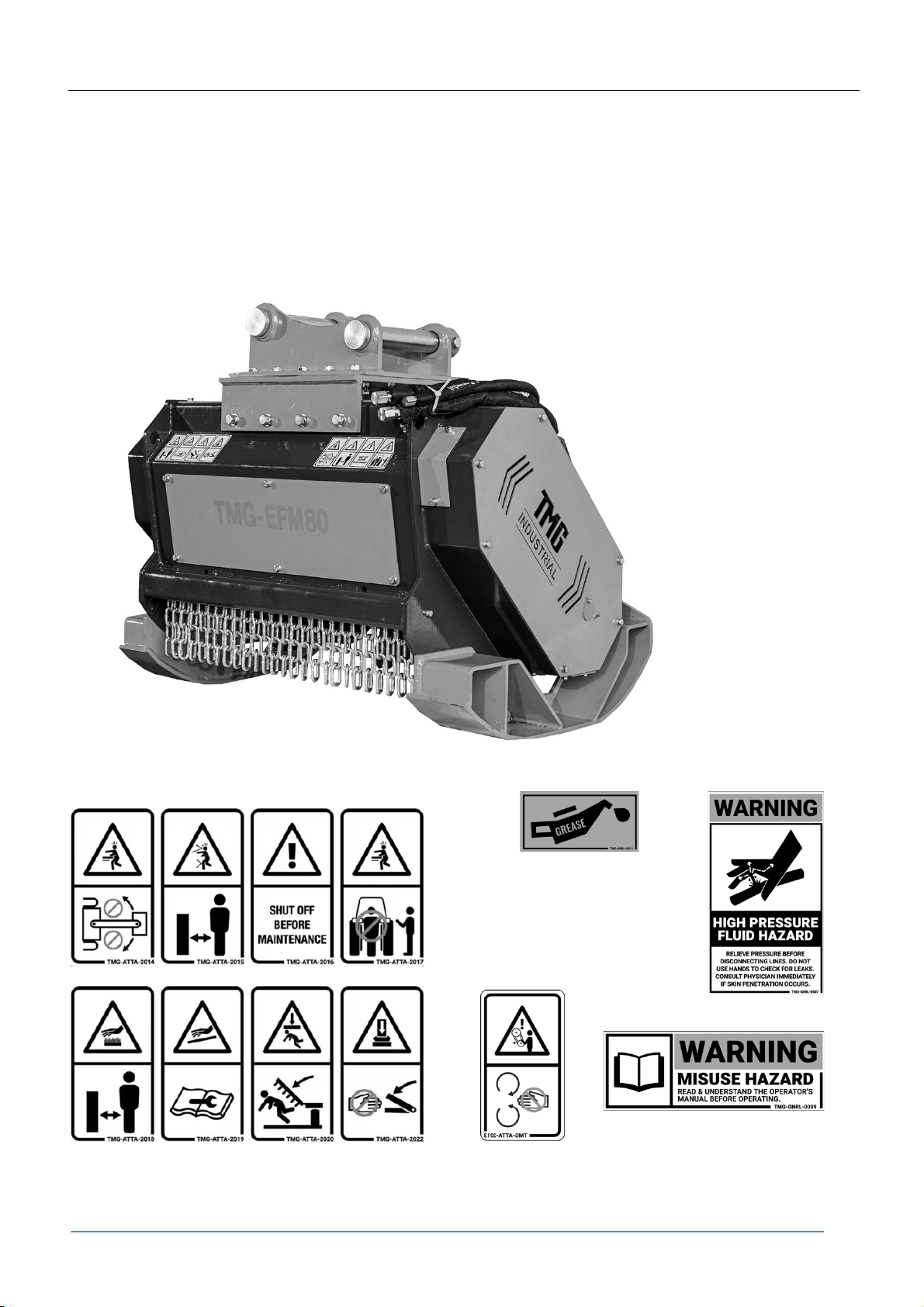

Safety Signs
1. Always keep safety signs clean and legible.
2. Replace safety signs that are missing or have become illegible.
3. Replaced parts that displayed a safety sign should also display the current sign.
4. Safety signs are available from your authorized Distributor or Dealer Parts Department or the factory.

WWW.TMGINDUSTRIAL.COM 6 / 15 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
Preparation
1. Never use the machine until you have read and completely understand this manual, the Excavator tractor
Operator's Manual and each of the Safety Messages found on the safety signs on the Excavator tractor
and machine.
2. Personal protection equipment including hard hat, safety glasses, safety
shoes, and gloves are recommended during assembly, installation,
operation, adjustment, maintaining, repairing, removal, cleaning, or moving
the unit. Do not allow long hair, loose fitting clothing or jewelry to be around
equipment.
3. PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS!
Power equipment with or without equipment attached can often be noisy enough to cause permanent,
partial hearing loss. We recommend that you wear hearing protection on a full-time basis if the noise in
the Operator's position exceeds 80db. Noise over 85db on a long-term basis can cause severe hearing
loss. Noise over 90db adjacent to the Operator over a long-term basis may cause permanent, total
hearing loss. NOTE: Hearing loss from loud noise (from tractors, chain saws, radios, and other such
sources close to the ear) is cumulative over a lifetime without hope of natural recovery.
4. Clear working area of stones, branches or hidden obstacles that might be hooked or snagged, causing
injury or damage.
5. Use only in daylight or good artificial light.
6. Be sure machine is properly mounted, adjusted and in good operating condition.
7. Ensure that all safety shielding, and safety signs are properly installed and in good condition.

WWW.TMGINDUSTRIAL.COM 7 / 15 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
Maintenance Safety
1. Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.
2. Follow good shop practices.
- Keep service area clean and dry.
- Be sure electrical outlets and tools are properly grounded.
- Use adequate light for the job at hand.
3. Make sure there is plenty of ventilation. Never operate the engine of the towing
vehicle in a closed building. The exhaust fumes may cause asphyxiation.
4. Before working on this machine, shut off the engine, set the brake, and turn fuel valve off.
5. Never work under equipment unless itis blocked securely.
6. Always use personal protection devices such as eye, hand and hearing protectors, when performing any
service or maintenance work. Use heavy or leather gloves when handling blades.
7. Where replacement parts are necessary for periodic maintenance and servicing, genuine factory
replacement parts must be used to restore your equipment to original specifications. The manufacturer
will not be responsible for injuries or damages caused by use of unapproved parts and/or accessories.
8. A fire extinguisher and first aid kit should be kept readily accessible while performing maintenance on this
equipment.
9. Periodically tighten all bolts, nuts and screws and check that all electrical and fuel connections are
properly secured to ensure unit is in a safe condition.
10. When completing a maintenance or service function, make sure all safety shields and devices are
installed before placing unit in service.

WWW.TMGINDUSTRIAL.COM 8 / 15 Toll Free:1-887-761-2819
OPERATION
High Attention!

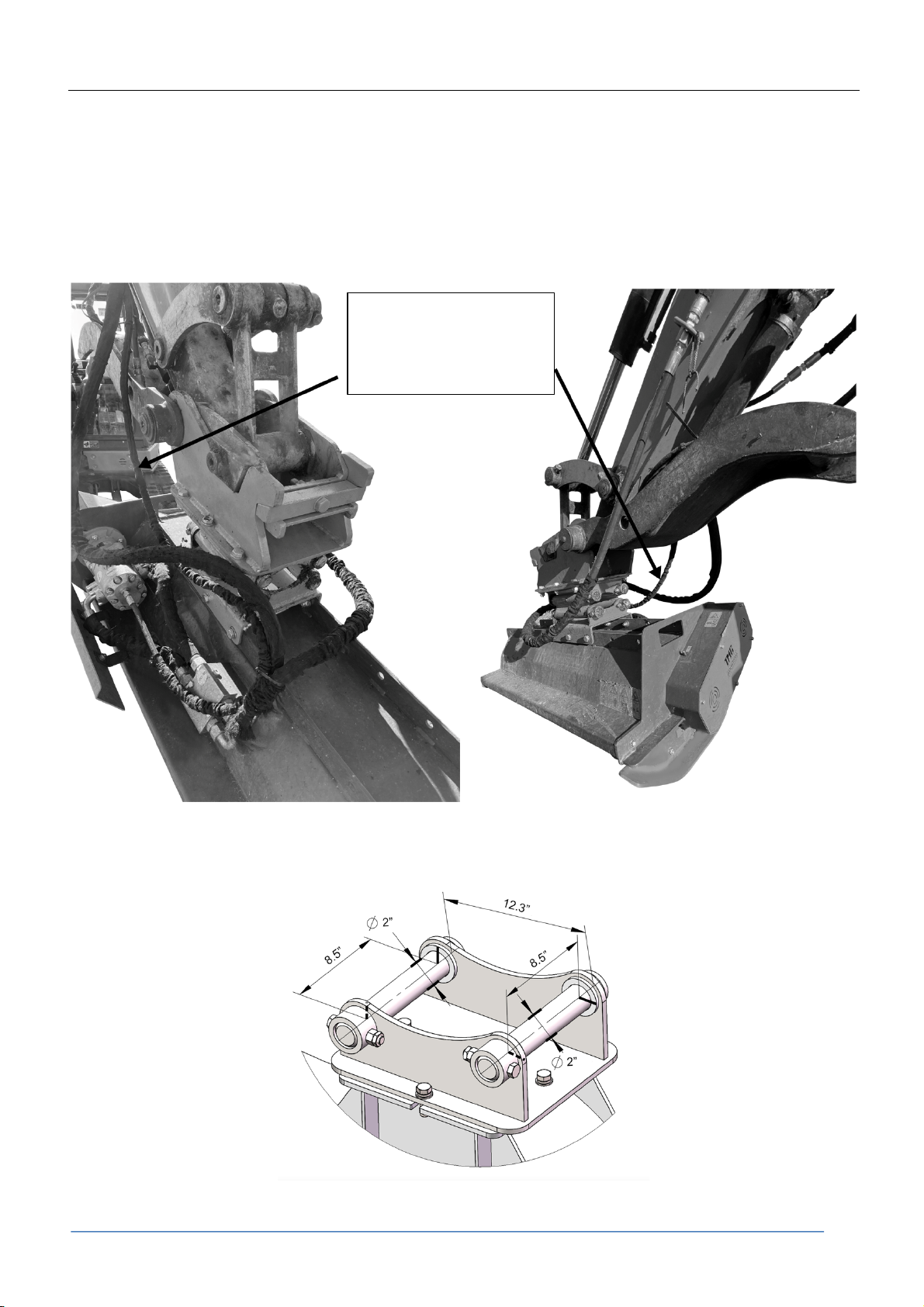

A case drain line (3rd hose line--3/8'') is required to be added prior to use of this attachment. The case drain
line will relieve the excess pressure and drain it back to your return line, then into the reservoir. Without a
case drain line installed properly, that extra pressure will blow a seal or damage your hydraulic line.
Mounting coupler
A case drain line
(3/8'') must be
added prior to use!

WWW.TMGINDUSTRIAL.COM 9 / 15 Toll Free:1-887-761-2819
OPERATION
Bolt Torque
CHECKING BOLT TORQUE
The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the
torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque
chart as a guide. Replace hardware with the same strength bolt.
Torque figures indicated above are valid for non-greased or non-oiled threads and heads unless otherwise
specified. Therefore, do not grease or oil bolts or cap screws unless otherwise specified in this manual.
When using locking elements, increase torque values by 5%.
* Torque value for bolts and cap screws are identified by their head markings

WWW.TMGINDUSTRIAL.COM 10 / 15 Toll Free:1-887-761-2819
SPECIFICATION
Specifications & Capacities
Product features:
• Piston motor with oil-in, oil-out, drain port
• Belt drive transmission
• High performance cutter drum
• Mounting coupler included
Product specifications:
• Cutting capacity:4”
• Hydraulic flow:16-21 GPM
• Auxiliary pressure:3600 PSI
• Number of fixed teeth:16
• Cutting width:31”

WWW.TMGINDUSTRIAL.COM 11 / 15 Toll Free:1-887-761-2819
PARTS LIST

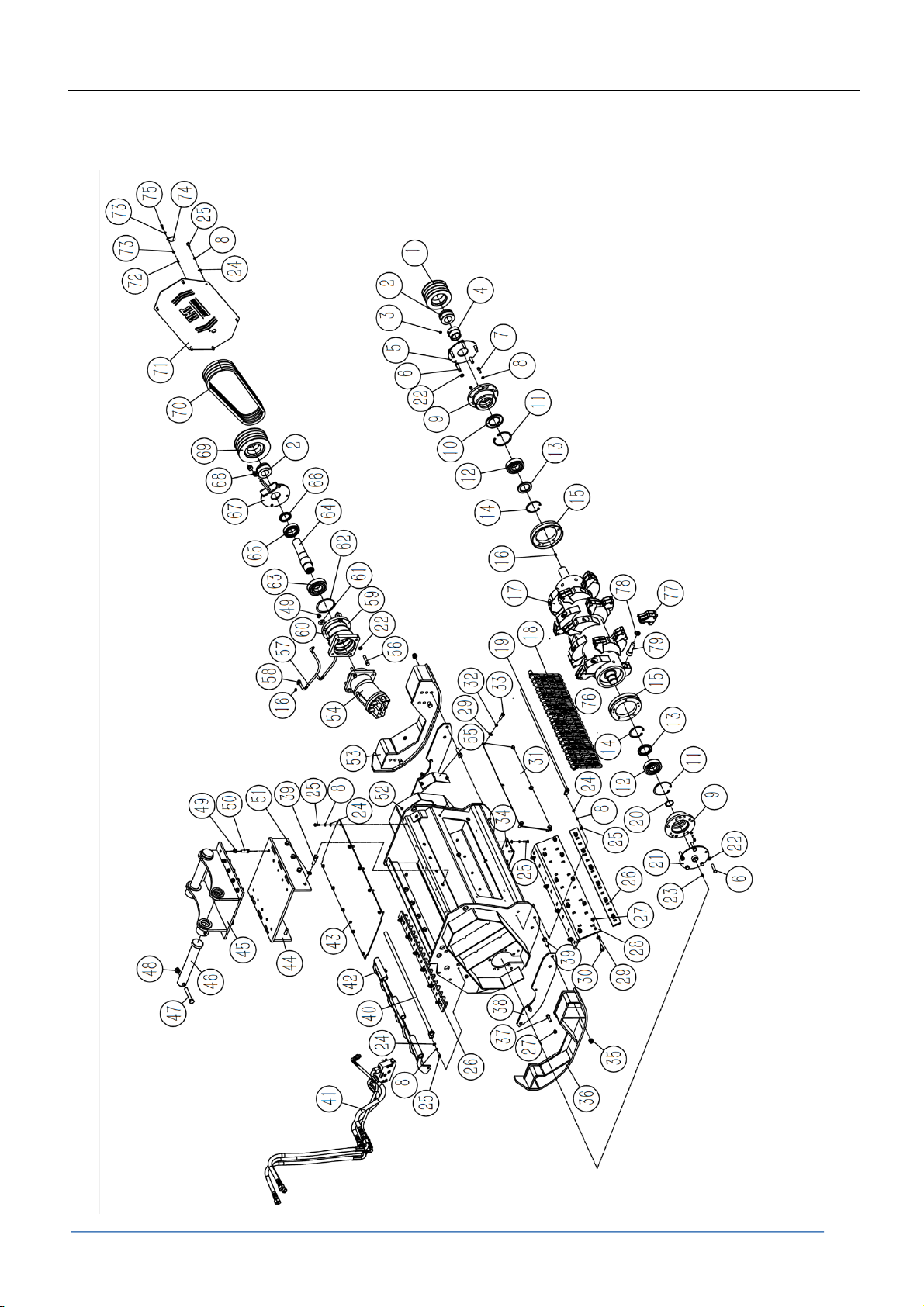

31-in Excavator Forestry Mulcher Assembly

WWW.TMGINDUSTRIAL.COM 12 / 15 Toll Free:1-887-761-2819

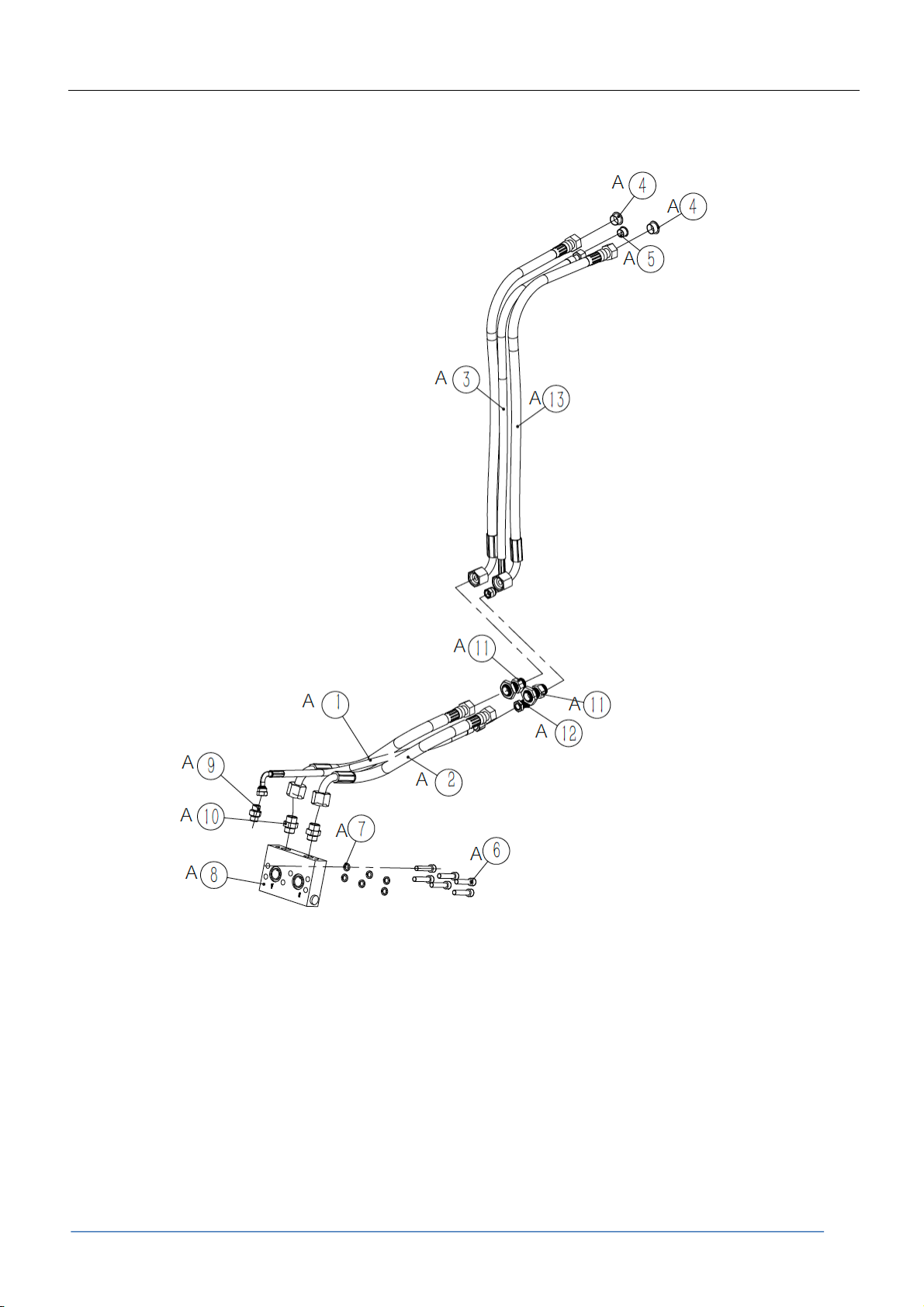

PARTS LIST
31-in Excavator Forestry Mulcher Assembly
Part No.
Ref.
Part Description
QTY
1
FMH145.28
Small pulley
1
2
JB/T7934
Sleeve Z3-45*80
2
3
GB/T 77
Set Screw M8*10
1
4
EFM800.14
Oil seal cover
1
5
EFM800.23
Stuffy cover 02
1
6
GB/T 5783
Bolt M12*50
10
7
GB/T 70.1
Bolt M8*30
4
8
GB／T 93
Spring Washer 8
28
9
EFM800.11
External bearing pedestal
2
10
GB13871-94
Oil seal 60*100*8
1
11
GB/T 893.1
Circlip 100
2
12
GB/T 281
Bearing 1309
2
13
GB 13871-94
Oil seal 55*80*8
2
14
GB/T 893.1
Circlip 80
2
15
EFM800.7
Grass guard Weldment
2
16
JB/T 7940.1
Grease nipple M10
2
17
EFM800.2
Blade axle weldment
1
18
EFM800.21
Chain ∅8
24
19
EFM800.20
Shaft bar
1
20
GB/T 894.1
Bearing Circlip 45
1
21
EFM800.12
Stuffy cover weldment
1
22
GB／T 93
Spring Washer 12
14
23
JB/T 7940.1
Grease nipple M8
1
24
GB／T97.1
Washer 8
24
25
GB/T 5783
Bolt M8*25
24
26
EFM800.8
Fix Blade Weldment
2
27
GB／T 889.1
Nut M10
31
28
EFM800.9
Reinforcing Plate Weldment
1
29
GB／T97.1
Washer 10
31
30
GB/T 14
Round Head Square Neck Bolt
M10*35
25
31
EFM800.25
Back cover
1
32
GB／T 93
Spring Washer 10
6
33
GB/ T 5783
Bolt M10*30
6
34
EFM800.27
Bottom Cover
1
35
GB／T 889.1
Nut M14
6
36
EFM800.5
Right Skid shoes weldment
1
37
GB/T 5783
Bolt M10*40
6
38
EFM800.26
Side Reinforcing Plate Weldment
2
39
GB/T 5783
Bolt M14*50
14

WWW.TMGINDUSTRIAL.COM 13 / 15 Toll Free:1-887-761-2819
PARTS LIST
31-in Excavator Forestry Mulcher Assembly
Part No.
Ref.
Part Description
QTY
40
EFM800.19
Rear cover pin Weldment
1
41
EFM800.10
Hydraulic components
1
42
EFM800.6
Flip cover Weldment
1
43
EFM800.17
Up Cover
1
44
EFM800.28
Connection weldment
1
45
EFM800.3
Hook weldment
1
46
EXF1200.18
Pin
2
47
GB/T5782
Bolt M16*100
2
48
GB／T 889.1
Nut M16
2
49
GB／T 889.1
Nut M12
14
50
GB/T 5783
Bolt M12*40
10
51
GB／T 93
Spring Washer 14
8
52
EFM800.1
Deck weldment
1
53
EFM800.4
Left Skid shoes weldment
1
54
A2F45W2Z6
Piston Motor
1
55
EFM800.24
Hole cover
1
56
GB/T 5783
Bolt M12*60
4
57
M6x1-6x4
Grease Oil pipe ∅6 Length:310mm
2
58
M10X1-6X4
End Straight Joint Nut
2
59
EFM800.12
Coupling housing
1
60
GB /T 5783
Bolt M12*55
4
61
GB／T 96
Big washer 12
4
62
GB/T 893.1
Circlip110
1
63
GB/T 276
Bearing 6310
1
64
EFM800.13
Coupling shaft
1
65
GB/T 276
Bearing 6210
1
66
GB/T 13871.1
Oil seal FB 50*68*8
1
67
EFM800.22
Adjusting plate weldment
1
68
GB/T 6170
Nut M16
2
69
FMH145.27
Big pulley
1
70
GB/T 12730
V Belt XPB1219
4
71
EFM800.16
Side Cover
1
72
GB/T89.1
Nut M6
1
73
GB／T97.1
Washer 6
2
74
AGL165COS.35
Cover
1
75
GB/T 5783
Bolt M6*20
1
76
FRM225.32
Spacer sleeve
25
77
BT0508
Teeth
16
78
GB／T 93
Spring Washer 20
16
79
GB/T 70.1
Bolt M20*60
16

WWW.TMGINDUSTRIAL.COM 14 / 15 Toll Free:1-887-761-2819
PARTS LIST
Hydraulic components Assembly

WWW.TMGINDUSTRIAL.COM 15 / 15 Toll Free:1-887-761-2819
PARTS LIST
Hydraulic components Assembly
Part No.
Ref.
Part Description
QTY
A1
EFM800.10.4
Oil pipe 03 M16*1.5 Length:660mm
1
A2
EFM800.10.5
Oil pipe 04 M27*1.5 Length:590mm
2
A3
EFM800.10.3
Oil pipe 02 M16*1.5
NPT3/8 Length:2000mm
1
A4
EXF1200.21.1TMG
Stuffy cover NPT1/2
2
A5
EXF1200.21.3TMG
Stuffy cover NPT3/8
1
A6
GB/T 70.1
Bolt M10*45
6
A7
GB／T 93
Spring Washer 10
6
A8
EFM800.10.1
Valve
1
A9
GE12LM18x1.5EDOMD
END STRAIGHT JOINT
M18*1.5 -M16*1.5
1
A10
GE18LRED
END STRAIGHT JOINT
G1/2"-M27*1.5
2
A11
SV20SOMD
END STRAIGHT JOINT
M27x1.5
2
A12
SV10LOMD
END STRAIGHT JOINT
M16x1.5
1
A13
EFM800.10.2
Oil pipe 01 M27*1.5
NPT1/2 Length:2000mm
2
