TMG TMG-SFM72 User manual

www.tmgindustrial.com TOLL FREE: 1-877-761-2819
72“ SKID STEER
FLAIL MOWER
PRODUCT MANUAL
v.2023.07.04
TMG-SFM72

www.tmgindustrial.com 2 / 16 TOLL FREE: 1-877-761-2819
CONTENTS
IMPORTANT SAFETY INFORMATION ......................................................................................................................................... 3
YOUR SAFETY ............................................................................................................................................................................. 3
GENERAL SAFETY ....................................................................................................................................................................... 3
EQUIPMENT SAFETY GUIDELINES ................................................................................................................................................. 4
SAFETY TRAINING ....................................................................................................................................................................... 5
SAFETY SIGNS ............................................................................................................................................................................ 5
SAFETY DECALS .......................................................................................................................................................................... 6
PREPARATION ............................................................................................................................................................................. 6
MAINTENANCE SAFETY ............................................................................................................................................................... 6
HYDRAULIC SAFETY .................................................................................................................................................................... 7
TRANSPORT SAFETY ................................................................................................................................................................... 8
TO THE NEW OPERATOR OR OWNER ............................................................................................................................................ 8
OPERATION ............................................................................................................................................................................ 8
MAINTENANCE ..................................................................................................................................................................... 10
BEFORE EVERY USE ................................................................................................................................................................... 10
EVERY WEEK ............................................................................................................................................................................. 10
AFTER EVERY SEASON .............................................................................................................................................................. 10
HYDRAULIC SYSTEM ................................................................................................................................................................. 10
BOLT TORQUE ........................................................................................................................................................................... 10
SPECIFICATION .................................................................................................................................................................... 11
SPECIFICATIONS &CAPACITIES ................................................................................................................................................ 11
PARTS LIST ......................................................................................................................................................................... 12
TMG-SFM72 FLAIL MOWER ASSEMBLY .................................................................................................................................. 12
TMG-SFM72 COUPLING ASSEMBLY ....................................................................................................................................... 15

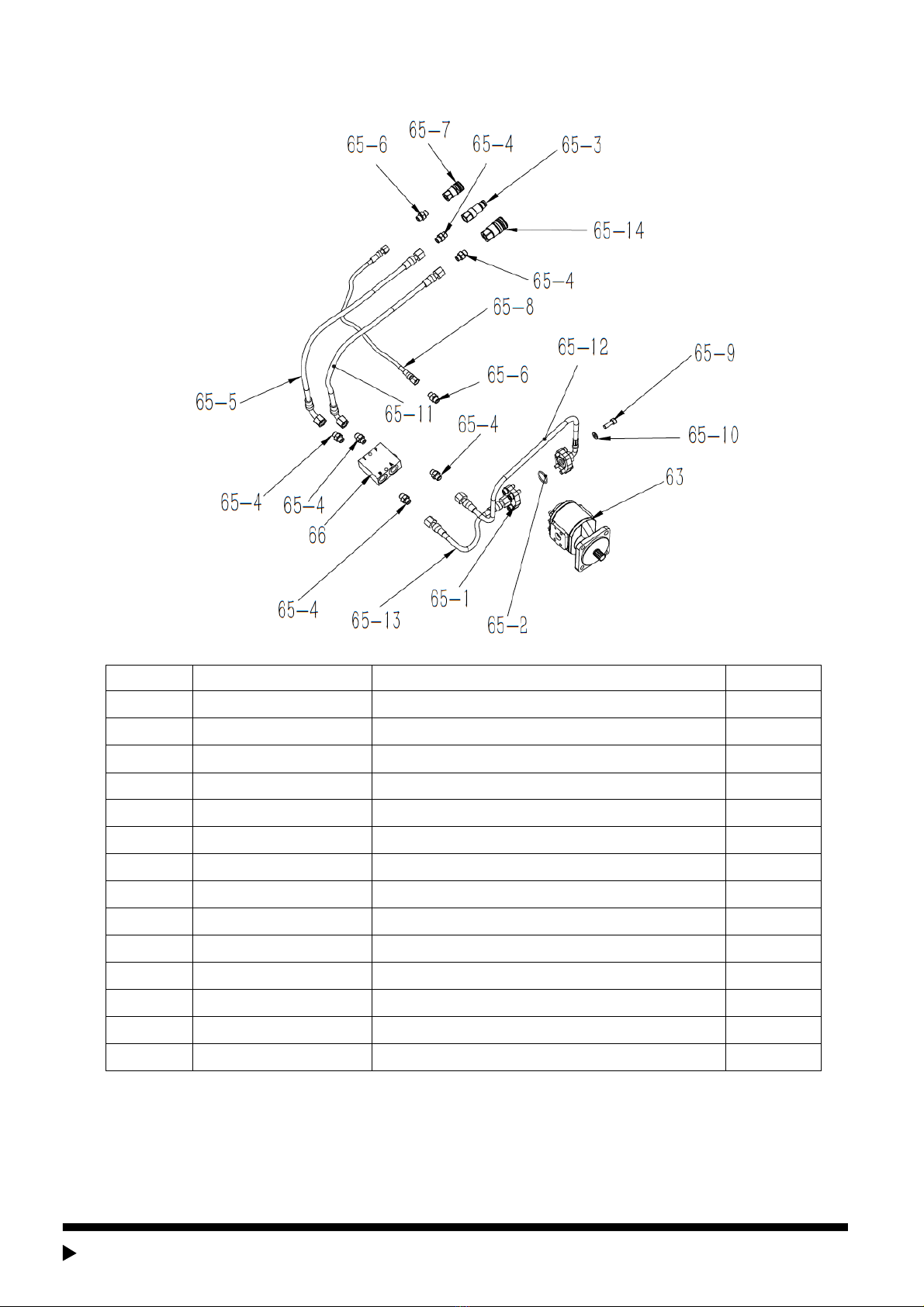

TMG-SFM72 HYDRAULIC COMPONENTS ................................................................................................................................. 16

www.tmgindustrial.com 3 / 16 TOLL FREE: 1-877-761-2819
IMPORTANT SAFETY INFORMATION
Your Safety
YOU are responsible for the SAFE operation and maintenance of your TMG Skid Steer Flail Mower. YOU must ensure that you
and anyone else who is going to use, maintain or work around the Skid Steer Flail Mower be familiar with the using and
maintenance procedures and related SAFETY information contained in this manual. This manual will take you step-by-step
through your working day and alerts you to all good safety practices that should be used while using the Skid Steer Flail Mower.
Remember, YOU are the key to safety. Good safety practices not only protect you but also the people around you. Make these
practices a working part of your safety program. Be certain that EVERYONE using this equipment is familiar with the
recommended using and maintenance procedures and follows all the safety precautions. Most accidents can be prevented. Do
not risk injury or death by ignoring good safety practices.
1. Skid Steer Flail Mower owners must give operating instructions to operators or employees before allowing them to operate
the machine, and at least annually thereafter.
2. The most important safety device on this equipment is a SAFE operator. It is the operator’s responsibility to read and
understand ALL Safety and Operating instructions in the manual and to follow these. Most accidents can be avoided.
3. A person who has not read and understood all using and safety instructions is not qualified to use the machine. An untrained
operator exposes himself and bystanders to possible serious injury or death.
4. Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety and could affect
the life of the equipment.
5. Think SAFETY! Work SAFELY!
General Safety
1. Read and understand the Operator’s Manual and all safety signs before using, maintaining, adjusting, or cleaning the Skid
Steer Flail Mower.
2. Have a first-aid kit available for use should the need arise and know how to use it.
3. Have a fire extinguisher available for use should the need arise and know how to use it.
4. Do not allow riders.
5. Wear appropriate protective gear. This list includes but is not limited to:
- A hard hat
- Protective shoes with slip resistant soles
- Heavy gloves

www.tmgindustrial.com 4 / 16 TOLL FREE: 1-877-761-2819
- Wet weather gear
- Hearing Protection
6. Install and secure all guards before starting.
7. Wear suitable ear protection for prolonged exposure to excessive noise.
8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all
moving parts to stop before servicing, adjusting, repairing, or unplugging.
9. Clear the area of people, especially small children, before using the unit.
10. Review safety related items annually with all personnel who will operating or maintaining the Skid Steer Flail Mower.
Equipment Safety Guidelines
1. Safety of the operator and bystanders is one of the main concerns in designing and developing equipment. However, every
year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to
handling equipment. You, the operator, can avoid many accidents by observing the following precautions in this section. To
avoid personal injury or death, study the following precautions and insist those working with you, or for you to follow them.
2. In order to provide a better view, certain photographs or illustrations in this manual may show an assembly with a safety
shield removed. However, equipment should never be used in this condition. Keep all shields in place. If shield removal
becomes necessary for repairs, replace the shield prior to use.
3. Replace any safety sign or instruction sign that is not readable or is missing. Location of such safety signs is indicated in
this manual.
4. Never use alcoholic beverages or drugs which can hinder alertness or coordination while using this equipment. Consult
your doctor about using this machine while taking prescription medications.
5. Under no circumstances should young children be allowed to work with this equipment. Do not allow persons to use or
assemble this unit until they have read this manual and have developed a thorough understanding of the safety
precautions and of how it works. Review the safety instructions with all users annually.
6. This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a responsible,
properly trained and physically able person familiar with machinery and trained in this equipment's operations. If the
elderly are assisting with work, their physical limitations need to be recognized and accommodated.
7. Never exceed the limits of a piece of machinery.
8. If its ability to do a job, or to do so safely, is in question - DON'T TRY IT.
9. Do not modify the equipment in any way. Unauthorized modification may result in serious injury or death and may impair
the function and life of the equipment.

www.tmgindustrial.com 5 / 16 TOLL FREE: 1-877-761-2819
10. In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment, hazard control
and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved
in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation
instruction in each of the appropriate sections of the skid steer and machine manuals. Pay close attention to the Safety
Signs affixed to the skid steer and the machine.
Safety Training
1. Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe
equipment can be wiped out by a single careless act of an operator or bystander.
2. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the
awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and
storage of this equipment.
3. It has been said, "The best safety feature is an informed, careful operator." We ask you to be that kind of an operator. It is
the operator's responsibility to read and understand ALL Safety and Using instructions in the manual and to follow these.
Accidents can be avoided.
4. If this machine is used by any person other than yourself, or is loaned or rented, it is the machine owner's responsibility to
make certain that the operator, prior to using:
a. Reads and understands the operator's manuals.
b. Is instructed in safe and proper use.
5. Know your controls and how to stop the skid steer tractor and machine quickly in an emergency. Read this manual and the
one provided with skid steer tractor.
6. Train all new personnel and review instructions frequently with existing workers. Be certain only a properly trained and
physically able person will use the machinery. A person who has not read and understood all using and safety instructions
is not qualified to use the machine. An untrained operator exposes himself and bystanders to possible serious injury or
death. If the elderly is assisting with the work, their physical limitations need to be recognized and accommodated.
Safety Signs
1. Always keep safety signs clean and legible.
2. Replace safety signs that are missing or have become illegible.
3. Replaced parts that displayed a safety sign should also display the current sign.
4. Safety signs have a part number in the lower righthand corner. Use this part number when ordering replacement parts.
5. Safety signs are available from your authorized Distributor or Dealer Parts Department or the factory.

www.tmgindustrial.com 6 / 16 TOLL FREE: 1-877-761-2819

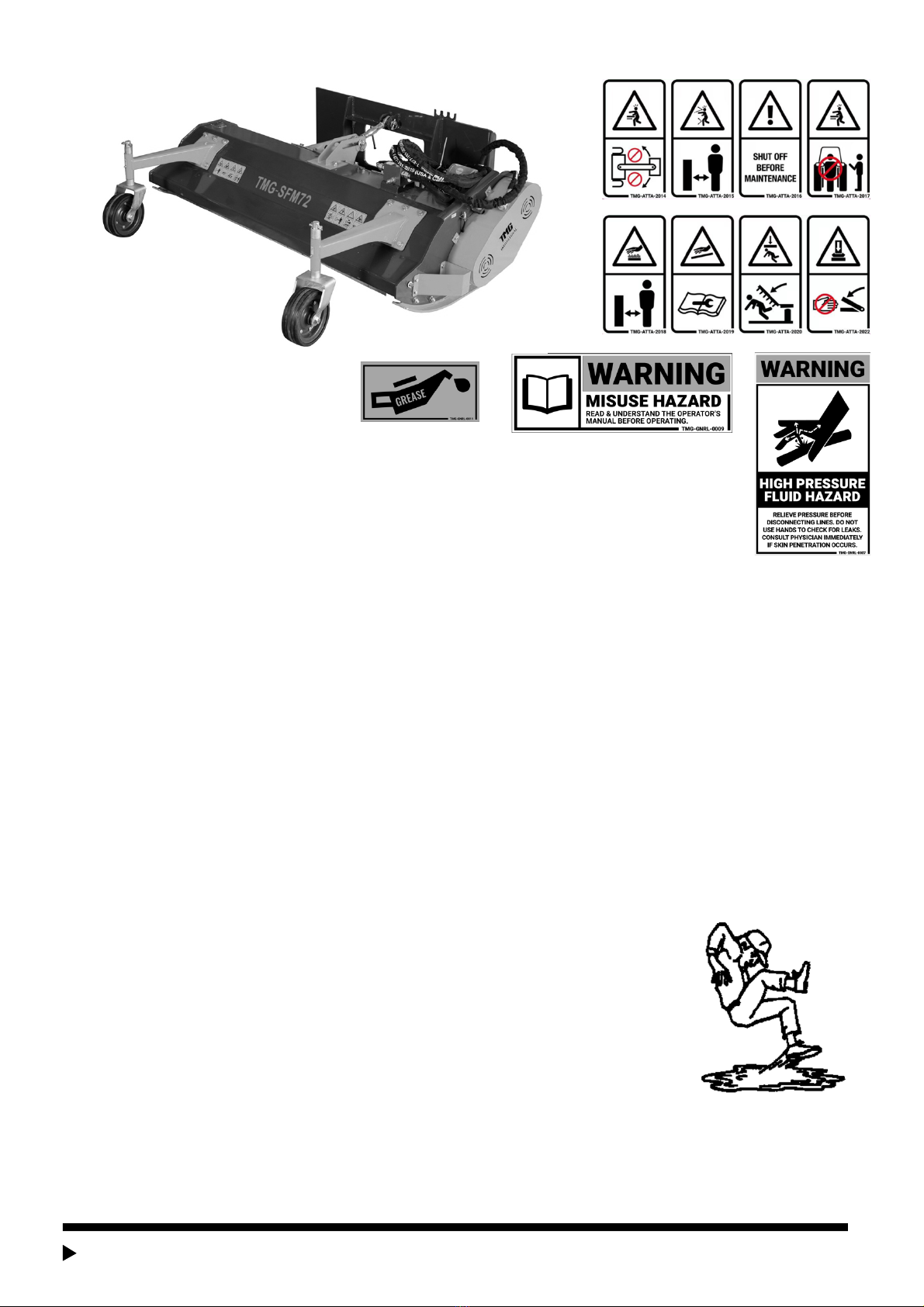

Safety Decals
Preparation
1. Never use the machine until you have
read and completely understand this manual, the skid steer tractor Operator's Manual and each of the
Safety Messages found on the safety signs on the skid steer tractor and machine.
2. Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are
recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, cleaning, or moving
the unit. Do not allow long hair, loose fitting clothing or jewelry to be around equipment.
3. PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS!
Power equipment with or without equipment attached can often be noisy enough to cause permanent, partial hearing loss. We
recommend that you wear hearing protection on a full-time basis if the noise in the Operator's position exceeds 80db. Noise
over 85db on a long-term basis can cause severe hearing loss. Noise over 90db adjacent to the Operator over a long-term basis
may cause permanent, total hearing loss. NOTE: Hearing loss from loud noise (from tractors, chain saws, radios, and other
such sources close to the ear) is cumulative over a lifetime without hope of natural recovery.
4. Clear working area of stones, branches or hidden obstacles that might be hooked or snagged, causing injury or damage.
5. Use only in daylight or good artificial light.
6. Be sure machine is properly mounted, adjusted and in good operating condition.
7. Ensure that all safety shielding, and safety signs are properly installed and in good condition.
Maintenance Safety
1. Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.

www.tmgindustrial.com 7 / 16 TOLL FREE: 1-877-761-2819
2. Follow good shop practices.
a) Keep service area clean and dry.
b) Be sure electrical outlets and tools are properly grounded.
c) Use adequate light for the job at hand.
3. Make sure there is plenty of ventilation. Never operate the engine of the towing vehicle in a closed building. The exhaust
fumes may cause asphyxiation.
4. Before working on this machine, shut off the engine, set the brake, and turn fuel valve off.
5. Never work under equipment unless itis blocked securely.
6. Always use personal protection devices such as eye, hand and hearing protectors, when performing any service or
maintenance work. Use heavy or leather gloves when handling blades.
7. Where replacement parts are necessary for periodic maintenance and servicing, genuine factory replacement parts must
be used to restore your equipment to original specifications. The manufacturer will not be responsible for injuries or
damages caused by use of unapproved parts and/or accessories.
8. A fire extinguisher and first aid kit should be kept readily accessible while performing maintenance on this equipment.
9. Periodically tighten all bolts, nuts and screws and check that all electrical and fuel connections are properly secured to
ensure unit is in a safe condition.
10. When completing a maintenance or service function, make sure all safety shields and devices are installed before placing
unit in service.
Hydraulic Safety
1. Make sure that all the components in the hydraulic system are kept in good condition and are clean.
2. Before applying pressure to the system, make sure all components are tight, and that lines, hoses and couplings are not
damaged.
3. Do not attempt any makeshift repairs to the hydraulic lines, fittings, or hoses by using tapes, clamps or cements. The
hydraulic system operates under extremely high pressure. Such repairs will fail suddenly and create a hazardous and
unsafe condition.

www.tmgindustrial.com 8 / 16 TOLL FREE: 1-877-761-2819
4. Wear proper hand and eye protection when searching for a high-pressure hydraulic leak. Use a piece of wood or cardboard
as a backstop instead of hands to isolate and identify a leak.
5. If injured by a concentrated high-pressure stream of hydraulic fluid, seek medical attention immediately. Serious infection
or toxic reaction can develop from hydraulic fluid piercing the skin surface.
6. Relieve pressure on hydraulic system before maintaining or working on system.
Transport Safety
1. Comply with state and local laws governing safety and transporting of machinery on public roads.
2. Check that all the lights, reflectors and other lighting requirements are installed and in good working condition.
3. Do not exceed a safe travel speed. Slow down for rough terrain and cornering.
4. Do not drink and drive.
5. Be a safe and courteous driver. Always yield to oncoming traffic in all situations, including narrow bridges, intersections,
etc. Watch for traffic when operating near or crossing roadways.
To the New Operator or Owner
Follow all safety instructions exactly. Safety is everyone's business. By following recommended procedures, a safe working
environment is provided for the operator, bystanders, and the area around the worksite. Untrained operators are not qualified to
operate the machine.
Many features incorporated into this machine are the result of suggestions made by customers like you. Read this manual
carefully to learn how to use the chipper safely and how to set it to provide maximum field efficiency. By following the using
instructions in conjunction with a good maintenance program, your Skid Steer Flail Mower will provide many years of trouble-
free service.
OPERATION

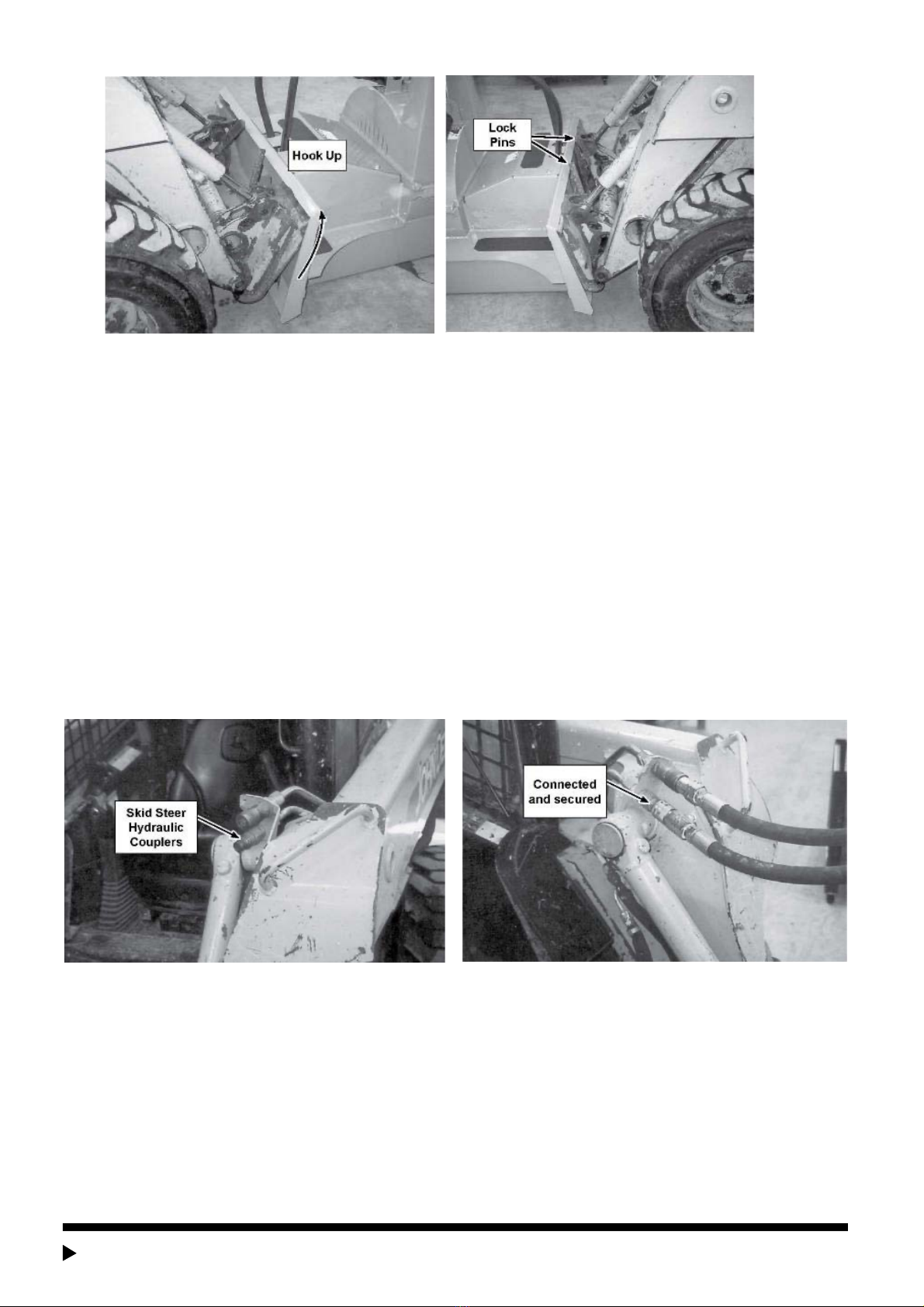

Hydraulic Connections & Mounting
The machine is shipped from the factory in a basic, universal configuration that allows it to be mounted to any model skid
steer. However, the skid steer must be equipped with a remote hydraulic outlet on the front of the cab frame.
The Flail Mower should always be located on a level, dry area that is free of debris and other foreign objects. When attaching
the Flail Mower to a skid steer, follow this procedure:
1. Make sure that all bystanders, especially small children are clear of the work area.
2. Make sure there is enough room and clearance to safely drive up to the Flail Mower.

www.tmgindustrial.com 9 / 16 TOLL FREE: 1-877-761-2819
3. Drive up to the Flail Mower while aligning the mounting components, and hook up into the mount.
4. Secure the mounting:
a. Drive into the mounting frame.
b. Seat the top of the face plate into the frame of the Flail Mower.
c. Raise the loader and tilt the face plate until it is fully mated.
5. Engage the lock pins to secure the Flail Mower to the loader.
6. Connect the hydraulics:
7. Use a clean rag or paper towel to clean the dirt from the couplers on the hose ends of the skid steer.
a. Connect the hoses to the skid steer couplers. Be sure the couplers are securely seated.
b. Route and secure the hoses along the frame with clips, tape or plastic ties to prevent binding and pinching. Be sure to
provide slack for tilting.
8. Raise the Flail Mower.
9. Check that all hydraulic connections and locks are secure before beginning work.
Reverse the above procedure when unhooking.
Place planks or boards under the frame for extra support if required.

www.tmgindustrial.com 10 / 16 TOLL FREE: 1-877-761-2819
MAINTENANCE
Before Every Use
Check that all fasteners (nuts, bolts, pins, keepers) are in their right place and are tight. Inspect and replace any worn, torn or
missing safety decals. Investigate the location of any oil leaks and repair.
Lubricate all joints with lithium grease.
Every Week
Check the condition of the blades. Order parts if the cutting edge or points are becoming worn and replace as soon as possible.
After Every Season
Inspect the implement for any loose or worn parts that may need to be replaced prior to the next season.
Visually inspect the blade edge. Replace, if necessary.
Clean, sand & repaint any area that looks worn or scratched to prevent further rusting. Use an equipment-paint found at your
local hardware store or building center.
Replace any warning decals that have been lost or damaged.
Store your implement in a shed or cover with a water-proof tarp to protect it from the weather. Store in an area not frequented
by children.
WARNING!
To avoid an accident that could result in Death or Serious Injury, never find yourself in a position where any body part is located
under an unsupported blade or frame when servicing this attachment.
WARNING!
Hazardous dust can be generated if painted surfaces are heated or welded and could result in death or Serious Injury. Remove
paint before welding and always make repairs in a well-ventilated area and wear an approved respirator.
Hydraulic System
WARNING!
A small stream of oil from a pinhole leak could penetrate your skin if contacted. To avoid an accident that could result in Death
or Serious Injury, never use your hand or other body parts in an attempt to locate a hydraulic leak.
NOTICE!
Always release the hydraulic system pressure from the hydraulic circuits prior to removing the attachment or any hydraulic
system service work.
Bolt Torque
CHECKING BOLT TORQUE

www.tmgindustrial.com 11 / 16 TOLL FREE: 1-877-761-2819
The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the torques specified
in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace hardware with
the same strength bolt.
Torque figures indicated above are valid for non-greased or non-oiled threads and heads unless otherwise specified. Therefore,
do not grease or oil bolts or cap screws unless otherwise specified in this manual. When using locking elements, increase
torque values by 5%.
* Torque value for bolts and cap screws are identified by their head markings
SPECIFICATION
Specifications & Capacities
• Universal skid steer style hookup
• Chipping capacity: 2"
• Max hydraulic pressure: 2900 psi
• Hydraulic flow rate: 18-23GPM
• Total width: 72"
• Cut width:67”
• Number of knives:28
• Shipping weight: 890lbs

www.tmgindustrial.com 12 / 16 TOLL FREE: 1-877-761-2819
PARTS LIST
TMG-SFM72 Flail Mower Assembly

www.tmgindustrial.com 13 / 16 TOLL FREE: 1-877-761-2819
Part No.
Ref.
Part Description
QTY
1
GB/T 5782
Bolt M16*120
2
2
GB/T 97.1
Washer 16
3
3
LM180.27
Bushing
4
4
LM180.25
Bushing for wheel
2
5
LM180.10
Wheel Φ220*75
2
6
GB/T 6182
LOCK NUT M16
2
7
WLF130.4
Axle adjusting sleeve 02
2
8
WLF130.3
Axle adjusting sleeve 01
2
9
JB／T 7940.1-1995
Greaser M8
4
10
WLF130.2
Wheel arm weldment
2
11
DIN 11023
LOCK PIN
6
12
WLF130.1
Wheel fork weldment
2
13
GB/T 5783
Bolt M12*35
14
14
GB/T 93
SPRING WASHER 12
42
15
GB/T 97.1
Washer 12
57
16
GB/T 91
Pin 3.2*22
2
17
GB/T 97.1
Washer 10
22
18
EFGC175.24B
Wide fender
1
19
WLF130.6
Shaft bar
1
20
EFGC175.24B
Wide fender
15
21
EFGC175.24B
Wide fender
1
22
GB/T 5783
Bolt M12*35
14
23
GB/T 6182
LOCK NUT M12
10
24
WLF130.8
Skid shoes weldment ( R )
1
25
GB/T 5783
Left cover
1
26
GB/T 97.2
Blade axle weldment
1
27
LM180.27
LOCK NUT M12*1.5
28
28
LM180.25
Hammer
28
29
LM180.10
Bolt M12*1.5*50
28
30
GB/T 6183
Skid shoes weldment ( R )
1
31
WLF130.2
Right cover
1
32
WLF130.1
Bolt M8*16
3
33
JB／T 7940.1-1996
SPRING WASHER 8
11
34
WLF130.3
Washer 8
13
35
DIN 11024
Belt cover
1
36
WLF130.2
Sleeve REACH 04
2
37
GB/T 5597
Small pulley
1
38
EFGC155.31
Big pulley
1
39
GB/T 11544
Belt SPB1016
3
40
GB/T 5783
Bolt M12*50
8

www.tmgindustrial.com 14 / 16 TOLL FREE: 1-877-761-2819
Part No.
Ref.
Part Description
QTY
41
GB/T 5783
Bolt M8*25
8
42
WLF130.9
Protection Plate 01
1
43
WLF130.26
Bushing
1
44
M6X1-6X4
Lock nut connector
2
45
WLF130.25
Pipe for grease Φ6*Φ4
1
46
WLF130.24
Tension rollers assemble
1
46-1
WLF130.24.1
Tension plate weldment
1
46-2
WLF130.24-2
Tension Roller
1
46-3
GB/T 276
Bearing 6005-Z
2
46-4
WLF130.24-3
Washer
1
46-5
GB/T 5783
Bolt M12*30
1
47
GB/T 6170
NUT M12
3
48
WLF170.5
FRAME WELDMENT
1
49
JB/T 7940.1
Grease nipple M6
2
50
GB/T 5783
Bolt M12*35
8
51
WLF130.29
Low linkage weldment
2
52
WLF130.22 A
Up linkage pin
2
53
GB/T 97.1
Washer 16
4
54
WLF130.18
Up linkage weldment
1
55
WLF130.21A
Low linkage pin
1
56
GB/T 7810
Bearing UCFU207
2
57
WLF130.10
Protection Plate 02
1
58
WLF130.30
Coupling
1
59
GB/T 6170
NUT M12
8
60
GB/T 70.1
Hex Bolt M12*45
4
61
GB/T 70.1
Hex Bolt M12*50
4
62
GB/T 6170
NUT M8
2
63
CMGh2025-BFΦS
Gearbox motor
1
64
GB/T 5783
Bolt M8*55
2
65
WLF130.27
Hydraulic components
1
66
WLF130.28
Valve
1
67
WLF-HY.00
Skid steer linkage
1
68
WLF130.19
Spherical Connecting rod
1
69
WLF130.145
Left connection plate
1
70
GB/T 70.3
BOLT HEX M8*25
10
71
GB/T 6182
NUT M8
2
72
GB/T 7810
Bearing UC205
2
73
WLF130.16
Rear Roller
1
74
WLF130.14
Right connection plate
1
75
WLF130.17
Scraper
1

www.tmgindustrial.com 15 / 16 TOLL FREE: 1-877-761-2819

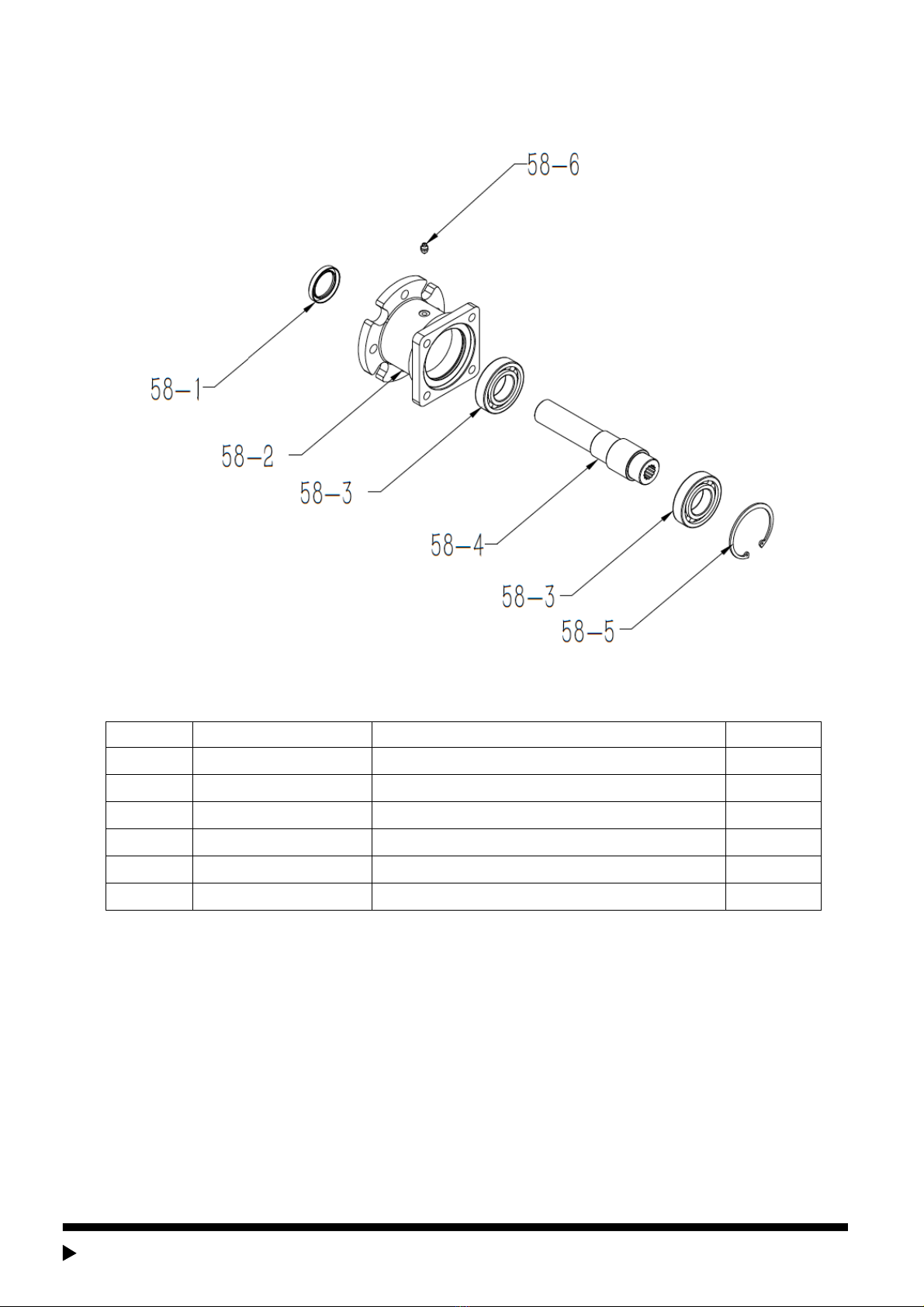

TMG-SFM72 Coupling Assembly
Part No.
Ref.
Part Description
QTY
58-1
GB/T 1387.1
Oil seal 40*55*8
1
58-2
LM180.17-1
Coupling housing
1
58-3
GB/T 276
Bearing 6208-Z
2
58-4
WLF130.30-1
Coupling shaft
1
58-5
GB/T 893.1
Circlip 80
1
58-6
JB／T 7940.1-1995
Greaser M8
1

www.tmgindustrial.com 16 / 16 TOLL FREE: 1-877-761-2819
TMG-SFM72 Hydraulic components
Part No.
Ref.
Part Description
QTY
65-1
LM180.26-1
Connector 01
2
65-2
AS 568
O RING Φ32.92*3.53
2
65-3
GB/T 5862
FLAT FACED COUPLERS G1/2 MALE
1
65-4
GE15LRED
Connector 02
6
65-5
WLF130.27-1
Hydraulic hose: Length:2000mm
1
65-6
GE10SRED
Connector 03
2
65-7
GB/T 5862
FLAT FACED COUPLERS G3/8 FEMALE
1
65-8
WLF130.27-2
Hydraulic hose: Length:2200mm
1
65-9
GB/T 70.1
BOLT HEX M10*30
8
65-10
GB/T 97.1
Washer 10
8
65-11
WLF130.27-3
Hydraulic hose: Length:2000mm
1
65-12
WLF130.27-4
Hydraulic hose: Length:1200mm
1
65-13
WLF130.27-5
Hydraulic hose: Length:500mm
1
65-14
GB/T 5862
FLAT FACED COUPLERS G1/2 FEMALE
1
