TMG TMG-SCM61 User manual
61-
IN SKID STEER
Please read the product manual completely before assembly Check
against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1
Do not return the product to dealer, they are not equipped to handle your
requests
WWW.TMGINDUSTRIAL.COM
IN SKID STEER
CONCRETE MIXER
PRODUCT
MODEL:
Please read the product manual completely before assembly Check
against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1
-877-761-2819 or email:
cs@tmgindustrial.com
Do not return the product to dealer, they are not equipped to handle your
requests
WWW.TMGINDUSTRIAL.COM
Toll Free:1
-
CONCRETE MIXER
PRODUCT
MANUAL
TMG-SCM61
Please read the product manual completely before assembly Check
against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
cs@tmgindustrial.com
Do not return the product to dealer, they are not equipped to handle your
-
877-761-2819
TABLE OF CONTENTS
TO THE OWNER..................................................................................................................................2/14
SAFETY PRECAUTIONS.....................................................................................................................3/14
CONCRETE MIXER ASSEMBLY..........................................................................................................7/14
OPERATION INSTRUCTIONS.............................................................................................................11/14
MAINTENANCE INSTRUCTIONS.......................................................................................................12/14
STORAGE INSTRUCTIONS................................................................................................................13/14
SPECIFICATIONS................................................................................................................................14/14
W W W . T M G I N D U S T R I A L . C O M P 1 / 1 4 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
TO THE OWNER
GENERAL COMMENTS
Congratulations for having this concrete mixer! Your concrete mixer was
carefully designed and manufactured to give you years of dependable service.
Your concrete mixer will require some minor maintenance(such as cleaning
and lubricating) to keep it in top working condition.
Be sure to observe all safety precautions and maintenance procedures as
described in this manual.
ABOUT THIS MANAL
This manual has been designed to help you do a better and safer job. Read this
manual carefully and become familiar with its contents. Remember, never let
anyone operate this unit without reading the "Safety Precautions" and
"Operation Instructions" sections of this manual. Unless noted otherwise, right
and left sides are determined from the position of the skid steer operator sitting
in the seat facing forward.
SERVICE
When service your concrete mixer, pls. remember to use only manufacturer
replacement parts. Substitute parts may not meet the standards required for
safe, dependable operation. To facilitate parts ordering, pls. record the model
No. and serial No. of the metal plate on your unit.
W W W. T M G I N D U S T R I A L . C O M P 2 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
SAFETY PRECAUTIONS
The concrete mixers are designed to be easy to use and maintain. They are
operated by the skid steer auxiliary hydraulics. The concrete mixers mount to
the toolbar or quick attach mechanism for easy mounting.
BEFORE OPERATION
1. The operator must read the operation manual carefully before installation,
operation or maintenance. Improper operation will cause the machine damaged
or the operator dead.
2. Read all the safe signs and safe declarations. Obey all the professional safe
terms, local laws or the professional directions.
3. Familiar with the concrete mixer about functions, specs and operation.
Replace the to-be-damaged parts in time. Make sure all the hydraulic
installations and couplings connect firmly, and all the safe signs stick on the
suitable positions clearly.
TO THE OPERATOR
WARNING! PROTECT AGAINST FLYING DEBRIS
Always wear proper safety glasses, goggles, or a face shield when
driving pins in or out, or when any operation causes dust, flying debris,
or any other hazardous material.
2. Don’t modify the concrete mixer casually.
3. Should keep the machine on the flat ground when repair, far away from the
transportation and other dangerous places.
4. Should use the right tools to repair.
5. Don’t operate the machine, unless you are professional, have certificates,
and familiar with its functions, specs and safe operation rules.
6. Must not leave the machine when the machine is running. Must stop the
engine at first and then remove the key if want to leave.
W W W . T M G I N D U S T R I A L . C O M P 3 / 1 4 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
SAFETY PRECAUTIONS

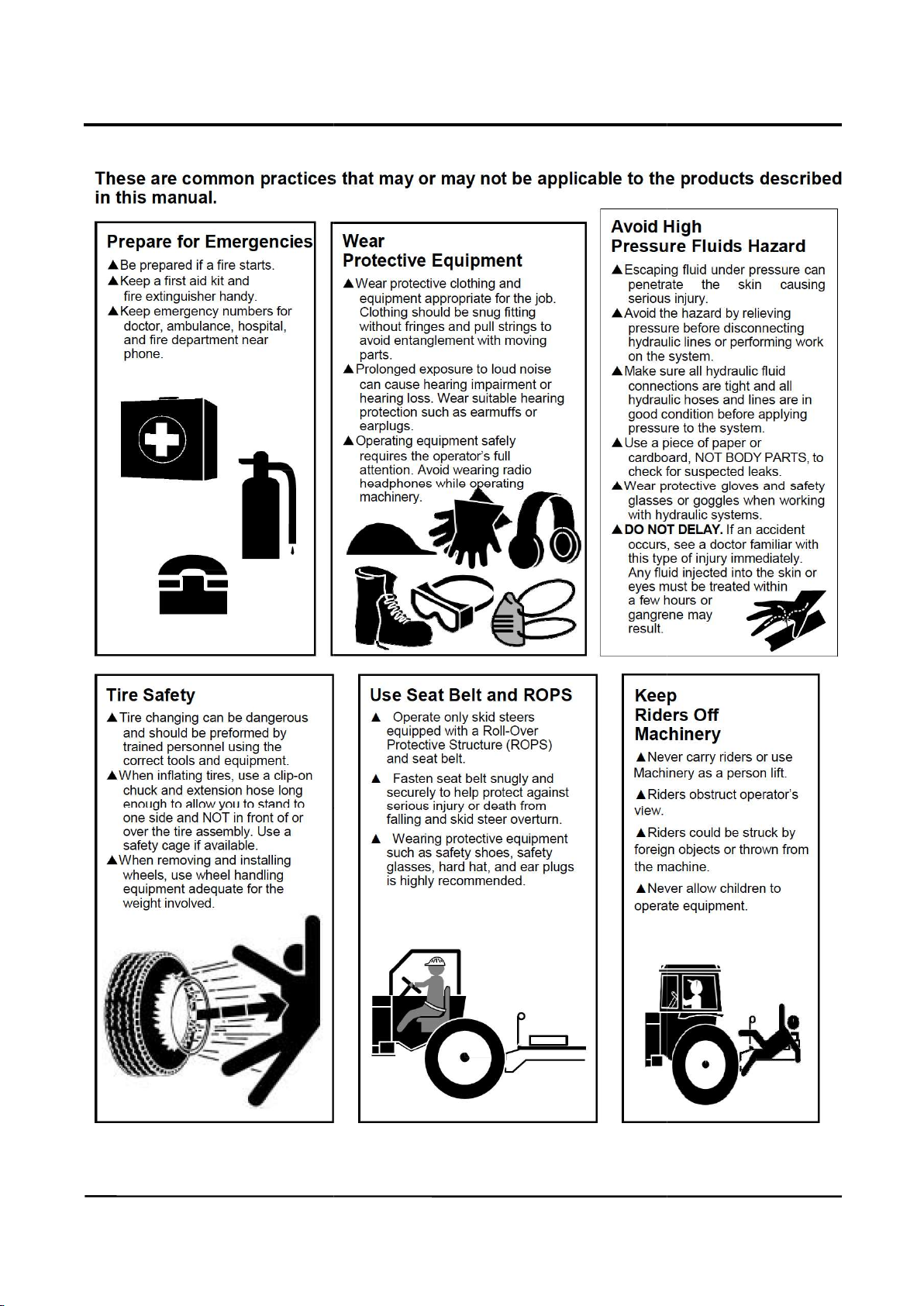

These are common practices that may or may not be applicable to the
products described in this manual.
W W W. T M G I N D U S T R I A L . C O M P 4 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
SAFETY PRECAUTIONS
W W W. T M G I N D U S T R I A L . C O M
SAFETY PRECAUTIONS
W W W. T M G I N D U S T R I A L . C O M
P 5 / 1 4 T o l l F r e e : 1
-
-
877-761-2819
SAFETY PRECAUTIONS
W W W. T M G I N D U S T R I A L . C O M
SAFETY PRECAUTIONS
W W W. T M G I N D U S T R I A L . C O M
P 6 / 1 4 T o l l F r e e : 1
-
-
877-761-2819
CONCRETE MIXER ASSEMBLY
W W W. T M G I N D U S T R I A L . C O M P 7 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
CONCRETE MIXER ASSEMBLY
PART NO.
S/N NUMBER
PART DESCRIPTION QTYS
NOTE
1 0310L04.01 BUCKET BODY 1
2 0310L04.04 FENCE 1
3 0310L04.02 COVER 1
4 GB5783-2000
BOLT M16X40 1
5 GB93-1987 SPRING WASHER D16 5
6 GB97.1-2000 FLAT WASHER D16 5
7 0310L04.05-01
SPROCKET PRESSING PLATE 1
8 0310L04.05-02
BIG SPROCKET 1
9 0310L04.05-04
ROTATING SHAFT 1
10 55*70-40 BEARING 1
11 GB5783-2000
BOLT M10X25 8
12 GB93-1987 SPRING WASHER D10 16
13 GB97.1-2000 FLAT WASHER D10 8
14 0310L04.05.01
BEARIGN MOUNTING SEAT 1
15 0310L04.05-03
RUBBER PLATE 2
16 B55*72-8 ROTARY LIP SEAL 2
17 GB5782-2000
BOLT M20X130 2
18 GB6128-2000
LOCK NUT M20 2
19 0310L04.05.02
MIXING SHAFT 1
20 0310L04.05-05
DRIVEN SHAFT 1
21 0310L04.05-06
END CAP 1
22 GB70.3-2000 HEXAGON SOCKET HEAD CAP SCREW M10X25 8
23 GB7810-1995
UCFC210 1
W W W. T M G I N D U S T R I A L . C O M P 8 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
CONCRETE MIXER ASSEMBLY
PART NO.
S/N NUMBER
PART DESCRIPTION QTYS
NOTE
24 0310L04.05-07
PRESSING PLATE 1
25 GB5783-2000
BOLT M8X25 2
26 GB93-1987 SPRING WASHER D8 2
27 GB97.1-2000 FLAT WASHER D8 2
28 GB5783-2000
BOLT M16X50 4
29 GB5789-2000
BOLT M8X16 6
30 0310L04.07-01
CONNECTING ROD 2
31 GB5783-2000
BOLT M12X40 2
32 GB97.1-2002 FLAT WASHER D12 2
33 GB6128-2000
LOCK NUT M12 2
34 0310L04.07.04
DISCHARGE PLATE 1
35 0310L04.07-02
NYLON PLATE 2
36 GB5783-2000
BOLT M8X25 6
37 GB97.1-2002 FLAT WASHER D8 6
38 GB93-1987 SPRING WASHER D8 6
39 0310L04.07.02
LOCK GATE 1
40 0310L04.07.01
PRESSING PLATE 2
41 0310L04.07.03
HANDLE 1
42 GB97.1-2002 FLAT WASHER D24 2
43 GB91-2000 SPLIT PIN D5X60 2
44 GB5783-2000
BOLT M10X25 2
45 GB97.1-2002 FLAT WASHER D10 2
46 GB93-1987 SPRING WASHER D10 2
47 GB5783-2000
BOLT M16X70 2
48 GB97.1-2002 FLAT WASHER D16 2
49 GB6128-2000
LOCK NUT M16 2
50 GB6170-2000
NUT M16 10
51 GB5783-2000
BOLT M16X120 2
W W W. T M G I N D U S T R I A L . C O M P 9 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
CONCRETE MIXER ASSEMBLY
W W W. T M G I N D U S T R I A L . C O M P 1 0 / 1 4 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
PART NO.
S/N NUMBER PART DESCRIPTION QTYS NOTE
52 F381CACA101005-2000
OIL HOSE 1
53 F381CACF181810-2000
OIL HOSE 2
54 IE18LM33X2ED JOINT 2
55 IE10LM14X1.5ED JOINT 1
56 F6KW MOTOR 1
57 GB5783-2000 BOLT M16X65 4
58 GB93-1987 SPRING WASHER D16 4
59 GB97.1-2000 FLAT WASHER D16 8
60 0310L04.03-02 BIG SPROCKET 1
61 0310L04.03-01 PRESSING PLATE 1
62 GB5783-2000 BOLT M12X35 1
63 GB93-1987 SPRING WASHER D12 5
64 GB97.1-2000 FLAT WASHER D12 5
65 0310L04.03.01 MOTOR MOUNTING BASE 1
66 GB5783-2000 BOLT M12X45 4
OPERATION INSTRUCTIONS
The concrete mixer has the lateral discharge hole with manual opening.
It can help to realize much more quickness and high efficiency to discharge the
material. Attach the concrete mixer to the toolbar or quick attach mechanism of
your skid steer loader.
RAISING OR LOWERING THE CONCRETE MIXER
raise or lower the concrete mixer by raising or lowering the skid steer loader
arms through their appropriate skid steer controls.
THEORY OF OPERATION
The mixing shaft rotates around its axis generating a convective movement of
the material, which is therefore perfectly mixed due to the special design of the
auger flights. Connected through a chain drive, and orbital hydraulic motor
transfers motion to the shaft. The material is constantly pushed toward the left
side where it can be discharged through the lateral discharge hole with manual
opening.
The capacity of mixing material is up to rated lifting capacity of the skid steer
loader and the concrete weight per cubic meter.
PAY ATTENTION TO THE FORBIDDEN ITEMS
- Mix the asphalt.
-Mix the material with a diameter over 20mm.
-Any kind of grinding activity.
-Use the mixer to dig, tow, pull or tear.
-Put hands inside the mixer or slide tools into the mixer during operation.
-Remove the protection of the grill
W W W. T M G I N D U S T R I A L . C O M P 1 1 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
MAINTENANCE INSTRUCTIONS
1. Always keep the clean hydraulic oil, keep the hose joint clean, if the
hydraulic oil is mixed with dirt, it will possibly cause the whole operation
system abnormally.
2. Daily check all hydraulic lines, make sure the connection of the hydraulic
line good, the pipe without distortion, wear, cracking, no loose joint to leak.
3. Daily inspect the concrete mixer oil level, and refuel timely.
4. Daily inspect all parts of the machine, make sure all the parts are
connected stably and reliably.
5. If the paint off or damage, repaint timely, to prevent rust.
6.The gear chain should be lubricated every 3 months.
W W W. T M G I N D U S T R I A L . C O M P 1 2 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
STORAGE INSTRUCTIONS
1. Clean all the debris, all mud, dirt and grease.
2. Inspect the unit for bent, loose, cracked, damaged or missing parts, Order
any parts required, and make the necessary repairs to avoid delays when
starting next season.
3. Tighten all loose nuts, bolts, screws and hydraulic connections.
4. Touch up all the unpainted and exposed areas with paint to prevent rust.
5. Replace security labels and tags if damaged, or in unreadable condition.
6. Connect the hydraulic couplers together or use the oil nuts to block the
hydraulic hoses.
7. Check the motor for proper lubricant level.
8. Should put the device in the dry non-corrosive place. If in nude outside, will
shorten its life.
W W W . T M G I N D U S T R I A L . C O M P 1 3 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
SPECIFICATIONS
MODEL TMG-SCM61
TOTAL LENGTH (MM) 1100
TOTAL WIDTH (MM) 1875
TOTAL HEIGHT (MM) 1100
TOTAL WEIGHT (KGS) 450
BUCKET CAPACITY (CBM) 0.45
SYSTEM FLOW (L/MIN) 60-110
MAX. PRESSURE (MPA) 16-21
DISCHARGING MATERIAL FORM FRONT OR SIDE DISCHARGING
W W W . T M G I N D U S T R I A L . C O M P 1 4 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
