INSTALLATION MANUAL
ACTIVE LINE ARRAY SPEAKER SYSTEMS
SR-D8-M, SR-D8-S
Optional products
WALL MOUNTING ADAPTER SR-D8CS
WALL MOUNTING ADAPTER SR-D8CL
EXTENSION PLATE SR-D8EP
WALL MOUNTING BRACKET SR-D8WB
HOISTING BRACKET SR-D8HB
FIXING BAR SR-D8FB
Thank you for purchasing TOA’s Active Line Array Speaker System.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

2
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS ........................................... 3
2. SAFETY PRECAUTIONS ............................................................................. 4
3. GENERAL DESCRIPTION .......................................................................... 6
4. FEATURES ............................................................................................................ 6
5. INSTALLATION PRECAUTIONS ............................................................. 7
6. HANDLING PRECAUTIONS ...................................................................... 7
7. NOMENCLATURE AND FUNCTIONS ................................................. 8
8. BRACKETS ......................................................................................................... 11
9. COMMUNICATIONS BETWEEN PC AND SPEAKERS ......... 12
10. CONNECTIONS ............................................................................................. 13
10.1. Connection Example 1 (CobraNet Connection) ................................................ 13
10.2. Connection Example 2 (CobraNet Connection, 4-Unit Configuration) ............. 14
10.3. Connection Example 3 (Analog Line Connection) ............................................ 15
10.4. Connection Example 4 (Maximum System) ...................................................... 16
10.5. Removable Terminal Plug Connection .............................................................. 18
10.6. Fixing Power Supply Cord ................................................................................. 19
10.7. System Expansion Using CobraNet Connection ............................................... 20
11. INSTALLATION .............................................................................................. 24
11.1. Installing a Single SR-D8-M Unit ....................................................................... 24
11.2. Installing SR-D8-M and SR-D8-S(s) in multi-unit configuration ........................ 26
11.3. Angle Adjustment .............................................................................................. 31
12. DIMENSIONAL DIAGRAMS .................................................................. 33
12.1. SR-D8-M, SR-D8-S Active Line Array Speaker Systems ................................. 33
12.2. Brackets ............................................................................................................ 33
13. SPECIFICATIONS ........................................................................................ 35
13.1. SR-D8-M, SR-D8-S Active Line Array Speaker Systems ................................. 35
13.2. Brackets ............................................................................................................ 36

3
1. IMPORTANT SAFETY INSTRUCTIONS
• Readtheseinstructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.

4
When Installing the Unit
• This apparatus must be securely attached to the
wall per installation instructions. Tipping , shaking,
or rocking the machine may cause injury/death.
• Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
asdoingsomayresultinreorelectricshock.
• Use the unit only with the voltage specied on
the unit. Using a voltage higher than that which is
speciedmayresultinreorelectricshock.
• Do not cut, kink, otherwise damage nor modify
the power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects -- including the unit itself -- on
the power cord, as doing so may result in re or
electric shock.
• Theapparatusshallbeconnectedtoamainssocket
outlet with a protective earthing connection.
• The socket-outlet shall be installed near the
equipment and the plug (disconnecting device)
shall be easily accessible.
• Referallhoistingworktothedealerfromwhomthe
speaker was purchased. Hoisting work requires
extensive technical knowledge and experience.
The speaker may fall off if incorrectly installed,
resulting in possible personal injury.
• HoistingworkPrecautions
Be sure to follow the instructions below. Otherwise,
the hoisting wires or belts may be off or snap and
the speaker may fall off, causing personal injury.
· Use the SR-D8HB Hoisting Bracket for hoisting
the speaker.
· Checktoconrmthatthehoistingwiresandbelts
are strong enough to withstand the speaker load.
· The hoisting wires and belts must be securely
connected to the speaker.
· All parts and components (such as enclosures,
metal pieces, and bolts) must be free from any
deformation, crack, and corrosion.
• Installtheunitonlyinalocationthatcanstructurally
support the weight of the unit and the mounting
bracket. Doing otherwise may result in the unit
falling down and causing personal injury and/or
property damage.
• Donotusethisspeakerinayinginstallation.
Never use the eyebolt mounted on top of the
speaker stack (multi-unit line array) for the purpose
of permanent installation. Be sure to use the eyebolt
only for hoisting work.
Failure to observe the instructions may result in the
unit falling down, and causing personal injury.
• Installtheunitonthewalltiltingwithin30°.
Doing otherwise may result in the unit falling down,
and causing personal injury.
• Neveradjustthespeakerangletotheleftorright
when the unit is installed facing up or down. Doing
so may cause the unit to move unexpectedly or fall
down, resulting in personal injury.
• Since the unit is designed for indoor use, do not
install it outdoors. If installed outdoors, the aging of
parts causes the unit to fall off, resulting in personal
injury. Also, when it gets wet with rain, there is a
danger of electric shock.
• Owingtotheunit’ssizeandweight,besurethatat
least two persons are available to install the unit.
Failure to do so could result in personal injury.
• Donotuseothermethodsthanspeciedtoinstall
30°
30°
2. SAFETY PRECAUTIONS
• Beforeinstallationoruse,be suretocarefullyreadalltheinstructionsinthissection forcorrect and safe
operation.
• Besuretofollowalltheprecautionaryinstructionsinthissection,whichcontainimportantwarningsand/or
cautions regarding safety.
• Afterreading,keepthismanualhandyforfuturereference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual rst and
understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
WARNING
CAUTION
WARNING

5
the unit. Extreme force is applied to the unit and
the unit could fall off, possibly resulting in personal
injuries.
• Attachthesafetywire,strongenoughtowithstand
heavy load, to the unit. If not attached, the unit
could fall off, resulting in personal injury.
• Use nuts and bolts that are appropriate for the
wall’s structure and composition. Failure to do so
may cause the speaker to fall, resulting in material
damage and possible personal injury.
• Tighten each nut and bolt securely. Ensure that
the mounting bracket has no loose joints after
installation to prevent accidents that could result in
personal injury.
• Usethespeciedmountingbracketincombination.
Doing otherwise may cause the unit or component
to fall off, resulting in personal injury.
• Do not mount the unit in locations exposed to
constant vibration. The mounting bracket can be
damaged by excessive vibration, potentially causing
the unit to fall, which could result in personal injury.
When the Unit is in Use
• Donotuseanti-rustlubricant.Ifitcontactsresinor
rubber parts, they could deteriorate and cause the
unit to fall, possibly resulting in personal injury.
• Should the following irregularity be found during
use, immediately unplug the power supply cord and
contact your nearest TOA dealer. Make no further
attempt to operate the unit in this condition as this
maycausereorelectricshock.
· If you detect smoke or a strange smell coming
from the unit.
· If water or any metallic object gets into the unit
· If the unit falls, or the unit case breaks
· If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
· If it is malfunctioning (no tone sounds.)
• Topreventareorelectricshock,neveropennor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
qualiedservicepersonnel.
• Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentallyspillintotheunit,thismaycauseare
or electric shock.
• Donotinsertnordropmetallicobjectsorammable
materials into the ventilation slots in the unit’s rear
and bottom, as this may result in re or electric
shock.
• Donottouchthepowersupplyplugduringthunder
and lightning, as this may result in electric shock.
When Installing the Unit
• Never plug in nor remove the power supply plug
with wet hands, as doing so may cause electric
shock.
• Whenunpluggingthepowersupplycord,besureto
grasp the power supply plug; never pull on the cord
itself. Operating the unit with a damaged power
supplycordmaycauseareorelectricshock.
• Whenmovingtheunit,besuretoremoveitspower
supply cord from the wall outlet. Moving the unit
with the power cord connected to the outlet may
causedamagetothepowercord,resultinginreor
electric shock.
• Donotblocktheventilationslotsintheunit’srear
and bottom. Doing so may cause heat to build up
inside the unit and result in re.Also, periodically
clean the ventilation slots of dust.
• Avoidinstallingtheunitinhumidordustylocations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke
or steam as doing otherwise may result in re or
electric shock.
• When unpacking or moving the unit, be sure to
handle it with two or more persons. Falling or
dropping the unit may cause personal injury and/or
property damage.
• Avoid touching the unit’s sharp metal edge to
prevent injury.
• To avoid electric shocks, be sure to unplug the
power supply cord when making cable connections.
When the Unit is in Use
• Donotplaceheavyobjectsontheunitasthismay
cause it to fall or break which may result in personal
injury and/or property damage. In addition, the
object itself may fall off and cause injury and/or
damage.
• Donot operatetheunitforan extended period of
time with the sound distorting. Doing so may cause
theconnectedspeakerstoheat,resultinginare.
• ContactyourTOAdealerastothecleaning.Ifdustis
allowed to accumulate in the unit over a long period
oftime,areordamagetotheunitmayresult.
• If dust accumulates on the power supply plug or
in the wall AC outlet, a re may result. Clean it
periodically. In addition, insert the plug in the wall
outlet securely.
• UnplugthepowersupplyplugfromtheACoutletfor
safety purposes when cleaning or leaving the unit
unused for 10 days or more. Doing otherwise may
causeareorelectricshock.
• Donotstandorsiton,norhangdownfromtheunit
as this may cause it to fall down or drop, resulting in
personal injury and/or property damage.
• Havetheunitcheckedperiodicallybytheshopfrom
where it was purchased. Failure to do so may result
in corrosion or damage to the unit or its mounting
bracket that could cause the unit to fall, possibly
causing personal injury.
CAUTION

6
3. GENERAL DESCRIPTION
The TOA SR-D8-M and SR-D8-S are all-in-one Active Line Array Speaker Systems, each featuring a CobraNet
digitalaudioinput(SR-D8-Monly),digitalsignalprocessor,digitalpoweramplier,andspeakersconguredin
a line array. Precise control of the speaker’s vertical directivity and acoustic beamwidth makes it possible to
create fully optimized sound spaces in a wide range of locations.
All function settings can be controlled from a remote PC using the supplied SR-D8 PC Software. Equipped with
a primary audio input, the SR-D8-M transmits the audio signal to the secondary SR-D8-S via the SR-D8-M’s
dedicated local link. The local link allows up to 3 SR-D8-S speaker units to be connected in series to one SR-
D8-M, permitting a line array of up to 4 connected speakers (hereinafter, a line array speaker system consisting
ofoneormorespeakersisreferredtoas“stack”)tobecongured.Inacompletesystem,upto4stackscanbe
controlled, making it possible to build systems consisting of up to 16 speakers.
4. FEATURES
• Variablebeamlinearrayspeakerunitequippedwith810cmlow-frequencywoofers,24smallhigh-frequency
tweetersandan8-channel30W(4Ωoutput)digitalpoweramplier.
• Closeverticalarrangementofthesoundsourcespeakerunitscreatesacontinuouslylinearsoundsourcefor
auniformsoundeldwithlessdistanceattenuation.
• Abuilt-insignalprocessorcontrolsthenumberofbeams(amaximumof2beamsperstack),beamangle
(vertical directional angle) and beamwidth.
• Sincetheverticalcoverageareacanbesetandthesounddirectedonlytorequiredareas,soundradiationto
unnecessaryareasisminimizedtosignicantlyreducereverberationandreection.
• Optimalsoundeldscanbecreatedeveninlocationsthatrestrictoptimalspeakermountingangle,position
and height.
• Withtwobeamsofoutput,awidecoverageareacanbesettoextendacrosslongdistances.Conguringa
multi-unit array makes more precise settings possible.
• Asoundleveldistributionsimulationfunctionallowscoverageareastobesetwhilevisuallymonitoringthem.
• LANconnectionpermitsPCcontrolsusingthesuppliedSR-D8PCSoftware.
• TheSR-D8system’smaximumcongurationis4stacks(1stack=1SR-D8-Munit+3SR-D8-Sunits),and
up to 16 speakers can be controlled in synchronization.
• CobraNetensureshigh-qualitysoundtransmission.
Note: CobraNet is a trademark of Cirrus Logic Inc. .

7
5. INSTALLATION PRECAUTIONS
To avoid equipment failures, do not install the speaker in locations exposed to high temperatures or high
humidity, such as indoor swimming pools.
6. HANDLING PRECAUTIONS
• Thesuppliedpowersupplycordisdesignedforexclusiveusewiththisunit.Neveruseitwithotherequipment.
• Installtheunitinlocationswherethetemperatureisbetween0and+40°C(32and104°F)andthemoisture
is less than 90% (no dew condensation must be formed).
• Theunitsareprecisionaudiocomponents.Topreventfailure,avoidlocationswheretheunitmaybeexposed
to strong shocks or vibrations.
• Toclean,besuretofirstremovethepowercordfromtheunit,thenwipewithadrycloth.Whentheunitgets
very dirty, use a cloth damped in a neutral cleanser. Never use benzene, thinner, alcohol, or chemically-
treated cleaning cloth because such volatile liquids could deform or discolor the unit.

8

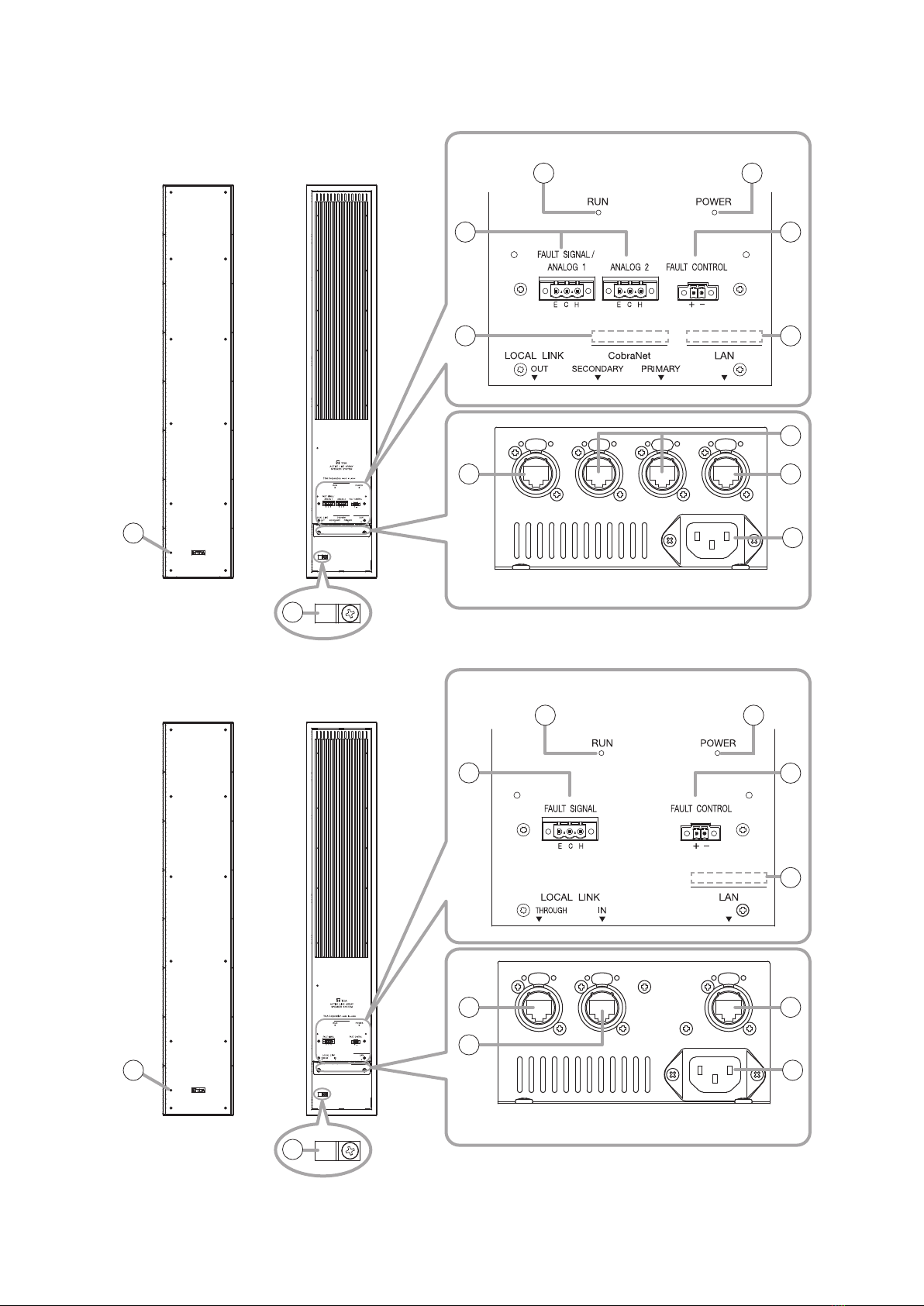

7. NOMENCLATURE AND FUNCTIONS
• SR-D8-M
[Rear] [Rear Terminals]
[Bottom Terminals]
[Front]
[Front] [Rear] [Rear Terminals]
[Bottom Terminals]
15
15
1
1
2 3
4 5
2 3
5
67
7
8
9
10
11
10
11
12
13
14
• SR-D8-S

9
1. Status indicator (green)
Lights when the speaker is placed in fault state*1.
This indicator may light arbitrarily during PC
communication using the SR-D8 PC Software.
*1The state in which audio signal can be directly
input from the Analog 1 input terminal (4) to
adigitalamplierwithoutpassingthroughthe
speaker’s internal CPU by shorting the fault
contact input terminals (5).
2. RUN indicator [RUN] (green)
Flashing: Correct operation of the unit.
Lit or Unlit: Abnormal operation of the unit.
3. Power indicator [POWER] (blue)
Lights when the power is switched ON.
4. Analog input terminals [FAULT SIGNAL/
ANALOG 1, ANALOG 2]
Removable terminal block (3P) with electronically-
balanced inputs.
(H: Hot, C: Cold, E: Ground.)
The ANALOG 1 input terminal can be used to
directly input audio signal to the digital power
amplier,bypassingtheunit’sbuilt-inCPU,when
the Fault contact input terminal (5) is shorted.
Note
Up to 4 units’ terminals can be connected in
parallel.
5. Fault contact input terminal [FAULT CONTROL]
Used when audio output is interrupted due to
failures in the built-in digital signal processor
(DSP) or other circuit.
Shorting between the terminals of removable
terminal blocks (2P) allows audio signals to be
directlyinputtothebuilt-indigitalpoweramplier
from the ANALOG 1 input terminal (4), bypassing
the unit’s built-in DSP.
Therefore, the directivity control (variable beam
function) cannot be performed through the DSP.
Notes
• As this terminal is a no-voltage contact input,
never apply any voltage to it.
• Up to 4 units’ terminals can be connected in
parallel.
6. MAC address (CobraNet)
MAC address for CobraNet.
7. MAC address (CONTROL)
MAC address for the LAN.
8. Local link output terminal [LOCAL LINK OUT]
Outputs signals from SR-D8-M to SR-D8-S’s
Local link input terminal (14) when interconnecting
SR-D8-M and SR-D8-S units in multi-unit
conguration.
Use RJ45 connector.
etherCON*2connector can also be used. (See Tip
on p. 10.)
[LED]
ACTIVE indicatorNo functions assigned
(always unlit)
• ACTIVE indicator (orange)
Lit Connection to SR-D8-S possible.
Unlit Failure status
9. CobraNet terminals [CobraNet, PRIMARY,
SECONDARY]
Used for CobraNet connection.
Connect the D-2008SP Digital Mixing Processor
or other commercially available CobraNet
equipment to these terminals via a switching
hub. Connect the PRIMARY and SECONDARY
terminals to a single switching hub or 2 cascade-
connected hubs. Use RJ45 connector.
etherCON*2connector can also be used. (See Tip
on p. 10.)
Note
Be sure to connect both PRIMARY and
SECONDARY terminals.
[LED]
PRIMARY operation/
conductor indicator
SECONDARY
LINK/ACT indicator
PRIMARY
LINK/ACT indicator
SECONDARY operation/
conductor Indicator
• PRIMARY operation/conductor indicator
(orange)
• SECONDARY operation/conductor
indicator (orange)
Flashing or lit CobraNet operation
Flashing: Conductor
Lit: Performer
Note
Either PRIMARY or SECONDARY
LEDashesorlights.
Unlit No functions in operation
Note
PRIMARY and SECONDARY LEDs
do not go out simultaneously.
• PRIMARY LINK/ACT indicator (green)
• SECONDARY LINK/ACT indicator (green)
Flashing or lit Linkage to a switching hub or
data transmission/receipt
Unlit Unconnected
*2 etherCON is a trademark of Neutrik Co., Ltd.

10
10. LAN connection terminal [LAN]
For PC communication using the SR-D8 PC
Software.
Connects to a 100BASE-TX-compatible network.
Connect this terminal to a PC via a switching hub.
Use RJ45 connector.
etherCON* connector can also be used. (See Tip
below.)
Note
Do not connect the LAN terminal directly to the
PC.
[LED]
LINK indicator FULL indicator
• FULL indicator (orange)
Lit Communicating with a switching hub
Unlit Undetected
• LINK indicator (green)
Lit Linkage to a switching hub
Unlit Undetected
11. AC inlet
Insert supplied power cord (2 m or 6.56 ft) into
this socket.
12. Analog input terminal [FAULT SIGNAL]
Removable terminal block (3P) with electronically-
balanced input.
(H: Hot, C: Cold, E: Ground)
This terminal is used for direct audio signal input
to the digital power amplier, bypassing the
unit’s built-in CPU, when the Fault Contact input
terminal (5) is shorted.
Note
Up to 4 units’ terminals can be connected in
parallel.
13. Local link through terminal
[LOCAL LINK THROUGH]
Outputs signals from SR-D8-M to SR-D8-S’s
Local link input terminal (14) when interconnecting
SR-D8-M and SR-D8-S units in 3-unit or 4-unit
conguration.
Use RJ45 connector.
etherCON* connector can also be used. (See Tip
below.)
[LED]
ACTIVE indicatorNo functions assigned
(always unlit)
• ACTIVE indicator (orange)
Lit Connection to SR-D8-S possible.
Unlit Failure status
14. Local link input terminal [LOCAL LINK IN]
Accepts signals from SR-D8-M’s Local link output
terminal (8) or SR-D8-S’s Local link through
terminal (13) when interconnecting SR-D8-M and
SR-D8-Sunitsinmulti-unitconguration.
Use RJ45 connector.
etherCON* connector can also be used. (See Tip
below.)
[LED]
LINK indicatorNo functions assigned
(always unlit)
• LINK indicator (orange)
Lit Connection to SR-D8-M complete.
Unlit Undetected

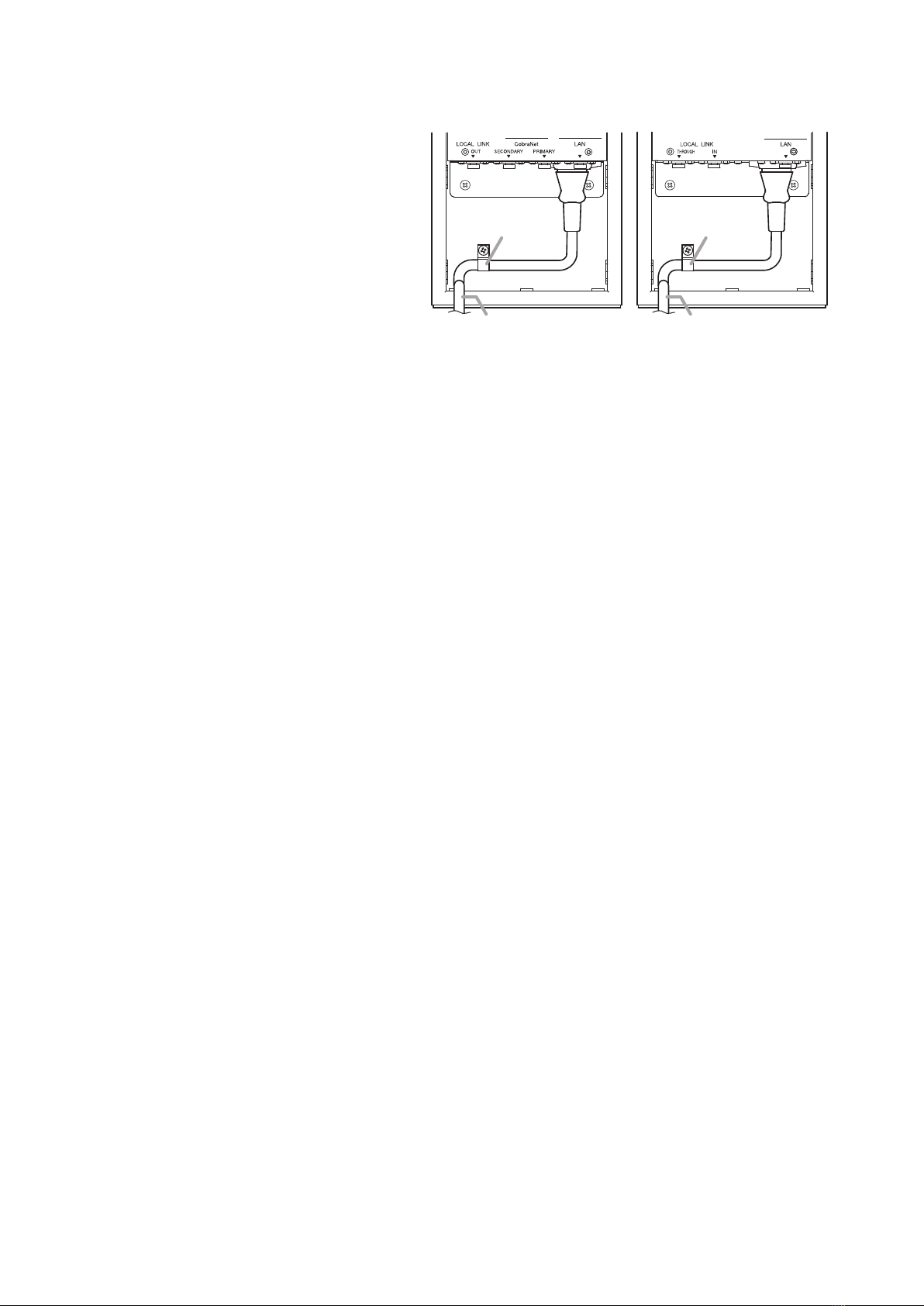

15. Cord clamp
Fixes the power cord.
Tips
• UseSTPCategory5StandardstraightthroughcablewithRJ45connectors.
• ForetherCON*connectors,useNeutrikNE8MCorNEC8MC-B.
* etherCON is a trademark of Neutrik Co., Ltd.

11

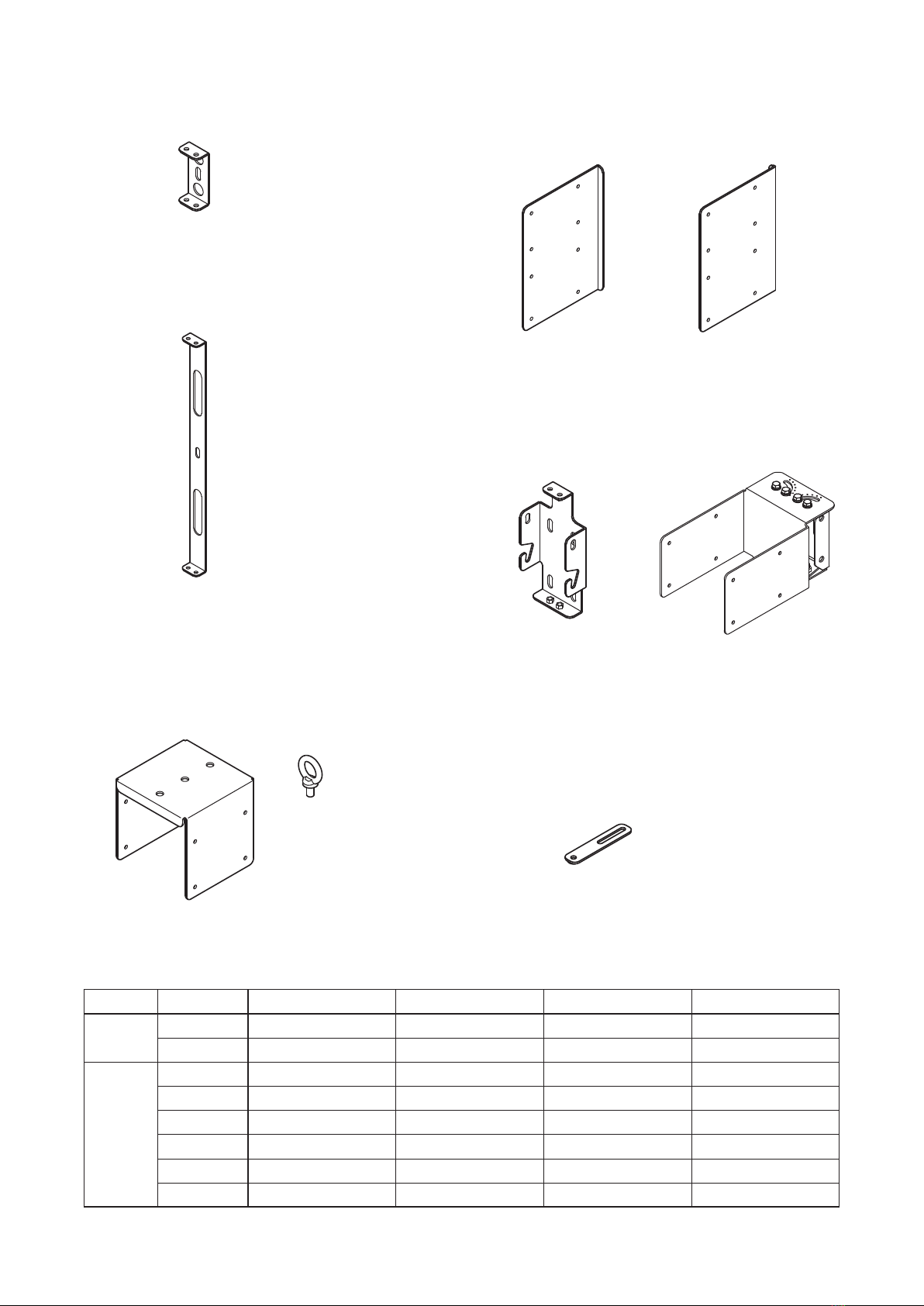

8. BRACKETS
• SR-D8CS Wall Mounting Adapter
• SR-D8WB Wall Mounting Bracket
• SR-D8CL Wall Mounting Adapter
Hex bolt M8×25 (with spring and plain washers) ... 4
Hex bolt M8×25 (with spring and plain washers) ... 4
Hex nut M8 (with flange) ... 1
Hex bolt M8×25 (with spring and plain washers,
for spare) ... 2
Hex bolt M6×20 (with spring and plain washers, paint) ... 8
Hex bolt M6×20 (with spring and plain washers, paint) ... 16
Hex bolt M6×20 (with spring and plain washers, paint) ... 8
Hex bolt M10×30 (with spring and plain washers, paint) ... 4
Wall bracket Speaker bracket
SR-D8HB Hoisting Bracket
• SR-D8FB Fixing Bar
Hoisting bracket Eyebolt
• SR-D8EP Extension Plate
L bracket R bracket
[Number of linked speakers and required joint brackets]
Model No. Single Unit 2-UnitConguration 3-UnitConguration 4-UnitConguration
Speaker SR-D8-M 1111
SR-D8-S 0123
Bracket SR-D8EP 0123
SR-D8WB 2234
SR-D8FB* 2234
SR-D8CS 1000
SR-D8CL 0123
SR-D8HB 0111
*Useonlywhensettingleftorrightanglestoover45°.

12

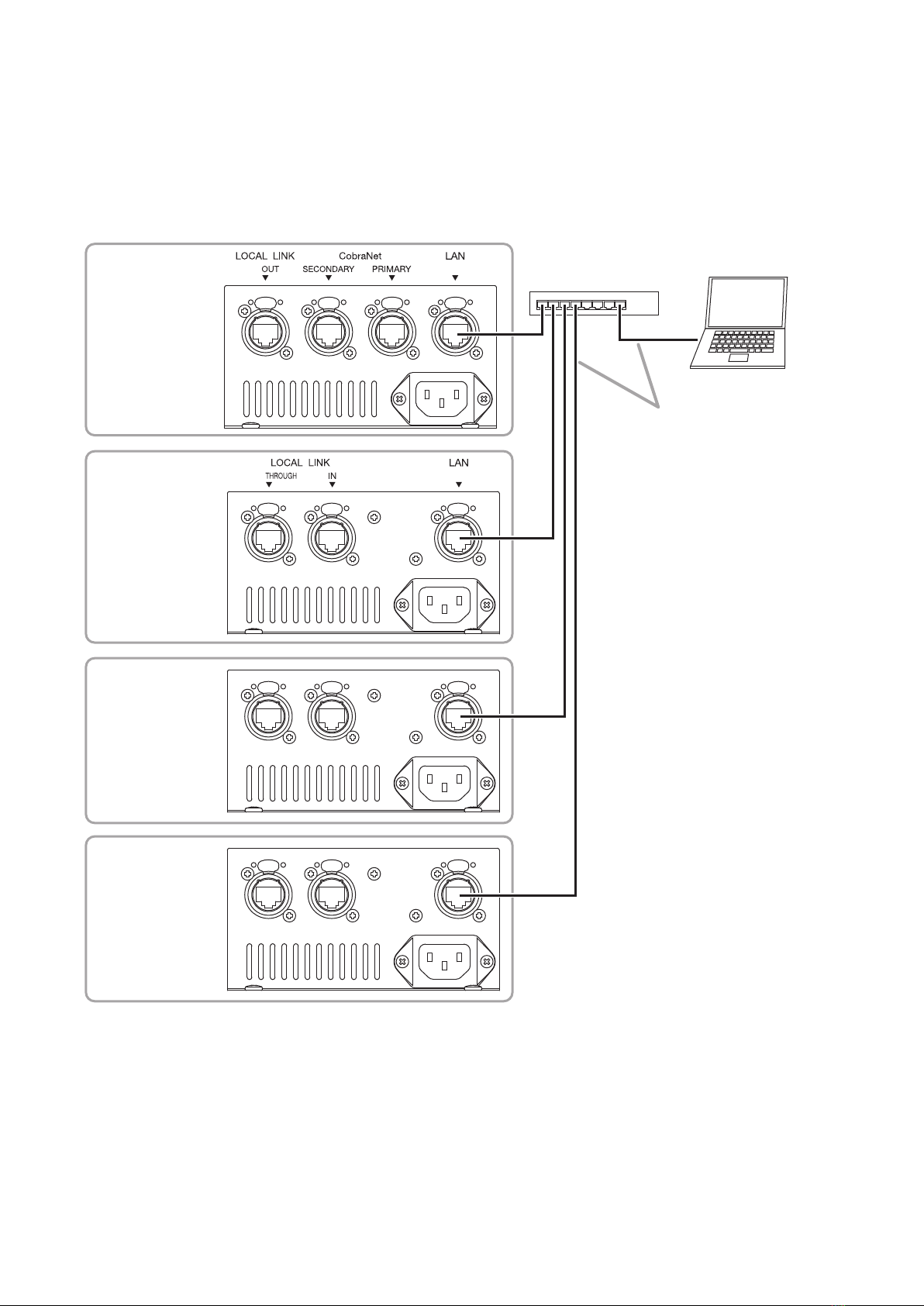

9. COMMUNICATIONS BETWEEN PC AND SPEAKERS
Connect the PC to the SR-D8-M’s/SR-D8-S’s LAN connection terminal via a switching hub.
Useastraightthroughcable(STPCategory5orhighercablettedwithRJ45connectors)forconnection.
Up to 4 stacks (up to 16 speakers) can be controlled by a single PC.
Note: Do not connect the LAN terminal directly to the PC.
PC with the SR-D8
PC Software installed
Switching hub
Category 5 or higher straight through
cable for LAN (with RJ45 connectors)
SR-D8-M
Bottom terminals
SR-D8-S
Bottom terminals
SR-D8-S
Bottom terminals
SR-D8-S
Bottom terminals

13
10. CONNECTIONS
10.1. Connection Example 1 (CobraNet Connection)
MIC/LINE INPUT MODULE [–50
/
–36
/
–10
/
+4 dB]
model D-2000AD1
:E
:H
:C
4
3
2
1
MIC/LINE INPUT MODULE [–50
/
–36
/
–10
/
+4 dB]
model D-2000AD1
:E
:H
:C
4
3
2
1
1R
2R
1L
2L
3L3R
4L4R
model D-936RSTEREO SELECT INPUT MODULE [ –10 dB]
4
3
2
1
LINE OUTPUT MODULE [–10/+4 dB] model D-2000DA1
1
2
3
: E
: H
: C
Microphone
BGM player (Cassette deck,
CD player, MD player, etc.)
PC
Digital mixer
D-2008SP
D-2000AD1D-936R
D-2000DA1
Switching hub
CobraNet
CobraNet
SR-D8-M
Switch
Rear
terminals
Bottom
terminals

14
10.2. Connection Example 2 (CobraNet Connection, 4-Unit Configuration)
MIC/LINE INPUT MODULE [–50
/
–36
/
–10
/
+4 dB]
model D-2000AD1
:E
:H
:C
4
3
2
1
MIC/LINE INPUT MODULE [–50
/
–36
/
–10
/
+4 dB]
model D-2000AD1
:E
:H
:C
4
3
2
1
1R
2R
1L
2L
3L3R
4L4R
model D-936RSTEREO SELECT INPUT MODULE [ –10 dB]
4
3
2
1
LINE OUTPUT MODULE [–10/+4 dB] model D-2000DA1
1
2
3
: E
: H
: C
Microphone
BGM player (Cassette deck,
CD player, MD player, etc.)
PC
Digital mixer
D-2008SP
D-2000AD1D-936R
D-2000DA1
Rear
terminals
Switch
SR-D8-M
SR-D8-S
Bottom
terminals
Rear
terminals
Bottom
terminals
SR-D8-S
Rear
terminals
Bottom
terminals
SR-D8-S
Rear
terminals
Bottom
terminals
Switching hub
(for CobraNet)
CobraNet
CobraNet
Switching hub
(for LAN)
All local link cables connected
between speakers should be
under 1.5 m (4.92 ft) long.

15

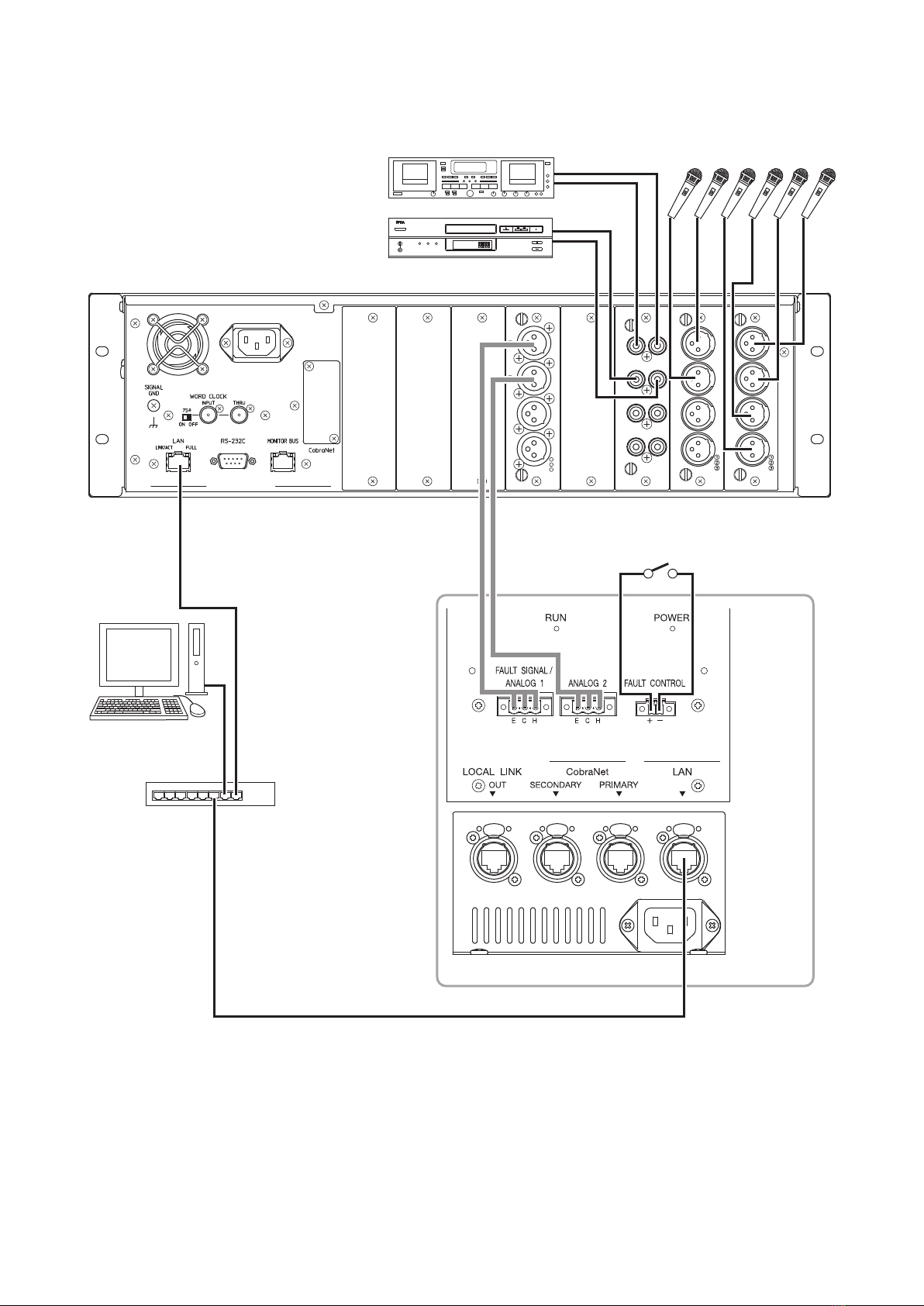

10.3. Connection Example 3 (Analog Line Connection)
MIC/LINE INPUT MODULE [–50
/
–36
/
–10
/
+4 dB]
model D-2000AD1
:E
:H
:C
4
3
2
1
MIC/LINE INPUT MODULE [–50
/
–36
/
–10
/
+4 dB]
model D-2000AD1
:E
:H
:C
4
3
2
1
1R
2R
1L
2L
3L3R
4L4R
model D-936RSTEREO SELECT INPUT MODULE [ –10 dB]
4
3
2
1
LINE OUTPUT MODULE [–10/+4 dB] model D-2000DA1
1
2
3
: E
: H
: C
Microphone
BGM player (Cassette deck,
CD player, MD player, etc.)
PC
Digital mixer
D-2008SP
D-2000AD1D-936R
D-2000DA1
Switching hub
Analog line
SR-D8-M
Switch
Rear
terminals
Bottom
terminals

16
10.4. Connection Example 4 (Maximum System)
MIC/LINE INPUT MODULE [–50
/
–36
/
–10
/
+4 dB]
model D-2000AD1
:E
:H
:C
4
3
2
1
MIC/LINE INPUT MODULE [–50
/
–36
/
–10
/
+4 dB]
model D-2000AD1
:E
:H
:C
4
3
2
1
1R
2R
1L
2L
3L3R
4L4R
model D-936RSTEREO SELECT INPUT MODULE [ –10 dB]
4
3
2
1
LINE OUTPUT MODULE [–10/+4 dB] model D-2000DA1
1
2
3
: E
: H
: C
Microphone
BGM player (Cassette deck,
CD player, MD player, etc.)
PC
Digital mixer
D-2008SP
D-2000AD1D-936R
D-2000DA1
Switching hub
(for CobraNet)
Switching hub (1)
(for LAN)
Switching hub (2)
(for LAN)
To switching
hub (2)
Rear
terminals
Switch
SR-D8-M
SR-D8-S
Bottom
terminals
Rear
terminals
Bottom
terminals
SR-D8-S
Rear
terminals
Bottom
terminals
SR-D8-S
SR-D8-M
SR-D8-S
SR-D8-S
SR-D8-S
Rear
terminals
Bottom
terminals
Stack A
To switching hub (1)
B-1
B-2
B-3
B-3
B-3
B-3
SR-D8-M
SR-D8-S
SR-D8-S
SR-D8-S
C-1
C-2
C-3
C-3
C-3
C-3
SR-D8-M
SR-D8-S
SR-D8-S
SR-D8-S
D-1
D-2
D-3
D-3
D-3
D-3
To B-3 To C-3
To D-3
Stack B Stack C Stack D
To D-1
To B-1
To C-1
To D-2To C-2To B-2
All local link cables connected
between speakers should be
under 1.5 m (4.92 ft) long.

17
MIC/LINE INPUT MODULE [–50
/
–36
/
–10
/
+4 dB]
model D-2000AD1
:E
:H
:C
4
3
2
1
MIC/LINE INPUT MODULE [–50
/
–36
/
–10
/
+4 dB]
model D-2000AD1
:E
:H
:C
4
3
2
1
1R
2R
1L
2L
3L3R
4L4R
model D-936RSTEREO SELECT INPUT MODULE [ –10 dB]
4
3
2
1
LINE OUTPUT MODULE [–10/+4 dB] model D-2000DA1
1
2
3
: E
: H
: C
Microphone
BGM player (Cassette deck,
CD player, MD player, etc.)
PC
Digital mixer
D-2008SP
D-2000AD1D-936R
D-2000DA1
Switching hub
(for CobraNet)
Switching hub (1)
(for LAN)
Switching hub (2)
(for LAN)
To switching
hub (2)
Rear
terminals
Switch
SR-D8-M
SR-D8-S
Bottom
terminals
Rear
terminals
Bottom
terminals
SR-D8-S
Rear
terminals
Bottom
terminals
SR-D8-S
SR-D8-M
SR-D8-S
SR-D8-S
SR-D8-S
Rear
terminals
Bottom
terminals
Stack A
To switching hub (1)
B-1
B-2
B-3
B-3
B-3
B-3
SR-D8-M
SR-D8-S
SR-D8-S
SR-D8-S
C-1
C-2
C-3
C-3
C-3
C-3
SR-D8-M
SR-D8-S
SR-D8-S
SR-D8-S
D-1
D-2
D-3
D-3
D-3
D-3
To B-3 To C-3
To D-3
Stack B Stack C Stack D
To D-1
To B-1
To C-1
To D-2To C-2To B-2
All local link cables connected
between speakers should be
under 1.5 m (4.92 ft) long.

18
10.5. Removable Terminal Plug Connection
Notes
• Avoidsolderingstrandedorshieldedcable,ascontactresistancemayincreasewhenthecableistightened
and the solder is crushed, possibly resulting in an excessive rise in joint temperatures.
• Whenconnecting2cablesorashieldedcabletoasingleterminal,useaferruleterminalwithaninsulation
sleeve to crimp the cables because such cable conductors could become loose. Use the No. 4 ferrule terminal
when connecting 2 cables to a single terminal.
• Recommendedferruleterminalsforallremovableterminalplugs
(made by Phoenix Contact)
Unit: mm (in)
Model Number a b l1l2
AI 0,34-8 TQ 2 (0.08) 0.8 (0.03) 12.5 (0.49) 8 (0.31)
AI0,5-8WH 2.5 (0.1) 1.1 (0.04) 14 (0.55) 8 (0.31)
Al 1,5-8 BK 3.4 (0.13) 1.8 (0.07) 14 (0.55) 8 (0.31)
Model Number a1a2b l1l2
AI-TWIN2x0,5-8BK 6.6 (0.26) 3.6 (0.14) 2.3 (0.09) 16 (0.63) 8 (0.31)
Crimping tool: CRIMPFOX UD6-4 (made by Phoenix Contact)
Note: The No. 3 ferrule terminal cannot be used for the Fault contact
input terminal (5) on p. 9.
• Cablesvs.recommendedterminals
 AWG22cable:No.1ferruleterminal
 AWG20cable:No.2ferruleterminal
 AWG16cable:No.3ferruleterminal
2 x 0.5 mm2(AWG20)cable:No.4ferruleterminal
• Cablesheathtotrim
Insulation sleeve
Contact section
Insulation sleeve
Contact section
a
l2
a1
a2
l1
l2
l1
bb
Solid cable and stranded cable Shielded cable
7 mm*
(0.28'') (0.28'')
(0.79'')
7 mm*
20 mm
Expose 8 mm (0.31'') or more when using the above
ferrule terminal, and cut off an extra conductor protruding
from the sleeve.
*
[Connecting a single wire
to one terminal]
[Connecting two wires
to one terminal]
• Connectionstoferruleterminals
• Wiringprocedures
Step 1. Connect the wire to the supplied removable
terminal plug.
1-1. Loosen the terminal screws to insert the wire.
1-2. Tighten the terminal screws.
Ensure that the wire does not break free when
pulled. If the wire does pull free, repeat the
connection procedure from the start.
Step 2. Insert the wired terminal plug into the
corresponding terminal block in the unit’s rear
panel.
Step 3 Tightenthexingscrews.
Note
Do not reverse Steps 1 and 2 above.
Force is applied to the connected receptacle pins
while tightening the terminal screw and they may be
damaged, resulting in bad connector contact.
Terminal screw
Fixing screw
Removable terminal plug
(accessory)
Tightens
Tightens
Slotted screwdriver*
Recommended slotted screwdriver type:
Screwdriver with blade that is 2.5 mm (0.1'') in width
Loosens
Bit shape
1
1
3
*
2.5 mm (0.1'')

19
10.6. Fixing Power Supply Cord
To prevent the power supply cord from being
accidentallypulledout,xitusingthesupplied
cord clamp as shown at right.
SR-D8-M rear SR-D8-S rear
Power cord (supplied
with the SR-D8-S)
Cord clamp
Power cord (supplied
with the SR-D8-M)
Cord clamp

20
10.7. System Expansion Using CobraNet Connection
10.7.1. CobraNet connection outline
The system can be expanded by connecting the SR-D8-M’s CobraNet terminals to the D-2008SP with the
D-2000CB CobraNet Interface Module.
Connect the SR-D8-M to the D-2008SP via a switching hub. Connect each of CobraNet Primary and Secondary
ports of the SR-D8-M to the same switching hub or different switching hubs connected in cascade.
SR-D8-M
Rear terminals
CobraNet terminal
(PRIMARY)
CobraNet terminal
(SECONDARY)
Bottom terminals
Notes
• MaketheCobraNetterminalscompletelyindependentfromotherLAN.
• ThedistancebetweeneachoftheSR-D8-Mandtheswitchinghubislessthan100m(110yd).
• BesuretomakeconnectionsofbothterminalsPRIMARYandSECONDARY.
• AudiosignalsmaybeinterruptedtemporarilyatthetimeofswitchingbetweenPRIMARYandSECONDARY
ports.
• When connecting CobraNet terminal PRIMARY or SECONDARY to multiple switching hubs, be sure to
connect the hubs in cascade.
• Upto7switchinghubscanbeconnectedincascade.ThenumberofswitchinghubsbetweentheSR-D8-M
and all CobraNet devices connected to the SR-D8-M should be 7 or less. (Refer to connection examples 1
and 2 on the next page.)
• Whenusingmultipleswitchinghubs,makingstarconnectionatthehubdirectlyconnectedtotheSR-D8-Mas
shown in Connection example 2 is highly recommended to reduce the number of cascade-connected hubs.
