Toastmaster TC14 User manual

1
TC14/TC18
USA & Std. Export
PMD-23-001
Rev. B  V1  10/00
TC14/TC18 Series Parts
(Domestic Std. Export)
Middleby Cooking Systems Group  1400 Toastmaster Drive  Elgin, L 60120  [phone]  FAX [phone]
PARTS MANUAL
© 2000 Toastmaster, A Middleby Company.
is a registered trademark of Toastmaster, A Middleby Company. All rights reserved.

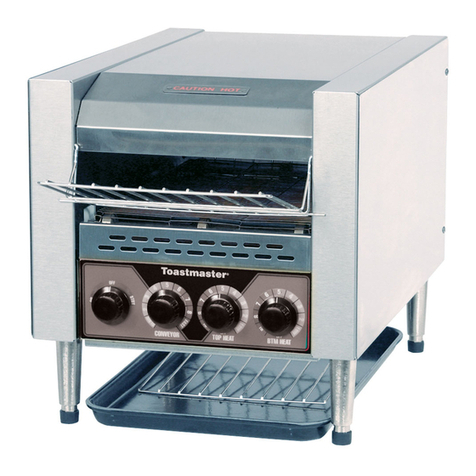

TC14/14A, TC18/18A Conveyor Toasters
Models:
 TC1463/TC14A63
 TC1863/TC18A63
for domestic and standard export toasters
 TC1474/TC14A74
 TC1466/TC14A66
 TC1866/TC18A66

2
TC14/TC18
USA & Std. Export
TC14 PRODUCT HISTORY
Model TC14 Conveyor Toaster - Produced through 3/00
120V units (TC1474):
 DC conveyor drive motor
 Single upper heater (860W) and dual lower heater (860+2 0W)
 :3 motor-to-conveyor drive ratio
208V (TC1463) and 240V (TC1466) units:
 DC conveyor drive motor
 Single upper heater (1060W) and dual lower heater (1060+2 0W)
 :3 motor-to-conveyor drive ratio
Model TC14A Type 1 Conveyor Toaster - Produced 4/00-7/00
120V units (TC14A74):
 AC conveyor drive motor
 Single upper heater (860W) and dual lower heater (860+2 0W)
 1:1 motor-to-conveyor drive ratio
208V (TC14A63) and 240V (TC14A66) units:
 AC conveyor drive motor
 Single upper heater (800W) and dual lower heater (800+190W)
 :3 motor-to-conveyor drive ratio
Model TC14A Type 2 Conveyor Toaster - Produced 8/00 or later
120V units (TC14A74):
 AC conveyor drive motor
 Single upper heater (860W) and dual lower heater (860+2 0W)
 :3 motor-to-conveyor drive ratio
208V (TC14A63) and 240V (TC14A66) units:
 AC conveyor drive motor
 Single upper heater (800W) and dual lower heater (800+190W)
 3: motor-to-conveyor drive ratio
TC18 PRODUCT HISTORY
Model TC18 Type 1 Conveyor Toaster - Produced through /
208V (TC1863) and 240V (TC1866) units:
 DC conveyor drive motor
 Single upper heater (1200W) and single lower heater (1 00W)
 :3 motor-to-conveyor drive ratio
Model TC18 Type 2 Conveyor Toaster - Produced 10/ -3/00
208V (TC1863) and 240V (TC1866) units:
 DC conveyor drive motor
 Single upper heater (1200W) and dual lower heater (1200+2 0W)
 :3 motor-to-conveyor drive ratio
Model TC18A Conveyor Toaster - Produced 4/00 or later
208V (TC18A63) and 240V (TC18A66) units:
 AC conveyor drive motor
 Identical dual upper and lower heaters (900W+190W)
 :3 motor-to-conveyor drive ratio

3
TC14/TC18
USA & Std. Export
TC14 HEATER COMPONENTS
1a 1 33404 TC14 120V TOASTER TOP HEATER ASSY (120V/
860W)
1b 1 (obsolete) TC14 208V TOASTER TOP HEATER ASSY (208V/
1060W) - Replace with Kit 43316*
1c 1 (obsolete) TC14 240V TOASTER TOP HEATER ASSY (240V/
1060W) - Replace with Kit 43317*
2a 1 33405 TC14 120V TOASTER BOTTOM HEATER ASSY
(120V/860W+250W)
2b 1 (obsolete) TC14 208V TOASTER BOTTOM HEATER ASSY
(208V/1060+250W) - Replace with Kit 43316*
2c 1 (obsolete) TC14 240V TOASTER BOTTOM HEATER ASSY
(240V/1060+250W) - Replace with Kit 43317*
3 1 2001371 NUT, KEPS 10-32
*NOTE: Service Kits 43316 nd 43317 e ch include new upper AND lower
he ting elements.
TC14A HEATER COMPONENTS
1a 1 33404 TC14A 120V TOASTER TOP HEATER ASSY (120V/
860W)
1e 1 43178 TC14A 208V TOASTER TOP HEATER ASSY (208V/
800W)
1 f 1 43181 TC14A 240V TOASTER TOP HEATER ASSY (240V/
1060W)
2a 1 33405 TC14A 120V TOASTER BOTTOM HEATER ASSY
(120V/860W+250W)
2e 1 43179 TC14A 208V TOASTER BOTTOM HEATER ASSY
(208V/800+190W)
2 f 1 43180 TC14 240V TOASTER BOTTOM HEATER ASSY
(240V/800+190W)
3 1 2001371 NUT, KEPS 10-32
TC18 HEATER COMPONENTS
1g 1 (obsolete) TC18 208V TYPE 1 OR TYPE 2 TOASTER TOP
HEATER ASSY (208V/1200W) - Replace with Kit
43318*
1h 1 (obsolete) TC18 240V TYPE 1 OR TYPE 2 TOASTER BOTTOM
HEATER ASSY(240V/1200W) - Replace with Kit
43319*
2g 1 (obsolete) TC18 208V TYPE 1 TOASTER BOTTOM HEATER
ASSY (208V/1500W) - Replace with Kit 43318*
2h (obsolete) TC18 208V TYPE 2 TOASTER BOTTOM HEATER
ASSY (208V/1200W+250W) - Replace with Kit 43318*
2i 1 (obsolete) TC18 240V TYPE 1 TOASTER BOTTOM HEATER
ASSY (240V/1500W) - Replace with Kit 43319*
2j (obsolete) TC18 240V TYPE 2 TOASTER BOTTOM HEATER
ASSY (240V/1200W+250W) - Replace with Kit 43319*
3 1 2001371 NUT, KEPS 10-32
*NOTE: Service Kits 43318 nd 43319 e ch include new upper AND lower
he ting elements.
TC18A HEATER COMPONENTS
1k,2k 2 43184 TC18A 208V TOASTER TOP OR BOTTOM HEATER
ASSY (208V/900W +190W)
1m,2m 2 43185 TC18A 240V TOASTER TOP OR BOTTOM HEATER
ASSY (240V/900W +190W)
3 1 2001371 NUT, KEPS 10-32
HEATERS, DRIVE MOTORS, AND SERVICE KITS
ITEM QTY. P/N DESCRIPTION ITEM QTY. P/N DESCRIPTION
AC MOTOR ASSEM LY COMPONENTS (TC14A and TC18A toasters):
4 1 42444 MOTOR, DRIVE 120VAC
5 4 7A2S15 SCREW, TRS HD #10-32 X 3/4
a 1 42598 SPROCKET, MOTOR, 20T (with set screw) - for
TC14A 120V to sters nd ll TC18A to sters
b 1 42598 SPROCKET, MOTOR, 20T (with set screw) - for
TC14A Type 1 208V nd 240V to sters
c 1 44539 SPROCKET, MOTOR, 12T (with set screw) - for
TC14A Type 2 208V nd 240V to sters
DC MOTOR ASSEM LY COMPONENTS (TC14 and TC18 toasters):
-- 1 31 15 MOTOR & FUSE ASSEMBLY (inc. items 33-37)
7 1 3002757 MOTOR, CONVEYOR DRIVE, 115VDC
8 1 30155 KIT, MTR BRUSH & CAP (inc. items 20-21)
9 2 30154 CAP, PLASTIC
10 2 30153 MOTOR BRUSH
11 1 31053 FUSE, 0.25A 125V
12 4 2000177 SCREW, SLT HEX WSHR HD #10-32 X 1/4
13 1 34128 SPROCKET, MOTOR, 20T (with set screw)
SERVICE KITS:
KIT 1 -- 43315 KIT, TC14 TO TC14A 120V TOASTER UPDATE
Updates one 120V TC14 toaster to the current TC14A
Type 2. Includes instructions and all required parts.
KIT 2 -- 4331 KIT, TC14 TO TC14A 208V TOASTER UPDATE
Updates one 208V TC14 toaster to the current TC14A
Type 2. Includes instructions and all required parts.
KIT 3 -- 43317 KIT, TC14 TO TC14A 240V TOASTER UPDATE
Updates one 240V TC14 toaster to the current TC14A
Type 2. Includes instructions and all required parts.
KIT 4 -- 43318 KIT, TC18 TO TC18A 208V TOASTER UPDATE
Updates one 208V TC18 toaster to the current
TC18A. Includes instructions and all required parts.
KIT 5 -- 43319 KIT, TC18 TO TC18A 240V TOASTER UPDATE
Updates one 240V TC18 toaster to the current
TC18A. Includes instructions and all required parts.

4
TC14/TC18
USA & Std. Export
orientation

5
TC14/TC18
USA & Std. Export
COMPONENTS
ITEM QTY. P/N DESCRIPTION ITEM QTY. P/N DESCRIPTION
4 1 33397 SHAFT ASSEMBLY, REAR (with sprockets)
5 1 33396 SHAFT ASSEMBLY, FRONT (with smooth rollers)
6 2 7610849 KIT, FRONT BEARING ASSEMBLY (inc. items 7-8)
7 1 7008178 BEARING, FRONT
8 1 3103262 SPRING
9 1 3102930 RETAINER, E-RING, 5/16 /7.9mm
10 1 7006964 BEARING, REAR RIGHT
11 1 7006963 BEARING, REAR LEFT
12a 1 34128 SPROCKET, DRIVE SHAFT, 20T (for 208V or 240V
TC14A Type 2 to sters - inc. set screw)
12a 1 34129 SPROCKET, DRIVE SHAFT, 12T (for ll other TC14,
TC14A, TC18, or TC18A to sters - inc. set screw)
14a 1 43224 DRIVE CHAIN (16-1/4"/413mm) (for TC14A Type 1 120V
to sters)
14b 1 7007605 DRIVE CHAIN (15"/381mm) (for ll other TC14, TC14A,
TC18, or TC18A to sters)
15 1 3101212 MASTER LINK, DRIVE CHAIN
16a 1 33392 BELT, CONV (TC14, 10 x 25/254x635mm, 85 links)
16b 1 39351 BELT, CONV (TC18, 10 x 33/254x838mm, 113 links)
17 3 33394 MASTER LINK, CONVEYOR BELT (TC14 & TC18)
18a 1 42681 BOTTOM PANEL (TC14)
18b 1 39260 BOTTOM PANEL (TC18)
19 4 3B20A8801 SCREW, HWH 8-32 x 3/8
20 1 27470-0004 FAN GRILLE
21 4 21226-0007 SCREW, SLT PNHD 10-24 x 1/2
22 1 33406 TERMINAL BLOCK, 3-POLE
23 1 27392-0002 COOLING FAN, 115V
24a 1 31141 SPEED CONTROLLER FOR DC MOTOR (for ll TC14
nd TC18 to sters)
24b 1 42718 SPEED CONTROLLER FOR AC MOTOR (for 120V
TC14A to sters)
24b 1 42597 SPEED CONTROLLER FOR AC MOTOR (for 208V nd
240V TC14A, ll TC18A to sters)
25 1 33388 SWITCH, PRODUCT SELECTION, 3-POSITION
26 1 30697 TRANSFORMER, 230Vp:115Vs (208V, 230V, nd 240V
to sters only)
27 1 39344 LABEL, CONTROL PANEL
28 2 33402 KNOB
29a 1 41763 CORD & PLUG (TC14, 120V, NEMA 5-20P)
29b 1 41762 CORD & PLUG (TC14, 208/240V, NEMA 6-15P)
29c 1 41755 CORD & PLUG (TC18, 208/240V, NEMA 6-20P)
30 1 33412 STRAIN RELIEF, BLACK PLASTIC
NOT SHOWN:
-- 1 33387 BOTTOM COMPARTMENT INSULATION, FOIL-BACKED
(TC14)
-- 1 39346 BOTTOM COMPARTMENT INSULATION, FOIL-BACKED
(TC18)
-- 4 3101254 INSULATION CLIPS
-- 1 33403 WIRESET, TC14 (120V to sters)
-- 1 34082 WIRESET, TC14 (208V nd 240V to sters)
-- 1 42685 WIRESET, TC14A (120V to sters)
-- 1 42605 WIRESET, TC14A (208V nd 240V to sters)
-- 1 39286 WIRESET, TC18
-- 1 43235 WIRESET, TC18A
-- 1 30930 CORDSET, COOLING FAN (for ll TC14, ll TC18, nd
120V TC14A to sters)
-- 1 42604 CORDSET, COOLING FAN (for 208V nd 240V TC14A,
ll TC18A to sters)

6
TC14/TC18
USA & Std. Export
orientation

7
TC14/TC18
USA & Std. Export
PANELS, TRAYS, AND MISCELLANEOUS
1 1 39541 PANEL, REAR EXIT
2 1 39552 EXIT CHUTE
3 2 33253 PANEL, SIDE (TC14)
3 2 39278 PANEL, SIDE (TC18)
4 A/R 3B20A8801 SCREW, HWH 8-32 x 3/8
5 4 32123 ASSY, LEG, 4 / 102mm (inc. items 10-11)
6 1 1523B8301 LEG, 4 / 102mm
7 1 31253 CAP (rubber)
8 1 33390 CRUMB TRAY, SLIDE-IN
9 1 33391 RETURN TRAY
10 1 33410 ENTRANCE RACK
11 1 321049 LABEL, CAUTION - HOT
PREVIOUS DESIGN:
12 1 (obsolete) PANEL, REAR EXIT (with h ngers)
Replace with Kit 39543 ( ee SERVICE KITS)
13 1 (obsolete) PANEL, LOWER REAR
Replace with Kit 39544 ( ee SERVICE KITS)
14 1 (obsolete) EXIT RACK, WIRE
Replace with Kit 39544 ( ee SERVICE KITS)
SERVICE KITS:
-- -- 39543 KIT, REAR EXIT PANEL UPDATE
Repl ces items 15, 16, nd 17 with items 4 nd 5
Includes conversion instructions
-- -- 39544 KIT, EXIT CHUTE UPDATE
Repl ces items 16 nd 17 with item 5
Includes conversion instructions
NOT SHOWN:
-- 1 39289 OWNERS OPERATING MANUAL, TC14/TC18
ITEM QTY. P/N DESCRIPTION

8
TC14/TC18
USA & Std. Export
Middleby Cooking Systems Group  1400 Toastmaster Drive  Elgin, IL 60120  USA  [phone]  FAX [phone]
24-Hour Service Hotline: [phone]
www.middleby.com
WARNING
Improper installation, adjustment, alteration, servi e or maintenan e
an ause property damage, injury or death. Read the installation,
operating and maintenan e instru tions thoroughly before
installing or servi ing this equipment.
NOTICE
During the warranty period, ALL parts replacement and ser icing should be performed by
your Toastmaster Authorized Ser ice Agent. Ser ice that is performed by parties other
than your Toastmaster Authorized Ser ice Agent may oid your warranty.
NOTICE
Using any parts other than genuine Toastmaster factory manufactured parts relie es the
manufacturer of all warranty and liability.
NOTICE
Toastmaster reser es the right to change specifications at any time.
