Toku TMH Series User manual
AIR HOIST
TMH-series
TMH-3000PE/C
TMH-6000P2E/C2
TMH-10TP2E/C2
TOKU PNEUMATIC PRODUCTS
M
A
N
U
A
L
INSTRUCTION MANUAL
This manual is a guidebook which will show you how to use
the air chain hoist safely and efficiently.
Read this manual thoroughly before starting to use air hoist.
This manual shall be accessible at all time.
TOKU PNEUMATIC CO., LTD
No.6
21-07
Air & Allied Sales (Pacific) Pty Ltd
www.air-allied.com.au
www.air-allied.com.au
1
（１）INTRODUCTION
We thank you for your recent purchase of a TOKU AIR HOIST
This manual is a guidebook which will show you how to use the air chain hoist safely and efficiently. Please
read this manual in its entirety and understand the contents before proceeding to operate the hoist. Also,
convey this information to the actual operators of the hoist.
The air hoist was designed to operate on compressed air to lift and lower loads. As a result, before
operating the hoist it is necessary to also read the instruction manual for the compressor. In addition, for
proper regulations about usage of the hoist, consult the “crane safety regulation standards”
Usage other than the ones written in this manual should be performed with the consideration of safety and
responsibility.
◆With regards to the safety precautions, the following words are used to identify safety messages in the
manual.
WARNING; This word is used on safety messages and labels where a potential
dangerous situation could result in serious injury or death if the hazard
is not avoided.
CAUTION; This word is used in safety messages and on labels for hazards which
could result in minor or moderate injury if the hazard is not avoided.
IMPORTANT; This word may indicate hazards whose result could be damage to the
equipment.
◆Keep this manual handy and read it periodically.
◆
In case of loss or damage of this manual, ask for replacement manual from Air & Allied Sales (Pacific) P/L.
◆If the hoist is not used by one person, please have the new person read this manual before operating the
hoist.
◆This manual shall be translated for non-English speakers.
◆If you transfer the hoist to another source, make sure that you give the manual to the new owner.
※(Information in this manual are subject to change without notice.)
Should you have any question on the product or the content of this manual, please contact Air & Allied
Sales (Pacific) Pty Ltd (see below for contact details).
PLEASE UNDERSTAND THE FOLLOWING POINTS BEFORE READING THIS MANUAL;
Air & Allied Sales (Pacific) Pty Ltd
www.air-allied.com.au
2
（２）Table of Contents
Page
(1)
Introduction
・・・・・・・・・・・・・・・・・・・・・・・・・・
1
(2)
Table of Contents
・・・・・・・・・・・・・・・・・・・・・・・・・・
2
(3)
Safety Precautions
・・・・・・・・・・・・・・・・・・・・・・・・・・
3
(4)
Precautions during operation
・・・・・・・・・・・・・・・・・・・・・・・・・・
5
(5)
Specifications
・・・・・・・・・・・・・・・・・・・・・・・・・・
11
(6)

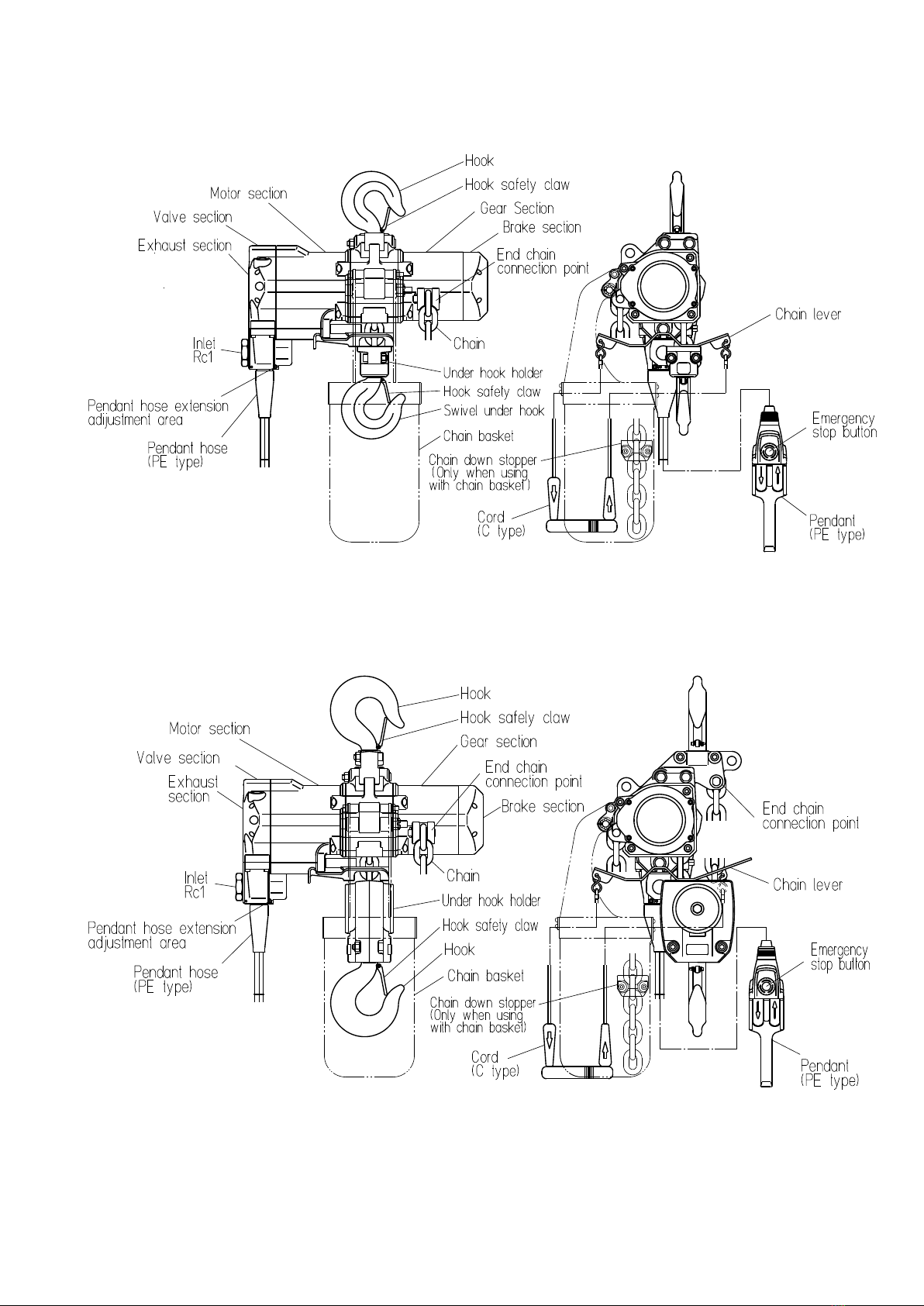

Name of parts
・・・・・・・・・・・・・・・・・・・・・・・・・・
12
(7)
Preparation before operation
・・・・・・・・・・・・・・・・・・・・・・・・・・
14
(8)
Before Operation
・・・・・・・・・・・・・・・・・・・・・・・・・・
21
(9)
How to operate
・・・・・・・・・・・・・・・・・・・・・・・・・・
25
(10)
Maintenance and inspection
・・・・・・・・・・・・・・・・・・・・・・・・・・
32
(11)
How to install chain
・・・・・・・・・・・・・・・・・・・・・・・・・・
35
(12)
Trouble shooting
・・・・・・・・・・・・・・・・・・・・・・・・・・
47
Air & Allied Sales (Pacific) Pty Ltd
www.air-allied.com.au
3
（３）Safety Precautions
WARNING;
When using the hoist, obey the safety precautions written in this instruction manual.
WARNING;Obey the safety rules at the job site.
・The people who operate the hoist should be the one who have received instruction to properly
operate the hoist.
・Obey all rules, safety procedures and operational methods at the job sit.
・When using the hoist with other people, make sure your signals during operation are well
discussed before jointly using the hoist.
WARNING;
Wear proper clothing and safety protection
・Wear proper clothing when operating the hoist.
・To protect the body, wear safety items such as a helmet, mask,
safety shoes and gloves. Or if the sound level is high, where
ear plugs.
・Do not wear a tie or loose fit clothing when operating the hoist.
They may get caught in the chain during operation.
WARNING; Safe operation begins with proper posture.
It is dangerous to operate the hoist when your posture is not in balance. Make sure your footing is
proper and your body is stable when operating the hoist.
WARNING;Do not allow unauthorized staff near the hoist area.
Do not allow unauthorized staff near the hoist area. Especially children.
WARNING;Difficult operations will lead to accidents.
Do not use the hoist for operations over its capacity. These operations mays lead to damage of the
hoist and should be avoided.
WARNING;Stop operating the hoist if trouble occurs.
In case of any trouble during operation, immediately stop operating the hoist and inspect or repair.
Otherwise it results in damage of machine or injury.
Air & Allied Sales (Pacific) Pty Ltd
www.air-allied.com.au
