Tomoloo Two Wheels Folding Electric Scooter User manual

E-Mail: [e-mail]
www.tomolooscooter.com
TWO WHEELS
F O L D I N G E L E C T R I C S C O O T E R

This manual applies to two wheel electric scooter. Please read this manual carefully to ensure that:
1. Quickly grasp the basic operating procedures and riding methods of two wheel electric scooter.
2. Familiar with safe driving rules for a safe and enjoyable cycling experience.
3. Understand the composition and safety of two wheel electric scooter.
If you have any questions or need more information, please contact the franchised dealer or after-
sales ser vice.
About the Manual
Dangers!
Could cause serious property
damage or personal injury
Warnings!
Improper operations can
lead to malfunction of the product
Information tips
- 01 -
Please pay attention to the following signs and relating content:
Original InstructionVersion Number : A01
1.This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensor y or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
2.This manual can be also downloaded from the website: www.tomoloo.com
3.WARNING: For the purposes of recharging the batter y, only use the detachable supply unit (model: FY-
4202000) provided with this appliance.
4.When product is discarded,
(1)the batter y must be removed from the appliance before it is scrapped;
(2) the appliance must be disconnected from the supply mains when removing the battery;
(3) the batter y is to be disposed of safely.
5，This appliance contains batteries that are non-replaceable.

About the manual
Contents
Chapter 8: Daily Maintenance
Chapter 9: Parameter Table
Chapter 10: APP Download Guide
- 02 - - 03 -
Contents
04
05
07
10
11
13
15
19
22
24
Chapter 1: Products and components
Chapter 2: Function Icon and description
Chapter 3: Installation Guide
Chapter 4: Charging instructions
Chapter 5: How to ride the two e-scooter
Chapter 6: Riding security
Chapter 7: Folding and transportation
01
02

- 04 - - 05 -

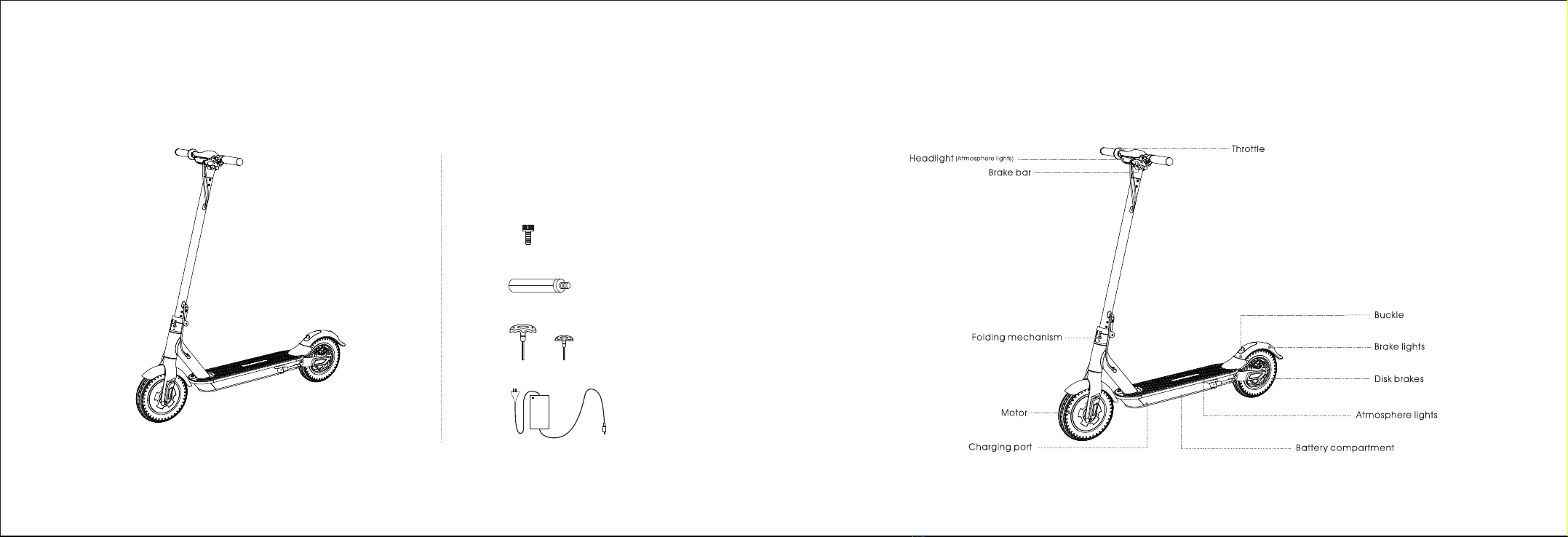

Chapter 1
Products and components
*Please check carefully that the parts in the package are intact.
Chapter 2
Function Icon and description
components
Charger adapter x1
Hex wrench M5 x1, M3 x1
Screw M3 x4
Knob x2
User manual x1
M5 M3

- 06 - - 07 -

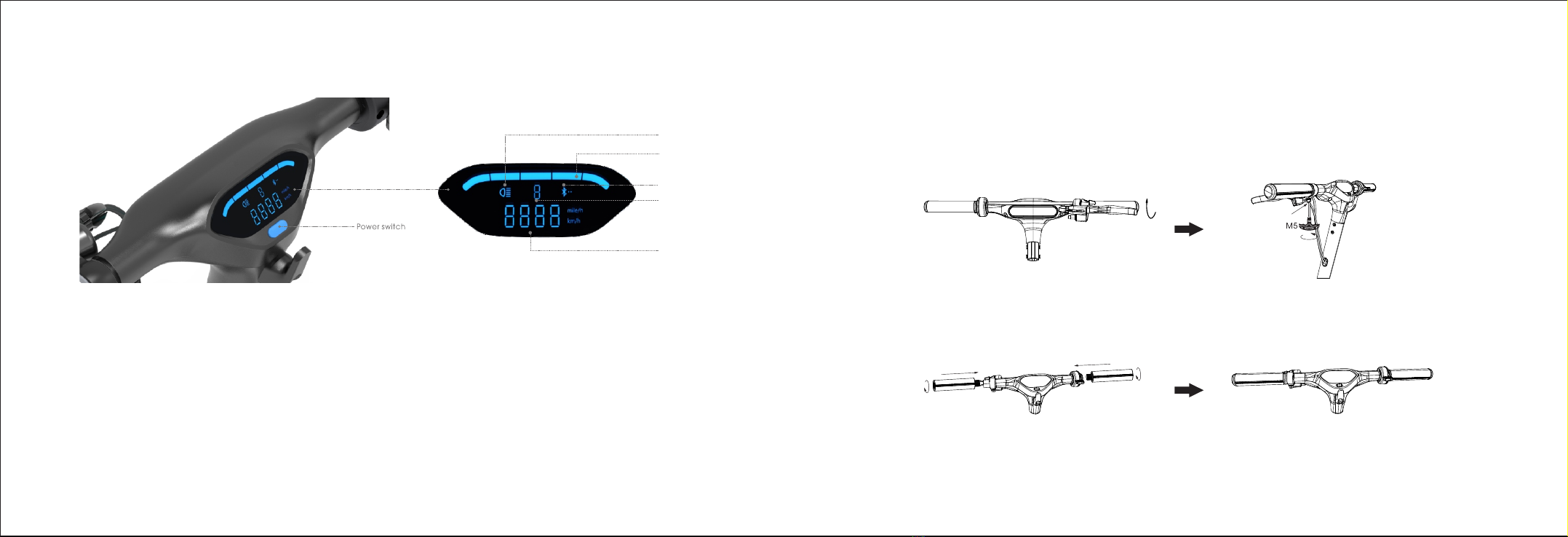

Control panel Chapter 3
Installation Guide
Control instructions
Use control panel to control scooter, the specific features are as follows.
1.1 Long press the power switch button to turn on the machine, and the front light, lower atmosphere light, tail light, and brake light
are all on. The control panel shows the power and speed.
1.2 After turn on, the control panel display shows “1”, indicating that the speed is 1st gear. Press the button to display 2nd gear; the
highest display is 3rd gear.
1.3 Press the button twice the front light is on and press the button twice the front light goes out.
1.4 Press the button three times to display the total mileage, then press the button three times to display the speed.
1.5 When the brakes are applied in emergency, the brightness of the brake light increases after the brake handles are gripped
1.6 Power display: five lights are 100%, four lights are 50%, three lights are 30%, two lights are 10%, one lights are less than 10%.
Speed
Batter y
Speed gear
Headlight status
Bluetooth status
1. Install the brakes to correct position with the Hex wrench (M5 in the tool bag).
2.Install the handlebars, pay attention to the installation direction.

- 09 -
2.Install the handlebar to the standpipe
4.After the installation is completed, switch on
and off to detect the scooter
3.Use the hex wrench in the mounting box to lock the
screws on both sides
1.Fasten the scooter standpipe and fold out the kickstand
- 08 -
3.Hole the scooter upright,to ensure that the lock will not affected,please keep the folding-spanner(The blue part of the image)
at the bottom. Pull the folding-spanner to the top,then te scooter is completely locked.

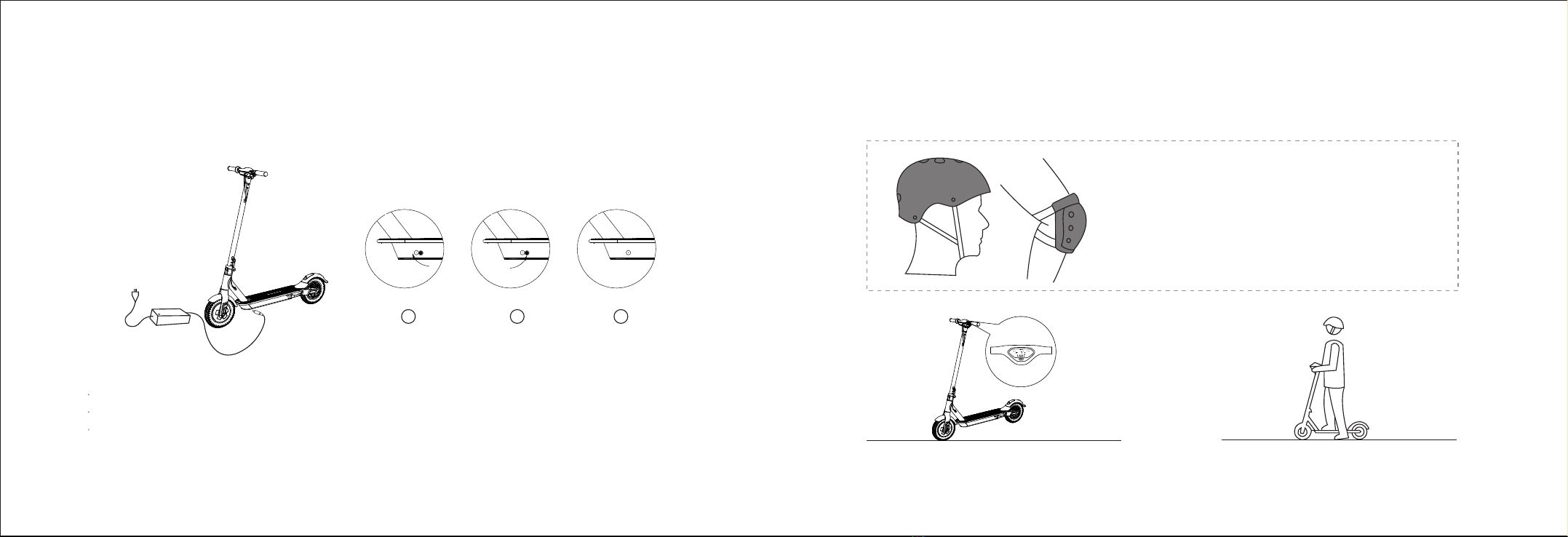

Chapter 4
Charging instructions
Open rubber cap.
Insert in the charging plug.
After charging is completed, close the rubber cap
123
Chapter 5
How to ride the two e-scooter
*There are risks of falling and injur y when study riding, so please
wear a helmet and protective gear as shown in the picture.
- 10 - - 11 -
1. Turn on the power and check the power indicator. 2.One foot stands on the pedal, the other foot kicks
backward.

Chapter 6
Riding security
Please avoid riding in
the rain.
Encounter deceleration zone/elevator threshold /potholes and
other unconventional road pavement, please do not pass at
high-speed.Encounter rough road please keep in the low speed
(5-10km /h) .Aslight kneeling allows you to better adapt to the
complex road.
To avoid the head hit the
door frame. elevators and
other obstacles.
Do not accelerate at downhill.
- 12 - - 13 -
3.When the electric scooter is sliding, the other foot steps
on the pedal. After the feet step on the pedal, slightly press
the throttle (speed above 5km/h will start the throttle).
4.Release the throttle can slow down the speed, and
automatic energy recovery system can help to slow
down. Emergent brakes need to pull the handle brake
on the left side.
5.When turning, you need to lean the body slightly toward the
direction of turning and turn the handle slowly.

Chapter 7
Folding and Transportation
After the e-scooter has been folded successfully, use one hand or two to hold the folding-level to transit.
Avoid barriers while driving.
Do not press on the accelerator pin
while walking with the e-scooter.
Do not hang any heavy items on
the handlebar.
Do not stand with one foot on the
pedal or on floor while driving.
- 14 - - 15 -
Pull thesafety-lock(The red part of the image) up meanwhile holding the standpipe, then open up the
folding-spanner(The blue part of the image), aim it at the bell and the fender hook, then buckle the bell with
the back-fender.

Do not tr y to do any dangerous movement.

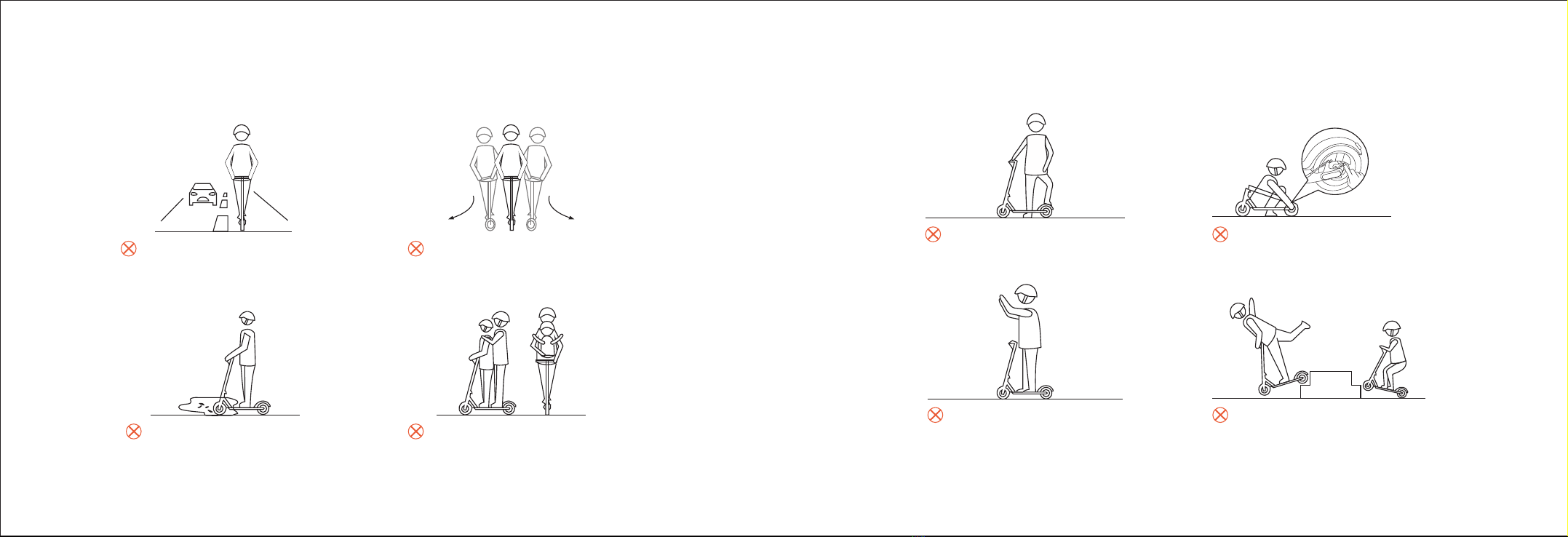

Warming Reminder
Forbidden to drive on the driveways or
in crowded residential areas.
Forbidden to rotate the handle strongly
while driving with high speed.
Forbidden to drive on ponding water
areas that deeper than 2cm.
Forbidden to drive it while there are more
than one person, and/or holding a child
while driving.
- 16 - - 17 -
Forbidden to step or trend on the back
-fender.
Forbidden to press the disc-brake.
Forbidden to drive without your hands
holding the handlebar.
Forbidden to go up/down stairs or to jump
over barriers while driving.

Chapter 8
Daily Maintenance
Electric scooter cleaning and storage
If there is a crack in the body of the electric scooter, wipe it with a small amount of water with a soft cloth. If it is difficult to
clean, you can use a toothbrush with toothpaste to brush it repeatedly and then use a damp cloth to clean it. If the body
plastic has scratches, you can use sandpaper or other abrasive materials for polishing.
Note:
1. Do not use alcohol ,gasoline, kerosene or other corrosive, volatile solvents to clean, otherwise it will seriously damage the
body and internal structure. It is forbidden to use pressure gun spray and flush, make sure that the charging cable is
unplugged and the rubber cap has been tightened when cleaning, otherwise it may cause electric shock or accident due
to water intake.
2. Store electric scooter in a dry room and cool place as much as possible to avoid accelerating of aging for electric
scooter and tire because of long time storage outside the room , which will also reduce the usage life of the batter y.
Electric scooter batter y maintenance
1. Do not use other models or brands of batteries, otherwise there may be security risks.
2. Do not touch the batter y contacts and do not open the battery compartment to avoid the metal objects to touch the
batter y contacts, which may cause a short circuit or may damage the battery, or cause personal injury.
3. Only use the original charger for charging, otherwise it may cause damage or fire.
4. Inappropriate disposal of used batteries may result in serious environmental pollution, disposal of waste battery packs
must be in accordance with local regulations. Do not handle the battery pack to protect the natural environment.
5. Do not place the batter y in a high temperature environment higher than 50°C or lower than -20°C (for example, do not
expose the electric scooter or its batter y pack to the car in summer), otherwise it may cause malfunction, fire, or even fire
risk.
To avoid power consumption and recycling, use batteries that can greatly extend battery life. In addition, at room
temperature, the battery pack can play a higher mileage and performance, if it is used in environments below 0 °C, battery
life and performance will decline. In some areas, at -20°C, the mileage may be only half or less than at room temperature.
- 18 - - 19 -
Safety instructions
• An electric scooter is a sporting entertainment tool that is not a vehicle, but once you drive it into a public area, it will also
have a vehicle property, so there are also possible safety risks for all modes of transport. Strictly follow the instructions in this
manual to drive for the maximum e to protect you and the others' safety, and to ensure compliance witii national and
provincial t regulations and traffic regulations.
• At the same time, you need to understand: Once you have an electric scooter on a public road or other public place, you
may be exposed to the risk of unauthorized driving / improper operation of others or vehicles, even if you are in full
compliance with this safe driving guide. Like walking or cycling may also be hurt by other means of transport; As with all
vehicles, the faster the electric scooter is driving, the longer the brakes need, and the emergency brakes on some smooth
surfaces can also cause the wheels to slip and lose balance or even fall. Therefore, It is important to be vigilant and maintain
the proper speed during driving, and it is important to maintain a reasonable safety distance with others and the transport
means. Please be vigilant and drive at low speed before entering unfamiliar terrain.
• Please respect the right of pedestrian way when driving. Avoid frightening pedestrians, especially the children. When
pedestrians passing through, remind pedestrians and slowing down when passing. As far as possible from the left side of the
pedestrian (applicable to the countr y where the vehicle is traveling right). Face to face with pedestrians, keep on the right
and lower speed.
• We must strictly follow the safety requirements of this manual for drivers in countries and regions, where there are no
national standards and regulations for electric scooters, Tomoloo shall not be liable for any liability, personal injur y, accident,
legal dispute, and all other unfavorable events resulting from the use of violating the instructions indicated in this manual.
• Do not lend the electric scooter to a person who never operate to avoid injuiy. If give the electric scooter to a friend, be
sure to be responsible for the safety of your friends, you should teach him (her), and tell him (her) must wear safely care.
• Please check the electric scooter for each time before driving. If you find that the parts are loose, the battery life is
obviously reduced, the tire is slow to leak or excessive wear, turn to abnormal sound or malfunction, please stop using it
immediately, and do not driving force.

If there is a crack in the body of the electric scooter, wipe it with a small amount of water with a soft cloth. If it is difficult to
clean, you can use a toothbrush with toothpaste to brush it repeatedly and then use a damp cloth to clean it. If the body
plastic has scratches, you can use sandpaper or other abrasive materials for polishing.
Note:
It is forbidden for non-professionals to remove the battery pack. Failure to do so may result in serious electrical faults or
safety short-circuits.
Disc brakes debug
If you feel the brake is tight when you are riding, you can adjust the disc brake by loosing the screw on the Rotar y
Knob with a M5 hex wrench(As shown in below picture), turn the Rotary knob to the right by a little and tighten the
screw with a M5 hex wrench. If you feel the brake is loose. you can turn the Rotary knob to the left by a little after
loosing the screw on the Rotary Knob with M5 hex wrench, and then tighten the screw.
Rotar y knob
M5
- 20 - - 21 -
Handle shake debug
If you feel the standpipe is loose and shakes when you are riding, please use the M5 hex wrench to reinforce
the screw as below picture referred.
Use of inflatable mouth
When the front and rear wheels of the electric scooters have insufficient air pressure, inflate the tires with air tube. First,
unscrew the air cap on the tire, and then tighten the extended inflatable tube and air tube on the tire, and connect the
inflator to the air tube on the tire to inflate.
M5
M5
M5
Don't twist the screw
unless it’s necessar y
!

- 22 - - 23 -
Chapter 9
Parameter Table
Height: The height of the body to the ground
Endurance: Electric scooters are fully charged, load is 100kg, ambient temperature is 25 degrees without wind,
maximum 25 per hour in safe mode Kilometers. However, the actual cruising range varies with driving habits, roads,
ambient temperature, wind speed or other factors.
Note: Data and parameters var y by mode. Subject to change without notice.
Battery Pack
Rated voltage(VDC)
Parameters Description Specifications
Maximum Charge Voltage(VDC)
Rated Capacity
Protection
36
42
7.5Ah
Temperature, short circuit, undervoltage,
overcurrent, overcharge, overdischarge
Motor Rated Power(W)
Max. Power(W)
350
500
Charger Rated Power(W) 84
Rated Voltage input(VAC) 100-240
Rated Voltage output(VDC)
Rated Current Output(A)
42
2
Charging time(H) 4-6
Battery manufacturer Shenzhen Elite Electronic Co.,Ltd
Battery model name HY-ELITOP-S1003US-JD
Charge manufacturer Shenzhen Fuyuandian Power Co.,Ltd
Charge model name FY-4202000
Product Dimensions
Weight
Ride Limits
LxWxH(CM)
Parameters Description Specifications
1200mmx520x1200mm
Folding Size LxWxH(CM) 1200mmx520mmx520mm
Total Scooter(LBS) 29.8
Rider Weight Maximum(LBS)
Rider Age
Rider Height(CM)
220
16-50
120-200
Main Parameter
Max Speed(MPH)
Max Mileage(MILES)
Max Slope
Road
Working Temperture
Stock Temperture
15.5
15.5-18.6
20°
Cement, asphalt, flat roads, etc., shall not exceed
1cm steps, and shall not exceed 3cm.
-10-40°C
-20-45°C
Charging Temperature 0-40°C
Stock Temperature -20-45°C
waterproof level IPX4
Rider Weight Minimum(LBS) 45

Chapter 10
APP Download Guide
In the APP application library, search and scan the QR code below to download and install.
Bluetooth password: 000000
Contact us
- 24 -
WARNING
To reduce the risk of injury, user must read instruction manual.
1.Prolonged Exposure to UV Rays, Rain and the Elements May Damage the Enclosure Materials.
2.Store Indoors When Not in Use.
3.Risk of Fire , No User Serviceable Parts.
4.Use only with specified charger in instruction.
- 25 -

1.This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensor y or mental capabilities or lack of experience and knowledge if they have been given super vision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
2.This manual can be also downloaded from the website: www.tomoloo.com
3.WARNING: For the purposes of recharging the batter y, only use the detachable supply unit (model: FY-
4202000) provided with this appliance.
4.When product is discarded,
(1)the batter y must be removed from the appliance before it is scrapped;
(2) the appliance must be disconnected from the supply mains when removing the battery;
(3) the batter y is to be disposed of safely.
5，This appliance contains batteries that are non-replaceable.
