TOOLCRAFT LDM X100 User manual

Operating Instructions
Laser Rangender
Item No. 1600019 (LDM X100)
Item No. 1613600 (LDM X80)

Table of contents
Page
1. Introduction................................................................... 4
2. Explanation of symbols ................................................ 4
3. Intended use................................................................. 5
4. Package contents......................................................... 6
5. Features and functions................................................. 6
6. Safety instructions........................................................ 7
a) General information................................................. 7
b) Laser ....................................................................... 8
c) Batteries................................................................ 10
7. Product overview.........................................................11
8. Display........................................................................ 12
a) Measuring ............................................................. 12
b) Measurement reading ........................................... 13
9. Inserting (rechargeable) batteries .............................. 13
10. Charging the batteries................................................ 15
11. Switch device/laser on/off........................................... 16
12. Touchscreen operation............................................... 16
13. Settings ...................................................................... 17
14. Distance measurement .............................................. 19
15. Continuous measurement .......................................... 19
16. Area measurement..................................................... 20
17. Volume measurement ................................................ 20
18. Indirect measurement................................................. 21
a) With two reference points...................................... 21
b) With three reference points - Variant A.................. 22
c) With three reference points - Variant B ................. 23
19. Automatic level calculation......................................... 23
20. Automatic height calculation....................................... 24
21. Distance between two points (P2P) ........................... 24
2

22. Adding/subtracting...................................................... 25
23. Camera (only LDM X100)........................................... 26
24. Data export (only LDM X100)..................................... 27
25. Tips and useful information ........................................ 28
26. Troubleshooting.......................................................... 28
27. Care and cleaning ...................................................... 29
28. Declaration of Conformity (DOC)................................ 30
29. Disposal...................................................................... 30
a) Product.................................................................. 30
b) Batteries................................................................ 31
30. Technical Data............................................................ 31
3

1. Introduction
Dear customer,
Thank you for purchasing this product.
This product complies with statutory national and European
regulations.
To ensure that the product remains in this state and to
guarantee safe operation, always follow the instructions in
this manual.
These operating instructions are part of this
product. They contain important information on
setting up and using the product. Do not give
this product to a third party without the operating
instructions. Therefore, retain these operating
instructions for reference!
For technical queries, please contact:
International: www.conrad.com/contact
United Kingdom: www.conrad-electronic.co.uk/contact
2. Explanation of symbols
The symbol with the lightning in a triangle indicates
that there is a risk to your health, e.g. due to an
electric shock.
The symbol with an exclamation mark in a triangle
is used to highlight important information in these
operating instructions. Always read this information
carefully.
The arrow symbol alerts the user to the presence
of important tips and notes on using the device.
This symbol indicates the built-in laser.
4

3. Intended use
The product is used for the measurement of distances,
surfaces and volumes. Allows addition and subtraction of
readings. Calculates height based on the Pythagorean
Theorem.
The product can be connected via Bluetooth with a
smartphone app. The app allows you to edit and evaluate
the measured data. This product can also be controlled via
the app.
For safety and approval purposes, you must not rebuild and/
or modify this product. Using the product for purposes other
than those described above may damage the components.
In addition, improper use can cause hazards such as a
short circuit, re or electric shock. Read the instructions
carefully and store them in a safe place. Only make this
product available to third parties together with its operating
instructions.
All company and product names are trademarks of their
respective owners. All rights reserved.
5

4. Package contents
• Laser rangender
• USB charging cable
• Storage pouch
• Hand strap
• 3x rechargeable battery (NiMH, 900 mAh)
• Operating instructions
The manual for the app is available for download
as a separate document. Refer to the following
paragraph.
Up-to-date operating instructions
To download the latest operating instructions,
visit www.conrad.com/downloads or scan
the QR code on this page. Follow the
instructions on the website.
5. Features and functions
• Dust-proof and protected against water jets (IP65)
• Housing with impact protection (max. drop height 2 m)
• Area calculation
• Volume calculation
• Indirect measurement (Pythagoras)
• Continuous measurement with display of minimum/
maximum distance
• Addition/subtraction function
• Automatic level and height calculation
• Tripod socket 6.35 mm (1/4”)
• 3 measurement references (front face, tripod socket, back
face)
• Measured value memory
6

• Automatic shut-off after 3 minutes
• Digital water level
• Touchscreen
• Bluetooth function for connection to a smartphone app
• Camera for targeting (only LDM X100)
6. Safety instructions
Read the operating instructions and safety
information carefully. If you do not follow the
safety information and information on proper
handling in these operating instruction,
we will assume no liability for any resulting
personal injury or damage to property. Such
cases will invalidate the warranty/guarantee.
a) General information
• The device is not a toy. Keep it out of the reach
of children and pets.
• Do not leave packaging material lying around
carelessly. It may become a dangerous toy for
children.
• Protect the product from extreme
temperatures, impacts, ammable gases,
vapours and solvents.
• The product is only protected against water
jets if the charging connection and the battery
compartment are securely locked.
• Do not place the product under any mechanical
stress.
7

• If it is no longer possible to operate the product
safely, stop using it and prevent unauthorised
use. Safe operation can no longer be
guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in
poor ambient conditions or
- has been subjected to any serious
transport-related stress.
• Always observe the safety and operating
instructions of any other devices which are
connected to the product.
• Consult a technician if you are not sure how to
use or connect the product.
• Maintenance, modications and repairs must
be done by a technician or a specialist repair
centre.
• If you have questions which remain
unanswered by these operating instructions,
contact our technical support service or other
technical personnel.
b) Laser
• When operating the laser equipment, always
make sure that the laser beam is directed so
that no one is in the projection area and that
unintentionally reected beams (e.g. from
reective objects) cannot be directed into
areas where people are present.
• Laser radiation can be dangerous, if the laser
beam or its reection enters unprotected eyes.
Before using the thermometer, familiarise
yourself with the statutory regulations and
instructions for operating such a laser device.
8

• Never look into the laser beam and never point
it at people or animals. Laser radiation can
seriously damage your eyes.
• If laser radiation enters your eyes, close your
eyes immediately and move your head away
from the beam.
• If your eyes have been irritated by laser
radiation, do not continue to carry out tasks
with safety implications, such as working with
machines, working from great heights or close
to high voltage. Do not drive any vehicles until
the irritation has completely subsided.
• Do not point the laser beam at mirrors or other
reective surfaces. The uncontrolled, reected
beam may strike people or animals.
• Never open the device. Conguration or
maintenance tasks must only be completed
by a trained specialist who is familiar with
the potential hazards. Improperly executed
adjustments might result in dangerous laser
radiation.
• The product is equipped with a class 2 laser.
Laser signs in different languages are included
in the package. If the sign on the laser is not
in your local language, attach the appropriate
sign to the laser.
• Caution: Using equipment or procedures other
than those described in these instructions
could lead to exposure to dangerous radiation.
9

c) Batteries
• Ensure that you insert the batteries in the
correct polarity.
• To prevent battery leakage, remove the
batteries when you do not plan to use the
product for an extended period. Leaking or
damaged batteries may cause acid burns if
they come into contact with your skin. Always
use suitable protective gloves when handling
damaged batteries.
• Batteries must be kept out of the reach of
children. Do not leave batteries lying around,
as there is a risk that children or pets may
swallow them.
• All batteries must be replaced at the same
time. Mixing old and new rechargeable
batteries can cause the batteries to leak and
damage the product.
• Batteries must not be dismantled, short-
circuited or thrown into ames. Never recharge
non-rechargeable batteries. Danger of
explosion!
10

7. Product overview
2
3
4
5
6
1
1 Measuring sensor
2 Laser aperture
3 Display
4 Camera button
(only LDM X100)
5 MEAS button
6 On/off switch
11

7
8
9
10
7 Battery compartment
cover
8 Tripod thread
9 Charging port
10 Eyelet for hand strap
8. Display
a) Measuring
D
E
F
G
A
B
C
12

Example: indirect measurement with two reference
points
A Measurement reference
B Bluetooth
C Digital water level
D Battery condition
E Angle
F Measurement mode
G Measurement reading
b) Measurement reading
H
I
J
K
L
Example: Volume measurement
H Measurement mode
I First line segment
J Second line segment
K Third line segment
L Volume

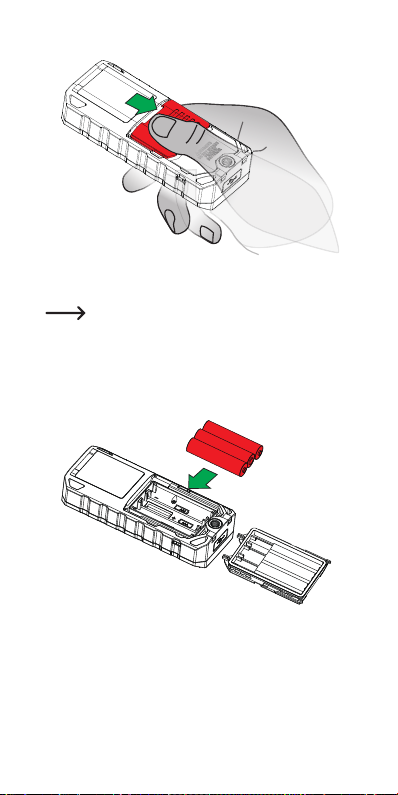

9. Inserting (rechargeable) batteries
Delivery includes 3 rechargeable batteries. The
product can also be operated with conventional
batteries.
Never use rechargeable batteries and conventional
batteries simultaneously.
Only use NiMH rechargeable batteries or alkaline
batteries.
13

• Slide the battery compartment cover down.
• Remove the battery compartment cover.
If you have difculty removing the battery
compartment cover, use a tool to help (e.g. slotted
screwdriver).
• Insert 3 AAA batteries or rechargeable batteries with
correct polarity. Pay attention to the polarity markings
inside the battery compartment.
• Make sure that the sealing ring on the inside of the battery
compartment cover is correctly installed.
• Replace the battery compartment cover.
• Slide the battery compartment cover upwards.
14

Replace batteries or recharge the rechargeable
batteries as soon as the battery status display
shows an empty battery.
10. Charging the batteries
Never attempt to recharge disposable batteries.
Danger of explosion!
Please fully charge the rechargeable batteries
before initial operation.
The USB power supply must be able to supply a
current of 500 mA.
• Turn the cover that covers the charging port 180° to the
side.
• Connect the product via the included cable with a USB
power supply or a computer.
The display shows a short reminder that conventional
batteries cannot be recharged. Then the charging process
starts.
• The rechargeable batteries are charged when the battery
state indicator is lit green.
• Only LDM X100: If you charge the product via a computer,
safely eject the product via the operating system.
15

• Disconnect the cable from the product and from the power
source as soon as the rechargeable batteries are charged.
11. Switch device/laser on/off
• Press and hold the on/off button approx. 1 second to turn
on the product.
• Briey press the MEAS button to activate the laser.
• Briey press the on/off button to deactivate the laser.
• Press and hold the on/off button for approx. 1 second to
turn the device off.
The product switches off automatically after
3 minutes of inactivity.
12. Touchscreen operation
• Swipe right to show the overview of the different
measuring modes.
Then swipe up or down and tap the desired measurement
mode.
• Swipe left to add/subtract measurements.
This is possible with simple distance measurement as well
as when measuring surface area and volume.
• Swipe down to access the setup menu.
Swipe up to close the setup menu again.
• Briey press the on/off button to return to the main screen.
16

13. Settings
Swipe down to access the setup menu.
1
4
2
5
3
6
1 Bluetooth
2 Unit
3 Measurement reference
4 Digital water level
5 Image rotation
6 Memory
Bluetooth
• To connect the device with the app, Bluetooth must be
enabled.
• Tap the icon to activate/deactivate Bluetooth.
• If the letter A appears next to the icon, the measured data
is automatically sent to the app.
• If the letter M appears next to the icon, the measured data
can manually be sent to the app.
In any measurement mode, swipe to the left and tap the
Bluetooth symbol to send the current measurement data
to the app.
• If the icon is highlighted in grey, Bluetooth is disabled.
The manual for the app is available for download
as a separate document. Refer to the information
in chapter 4.
17

Unit
The following units are available:
• m = meters
• ft = foot
• in = inch
• ---’--” = feet/inches
Measurement reference
The following measurement references are available:
Starting point: Back
The length of the device is
included in the measured
value.
Starting point: Tripod
thread
Starting point: Front
Digital water level
The water level helps you to precisely align the product.
18

Image rotation
• If the symbol is displayed on a white background, rotate
the display by turning the product.
• If the icon is displayed on a grey background, image
rotation is disabled.
Memory
• Press the MEAS button or swipe left/right to display the
stored measured values.
• Only LDM X100: To delete the displayed measured value,
press the camera button.
The last measurement results will be stored
automatically.
14. Distance measurement
• Press the MEAS button to activate the laser.
• Point the laser point at the target at a right angle and try to
hold the device as calm as possible
• Press the MEAS button. After a short time, a beep signal
sounds and the measured value is displayed on the
display.
15. Continuous measurement
• Press and hold the MEAS button for approx. one second
to switch to continuous measurement mode.
• The laser is activated. The distance is now measured
continuously.
19

• The display shows the maximum, minimum and the last
registered measured value of the measurement process.
• To exit continuous measurement mode, press the MEAS
or the on/off button.
• After 5 minutes of inactivity, this feature is automatically
deactivated.
16. Area measurement
• Swipe right and select the following function:
• Measure the two sides of the area.
• The device automatically multiplies the measured values.
17. Volume measurement
• Swipe right and select the following function:
20
