Top TB Series User manual

Installation Guide
TB-Series
BILL ACCEPTORS
Thank you for choosing TOP VME .

1
1
1
2
3
4
8
8
13
15
16
17
1.Introduction........................................................
1-1.Overview....................................................................
1-2.Features.....................................................................
2.Specications.....................................................
3.Packing List........................................................
4.Dimension...........................................................
5.Installation.........................................................
5-1.Harness Application..................................................
5-2.I/O Circuit...................................................................
5-3.Software download...................................................
6.Maintenance.......................................................
7.Troubleshooting.................................................

Tb-Series
www.topvme.com
1
1.Introduction
1-1.Overview
The TB-Series is the latest generation of banknote reader designed
exclusively by TOPVME with the highest safety and acceptance rate
have over 96%. The new identification method and identification
technology been improved to provide users with the most complete
functions.
1-2.Features
•Accept bills on all sides
•High banknote acceptance rate
•High security mechanism design
•Support multiple communication protocols
•Lightweight and easy to use
•Easy maintenance
•Electronic anti-shing

Bill Acceptor
www.topvme.com
2
2.Specications
General
Acceptance Rate
Transaction Time
Interface
Installation Site
Bill Insertion
Electronic
Power Source
Power Consumption
Operating temperature
Machine
Weight
Outline Dimension
Bill Acceptor Width
96% or greater
Approx. 1.5 ~ 2 seconds
Pulse/RS232 or Pulse/ccTalk or Pulse/ID003
Indoor
Four way acceptable
12V DC ± 10%
Standby : 0.1~0.16A , 1.2W~1.9W
Operration Current : 0.5A ,6W
Maximum : 1.2A , 14.4W
Operating Temperature: 0°C~60°C
Storage Temperature: -10°C~80°C
Humidity: 20%~70%RH (no condensation)
310 g ± 10g
Please refer to Chapter 4.Dimension
TB74 : 62 mm ~ 74 mm
TB74-U : 62 mm ~ 74 mm
TB74-B : 62mm ~ 74mm
TB77 : 62 mm ~ 77 mm
TB77-U : 62 mm ~ 77 mm

Tb-Series
www.topvme.com
3
3.Packing List
Main..........................................
Accessories.............................
Bill Acceptor x 1
Metal frame x 1，Screw set
x1(Purchase)
Bezel sticker x1
Installation guide x1
DIP Switch setting guide
Harness (Please refer to 5-1
Harness Application)

Bill Acceptor
www.topvme.com
4
4.Dimension
TB74
Unit : mm [inch]
42.8 1.6915.6 0.61
33.6 1.32
79.8 3.14
3.4 0.13
64.0 2.52
120.3
4.74
15.5 0.61
50.8 2.00
84.0 3.31
115.0
4.53
116.0
4.57
85.0 3.35
79.5 3.13
97.4 3.83
48.5 1.91
106.6
4.20
134.0
5.28

Tb-Series
www.topvme.com
5
TB77
Unit : mm [inch]
50.8 2.00
84.0 3.31
116.0
4.57
115.0
4.53
85.0 3.35
97.4 3.83
82.4 3.24
106.6
4.20
48.5 1.91
134.0
5.28
20.8 0.82
38.8 1.53 37.6 1.48
81.2 3.20
4.8 0.19
15.5 0.61
64.0 2.52
120.3
4.74

Bill Acceptor
www.topvme.com
6Unit : mm [inch]
TB74-U / TB77-U
50.8 2.00
84.0 3.31
115.0
4.53
116.0
4.57
134.0
5.28
106.6
4.20
48.4 1.9058.2 2.29
20.8 0.82
42.8 1.69
37.6 1.48
80.4 3.17
85.2 3.35
62.1 2.45
28.6 1.12
4.8 0.19
120.3
4.74

Tb-Series
www.topvme.com
7
50.80 2"
116.65
4.59
97.40 3.83
134.35
5.29
107
4.21
49.08
1.93
11.33
0.45
85 3.35
79.20 3.12
13.80 0.54
17.80 0.70
5.20 0.20
42.80 1.69
3.36 0.13
63.96 2.52
13.70
0.54
62.78
2.47
120.70
4.75
TB74-B

Bill Acceptor
www.topvme.com
8

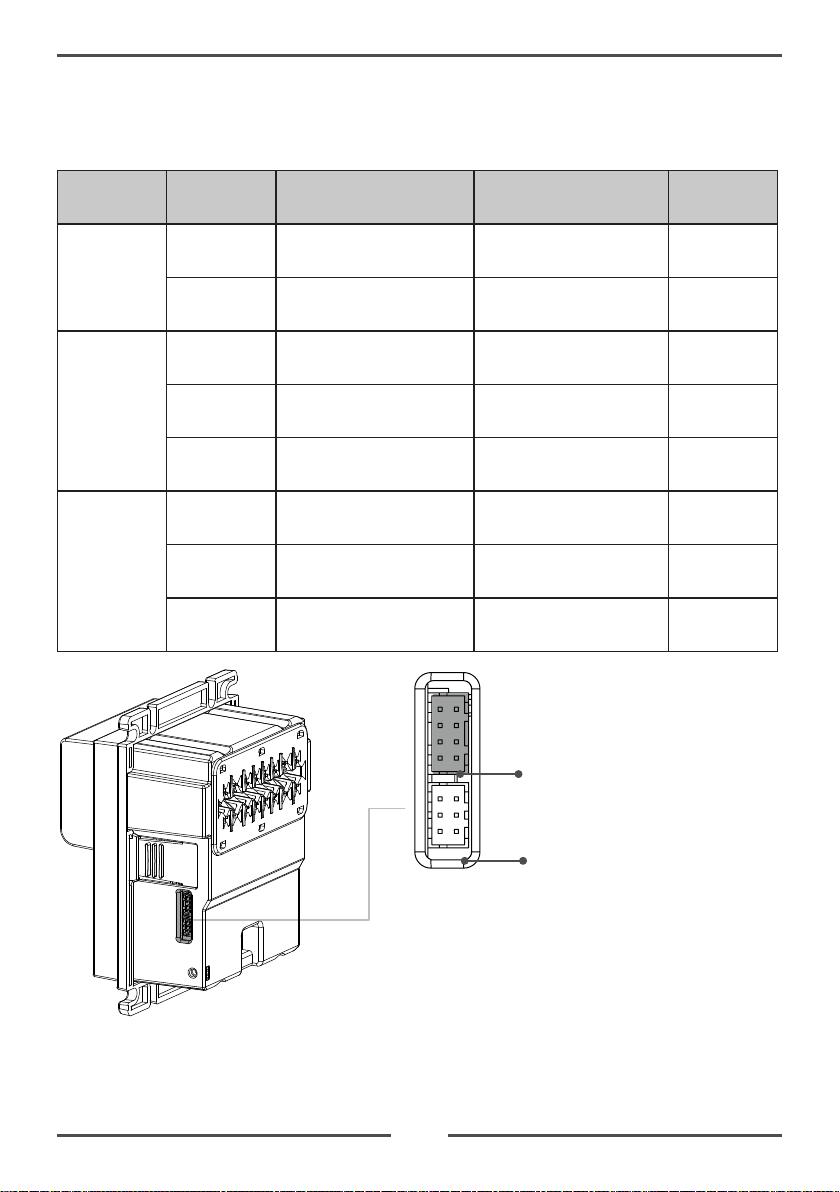

5.Installation
5-1.Harness Application
Interface Voltage Usage Harness Page
PULSE
12V DC Extension Wire CU-R961-1 8
12V DC Power & Data Comm. WEL-R7U02 9
RS232
12V DC Extension Wire CU-R961-1 8
12V DC Power WEL-R7U02 9
12V DC Data Comm. WEL-R7U06
(Purchase) 10
USB
12V DC Extension Wire CU-R961-1 8
12V DC Power & Data Comm. WEL-R7U02 9
Data Comm. 2WIR-CP2102N--00
(Purchase) 11
RS232 / USB
Power / Pulse

Tb-Series
www.topvme.com
9
CU-R961-1
PIN NO COLOR PIN DEFINE
PIN1 YELLOW INHIBIT+
PIN2 GREEN INHIBIT-
PIN5 RED +12V DC
PIN7 BLUE METER+
PIN8 PURPLE METER-
PIN9 ORANGE GND

Bill Acceptor
www.topvme.com
10
PIN NO COLOR PIN DEFINE
PIN1 RED +12V DC
PIN2 ORANGE GND
PIN3 YELLOW INHIBIT+
PIN4 GREEN INHIBIT-
PIN5 BLUE METER+
PIN6 PURPLE METER-
PIN NO COLOR PIN DEFINE
PIN1 YELLOW INHIBIT+
PIN2 GREEN INHIBIT-
PIN5 RED +12V DC
PIN7 BLUE METER+
PIN8 PURPLE METER-
PIN9 ORANGE GND
WEL-R7U02

Tb-Series
www.topvme.com
11

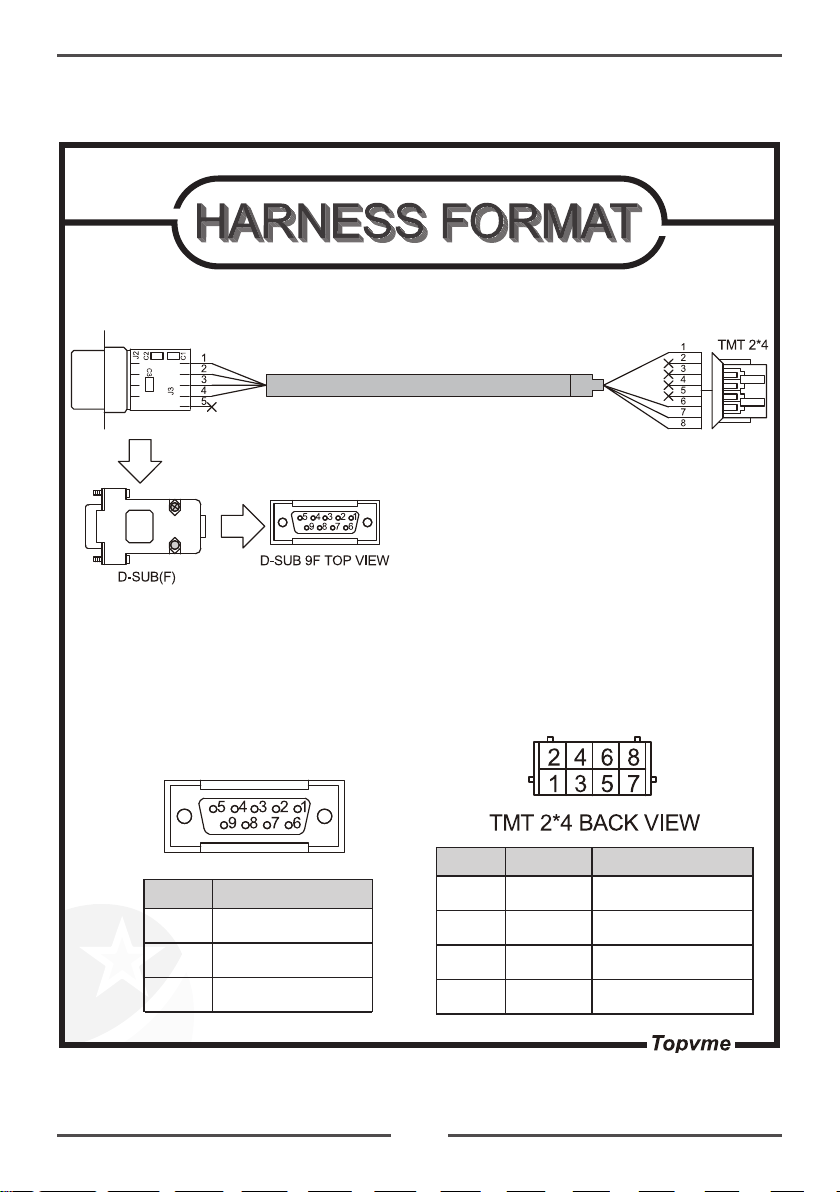

WEL-R7U06
PIN NO PIN DEFINE
PIN2 TXD
PIN3 RXD
PIN5 GND
PIN NO COLOR PIN DEFINE
PIN1 BLUE GND
PIN6 WHITE VCC
PIN7 BLACK RXD
PIN8 PURPLE TXD

Bill Acceptor
www.topvme.com
12
4
3
2
1
1
7
2
8

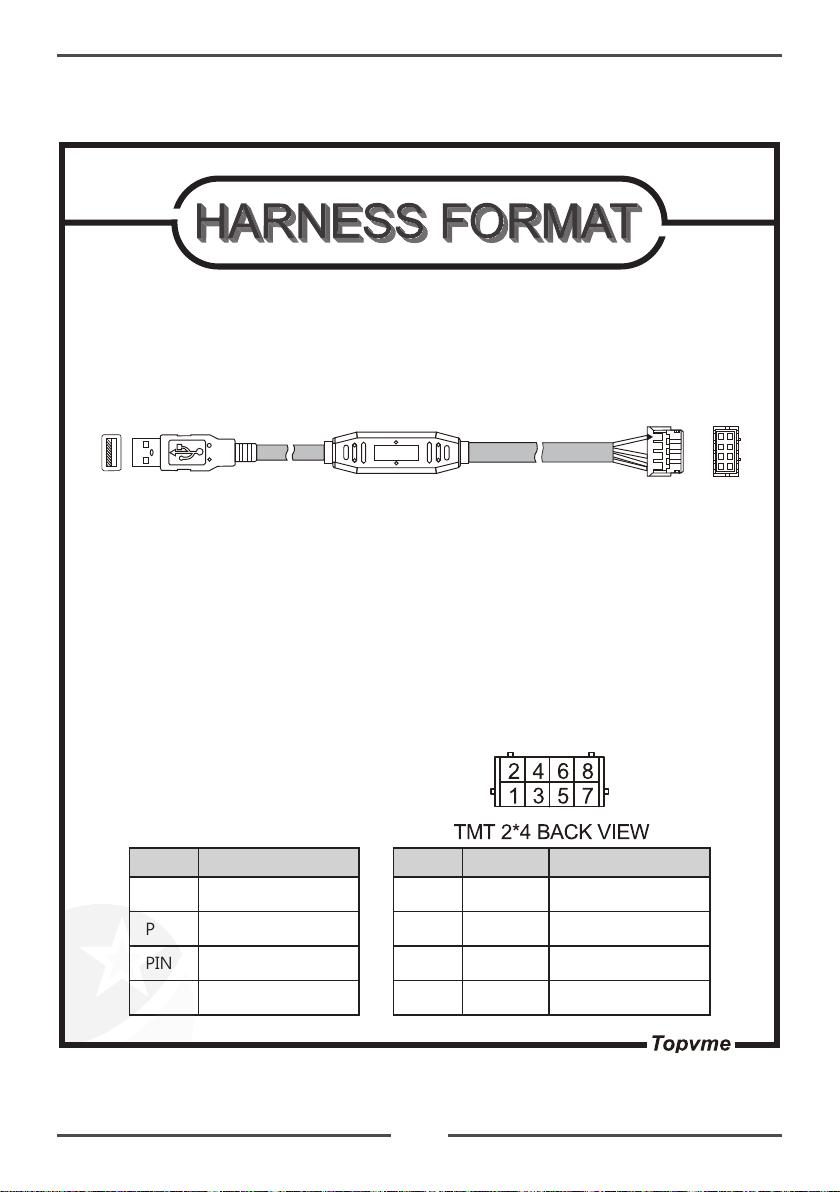

2WIR-CP2102N--00
PIN NO COLOR PIN DEFINE
PIN1 BLUE GND
PIN6 WHITE NC
PIN7 BLACK RXD
PIN8 PURPLE TXD
PIN NO PIN DEFINE
PIN1 GND
PIN2 USB DP
PIN3 USB DM
PIN4 USB +5V

Tb-Series
www.topvme.com
13

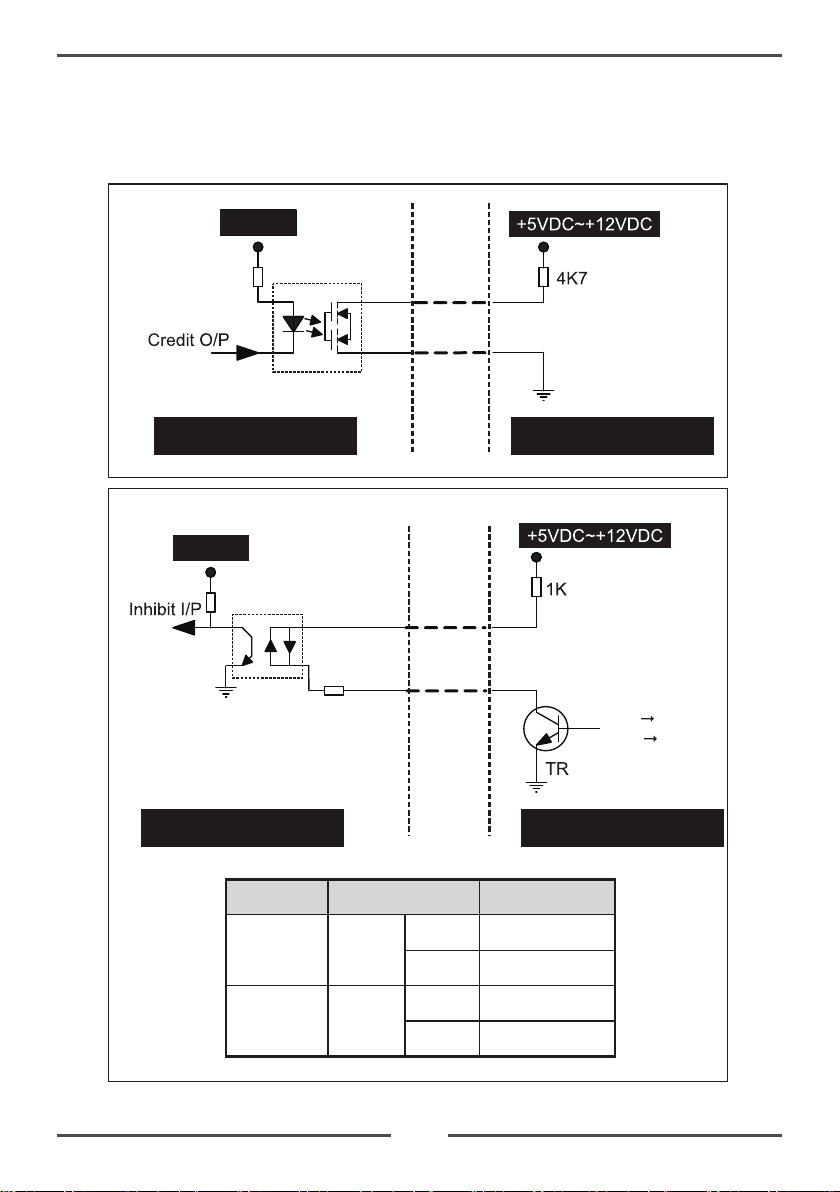

Pulse Interface
5-2.I/O Circuit
Meter+
Meter-
VCC
Customer SideBill Acceptor
HI
Inhibit+
Inhibit-
TR ON
TR OFFLO
VCC
Customer SideBill Acceptor
DIP SW Setting
Inhibit High High
High
High
Low
Low Low
Low
Inhibit
Active
Inhibit
Active
Enable
Control SignalBA Status

Bill Acceptor
www.topvme.com
14
RS232 Interface
ccTalk Interface
VCC
VCC
GNDGND
GNDGND
ccTalk
ccTalk

Tb-Series
www.topvme.com
15
5-3.Software download
Please refer to the G-BOX instruction manual for the download
manual. You can obtain it from your local agent or contact us at the
[email protected].
www.topvme.com
G-BOX
PROGRAMMER
Operation Manual
Top Vending Machine electronics Co.,Ltd.
Software download

Bill Acceptor
www.topvme.com
16
6.Maintenance
Mild,non-abrasive,a small amount of soapy water.
Foreign objects on the LED or sensor may cause bill jamming and
decrease acceptance rate. To make sure the bill acceptor always works
smoothly, please clean the internal parts regularly.(Recommended every
4-6 months)
Please follow the steps below to clean the inside of the machine:
1. Turn o󰀨 the Bill Acceptor power.
2. Open the back cover assembly (1, 2) as indicated below.
3. Clean the belt (3) and the rollers (4, 5) with a soft dry cloth or towel.

Tb-Series
www.topvme.com
17
7.Troubleshooting
LED Flashes Status Corrective Actions
Color Frequency
Red
1 Bill Jammed Check the banknote path and clear any obstruction.
2 Disable Check if the DIP switch setting is correct
3 LED error View and remove foreign objects on the sensor and
Bill path
3+2 Out Sensor/LED error View and remove foreign objects from the anti-theft
hook
3+4 Fishing LED/Sensor
error
View and remove foreign objects on the sensor and
Bill path
4A stringing attempt
has detected
View and remove foreign objects on the sensor and
Bill path
7 Motor error Contact dealer
Yellow 1 Identify UV Led error Clear channel dirty
Blue 1 Input Led or sensor
Interfered Remove light interference
Purple 1 Fishing Led or sensor
Interfered Remove light interference
LED
