TP Series
Bill Acceptors
User Guide


Contents
1. Introduction....................................................................................................................1
1-1. Overview........................................................................................................................ 1
1-2. Features......................................................................................................................... 1
2. Specifications.................................................................................................................2
2-1. General.......................................................................................................................... 2
2-2. Electrical ....................................................................................................................... 2
2-3. Mechanica.................................................................................................................... 2
3. Packing List ....................................................................................................................2
4. Dimension .....................................................................................................................3
5. Installation......................................................................................................................10
5-1. Harness Application................................................................................................... 10
5-2. I/O Circuit..................................................................................................................... 14
5-3. DIP Switch Setting...................................................................................................... 16
6. Maintenance..................................................................................................................17
7. Troubleshooting ...........................................................................................................17

1
TP Series
1. Introduction
1-1. Overview
TP series is a new generation of bill acceptor designed by TOPVME which
features High-security with acceptance rate up to 96%. In addition,multiple
bezel and bill box selections offer users the most convenient and complete
services.
1-2. Features
• Four ways bill insertion acceptance
• Hight acceptance rate
• Multiple bezel selections
• Stacker with capacity of 500 bill are available, stacker with capacity of
800 bill are available. (TP70 special use)
• High security by protective mechanism

2
Bill Acceptors
2. Specifications
2-1. General
Acceptance Rate 96% or gr eater
Interface Pulse/RS232、Pulse/ccTalk、Pulse/ID003
Installation Indoor
Bill Inser tion Four way acceptable
2-2. Electrical
Power Source 12V DC ±5%
Power Consumption
12V DC
Standby : 350mA / 4.2W
Motor Lock : 2A / 24W
Operation
Environment
Operation Temperature : 0° C~60° C
Storage Temperature : -10° C~80° C
Humidity : 20%~70%RH
(no condensation)
2-3. Mechanica
Weight
TP1/2-P5 Approx. 1.55Kg
TP1-P8 Approx. 1.56Kg
TP1/2/3/4 Approx. 0.70kg
Outline Dimension Please refer to Chapter 4 - Dimension
Bill Box Capacity Approx. 500 bills (P5 Series)
Approx. 800 bills (P8 Series)
Bill Accepted Width
TP1 / TP1-K : 62 ~70mm
TP2 : 66 ~77mm
TP3 : 68~83mm
3. Packing List
Main TP Bill Accept ors
Accessories
User Guide
Dip Switch Setting Guide
Harness : please refer to 5-1
Bezel Sticker
Metal Frame (Purchase)
Screw Set (Purchase)
Vandal-proof plate (Purchase)

3
TP Series

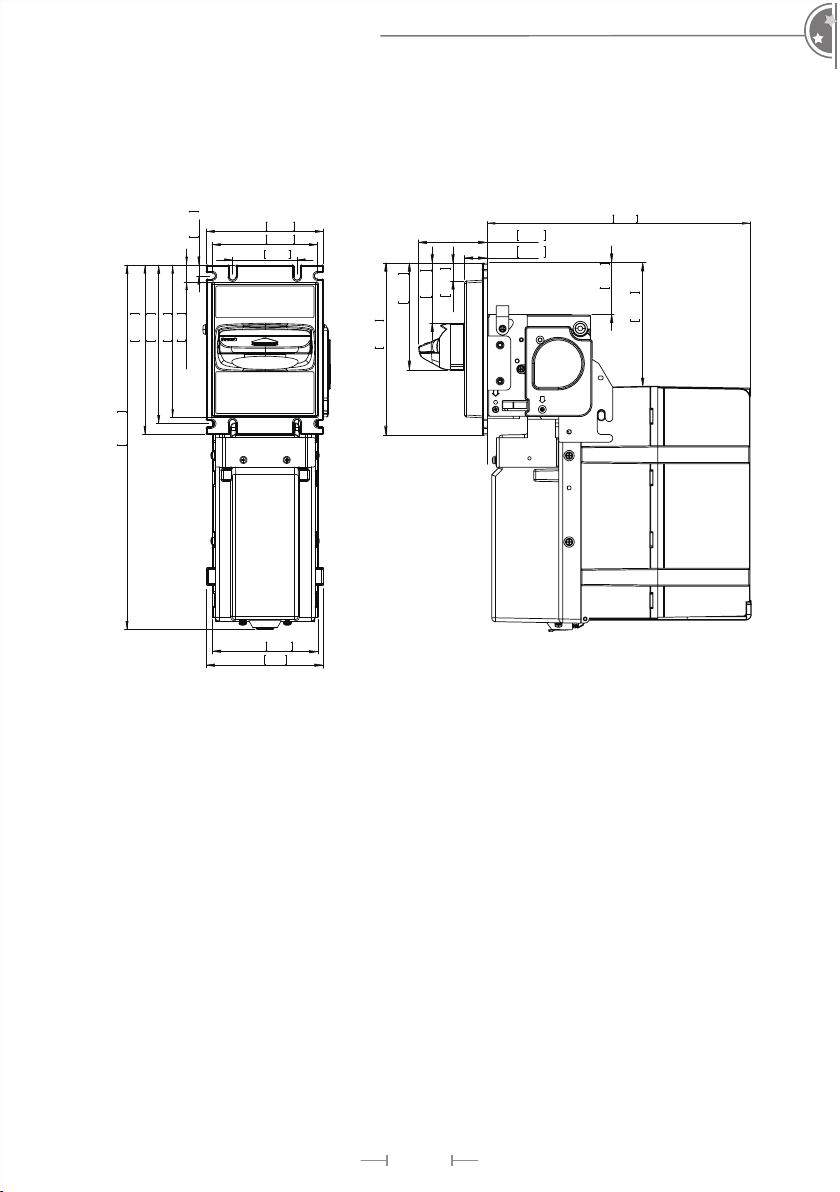

4. Dimension
Unit : mm [ inch ]
TP1/TP1-P5 Upper Bezel
51
2.008
84.30 3.319
93
3.661
117.30
4.618
133.57
5.259
5.41
0.213
134
5.276
98.80 3.890
122.78
4.834
81.30 3.201
13.50 0.531
74
2.913
111
4.370
51
2.008
84.30 3.319
93
3.661
5.41
0.213
17.95 0.707
81.05 3.191
35
1.378
134
5.276
98.80 3.890
122.78
4.834
81.30 3.201
13.50 0.531
74
2.913
111
4.370
169.15
6.659
17.95 0.707
73.95 2.911
17.50 0.689
41.40 1.630
134
5.276
23
0.906
60.29 2.374
121.09
4.767
51
2.008
84.30 3.319
93
3.661
13.50 0.531
8.14
0.320
120.29
4.736
125.44
4.938
134
5.276
264.05 10.396
82.90 3.264

4
Bill Acceptors
Unit : mm [ inch ]
TP1-P8 Upper Bezel
51
2.01
84.30
3.32
264.09
10.40
8.35 0.33
0.53
120.50
4.74
125.65
4.95
134
5.28
5.10 0.20
93
3.66
17.50
0.69
41.40
1.63
204.1 8.04
73.8 2.91
18
0.71
134
5.28
23
0.91
60
2.36
120.5
4.74
13.50
82.90 3.264
91.69 3.61

5
TP Series
Unit : mm [ inch ]
TP1/TP1-P5-Middle Bezel
50.60
1.99
82.80
3.26
91.99
3.62
116
4.57
133.10
5.24
10.20
0.40
81.05
3.19
40.15
1.58
83.19
3.28
100.69
3.96
136.47
5.37
13.88
0.55
50.56
1.99
86.41
3.40
133.10
5.24
50.60
1.99
82.80
3.26
91.99
3.62
116
4.57
133.10
5.24
10.20
0.40
11.90
0.47
81.05
3.19
40.15
1.58
83.19
3.28
100.69
3.96
136.47
5.37
13.88
0.55
50.56
1.99
86.41
3.40
133.10
5.24
169.25
6.663
40.15 1.581
96.06 3.782
17.50 0.689
53.28 2.098
13.88 0.547
46.69 1.838
82.70 3.256
133.10
5.240
82.90 3.264
50.60 1.992
82.80 3.260
91.99 3.622
8.44
0.332
13.14 0.517
119.74
4.714
124.44
4.899
132.99
5.236
286.14 11.265
169.25
6.663
40.15 1.581
96.06 3.782
17.50 0.689
53.28 2.098
13.88 0.547
46.69 1.838
82.70 3.256
133.10
5.240
82.90 3.264
50.60 1.992
82.80 3.260
91.99 3.622
8.44
0.332
13.14 0.517
119.74
4.714
124.44
4.899
132.99
5.236

6
Bill Acceptors
Unit : mm [ inch ]
TP1-P8-Middle Bezel
91.69 3.61
204.1 8.04
40.15 1.581
96.06 3.782
17.50 0.689
53.28 2.098
13.88 0.547
46.69 1.838
82.70 3.256
133.10
5.240
82.90 3.264
50.60 1.992
82.80 3.260
91.99 3.622
8.44
0.332
13.14 0.517
119.74
4.714
124.44
4.899
132.99
5.236
286.14 11.265

7
TP Series
174.88
6.885
22.18 0.873
77.37 3.046
17.50 0.689
46.20 1.819
134
5.276
13.73 0.540
65.41 2.575
50.80 2.000
84
3.307
102.40
4.031
133.68
5.263
8.34
0.328
13.57 0.534
120.11
4.729
125.34
4.935
269.55 10.612
92.85 3.655
69.59 2.740
104.38
4.109
134
5.276
81.30 3.201
127.50
5.020
98.80 3.890
13.75 0.541
120.27
4.735
50.80 2.000
84
3.307
102.40
4.031
117
4.606
134
5.276
13.15 0.518
Unit : mm [ inch ]
TP2/TP2-P5 Upper Bezel

8
Bill Acceptors
50.80 2.000
83.50 3.287
99.65 3.923
8.47
0.334
13.22 0.521
120.42
4.741
125.17
4.928
133.65
5.262
288.06 11.341
40.25 1.58555.19 2.173
175.37
6.904
17.30 0.681
46.20 1.819
14.09 0.555
47.41 1.866
83.77 3.298
133.70
5.264
50.80 2.000
83.50 3.287
99.65 3.923
8.47
0.334
13.22 0.521
120.42
4.741
125.17
4.928
133.65
5.262
40.25 1.58555.19 2.173
175.37
6.904
17.30 0.681
46.20 1.819
14.09 0.555
47.41 1.866
83.77 3.298
133.70
5.264
81.30 3.201
40.25 1.58581.15 3.195
12.30 0.484
49.93 1.966
86.29 3.397
133.70
5.264
98.60 3.882
127.50
5.020
13.25 0.522
120.45
4.742
50.80 2.000
83.50 3.287
99.65 3.923
5.33
0.210
116.70
4.594
133.65
5.262
Unit : mm [ inch ]
TP2/TP2-P5 Middle Bezel

9
TP Series
50.30 1.980
83.50 3.287
105.65
4.159
5.33
0.210
116.70
4.594
116
4.567
133.65
5.262
80.15 3.156
83.12 3.272
49.93 1.966
86.29 3.397
13.25 0.522
120.45
4.742
50.30 1.980
83.50 3.287
105.65
4.159
5.33
0.210
116
4.567
80.15 3.156
83.12 3.272
40.25 1.58581.15 3.195
12.30 0.484
49.93 1.966
86.29 3.397
13.25 0.522
120.45
4.742
93
3.66
117.30
4.62
116
4.57
133.60
5.26
51
2.01
84.10
3.31
80.15
3.16
83.09
3.27
17.75
0.70
81.05
3.19
34.80
1.37
13.75
0.54
74.85
2.95
110.75
4.36
119.85
4.72
5.20 0.20
Unit : mm [ inch ]
TP3 Middle Bezel
TP1-K Upper Bezel

10
Bill Acceptors
5. Installation
5-1. Harness Application
Interface Voltage Usage Harness Page
PULSE
12V DC
Power & Data Communication WEL-R7U02 8
Extension Cable CU-R961-1 9
RS232
Power & Data Communication WEL-R7U02 8
Extension Cable CU-R961-1 9
Data
Communication WEL-R7U06 10
NOTE : Software download
Please refer to the G-BOX instruction manual for the download
manual. You can obtain it from your local agent or contact us at the
13.88
0.55
50.56
1.99
86.41
3.40
133.10
5.24

11
TP Series
PIN NO COLOR PIN DEFINE
PIN1 RED +12V DC
PIN2 ORANGE GND
PIN3 YELLOW INHIBIT+
PIN4 GREEN INHIBIT-
PIN5 BLUE METER+
PIN6 PURPLE METER-
PIN NO COLOR PIN DEFINE
PIN1 YELLOW INHIBIT+
PIN2 GREEN INHIBIT-
PIN5 RED +12V DC
PIN7 BLUE METER+
PIN8 PURPLE METER-
PIN9 ORANGE GND
WEL-R7U02

12
Bill Acceptors
CU-R961-1
PIN NO COLOR PIN DEFINE
PIN1 YELLOW INHIBIT+
PIN2 GREEN INHIBIT-
PIN5 RED +12V DC
PIN7 BLUE METER+
PIN8 PURPLE METER-
PIN9 ORANGE GND

13
TP Series
WEL-R7U06
PIN NO PIN DEFINE
PIN2 TXD
PIN3 RXD
PIN5 GND
PIN NO COLOR PIN DEFINE
PIN1 BLUE GND
PIN6 WHITE VCC
PIN7 BLACK RXD
PIN8 PURPLE TXD

14
Bill Acceptors
5-2. I/O Circuit
PULSE INTERFACE
HI
Inhibit (+)
Inhibit (-)
TR ON
Credit_Relay_NO
Credit_Relay_COM
TR OFFLO
DIP SW Setting
Inhibit
High High
High
High
Low
Low Low
Low
Inhibit
Active
Inhibit
Active
Enable
Control Signal
VCC
VCC
Customer Side
Customer SideBill Acceptor
Bill Acceptor
BA Status

15
TP Series
Standard RS232 Protocol

16
Bill Acceptors

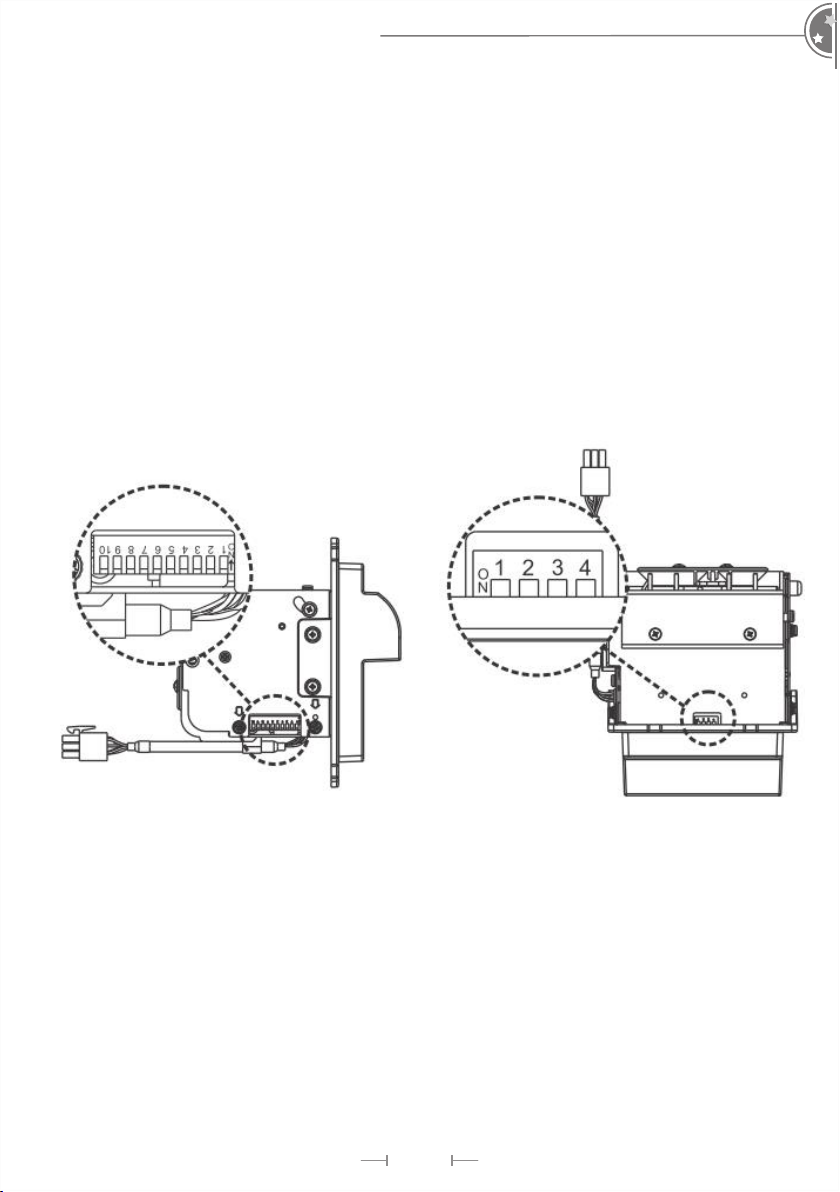

5-3. DIP Switch Setting
There are DIP switches located at the sides of the TP series. Varying on
different currencies and credit output formats used; the DIP switch settingd
could vary to fit user's needs. The DIP switch located at the bottom of the
TP series is intended for interface settings.Please refer to the "TP Series
DIP Switch Setting Guide" in the package for more details.

17
TP Series
6. Maintenance
Foreign objects on the LED or sensor may cause bill jamming and decrease
acceptance rate.To make sure the bill acceptor always works smoothly,please
clean the internal parts regularly.
To clean the internal parts :
1. Turn Bill Acceptor off.
2. Open LED Assembly by pushing buttons on both sides.
3. Use a soft, dry cloth or towel to clean the bill path and sensors.
7. Troubleshooting
LED Flash Status Corrective Actions
1 Bill jammed Open bill path unit and then remove the
jammed bill.
2 Disable Inspect for right DIP switch setting
3Recognition sensor
module error
Inspect for foreign objects on sensor or bill path
and clean
3+2 Hook sensor error Inspect for foreign objects on security hook and
clean
3+4 Fish sensor error Inspect for foreign objects on sensor or bill path
and clean
4A stringing attempt has
detected
Inspect for foreign objects on sensor or bill path
and clean
6Stacker error or stacker
full
Inspect for foreign objects on stacker and clean
or wmpty the bill box
7 Motor error Inspect for foreign objects on bill path and
clean
Table of contents
Other Top Industrial Equipment manuals
Popular Industrial Equipment manuals by other brands

ABB
ABB HT604576 Operation manual

woodmizer
woodmizer Accuset 2 Safety, Operation, Maintenance & Parts Manual

Delta
Delta TP02G-AS1 instruction sheet

Power Fist
Power Fist 8046492 manual

Baumer Hübner
Baumer Hübner POG 90 Installation and operating instructions

TigerStop
TigerStop TigerCrossCut installation guide

Little Giant
Little Giant MCT-5P owner's manual

Power Fist
Power Fist 8885048 user manual

MPFiltri
MPFiltri FZH Series Installation, service and maintenance instructions

Z.I.P.P.ER MASCHINEN
Z.I.P.P.ER MASCHINEN ZI-MHK2 user manual

FRONIUS
FRONIUS Robacta Reamer V Twin operating instructions

BOSSCO
BOSSCO MX1-3HL Operation & maintenance manual
