Top FBP66 User manual

Top Vending Machine Electronics Co., Ltd.
www.topvme.com
Thank you for choosing TOP VME .
FBP66
Thermal Printer
Installation Guide

Content
1. Introduction..................................................................................................1
1-1. Overview ...............................................................................................1
1-2. Features .................................................................................................1
2. Specifications...............................................................................................2
2-1.General....................................................................................................2
2-2 Electrical .................................................................................................2
2-3. Mechanical ...........................................................................................2
3. Dimension.....................................................................................................3
4. Ticket...............................................................................................................4
4-1. Ticket Size .............................................................................................4
4-2. Custom Area ........................................................................................4
5. Installation ....................................................................................................5
5-1. Cable Application ..............................................................................5
5-2. I/O Circuits............................................................................................7
5-3. DIP Switch Setting .............................................................................8
5-4. Download..............................................................................................9
5-5. Limitation..............................................................................................10
5-6. Accessories Installation ...................................................................11
5-7. Paper Replenishing ...........................................................................12
6. Maintenance ...............................................................................................13
7. Troubleshooting .........................................................................................14

1
FBP66
1. Introduction
1-1. Overview
FBP66 is a brand new gaming printer which match with Ticket In and
Ticket Out (TITO) System perfectly. It also able to connect to the fruit
machine (also known as slot machine) and print tickets for players in
real time. Besides equipped with a RS232 port, an individual plug-in
port is provided for firmware upgrade .
1-2. Features
• Durable, easy maintenance
• High-speed, excellence printing quality

2
Gaming Printer
2. Specifications
2-1.General
Interface RS232
Printing Method Thermal
Printing Speed 40±5mm/s
Resolution 8dots / mm (203 dpi)
Fonts 3(8.5cpi, 12.7 cpi, 25.4 cpi)
Barcodes Interleaved 2of 5
Paper Size
Length: 156±1mm
Width: 65±1mm
Thickness: 0.1mm
Paper Material Thermal Paper
Paper Weight 102g / ㎡
2-2 Electrical
Power Source 24V DC / 5A
Power
Consumption
Standby: 0.2A,4.8W
Operation: 3.5A,84W
Maximum: 4.5A, 108W
Operation
Environment
Operation Temp: 0~+50° C
Storage Temp:- 20~+60° C
Humidity: 30~50%RH (no condensation)
2-3. Mechanical
Capacity 200 Tickets / 400 Tickets
Wight 1.5kg
Place Indoor

3
FBP66

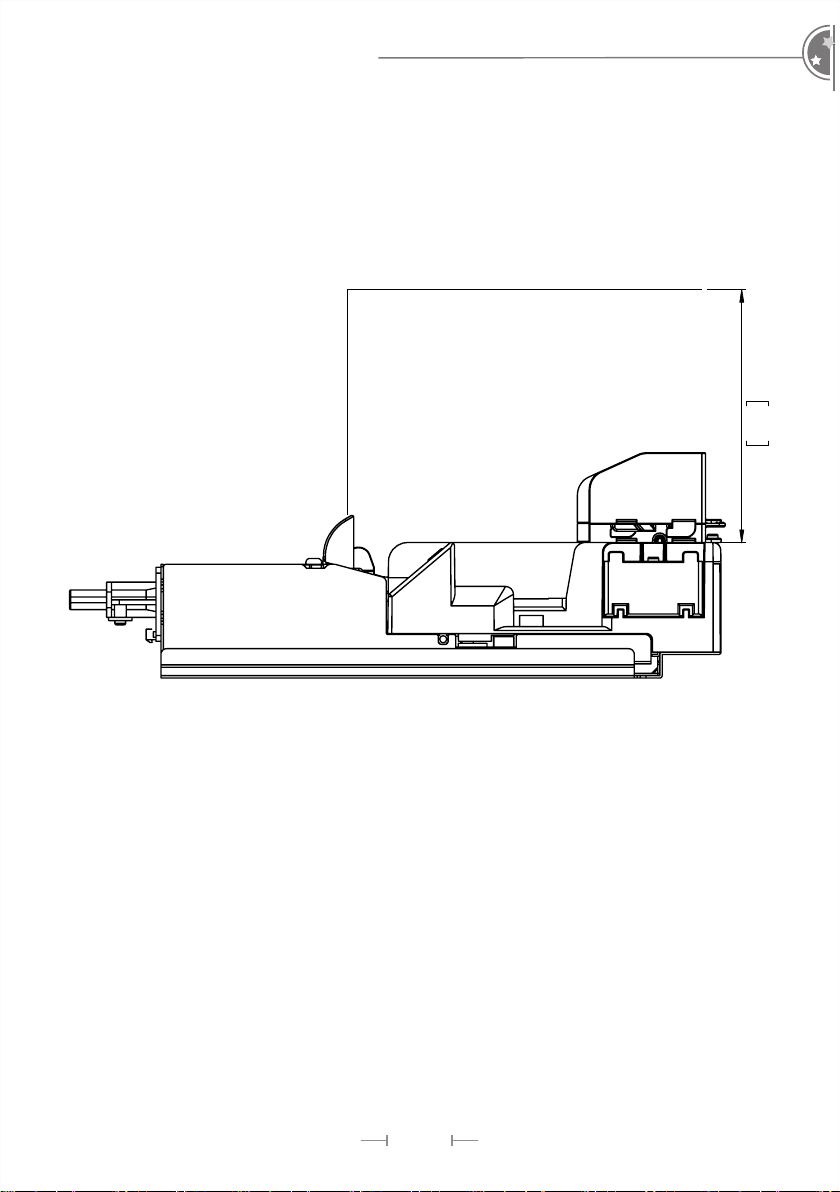

3. Dimension
Unit：ｍｍ〔inch〕
112 4.41
66.5 2.62
285.7 11.25 332.2 13.08
334.3 13.16
157.66 6.21
114.9 4.52 51 2.01
32 1.26 200 7.87
51 2.01
57.9 2.35
10.0 0.39 74.5 2.93
39.9 1.57

4
Gaming Printer
4. Ticket
4-1. Ticket Size
4-2. Custom Area
Sample for reference, fonts can be adjusted
156±1mm
65±1mm
maximum
85mm
minimum
32mm
minimum
39mm
Barcode Area

5
FBP66
5. Installation
5-1. Cable Application
FOR USART / USB
2WIR-FBP66W07-00
12
1
2
3
4
1
5
9
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PIN NO COLOR PIN DEFINE
PIN2 WHITE RS232-TXD
PIN3 PURPLE RS232-RXD
PIN5 BLACK GND
PIN NO COLOR PIN DEFINE
PIN5 BLACK GND
PIN7 BLACK GND
PIN8 RED +24V DC
PIN11 PURPLE RS232-TXD
PIN12 WHITE RS232-RXD
1
6 7 89
2 3 45
1 2 3 4 567
8 9 10 11 12 13 14
TO PC
2WIR-FBP66W07-00
PIN NO COLOR PIN DEFINE
PIN1 RED +24V DC
PIN2 BLACK GND
TOP VIEW TOP VIEW

6
Gaming Printer
FOR USART / USB / Netplex / TOP Barcode System
2WIR-FBP66W17-00
12
PIN NO
DB9 PIN OUT
COLOR PIN DEFINE
PIN2 RS232-TXD
PIN3 ORANGE
BROWN
RS232-RXD
PIN5 BLACK GND
1
6 7 89
2 3 45
1 2 3 4 567
8 9 10 11 12 13 14
PIN NO COLOR PIN DEFINE
PIN1 RED +24V DC
PIN2 BLACK GND
TOP VIEW
TOP VIEW
PIN NO COLOR PIN DEFINE
PIN2 PURPLE RTS
PIN3 BLUE DTR
PIN4 GREEN Netplex Reset
PIN5 YELLOW GND
PIN6 ORANGE GND
PIN7 RED 24V
PIN8 BROWN 24V
1
2
3
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
9
6
5
1
2
3
4
5
6
7
8
PIN NO COLOR PIN DEFINE
PIN1 GREEN Netplex Reset
PIN2 YELLOW Netplex TX
PIN3 BROWN 12V-Input
PIN4 BLUE Netplex RX
PIN5 BLACK GND
PIN6 24VDC
PIN7 BLACK GND
PIN NO COLOR PIN DEFINE
PIN8 RED 24VDC
PIN9 RED Bezel LED
PIN10 GND
PIN11 BROWN RS232-RXD
PIN12 ORANGE RS232 TXD
No Consider
No Consider
PIN13
PIN14
Molex Mini-Fit Jr. 39-01-3149 / 39-01-2140
1 2 3 4
5 6 7 8
TO PC
2WIR-FBP66W17-00

7
FBP66
5-2. I/O Circuits
RS232 Communication Interface PCB.
RS232 interface connector is a 14 position Molex Minfit JrR, part
number 39-30-1140，which mates with Molex part number 39-01-
2140 or equivalent.
USB Communications Interface PCBUSB Communications Interface PCB
The USB Communications PCB contains two connectors.
Power-4 position Molex Minifit JrR, part number 39-30-1040, and
Molex part number 39-01 2040 or equivalent USB communication
Type B USB connector.
PIN I/OFUNCTION
1 -
Not Connected
2 -Not Connected
3 -Not Connected
4 -Not Connected
5 IGND
6 I+24V/DC
7 IGND
PIN I/OFUNCTION
8 I
+24V/DC
9 O
Bezel Lamp-Switch +24V/DC
10 -GND
11 IRS232 RXD
12 ORS232 TXD
13 -Not Connected
14 -Not Connected
PIN I/OFUNCTION
1 -
VBUS
2 I/OD-
3 I/OD+
4 -GND
AP9575
MAX232/MAX3232
RS232_TXD
RS232_RXD
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
C1+
V+
C1-
C2+
C2-
V-
T2out
R2in
VCC
GND
T1out
R1in
R1out
T1in
T2in
R2out
U12
PIN12
PIN11
