Topfield TF4000PVR CoCI User manual

The User’s Manual
Personal Video Recorder
Please read this User s Manual carefully.
The menu structure and specification can be changed without notice.
-Personal Video Recorder
-Embedded Conax
TF4000PVR
-Personal Video Recorder
TF4000PVR CoCI
TM
The User’s Manual
Personal Video Recorder
Please read this User s Manual carefully.
The menu structure and specification can be changed without notice.
-Personal Video Recorder
-Embedded Conax
TF4000PVR
-Personal Video Recorder
TF4000PVR CoCI
TM

This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates
important instructions
accompanying the product.
CAUUTTION
RISK ELECTRIC SHOCK
Do NOT OPEN
FA
FE
FE
CI
CIP
FAPFEP
FA
FE
FE
CI
CIP
FAPFEP
FA
FE
FE
CI
CIP
FAPFEP
FA
FE
FE
CI
CIP
FAPFEP
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
INTRODUCTION 4
CONTENTS 4
FEATURES 4
FRONT/ REAR PANELS
1) FRONT PANEL 6
2) REAR PANEL
6
REMOTE CONTROL UNIT (RCU) 7
GETTING STARTED 13
FUNCTION GUIDE 14
MENU OPERATIONS
1) SYSTEM SETTING 17
2) ORGANIZING CHANNEL
27
3) ORGANIZING FAVORITES
29
4) RECORDING
30
5) HDD SERVICE
33
6) INSTALLATION
34
7) INFORMATION
45
8) COMMON INTERFACE
46
9) GAME
47
HOW TO RECORD AND PLAYBACK THE PVR
1) TIME SHIFTING 49
2)
RECORDING WHILE TIME SHIFTING
49
3) RECORDING, CHECKING AND CANCELING
50
4) PLAYBACK A RECORDED SERVICE
52
5) STOP
52
6) PAUSING
53
7)
SLOW MOTION PLAYBACK
53
8)
FAST MOTION PLAYBACK
54
9) FAST FORWARDING AND REWINDING
54
10) REVERSE PLAYBACK
54
11) BOOKMARK
55
12)
RECORDING THE DESCRAMBLED LIVE SERVICE
55
13)
DESCRAMBLING SERVICE
56
14)
COPYING FROM RECORDED SERVICE
56
15)
CUT OUT SELECTED REGION
57
16)
TIME SHIFTING WHILE RECORDING
57
17)
ZAPPING WHILE RECORDING
58
18)
REPEAT MODE
58
TROUBLE SHOOTING(Q & A) 59
SPECIFICATIONS 60
TABLE OF CONTENTS
Warning!
Please do not insert metal or alien substance into the slots
for the Modules and Cards.
In doing so can cause damage to the PVR and reduce its life span.

3
Please read the following recommended safety precautions carefully for your safety.
MAINS SUPPLY
: 90-250V AC 50/60 Hz.
OVERLOADING : Do not overload wall outlets, extension cords or adapters
as these can result in fire or electrical shock.
LIQUIDS : Keep liquids away from the PVR.
The apparatus shall not be exposed to dripping or splashing and that no
objects filled with liquids, such as vases, shall be placed on the apparatus.
SMALL OBJECTS : Coins or other small objects must be kept away from the PVR as
they can fall through the ventilation slots of the PVR and cause
serious damage.
CLEANING : Disconnect the PVR from the wall socket before cleaning it.
Use a dry cloth lightly dampened(no solvents) to clean
the exterior of the PVR.
VENTILATION : Do not block the decoder’s ventilation slots.
Ensure that a free airflow is maintained around the PVR.
Never stand the PVR on soft furnishings or carpets.
Do not use or store the PVR where it is exposed to direct
sunlight or near a heater.
Never stack other electronic
equipment on top of the PVR.
ATTACHMENTS : Do not use any attachments that are not recommended as these
may cause hazards or damage the equipment .
CONNECTION TO THE SATELLITE DISH LNB :
Disconnect the PVR from the mains before connecting or
disconnecting the cable from the satellite dish.
Failure to do so can damage the LNB.
SERVICING : Do not attempt to service this product by yourself.
Refer all serving to qualified service agents.
LIGHTNING : It is recommended that the PVR should remain connected at all
times to the mains supply and satellite dish (except when
working on the LNB). However, the manufacturer’s
instructions for safeguarding other equipment connected to the
PVR, i, e, TV set, must be followed during lightning storms.
LNB and the modem telephone line are essential.
EARTHING : The LNB cable must be earthed to the system earth for
the satellite dish.
LOCATION : Locate the PVR indoor place properly to prevent lightening,
raining and direct sunlight.
WARNING Warning WARNING Warning WARNING

4
INTRODUCTION
Thank you for purchasing the Personal Video Recorder (PVR).
This PVR is fully compliant with the international DVB standard and thus transmits digital
images, sounds, information guides and teletext directly to your TV through the satellite.
Now you can comfortably see and receive digitally transmitted music, news, movie and sports
satellite broadcasts in your office or at your home. The PVR records and playback satellite
broadcasts. You can enjoy interesting games embedded in PVR.
In the Channel Search section, both the automatic channel search method and the
manual search mode are provided. Also it supports DiSEqC 1.2, enabling you to move your
antenna in order to focus preferred satellite. You can save up to 3500 TV and 1500 Radio
channels and work around with the Favorite, Lock, Delete, Move and Sort functions.
The Menu is very modern and supports different languages. All functions can be carried out
using the remote control and some of the functions can also be carried out using the front panel.
The PVR is easy to use and adaptable for future advances. Please be aware that new
software may change the functions of the PVR.
If you have any difficulties concerning the operation of your PVR, please refer to the
relevant section of this manual, including the ‘Troubleshooting’. This Manual will provide you
with useful information on using the PVR.
Fully Compliant to DVB.
Common Interface for Viaccess,Irdeto,Cryptoworks,Nagravision,Conax and Mediaguard.
Please ensure that the following items are included with the PVR.
1) Remote control unit
2) Batteries (size AAA)
3) User’s Guide (this document)
CONTENTS
FEATURES

5
Antenna/LNB control
- 22KHz mode On/Off
- 0/12V mode selection
- Automatic FEC Detection
- DiSEqC 1.0 & 1.2 compatible
Satellite/Channel support
- 3500 TV channels, 1500 Radio channels storable
Video/Audio
- Automatic PAL/NTSC selection
- Multi-lingual Audio support
- Automatic channel search
OSD (On Screen Display) support
- 256 color support.
- Multi-lingual menu text support.
- GMT and Time Offset support
- 10 favorite channel groups support
- Page Up/Page Down available on your channel list
- PIG ( Picture In Graphic ) support
Recording and playback
- Time shifting playback
- Recording by EPG
- Delayed Recording
- Fast and Slow Playback
- Bookmark
- Repeated Playback for selected interval
- Capable of editing recorded services
- About 12-25 hours recording capacity with a 40GB HDD
2 Tuners
- 2 Tuners for zapping while recording.
- 2 LNB inputs
- 2 RF signal loop through
- Independent LNB control
Teletext
- Software emulation mode with always VBI insertion mode on.
Games are embedded.
Embedded Conax
(Embedded Conax model only)
S/PDIF output (Digital Audio Output)

6
1) Front Panel
2)Rear Panel
FRONT / REAR PANELS
The power button of STB (ON / Stand by)
- LED
TV / SAT
REMOTE
STAND BY
- DISPLAY
During the STANDBY mode, the current time is displayed.
When the power is ON, the current status is displayed (TV/ Radio/ Menu).
- CHANNEL
The channel buttons are to change channels.
VIDEO OUTPUT
Video output (YELLOW)
LNB 1 OUT
Use it to connect to
another PVR or LNB 2 IN.
LNB 2 OUT
Use it to connect to
another STB.
RF IN
Connects the TV.
RF OUT
Connects the TV RF IN (ANT IN).
VCR SCART
Connects the VCR SCART
AUDIO-LEFT OUTPUT
Audio output.(WHITE)
RS232
Upgrades the PVR Program &
software
S/PDIF
Optical output for Digital
Audio
Connects the satellite antenna cable.
LNB 1 IN
Connects the satellite antenna cable.
TV SCART
Connects the TV SCART
AUDIO-RIGHT OUTPUT
Audio output.(RED)
0/12V OUTPUT
Chooses the LNB on the antenna.
- POWER
LNB 2 IN

7
REMOTE CONTROL UNIT (RCU)
POWER Button ( )
Switches the PVR between Operation and Standby mode.
MUTE Button ( )
Enables/ Disables the Audio.
UHF Button ( )
Displays and alters the UHF setting in menu.
TV/SAT Button ( )
Changes the terrestrial TV and Satellite mode.
SLEEP Button ( )
Displays sleep time. When sleep time,
the power automatically turns to the OFF
mode and the PVR to the STANDBY mode.
Numeric Buttons ( 0~9 )
Selects the TV or Radio service channels
and individual menu options.
RECALL Button ( )
Selects the previously viewed channel.
INFO Button ( )
Displays the program information box on
the screen and removes it.
GUIDE Button ( )
Displays the EPG (Electronic Program Guide)
on screen only when available.
TV/ Radio Button ( )
Selects the TV/Radio mode.
MENU Button ( )
Displays the Menu on screen or returns to
previous menu from submenu.
SOUND Button ( )
Selects LEFT/RIGHT/MONO/STEREO
sound function.

8
Button
Pause.
Button Button Button
The each function for above buttons is not
defined yet. According to the future upgrade
for the software, the buttons will be used
and its function will be defined, which will
be notified through our website or addendum
in manual.
Button Button Button Button
Above buttons are a kind of function key. So,
the fixed function in each OSD Screen can be
referred in each instruction message in help
window.
Button
Display recorded service list.
Button
Select the period for repeated playback.
V+/V- Buttons ( )
Adjusts the volume (Increase/Decrease).
P+/P- Buttons ( )
Tunes to the next or previous service.
Services up or down through the available
services.
OK Button ( )
Displays Channel List on screen.
Selects an item in the menu.
FAV Button ( )
Displays the favorite channel list.
SUBTITLE Button ( )
Selects the subtitle language list for the
current service.
EXIT Button ( )
Returns to the previous menu and the screen.
TELETEXT Button ( )
Enables the teletext with software
emulation.
Button
Display the progress bar of time shifting or
playback when no progress bar is displayed.
Fast rewind when the progress bar is displayed.
Button
Playback with normal speed.
Button
Fast forward or fast motion playback.
Button
Slow motion playback.
Button
Stop playback or recording.
Button
Start recording.

9
First, connect both the satellite antenna and the TV line to the PVR and switch the
power on.
In this manual there are some of the most common ways to connect the equipment:
TV, VCR and PVR.
There are several ways of connecting the PVR to the existing Audio/TV system.
We recommend one of the following setups.
If you have problems with your connections and need help, contact your dealer or
service provider.

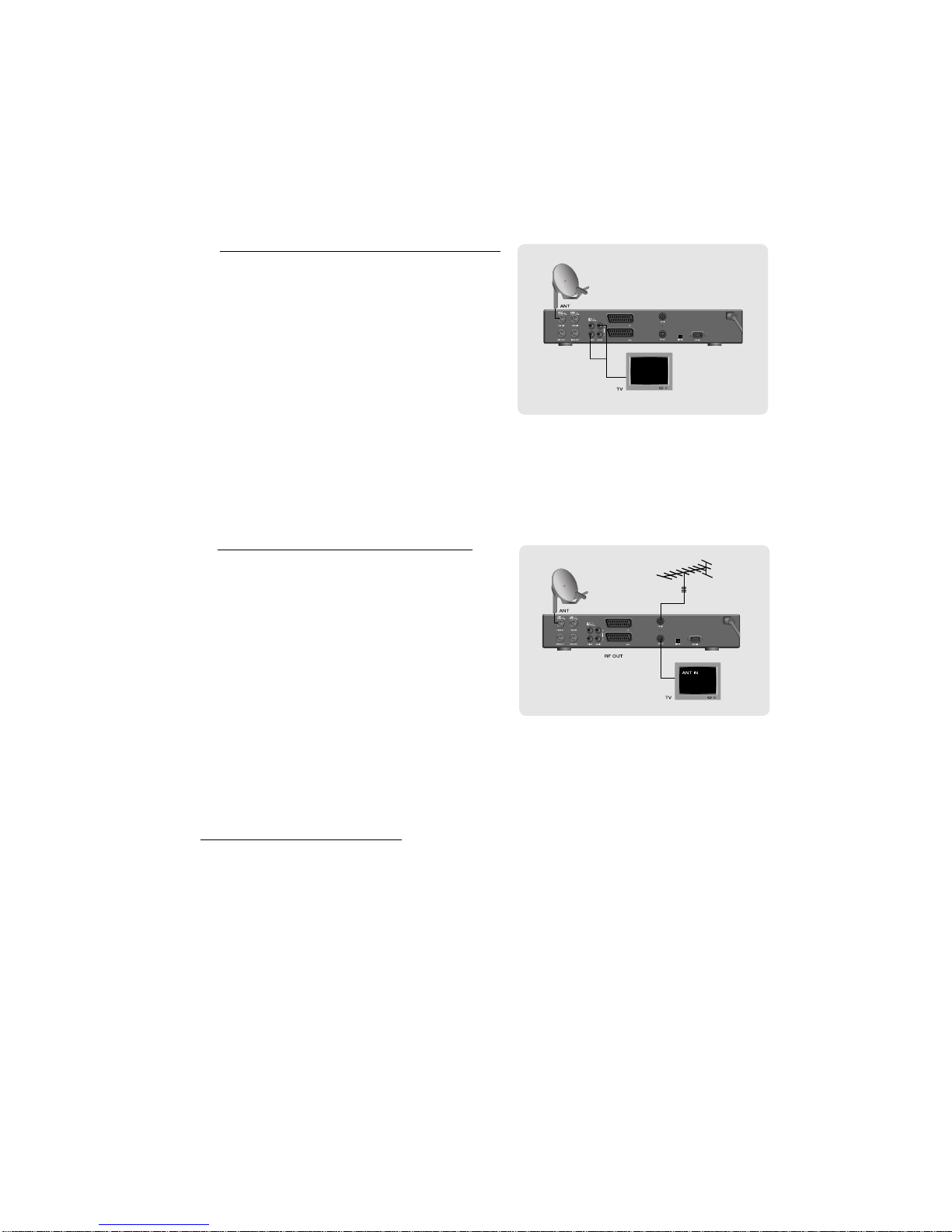

1. Connection to TV, VCR and Hi-Fi
1-2) Connection to the VCR with the SCART Cable.
Connect one end of the SCART cable to the
VCR SCART socket on the PVR and the other
end to a SCART socket on the VCR.
INSTALLATION (Connection)
1-1) Connection to the TV with the SCART Cable.
Connect one end of the SCART cable to the
TV SCART socket on the PVR and the other
end to a SCART socket on the TV.

10
1-3) Connection to the TV with the CINCH Cable.
Connect one end (3 connectors) of the CINCH
cable to the AUDIO-RIGHT (red),
AUDIO-LEFT (white) and the VIDEO
output (yellow) socket on the PVR.
Connect the other end (3 connectors) to the
AUDIO-RIGHT (red), AUDIO-LEFT
(white) and the VIDEO input
(yellow) socket on the TV or Hi-Fi.
1-4) Connection to the TV using the RF cable.
Connect a terrestrial antenna to RF IN socket
on the PVR.
Connect one end of the RF cable to the RF
OUT socket on the PVR.
Connect the other end to the ANT IN socket
on the TV.
2.Connection to the Antenna.
We recommend one of the following installation diagrams because of the LNB
specifications for selecting RF signal band by DC voltage and 22Khz tone.
If the PVR is installed with separated connection type, there is no restriction for
zapping while recording.

11
2-1) Installing the PVR with two separated Antennas.
Installing the PVR with two separated Antennas.
The Connection Type in LNB setting menu
should be set to Separated .
2-2) Installing the PVR with one Antenna.
The Connection Type in LNB setting menu
should be set to Loop Through .
Tuner 1 and 2 can receive the RF signal of
the same polarity and the same band.
2-3) Installing the PVR with one dual LNB Antenna.
The Connection Type in LNB setting
menu should be set to Separated .

12
3.Connection to the other Satellite Receiver.
Connect the satellite cable to the LNB IN socket
on the PVR. With other connector, connect the
LNB OUT socket on the PVR and the LNB IN
socket of the other PVR or STB.
2-4) Installing the PVR with two separated dual LNB
Antennas and DiSEqC switches.
The Connection Type in LNB setting
menu should be set to Separated .

13
GETTING STARTED
Press the Power button to operate the PVR from the STANDBY mode. Now, the
Info Box will appear for a given time and disappear. By pressing the button, the Info
Box will remain on the screen. The display time of the Info Box is adjustable under the
Installation menu of the Main menu.
If the current broadcast has EPG (Electronic Program Guide) with it, press the
button to see not only the current channel’s but also other channel’s EPG without
any time constraints. Also, press button to reserve and save the current service
and to watch the broadcast automatically when it starts.
IMPORTANT: Before taking charge of your new PVR, some important technical
settings are essential.
- First, press the MENU button on the RCU to make the Main Menu appear.
- Go to the LNB Setting menu under the Channel Search item of the
Installation menu and press button.
- The default PIN CODE is 0000 .
- Choose the right parameters for Satellite Name, LNB Frequency, 22KHz, 12 V,
DiSEqC 1.0, and Motorized System according to your LNB and satellite settings.
If the right Satellite Name and LNB Frequency were not found in the list, call the
dealer for satellite information.
- Then, press the MENU button and go back to the Channel Search
menu.
- Set the Search Mode to the Auto mode. (A Manual or Advanced Search
can always be performed later on)
- Select the Start Search... item and press button.
- The search procedure will take a while. Press button when the searching
process is over (100%) to confirm and save the new channel list.
- For further information, please refer to the LNB Setting item of the MENU
OPERATIONS on this manual.

14

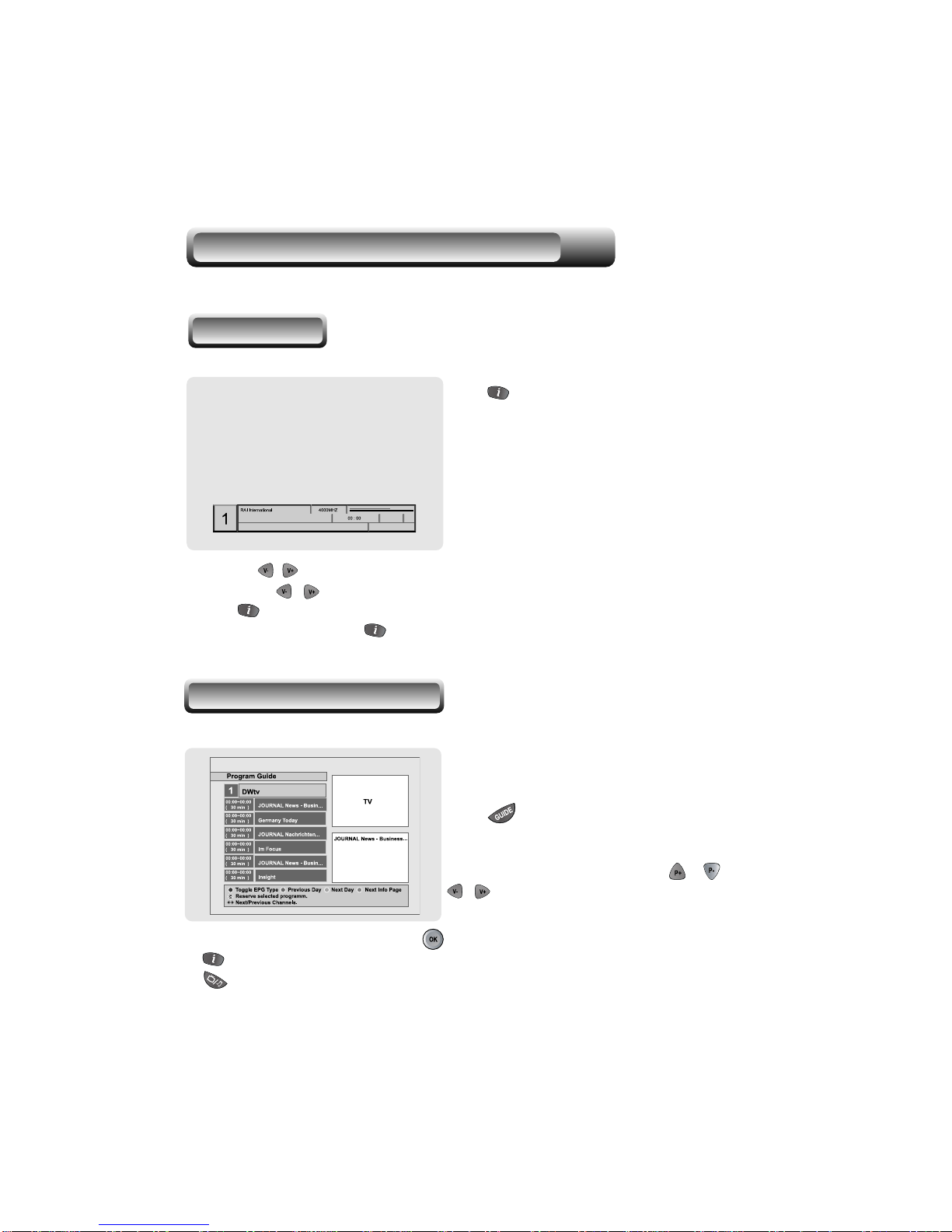

Press button on the RCU to see the program
information. The Information box displays as follows:
. Channel Number
. Channel Name
. Detailed Program Information
. Signal Level & Quality
. Satellite Information
. Information of subtitle and / or teletext
Information Box
EPG (Electronic Program Guide)
Function Guide
To use currently showing TV, and Radio services
as well as to use next program schedules,
press button on the remote control unit.
If EPG is available on programs, you will see
the detailed description of the programs, start/end
time and programs schedules etc. , and
, buttons will be used to move program and
to see next program schedules. The button makes the reservation for the next program.
button shows extended information of the current program.
button will change the contents of EPG between TV and Radio services.
By using , buttons, you can see the EPG of next event. To change volume level in this
mode, press , buttons without no interval.
Press button once more, you can see the extended infomation of the current program.
To remove info box, press button once more.

15
FA FE FE CI
CIP
FAP FEP
FA FE FE CI
CIP
FAP FEP
You can choose a language of subtitle using button
on the RCU.
If a broadcaster provides subtitles, you can see
symbol in the Information Box.
Subtitle
You can choose a language of soundtrack using
button on the RCU when a broadcaster supports
various languages of soundtrack.
Also, it is possible to choose a mode among
Stereo ,
Mono , Left and Right using the , buttons
on the RCU.
Soundtrack
If a broadcaster supports teletext, you can see symbol in the Information Box.
There are VBI insertion mode and software emulation mode in teletext.
In the VBI insertion mode, which is always on, you can watch the teletext with your TV
using the RCU of your TV. To watch teletext with VBI insertion, your TV must support
teletext.
In the software emulation mode, you can watch the teletext even though your TV does
not support teletext. You can watch the teletext using the RCU of PVR.
Press
Teletext button to watch the teletext with software emulation mode.
Press Teletext button or EXIT button to escape from teletext.
Teletext
AUTO
Track 01
Track 02
Track 03
Track 04
Track 05
Track 06
Track 07
Track 08
Sound Track
Sound Mode
Mono

16
Now this chapter assumes that the PVR system has been installed correctly,
meaning:
* The satellite dish for the PVR has been installed, connected to the PVR and
correctly adjusted to the proper satellite.
* The PVR is connected to the TV.
* The RCU has batteries and ready to control the PVR.
If the PVR has not been installed or connected properly, please refer to the
INSTALLATION (connection) menu on this manual.

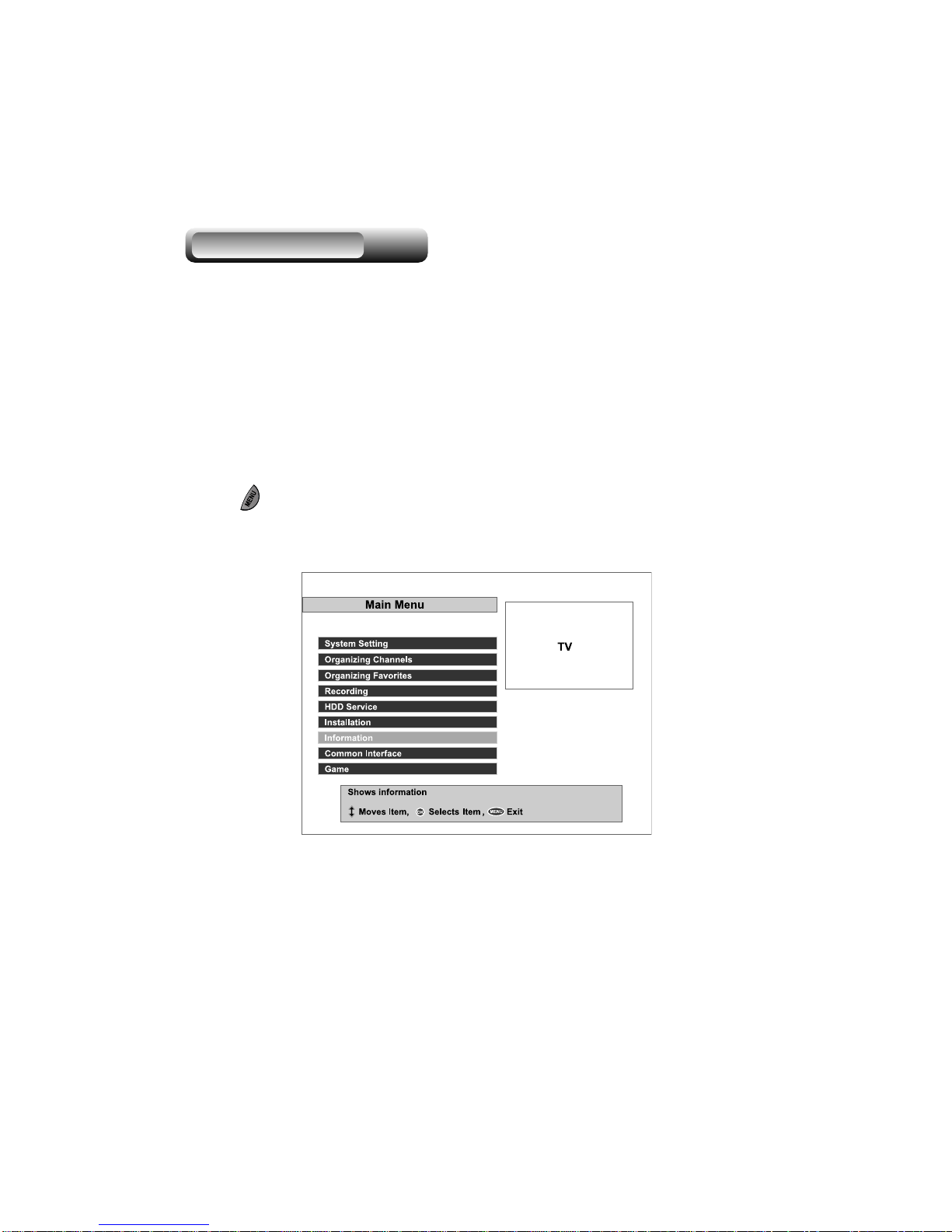

Many of the functions of the PVR are available from the
Main Menu. Press the
button to open it.
MENU OPERATIONS

17
I. SYSTEM SETTING

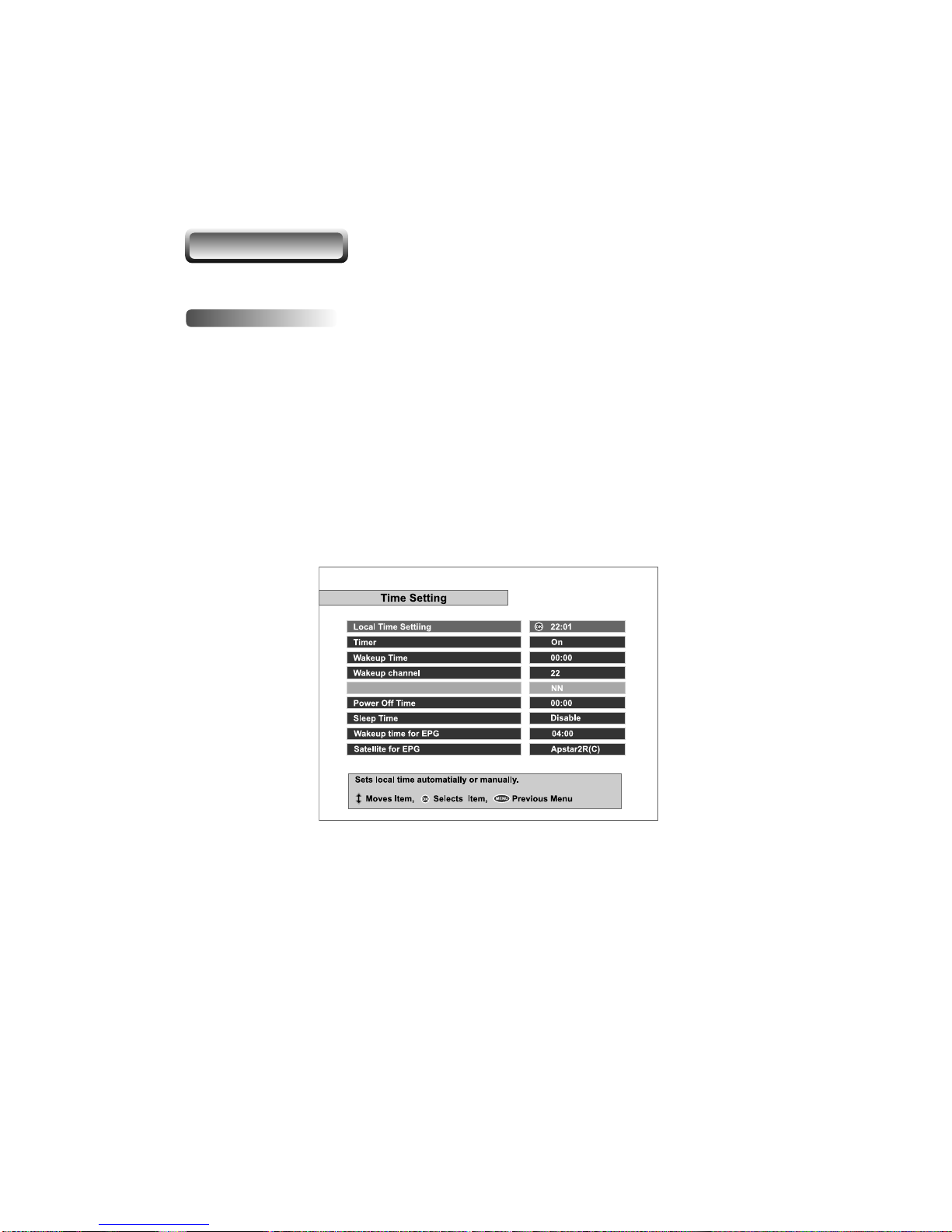

Various time modes can be set, such as the current local time, the Power
On/Off time and the Sleep Time. The exact local present time can be adjusted
by using the GMT , the Time Offset and the Mode sub menus.
PLEASE NOTE: Configure the Local Time before adjusting the Wakeup
Time , Power Off Time or the Sleep Time .
I-1 TIME SETTING

18
Press button at Local Time Setting item in the Time Setting menu to open the
Local Time Setting menu. Inside the Local Time Setting menu, there are 4 sub
menus: Mode , Local Time , GMT and Time Offset .
Mode
By using the ,buttons,you can control the Auto/Manual mode. The Auto
mode automatically updates the time settings by adding the GMT received from the
satellite and the Time Offset value you have inserted. The Auto mode is recommended.
Local Time
The Local Time is adjustable only when the Mode is on the Manual mode.
Adjust the current time, if necessary, by using the numeric buttons and the ,
buttons.
GMT
GMT is referred to the standard time of Greenwich. This cannot be changed.
Time Offset
The current time of the local area can be inserted. In another words, insert the
time difference of the local time zone from the GMT. For example, if the local area is
Seoul (the time difference from the GMT being 9), insert 9:00 . The time is
adjustable by using the , buttons,15 minutes at a time.
A. Local Time Setting
Local Time Setting
Mode
Local Time
GMT
Time Offset
Changes the time setting mode.
In order to change the local time, set it to manual mode.
Moves Item, Selects Item, Previous Menu
MENU
Auto
08:19
08:19
00:00
Time Setting
Local Time setting
Timer
Wakeup time
Wakeup channel
Changes automatically the Power On/Off mode.
Moves Item, Selects Litem, Previous Menu
MENU
08;19
On
11:12
0
00:00
Disable
Time Setting
Local Time setting
Timer
Wakeup time
Wakeup channel
Power Off Time
Sleep Time
Sets the Sleep time.
Moves Item, Selects Litem, Previous Menu
MENU
22:01
Off
00:00
22
HN Radio3
00:00
100 min
Power Off Time
Sleep Time

19

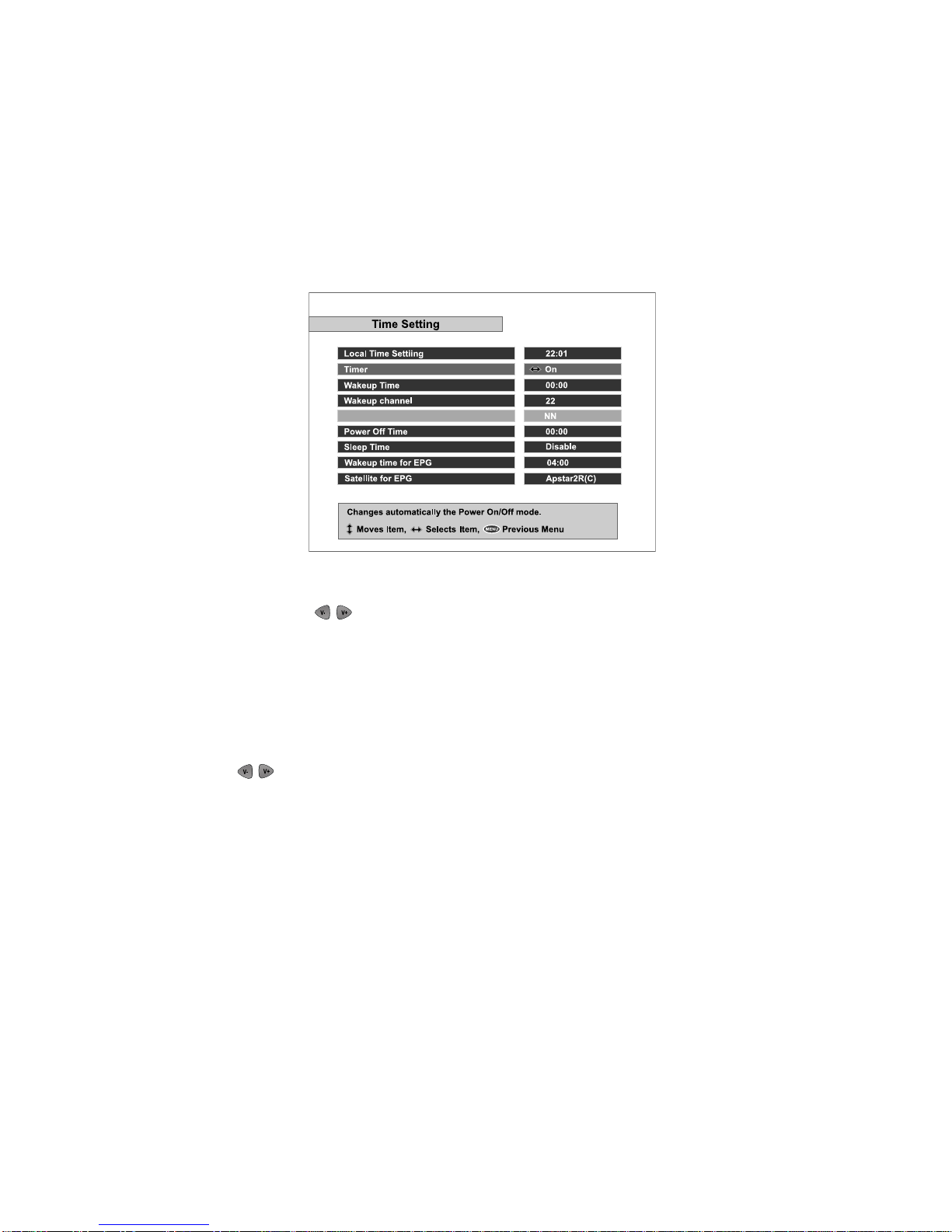

Use the , buttons to select the On/Off mode. If the Timer item
is set to On , the Wakeup Time item, the Wakeup Channel item and the
Power Off Time item becomes adjustable.
The Wakeup Time item sets up the time the PVR automatically turns
on. Insert the preferable Wakeup Time by using the numeric buttons and the
, buttons on the RCU. To disable the wakeup funtion, make the Timer
item Off .
The
Wakeup Channel item automatically turns the PVR to the preset
channel when it automatically turns on by the Wakeup function.
B. Timer
C. Wakeup Time
D. Wakeup Channel

20
E. Power Off Time
F. Sleep Time
G. Wakeup time for EPG
The Power Off Time menu sets the time of the PVR automatically turns off.
The Sleep Time item is similar to the Power Off menu. The Sleep
Time function turns off after the adjusted sleep time.
The Wakeup time for EPG menu automatically turns the PVR on if this
menu is enabled. The PVR will record EPG data to HDD from the desired time.
H. Satellite for EPG
If wakeup time for EPG menu is enabled, you have to select the desired Satellite
you want to record EPG data to HDD.
