TopflyTech TSDT1-B User manual

TOPFLYtech TSDT1-B
Wireless Door Sensor
User Manual
Revision 1.1

Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 2
Thanks for your purchasing of the high-quality IOT sensor from TOPFLYtech. Please read this user
manual carefully before installation and operation. Information in this manual is the property of
TOPFLYtech. Changes to the specifications and features in this manual may be made by
TOPFLYtech without prior notice. No part of this manual could be reproduced, copied, translated,
transmitted, or published in any form or by any means without TOPFLYtech's prior written
permission.

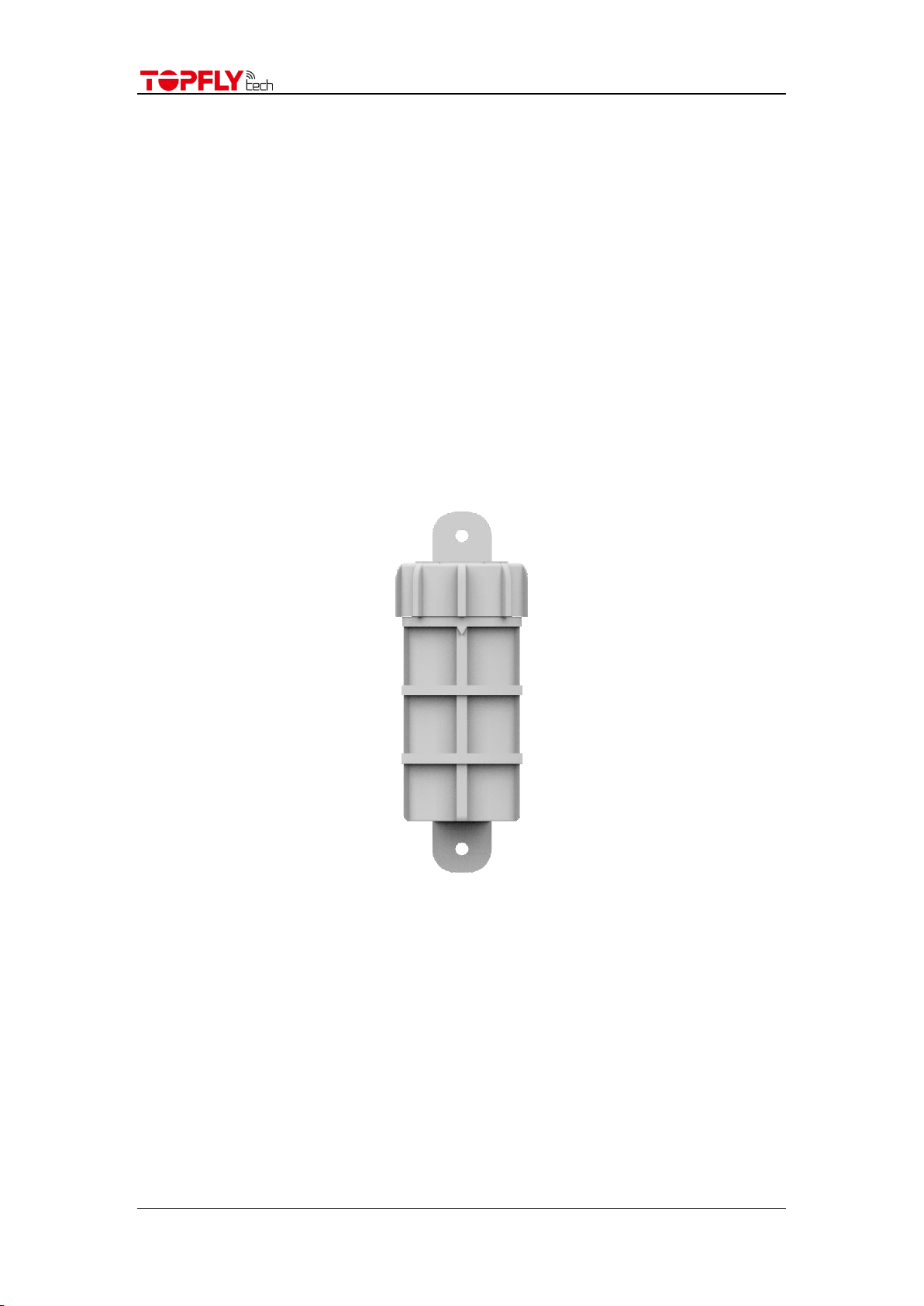

The sensor is using Bluetooth 5.0 technology and could detect door status, the temperature then
transfers them via the BLE network to the tracker/Phone. It provides the customer with a cost-
effective, efficient and safe environment remotely monitory method.
TSDT1-B

Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 3
Contents
1. QUICK REFERENCE ..............................................................................................................................4
2. PRODUCT SPECIFICATIONS..............................................................................................................4
3. INITIATE UNIT GUIDE.........................................................................................................................4
3.1 HOW TO POWER IT .........................................................................................................................................4
3.2 HOW TO CONNECT IT WITH YOUR PHONE....................................................................................................4
3.3 HOW TO UPDATE THE FIRMWARE OF THE SENSOR.......................................................................................5
3.4 HOW TO CONFIGURE IT WITH YOUR PHONE.................................................................................................5
3.5 HOW TO CONNECT IT WITH TOPFLYTECH TRACKER ..................................................................................6
3.6 HOW TO INSTALL IT ........................................................................................................................................6
3.7 HOW TO CONNECT IT WITH THE THIRD-PARTY BLUETOOTH DEVICE .........................................................7
4. QUICK TROUBLE SHOOTING............................................................................................................7
4.1 THE APP SHOWS “LOADING”ALL THE TIME.................................................................................................7
5. WARRANTY AND STOCK ..................................................................................................................7
6. BASIC......................................................................................................................................................7

Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 4
1. Quick Reference
2. Product Specifications
General Specifications
Model Name
TSDT1-B
Waterproof
IP67
Dimensions
91.2*30.5*39.1mm
Weight
52g (Battery Include)
Battery
Replaceable CR2 900mAh
Battery Life
Up to 6 Years
Operating Temperature
-30℃ ~ +80℃
(-22°F ~ 176°F)
Transmission Range
Up to 300m (Open Field)
Power Output
+4 dBm
Others
Build-in Temperature Sensor
3. Initiate Unit Guide
3.1 How to power it
3.1.1 Open the case of the sensor.
3.1.2 Remove the belt from the battery.
3.1.3 Close the case.
3.2 How to connect it with your phone
3.2.1 Download the application called “TFTBle” from Play Store.
TSDT1-B

Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 5
3.2.2 Turn your phone the feature Bluetooth on.
3.2.3 Run the “TFTBle” and allow all the permissions it needs.
3.2.4 Find the device named “TSDT1-B”.
3.3 How to update the firmware of the sensor
3.3.1 Click “Config” button.
3.3.2 If there is available latest version, it will show you a pop notice.
3.3.3 “Confirm” it to update the firmware.
3.3.4 Waiting for some minutes. In the process of updating, please don’t leave your
phone far away from the sensor.
3.4 How to configure it with your phone
3.4.1 Run the APP and click the “Config” button
3.4.2 Input the edit password. The password is “654321” in default.
3.4.3 You will find configure box. We support Name/Password/Broadcast

Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 6
cycle/Temperature alarm/Led/Reset setting by APP.
3.5 How to connect it with TOPFLYtech tracker
3.5.1 Please make sure the device you want to connect has Bluetooth feature.
3.5.2 Please refer to the accordingly latest command list. Hardwired series please refer
to <0x25> command list. OBDⅡ series please refer to <0x26>.
3.5.3 Add the sensor ID into the ID list of the tracker. You can get the ID by scanning
QR code and APP.
3.5.4 Please view the sensor data from your platform.
3.6 How to install it

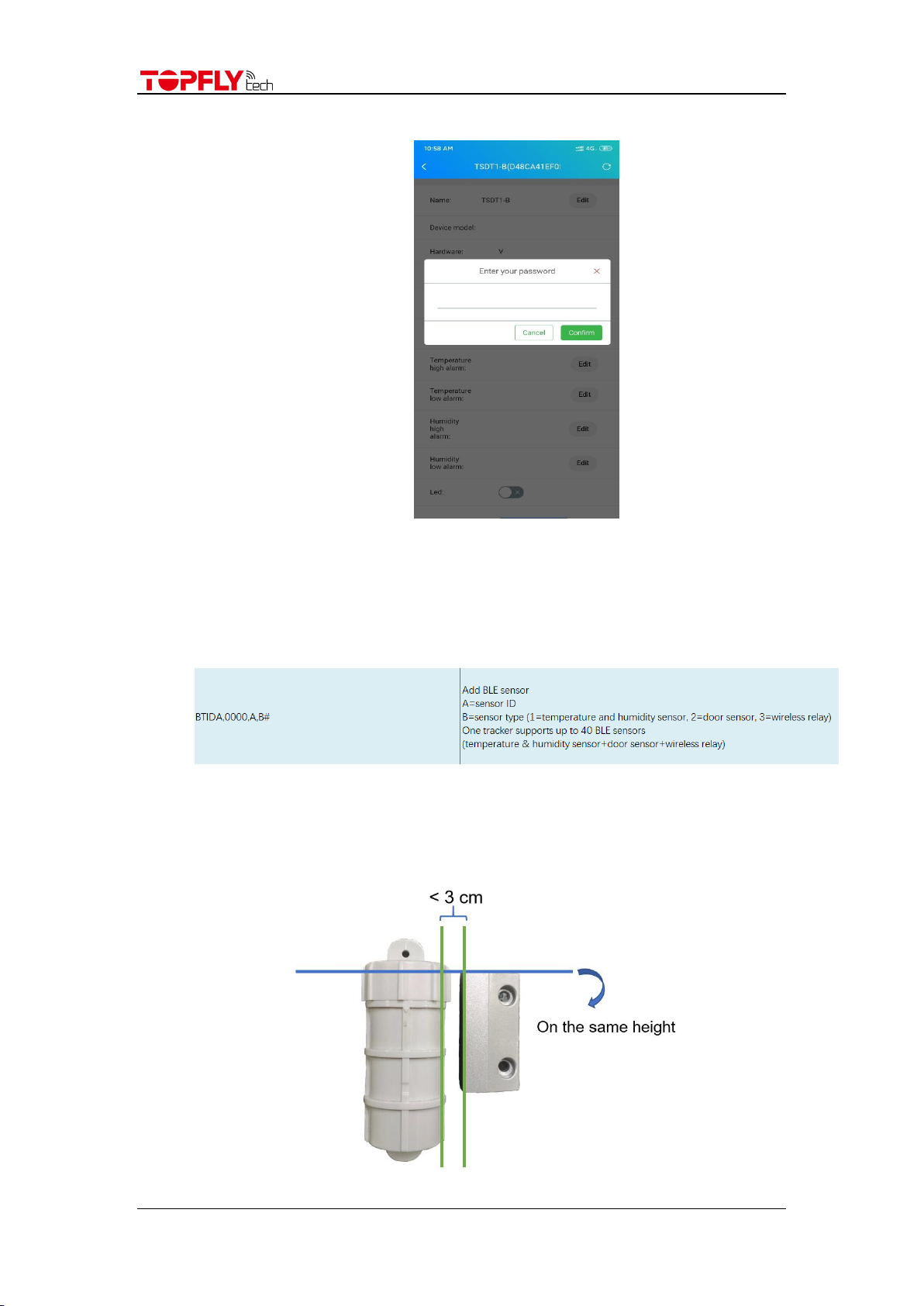

3.6.1 Please refer to below diagram. Another part is magnet part. To ensure the proper
work, don't leave it too far or too closed to the sensor.

Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 7
3.7 How to connect it with the third-party Bluetooth device
3.7.1 If you want to forward the sensor data to the third-party Bluetooth device, you
need to contact TOPFLYtech about the compatibility issue.
4. Quick Trouble Shooting
4.1 The APP shows “Loading” all the time
4.1.1 End the program first.
4.1.2 Check the Bluetooth status and make sure the BLE is on.
4.1.3 Make sure all the permissions of the APP are allowed. You can enter <Settings>-
<Permissions> to manage it.
4.1.4 Close to the sensor and run APP again.
5. Warranty and Stock
The device standard warranty period is 12 months starting from the date of purchasing.
6. Basic
Below are parameter setting of the sensor by the APP.
Parameter
Description
Password
Default Password Is “654321”. You Can Protect Your Sensors Setting
by Changing Password.
Broadcast Cycle
The Uploading Period Setting of Sensor.
Temperature High Alarm
Once meets this condition, it will trigger alarm.
Temperature Low Alarm
Once meets this condition, it will trigger alarm.
LED
LED Controller Switch.
Reset Factory
It will clean All setting.
