Topicon MDT1060 User manual
MDT1060/1065/865 Quick Start Guide

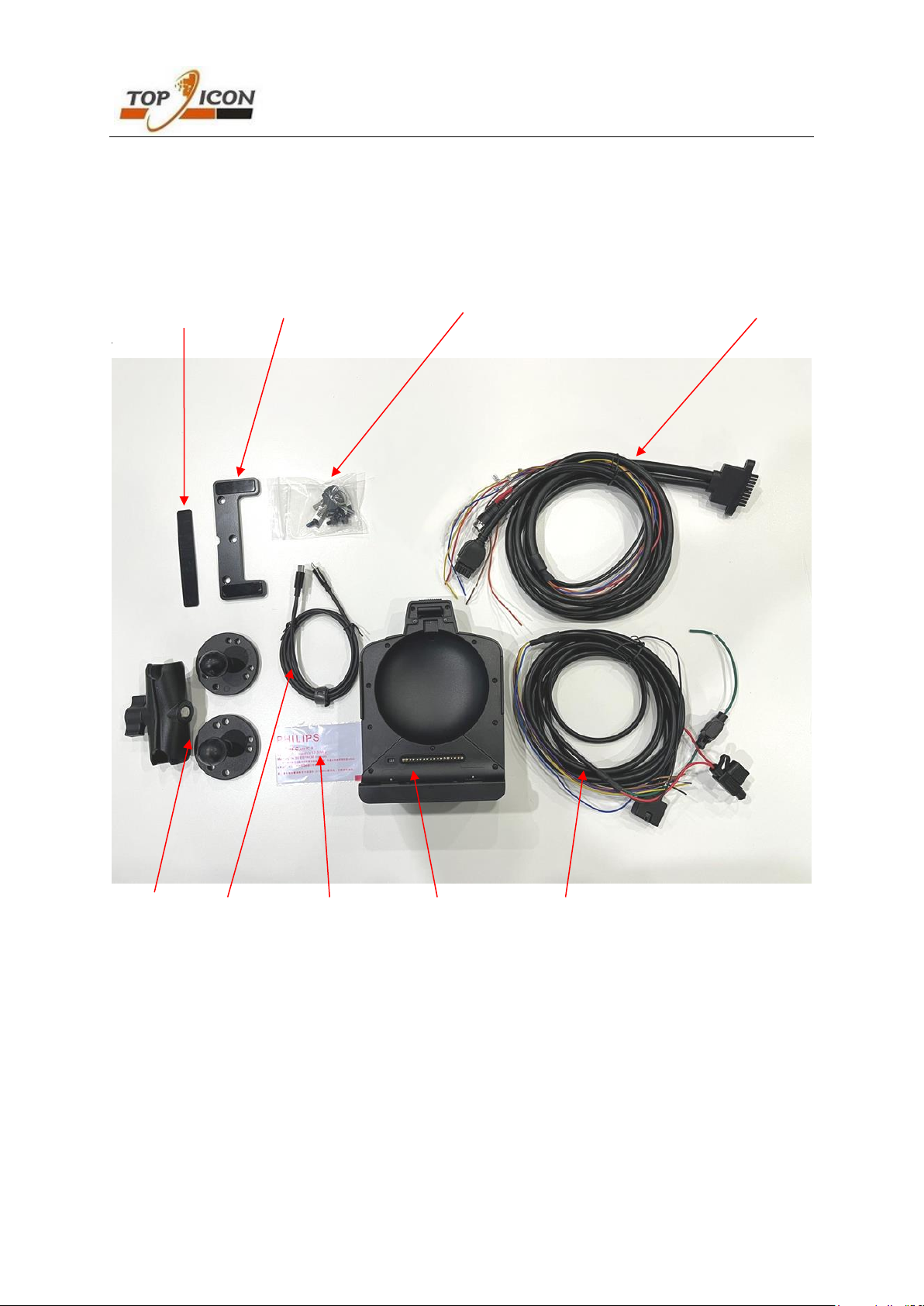

Accessories highlights
1. Plastic Tape for cradle back connector if not used
2. Metal Stand (Be a desktop dock station)
3. Keys and Screws
4. Cable used for vehicle cradle, it can connect to cradle bottom side
5. Metal Mount
6. Type C cable for home adapter
7. NFC Card
8. Vehicle cradle or desktop dock station
9. Cradle extension cable (connected to new cable for power supply)
Item 3
Item 2
Item 5
Item 7
Item 8
Item 9
Item 4
Item 1
Item 6
2 in 1 full features cradle (desktop dock station or vehicle
cradle)
1. To be desktop dock station
- Metal plate at the bottom
- Mainly use the connector (type C for charging) at the back. Please note that the adapter needs to be
high power (Support PD fast charging)
2. To be vehicle cradle
- No metal plate at the bottom
- Use the molex connector at the bottom. The LAN (RJ45) connector and other connector at the back is
optional. If not used, it can be closed by a plastic tape, see below
Without metal plate
Lock the Molex connector to the cradle by screw
Bottom Cable
Cradle cable(CAB-MB-FULL) cradle extension cable (CAB-EX-FULL) camera hub cable(CAB-EX-HUB)
Bottom cradle cable can offer below function in full features cradle
- Vehicle Input: DC 9V to 36V, ignition control with optional switch in the cradle
- Serial port: RS485 x 1, RS232 x 2
- Support one channel video input (Support AHD 720P, 1080P and Analog camera)
- Support four channels video input, connect to Camera Hub by extension cable (Refer to the Camera Hub
manual), with 4 trigger input
- I/O: Analog input ADC x 1, Digital input x 2, Digital output x 1

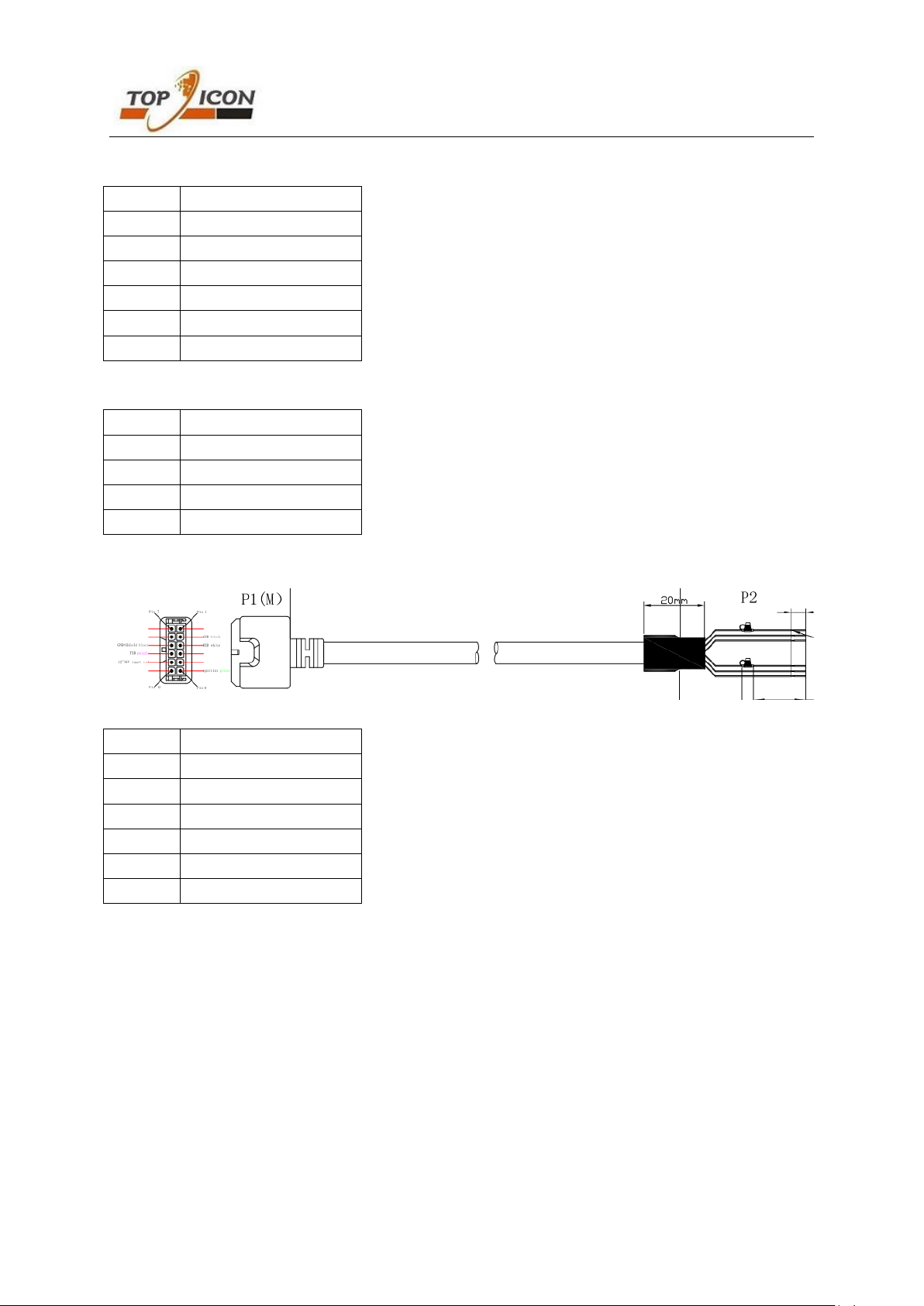

Cable pin assignment overview
Cable specification below
P2 Power and serial port connector
Pin
Definition
1
RS485-A
2
GND
3
RXD (CPU)
4
TXD (USB)
5
RXD (USB)
6
DC 12V Ignition
7
RS485-B
9
GND
10
TXD (CPU)
11
DC 9-36V input
P3 Camera Hub connector
Pin
Definition
1
DM-
2
DP+
4
GND
P5 GPIO Wires
Wires color
Definition
Red
Video input trriger DC12V
Yellow
GPIO-1 (Input 1)
Orange
GPIO-2 (Input 2)
Bule
GPIO-3 (output)
Brown
GPIO-4 (ADC)

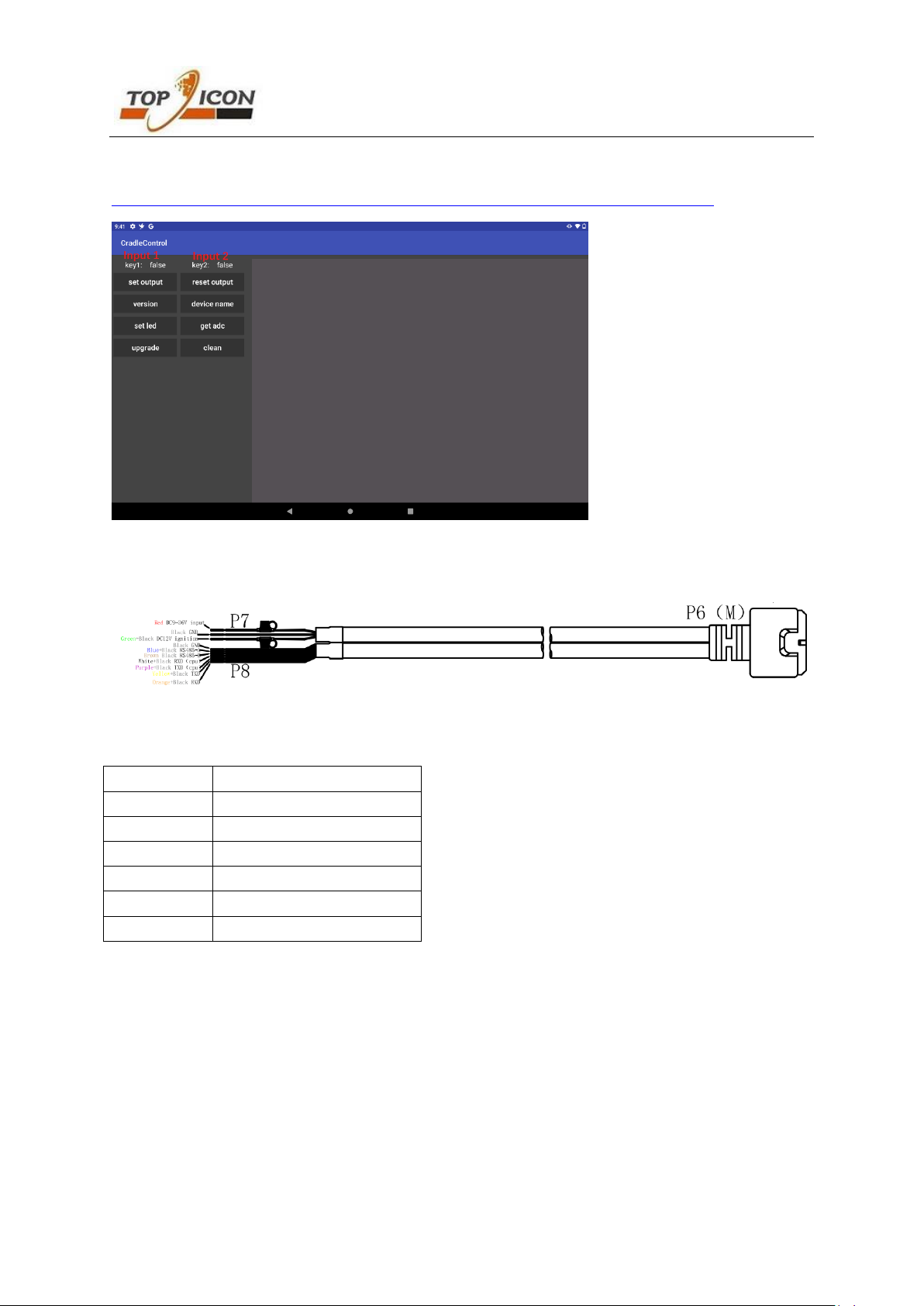

GPIO Demo APK
CRD1060GPIO_demo20220419.apk and surce code link:
https://drive.google.com/file/d/1ZLEyXAlZxOo0EjTW6ks7oMGjwnLiYcrQ/view?usp=sharing
Power and Serial port extension cable
P6 Connector connect to the P2 connector
P7 Connect the Vcc (red wire), ignition (green wire) and GND (black wire) to the power supply (DC9V-36V)
P8 serial port RS232 and RS485 wires
Wires color
Definition
White
RXD (CPU)
Purple
TXD (CPU)
Orange
RXD (USB)
Yellow
TXD (USB)
Blue
RS485-A
Brown
RS485-B
RS232 purple/white is from CPU, it’s same as mdt860 and mdt760, it can work even no external power
supply.
RS232 orange/yellow and RS485 blue/brown are converted from USB Hub and will only work if there is an
external power supply.

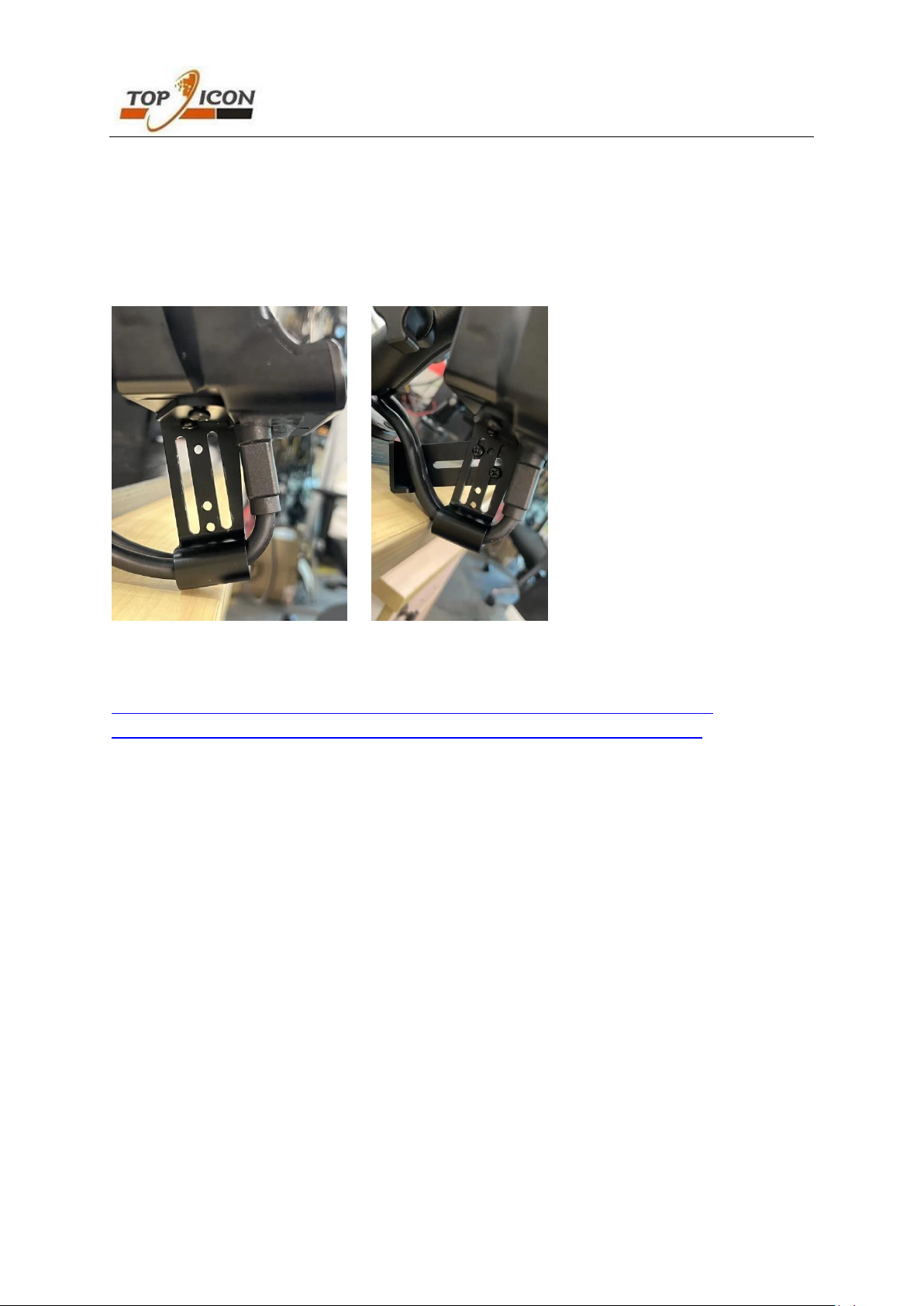

When installing in the vehicle, pls use below metal parts, it has 2 purposes
1. let the cable to the toward the back side
2. It can use for supporting as the device is quite heavy. It will not shake even the car has vibration.
There are few options. If there are supporting at the bottom or at the back (with angle), you can make
different installation (see below 2 video)
It can be changed the length from 50mm to 80mm
https://drive.google.com/file/d/1ybp_Ji3AL1t94PQ_KVtJO9mk_J8UiY8Q/view?usp=sharing
https://drive.google.com/file/d/1etWxYVJcbXDs8J-GP0dq8IVuBiYc0t3S/view?usp=sharing

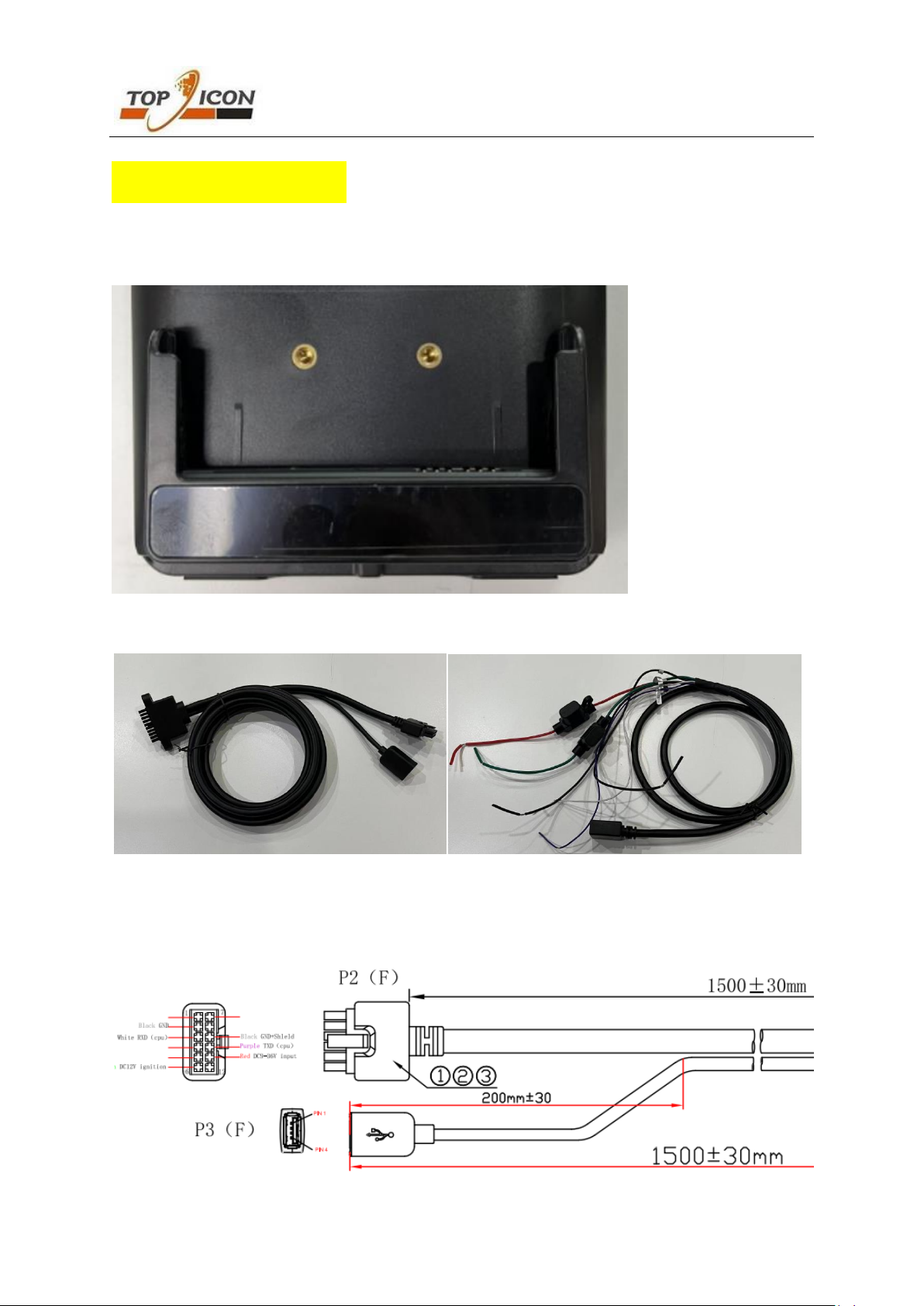

Basics vehicle cradle
only 1xRS232, 1x OTG and vehicle Vcc (12-24V) input, Ignition, NO type C charging even plug to tablet
all connector at the back will be closed
Bottom cable
CRD1060 basic cable (CAB-MB-BASIC) Extension cable (CAB-EX-BASIC)
Basic Cable specification below
P2 Connector
Pin
Definition
2
GND
3
RXD (CPU)
6
DC 12V Ignition
9
GND
10
TXD (CPU)
11
DC 9-36V input
P3 Connector
Pin
Definition
1
Vbus 5V
2
D-
3
D+
4
GND
Extension cable specification below
P2 Wires
Colour
Definition
Black
GND
White
RXD (CPU)
Green
DC 12V Ignition
Black
GND
Purple
TXD (CPU)
Red
DC 9-36V input
Caution: Use the Product in the environment with the temperature Between -10℃and 40℃; Otherwise, it
may damage your product. Products can only be used below 2000m altitude
For the following equipment:
Product Name: Tablet
Brand Name: --
Model No.: MDT865, PaceBlade MDT-801, OBC865, M865A, M865B, MDT865D
TOPICON HK LIMITED
hereby declares that this [Name: Tablet, Model: MDT865, PaceBlade MDT-801, OBC865, M865A,
M865B, MDT865D] is in compliance with the essential requirements and other relevant provisions of
Directive 2014/53/EU.
Adapter shall be installed near the equipment and shall be easily accessible.
Only can use adapter as below:
Power Adapter Model: GS-W20A0938
Input: 100- 240Va.c. 50/60Hz 0.6A Max
Output: 5Vd.c. 3A or 9Vd.c. 2.22A or 12Vd.c. 1.67A
Shenzhen Good-she technology Co., Ltd
The plug considered as disconnect device of adapter.
RED Article 10 2
-This product can be used across EU member states
RED Article 10 10
-The product is class 1 product, No restrictions
The RF distance between body and product is 0mm
2G
Frequency Range:
GSM900: Tx: 880-915MHz, Rx: 925-960MHz
DCS1800: Tx: 1710-1785MHz, Rx: 1805-1880MHz
RF Output Power:
GSM900: 32.80dBm, GSM1800: 31.06dBm
EDGE900: 26.89dBm, EDGE1800: 26.97dBm
3G
Frequency Range:
WCDMA Band 1: Tx: 1920-1980MHz, Rx: 2110-2170MHz
WCDMA Band 8: Tx: 880-915MHz, Rx: 925-960MHz
RF Output Power:
WCDMA Band 1: 24.03dBm, WCDMABand 8: 22.95dBm
4G
Frequency Range:
FDD-LTE Band 1: Tx: 1920-1980MHz, Rx: 2110-2170MHz
FDD-LTE Band 3: Tx: 1710-1785MHz, Rx: 1805-1880MHz
FDD-LTE Band 7: Tx: 2500-2570MHz, Rx: 2620-2690MHz
FDD-LTE Band 8: Tx: 880-915MHz, Rx: 925-960MHz
FDD-LTE Band 20: Tx: 832-862MHz, Rx: 791-821MHz
FDD-LTE Band 28: Tx: 703-748MHz, Rx: 758-803MHz
TDD-LTE Band 38: Tx: 2570-2620MHz, Rx: 2570-2620MHz
TDD-LTE Band 40: Tx: 2300-2400MHz, Rx: 2300-2400MHz
Max.RF Output Power:
FDD-LTE Band 1: 23.65dBm, FDD-LTE Band 3: 23.31dBm,
FDD-LTE Band 7: 24.11dBm, FDD-LTE Band 8: 23.44dBm ,
FDD-LTE Band 20: 23.31dBm , FDD-LTE Band 28: 23.34dBm ,
TDD-LTE Band 38: 24.19dBm, TDD-LTE Band 40: 23.68dBm
Bluetooth
Frequency Range:
2402-2480MHz
Max.RF Output Power:
9.46dBm (EIRP)
Wi-Fi (2.4GHz)
Support Standards:
802.11b, 802.11g, 802.11n-HT20/40
Frequency Range:
2412-2472MHz for 802.11b/g/n(HT20)
2422-2462MHz for 802.11n(HT40)
Max.RF Output Power:
15.39dBm (EIRP)
NFC
Frequency Range:
13.56MHz
Radiated H-Field:
14.49dBuA/m(@3m)
LORA
Frequency Range:
868.00MHz-868.6 MHz
869.4MHz-869.650 MHz
RF Output Power:
868.1MHz: 13.04dBm(ERP)
868.3MHz : 13.03dBm(ERP)
868.5MHz: 13.02dBm(ERP)
869.525MHz: 13.06 dBm(ERP)
GPS
Frequency Range:
1575.42MHz Receiving
FCC Radiation Exposure Statement:
This device meets the government's requirements for exposure to radio waves. The guidelines are based on
standards that were developed by independent scientific organizations through periodic and thorough
evaluation of scientific studies. The standards include a substantial safety margin designed to assure the
safety of all persons regardless of age or health. The SAR limit of USA (FCC) is 1.6 W/kg averaged.
Device types: Tablet (FCC ID: 2AHAF-MDT865) has also been tested against this SAR limit. SAR
information on this and other pad can be viewed on‐line at http://www.fcc.gov/oet/ea/fccid/. Please use
the device FCC ID number for search. This device was tested simulation typical 0mm to body. To maintain
compliance with FCC RF exposure requirements, use accessories should maintain a separation distance
between the user's bodies mentioned above, use accessories should not contain metallic components in its
assembly, the use of accessories that do not satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
RF Exposure Statement
For body worn operation, this device has been tested and meets the IC RF exposure guidelines when used
with an accessory designated for this product or when used with an accessory that contains no metal and
that positions the handset a minimum of 0mm from the body. Noncompliance with the above restrictions
may result in violation of RF exposure guidelines.
Pour les opérations sur le corps, cet appareil a ététestépour répondre aux directives d'exposition IC RF
lorsqu'il est utiliséavec les accessoires spécifiés pour ce produit ou avec des accessoires qui ne contiennent
pas de métal et dont le téléphone est distant d'au moins 0 mm du corps. Le non - respect des restrictions ci -
dessus peut entraîner une violation des directives sur l'exposition aux RF.
IC WARNING
This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes:
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This manual suits for next models
