1 product introduction
1.1 product overview
TK604 is a cost-effective and scalable device for on-board video monitoring and remote monitoring and
development. IT adopts high speed processor and embedded operating system, combining with the most advanced
H.264 video compression/uncompresses technology, network technology; GPS/BD positioning technology in the IT
field.TK604 supports 4-way video and video. TK604 - - 4CH 20P can be realized with the frame format of the video,
car information records and wireless data upload, cooperate with the center software which can realize the alarm
linkage of central monitoring, remote management and playback analysis based on a central database. The product
has a simple appearance, strong anti-vibration, flexible installation, powerful function and high reliability.
The details are as follows ：
USES the international mainstream H. 264 coding format, high compression ratio, image is clear, of disk space is
little;
using SD card as storage medium, easy to read data, fast;
video using general FAT32 / special file format, support the market mainstream H264 player play;
+ 6 v ~ + 36 v wide voltage design, suitable for all kinds of models;
support 4CH 12 v / 0.5 A power output, for A peripheral power supply;
support 4CH alarm input;
professional replay analysis software, GPS/BD to track, the car status, speed and sound view as synchronous
playback;
centralized management software, support the vehicle image and alarm information real-time transmission, etc.
small size: the whole machine size (16 ) x (55) x (150) mm, weight 0. KG

TK604 user manual
4
1.2 TK604 basic working parameter list
The basic working parameters of the TK604 are like tables 1。
Projects
Working
Parameters
Description
The power input 6~36V
The input voltage is +6V ~ + 36V, the voltage is lower than 6V for a
long time, or long-term higher than 36V, the device automatically
shutdown, enter protection mode, and have abnormal power loss
protection function
Output voltage 12V Output voltage 12V (+ /-0.2 V), maximum current 2A。
≤6V Engine key off。
Car key signal
≥ .5V Engine key open。
Video input
impedance
5Ω Each video input impedance are 5 Ω road。
Video output 1Vp-p Output a 1p-p CVBS analog signal。
0 minus 2V is low level。
The I/O port
Above 5V is high level。
alarm output
The AD port Enter 0-36 v。
SD card
interface
1． Compatibility with common brands。
2． Double SD bayonet
3．Live unplug is not supported. When the panel is locked on the
control switch, it can lock the SD card and prevent the plug
The USB
interface
1．Compatible with various commercial usb drives。
2．Live out plug. When the device file is transferred, unplugging the
USB key may break the data in the U disk。
Working
temperature
-25 ~ + 60 ℃ ℃ Refers to the ambient temperature under good ventilation conditions。

TK604 user manual
5
1.3 TK604 main functions of products
Main functions of TK604: video monitoring .Its main function list is shown in table 2.
Systems Fun tion Instru tion
Video channel 1 to 4 channels are optional
resolution Supports CIF, D1 20P resolution video
Image quality It is divided into 1-5 level and the highest quality
OSD
Can overlay various characters, such as date, time, GPS latitude, channel
ID, etc
Loop recording Support double SD card cycle or mirror recording, and cycle delete
Video mode Support startup video, timing video, alarm video and manual recording
Preview Support single screen and four screen preview
Video subsystem
Disk cover Support disk auto coverage
Support a month within any date, time - time search
Video search
Support the alarm point search and time point search
Supports single-channel to four-way comparison playback
Playback
subsystem
The playback
Support fast forward, fast forward, fast forward, quick return speed support 2,
4, 8, 16 times speed
4 circuit alarm input can be selected, whether to trigger the alarm video can
be selected
Alarm Inputting
The alarm video supports the first 10 seconds and the video duration of the
video is matched
Delay switching machine support Parameter
Settings
Switch machine
Support key switch machine and time switch machine
Network (optional)
Networks
1.Automatic report of vehicle information
2.Direct video to the server via 3G/WIFI network
3.Remote playback through the client connection server

TK604 user manual
6
1.4 Product application program
TK604 products are suitable for video surveillance and remote monitoring of all motor vehicles. The general
application process of the TK604 is as follows ：
Figure 1. The TK604 application network diagram

TK604 user manual
2 Equipment specification
This chapter introduces the function overview, characteristics, detailed specifications and precautions of the
equipment 。
2.1 internal structure of equipment
The TK604 is integrated with a set of hardware video encoding chips that consume very little system resources.
Work flow is ：
Video recording, :
Through audio and video camera input, and then in the main chip compressing storage and preview the output;
Local and remote playback:
1. Local playback
Master control chip from the storage device for video files;
decoding broadcast, the audio and video analog signal;
2. Remote playback
through the client connect to the server for remote playback;
Master chip
Compati USB
Audio/video input
camera
camera
camera
camera
Video output
display

TK604 user manual
8
2.2 front panel definition
The front panel is shown below ：
2.2.1 LED indicator and status description
 【PWR】 Power input status indicator light. The light indicates that the system power is working
properly ；
 【SD1、
、、
、SD2】 SD card work lamp. The light indicates that SD card works normally. Lamp extinguishing
means no SD card or SD card abnormality
 【HOT】 Hard disk heat lamp, lower than 0 ℃ automatic heating, heating normally on a red light ；
 【4G】 Network indicator light, when registered successfully, the network light is long, unregistered or
registered failed lamp flicker ；
 【ALM】 alarm light, the system has alarm lights, no alarm when the lights went out ；
 【BD】 positioning to BD signal lights, not positioning or lights flashing when positioning failure ；
 【REC】 video work indicator light.The LED light indicates that the video is currently being recorded
2.2.2 Other interface instructions
 【
【【
【Panel lo k】
】】
】 Control the device switch machine, lock the SD card at the same time, prevent the plug ；
 【
【【
【SD1、
、、
、SD2】
】】
】： SD card slot for recording video data, configuration file update and upgrade 。
 【
【【
【SIM】
】】
】 3G/4G phone card slot ；
 【IR】 Remote input to receive remote control signal 。
 【
【【
【USB 口
口口
口】
】】
】： Import and export data or upgrades for the U disk 。

TK604 user manual
9
2.3 rear panel definition
The following figure shows ：
 【DC8-36V】 Power interface, red line to connect the vehicle power anode; The black line is connected
to the negative pole of the on-board power supply, and the yellow line is ACC signal line. When you need
to set up a timer or fire video, pick up the ACC line 。
 【AV 1~4】 The four-channel audio and video input interface ；
 【
【【
【VGAOUT】
】】
】VGA Format output and Audio output.
 【
【【
【A/V OUT】
】】
】1Vp-p CVBS video and Audio output.
 【I/O】 Alarm input interface,and Expansion interface；
 【3G/4G】 3G/4G antenna interface ； 【NET】 RJ45 network interface ；
 【WIFI】 WIFI antenna interface ； 【GPS/BD】 GPS/BD antenna interface 。
2.3.1 the power cable
Figure 14 shows the power line, with a variety of color plugs on one end, and then the 3PIN connector on the rear
panel of the device. Red lines and black lines are directly received from the car's battery. The red line is connected
to the positive pole and the black line is negative. The yellow line contacts the fire line, the host equipment
automatically opens after the car turns the key, and shuts off after turning off the car key. The yellow line picks up
the gear when the car keys turn on all the dashboard lights (that's the stall before the car starts the motor).
Note:
1) Make sure the voltage of the battery is between 6V - 36V before connecting, otherwise it will burn the equipment.
2) After connecting the line, pay attention to the insulation between the power cord and prevent the power line from
short-circuiting the battery.
3) The yellow line must be connected to the ignition line, otherwise the device will not support the delayed shutdown,
and the final video, video, will be lost.

TK604 user manual
10

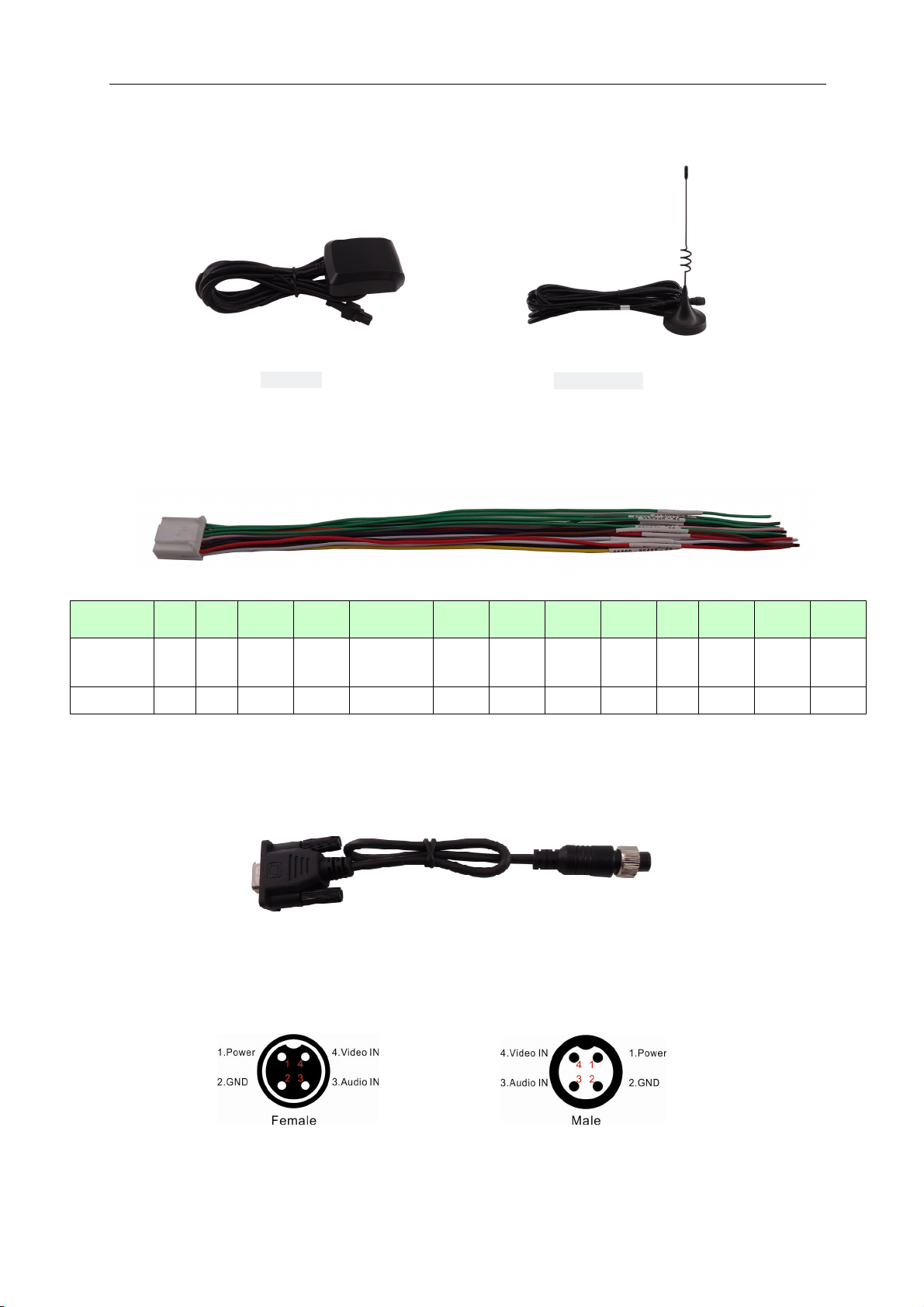

2.3.2 GPS and WIFI antenn
2.3.3 IO Cables
Number 1 2 3 4 5/6/ /8 9 10 11 12 13 14 15 16
Assignments
5V_
Out
Gnd Mic+
Aud0_
Out
Sensor_IN1,
2,3,4
RS232
_RX1
RS232
_TX1
RS485
+
RS485
-
Gnd
Sensor
_Out
Gnd
12V_
Out
Color Red Black Purple Pink Green White Brown Yellow White Black Gray Black Red
2.3.4 VGA_Port Cable
2.3.5
4PIN Female Assignments
WIFI Antenna
The GPS

TK604 user manual
11
2.4 detailed specifications
The detailed specifications of the TK604 video function are shown in table 3.
TK604 video features detailed specifications
projects
describe
The operating system Linux
Graphical operation
interface
The remote control sets the system parameters through the external
display screen
Support language Chinese, English, traditional (optional)
Safety management User password, administrator password two level management
Video input,
output
4. Video input, 1 VGA output, 1 channel video output;1.0 the Vp - p, 5 Ω
OSD
Character superposition function, time date, vehicle ID and other
information image overlay
Video
compression
format
H.264 compression coding. Use Hisilicon high performance processor .
Double stream support
Preview
function
Single path and 4 screen splicing preview, support event trigger full screen
and splicing switch display function
Frame rate
PAL: 100 frames per second, maximum 25 frames per second; NTSC: 120
frames per second, maximum 30 frames per second
resolution Can support 4CIF, 4D1, 4 AHD 20P coding for mat
mass 1 to 5 video can be matched, the optimal level 1, the lowest level 5
Video
and
preview
Bit rate
CIF: 300Kbps ~ 1200 BPS, 8-grade rate optional
HD1:500Kbps ~ 1500Mbps, 8-level code rate optional
D1:600Kbps ~ 2048bps, the 8-level code is optional
X 20p, 20-1024
Audio input 、
output
4 channel input, 1 output, 1 VGA output
audio
Compressed
format
Adopt H. 264 encoding
A storage
medium
Support SD card, SD card maximum support 128G;Support USB interface
for data export/mouse operation
File
format/system H.264/FAT32，
Special file system
Video strategy
The default startup video is to support timing video, alarm and event
trigger video and manual recording
Video retrieval
It can be searched according to video time, video type, video storage
device and other conditions
Support the native playback, the maximum support of 4 channels
synchronous playback, and analysis of the vehicle information in the
document
video
Video playback
Support fast forward, quick return, play, pause control, support 2, 4, 8, 16
times fast forward or fast back, support select time playback control
Alarm input 4 circuit switching signal alarm input alarm
Alarm video Pre-recorded function, the first 10 seconds pre-recorded, the video length
of the time of the police can be matched, 5 seconds ~ 3600 seconds

TK604 user manual
12
Storage space
alarm Support disk space alarm function
Alarm function Video lost the alarm
Location (optional) Extensible support for GPS, BD module integrated antenna
Mobile network (optional) Can support 3G, 4G, WIFI
System upgrade SD card/USB upgrade
Power
management
1. ACC switching machine
2. Delayed shutdown
3. Time switch machine
It has overload protection, under voltage protection, short circuit
protection, anti-grafting protection, etc
Input voltage DC:+6V ~ +36V
Output voltage +12V@5*0.5A；
Power
supply
and
power
consump
tion Power
consumption Normal working condition < 10W;0W in standby mode
temperature General: -25 ~ + 60 ℃ ℃ Working
environm
ent humidity 10% to 95%
Pay attention to ：
：：
：
 Reducing the number of video channels, reducing the frame rate, decreasing image
quality, lowering the resolution can reduce the storage capacity, and the user can adjust the
video parameters as needed。
2.5 other functions
In addition to the above main functions, the TK604 also designed other functions to make it easier for users to
use. Detailed specifications for other functions are shown in table 4.
Table1. Specifications for other functions of the TK604
Class Detailed spe ifi ation
Equipment self-check
(optional）
1.The screen displays the current state of the system (if the module exists), including:
A) status of GPS/BDS module and whether there is a signal;
B) status of 3G/4G/WIFI module, SIM card status, signal strength, dial-up status and
connection status;
2. The front panel of the host has a key status indicator. The status of equipment can be
judged by indicator light: Power, disk read and write with fault, video, network transmission
and failure;

TK604 user manual
13
3 Host operation guide
3.1 function key of remote control
There is no control button on the MDVRS panel at the peak hour, which requires remote control operation. The
buttons and functions are as follows 。
The number keys area:
【 0-9 】 Key: select the number when setting parameters; During preview and playback, "1, 2, 3, 4" is used
for channel switching 。
【 ＋
＋＋
＋ 】、【 －
－－
－ 】 Key: adjust the number of additions and subtracting 。
【 ENTER 】 Key: when setting parameters, it means selecting and saving 。
【 LOGIN 】 Key: Landing system parameter setting keys.
【 RETURN 】 Key: Exit to the preview or return to the previous menu.
In playback, press ENTER to display the parameters in the OSD menu as long as these parameters are set to
display on the screen 。

TK604 user manual
14
Table 4-1: detailed description of the function key of the remote control
The switch machine key Press this button twice to restart the device (soft start button)
(note: you can't use it now)
LOGIN When you have a password, press "login" to enter your password.Please
keep the password in mind since the device has no reset function.
INFO Check the information
Numeral 1,2,3,4
Switch between channels 1, 2, 3, 4
Press the number keys 1, 2, 3, 4, you can switch to channel 1, channel 2,
channel 3, channel 4.
RETURN Return to the previous level directory, exit the Settings menu and return to
the screen
PAUSE / STEP When the video is played back, press STEP and continue to play. Press
PAUSE, PAUSE PLAY, press PLAY button, PLAY normally。
GOTO When playing, press it to jump to the specified time and play
FRAME Press FRAME to play FRAME by FRAME
（PLAY）
Play button. (when paused, it will display a static image)
FWD
Video playback, fast forward, four levels: 2X, 4X, 8X, 16X
REW
Video playback is slow, 4 levels: 2X, 4X, 8X, 16X
■
Stop the manual video key
●
Open the manual video key
NEXT Switch to the next page or the next video file when playback
PREV Go to the last page or the last video file when playback
AUTO 、PRESET 、ZOOM+/- 、
FOCUS+/- 、IRIS+/- 、PTZ 、
PRESET、RECALL、BRUSH
Function control key of cloud platform
F1 Solid test
AUTO An instruction display area in the command platform
F2、F3 F2 and F3 are backup keys (reserved for future use)

TK604 user manual
15
4 System operation\
4.1 user login
Password when the switch is set to "off”: the host starts press [OK] to directly enter the system main menu.
 When the switch is set to "open" password: host starts press [OK], need to input the correct password, the
cursor to "log in" column, press the "OK" key, can enter the system main menu.
The administrator's default password is 888888 (or device number, which is available before the password is
changed);
User default password is 111111, only have query authority;
4.2 Main menu
After user login, enter the main menu interface. Main menu includes: inquiry, system management, video
setting, network setting, alarm and peripherals, system information, as shown below:

TK604 user manual
16
4.3 Search menu
Search menu includes: Video search, Log query, Image search.
4.3.1 Video search
The color block indicates that the current date and current time exist video files
"Date”: enter the date by the numeric key, by default for the day.
"Start time”: press the number key input time, the default is 00:00.
"End time”: press the digital key input time, by default of 23:59:59.
"Video type”: press [OK] to select the query type: all video/alarm video. The system defaults to all videos.
"Disk Type”: press [OK] to select: all disks, disks 1, disk 2.
Search: the cursor moves to the "search" button and press [OK] to enter the search results interface.
The search result interface is shown as below:
according to the direction key choose to view the video data, press + - can be fast flip, press after the play button to
start playing the video information, click "EXIT" button to return to the higher level menu.
according to the direction key choose "home page", "back", "next page", "page", at the end of the press [OK] 
shows information page.
* Special tip: after selecting the file, press the PLAY button to PLAY the playback.
