FormNo.3359-436RevB
Z400ZMaster
witha48inor52in7-GaugeSideDischarge
Mower
ModelNo.74448—SerialNo.280000001andUp
ModelNo.74449—SerialNo.280000001andUp
Registeratwww.Toro.com.OriginalInstructions(EN)

Warning
CALIFORNIA
Proposition65Warning
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Important:Thisengineisnotequippedwitha
sparkarrestermufer.ItisaviolationofCalifornia
PublicResourceCodeSection4442touseoroperate
theengineonanyforest-covered,brush-covered,or
grass-coveredland.Otherstatesorfederalareas
mayhavesimilarlaws.
ThissparkignitionsystemcomplieswithCanadian
ICES-002.
Theenclosed
Engine Owner’ s Man ual issupplied
forinformationregardingtheUSEnvironmental
ProtectionAgency(EPA)andtheCalifornia
EmissionControlRegulationofemissionsystems,
maintenance,andwarranty.Replacementsmaybe
orderedthroughtheenginemanufacturer.
Introduction
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoidinjury
andproductdamage.Youareresponsibleforoperating
theproductproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.comfor
productandaccessoryinformation,helpndinga
dealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafetyalertsymbol
(Figure2),whichsignalsahazardthatmaycauseserious
injuryordeathifyoudonotfollowtherecommended
precautions.
Figure2
1.Safetyalertsymbol
Thismanualuses2otherwordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Contents
Introduction.................................................................2
Safety...........................................................................4
SafeOperatingPractices.......................................4

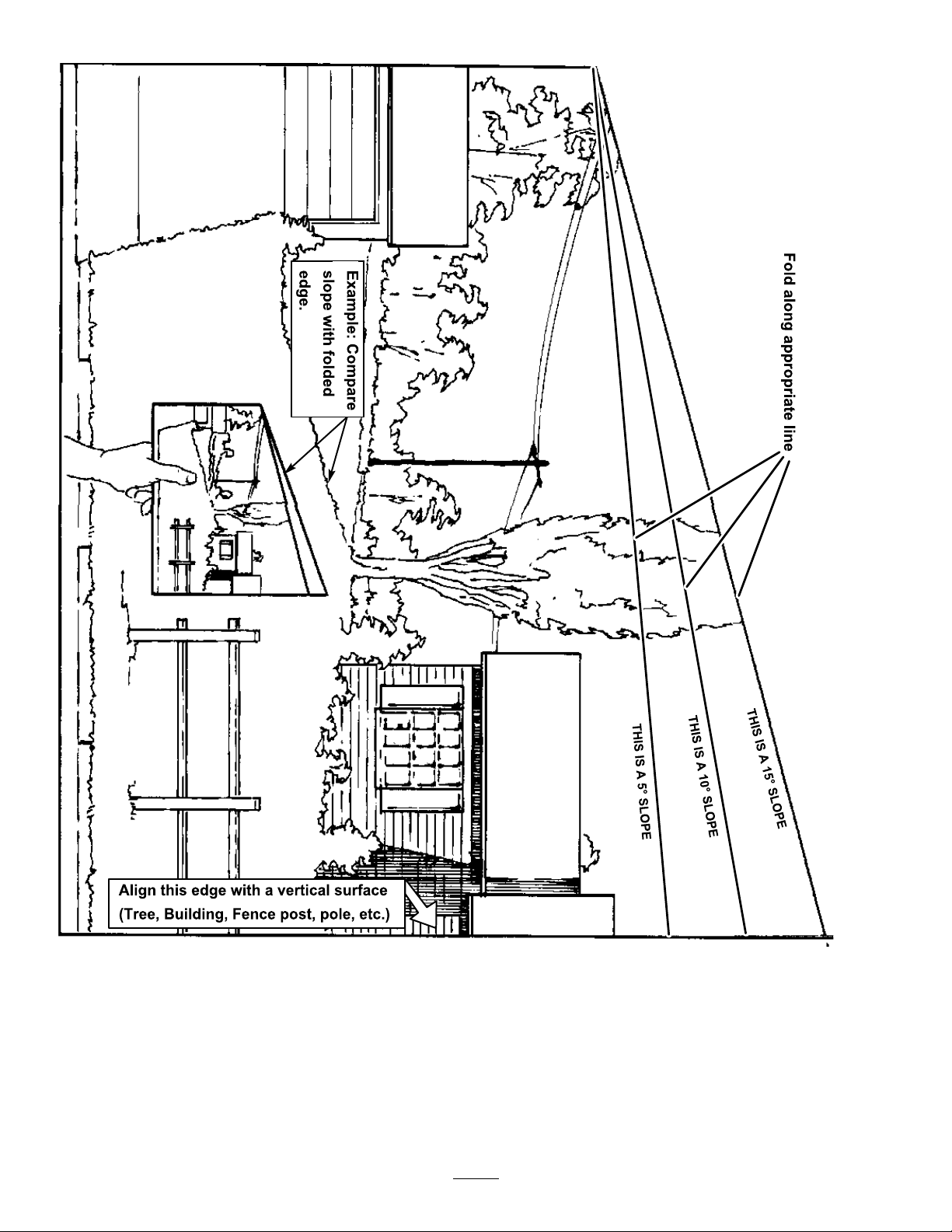

SlopeChart..........................................................6

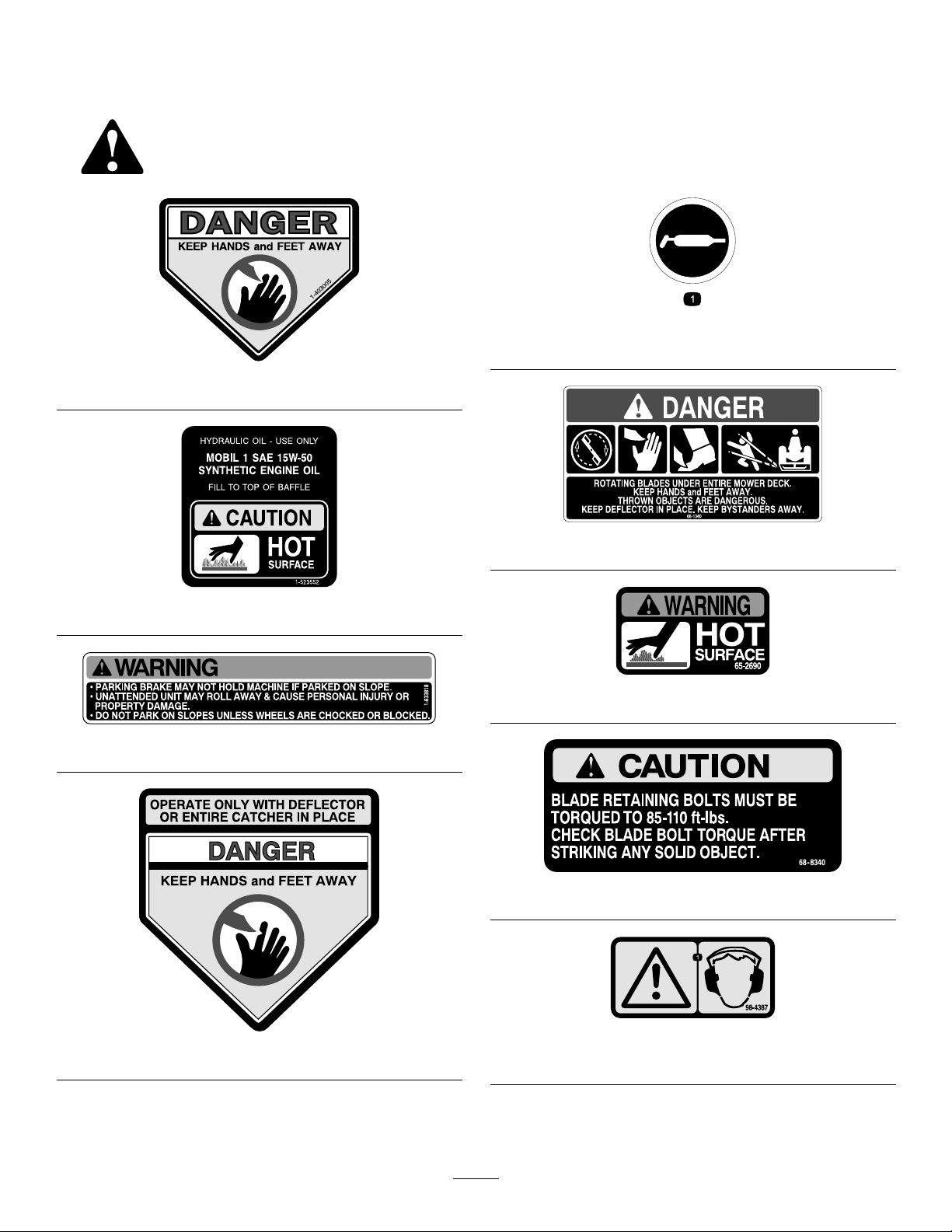

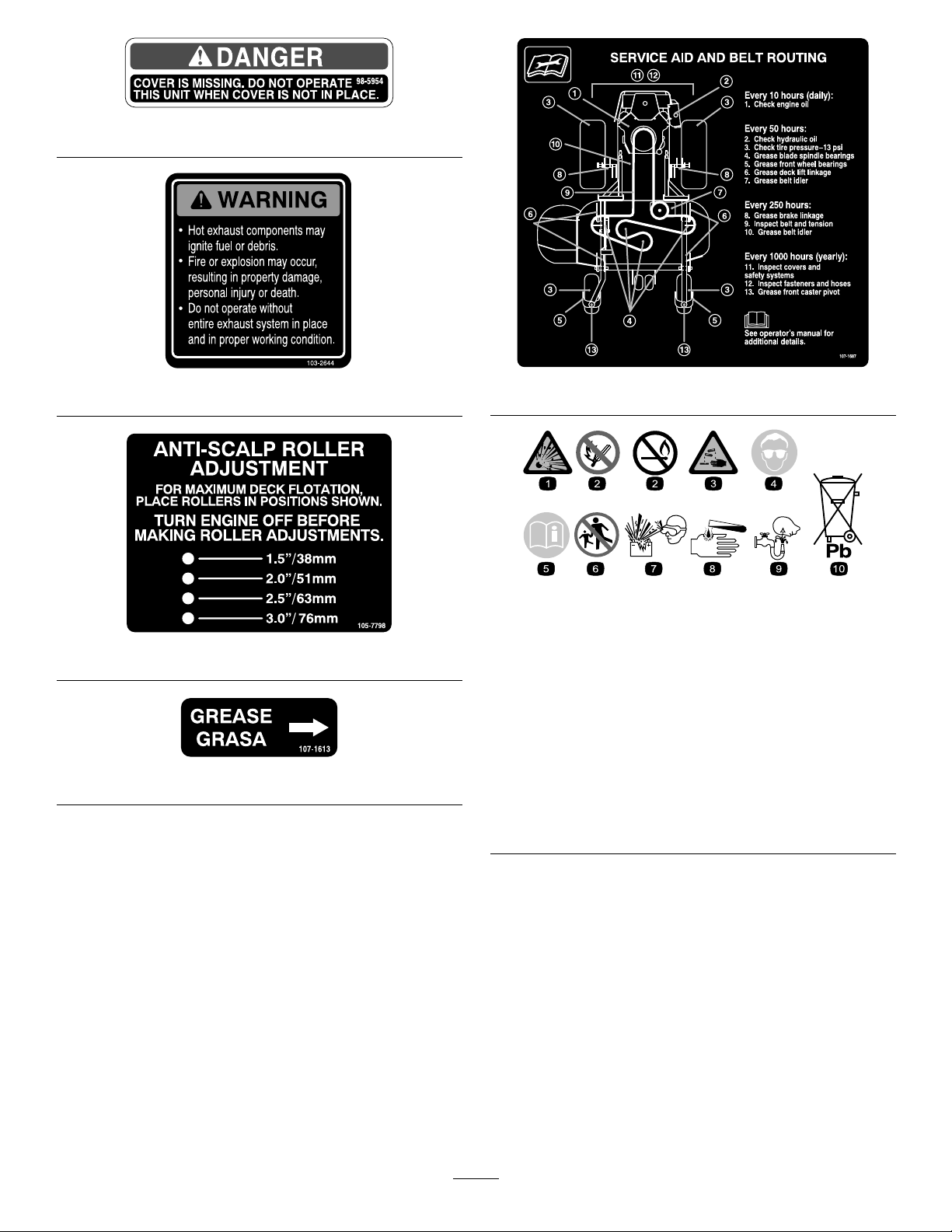

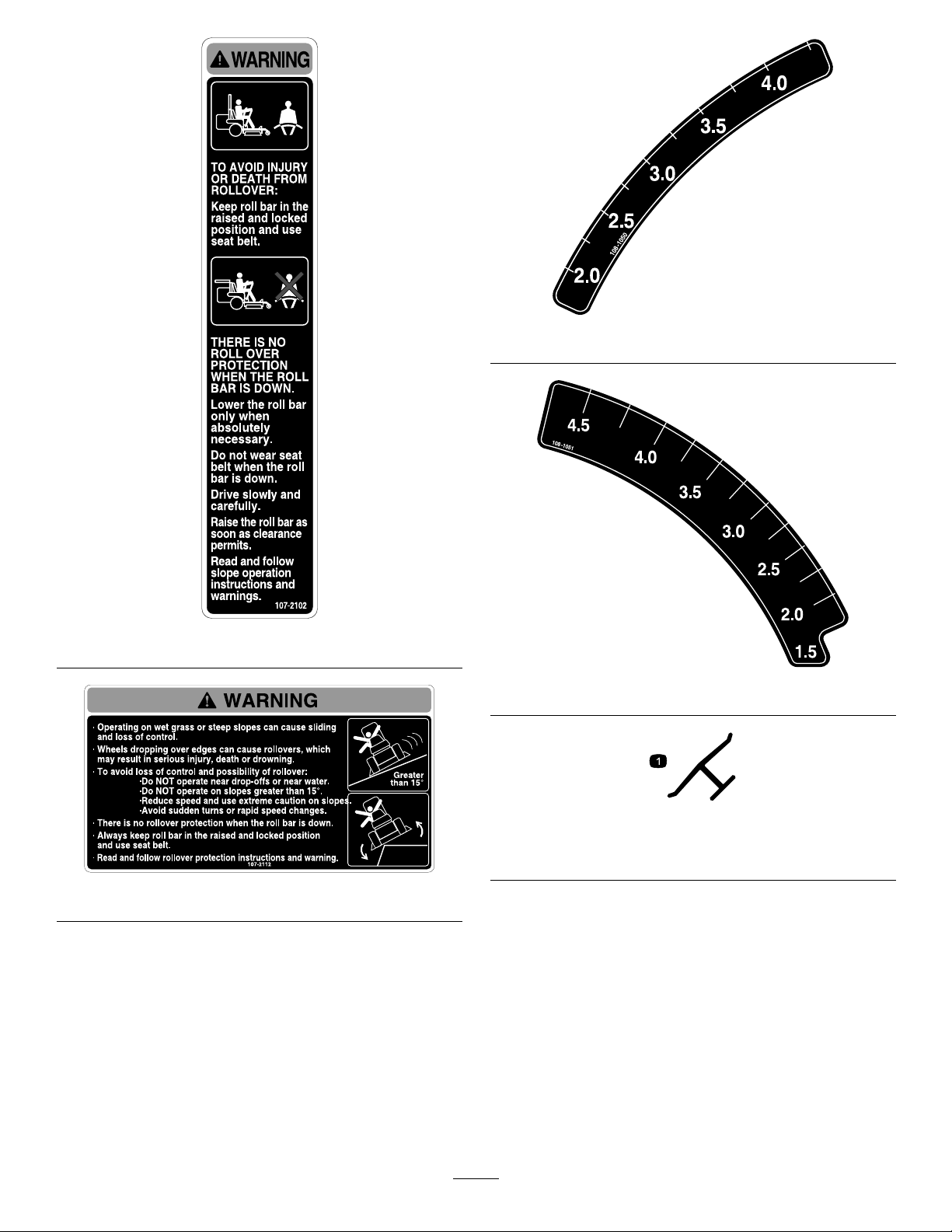

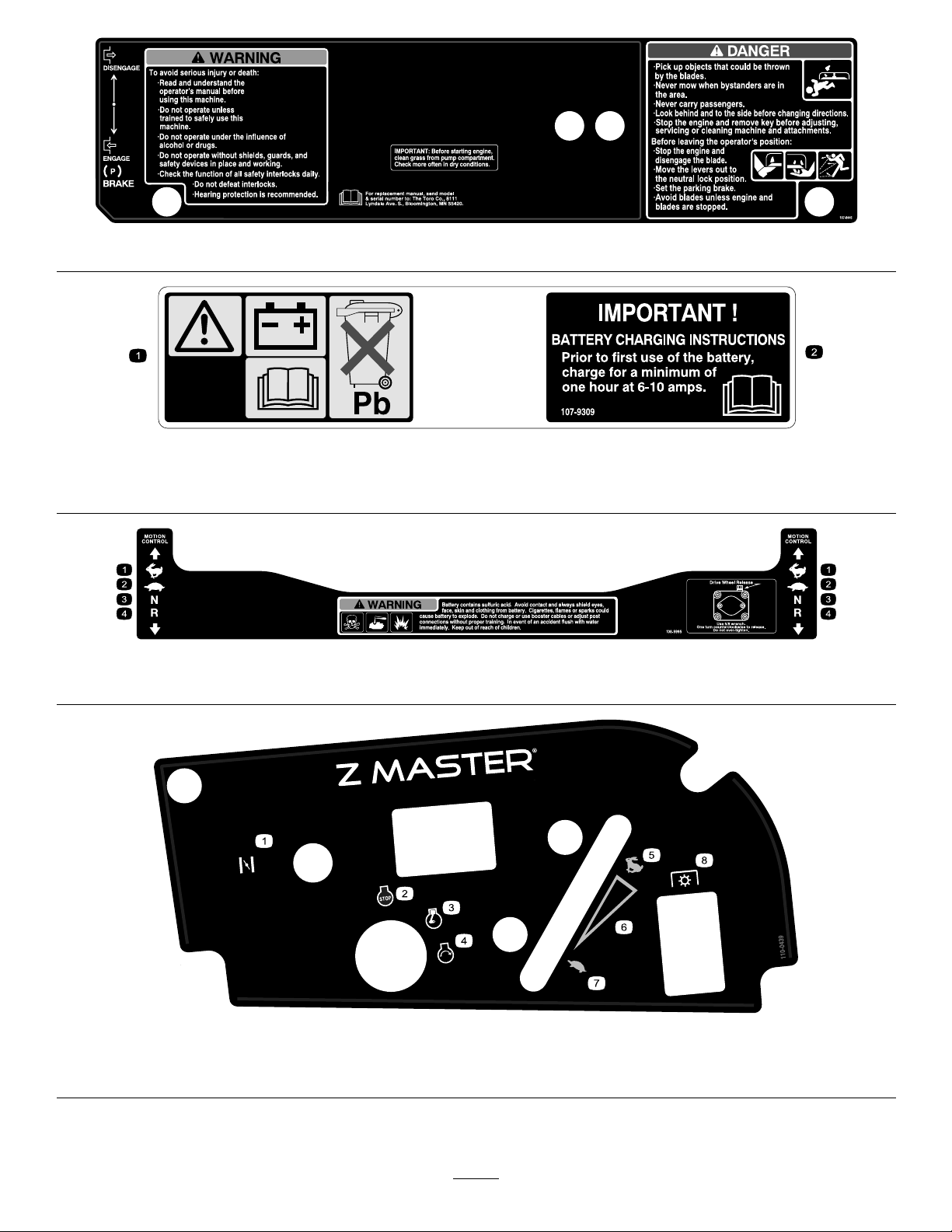

SafetyandInstructionalDecals.............................7
ProductOverview......................................................10
Controls.............................................................11
Operation...................................................................12
AddingFuel.......................................................12
CheckingtheEngineOilLevel............................13
©2007—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA.
AllRightsReserved

UsingtheRolloverProtectionSystem
(ROPS)..........................................................13
ThinkSafetyFirst...............................................14
OperatingtheParkingBrake...............................15
StartingandStoppingtheEngine........................16
OperatingthePowerTakeOff(PTO).................17
TheSafetyInterlockSystem................................17
DrivingForwardorBackward.............................18
StoppingtheMachine.........................................19
AdjustingtheHeight-of-Cut...............................19
AdjustingtheAnti-ScalpRollers.........................19
PositioningtheSeat............................................20
UnlatchingtheSeat.............................................20
PushingtheMachinebyHand.............................21
UsingtheSideDischarge....................................21
TransportingMachines.......................................21
LoadingMachines..............................................22
OperatingTips...................................................22
Maintenance...............................................................24
RecommendedMaintenanceSchedule(s)................24
Lubrication.............................................................24
GreasingandLubrication...................................24
GreasingtheMowerDeckandBelt
Idlers..............................................................25
EngineMaintenance...............................................26
ServicingtheAirCleaner....................................26
ServicingtheEngineOil.....................................27
ServicingtheSparkPlugs....................................28
FuelSystemMaintenance.......................................29
ReplacingtheFuelFilter.....................................29
ServicingtheFuelTank......................................30
ElectricalSystemMaintenance................................30
ServicingtheBattery...........................................30
ServicingtheFuses.............................................32
DriveSystemMaintenance.....................................33
AdjustingtheTracking........................................33
CheckingtheTirePressure.................................33
CheckingtheWheelHubSlottedNut..................33
AdjustingtheCasterPivotBearing......................34
CoolingSystemMaintenance..................................35
CleaningtheAirIntakeScreen............................35
CleaningtheCoolingSystem...............................35
BrakeMaintenance.................................................36
AdjustingtheParkingBrake................................36
BeltMaintenance....................................................36
InspectingtheBelts............................................36
ReplacingtheMowerBelt...................................36
ReplacingthePumpDriveBelt...........................37
AdjustingthePushArms....................................37
ControlsSystemMaintenance.................................38
AdjustingtheControlHandleNeutral
Position..........................................................38
HydraulicSystemMaintenance...............................39
ServicingtheHydraulicSystem...........................39
SettingtheHydraulicPumpNeutral
Position..........................................................41
MowerDeckMaintenance......................................43
LevelingtheMoweratThreePositions................43
ServicingtheCuttingBlades...............................45
ReplacingtheGrassDeector.............................47
Cleaning.................................................................48
CleaningUndertheMower.................................48
WasteDisposal...................................................48
Storage.......................................................................48
Troubleshooting.........................................................50
Schematics.................................................................52
3

Safety
Improperuseormaintenancebytheoperatororowner
canresultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructionsandalwayspay
attentiontothesafetyalertsymbol,whichmeans
CAUTION,WARNING,orDANGER-“personal
safetyinstruction."Failuretocomplywiththe
instructionmayresultinpersonalinjuryordeath.
Thisproductiscapableofamputatinghandsand
feetandthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriousinjuryordeath.
Thisproductisdesignedforcuttingandrecyclinggrass
or,whenequippedwithagrassbagger,forcatching
cutgrass.Anyuseforpurposesotherthanthesecould
provedangeroustouserandbystanders.
SafeOperatingPractices
ThefollowinginstructionsarefromANSIstandard
B71.4-2004.
Training
•ReadtheOperator’sManualandothertraining
material.Iftheoperator(s)ormechanic(s)cannot
readEnglishitistheowner’sresponsibilitytoexplain
thismaterialtothem.
•Becomefamiliarwiththesafeoperationofthe
equipment,operatorcontrols,andsafetysigns.
•Alloperatorsandmechanicsshouldbetrained.The
ownerisresponsiblefortrainingtheusers.
•Neverletchildrenoruntrainedpeopleoperateor
servicetheequipment.Localregulationsmayrestrict
theageoftheoperator.
•Theowner/usercanpreventandisresponsiblefor
accidentsorinjuriesoccurringtohimselforherself,
otherpeopleorproperty.
Preparation
•Evaluatetheterraintodeterminewhataccessories
andattachmentsareneededtoproperlyand
safelyperformthejob.Onlyuseaccessoriesand
attachmentsapprovedbythemanufacturer.
•Wearappropriateclothingincludinghardhat,safety
glassesandhearingprotection.Longhair,loose
clothingorjewelrymaygettangledinmovingparts.
•Inspecttheareawheretheequipmentistobeused
andremoveallobjectssuchasrocks,toysandwire
whichcanbethrownbythemachine.
•Useextracarewhenhandlinggasolineandother
fuels.Theyareammableandvaporsareexplosive.
–Useonlyanapprovedcontainer
–Neverrefuelordrainthemachineindoors.
–Neverremovegascaporaddfuelwithengine
running.Allowenginetocoolbeforerefueling.
Donotsmoke.
•Checkthatoperator’spresencecontrols,safety
switchesandshieldsareattachedandfunctioning
properly.Donotoperateunlesstheyarefunctioning
properly.
Operation
•Neverrunanengineinanenclosedarea.
•Onlyoperateingoodlight,keepingawayfromholes
andhiddenhazards.
•Besurealldrivesareinneutralandparkingbrakeis
engagedbeforestartingengine.Starttheengineonly
fromtheoperator’sposition.Useseatbelts.
•Neverraisemowerwiththebladesrunning.
•NeveroperatewithoutthePTOshield,orother
guardssecurelyinplace.Besureallinterlocksare
attached,adjustedproperly,andfunctioningproperly.
•Neveroperatewiththedischargedeectorraised,
removedoraltered,unlessusingagrasscatcher.
•Donotchangetheenginegovernorsettingor
overspeedtheengine.
•Stoponlevelground,lowerimplements,disengage
drives,engageparkingbrake,shutoffenginebefore
leavingtheoperator’spositionforanyreason
includingemptyingthecatchersoruncloggingthe
chute.
•Stopequipmentandinspectbladesafterstriking
objectsorifanabnormalvibrationoccurs.Make
necessaryrepairsbeforeresumingoperations.
•Keephandsandfeetawayfromthecuttingunits.
•Nevercarrypassengersandkeeppetsandbystanders
away.
•Bealert,slowdownandusecautionwhenmaking
turns.Lookbehindandtothesidebeforechanging
directions.
•Slowdownandusecautionwhencrossingroadsand
sidewalks.Stopbladesifnotmowing.
•Beawareofthemowerdischargedirectionanddo
notpointitatanyone.
•Donotoperatethemowerundertheinuenceof
alcoholordrugs.
4

•Useextremecarewhenloadingorunloadingthe
machineintoatrailerortruck.
•Usecarewhenapproachingblindcorners,shrubs,
trees,orotherobjectsthatmayobscurevision.
SlopeOperation
•Donotmowslopesgreaterthan15degrees.
•Donotmowneardrop-offs,ditches,steepbanks
orwater.Wheelsdroppingoveredgescancause
rollovers,whichmayresultinseriousinjury,death
ordrowning.
•Donotmowslopeswhengrassiswet.Slippery
conditionsreducetractionandcouldcausesliding
andlossofcontrol.
•Donotmakesuddenturnsorrapidspeedchanges.
•Useawalkbehindmowerand/orahandtrimmer
neardrop-offs,ditches,steepbanksorwater.
•Reducespeedanduseextremecautiononslopes.
•Removeormarkobstaclessuchasrocks,treelimbs,
etc.fromthemowingarea.Tallgrasscanhide
obstacles.
•Watchforditches,holes,rocks,dips,andrisesthat
changetheoperatingangle,asroughterraincould
overturnthemachine.
•Avoidsuddenstartswhenmowinguphillbecause
themowermaytipbackwards.
•Beawarethatlossoftractionmayoccurgoing
downhill.Weighttransfertothefrontwheelsmay
causedrivewheelstoslipandcauselossofbraking
andsteering.
•Alwaysavoidsuddenstartingorstoppingona
slope.Iftireslosetraction,disengagethebladesand
proceedslowlyofftheslope.
•Followthemanufacturer’srecommendationsfor
wheelweightsorcounterweightstoimprovestability.
•Useextremecarewithgrasscatchersorother
attachments.Thesecanchangethestabilityofthe
machineandcauselossofcontrol.
UsingtheRolloverProtectionSystem
(ROPS)
•Keeptherollbarintheraisedandlockedposition
andusetheseatbeltwhenoperatingthemachine.
•Becertainthattheseatbeltcanbereleasedquickly
intheeventofanemergency.
•Beawarethereisnorolloverprotectionwhenthe
rollbarisdown.
•Checktheareatobemowedandneverfoldthe
ROPSinareaswherethereareslopes,dropoffsor
water.
•Lowertherollbaronlywhenabsolutelynecessary.
Donotweartheseatbeltwiththerollbarfolded
down.
•Checkcarefullyforoverheadclearances(i.e.
branches,doorways,electricalwires)beforedriving
underanyobjectsanddonotcontactthem.
Maintenanceandstorage
•Disengagedrives,lowerimplement,setparking
brake,stopengineandremovekeyordisconnect
sparkplugwire.Waitforallmovementtostop
beforeadjusting,cleaningorrepairing.
•Cleangrassanddebrisfromcuttingunits,drives,
mufers,andenginetohelppreventres.Cleanup
oilorfuelspillage.
•Letenginecoolbeforestoringanddonotstorenear
ame.
•Shutofffuelwhilestoringortransporting.Donot
storefuelnearamesordrainindoors.
•Parkmachineonlevelground.Neverallowuntrained
personneltoservicemachine.
•Usejackstandstosupportcomponentswhen
required.
•Carefullyreleasepressurefromcomponentswith
storedenergy.
•Disconnectbatteryorremovesparkplugwirebefore
makinganyrepairs.Disconnectthenegativeterminal
rstandthepositivelast.Reconnectpositiverst
andnegativelast.
•Usecarewhencheckingblades.Wraptheblade(s)or
weargloves,andusecautionwhenservicingthem.
Onlyreplaceblades.Neverstraightenorweldthem.
•Keephandsandfeetawayfrommovingparts.If
possible,donotmakeadjustmentswiththeengine
running.
•Chargebatteriesinanopenwellventilatedarea,
awayfromsparkandames.Unplugchargerbefore
connectingordisconnectingfrombattery.Wear
protectiveclothinganduseinsulatedtools.
•Keepallpartsingoodworkingconditionandall
hardwaretightened.Replaceallwornordamaged
decals.
•UseonlyToroapprovedattachments.Warrantymay
bevoidedifusedwithunapprovedattachments.
5

SlopeChart
6

SafetyandInstructional
Decals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaof
potentialdanger.Replaceanydecalthatisdamagedorlost.
1-403005
1-523552
1-633818
54-9220
58-6520
1.Grease
66-1340
65-2690
68-8340
98-4387
1.Warning—wearhearingprotection.
7

98-5954
103-2644
105-7798
107-1613
107-1687
BatterySymbols
Someorallofthesesymbolsareonyourbattery
1.Explosionhazard6.Keepbystandersasafe
distancefromthebattery.
2.Nore,opename,or
smoking.
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator’s
Manual.
10.Containslead;donot
discard.
8

107-2102
107-2112
108-1050
108-1051
Manufacturer’sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
9

107-8445
107-9309
1.Warning—readtheOperator’sManualforinformationonchargingthebattery;containslead;donotdiscard.
2.ReadtheOperator’sManual.
108-5995
1.Fast2.Slow3.Neutral4.Reverse
110-0439
1.Choke3.Engine—run5.Fast7.Slow
2.Engine—stop4.Engine—start6.Continuousvariablesetting8.Powertake-off(PTO)
ProductOverview
10

Figure3
1.Rollbar6.Sidedischarge
2.Fuelcap(bothsides)7.Frontcasterwheel
3.Seatbelt8.Controls
4.Motioncontrollever9.Mowerdeck
5.Height-of-cutlever10.Parkingbrakelever
Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe
engineandoperatethemachine(Figure3andFigure4).
Figure4
1.Ignitionswitch6.PTOSwitch
2.Motioncontrollever7.Height-of-cutlever
3.Brakelever8.Fuelcap(bothsides)
4.Throttlecontrol9.Hourmeter
5.Choke
UsingtheHourMeter
Thehourmeter(Figure5)recordsthenumberofhours
theenginehasoperated.Itoperateswhentheengine
isrunning.Usethesetimesforschedulingregular
maintenance.
Figure5
1.Hourmeter
ThrottleControl
Thethrottlecontrolhastwopositions:FastandSlow.
Choke
Usethechoketostartacoldengine.
BladeControlSwitch(PTO)
Thebladecontrolswitch(PTO)isusedtoengagethe
electricclutchtodrivethemowerbladeswiththemotion
controlleversinthecenter,un-lockedposition.Pullthe
switchuptoengagethebladesandrelease.Todisengage
theblades,pushthebladecontrolswitch(PTO)down.
IgnitionSwitch
Thisswitchisusedtostartthemowerengineandhas
threepositions:Start,RunandOff.
Attachments/Accessories
AselectionofToroapprovedattachmentsand
accessoriesareavailableforusewiththemachineto
enhanceandexpanditscapabilities.Contactyour
AuthorizedServiceDealerorDistributororgoto
www.Toro.comforalistofallapprovedattachments
andaccessories.
UsingtheFuelShutoffValve
Themachinehas2fueltanks,oneontheleftsideand
theotherontherightside.Eachtankconnectstoa
checkvalveandthentoatee.Fromthereacommon
fuellineleadstotheengine(Figure6).
Closethefuelshutoffvalvebeforetransportingor
storingthemachine.
11

Figure6
1.Fuelshutoffvalve
Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
AddingFuel
UseUnleadedRegularGasolinesuitablefor
automotiveuse(85pumpoctaneminimum).Leaded
regulargasolinemaybeusedifunleadedregularisnot
available.
Important:Neverusemethanol,gasoline
containingmethanol,orgasoholcontainingmore
than10%ethanolbecausethefuelsystemcouldbe
damaged.Donotmixoilwithgasoline.
Incertainconditions,gasolineisextremely
ammableandhighlyexplosive.Areor
explosionfromgasolinecanburnyouand
othersandcandamageproperty.
•Fillthefueltankoutdoors,inanopenarea,
whentheengineiscold.Wipeupany
gasolinethatspills.
•Neverllthefueltankinsideanenclosed
trailer.
•Donotllthefueltankcompletelyfull.Add
gasolinetothefueltankuntilthelevelis1/4
to1/2inch(6to13mm)belowthebottomof
thellerneck.Thisemptyspaceinthetank
allowsgasolinetoexpand.
•Neversmokewhenhandlinggasoline,and
stayawayfromanopenameorwhere
gasolinefumesmaybeignitedbyaspark.
•Storegasolineinanapprovedcontainerand
keepitoutofthereachofchildren.Never
buymorethana30-daysupplyofgasoline.
•Donotoperatewithoutentireexhaust
systeminplaceandinproperworking
condition.
12

Incertainconditionsduringfueling,static
electricitycanbereleasedcausingaspark
whichcanignitethegasolinevapors.Are
orexplosionfromgasolinecanburnyouand
othersandcandamageproperty.
•Alwaysplacegasolinecontainersonthe
groundawayfromyourvehiclebeforelling.
•Donotllgasolinecontainersinsidea
vehicleoronatruckortrailerbedbecause
interiorcarpetsorplastictruckbedliners
mayinsulatethecontainerandslowtheloss
ofanystaticcharge.
•Whenpractical,removegas-powered
equipmentfromthetruckortrailerand
refueltheequipmentwithitswheelsonthe
ground.
•Ifthisisnotpossible,thenrefuelsuch
equipmentonatruckortrailerfroma
portablecontainer,ratherthanfroma
gasolinedispensernozzle.
•Ifagasolinedispensernozzlemustbeused,
keepthenozzleincontactwiththerimof
thefueltankorcontaineropeningatall
timesuntilfuelingiscomplete.
Gasolineisharmfulorfatalifswallowed.
Long-termexposuretovaporscancauseserious
injuryandillness.
•Avoidprolongedbreathingofvapors.
•Keepfaceawayfromnozzleandgastankor
conditioneropening.
•Keepgasawayfromeyesandskin.
UsingStabilizer/Conditioner
Useafuelstabilizer/conditionerinthemachineto
providethefollowingbenets:
•Keepsgasolinefreshduringstorageof90daysor
less.Forlongerstorageitisrecommendedthatthe
fueltankbedrained.
•Cleanstheenginewhileitruns
•Eliminatesgum-likevarnishbuildupinthefuel
system,whichcauseshardstarting
Important:Donotusefueladditivescontaining
methanolorethanol.
Addthecorrectamountofgasstabilizer/conditioner
tothegas.
Note:Afuelstabilizer/conditionerismosteffective
whenmixedwithfreshgasoline.Tominimizethe
chanceofvarnishdepositsinthefuelsystem,usefuel
stabilizeratalltimes.
FillingtheFuelTank
1.Shuttheengineoffandsettheparkingbrake.
2.Cleanaroundeachfueltankcapandremovethecap.
3.Addunleadedregulargasolinetobothfueltanks,
untilthelevelis1/4to1/2inch(6mmto13mm)
belowthebottomofthellerneck.
Thisspaceinthetankallowsgasolinetoexpand.
Donotllthefueltankscompletelyfull.
4.Installfueltankcapssecurely.
5.Wipeupanygasolinethatmayhavespilled.
CheckingtheEngineOilLevel
Beforeyoustarttheengineandusethemachine,check
theoillevelintheenginecrankcase;refertoChecking
OilLevelinEngineMaintenance,page26
UsingtheRolloverProtection
System(ROPS)
Toavoidinjuryordeathfromrollover:keepthe
rollbarintheraisedlockedpositionanduse
theseatbelt.
Ensurethattherearpartoftheseatissecured
withtheseatlatch.
13

Thereisnorolloverprotectionwhentherollbar
isinthedownposition.
•Lowertherollbaronlywhenabsolutely
necessary.
•Donotweartheseatbeltwhentherollbaris
inthedownposition.
•Driveslowlyandcarefully.
•Raisetherollbarassoonasclearance
permits.
•Checkcarefullyforoverheadclearances(i.e.
branches,doorways,electricalwires)before
drivingunderanyobjectsanddonotcontact
them.
Important:Lowertherollbaronlywhen
absolutelynecessary.
1.Removethehairpincotterpinsandremovethetwo
pins(Figure8).
2.Lowertherollbartothedownposition.Thereare
twodownpositions.SeeFigure7forthepositions.
3.Installthetwopinsandsecurethemwiththe
hairpincotterpins(Figure8).
Figure7
1.Fulldownposition2.Downpositionwithbagger
installed
Important:Ensurethattherearpartofthe
seatissecuredwiththeseatlatch.
4.Toraisetherollbar,removethehairpincotterpins
andremovethetwopins(Figure8).
5.Raisetherollbartotheuprightpositionandinstall
thetwopinsandsecurethemwiththehairpincotter
pins(Figure8).
Important:Alwaysusetheseatbeltwiththe
rollbarintheraisedposition.
G004955
1
2
3
4
Figure8
1.Rollbar3.Pin
2.Raisedposition4.Hairpincotterpin
ThinkSafetyFirst
Pleasereadallsafetyinstructionsandsymbolsinthe
safetysection.Knowingthisinformationcouldhelp
youorbystandersavoidinjury.
14

Operatingonwetgrassorsteepslopescan
causeslidingandlossofcontrol.
Wheelsdroppingoveredgescancauserollovers,
whichmayresultinseriousinjury,deathor
drowning.
Thereisnorolloverprotectionwhentheroll
barisdown.
Alwayskeeptherollbarintheraisedandlocked
positionandusetheseatbelt.
Readandfollowtherolloverprotection
instructionsandwarnings.
Toavoidlossofcontrolandpossibilityof
rollover:
•Donotoperateneardrop-offsornearwater.
•Donotoperateonslopesgreaterthan
15degrees.
•Reducespeedanduseextremecautionon
slopes.
•Avoidsuddenturnsorrapidspeedchanges.
Figure9
1.SafeZone-usethe
ZMasterhereonslopes
lessthan15degreesor
atareas.
3.Water
2.Usewalkbehindmower
and/orhandtrimmernear
drop-offsandwater.
Thismachineproducessoundlevelsinexcess
of85dBAattheoperatorsearandcancause
hearinglossthroughextendedperiodsof
exposure.
Wearhearingprotectionwhenoperatingthis
machine.
Useprotectiveequipmentforyoureyes,ears,feet,and
head.
Figure10
1.Warning—wearhearingprotection
OperatingtheParkingBrake
Alwayssettheparkingbrakewhenyoustopthe
machineorleaveitunattended.
SettingtheParkingBrake
1.Movethemotioncontrollevers(Figure17)outto
theneutrallockposition.
2.Pullupandbackontheparkingbrakelevertoset
theparkingbrake(Figure11).Theparkingbrake
levershouldstayrmlyintheengagedposition.
Parkingbrakemaynotholdmachineparked
onaslopeandcouldcausepersonalinjuryor
propertydamage.
Donotparkonslopesunlesswheelsare
chockedorblocked
ReleasingtheParkingBrake
Pushforwardanddownontheparkingbrakeleverto
releasetheparkingbrake(Figure11).
15

Figure11
1.Parkingbrake-ON3.BrakeStop
2.Parkingbrake-OFF
StartingandStoppingthe
Engine
StartingtheEngine
1.Sitontheseatandmovethemotioncontrolsto
neutrallockedposition.
2.Settheparkingbrake;refertoSettingtheParking
Brake.
3.MovethePTO(powertakeoff)switchtotheOff
position(Figure12).
Figure12
1.PTO—on2.PTO—off
4.Movethechokecontroltotheonpositionbefore
startingacoldengine(Figure13).
Note:Awarmorhotenginemaynotrequire
choking.Afterenginestarts,movechokecontrolto
Runposition.
Figure13
1.Choke—on2.Choke—off
5.MovethethrottlecontroltotheFastposition
beforestartingacoldengine(Figure14).
Figure14
1.Throttle—fast2.Throttle—slow
6.TurntheignitionkeytoStart.Whentheengines
starts,releasethekey(Figure15).
Important:Donotengagestarterformore
than10secondsatatime.Ifenginefailsto
startallow30secondcool-downperiodbetween
attempts.Failuretofollowtheseinstructions
canburnoutstartermotor.
16

Figure15
1.Off3.Start
2.Run
7.Aftertheenginestarts,movethechoketooff
(Figure13).Iftheenginestallsorhesitates,move
thechokebacktoonforafewseconds,thenmove
thethrottlelevertodesiredsetting.Repeatthisas
required.
StoppingtheEngine
1.PushthePTOtotheoffposition(Figure12).
2.Movethethrottlelevermidwaybetweentheslow
andfastpositions(Figure14).
3.Lettheengineidlefor60seconds.
4.Turntheignitionkeytotheoffpositionandremove
thekey(Figure15).
5.Closethefuelshutoffvalvebeforetransporting
orstoringthemachine.
Important:Makesurethatthefuelshutoff
valveisclosedbeforetransportingorstoring
themachine,asfuelleakagemayoccur.Setthe
parkingbrakebeforetransporting.Makesure
toremovethekeyasthefuelpumpmayrun
andcausethebatterytolosecharge.
Childrenorbystandersmaybeinjuredifthey
moveorattempttooperatethetractorwhileit
isunattended.
Alwaysremovetheignitionkeyandsetthe
parkingbrakewhenleavingthemachine
unattended,evenifjustforafewminutes.
OperatingthePowerTakeOff
(PTO)
Thepowertakeoff(PTO)switchstartsandstopsthe
mowerbladesandanypoweredattachments.
EngagingthePTO
1.Iftheengineiscold,allowtheenginetowarmup5
to10minutesbeforeengagingthePTO.
2.Whileseatedintheseat,releasethepressureonthe
tractioncontrolleversandplaceinneutral.
3.Placethethrottleinthefastposition.
Note:EngagingthePTOwiththethrottleatthe
halforlesspositionwillcauseexcessiveweartothe
drivebelts.
4.Pulloutonthepowertakeoff(PTO)switchto
engageit(Figure16).
Figure16
1.PTO-On2.PTO-Off
DisengagingthePTO
Todisengage,pushthePTOswitchtotheoffposition
(Figure16).
TheSafetyInterlockSystem
Ifsafetyinterlockswitchesaredisconnected
ordamagedthemachinecouldoperate
unexpectedlycausingpersonalinjury.
•Donottamperwiththeinterlockswitches.
•Checktheoperationoftheinterlock
switchesdailyandreplaceanydamaged
switchesbeforeoperatingthemachine.
UnderstandingtheSafetyInterlock
System
Thesafetyinterlocksystemisdesignedtopreventthe
enginefromstartingunless:
17

•Youaresittingontheseat.
•Theparkingbrakeisengaged.
•Thepowertakeoff(PTO)isdisengaged.
•Themotioncontrolleversareintheneutrallocked
position
Thesafetyinterlocksystemalsoisdesignedtostopthe
enginewhenthetractioncontrolsaremovedfromthe
lockedpositionwiththeparkingbrakeengagedorif
yourisefromtheseatwhenthePTOisengaged.
TestingtheSafetyInterlockSystem
ServiceInterval:Beforeeachuseordaily
Testthesafetyinterlocksystembeforeyouusethe
machineeachtime.Ifthesafetysystemdoesnot
operateasdescribedbelow,haveanAuthorizedService
Dealerrepairthesafetysystemimmediately.
1.Sittingontheseat,engagetheparkingbrakeand
movethePTOtoon.Trystartingtheengine;the
engineshouldnotcrank.
2.Sittingontheseat,engagetheparkingbrakeand
movethePTOtooff.Moveeithermotioncontrol
lever(outofneutrallockedposition).Trystarting
theengine;theengineshouldnotcrank.Repeatfor
othercontrollever.
3.Sittingontheseat,engagetheparkingbrake,
movethePTOswitchtooffandmovethemotion
controlleverstoneutrallockposition.Nowstart
theengine.Whiletheengineisrunning,release
theparkingbrake,engagethePTOandriseslightly
fromtheseat;theengineshouldstop.
4.Sittingontheseat,engagetheparkingbrake,move
thePTOswitchtooffandmovethemotioncontrol
leverstoneutrallockposition.Nowstarttheengine.
Whiletheengineisrunning,centereithermotion
controlandmove(forwardorreverse);theengine
shouldstop.Repeatforothermotioncontrol.
5.Sittingontheseat,disengagetheparkingbrake,
movethePTOswitchtooffandmovethemotion
controlleverstoneutrallockposition.Trystarting
theengine;theengineshouldnotcrank.
DrivingForwardorBackward
Thethrottlecontrolregulatestheenginespeedas
measuredinRPM(revolutionsperminute).Place
thethrottlecontrolinthefastpositionforbest
performance.Alwaysoperateinthefullthrottle
positionwhenmowing.
Machinecanspinveryrapidly.Operatormay
losecontrolofmachineandcausepersonal
injuryordamagetomachine.
•Usecautionwhenmakingturns.
•Slowthemachinedownbeforemaking
sharpturns.
DrivingForward
1.Releasetheparkingbrake;refertoReleasingthe
ParkingBrakeinOperation,page12.
2.Movetheleverstothecenter,un-lockedposition.
3.Togoforward,slowlypushthemotioncontrol
leversforward(Figure17).
Note:Theenginewillkillifthetractioncontrol
leversaremovedwiththeparkingbrakeengaged.
Togostraight,applyequalpressuretobothmotion
controllevers(Figure17).
Toturn,movethemotioncontrollevertoward
neutralinthedirectionyouwanttoturn(Figure17).
Thefartheryoumovethetractioncontrolleversin
eitherdirection,thefasterthemachinewillmovein
thatdirection.
Tostop,pullthemotioncontrolleverstotheneutral
position.
18

Figure17
1.Motioncontrol
lever-neutrallockposition
3.Forward
2.Centerun-lockposition4.Backward
DrivingBackward
1.Movetheleverstothecenter,un-lockedposition.
2.Togobackward,slowlypullthemotioncontrol
leversrearward(Figure17).
Togostraight,applyequalpressuretobothmotion
controllevers(Figure17).
Toturn,releasepressureonthemotioncontrollever
towardthedirectionyouwanttoturn(Figure17).
Tostop,pushthemotioncontrolleverstothe
neutralposition.
StoppingtheMachine
Tostopthemachine,movethetractioncontrollevers
toneutralandmovetolockedposition,disengagethe
powertakeoff(PTO),andturntheignitionkeytooff.
Settheparkingbrakewhenyouleavethemachine;refer
toSettingtheParkingBrakeinOperation,page12.
Remembertoremovethekeyfromtheignitionswitch.
Childrenorbystandersmaybeinjuredifthey
moveorattempttooperatethetractorwhileit
isunattended.
Alwaysremovetheignitionkeyandsetthe
parkingbrakewhenleavingthemachine
unattended,evenifjustforafewminutes.
AdjustingtheHeight-of-Cut
Theheight-of-cutisadjustedfrom1-1/2to4-1/2inch
(38to114mm)in1/4inch(6mm)incrementsby
relocatingtheclevispinintodifferentholelocations.
1.Raisetheheight-of-cutlevertothetransport
position(alsothe4-1/2inch(114mm)cutting
heightposition)(Figure18).
2.Toadjust,removetheclevispinfromthe
height-of-cutbracket(Figure18).
3.Selectaholeintheheight-of-cutbracket
correspondingtotheheight-of-cutdesiredand,
inserttheclevispin(Figure18).
4.Movethelevertotheselectedheight.
Figure18
1.Heightofcutlever2.ClevisPin
AdjustingtheAnti-Scalp
Rollers
Wheneveryouchangetheheight-of-cut,adjustthe
heightoftheanti-scalprollers.
1.DisengagethePTO,movethemotioncontrol
leverstotheneutrallockedpositionandsetthe
parkingbrake.
19

2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Afteradjustingtheheight-of-cut,adjusttherollers
byremovingtheangenut,bushing,spacer,and
bolt(Figure19,Figure20andFigure45).
Note:Thetwomiddlerollerswillnothaveaspacer
(Figure20).
4.Selectaholesotheanti-scalprollerispositionedto
thenearestcorrespondingheight-of-cutdesired.
5.Installtheangenutbushing,spacer,andbolt.
Torqueto40-45ft-lb(54-61N•m)(Figure19,
Figure20andFigure45).
6.Repeatthisadjustmentontheotheranti-scalp
rollers.
Figure19
1.Anti-scalproller4.FlangeNut
2.Spacer5.Bolt
3.Bushing
Figure20
1.Anti-scalproller3.FlangeNut
2.Bushing4.Bolt
PositioningtheSeat
Theseatcanmoveforwardandbackward.Positionthe
seatwhereyouhavethebestcontrolofthemachine
andaremostcomfortable.
Important:Toadjust,movetheleversidewaysto
unlockseat(Figure21).
Slidetheseattothedesiredpositionandreleaselever
tolockinposition.
Figure21
1.Adjustmentlever
UnlatchingtheSeat
Pushtheseatlatchrearwardtounlatchtheseat.
Thiswillallowaccesstothemachineundertheseat
(Figure22).
20
