FormNo.3392-986RevB
HydraulicPowerPack
ProPass200TopDresser
ModelNo.44713—SerialNo.315000001andUp
InstallationInstructions
ThisproductcomplieswithallrelevantEuropeandirectives.Fordetails,pleaseseetheDeclarationof
Incorporation(DOI)atthebackofthispublication.
WARNING
CALIFORNIA
Proposition65Warning
TheengineexhaustfromthisproductcontainschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,orotherreproductiveharm.
Batteryposts,terminals,andrelatedaccessoriescontainleadandlead
compounds,chemicalsknowntotheStateofCaliforniatocausecancerand
reproductiveharm.Washhandsafterhandling.
Safety
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedorlost.
decal115-2047
115-2047
1.Warning—donottouchthehotsurface.
decal119-6844
119-6844
1.Cutting/dismembermenthazardofhand,conveyor—stay
awayfrommovingparts,keepallguardsandshieldsin
place.
decal119-6807
119–6807
1.Warning—nostep
©2018—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved*3392-986*B

decal119-6829
119–6829
1.ReadtheOperator'sManual.
2.Maximumloadof907kg(2000lb)resultsinanaxleweight
of1,530kg(3320lb)andatongueweightof145kg(320
lb).
3.Emptyhopperhasanaxleweightof599kg(1320lb)anda
tongueweightof48kg(105lb).
2

Installation
CAUTION
BeforeattemptingtoinstalltheProPass-11
HPHydraulicPowerPack,ensurethat:
•TheProPassislocatedonrmlevel
ground.
•TheProPassjackstandislowered.
•Allexternalhydraulicandelectricalpower
sourcesaredisconnected.
•TheProPassshouldbepreventedfrom
unexpectedmovementbyblockingthe
wheelsatthefrontandtherear.
•UseanassistantwhenliftingthePower
Packassembly.
1.FollowingtheinstructionsgivenintheOperator’s
Manualforthemachine.RemovetheTwin
Spinneroptionandsecurethehydraulicpower
andreturnhoses.
Note:ProPassmodelsmanufacturedafterApril
2005featureapre-drilledchassisrearwall.If
yourProPassispre-drilledskipinstructions
2-13.
2.CheckthattheProPasschassisrearwallis
cleartomountthehydraulictank.
Note:Twomountingboltsmustberemoved
fromthechassisrearwalltoallowthehydraulic
tanktobemounted.Usetheboltsformounting
thetank.
3.Removethehydraulictankassemblyfromthe
crate.
4.Supportthehydraulictankfromunderneathand
positionthetankagainsttheProPasschassis
rearwall.Thetankshouldbecenteredevenly
fromlefttorightandshouldbepositioned
vertically(Figure1).
g013856
Figure1
1.Hydraulictank
5.Ensurethattheinletandoutletttingsandthe
hoseguidemountingbracketalltcleanlywithin
theroundholesintheProPasschassisrearwall
(Figure2).
g013857
Figure2
1.Holesinthechassis
6.Ensurethatthehydraulictankislevel.
7.UsingC-clamps,orsimilardevices,temporarily
clampthehydraulictankrmlyinplaceonthe
ProPasschassisrearwall.
8.Recheckthatthehydraulictankislevel.
9.Markthepositionofthehydraulictankmounting
holesontotheProPasschassisrearwall.
10.Un-clampandremovethehydraulictank.
11.Centerpunchthepositionofthemarkedholes.
12.Drilla7/16inchdiameterholethroughthe
ProPasschassisrearwallineachmarkedand
punchedposition.
3

13.De-burreachhole.
14.EnsurethattheProPassHitchTubeiscleanand
freefromdirtordebris.
15.Unpacktheengineassembly.
16.Loosen,butdonotremove,the2boltsand
nutssecuringtheenginemountbracketstothe
enginemountingplate(Figure3).
g013858
Figure3
1.Mountingbolts(2)
17.Removethetwonutsholdingthebatteryhold
downstrapsinplaceandsetthenuts,washers
andbolttubeofftotheside(Figure4).
g013861
Figure4
1.Batteryholddownstrap2.Batteryholddownbolt(2)
18.Removethebatteryfromitspositiononthe
assemblyandrestthelteronthebaseplate.
19.Chargethebattery;refertoActivatingand
ChargingtheBattery(page10).
20.Sincetheengineassemblyisheavy,positioning
ofthiscomponentcanbedifcult.Withthehelp
ofanassistant,positiontheengineassembly
ontotheProPasshitchtube.Ensurethatthe
enginemountbracketsstraddlethehitchtube
(Figure5andthattherearoftheenginemount
plateisapproximately25mm(1inch)fromthe
ProPasshitchtubereceiver(Figure6).
g013911
Figure5
1.Hitchtube
g013859
Figure6
1.Oneinch
21.Insertthe2bolts(1/2x3inches)throughthe
enginemountbracketholesensuringthata
atwasheristtedagainsteachouterfaceof
theenginemountbracketandensuringthat
theboltspassclearbeneaththebottomofthe
ProPasshitchtube.Handtightenthe2nuts(1/2
inch)(Figure7).
4

g013860
Figure7
1.Hitchtube2.Mountingbolts(2)
22.Adjusttheenginemountbracketsothatitis
tighttothehitch.Fullytightenthetwobolts
securingtheenginemountbracketstothe
enginemountingplate(Figure8).
23.Checkthattheenginemountingplateislevel
andfullytightenthe2bolts(1/2x5inches)
throughtheenginemountbracketlowerholes.
24.Placethebatteryontothebatterytray,
positioningtheterminalsasshowninFigure8.
25.Positionthebatteryholddownonthebattery
(Figure8).
26.Holdthebatterymountstraparoundthe
undersideofthehitchtube(Figure8).
27.Ontherightside,installabatteryboltthrough
thewasher,batterymountstrap,enginemount
plate,batterytrayandholddown.Looselyinstall
aangenut(Figure8).
Note:Makesuretheboltsareinstalledfrom
thebottom.
28.Ontheleftside,installabatteryboltthrough
thewasher,batterymountstrap,enginemount
plate,batterytray,batterybolttube,andhold
down.Looselyinstallaangenut(Figure8).
29.Makesureeverythingisconcentricandtighten
thenuts
g013862
Figure8
1.Batterybolt(2)4.Batterymountstrap
2.Washer(2)5.Flangelocknut(2)
3.Bolttube
30.Unpackthehoseguide,hydraulicreturnhose
(hose#3),hydraulicsuctionhose(hose#4),4
bolts(1/4x3/4inch)and4locknuts(1/4inch).
Note:Removethehosesecuredtothehose
guide,hydraulicreturnhoseandhydraulic
suctionhoseforshipping.
31.Using2bolts(1/4x3/4inch)andange
locknuts,attachthehoseguidetothebracket
onthehydraulictank(Figure9).
5

g013863
Figure9
1.Hoseguide
Note:Twomountingboltsmustberemoved
fromthechassisrearwalltoallowthehydraulic
tanktobemounted.Usetheboltsformounting
thetank.
32.Unpack4bolts(3/8x1inch)andnylonlocknuts.
Supportingthehydraulictankfrombelow,pass
thehoseguideandhydraulichoses#3and#4
throughthelargecentralholeintheProPass
chassisrearwallandlocatethehydraulictank
againstthechassisrearwall.T emporarily
clamp,orbolt,thehydraulictankinplace.
Note:Thehoseguideshouldbefedthrough
thecenterholeonthefrontsideofthechassis.
Twopeoplemayberequired
33.Installthehydraulicreturnhose(#3)andthe
hydraulicsuctionhose(#4)totheappropriate
ttingsonthehydraulictank.
Note:Hose#3andhose#4donothavethe
samettingssoeachhosewillonlytintothe
correctttinginthehydraulictank.
Note:Whenmountingthehoses,makesure
thereisadequateclearancetothetires.
34.Thehoseguideshouldsitontopofthetabfrom
theverticallegofthebatterytray(Figure10).
Iftheholesinthehoseguidedonotmatchthe
holesinthebatterytraytab,thehoseguide
lengthmaybeadjustedbylooseningthebolts
attachingthehoseguidetothehydraulictank
bracketandslidingthehoseguideforwardor
totherearasrequired.
g013864
Figure10
1.Hoseguide
35.Attachthehoseguidetothebatterytraytab
using2bolts(1/4x3/4inch)andangelocknuts
(Figure10).
36.MountthehydraulictanktotheProPasschassis
rearwallusingthebolt(3/8x1inch),nylon
locknutsandatwashers.Also,usethe
mountingboltspreviouslyremoved.Tightenthe
fasteners.
37.Connecthydraulichose#3tothelteroutlet
(Figure11).
g013865
Figure11
1.Filteroutlet2.Hydraulichose#3
38.Connecthydraulichose#4tothesuctionsideof
thehydraulicpump(Figure12).
6

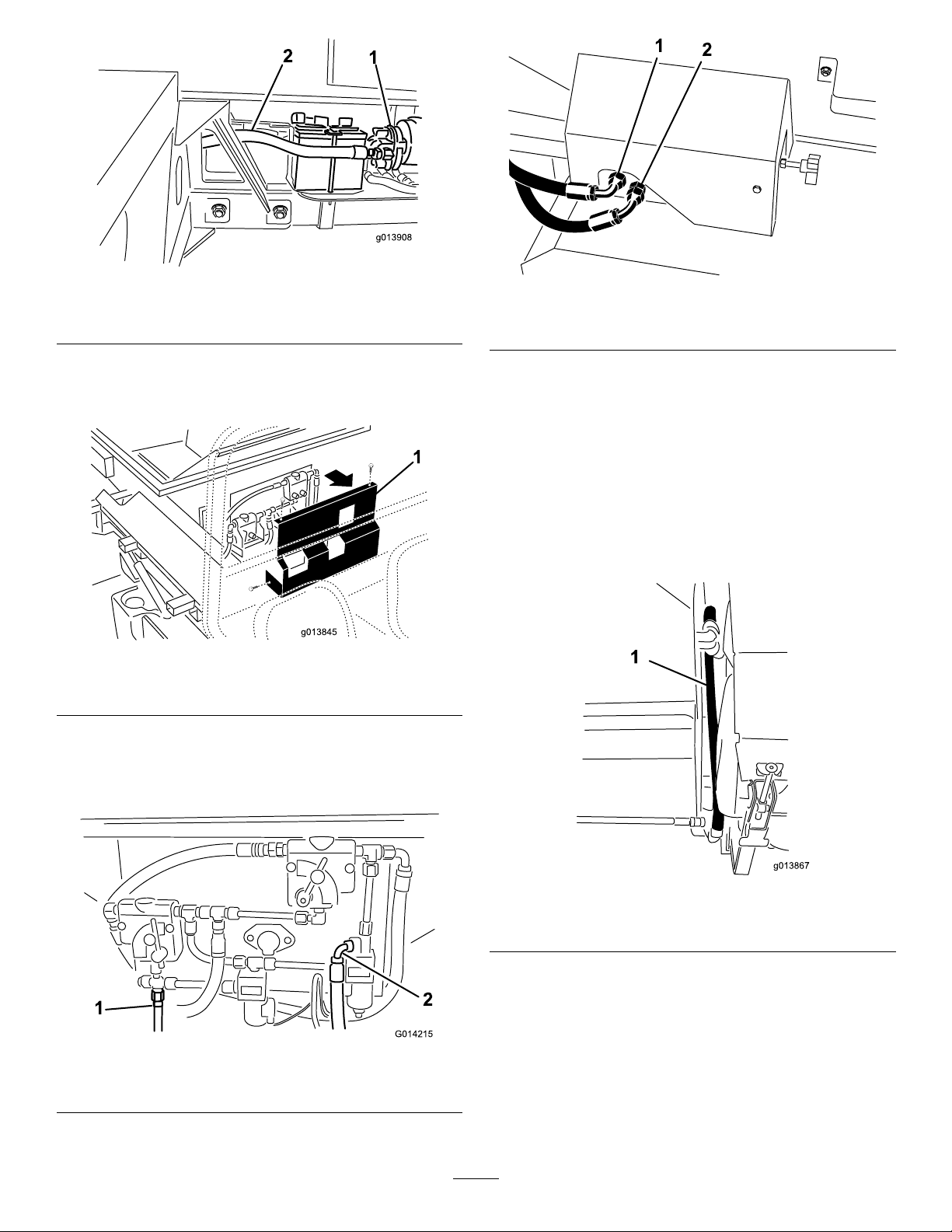

g013908
Figure12
1.Hydraulicpump2.Hydraulichose#4
39.OntheSHversion,model44701,removethe
fastenerssecuringthecovertothefrontofthe
ProPassandsetthecoveraside(Figure13).
g013845
Figure13
1.Cover
40.Identifythepressureandreturnconnectionson
theProPassbasemodel.RefertoFigure14
fortheSHversionsandFigure15fortheEH
versions.
g014215
Figure14
1.Pressure2.Return
g259001
Figure15
1.Return2.Pressure
41.Ifpressureandreturnhoseswerepreviously
installedatthelocationsshowninFigure14and
Figure15,removethem.
Note:Makesurethehosesdonotcontactany
hot,sharpormovingparts.Trytoattainasmuch
clearancefromthemuferaspossible.
42.Connectthehydraulichosestothehydraulic
controlpanel.RefertoFigure14andFigure16
ontheSHversionsandFigure15andFigure
17ontheEHversions.
g013867
Figure16
1.Hoserouting
7

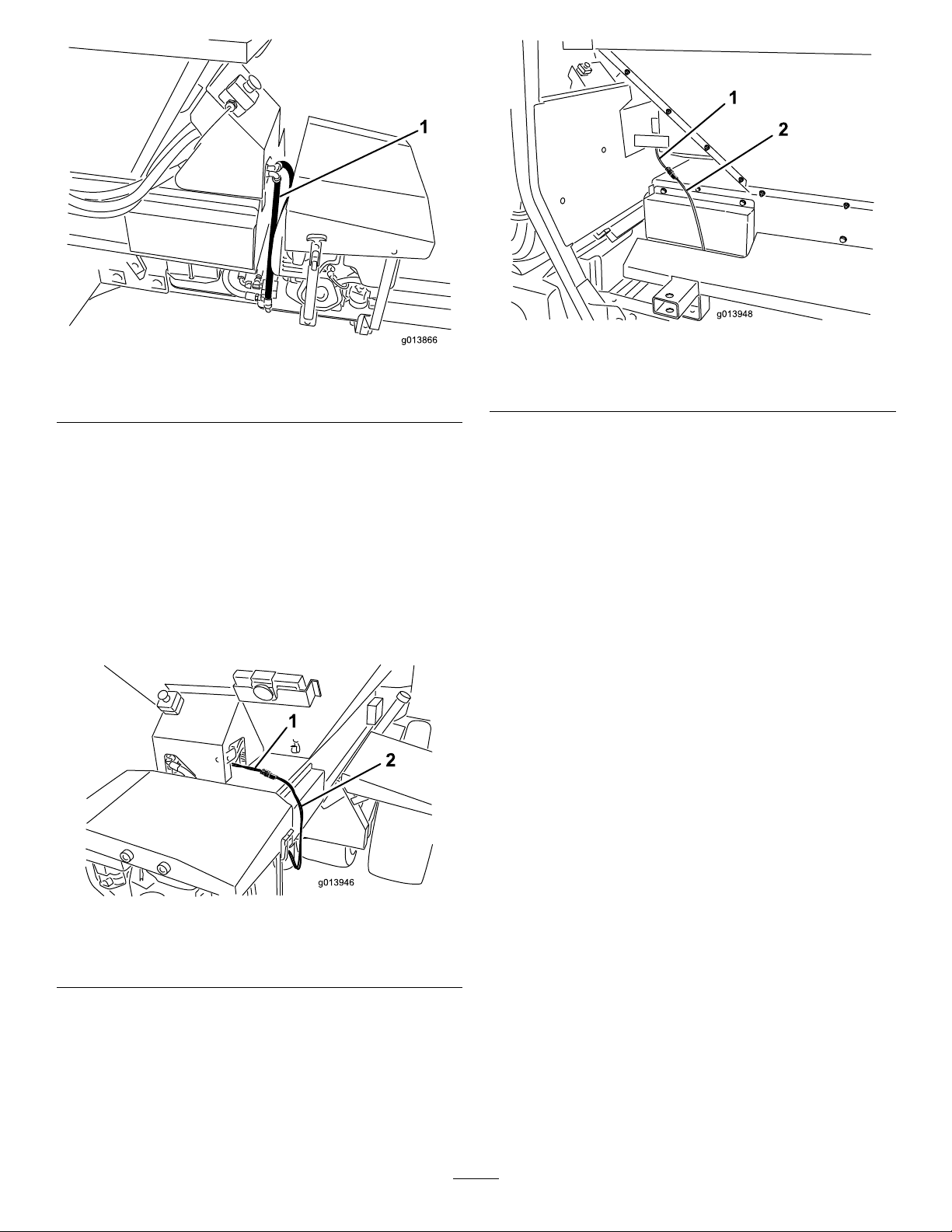

g013866
Figure17
1.Hoserouting
43.Tightenallofthehydraulicconnectionsand
fasteners.
44.RettheProPassTwinSpinnerassembly.
45.Connecttheblackcableandtheblackpre-routed
cabletothebatterynegativeterminalandthe
whitecableandtheredpre-routedcabletothe
batterypositiveterminal.
46.Plugtheintermediatewiringharnessintothe
powerharnessconnectorontheProPass
(Figure18orFigure19).
g013946
Figure18
1.Powerharness2.Intermediatewiring
harness
g013948
Figure19
1.Powerharness2.Intermediatewiring
harness
8

Operation
CAUTION
Ensurethatallcontrolsystemsareturnedoff
whenworkingonthePowerPack.
EngineOil
Important:TheengineisshippedWITHOUTOIL
(exceptforresidualoilaftertestingatthefactory).
Refertotheengineownersmanualforadditional
information.
Theengineisshippedfromthefactorywithoutoil
soitmustbelledwithapproximately1,005cm3(34
ounces)ofoilbeforestarting.Checkthelevelofoil
beforetheengineisrststartedanddailythereafter.
Theengineusesanyhigh-qualityoilhavingthe
AmericanPetroleumInstitute-APl-“service
classication"SJ,SLorequivalent.Oilviscosity
-weight-mustbeselectedaccordingto
ambienttemperature.Figure20illustratesthe
temperature/viscosityrecommendations.
g018667
Figure20
1.Positionthemachinesothattheengineislevel.
2.Cleantheareaaroundtheoilllercap/dipstick.
3.Removetheoilllercap/dipstickbyrotatingit
counterclockwise.
4.Wipethedipstickcleanandinsertitintotheller
port.Donotscrewitintotheport.
5.Removethedipstickandcheckthelevelofthe
oil.
6.Ifthelevelisnearorbelowthelowerlimitmark
onthedipstick,addonlyenoughoiltoraiselevel
totheupperlimitmark.Rechecklevelofoil.Do
notoverll.
7.Installtheoilllercap/dipstickandwipeupany
spilledoil.
Important:Makesuretheengineoilisatthe
properlevel.Iftheengineoillevelisnotcorrect,
theenginewillcrankbutwillnotstart.
HydraulicSystem
Themachineisshippedfromthefactorywithout
hydraulicuidsoitmustbelledwith32.9L(8.7U.S.
gallons)ofhighqualityhydraulicuid.Checkthelevel
ofhydraulicoilbeforethemachineisrststartedand
dailythereafter.Therecommendedhydraulicuids
areasfollows:
ToroPremiumTransmission/HydraulicTractorFluid
(Availablein5gallonpailsor55gallondrums.Seeparts
catalogorT orodistributorforpartnumbers.)
Alternateuids:IftheTorouidisnotavailable,other
petroleum-basedUniversalTractorHydraulicFluids
(UTHF)maybeusedprovideditsspecicationsfall
withinthelistedrangeforallthefollowingmaterial
propertiesanditmeetsindustrystandards.Wedo
notrecommendtheuseofsyntheticuid.Consult
withyourlubricantdistributortoidentifyasatisfactory
productNote:Torowillnotassumeresponsibilityfor
damagecausedbyimpropersubstitutions,souse
onlyproductsfromreputablemanufacturerswhowill
standbehindtheirrecommendation.
Important:Thehydraulicsystemwillnot
completelyllwithuiduntilthesystemis
poweredup.Thehydraulicuidmustthereforebe
checkedandtoppedupafterinitialrunning.
Note:T orowillnotassumeresponsibilityfordamage
causedbyimpropersubstitutions,souseonly
productsfromreputablemanufacturerswhowillstand
behindtheirrecommendation.
MaterialProperties:
Viscosity,ASTMD445cSt@40degreesC
55to62
cSt@100degreesC
9.1to9.8
ViscosityIndexASTM
D2270
140to152
PourPoint,ASTMD97-35degreesFto-46
degreesF
IndustrySpecications:
APIGL-4,AGCOPoweruid821XL,FordNewHolland
FNHA-2-C-201.00,KubotaUDT,JohnDeereJ20C,
Vickers35VQ25,andVolvoWB-101/BM
Note:Manyhydraulicuidsarealmostcolorless,
makingitdifculttospotleaks.Areddyeadditivefor
thehydraulicsystemoilisavailablein2/3oz(20ml)
bottles.Onebottleissufcientfor15to22L(4to
6USgallons)ofhydraulicoil.Orderpartnumber
44-2500fromyourAuthorizedT oroDistributor.
9

FillingtheFuelTank
FuelTankCapacity:6.1L(1.6gallons)
RecommendedFuel:
•Forbestresults,useonlyclean,fresh(lessthan
30daysold),unleadedgasolinewithanoctane
ratingof87orhigher(R+M)/2ratingmethod).
•Ethanol:Gasolinewithupto10%ethanol
(gasohol)or15%MTBE(methyltertiarybutyl
ether)byvolumeisacceptable.Ethanoland
MTBEarenotthesame.Gasolinewith15%
ethanol(E15)byvolumeisnotapprovedforuse.
Neverusegasolinethatcontainsmorethan10%
ethanolbyvolume,suchasE15(contains15%
ethanol),E20(contains20%ethanol),orE85
(containsupto85%ethanol).Usingunapproved
gasolinemaycauseperformanceproblemsand/or
enginedamagewhichmaynotbecoveredunder
warranty.
•Donotusegasolinecontainingmethanol.
•Donotstorefueleitherinthefueltankorfuel
containersoverthewinterunlessafuelstabilizer
isused.
•Donotaddoiltogasoline.
ActivatingandCharging
theBattery
Useonlyelectrolyte(1.265specicgravity)toll
batteryinitially.
1.Cleanthetopofthebatteryandremovethevent
caps(Figure21).
Important:Donotaddelectrolytewhilethe
batteryisinthemachine.Youcouldspillit,
causingcorrosion.
g001196
Figure21
1.Ventcaps
2.Carefullylleachcellwithelectrolyteuntilthe
platesarecoveredwithabout6mm(1/4inch)of
uid(Figure22).
g001197
Figure22
1.Electrolyte
3.Allowapproximately20to30minutesforthe
electrolytetosoakintotheplates.Rellas
necessarytobringtheelectrolytetowithinabout
6mm(1/4inch)ofthebottomofthellwell
(Figure22).
WARNING
Chargingthebatteryproducesgasses
thatcanexplode.
Neversmokenearthebatteryandkeep
sparksandamesawayfrombattery.
4.Connecta3to4ampbatterychargertothe
batteryposts.Chargethebatteryatarateof
3to4ampsuntilthespecicgravityis1.250
orhigherandthetemperatureisatleast16
degreesC(60degreesF)withallcellsgassing
freely.
5.Whenthebatteryischarged,disconnectthe
chargerfromtheelectricaloutletandbattery
posts.
Note:Afterthebatteryhasbeenactivated,
addonlydistilledwatertoreplacenormalloss,
althoughmaintenance-freebatteriesshouldnot
requirewaterundernormaloperatingconditions.
WARNING
CALIFORNIA
Proposition65Warning
Batteryposts,terminals,andrelated
accessoriescontainleadandlead
compounds,chemicalsknownto
theStateofCaliforniatocause
cancerandreproductiveharm.Wash
handsafterhandling.
10

WARNING
Batteryterminalsormetaltoolscould
shortagainstmetaltractorcomponents
causingsparks.Sparkscancausethe
batterygassestoexplode,resultingin
personalinjury.
•Whenremovingorinstallingthe
battery,donotallowthebattery
terminalstotouchanymetalpartsof
thetractor.
•Donotallowmetaltoolstoshort
betweenthebatteryterminalsand
metalpartsofthetractor.
OperatingTips
•ConnecttheclevishitchoftheProPasstothetow
vehicle.Useahigh-strengthhitchpinapprovedfor
towvehicles.
•Turnonthefuelvalve,placethethrottlelever
athalfthrottle,engagethechoke,andstartthe
engine.Oncetheenginestarts,turnoffthechoke
andincreasethethrottletomaximum.
•TesttheProPassoperation.Ensurethatthere
arenohydraulicleaksandmakeanyadditional
adjustments.
•Aftertestingthehydraulicsystem,checkthe
hydraulicuidandaddmoreifrequired.
Note:Ensurethatthependantandanycordsdo
notdragonthegroundduringoperation.
11

Notes:

Notes:

DeclarationofIncorporation
TheT oroCompany,8111LyndaleAvenueSouth,Bloomington,MN,USAdeclaresthatthefollowingunit(s)
conform(s)tothedirectiveslisted,wheninstalledinaccordancewiththeaccompanyinginstructionsontocertain
ToromodelsasindicatedontherelevantDeclarationsofConformity.
ModelNo.SerialNo.ProductDescriptionInvoiceDescriptionGeneralDescriptionDirective
2006/42/EC
44713315000001andUpHydraulicPowerPackPROPASSHYDPOWER
PACKHydraulicPowerPack2004/108/EC
RelevanttechnicaldocumentationhasbeencompiledasrequiredperPartBofAnnexVIIof2006/42/EC.
Wewillundertaketotransmit,inresponsetorequestsbynationalauthorities,relevantinformationonthispartly
completedmachinery.Themethodoftransmissionshallbeelectronictransmittal.
ThismachineryshallnotbeputintoserviceuntilincorporatedintoapprovedT oromodelsasindicatedonthe
associatedDeclarationofConformityandinaccordancewithallinstructions,wherebyitcanbedeclaredin
conformitywithallrelevantDirectives.
Certied:AuthorizedRepresentative:
MarcelDutrieux
ManagerEuropeanProductIntegrity
ToroEuropeNV
Nijverheidsstraat5
2260Oevel
Belgium
DavidKlis
Sr.EngineeringManagerTel.+3216386659
8111LyndaleAve.South
Bloomington,MN55420,USA
December18,2014

InternationalDistributorList
Distributor:Country:PhoneNumber:Distributor:Country:Phone
Number:
AgrolancKftHungary3627539640MaquiverS.A.Colombia5712364079
BalamaPrimaEngineeringEquip.HongKong85221552163MaruyamaMfg.Co.Inc.Japan81332522285
B-RayCorporationKorea82325512076Mountelda.s.CzechRepublic420255704
220
CascoSalesCompanyPuertoRico7877888383Mountelda.s.Slovakia420255704
220
CeresS.A.CostaRica5062391138MunditolS.A.Argentina54114821
9999
CSSCTurfEquipment(pvt)Ltd.SriLanka94112746100NormaGardenRussia74954116120
CyrilJohnston&Co.NorthernIreland442890813121OslingerTurfEquipmentSAEcuador59342396970
CyrilJohnston&Co.RepublicofIreland442890813121OyHakoGroundandGarden
Ab
Finland35898700733
EquiverMexico525553995444ParklandProductsLtd.NewZealand6433493760
FemcoS.A.Guatemala5024423277PerfettoPoland48618208416
ForGarderOUEstonia3723846060PratoverdeSRL.Italy390499128
128
G.Y .K.CompanyLtd.Japan81726325861Prochaska&CieAustria4312785100
GeomechanikiofAthensGreece30109350054RTCohen2004Ltd.Israel97298617979
GolfinternationalTurizmTurkey902163365993RiversaSpain34952837500
GuandongGoldenStarChina862087651338LelyTurfcareDenmark4566109200
HakoGroundandGardenSweden4635100000SolvertS.A.S.France331308177
00
HakoGroundandGardenNorway4722907760SpyprosStavrinidesLimitedCyprus35722434131
HayterLimited(U.K.)UnitedKingdom441279723444SurgeSystemsIndiaLimitedIndia911292299901
HydroturfInt.CoDubaiUnitedArabEmirates97143479479T-MarktLogisticsLtd.Hungary3626525500
HydroturfEgyptLLCEgypt2025194308ToroAustraliaAustralia61395807355
IrrimacPortugal351212388260ToroEuropeNVBelgium3214562960
IrrigationProductsInt'lPvtLtd.India0091442449
4387
ValtechMorocco21253766
3636
JeanHeybroekb.v.Netherlands31306394611VictusEmakPoland48618238369
EuropeanPrivacyNotice
TheInformationToroCollects
ToroWarrantyCompany(Toro)respectsyourprivacy.Inordertoprocessyourwarrantyclaimandcontactyouintheeventofaproductrecall,weaskyou
tosharecertainpersonalinformationwithus,eitherdirectlyorthroughyourlocalTorocompanyordealer.
TheTorowarrantysystemishostedonserverslocatedwithintheUnitedStateswhereprivacylawmaynotprovidethesameprotectionasapplies
inyourcountry.
BYSHARINGYOURPERSONALINFORMATIONWITHUS,YOUARECONSENTINGTOTHEPROCESSINGOFYOURPERSONALINFORMATION
ASDESCRIBEDINTHISPRIVACYNOTICE.
TheWayT oroUsesInformation
Toromayuseyourpersonalinformationtoprocesswarrantyclaims,tocontactyouintheeventofaproductrecallandforanyotherpurposewhichwetell
youabout.ToromayshareyourinformationwithToro'safliates,dealersorotherbusinesspartnersinconnectionwithanyoftheseactivities.Wewillnot
sellyourpersonalinformationtoanyothercompany.Wereservetherighttodisclosepersonalinformationinordertocomplywithapplicablelawsand
withrequestsbytheappropriateauthorities,tooperateoursystemsproperlyorforourownprotectionorthatofotherusers.
RetentionofyourPersonalInformation
Wewillkeepyourpersonalinformationaslongasweneeditforthepurposesforwhichitwasoriginallycollectedorforotherlegitimatepurposes
(suchasregulatorycompliance),orasrequiredbyapplicablelaw.
Toro'sCommitmenttoSecurityofYourPersonalInformation
Wetakereasonableprecautionsinordertoprotectthesecurityofyourpersonalinformation.Wealsotakestepstomaintaintheaccuracyandcurrent
statusofpersonalinformation.
AccessandCorrectionofyourPersonalInformation
Ifyouwouldliketorevieworcorrectyourpersonalinformation,pleasecontactusbyemailat[email protected].
AustralianConsumerLaw
AustraliancustomerswillnddetailsrelatingtotheAustralianConsumerLaweitherinsidetheboxoratyourlocalT oroDealer.
374-0269RevH

ToroGeneralCommercialProductWarranty
ATwo-YearLimitedWarranty
ConditionsandProductsCovered
TheT oroCompanyanditsafliate,ToroWarrantyCompany,pursuant
toanagreementbetweenthem,jointlywarrantyourT oroCommercial
product(“Product”)tobefreefromdefectsinmaterialsorworkmanship
fortwoyearsor1500operationalhours*,whicheveroccursrst.This
warrantyisapplicabletoallproductswiththeexceptionofAerators
(refertoseparatewarrantystatementsfortheseproducts).Wherea
warrantableconditionexists,wewillrepairtheProductatnocosttoyou
includingdiagnostics,labor,parts,andtransportation.Thiswarranty
beginsonthedatetheProductisdeliveredtotheoriginalretailpurchaser.
*Productequippedwithanhourmeter.
InstructionsforObtainingWarrantyService
YouareresponsiblefornotifyingtheCommercialProductsDistributoror
AuthorizedCommercialProductsDealerfromwhomyoupurchasedthe
Productassoonasyoubelieveawarrantableconditionexists.Ifyouneed
helplocatingaCommercialProductsDistributororAuthorizedDealer,or
ifyouhavequestionsregardingyourwarrantyrightsorresponsibilities,
youmaycontactusat:
ToroCommercialProductsServiceDepartment
ToroWarrantyCompany
8111LyndaleAvenueSouth
Bloomington,MN55420-1196
952–888–8801or800–952–2740
E-mail:[email protected]
OwnerResponsibilities
AstheProductowner,youareresponsibleforrequiredmaintenanceand
adjustmentsstatedinyourOperator'sManual.Failuretoperformrequired
maintenanceandadjustmentscanbegroundsfordisallowingawarranty
claim.
ItemsandConditionsNotCovered
Notallproductfailuresormalfunctionsthatoccurduringthewarranty
periodaredefectsinmaterialsorworkmanship.Thiswarrantydoesnot
coverthefollowing:
•Productfailureswhichresultfromtheuseofnon-T ororeplacement
parts,orfrominstallationanduseofadd-on,ormodiednon-T oro
brandedaccessoriesandproducts.Aseparatewarrantymaybe
providedbythemanufactureroftheseitems.
•Productfailureswhichresultfromfailuretoperformrecommended
maintenanceand/oradjustments.Failuretoproperlymaintainyour
ToroproductpertheRecommendedMaintenancelistedinthe
Operator’sManualcanresultinclaimsforwarrantybeingdenied.
•ProductfailureswhichresultfromoperatingtheProductinanabusive,
negligent,orrecklessmanner.
•Partssubjecttoconsumptionthroughuseunlessfoundtobedefective.
Examplesofpartswhichareconsumed,orusedup,duringnormal
Productoperationinclude,butarenotlimitedto,brakepadsand
linings,clutchlinings,blades,reels,rollersandbearings(sealedor
greasable),bedknives,sparkplugs,castorwheelsandbearings,tires,
lters,belts,andcertainsprayercomponentssuchasdiaphragms,
nozzles,andcheckvalves,etc.
•Failurescausedbyoutsideinuence.Conditionsconsideredtobe
outsideinuenceinclude,butarenotlimitedto,weather,storage
practices,contamination,useofunapprovedfuels,coolants,lubricants,
additives,fertilizers,water,orchemicals,etc.
•Failureorperformanceissuesduetotheuseoffuels(e.g.gasoline,
diesel,orbiodiesel)thatdonotconformtotheirrespectiveindustry
standards.
•Normalnoise,vibration,wearandtear,anddeterioration.
•Normal“wearandtear”includes,butisnotlimitedto,damagetoseats
duetowearorabrasion,wornpaintedsurfaces,scratcheddecalsor
windows,etc.
Parts
Partsscheduledforreplacementasrequiredmaintenancearewarranted
fortheperiodoftimeuptothescheduledreplacementtimeforthatpart.
Partsreplacedunderthiswarrantyarecoveredforthedurationofthe
originalproductwarrantyandbecomethepropertyofToro.Torowillmake
thenaldecisionwhethertorepairanyexistingpartorassemblyorreplace
it.T oromayuseremanufacturedpartsforwarrantyrepairs.
DeepCycleandLithium-IonBatteryWarranty:
DeepcycleandLithium-Ionbatterieshaveaspeciedtotalnumberof
kilowatt-hourstheycandeliverduringtheirlifetime.Operating,recharging,
andmaintenancetechniquescanextendorreducetotalbatterylife.Asthe
batteriesinthisproductareconsumed,theamountofusefulworkbetween
chargingintervalswillslowlydecreaseuntilthebatteryiscompletelyworn
out.Replacementofwornoutbatteries,duetonormalconsumption,
istheresponsibilityoftheproductowner.Batteryreplacementmaybe
requiredduringthenormalproductwarrantyperiodatowner’sexpense.
Note:(Lithium-Ionbatteryonly):ALithium-Ionbatteryhasapartonly
proratedwarrantybeginningyear3throughyear5basedonthetime
inserviceandkilowatthoursused.RefertotheOperator'sManualfor
additionalinformation.
MaintenanceisatOwner’sExpense
Enginetune-up,lubrication,cleaningandpolishing,replacementoflters,
coolant,andcompletingrecommendedmaintenancearesomeofthe
normalservicesT oroproductsrequirethatareattheowner’sexpense.
GeneralConditions
RepairbyanAuthorizedT oroDistributororDealerisyoursoleremedy
underthiswarranty.
NeitherTheToroCompanynorToroWarrantyCompanyisliablefor
indirect,incidentalorconsequentialdamagesinconnectionwiththe
useoftheToroProductscoveredbythiswarranty,includingany
costorexpenseofprovidingsubstituteequipmentorserviceduring
reasonableperiodsofmalfunctionornon-usependingcompletion
ofrepairsunderthiswarranty.ExceptfortheEmissionswarranty
referencedbelow,ifapplicable,thereisnootherexpresswarranty.All
impliedwarrantiesofmerchantabilityandtnessforusearelimitedto
thedurationofthisexpresswarranty.
Somestatesdonotallowexclusionsofincidentalorconsequential
damages,orlimitationsonhowlonganimpliedwarrantylasts,sotheabove
exclusionsandlimitationsmaynotapplytoyou.Thiswarrantygivesyou
speciclegalrights,andyoumayalsohaveotherrightswhichvaryfrom
statetostate.
Noteregardingenginewarranty:
TheEmissionsControlSystemonyourProductmaybecoveredby
aseparatewarrantymeetingrequirementsestablishedbytheU.S.
EnvironmentalProtectionAgency(EPA)and/ortheCaliforniaAirResources
Board(CARB).Thehourlimitationssetforthabovedonotapplytothe
EmissionsControlSystemWarranty.RefertotheEngineEmissionControl
WarrantyStatementsuppliedwithyourproductorcontainedintheengine
manufacturer’sdocumentationfordetails
CountriesOtherthantheUnitedStatesorCanada
CustomerswhohavepurchasedT oroproductsexportedfromtheUnitedStatesorCanadashouldcontacttheirT oroDistributor(Dealer)toobtain
guaranteepoliciesforyourcountry,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor'sserviceorhavedifcultyobtaining
guaranteeinformation,contacttheToroimporter.374-0253RevC
