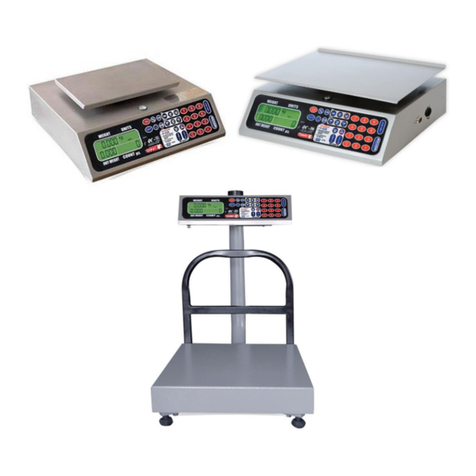

Torrey QC Series User manual

FABRICANTES DE BASCULAS TORREY S.A. DE C.V.
COUNTING SCALE
QC SERIES
USER’S MANUAL
IMPORTANT:
BEFORE OPERATE YOUR SCALE, READ THIS MANUAL COMPLETELY.
COD. 13100885
REV. 0

2
INDEX
PAGE
IMPORTANT WARNINGS 3
INTRODUCTION 4
INSTRUCTIONS FOR INSTALLATION 4
NAME AND LOCATION OF IMPORTANT PARTS 5
* KEYBOARD 5
* DISPLAY SECTION 7
COUNTING FUNCTIONS 7
* TARE/ZERO KEY FUNCTION 7
* HOW TO WEIGHT A PRODUCT 8
* EASY OPERATION 9
1.COUNT MODE 9
2.SAMPLE MODE 9
* INTERMITTENT INDICATOR 10
TABLE OF MAXIMUM ERRORS 11
* UNIT WEIGHT MEMORIES
12
* HOW TO STORE UNIT WEIGHT MEMORIES 12
* HOW TO RECALL UNIT WEIGHT MEMORIES 12
* HOW TO ACUMULATE PIECES 13
* HOW TO SEE THE TOTAL COUNT 1
3
* HOW TO ERASE THE TOTAL COUNT 13
* OPERATION WITH kg AND lb 13
* PRINTING 13
IMPORTANT SCALE MESSAGES 14
CALIBRATION 14
SELECTION TABLE OF MINIMUM EXTERNAL DIVISION 17
MAINTENANCE AND CLEANING 17
RECOMMENDATIONS 18
TECHNICAL SPECIFICATIONS 19
WARNING
!!DO NOT OPEN ¡¡
RISK OF SHORT CIRCUIT
CAUTION: TO REDUCE THE RISK OF SHORT CIRCUIT IN YOUR
SCALE, DO NOT REMOVE THE COVER OR SUBSTITUTE
ANY OF THE PARTS FOR OTHERS THAT ARE NOT
ORIGINAL. ONLY AUTHORIZED DISTRIBUTOR

3
I . I M P O R T A N T W A R N I N G S
IN CASE YOU HAVE ANY PROBLEM 2.- DO NOT OPEN THE SCALE ON 3.-”NEVER” PRESS THE KEYPAD
WITH THE SCALE, FIRST READ YOUR OWN. YOUR WARRANTY WITH OBJECTS SUCH AS PENCILS,
THE WARRANTY CONDITIONS. WILL BE CANCELED. PENS, KNIVES, ETC.
USE A 120 OR 220 VAC OUTLET EXCLUSIVELY FOR THE SCALE 5.- “NEVER” WASH THE SCALE USING A FLOW OF WATER .THIS
AVOIDING OVERLOAD OR VOLTAGE VARIATIONS. CAN DAMAGE THE ELECTRONIC COMPONENTS.IF YOU NEED
MORE INFORMATION READ THE “MAINTENANCE AND
CLEANING” SECTION. DO NOT EXPOSE IT TO DRIPPING AND
SPLASHES DURING THE OPERATION.
ECT THE SCALE FROM INSECTS 7.- DO NOT DROP OR HIT THE SCALE 8.- DO NOT USE SOLVENTS OR
(MAINLY FROM COCKROACHES) THEY CAN WITH THE PRODUCT TO BE WEIGHTED DETERGENTS FOR CLEANING ONLY
SERIOUSLY DAMAGE THE ELECTRONIC BECAUSE AS TIME GOES BY IT WILL USE A DAMP RAG.
COMPONENTS. USE SOLID PRODUCTS DAMAGE THE WEIGHT SENSOR.
AGAINST COCKROACHES.
DO NOT PLACE FANS OR HEATERS 10.- DO NOT PLACE THE SCALE 11.- ONLY AUTHORIZED AND QUALIFIED
DIRECTED TOWARDS THE SCALE. WHERE THERE IS EXCESSIVE PERSONNEL SHOULD CHECK AND
MOISTURE AND/OR DUST. REPAIR YOUR SCALE.

4
II. I N T R O D U C T I O N
DEAR CUSTOMER:
WE APPRECIATE YOU HAVE CHOSEN THIS PRODU CT AND WE ASSURE YOU WILL GET THE MAXIMUM SATISFACTION OF
THE NEW ACQUISITION FOR YOUR BUSINESS.
WE SUGGEST TO READ CAREFULLY THIS MANUAL AND MAKE SURE TO KEEP IT AT HAND FOR LATER CONSULTATIONS.
III. INSTRUCTIONS FOR INSTALLATION
1.-UNPACK THE SCALE AND CHECK THE CONDITIONS OF
THE PRODUCT. IF IT IS DAMAGED REPORT IT IMMEDIATELY
TO YOUR AUTHORIZED DISTRIBUTOR.
2.-PLACE THE SCALE WHERE THERE IS NOT ANY MOVEMENT
OR VIBRATION. MAKE SURE IT IS LEVELED ADEQUATELY.
3.-CONNECT THE AC/DC POWER SUPPLY TO 120 OR 220 VAC OUTLET
AND PLUG IN THE JACK ONTO THE SCALE -
4.-TURN THE SCALE ON AND WAIT UNTIL THE COUNTDOWN
SEQUENCE WILL DISPLAY ZEROS, AFTER THAT IT WILL BE
READY TO USE.

5
IV. NAME AND LOCATION OF IMPORTANT PARTS
KEYBOARD :
1. ; KEYS: PRESS THE KEY TO TURN THE SCALE ON AND THE KEY TO TURN
NUMERIC SECTION
2. KEYS: IT IS USED TO ENTER DATA SUCH AS UNIT WEIGHT OR QUANTITY.
3. KEY : IT IS USED TO ENTER THE NUMBER ZERO.
4. KEY: IT IS USED TO CLEAR DATA.
5. KEY : IT IS USED TO ENTER A DECIMAL POINT TO THE UNIT WEIGHT.
METROLOGICAL FUNCTIONS
6. KEY : IT IS USED TO MAKE ZERO ANY WEIGHT ON THE SCALE.
7. KEY : IT IS USED TO TARE THE WEIGHT OF RECIPIENTS ON THE SCALE.
8. KEY : IT IS USED TO ENTER TARE.
9. KEY : IT IS USED TO SWITCH BETWEEN kg. - lb.
10. KEY : IT IS USED TO PRINT THE WEIGHT,THE UNIT WEIGHT AND THE AMOUNT OF PIECES.
11. KEY : IT IS USED TO STORE UNIT WEIGHTS .
THE SCALE OFF.

6
UNIT WEIGHT FUNCTIONS
12. KEY : IT IS USED TO RECALL A PREVIOUSLY STORED UNIT WEIGHT.
13. KEY : IT ACTIVATES THE SAMPLE MODE AND GETS THE UNIT WEIGHT.
14. KEY : IT IS USED TO ENTER THE UNIT WEIGHT USING THE NUMERIC SECTION.
15. KEY : IT IS USED TO ENTER A MANUALY TARE WEIGHT.
16. KEY: IT ACTIVATES THE COUNTING MODE.
17. KEY: IT USED TO RECALL A SAVED TARE WIEGHT FROM A MEMORY.
MEMORY MANAGEMENT
18. KEY: IT IS USED TO ADD PIECES TO THE TOTAL C OUNT.
19. KEY: IT IS USED TO SEE THE TOTAL COUNT.
20. KEY: IT IS USED TO ERASE THE TOTAL COUNT.
21. KEY: IT IS USED TO TURN THE BACKLIGHT ON /OFF.

7
DISPLAY SECTION
1. WEIGHT SECTION: IT SHOWS THE WEIGHT OF THE PRODUCT.
2. UNIT WEIGHT SECTION: IT SHOWS THE UNIT WEIGHT.
3. UNITS SECTION: IT SHOWS THE UNIT OF MEASURE: kg, lb
4. COUNT pcs. SECTION: : IT SHOWS THE QUANTITY OF PIECES INSIDE OF THE CONTAINER.
5. ZERO INDICATOR: IT INDICATES ZERO WEIGHT.
6. AC INDICATOR: IT INDICATES WHEN THE SCALE IS CONNECTED TO A POWER SUPPLIER.
V. COUNTING FUNCTIONS
TARE/ZERO KEY FUNCTION
1.- REFERENCE TO ZERO: IT IS POSSIBLE THAT WITHOUT HAVING ANY WEIGHT OVER THE PLATE, THE SCALE
SHOWS A NUMBER ON THE DISPLAY DUE TO VOLTAGE VARIANCE OR SOME OTHER FACTOR. WHEN THIS
HAPPENED, JUST PRESS THE KEY AND THE WEIGHT INDICATOR WILL RETURN TO ZEROS. THE ZERO
WORD APPEARS IN THE UPPER RIGHT INDICATOR, THIS OPERATION IS THE RESET TO ZERO.
TARE: THIS FUNCTION IS USED WHEN YOU WISH TO WEIGHT A PRODUCT IN A CONTAINER BUT YOU DO NOT
WANT TO CONSIDER THE CONTAINERS WEIGHT DURING THE OPERATION. TO USE THIS FUNCTION FOLLOW
STEPS: SUPPOSE YOU ARE GOING TO WEIGHT 150 gr. OF SOME PRODUCT IN A PLASTIC CONTAINER THAT
WEIGHS 350 gr.
1. PLACE THE EMPTY CONTAINER ON THE SCALE.
WEIGHT UNITS
UNIT WEIGHT COUNT pcs
1 3 5
2
6
4

8
2. PRESS THE KEY. AFTER SOME SECONDS THE DISPLAY WILL SHOWS THE FOLLOWING:
3. PUT THE PRODUCT INSIDE OF THE CONTAINER AND THE SCALE SHOWS ONLY THE PRODUCTS WEIGHT
WITHOUT THE CONTAINERS WEIGHT, WHEN REMOVING THE CONTAINER WILL APPEAR THE NEGATIVE
WEIGHT.
IF YOU FINISH WEIGHTING AND YOU WANT TO GET OUT OF THIS FUNCTION, ONLY PRESS THE KEY,
THE SCALE WILL RETURN TO ZERO.
IT IS IMPORTANT TO MENTION THAT THIS FUNCTION IS SUBSTRACTIVE FROM THE SCALE´S MAXIMUM
CAPACITY. FOR EXAMPLE, IF YOU HAVE A CONTAINER THAT WEIGHTS 350 gr., THE SCALE WILL ONLY BE
ABLE TO WEIGHT UP TO 19.650 kg. OF PRODUCT TO COMPLETE THE MAXIMUM CAPACITY. (20 kg).
HOW TO WEIGHT A PRODUCT
PUT THE PRODUCT TO WEIGHT ON THE PLATE AND YOU WILL SEE THE WEIGHT IN THE DISPLAY AND THE
UNITS OF MEASURE IN THE UPPER RIGHT INDICATOR. FOR EXAMPLE IF YOU PUT A PRODUCT THAT WEIGHS
250 gr, YOU WILL SEE THE FOLLOWING:

9
EASY OPERATION
COUNT MODE
1.PRESS THE , KEY.
2.USE THE NUMERIC KEYS TO ENTER THE WEIGHT PER UNIT OF THE PIECE (UNIT WEIGHT).
3. PRESS THE KEY.
THE QUANTITY OF PIECES IS AUTOMATICALLY CALCULATED AND IT IS DISPLAYED ON THE COUNT pcs.
SECTION. IF YOU DO NOT KNOW THE EXACT UNIT WEIGHT YOU MAY USE THE SAMPLE FUNCTION AND START
COUNTING AFTER PRESSING ENTER.
YOU CAN COUNT UP TO A MAXIMUM OF 999,999 PIECES. WHEN IT IS EXCEDING THIS QUANTITY THE TOTAL
OF PIECES DISPLAYED WILL BE 0. WHEN REMOVING THE EXCESS OF PIECES THE TOTAL WILL DISPLAY
AGAIN THE CORRECT QUANTITY OF PIECES.
SAMPLE MODE
YOU CAN USE THIS MODE TO CALCULATE THE UNIT WEIGHT OF ONE PIECE OF THE LOT YOU WANT TO
COUNT.
1. PRESS THE KEY. THE MAXIMUM UNIT WEIGHT TO CALCULATE IS 9999.9 gr. ; 9999.9 lb.
2. WHEN OPERATING THE SCALE IN kg. THE UNIT WEIGHT WILL BE CALCULATED IN gr. THE NUMBER OF
PIECES OF THE SAMPLE DEPENDS ON THE UNIT WEIGHT. TO CALCULATE THE UNIT WEIGHT OF A PIECE,
PLACE 10 PIECES ON THE PLATE AND DIVIDE BY 10 THE DISPLAYED TOTAL WEIGHT. THEN, CHECK FROM THE
TABLES OF ERRORS THE MINIMUM NECESSARY QUANTITY OF PIECES FOR THE SAMPLE TO GET A CLOSER
UNIT WEIGHT.
3. PLACE ON THE PLATE THE NECESSARY QUANTITY OF PIECES AND USE THE NUMERIC KEYS TO ENTER
THE NUMBER OF PIECES OF THE SAMPLE. THE UNIT WEIGHT IS AUTOMATICALLY CALCULATED AND
DISPLAYED ON THE UNIT WEIGHT DISPLAY. YOU WILL BE ABLE TO START COUNTING WITH THIS CELL BY
PRESSING THE KEY. TO COUNT USING A REMOTE CELL YOU SHOULD PRESS LOCAL/REMOTE AFTER
PRESSING THE ENTER KEY. YOU CAN STORE THE UNIT WEIGHT VALUE IN A MEMORY TO USE IT LATER.
FOR EXAMPLE: LET´S SUPPOSE THAT WE SHALL WEIGHT SCREWS AND THE UNIT WEIGHT IS
APPROXIMATELY 3.6gr. FROM THE TABLE OF ERRORS WE KNOW TO GET THE MINIMUM ERROR WE SHOULD
TAKE AT LEAST 100 PIECES FOR THE SAMPLE. WE PRESS THE KEY, WE PLACE THE 100 SCREWS
AND WE ENTER 100 USING THE NUMERIC KEYS. THE UNIT WEIGHT IS CALCULATED AND DISPLAYED. NOW
PRESS THE KEY AND PLACE THE LOT OF SCREWS TO BE COUNTED, THE QUANTITY OF SCREWS IS
DISPLAYED ON THE COUNT pcs DISPLAY. IF HIGH PRECISION COUNTING IS NOT REQUIRED YOU MAY USE A
SAMPLE OF 25 TO 50 PIECES FOR THIS EXAMPLE BUT, THE PERCENTAGE OF ERROR WILL INCREASE
ACCORDING TO THE TABLE OF MAXIMUM ERRORS.

10
INTERMITTENT INDICATOR
IT IS ACTIVATED WHEN THE TOTAL OF PIECES IS CALCULATED ON THE BASIS OF THE UNIT WEIGHT VALUE
WITH MORE DECIMALS THAT IS SHOWN IN THE UNIT WEIGHT SECTION.
THIS VALUE IS NOT COMPLETELY IN THE DISPLAY, SO YOU CAN NOT RECORD IT; WHEN IT IS REQUIRED A
BETTER RESOLUTION IS RECOMMENDABLE TO MAKE THE SAMPLING, CALCULATING THE UNIT WEIGHT AND
COUNTING THE PIECES. FOR EXAMPLE:
THE 100 PIECES ARE PLACED AND SAMPLED AS A SING LE PIECE TO KNOW THE DECIMAL UNIT WEIGHT.
WHEN IS INDICATING THAT THEY ARE 100 PIECES THE UNIT WEIGHT OF THE PIECE IS OF 0.0005 IN THE
DISPLAY BUT INTERNALLY THE UNIT WEIGHT IS OF 0,000459 WHEN PRESSING ENTER AFTER INTRODUCING
100 PIECES VIA KEYBOARD.
THE INTERMITTENT INDICATOR OF UNIT WEIGHT IS DISPLAYING DURING ALL THE OPERATION OF THE
COUNT OF PIECES AND WILL MAKE THE COUNT OF TOTAL OF PIECES WITH THE INTERNAL UNIT WEIGHT OF
0.000459.
IF AT THIS MOMENT IT KEEPS THE VALUE FROM UNIT WEIGHT, THE VALUE IS 0,0005 AND THE OPERATION OF
THE TOTAL OF PIECES WAS MADE WITH THIS UNIT WEIGHT. YOU NOTICE THE UNIT WEIGHT WERE NOT
CALCULATED,THE INTERMITTENT INDICATOR IS NOT PRESENT AND THE TOTAL OF PIECES IS CALCULATED
ACCORDING TO THE UNIT WEIGHT OF THE DISPLAY

11
VI. TABLE OF MAXIMUM ERRORS
5 kg
Weight/piece Weight/piece Samples
Pounds Grams 500 400 300 200 100 50 25
0.00005 to 0.00010 0.025 to 0.049 0.80% 1.01% 1.34% 2.02% X X X
0.00011 to 0.00019 0.05 to 0.09 0.40% 0.50% 0.67% 1.01% 2.02% X X
0.00022 to 0.00043 0.1 to 0.19 0.20% 0.25% 0.33% 0.26% 1.01% 2.02% X
0.00044 to 0.00109 0.2 to 0.49 0.10% 0.13% 0.17% 0.25% 0.50% 1.01% 2.02%
0.00110 to 0.00219 0.5 to 0.99 0.04% 0.05% 0.07% 0.10% 0.20% 0.40% 0.80%
0.00220 to 0.00440 1 to 1.99 0.02% 0.03% 0.03% 0.05% 0.10% 0.20% 0.40%
0.00441 to 0.01101 2 to 4.99 0.01% 0.01% 0.02% 0.03% 0.05% 0.10% 0.20%
0.01102 to 0.02205 5 to 9.99 0.00% 0.01% 0.01% 0.01% 0.02% 0.04% 0.08%
0.02206 and above 10 and above 0.00% 0.00% 0.00% 0.01% 0.01% 0.02% 0.04%
20 kg
Weight/piece Weight/piece Samples
Pounds Grams 200 100 50 25 10 5 2
0.00022 to 0.00043 0.1 to 0.199 1.25% 2.51% 5.05% X X X X
0.00044 to 0.00109 0.2 to 0.49 0.63% 1.25% 2.51% 5.05% X X X
0.00110 to 0.00219 0.5 to 0.99 0.25% 0.50% 1.00% 2.01% 5.05% X X
0.00220 to 0.00440 1 to 1.99 0.13% 0.25% 0.50% 1.00% 2.51% 5.05% X
0.00441 to 0.01101 2 to 4.99 0.06% 0.13% 0.25% 0.50% 1.25% 2.51% X
0.01102 to 0.02205 5 to 9.99 0.03% 0.05% 0.10% 0.20% 0.50% 1.00% 2.51%
0.02206 to 0.04403 10 to 19.9 0.01% 0.03% 0.05% 0.10% 0.25% 0.50% 1.25%
0.04415 and above 20 and above 0.01% 0.01% 0.03% 0.05% 0.13% 0.25% 0.63%
50kg
Weight/piece Weight/piece Samples
Pounds Grams 300 200 100 50 25 10 5
0.00055 to 0.00109 0.25 to 0.49 0.73% 1.10% 2.20% 4.42% X X X
0.00110 to 0.00219 0.5 to 0.99 0.37% 0.55% 1.10% 2.20% 4.42% X X
0.00220 to 0.00440 1 to 1.99 0.18% 0.28% 0.55% 1.10% 2.20% X X
0.00441 to 0.01101 2 to 4.99 0.09% 0.14% 0.28% 0.55% 1.10% 2.76% X
0.01102 to 0.02205 5 to 9.99 0.04% 0.06% 0.11% 0.22% 0.44% 1.10% 2.20%
0.02206 to 0.04403 10 to 19.9 0.02% 0.03% 0.06% 0.11% 0.22% 0.55% 1.10%
0.04415 and above 20 and above. 0.01% 0.01% 0.03% 0.06% 0.11% 0.28% 0.55%

12
UNIT WEIGHT MEMORIES
THE SCALE HAS 50 MEMORIES TO STORE THE UNIT WEIGHT VALUES OF PIECES.
HOW TO STORE UNIT WEIGHT MEMORIES
IT IS POSIBLE TO BE IN TWO WAYS, COUNT OR SAMPLE MODE. FIRSTLY IN THE SAMPLING MODE OBTAIN THE
UNIT WEIGHT FOLLOWING THE PROCEDURE FOR IT, ONCE THE UNIT WEIGHT HAS BEEN CALCULATED
CORRECTLY, PRESS THE KEY AND ENTER THE NUMBER OF THE MEMORY SLOT THAT YOU WISH TO SAVE
TO ( FROM 01 TO 50). IN THE SAME WAY, ENTERING THE UNIT WEIGHT WITH THE KEYBOARD YOU CAN
STORE MEMORIES IN THE COUNTING MODE. IN OTHER WORDS: INTRODUCE THE UNIT WEIGHT, PRESS THE
AND THE MEMORY NUMBER KEYS WHERE IT IS DESIRED TO THE UNIT WEIGHT (FROM 01 TO 50)
FOR EXAMPLE: IF YOU WANT TO KEEP THE UNIT WEIGHT IN THE MEMORY NUMBER 01, DO THE FOLLOWING,
WHEN THE MEMORY NUMBER IS CAPTURED PRESS THE AND KEYS, IN THIS WAY THE UNIT
WEIGHT WILL BE KEEPT AUTOMATICALLY. IF YOU PRESS THE KEY THE SCALE DID NOT KEEP THE UNIT
WEIGHT BECAUSE THIS IS DESIGNED TO RECEIVE THE COMBINATION OF TWO NUMBERS.
HOW TO RECALL UNIT WEIGHT MEMORIES
IN ORDER TO RECALL THE UNIT WEIGHT FOR SOME PIECES THAT YOU WANT TO COUNT, PRESS THE
KEY, AND THE NUMBER (FROM 01 TO 50) CORRESPONDING TO THE MEMORY.
FOR EXAMPLE: IF IT IS REQUIRED TO RECALL THE MEMORY NUMBER 01, ONLY PRESS THE COMBINATION OF
AND KEYS, THEN THE UNIT WEIGHT WILL BE DISPLAYED.
TARE WEIGHTS MEMORIES
THE SCALE HAS 50 MEMORIES TO STORE THE TARE WEIGHT VALUES FOR CONTAINERS.
HOW TO STORE TARE WEIGHT MEMORIES
IT IS POSIBLE TO SAVE A TARE IN TWO WAYS, TARE MODE OR MANUAL. IN TARE MODE FIRST OBTAIN THE
TARE WEIGHT, AFTER YOU HAVE THE DESIRED TARE WEIGHT, PRESS KEY, WITH NUMERIC KEYPAD
TYPE THE NUMBER OF MEMORY WHERE YOU WANT TO SAVE THE TARE WEIGHT (FROM 01 TO 50, ARE THE
SAME MEMORIES FOR THE LOCAL AND REMOTE CELLS). SIMILAR FOR TARE MANUAL, PRESS KEY TO
ENTER THE TARE WEIGHT WITH THE NUMERIC KEY PAD, THEN PRESS KEY AND THE NUMBER OF THE
MEMORY WHERE YOU WANT TO SAVE THE TARE WEIGHT (FROM 01 TO 50).
EXAMPLE IF YOU WANT TO SAVE A TARE WEIGHT INTO THE ONE MEMORY, FOLLOW THIS STEPS, WHEN YOU
TYPE THE NUMBER OF MEMORY PRESS AND KEYS, SO THE TARE WEIGHT WILL BE KEEPT
AUTOMATICALY. IF YOU ONLY PRESS THE KEY THE SCALE DOESNT KEEP THE TARE WEIGHT, BECAUSE
IS DESIGNED TO WAIT FOR TWO DIGITS.
HOW TO RECALL TARE WEIGHT MEMORIES
TO RECALL A TARE WEIGHT, PRESS KEY, AND THE NUMBER OF THE MEMORY (01 TO 50).
EXAMPLE IF YOU WANT TO RECALL THE ONE MEMORY PRESS AND THEN PRESS AND
KEYS, THE SCALE RECALL THE TARE WEIGHT FROM THE MEMORY. NOW YOU CAN MAKE YOUR COUNTINGS.

13
HOW TO ACCUMULATE PIECES
THIS FUNCTION IS USED TO ADD PIECES, HOWEVER THE MAXIMUM AMOUNT OF PIECES TO ACCUMULATE IS
999,999. IN THE ORDER TO ACCUMULATE PIECES WHILE IN THE COUNTING MODE, PRESS THE KEY, THE
DISPLAY WILL SHOW THE NUMBER OF ACCUMULATED LOT (ITM) IN THE SECTION WEIGHT AND THE TOTAL
AMOUNT OF PIECES ACCUMULATED IN SECTION COUNT pcs., AFTER A WHILE THE DISPLAY WILL RETURN
WHERE IT WAS.
HOW TO SEE THE TOTAL COUNT
IN ORDER TO SEE THE TOTAL OF PIECES AND THE NUMBER OF LOT (ITM) WHILE YOUR SCALE IS OPERATING
PRESS THE KEY AT ANY TIME, THE TOTAL WAS IN THE DISPLAY DURING A LITTLE WHILE AND
RETURNED TO THE DISPLAY WHERE IT WAS.
WHEN EXCEEDING THE STORAGE CELL SUM (999.999 pcs.), THE STORAGE CELL WILL KEEP COMPLETE THE
LAST ACCUMULATED PIECES AND WILL SEND A DOUBLE BEEPER INDICATING THAT IT CAN NOT
ACCUMULATE MORE.
HOW TO ERASE THE TOTAL COUNT
WHEN ALREADY THERE IS ACCUMULATED A TOTAL OF PIECES AND YOU WISH TO ERASE THE STORAGE
CELL, JUST PRESS THE KEY , THE DISPLAY WILL DISPLAY ZEROS IN THE TOTAL AMOUNT OF PIECES
ACCUMULATED DURING A LITTLE WHILE AND WILL RETURN TO THE DISPLAY IN WHICH WAS PREVIOUSLY.
OPERATION IN lb AND kg
IF YOU WISH TO OPERATE THE SCALE IN POUNDS PRESS THE KEY, IN THIS WAY YOUR SCALE WILL
WEIGHT IN THE BASIS OF POUNDS.
IF YOU WISH TO WEIGH IN kg PRESS AGAIN.
PRINTING
TO PRINT THE WEIGHT, UNIT WEIGHT AND COUNT, PRESS THE KEY, THE DATA WILL BE PRINTED IN THE
UNIT OF THE SYSTEM OF WEIGH THAT IS BEING USED kg. or lb. AT THE SPEED OF PROGRAMMED
TRANSMISSION (SERIAL INTERFASE RS-232).
PRINTING EXAMPLES:
Weight : 0.265 kg
U. Weight: 0.2150 gr/pc
Count : 1233 pcs
Weight: 0.059 lb
U. Weight: 0.02 lb/ pc
Count : 3 pcs

14
VII. IMPORTANT MESSAGES THAT APPEAR ON THE DISPLAY
THIS MESSAGE INDICATES THE SCALE HAS BEEN OVERLOADED, TO CORRECT SIMPLY REMOVE THE EXTRA
WEIGHT FROM THE SCALE PLATTER.
IF THIS MESSAGE APPEARS IN A INTERMITTENT WAY, IT MEANS THAT IS DETECTING LOW LEVEL OF
VOLTAGE IN THE BATTERY AND THE BACKLIGHT WILL TURN AUTOMATICALLY OFF. THE FEEDER MUST BE
CONNECTED AND THE SCALE MUST BE RECHARGED AT THE SAME TIME THAT IS USED. IF YOU DOES NOT
RECHARGED THE SCALE DURING THE OPERATION UNTIL REACHED THE ALLOWED LOW LEVEL , IT WILL
TURN AUTOMATICALLY OFF.
VIII. CALIBRATION
1.- CONNECT THE CELL HARNESS (TO REVIEW INFO. CONNECTOR OF CELL) TO THE INDICATOR (QC50).
2.- CHECK THE WEIGHT SENSOR IS IN A FREE PLACE OF MOVEMENT AND AIRFLOWS.
3.- CHECK THE PLATFORM IS LEVELED.
4.- IN THE SCALE’ BASE IS LOCATED THE PUSH- BUTTON SWITCH WHICH MUST BE IN ON TO ENTER
TO CALIBRATE; TURN THE SCALE ON, AFTER THE COUNTDOWN THEN YOU CAN SEE IN THE DISPLAY
THE FOLLOWING SCREEN.

15
CALIBRATION
CONFIGURATION PARAMETERS:
PARAMETER DESCRIPTION
BR SERIAL PORT TRANSMISSION SPEED
CAP PLATFORM CAPACITY
% PERCENTAGE OF CAPACITY FOR CALIBRATION
DMI MINIMUM EXTERNAL DIVISION
ZERO CALIBRATION
FUNCTION OF THE KEYS DURING CONFIGURATION:
SELECTS A PARAMETER.
SAVES THE PARAMETER VALUE.
ADVANCES TO THE NEXT PARAMETER.
RETURN TO THE LAST PARAMETERS
ENDS CALIBRATION.
PARAMETERS SELECTION
PARAMETER CHOICE VALUE
CELL (CELL) 1 0
Br (BAUD RATE) 2400
4800
9600
0
1
2
CAP (CAPACITY) 5 kg.
10 kg.
20 kg.
50 kg.
200 kg.
400 kg.
1000 kg.
0
1
2
3
4
5
7

16
% (CALIBRATION PERCENTAGE) SELECT TABLE FROM 10% TO 100%.
DMI EXTERNAL MINIMUM DIVISION (SEE THE TABLE BELOW).
IT IS IMPORTANT TO DEFINE CORRECTLY IN THE CELL PARAMETER OF SCALES. IN ALL CASES, THE CELL
PARAMETER IS 1 (NO MODIFIABLE). THE CALIBRATION WILL BE MADE IN kg. FOR EXAMPLE: CALIBRATE THE
SCALE WITH A SERIAL VELOCITY OF TRANSMISSION OF 9600 BPS, WITH 10% OF WEIGHT, AND
MINIMUM DIVISION OF 0.002 gr.
A. WITH THE SCALE OFF, REMOVE THE SECURITY COVER, PRESS THE PUSH-BUTTON , THEN TURN
ON THE SCALE, AND DURING THE COUNTDOWN HOLD THE PUSH BUTTON PRESSURED, IN THE
DISPLAY WILL APPEAR THE PARAMETER 1, PRESS THE KEY AND THEN WILL APPEAR THE
CELL MESSAGE ON THE DISPLAY.
B. PRESS THE KEY , THEN PRESS THE KEY TO SAVE IT AND THEN PRESS THE
KEY TO CONTINUE WITH THE NEXT PARAMETER.
C. WITH THE MESSAGE BR PRESS KEY (9600), PRESS THE KEY TO SAVE IT AND THE
KEY TO CONTINUE WITH THE NEXT PARAMETER.
D. WITH THE MESSAGE CAP PRESS (20KG.), PRESS THE KEY AND .
E. WITH THE MESSAGE % PRESS THE AND KEYS AND PRESS AND .
F. LIKE THE CAPACITY OF THE SCALE IS OF 20 kg. IN ORDER TO GET THE INTERNAL DIVISION OF
0.002 gr., THE OPERATION IS THE FOLLOWING: 20000 gr=20 kg. / 0.002 gr (20 kg./0.002 kg. = 10000)
GETTING IT 10000 DIVISIONS, THAT MEANS, CAPACITY=20 kg. AND DIVISIONS=10000. CHECK IN THE
SELECTION TABLE OF MINUMUM EXTERNAL DIVISION THE VALUE IN THE TABLE WITH THE
DESIRED CAPACITY, IN THIS CASE IS OF 20 kg. AND THE NUMBER OF DIVISIONS ARE 10000,
THEREFORE THE VALUE IN THE TABLE IS OF 2.
G. WHEN APPEARING THE ZERO MESSAGE, CHECK THAT THE WEIGHT SENSOR DOES NOT HAVE
ANYTHING ON THE PLATE; IN THIS CASE WHEN IS PRESSING ENTER, IT WILL TAKE THE INITIAL
REFERENCE, AFTER THAT PRESS SAMPLE; IMMEDIATELY IT WILL HAVE TO PUT THE WEIGH 2 kg.,
WITH WHICH ONE IS GOING TO CALIBRATE AND TO PRESS ENTER.
5.- TO GET OUT OF THE CONFIGURATION MODE, TURN OFF THE SCALE AND TURN IT ON AGAIN, SO THE
SCALE WORKS CORRECTLY AND TURN ON THE SCALE.
6.- VERIFY THE WEIGHING.

17
IX. SELECTION TABLE OF MINIMUM EXTERNAL DIVISION
INDICATE THE VALUE TO INTRODUCE IN THE CALIBRATION IN THE DMI PARAMETER, EACH CAPACITY HAS 9
DIFFERENT DIVISIONS FROM 10,000 TO 25 div., IF YOU WISH THE CAPACITY OF 20 kg. WITH 10000 div.
DMI =2; WITH 5000 div. DMI = 5 OR 50 kg WITH 10000 div. DMI = 5;
CAPACITY MINIMAL EXTERNAL DIVISION
kg 10,000 5,000 2,500 1,000 500 250 100 50 25
5.0000 5(0.0005) 10(0.001) 20(0.002) 50(0.005) 100(0.01) 200(0.02) 500(0.05) 1000(0.1) 2000(0.2)
20.000 2(0.002) 5(0.005) 10(0.01) 20(0.02) 50(0.5) 100(0.1) 200(0.2) 500(0.5) 1000(1)
50.000 5(0.05) 10(0.01) 20(0.02) 50(0.05) 100(0.1) 200(0.2) 500(0.5) 1000(1) 2000(2)
CAPACITY MINIMAL EXTERNAL DIVISION
lb 10,000 5,000 2,500 1,000 500 250 100 50 25
11.000 0.001 0.002 0.005 0.01 0.02 0.05 0.1 0.2 0.5
44.000 0.005 0.01 0.02 0.05 0.1 0.2 0.5 1 2
110.00 0.01 0.02 0.05 0.1 0.2 0.5 1 2 5
X. MAINTENANCE AND CLEANING
A. ONE OF THE GREATEST ADVANTAGES OF PURCHASING THIS SCALE MODEL IS REQUIRES
MINIMUM MAINTENANCE AND IT IS VERY SIMPLE TO MANTAIN IN FAVORABLE CONDITIONS.
B. DO NOT USE A FLOW OF WATER TO CLEAN YOUR SCALE. USE A DAMP RAG AND CLEAN EACH OF
ITS COMPONENTS DAILY: PLATE, COVER, KEYBOARD.
C. TO REMOVE OIL AND GREASY SUBSTANCES, USE A DRY AND CLE AN RAG, RUBBING THE DIRTY
AREA SEVERAL TIMES.
D. REGULARLY CHECK THE SCALE TO ASSURE IT IS CORRECTLY LEVELED WITH ITS FOUR BASES
WELL SUPPORTED.
E. WHEN YOU CLEAN THE SCALE MAKE SURE ARE NOT ANY PAPERS, OR ANY OTHER KIND OF
MATERIAL UNDER THE PLATE OR UNDER THE PLATE-HOLDER THAT COULD OBSTRUCT THE
PROPER OPERATION OF YOUR SCALE.
F. DO NOT USE DETERGENTS NOR CORROSIVE LIQUIDS WHILE CLEANING.
G. DO NOT MOVE YOUR SCALE AROUND. CONSTANT MOVEMENT CAN CAUSE STROKES THAT DAMAGE IT.
H. DO NOT EXPOSE YOUR SCALE TO TEMPERATURES BELOW -10 ºC (14 ºF) OR ABOVE 40 ºC (104 ºF).

18
XI. RECOMMENDATIONS
ADVANTAGES AND TAKING CARE OF
1.- THE SCALE OFFERS THE ADVANTAGE AT THE SAME TIME TO SHOW THE WEIGHT ON THE PLATE, THE UNIT
WEIGHT OF THE PIECE AND THE TOTAL OF PIECES CALCULATED IN THE SAME DISPLAY.
2.-BEFORE INITIATING ANY WEIGHING OR SAMPLING , IT WILL HAVE TO VERIFY THE OPTIMAL CONDITIONS OF
THE SAMPLING.
A) THE SCALE HAS TO BE LEVELED.
B) THE SCALE HAS TO BE ISOLATED OF CURRENTS.
C) THE SCALE HAS TO BE ISOLATED OF AIRFLOWS.
D) THE SCALE HAS TO BE ISOLATED OF VIBRATIONS.
E) THE SCALE HAS TO BE ISOLATED OF HUMIDITY AND DUST.
F) THE MOTION INDICATOR OF DISPLAY WILL HAVE TO BE TURNED OFF.
G)THE ZERO INDICATOR IN DISPLAY WILL HAVE TO BE TURNED ON.
H) THE SECTION OF DISPLAY OF WEIGHT SHOWING ZERO WEIGHT.
3.-IN ORDER TO FIT THE ZERO WEIGHT, PRESS THE ZERO KEY, THIS ADJUSTMENT IS MADE JUST WHEN
THERE IS A VIBRATION ABSENCE.
4.-IN ORDER TO AVOID WRONG REFERENCES WHEN MAKING THE SAMPLING IS RECOMME NDED TO TARE
THE CONTAINER BEFORE MAKING THE SAMPLING, IF THE CONTAINER IS THE SAME ONE FOR ALL THE
SAMPLINGS WITH TARING ONCE THE OPTIMAL CONDITIONS OF THE SAMPLING IS ENOUGH.
5.-IN ORDER TO OBTAIN THE GREATER POSSIBLE RESOLUTION IT IS RECOMMENDED TO SAMPLE THE
MINIMUM PIECES REQUIRED ACCORDING TO THE TABLE OF ERROR AND WITH THE UNIT WEIGHT
CALCULATED AND VERIFIED TO MAKE THE COUNT OF PIECES.
6.- THE ERROR OF COUNT OF PIECES IS BASED ON:
A) THE MARGIN OF ERROR IN THE WEIGHING ACCORDING TO THE SHOWN IN D ISPLAY
IT IS RECOMMENDED TO VERIFY THE OPTIMAL CONDITIONS OF THE SAMPLING (2) TO REDUCE THE ERROR
IN THE WEIGHING.
B) THE CALCULATED MARGIN OF ERROR OF THE UNIT WEIGHT ACCORDING TO SAMPLE
VERIFY THE ABSENCE OF THE INDICATOR OF MOTION IN THE CALCULATION OF THE UNIT WEIGHT WHEN
PRESSING THE ENTER KEY.
C) THE MARGIN OF ERROR OF THE WEIGHT BETWEEN THE SAME PIECES.
VERIFY THE DIFFERENCE OF MAXIMUM WEIGHT BETWEEN 0.01% PIECES.
7. - THE VERIFICATION OF THE SCALE WILL HAVE PERIODICALLY TO BE MADE WITH A WEIGH PATTERN AND
AFTER SOME INADEQUATE HANDLING:
A) DROP OR HIT THE SCALE,
B) HIT THE WEIGHT SENSOR,
C) OVERLOAD,
D) ABRUPT CHANGES OF TEMPERATURE,
E) EXCESSIVE HUMIDITY.
8. - ANY DOUBT IN REFERENCE TO THE SCALE, PLEASE CONSULT YOUR AUTHORIZED DISTRIBUTOR.
9. – RECHARGEABLE BATTERY WITH WORK TIME UP TO 90 HOURS ONLY WITH TWO LOAD CELLS.

19
XII. TECHNICAL SPECIFICATIONS
MODEL QC-5
MAXIMUM CAPACITY 5kg / 10lb
MINIMUM DIVISION 0.5gr / 0.001lb
MINIMUM UNIT WEIGHT 0.05gr / 0.0001lb
TEMPERATURE OF OPERATION -10 A 40° C (14 A 104° F).
TEMPERATURE OF STORAGE -20 A 50° C (-4 A 122°F).
INTERFACE RS-232.
POWER SUPPLY 120 VAC +/- 10% 60 hz.
OR
220 VAC +/- 10% 60 hz.
DISTRIBUTOR: _______________________________________________
ADDRESS: _______________________________________________
PHONE: _______________________________________________
DAY OF PURCHASE: _______________________________________________
MODEL: _______________________________________________
SERIAL NUMBER: _______________________________________________
QC-20 QC-50
20kg / 40 lb 50kg / 100 lb
0.002kg / 0.005 lb 0.005kg / 0.01 lb
0.0002kg/0.0005lb 0.0005kg/0.001lb
-10 A 40° C (14 A 104° F) -10 A 40° C (14 A 104° F)
-20 A 50° C (-4 A 122°F) -20 A 50° C (-4 A 122°F)
RS-232. RS-232.
127 VCA +/- 10% 60 hz. 127 VCA +/- 10% 60 hz.
OR
220 VAC +/- 10% 60 hz.
OR
220 VAC +/- 10% 60 hz.
