OWNER’S MANUAL
For general public use
ENGLISHENGLISH
AIR CONDITIONER
Indoor unit (Single Type)
RAS-B07, 10, 13, 16, 18, 22, 24G3KVSG-E
RAS-B07, 10, 13, 16, 18, 22, 24G3KVSGB-E
Outdoor unit (Single Type)
RAS-07, 10, 13, 16, 18, 22, 24J2AVSG-E1
Indoor unit (Multi Type)
RAS-M05G3KVSG-E
RAS-M05G3KVSGB-E
1144250207A
Scan QR CODE to access installation and owner’s manual on website.
https://www.toshiba-carrier.co.th/manuals/default.aspx
Manual are available in AR/BG/CZ/DA/DE/EL/EN/ES/ET/FI/FR/
HR/HU/IT/LT/LV/NL/NO/PL/PT/RO/RU/SK/SL/SV.

1
AIR FLOW DIRECTION
3
AUTOMATIC OPERATION
6
To automatically select cooling, heating, or fan only operation
1. Press : Select Auto A.
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
3. Press : Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH
or QUIET
HEATING and 8°C OPERATION
DRY OPERATION
7
8
For dehumidification, a moderate cooling performance is controlled
automatically.
1. Press : Select Heat .
2. Press : Set the desired temperature. Min = 5°C, Max = 30°C.
Temperature range 5-16°C is Heat mode with 8°C operation with less of
energy usage
3. Press : Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH
or QUIET
Note : During 8°C mode active (temperature range 5-16°C), some operation
such as QUIET, Hi POWER, TIMER OFF cannot use.
For dehumidification, a moderate cooling performance is controlled
automatically.
1. Press : Select Dry .
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
Note : DRY mode fan speed is set to Auto only.
1
Press : Move the
louver in the desired vertical
direction.
2
Press : Move the
louver in the desired horizontal
direction.
3
SWING operation can be selected
from MENU button
Swing off Vertical
(Up-Down)
Swing
Horizontal
(Left-Right)
Swing
Vertical and
Horizontal
Swing
HADA CARE
FLOW
ƔVertical (Up-Down) swing
ƔHorizontal (Left-Right) swing
ƔHADA Care flow
Note:
ƔDo not move the louver manually by others.
ƔThe louver may automation positioning by some operation mode.
INDOOR UNIT DISPLAY
1
ƔDisplay brightness can be adjusted, follow procedure on "
1ECO (White)
2Wi-Fi access (White)
3Hi POWER (White)
4Timer (White)
5Operation mode
- Cool (Blue)
- Heat (Orange)
1. Press : Select Cool , or Fan only .
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
Fan Only: No temperature indication
3.
Press : Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH or QUIET
COOLING / FAN ONLY OPERATION
5
REMOTE CONTROL
4
2
1
4
6
8
3
5
7
MODE
FAN MENU
FIXFIX
1Infrared signal emitter
2Start/Stop button
3Mode select button
4Temperature button
5Fan speed button
6Menu select button
7Set louver Up-Down button
8Set louver Left-Right button
9Check button*
*Check button under battery cover
PREPARATION BEFORE USE
2
Preparing Filters
1. Open the air inlet grille and remove
the air filters.
2. Attach the filters. (see detail in the
Installation Manual).
Loading Batteries (when use wireless operation.)
1. Remove the slide cover.
2. Insert 2 new batteries (AAA type)
following the (+) and (–) positions.
Remote Control Reset
1. Remove the batteries.
2. Press .
3. Insert the batteries.
OM_1126250234.indb 5 13/6/2565 BE 09:35

2
9.1 LOUVER SWING and HADA CARE FLOW OPERATION
Comfortable air Àow can select from feature.
Louver swing opearation:
ƔTo distribute air Àow in both vertical and horizontal by swing the louver
automatically.
HADA care Àow operation
ƔAir Àow upward to the ceiling, provide Indirect air Àow to body and homogenize
room temperature.
Note:
ƔDuring HADA CARE FLOW mode, FIX button cannot active.
Louver Swing and HADA Care Flow Operation Setting
1. Press MENU button for enter menu selection
Blink
During triangle mark blink can select menu by press TEMP. button.
2. Enter Louver set by press MENU button again.
triangle mark will stop blink and setting feature will be blink instead.
Blink
3. Select Louver swing or HADA CARE FLOW by press TEMP. button.
H.DA
Swing off
Vertical and
Horizontal
Swing
HADA CARE FLOW
Vertical
(Up-Down)
Swing
Horizontal
(Left-Right)
Swing
4. Con¿rm selected feature by press MENU button again.
When feature had selected will return to menu selection display triangle
mark will blink .
5. Leave from menu setting display by select exit and press menu button
Leave from menu setting to normal display (no triangle and feature blink).
MENU SETUP
9
For select more setting of Air conditioner such as Louver select,
Hi Power, OFF Timer and other use MENU button .
MODE
FAN MENU
FIXFIX
EN
OM_1126250234.indb 5 13/6/2565 BE 09:35

3
9.2 SILENT OPERATION (Outdoor Unit)
Keep outdoor unit operating silently to ensure either yourself or neighborhood
will have a tight sleep in nighttime. By this feature, the cooling capacity will be
optimized to deliver such silent experience. The silent operation can be selected
from one of two purposes (Silent 1 and Silent 2).
There are three setting parameters: Standard level > Silent 1 > Silent 2
Silent 1:
ƔThough operating silently, the Cooling capacity is still prioritized to ensure
having suf¿cient comfort inside the room.
ƔThis setting is a perfect balance between the Cooling capacity and the Sound
level of outdoor unit.
Silent 2:
ƔCompromising the Cooling capacity to the Sound level in any circumstance
where the outdoor unit’s sound level is highly prioritized.
ƔThis setting has a purpose to reduce the maximum sound level of outdoor unit.
Note:
ƔWhile activating of Silent operation, inadequate cooling capacity may occur.
Silent Operation Setting
1. Press MENU button for enter menu selection
Blink
During triangle mark blink can select menu by press TEMP. button.
Blink both triangle and
feature mark Feature
not yet set
2. Enter SILENT set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead
3. Select SILENT operation by press TEMP. button
SILENT#1 SILENT#2 None
4. Con¿rm selected feature by press MENU button again
Blink only triangle
Feature already set
When feature had selected will return to menu selection display triangle
mark will blink
5. Leave from menu setting display by select EXIT.
9.3 Hi POWER OPERATION
To automatically control room temperature and airÀow for faster cooling or
heating operation (except in DRY and FAN ONLY mode)
1. Press MENU button for enter menu setting and press TEMP. button to select
Hi POWER
Blink both triangle and
feature mark Feature
not yet set
2. Con¿rm selected feature by press MENU button again
Blink only triangle
Feature already set
3. Leave from menu setting display by select EXIT
9.4 ECO OPERATION
To automatically control room temperature to save energy
(except in DRY and FAN ONLY mode)
1. Press MENU button for enter menu setting and press TEMP. button to select
ECO
Blink both triangle and
feature mark Feature
not yet set
2. Con¿rm selected feature by press MENU button again.
Blink only triangle
Feature already set
3. Leave from menu setting display by select EXIT.
Note:
ƔCooling operation; the set temperature will increase automatically 1 degree/
hour for 2 hours (maximum 2 degrees increase). For heating operation the set
temperature will decrease.
OM_1126250234.indb 6 13/6/2565 BE 09:35
OM_1126250234.indb 7 13/6/2565 BE 09:35

4
9.6 TIMER OFF OPERATION
To set the timer OFF when the air conditioner is operating.
1. Press MENU button for enter menu setting and press TEMP. button to select
TIMER OFF.
Blink both triangle and
feature mark Feature
not yet set
2. Enter TIMER set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
3. Select TIMER OFF by press TEMP. button.
Can select TIMER OFF from 0.5 - 12hrs.
4. Con¿rm TIMER OFF by press MENU button.
Blink only triangle
Feature already set
5. Leave from menu setting display by select EXIT.
Note:
ƔThe setting will be saved for the next same operation.
Cancel TIMER OFF
6. During TIMER OFF already set (no.5) press MENU button and press TEMP.
button to select TIMER OFF.
Blink only triangle
Feature already set
7. Press MENU button again will cancel TIMER OFF.
Blink both triangle and
feature mark Feature
not yet set
8. Leave from menu setting display by select EXIT.
9.5 FIREPLACE OPERATION
Keep indoor unit’s fan blowing continuously during thermo off, to circulate heat
from other sources over the room. There are three setting parameters:
Default setting > Fireplace 1 > Fireplace 2
Fireplace 1:
ƔDuring thermo off period, the indoor unit’s fan will continue to run by the same
speed, previously selected by end-user.
Fireplace 2:
ƔDuring thermo off period, the indoor unit’s fan will continue to run at super-low
speed, programmed from factory.
Fireplace Operation Setting
1. Press MENU button for enter menu setting and press TEMP. button to select
FIREPLACE
°C
Blink both triangle and
feature mark Feature
not yet set
2. Enter FIREPLACE set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
°C
3. Select FIREPLACE operation by press TEMP. button
°C
FIREPLACE 1 FIREPLACE 2 None
4. Con¿rm selected feature by press MENU button again.
°C
Blink only triangle
Feature already set
When feature had selected will return to menu selection display triangle
mark will blink .
5. Leave from menu setting display by select EXIT.
°C
Note:
ƔWhile Fireplace operation on heating mode, indoor unit fan always runs and
cold air breezing might be occurred.
ƔFireplace will operate in Heating mode only.
EN
OM_1126250234.indb 7 13/6/2565 BE 09:35

5
9.7 POWER-SELECTION OPERATION
This function is used when the circuit breaker is shared with other electrical
appliances. It limits the maximum current and power consumption to 100%,
75%, or 50% and can be implemented by POWER-SELECTION. The lower
percentage, the higher saving and also longer compressor lifetime.
ƔDue to the reason that POWER-SELECTION function limits the maximum
current, inadequate cooling capacity may occur.
1. Press MENU button for enter menu setting and press TEMP. button to select
POWER-SEL
Blink only triangle
2. Enter POWER-SEL setting by press MENU button again.
3. Select POWER-SEL level by press TEMP. button.
100% 75% 50%
4. Confirm POWER-SEL level by press MENU button.
5. Leave from menu setting display by select EXIT.
MANUAL DEFORST OPERATION
10
To defrosting the heat exchanger of the outdoor unit during Heating operation
Press and hold : for 5 seconds , then remote control display will
show as picture 1for 2 seconds.
1
DISPLAY LAMP BRIGHTNESS ADJUSTMENT
11
To decrease the display lamp brightness or turn it off.
1. Press and hold for 3 seconds until brightness level ( , ,
or ) is shown on remote control LCD then release the button.
2. Press Rise or
Decrease
to adjust brightness in 4 levels.
Remote control
LCD ssenthgirByalpsidnoitarepO
Lamp illuminates full brightness.
100%
Lamp illuminates 50% brightness.
50%
Lamp illuminates 50% brightness and the
operation lamp is turned off.
50%
All lamps are turned off.
All turned off
ƔIn the examples of and , the lamp illuminates for 5 seconds before
going off.
SELF CLEANING OPERATION
(COOL AND DRY OPERATION ONLY)
13
To protect bad smell caused by the humidity in the indoor unit.
1. If the button is pressed once during “Cool” or “Dry” mode,
the fan will continue to run for other 30 minutes, then it will turn off
automatically. This will reduce the moisture in the indoor unit.
2. To stop the unit immediately, press the more 2 times within
30 seconds.
AUTO RESTART FUNCTION SETTING
12
This product is designed so that, after a power failure, it can restart automatically
in the same operating mode as before the power failure.
Information
The product is shipped with Auto Restart function in the ON position.
Turn it OFF if this function is not required.
How to turn ON the Auto Restart Function
 Press and hold the [OPERATION] button on the indoor unit for 3 seconds
(3 beep sounds but OPERATION lamp does not blink).
How to turn OFF the Auto Restart Function
 Press and hold the [OPERATION] button on the indoor unit for 3 seconds
(3 beep sounds and OPERATION lamp blink 5 time/sec for 5 seconds).
Notes :
ƔIn case of ON timer or OFF timer are set, AUTO RESTART OPERATION
does not activate.

6
Firstly, turn off the circuit breaker.
Indoor Unit and Remote Control
ƔClean the indoor unit and the remote control with a wet cloth when
needed.
ƔNo benzine, thinner, polishing powder or chemically-treated duster.
Air filters
Clean every 2 weeks.
1. Open the air inlet grille.
2. Remove the air filters.
3. Vacuum or wash and then dry them.
4. Reinstall the air filters and close the air inlet grille.
MAINTENANCE
17
The unit does not operate. Cooling or Heating is abnormally low.
ƔThe power main switch is
turned off.
ƔThe circuit breaker is
activated to cut off the power
supply.
ƔStoppage of electric current
ƔON timer is set.
ƔThe filters are blocked with dust.
ƔThe temperature has been set
improperly.
ƔThe windows or doors are opened.
ƔThe air inlet or outlet of the outdoor
unit is blocked.
ƔThe fan speed is too low.
ƔThe operation mode is FAN or DRY
ƔPOWER SELECTION function is
set 75% or 50% (This function is
depend on remote controller).
TROUBLESHOOTING (CHECK POINT)
18
OPERATION AND PERFORMANCE
16
1. Three-minute protection feature: To prevent the unit from being activated
for 3 minutes when suddenly restarted or switched to ON.
2. Preheating operation: Warm up the unit for 5 minutes before the heating
operation starts.
3. Warm air control: When the room temperature reaches the set
temperature, the fan speed is automatically reduced and the outdoor unit
will stop.
4. Automatic defrosting: Fans will stop during defrost operation.
5. Heating capacity: Heat is absorbed from outdoors and released into
the room. When the outdoor temperature is too low, use another
recommended heating apparatus in combination with the air conditioner.
6. Consideration for accumulated snow: Select the position for outdoor unit
where it will not be subjected to snow drifts, accumulation of leaves or
other seasonal debris.
7. Some minor cracking sound may occur when unit operating. This is
normal because the cracking sound may be caused by expansion/
contraction of plastic.
Note: Item 2 to 6 for Heating model
Air conditioner operating conditions
Temp.
Operation Outdoor Temperature Room Temperature
Heating ௅15°C ~ 24°C 0°C ~ 28°C
Cooling ௅15°C ~ 46°C 21°C ~ 32°C
Dry ௅15°C ~ 46°C 17°C ~ 32°C
TEMPORARY OPERATION
14
In case of the misplaced or discharged remote control
ƔPressing the RESET button, the unit can start or
stop without using the remote control.
ƔOperation mode is set on AUTOMATIC operation,
preset temperature is 24°C and fan operation is
automatic speed.

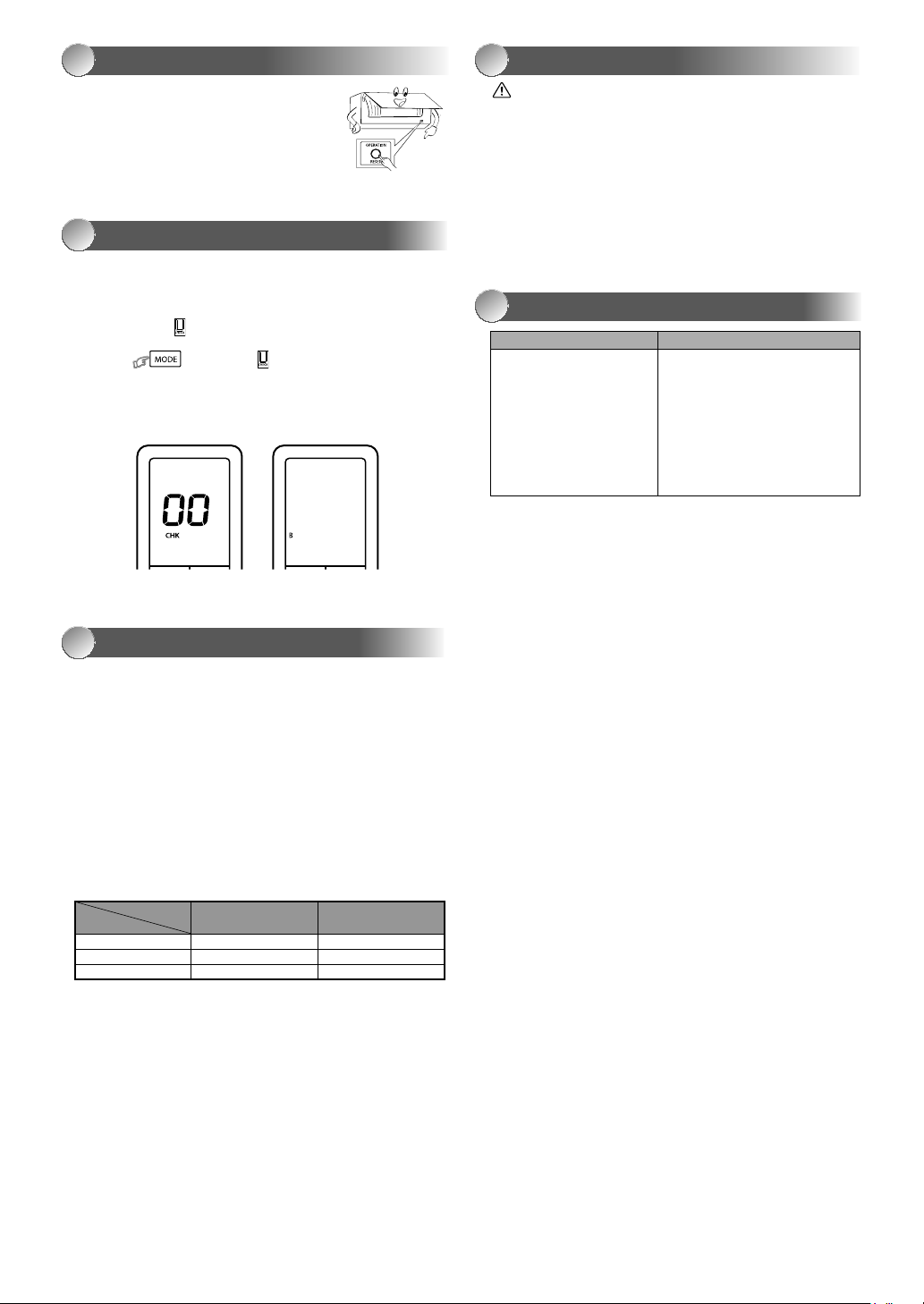

REMOTE CONTROL A-B SELECTION
15
To separate using of remote control for each indoor unit in case of 2 air
conditioners are installed nearly.
Remote Control B Setup.
1. Press RESET button on the indoor unit to turn the air conditioner ON.
2. Point the remote control at the indoor unit.
3. Push and hold button on the back side of Remote Control “00” will be
shown on the display. (Picture 1)
4. Press during pushing . “B” will show on the display and “00”
will disappear and the air conditioner will turn OFF. The Remote Control
B is memorized. (Picture 2)
Note: 1. Repeat above step to reset Remote Control to be A.
2. Remote Control A has not “A” display.
3. Default setting of Remote Control from factory is A.
1 2
*If connected to multiple type, please refer to information provided with
outdoor unit.

7
Register process
Open an application and follow register for User registration.
1Tab Register
5Enter password by 6-10
characters, combination of
alphabet and number
8Information will be
submitted to email, click link
to con¿rm
2Enter email address
6Check for term and condition
3Select country
7Con¿rm information
4Enter user name
WIRELESS LAN CONNECTION
19
Toshiba Home AC Control
Please visit the application store on your device to download and install
Toshiba Home AC Control application.
Application
Keyword : Toshiba Home AC Control
About Toshiba Home AC Control
1. Toshiba Home AC Control can control AC operation by Smartphone or
tablet (mobile device) via internet connection.
2. Everywhere control, control software run on Cloud system and mobile
device can set and monitor AC operation via internet connection.
3. Everyone can control, 1 Wireless adapter maximum 5 User (use 1 email
register).
4. Multi AC system control, 1 user can control 10 AC.
5. Group control.
5.1 Can create and control 3 groups of AC.
5.2 Can control max 10 AC per group.
Toshiba Home AC Control application support
iOS : 9.0 or later.
Android : Version 5.0 or later
Note:
1. Adapter can register only 1 email address, if register with new email, current email will be invalid.
2.1 email address can use for register 5 devices for control same AC.
OM_1126250234.indb 10 13/6/2565 BE 09:35
OM_1126250234.indb 11 13/6/2565 BE 09:36

8
Built-in type, Wireless adapter already install with unit.
Log in to Toshiba Home AC Control application
1 Connect Wireless adapter to A/C and turn on power supply.
*Note
1. In case of Wi-Fi router change or Email for register change need to re-process for add Wireless adapter again
(Built-in type : Press MODE button at Remote controller 5 seconds for active AP mode).
2. In case of change Wireless adapter to use with other A/C need to factory reset and re-process for add Wireless adapter again
(Built-in type : Press MODE button at Remote controller 5 seconds and select “rb”).
2Open application and select
Log in.
1Select “Add AC (Adapter)” from both display above. 2Select AC (adapter) connection method.
3Enter user name and
password.
4Login successful.
Add Wireless adapter for control by Toshiba Home AC Control application.
Wireless adapter Built-in
Active Wireless adapter by
remote controller and Auto log in.
EN
OM_1126250234.indb 11 13/6/2565 BE 09:36

9
MODE
FAN MENU
FIXFIX
3 AC (adapter) connect 4 Active Wireless adapter by Remote controller
5 Connect with Home Wi-Fi Router
6 A/C add ¿nished
7 Connect successfully
Wireless LED lamp stop blink.
Press and hold MODE button
5 seconds
Wireless LED mark will blink
when AP mode active
WPS mode
Manual input
Add Wireless adapter for control by Toshiba Home AC Control application.
Wi-Fi Router SSID
Wi-Fi Router Password
OM_1126250234.indb 12 13/6/2565 BE 09:36
OM_1126250234.indb 13 13/6/2565 BE 09:36

10
Menu
Weekly schedule
All AC On/Off
Add AC
Sub menu all AC
ƔAdd Group
ƔDelete Group
ƔOperation Setting
Sub menu group
ƔSelect AC
ƔChange group name
ƔGroup operation Setting
Setting temperature /
Actual room temp
Current operation mode
of each AC
Sub menu AC
ƔOperation Setting
ƔChange name
ƔDelete AC
Group AC On/Off
Each AC On/Off
Group name
AC device is ofÀine
Noti¿cation ERROR code
description (pop up)
Setting
Toshiba Home AC Control application
Home screen
EN
OM_1126250234.indb 13 13/6/2565 BE 09:36

11
Mode and Condition setting.
Mode select for Toshiba Home AC Control application.
Enter operation mode of All AC
Enter operation mode of Group AC
Enter operation mode of each AC
Provide for 5 operation modes
Auto
Heat
Cool
Fan only
Dry
Off
OM_1126250234.indb 14 13/6/2565 BE 09:36
OM_1126250234.indb 15 13/6/2565 BE 09:36

12
Setting in operation mode.
Tab for select AC
Weekly schedule
OFF-ON Timer set
Mode select
Fan speed set
Temperature set
Indoor temperature
Outdoor temperature
Special feature
OFF-ON timer set 0.5-12hrs.
Louver set
Off mode
ON timer set from
Off mode only
EN
OM_1126250234.indb 15 13/6/2565 BE 09:36

13
Group operation.
Maximum 3 groups
1 Group maximum = 10 units.
Add group
Please make sure Factory Reset is
performed before deleting AC from
mobile application.
(See owner manual ފPress and hold
MODE button on remote control for 5
second and active dL functionފ)
Add AC in group
Delete AC in group
OM_1126250234.indb 17 13/6/2565 BE 09:36

14
Weekly schedule set.
Day select Monday - Sunday
Weekly schedule of all AC unit
Time select Weekly schedule set for each unit
Select program for active by tick at select box
Weekly schedule
set and active
Weekly schedule
set but not active
Weekly schedule
not set
Mode select
Weekly schedule of all AC unit
Weekly schedule cancel.
EN
OM_1126250234.indb 17 13/6/2565 BE 09:36

15
Energy monitoring
Select Room for Energy monitoring
1Select Energy monitoring 2Energy monitoring display
Set cost calculate and currency
Select Energy monitoring display
Export data and send by Email
ƔThe power consumption displayed is just an estimate as it is calculated simply.
It may sometimes differ from the result measured by the power meter.
OM_1126250234.indb 18 13/6/2565 BE 09:36
OM_1126250234.indb 19 13/6/2565 BE 09:36

16
In case of have some problem can check from Help menu.
Note :
ƔThe Wireless Adapter must be installed, maintained, repaired and removed by a quali¿ed installer or quali¿ed service person.
ƔContact dealer and/or service center when equipment is malfunction.
EN
OM_1126250234.indb 19 13/6/2565 BE 09:36
