User’s Manual
CAMILEO AIR10

Introduction
Welcome and thank you for choosing a TOSHIBA product.
For your convenience, your TOSHIBA product is furnished with two
guides:
a) a Quick Start Guide, and
b) this comprehensive PDF User’s Manual.

Contents
Section 1 Getting to Know Your Camcorder........................................ 6
Overview ................................................................................ 6
Check the Components........................................................ 6
Safety Instructions................................................................ 7
System Requirements .......................................................... 7
Mac Compatibility for ArcSoft MediaImpression ............... 7
Front View ............................................................................. 8
Side View ............................................................................... 9
Bottom View .......................................................................... 9
Section 2 Getting Started..................................................................... 10
Loading the Battery ............................................................ 10
Charge your battery............................................................ 10
Inserting and Removing an SD Card (Optional)............... 11
Turning the Camcorder On and Getting Started .............. 12
Turning the Camcorder Off ................................................ 12
Section 3 Record Mode........................................................................ 13
Button Function .................................................................. 13
LCD Monitor Information.................................................... 14
Video Recording.................................................................. 16
Photo Recording ................................................................. 16
Using Digital Zoom ............................................................. 16
Options for Menu ................................................................ 17
Operations .......................................................................... 17
Video Setting ....................................................................... 18
Photo Setting....................................................................... 21
Effects .................................................................................. 25

Contents
Section 4 Playback Mode..................................................................... 27
Button Function .................................................................. 27
LCD Monitor Information.................................................... 28
Operations for Playback Mode ......................................... 29
Video Playback.................................................................... 30
Photo Playback ................................................................... 30
Delete File in Playback Mode............................................. 31
Section 5 Setting Your Camcorder .................................................... 32
Setup Menu.......................................................................... 32
Section 6 WiFi Function....................................................................... 36
Uploading the File to the Social Web Site ....................... 36
Broadcast live streaming on USTREAM ........................... 40
Section 7 AIR10 Connect Program ..................................................... 42
Advanced Operation on Your Computer - AIR10 Connect ......... 42
Installing [AIR10 Connect] ................................................. 42
Using AIR10 Connect via WiFi Connection (Infrastructure Mode).... 44
Using AIR10 Connect via USB Connection ...................... 47
Section 8 Viewing Photos and Videos on TV..................................... 50
Connecting to a High-Definition 16:9(Wide) TV ............... 50
Section 9 Viewing Photos and Videos on PC .................................... 51
Installing Bundled Software............................................... 51
Transferring Photos or Videos to a Computer ................. 51

5
EN
Contents
Section 10 Specifications ................................................................... 52
Section 11 Troubleshooting................................................................. 53
Section 12 Other Information .............................................................. 55
TOSHIBA Support ............................................................... 55
Operating Environment Conditions .................................. 55
Regulatory Information ...................................................... 55
Additional Information........................................................ 58
About the battery pack ....................................................... 58

6
EN
Section 1
Getting to Know Your Camcorder
Overview
The camcorder with 5 Mega Pixel sensor can take H.264 videos. The H.264 technology allows for
extended video recording with less memory. High quality images up to 16 mega-pixels can also be
delivered smoothly. With a color LCD monitor, you can view and examine the videos and photos
easily.
This camcorder also features video recording at HD resolution of 1920x1080. You can also connect
it to an HDTV via an HDMI cable, and easily playback the recorded high-definition videos on the
wide screen HDTV.
Moreover, thiscompact camcorder equipped with WiFi module and the exclusive uploading
application make it simple and convenient for you to upload the video or photo on the social website
without connecting to a computer. Even better, you can broadcast live streaming of the camcorder
on USTREAM website via WiFi. Your family and friends can watch the live video streaming of the
camcorder on their smart phones, tablets, or computers.
The camcorder can also connect with your computer via WiFi. It can be a wireless webcam for your
on-line video chatting. Through WiFi connecting, you can transfer the videos and photos to your
computer, and monitor live video from your camcorder.
ISO sensitivity and color balance can either be adjusted automatically or changed manually. A 5×
digital zoom helps you to control over the videos and photos you take.
The built-in memory allows you to take photos and to record videos without a memory card. The
memory card slot allows users to increase the storage capacity.
Note
Partial memory of the built-in memory is used for the camcorder’s Firmware code.•
Install the bundled ArcSoft MediaImpression application for viewing the videos correctly on the•
computer.
For the WiFi connectivity working correctly, make sure the bundled application-AIR10 Connect•
(for Windows® based systems only) is installed. Make sure the wireless LAN module of your
computer is activated and your camera is in the same wireless network service area.
Please avoid transferring the confidential• files and setting your personal account information on
open networks or in public areas . The data transferred via WiFi could be leaked.
Check the Components
Unpack the package and make sure all standard accessories listed are included:
Note
Please remove the lens protect film on lens before use.
AC-Adaptor
USB Cable HDMI Cable Camcorder
Lithium-ion
Rechargeable
Battery
Quick Start Guide
CD-ROM
(Software & User’s Manual)
Warranty Leaflet
Cleaning Cloth
*
*preinstalled in camcorder device
Strap Pouch
Tripod
MENU
OK
(Optional)

7
EN
Safety Instructions
Do not drop, puncture or disassemble the camcorder; otherwise the warranty will be voided.1.
Avoid all contact with water, and dry hands before using.2.
Do not expose the camcorder to high temperature or leave it in direct sunlight. Doing so may3.
damage the camcorder.
Use the camcorder with care. Avoid pressing hard on the camcorder body.4.
For your own safety, avoid using the camcorder when there is a storm or lightning.5.
Do not use batteries of different specifications. Doing so may lead to the potential for serious6.
damage.
Remove the battery during long periods between usage, as a deteriorated battery may affect the7.
functionality of the camcorder.
Remove the battery if it shows signs of leaking or distortion.8.
Use only the accessories supplied by the manufacturer.9.
Keep the camcorder out of the reach of infants.10.
Risk of explosion if battery is replaced by an incorrect type.11.
Dispose of used batteries according to the instructions.12.
System Requirements
OS Microsoft Windows XP, Vista, 7
Hardware
Intel /AMD Dual-Core CPU or above
1GB System memory and free
2GB System hard disk space
4x CD-ROM
1x available USB port
16-bit Color Display
WiFi capability
Mac Compatibility for ArcSoft MediaImpression
OS Mac OS 10.5 or above
Hardware
Intel /AMD Dual-Core CPU or above
1GB System memory and free
2GB System hard disk space
DVD-ROM
1x available USB port
Note
The LCD screen is manufactured using extremely high-precision technology. However, some
tiny black and/or bright dots (white, red, blue or green) may appear on the LCD screen.
These dots are a normal result of the manufacturing process, and do not affect the recording.

8
EN

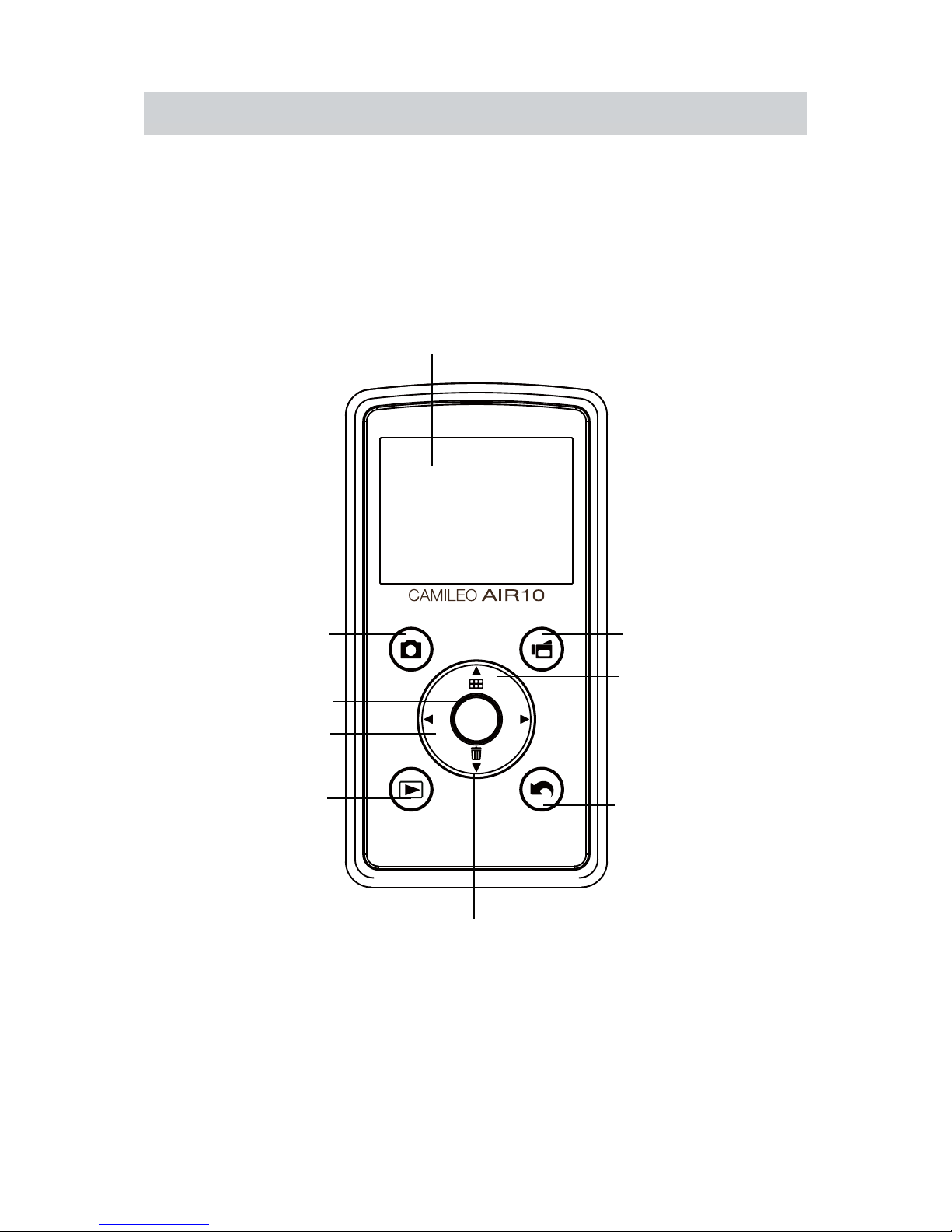

Front View
MENU
OK
LCD Screen
[Return/Exit] Button
[Playback] Button
[Tele(Up)] Button
[Thumbnail] Button
[Wide(Down)] Button
[Delete] Button
[Right] Button
[Left] Button
[Menu/OK] Button
[Video] Button
[Photo] Button

9
EN
Side View
Bottom View
Strap Hook
Tripod Socket
HDMI Port
Mini USB 2.0 Port
Speaker
Lens
Power Button
Indicator light
SD card Cover
Battery Cover
[WiFi] Button
[Internet] Button
Light
Microphone

10
EN
Section 2
Getting Started
Loading the Battery

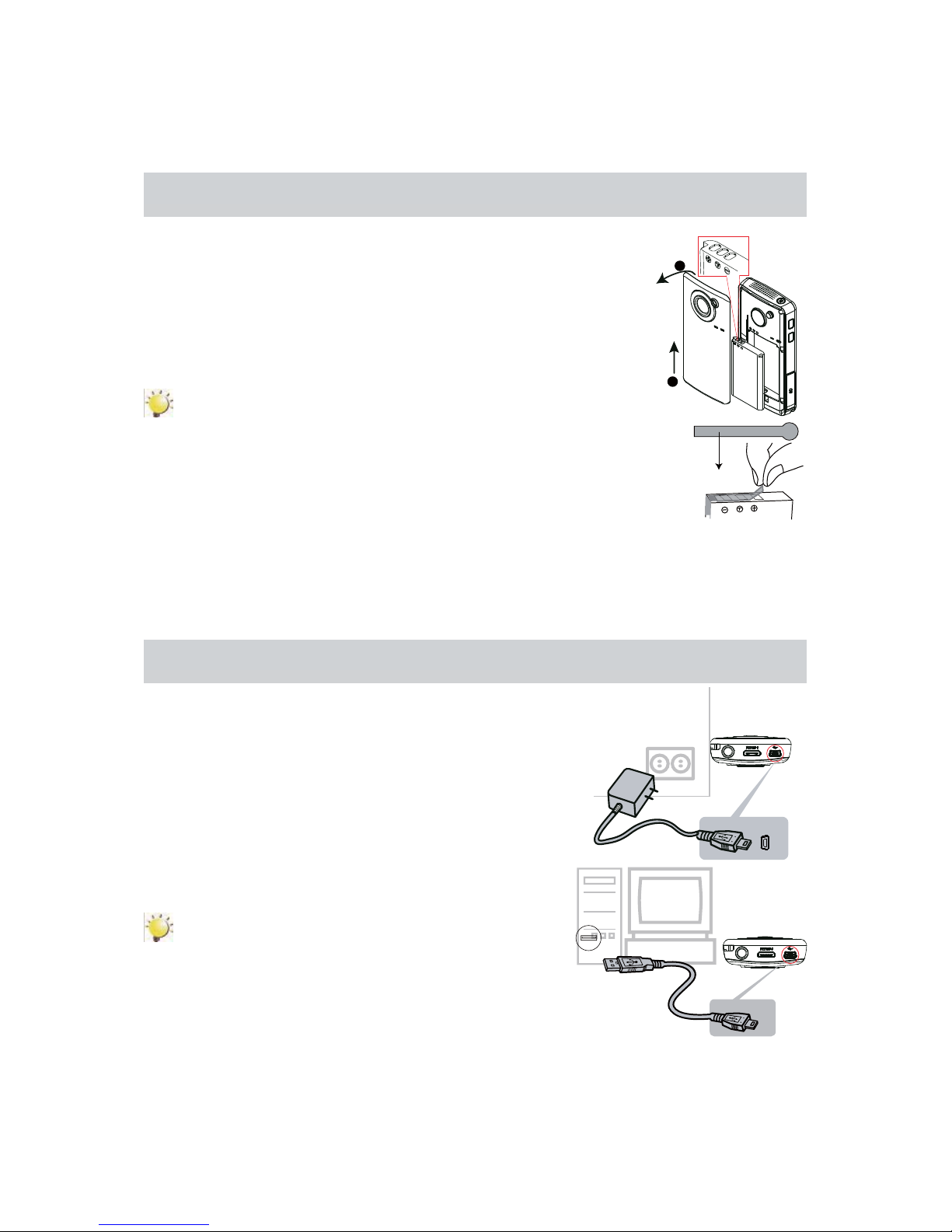

Before using the camcorder, you must load the supplied Lithium-ion
rechargeable battery.
Insert the battery according to the correct polarity marks ( + or -).1.
Close the battery cover firmly.2.
Note
Please remove the insulator on battery connection before use.•
Different battery types and surrounding temperatures may affect the battery•
performance.
Never expose the battery to a heating equipment (e.g., microwave oven) and•
attempt to dispose of a battery by burning or by throwing it into a fire. Heat
can cause the battery to explode and/or release caustic liquid, both which
may possibly cause serious injury.
Turn the power off and stop using the battery if you observe the condition of excessive heat on•
the battery.
Charge your battery
You must use the supplied AC charger or the USB cable. The
camcorder must be turned OFF. A blinking light will indicate active
charging and a solid light indicates that charging is complete.
In AC charging Mode, the full charge time is about 4 hours and
the light will turn itself off automatically after 3~5 minutes when
the charging is completed. (Actual charging time may vary. It
depends on the battery conditions.)
In PC USB charging mode, the full charge time is about 8.5
hours.
Note
Never charge the battery by a method other than as•
instructed. Doing so may cause a fire or explosion possibly
resulting in serious injury.
Use the supplied AC adapter only with the indicated power•
supply voltage.
Use with any other power supply voltage might cause•
electric shock.
Be sure that the power outlet you plug the adapter into is easily accessible. When you need•
to disconnect power from the camcorder, be sure to unplug the power cord from the electrical
outlet.
1
2
REMOVE

11
EN
Inserting and Removing an SD Card (Optional)

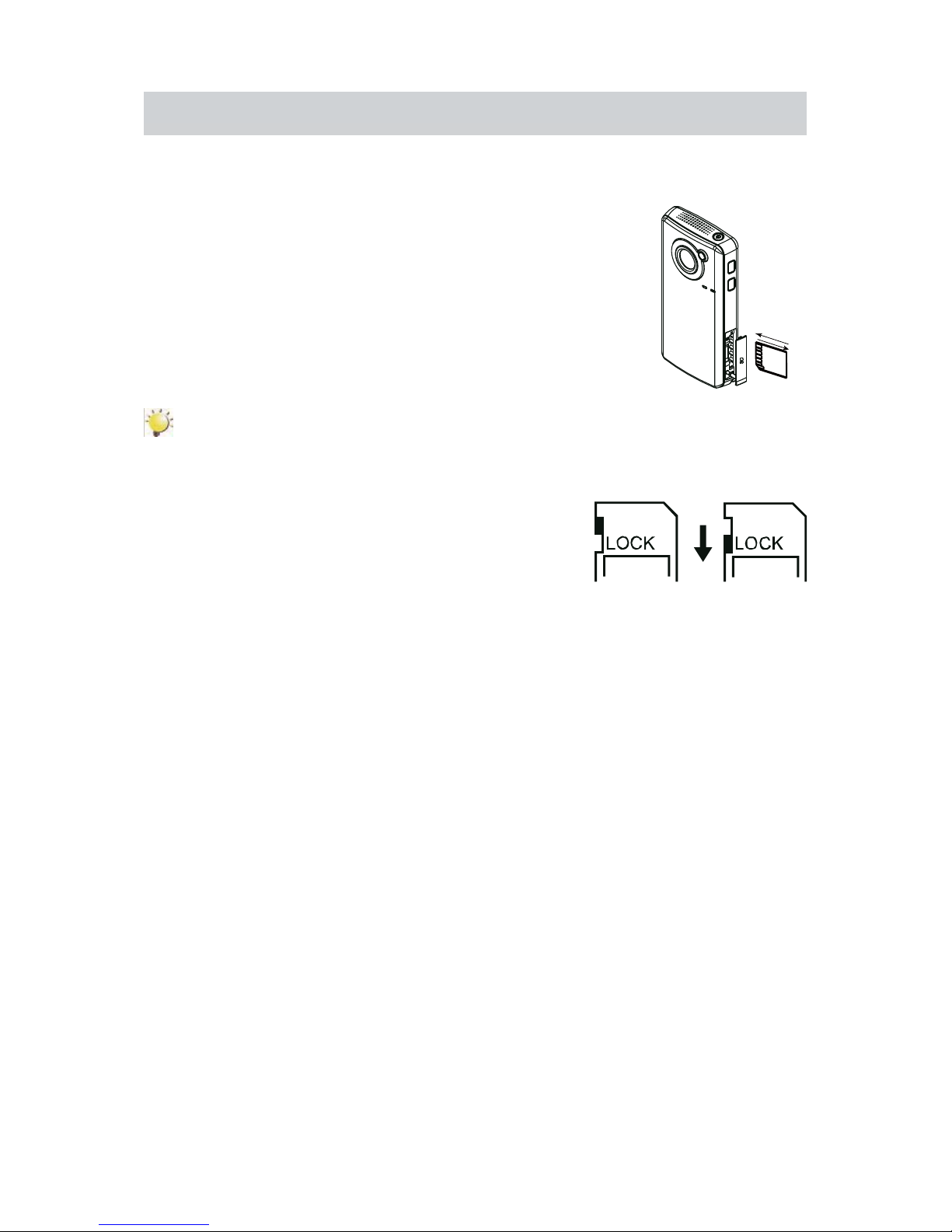

The camcorder comes with an internal memory which allows you to store photos and videos. You can
expand the memory capacity by using an optional SD/SDHC/SDXC memory card.
Insert the memory card into the slot. Please refer to the figure on the right1.
side.
To remove an installed SD card, press the card inwards to release it.2.
When the card pops out, gently remove it from its slot.3.
Recommended memory capacity: 1GB or above.4.
Note
When a memory card is fitted, videos/photos are saved on the card rather than on the built-in•
memory.
Protecting Data on an SD Card: SD Card is read-only when it is locked. No photos or videos•
can be recorded when the SD card is locked. Make sure
the lock is on the writeable position before recording
any media.
Writeable
position
Write-Protected
Position

12
EN
Turning the Camcorder On and Getting Started
To turn on the camcorder:•
Press [Power Button] for one second to turn it on.1.
To record video:• In Record Mode, press [Video Button] to record videos. To stop recording, press it
again.
To take a photo:• In Record Mode, press [Photo Button] to take photo.
To view stored videos and photos:• Press [Playback Button] to switch to the Playback mode.
Turning the Camcorder Off
To turn off the camcorder:•
Press [Power Button] for one second to turn off.2.

13
EN
Section 3
Record Mode
Button Function
[Video] Button:
Press to take video.1.
To stop recording, press it again.2.
[Photo] Button:
P1. ress to take photo.
[Playback] Button:
Switch between the Record /Playback Mode.1.
[Return/Exit] Button:
Return to the previous screen.1.
Exit.2.
MENU
OK
[Tele(Up)] Button:
Zoom In.1.
Move between the option items.2.
[Wide(Down)] Button:
Zoom Out.1.
Move between the option items.2.
[Left] Button:
Move between the option items.1.
[Right] Button:
Move between the option items.1.
[Menu/OK] Button:
Menu ON.1.
Validate the setting.2.
Power Button:
Press down for one second to turn on or turn off the camcorder.1.
[WiFi] Button:
Press to turn on / off WiFi.1.
[Internet] Button:
Press to upload video/photo to the internet via WiFi.1.

14
EN
LCD Monitor Information
The indicators shown below may display on LCD when videos and photos are recorded:
(1)
Battery: full power
Battery: medium power
Battery: low power
Battery: empty power
DC power mode
(2)
Video Resolution
FULL HD 1080/30
HD 720/60
HD 720/30
VGA 480/30
Photo Resolution
High-16MP
Standard-5MP
Low-3MP
(3)
Digital Light On
Light On

15
EN
(4)
Video Record Mode
Stabilization On/ Off
Photo Record Mode
Self-timer On/ Off
(5) WiFi signal strength
(6)
00:03:12 Remaining recordable time
00:03:12 Recording time
25 The amount of photos that can still be taken at current resolution
321 Number of current photo
(7) Motion Detection (Video Record Mode Only)
(8) Zoom meter:
1×~5× (5× Digital zoom)
Note
Filter: Black&White / Classic / Negative can be previewed immediately without the indicator on•
the LCD screen.
Motion Detect and Zooming functions cannot be used simultaneously.•

16
EN
Video Recording
In Video Record Mode,• press [Video] Button to start recording. When a video is being recorded, a time
indicator will display on the LCD monitor. To stop recording, press the [Video] Button again.
Press the [Playback] Button to view the recorded• videos.

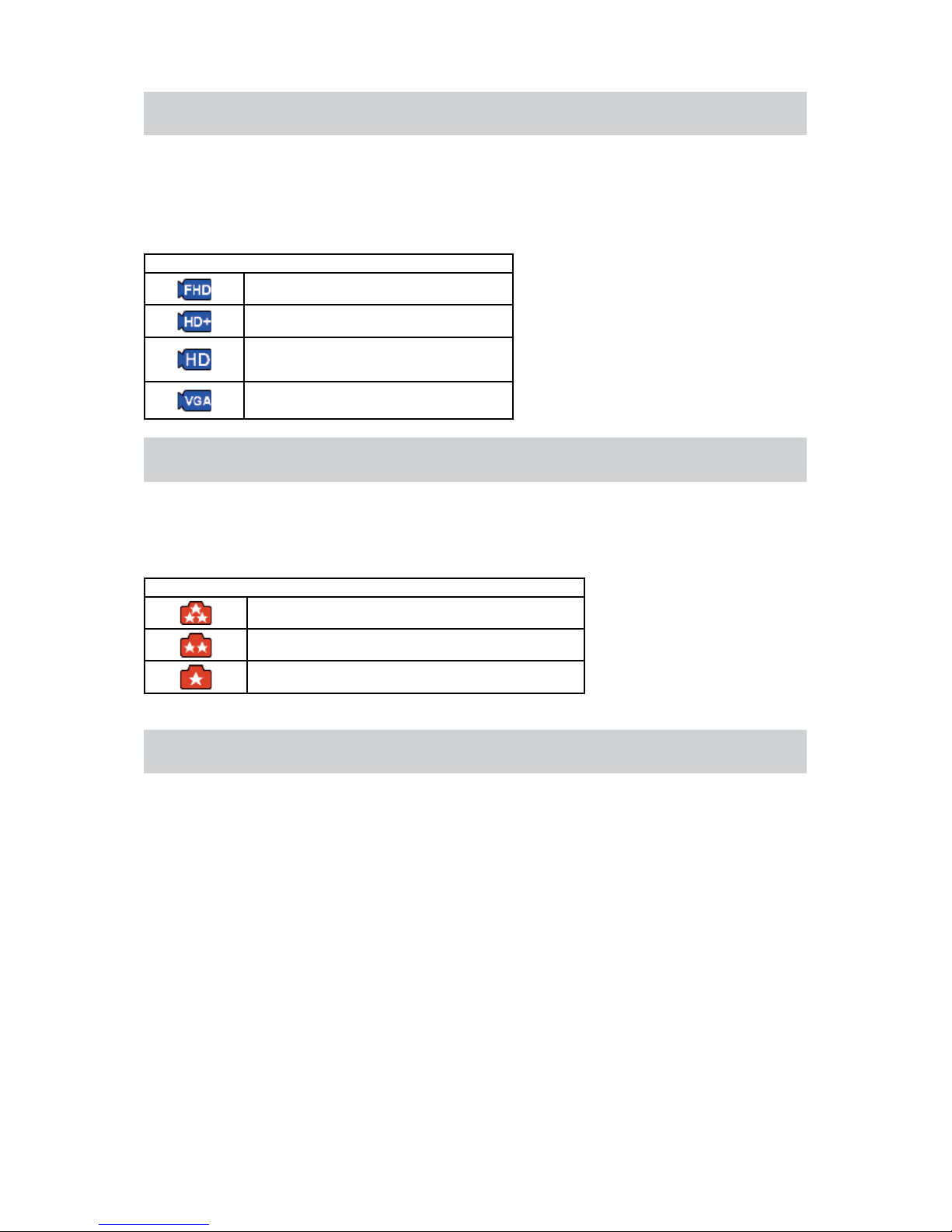

Four resolution settings are available:•
Video Quality
FULL HD 1080/30: 1920x1080p 30
HD 720/60: 1280x720p 60
HD 720/30: 1280x720p 30
VGA 480/30: 640x480p 30
Photo Recording
In Photo Record Mode,• press the [Photo] Button to take photos.
Press the [Playback] Button to• view the photos.
Three resolution settings are available:•
Image Quality
High-16 Mega Pixels: 4608 x 3456
Standard-5 Mega Pixels: 2592 x 1944
Low-3 Mega Pixels: 2048 x 1536
Using Digital Zoom
The digital zoom magnifies images when recording videos or taking photos.•
To zoom in/out, press the1. [Tele(Up)] / [Wide(Down)] Button.
The digital zoom can be set from 12. × to 5x.

17
EN
Options for Menu
Video Setting Photo Setting Effects Setup* WiFi*
Light•
Resolution•
Stabilization•
Motion Detect•
Continuous•
Play
Light•
Resolution•
Self-Timer•
Face Tracking•
Date Printing•
ISO•
Slideshow•
Scene•
Filter•
White Balance•
Menu Sound•
TV•
Language•
Time Setting•
Format•
Default Setting•
Available•
Networks (List)
PC_Direct•
* Please refer to Section 5 for the detailed information about [Setup].
* Please refer to Section 6 for the detailed information about [WiFi].
Operations
Operation Screen
Press the [Menu/OK] Button in the Record Mode.1. The
main menu will show on the screen.
The options are Video Setting, Photo Setting, Effects,2.
Setup, and WiFi.
Use the Direction Button to select the desired option,3.
and then press the [OK] Button to enter the submenu.
Use the Direction Button4. to select the specific option
you want to adjust and then press the [OK] Button to
validate the setting.
Or press the [Playback] Button/ select the5. Return icon (
) to exit.

18
EN
Video Setting
Operation Display Screen
Press [Menu/OK] Button in the Record Mode.1.
The main menu will show on the screen.
Use the Direction Button to select2. the [Video
Setting ] icon and then press the [OK] Button
to enter its submenu.
The Video Setting menu contains 5 options--3.
Light, Resolution, Stabilization, Motion Detect,
and Continuous Play --for you to adjust the
camcorder settings.
Light
You can select the mode to brighten the area or to extend the brightness of the objects.
On The light will be turned on and provides light when recording.
Off The light is turned off.
Digital Light Extend the dynamic range for backlight and high contrast sense, so that
the objects will be brighter and clearer.
Operation Display Screen
In the Video Setting menu, select the [Light]1.
icon and then press the [OK] Button to enter its
setting menu.
Select the desired option2. and then press the
[OK] Button to validate the setting.
Or press the [Playback] Button/ select the3. Return
icon ( ) to exit.

19
EN

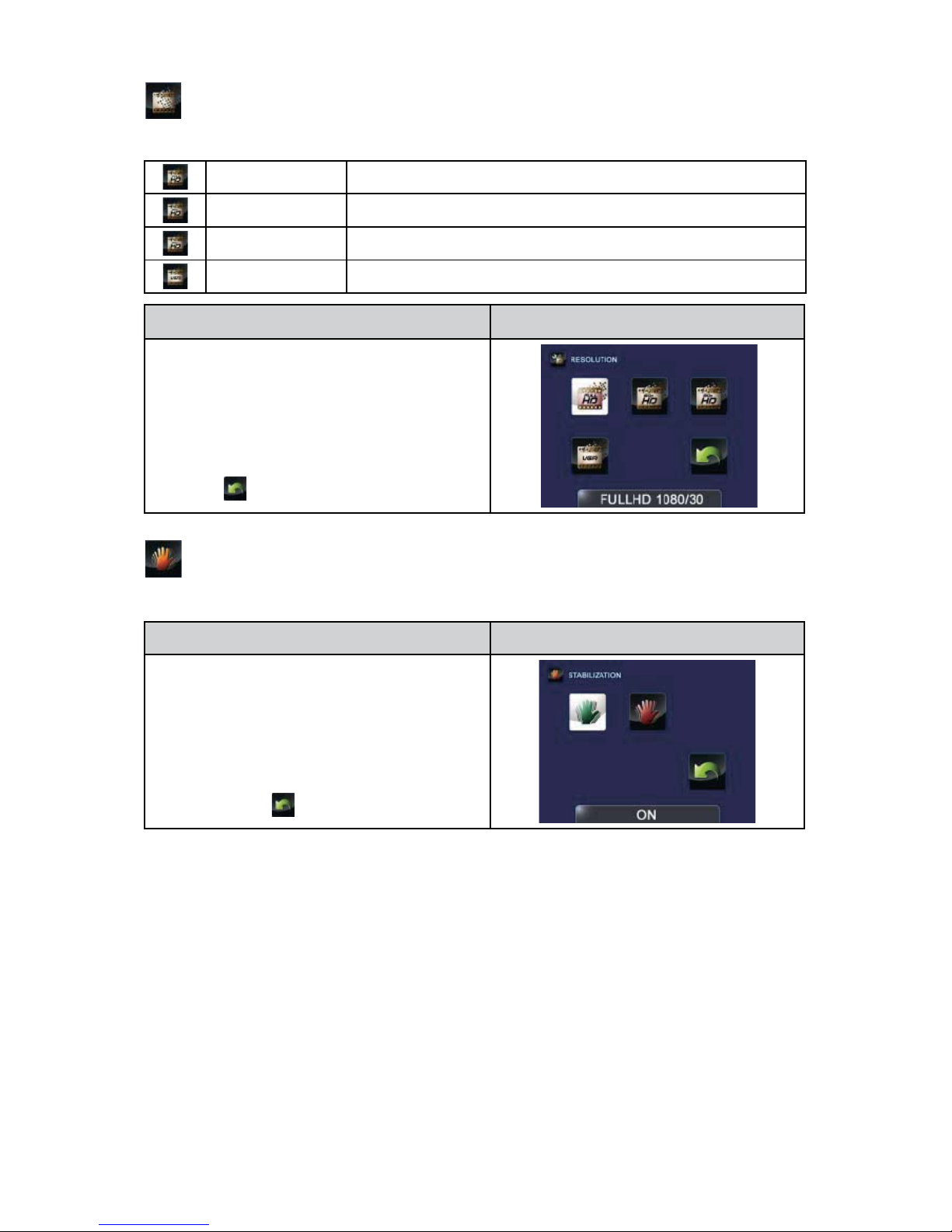

Resolution
Four resolution settings are available.
FULL HD 1080/30 Record videos at 1920x1080p 30 resolution.
HD 720/60 Record videos at 1280x720p 60 resolution.
HD 720/30 Record videos at 1280x720p 30 resolution.
VGA 480/30 Record videos at 640x480p 30 resolution.
Operation Display Screen
In the Video Setting menu, select the [Resolution]1.
icon and then press the [OK] Button to enter its
setting menu.
Select the desired option2. and then press the
[OK] Button to validate the setting.
Or press the [Playback] Button/ select the3. Return
icon ( ) to exit.
Stabilization
Record with an effect of reducing the camcorder shake to result in more stable video.
Operation Display Screen
In the Video Setting menu, select the1.
[Stabilization] icon and then press the [OK]
Button to enter its setting menu.
Select the desired option2. and then press the
[OK] Button to validate the setting.
Or press the [Playback] Button/ select the3.
Return icon ( ) to exit.

20
EN

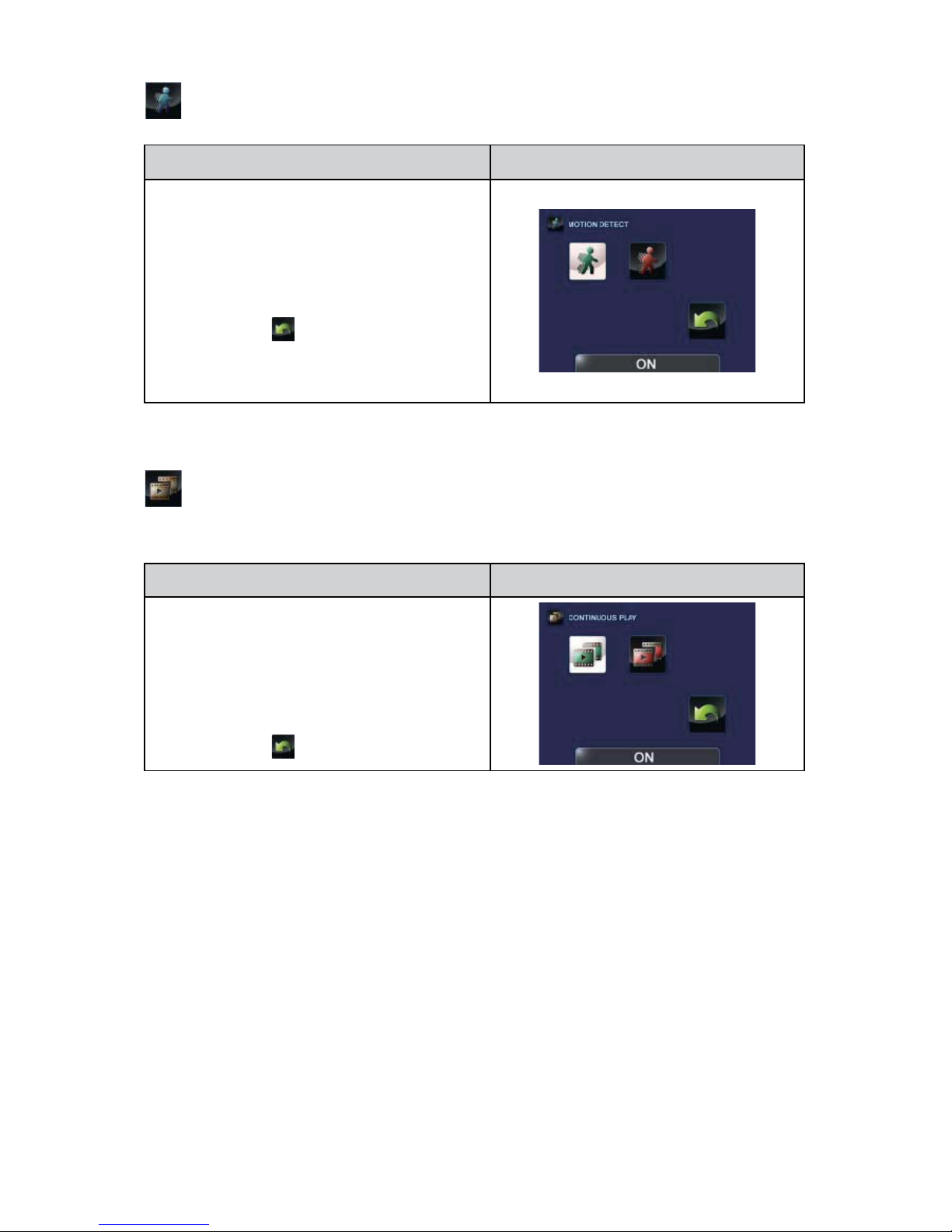

Motion Detection
Record video automatically when the camcorder detects a movement.
Operation Display Screen
In the Video Setting menu, select the [Motion1.
Detect] icon and then press the [OK] Button to
enter its setting menu.
Select the desired option2. and then press the
[OK] Button to validate the setting.
Or press the [Playback] Button/ select the3.
Return icon ( ) to exit.
The camcorder will begin recording automatically4.
if movement is detected. It stops recording when
movement stops.
Continuous Play
This option allows you to playback files continuously.
Operation Display Screen
In the Video Setting menu, select the1. [Continuous
Play] icon and then press the [OK] Button to
enter its setting menu.
Select the desired option2. and then press the
[OK] Button to validate the setting.
Or press the [Playback] Button/ select the3.
Return icon ( ) to exit.
