User’s Manual

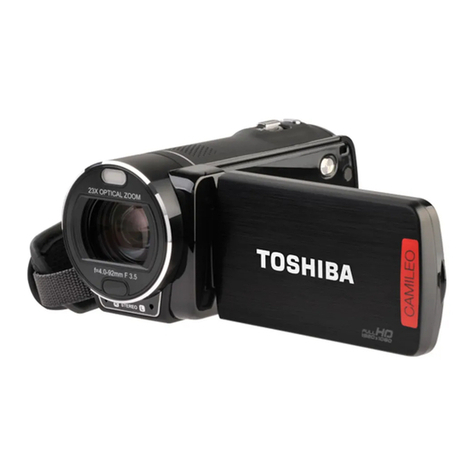

CAMILEO X400

Introduction
Welcome and thank you for choosing a TOSHIBA product.
For your convenience, your TOSHIBA product is furnished with two
guides:
a) a Quick Start Guide, and
b) this comprehensive PDF User’s Manual.

Contents
Section 1 Getting to Know Your Camcorder .................................... 6
Overview ............................................................................. 6
Check the Components..................................................... 6
Safety Instructions............................................................. 7
System Requirements ....................................................... 7
Front View........................................................................... 8
Rear View ............................................................................ 8
Side View ............................................................................ 9
Bottom View ....................................................................... 9
Section 2 Getting Started ................................................................. 10
Loading the Battery ......................................................... 10
Charge your battery......................................................... 10
Inserting and Removing an SD Card (Optional)............ 11
Turning the Camcorder On and Getting Started ........... 12
Turning the Camcorder Off ............................................. 12
Section 3 Record Mode .................................................................... 13
Button Function ............................................................... 13
LCD Monitor Information................................................. 14
Video Recording............................................................... 17
Photo Capturing............................................................... 17
Using Digital Light or Light Function............................. 18
Using Zoom Function ...................................................... 18
Options for Menu ............................................................. 19
Operations ....................................................................... 19
VIDEO SETTING ............................................................... 20
PHOTO SETTING.............................................................. 25
EFFECTS........................................................................... 29
DELETE............................................................................. 33

Contents
Section 4 Playback Mode ................................................................. 35
Button Function ............................................................... 35
LCD Monitor Information................................................. 36
Operations for Playback Mode ...................................... 38
Video Playback................................................................. 39
Photo Playback ................................................................ 39
Delete File in Playback Mode.......................................... 39
Video Trim......................................................................... 40
Section 5 Setting Your Camcorder ................................................. 41
Setup Menu....................................................................... 41
Section 6 Viewing Photos and Videos on TV ................................. 44
Connecting to a High-Denition 16:9 (Wide) TV ........... 44
Section 7 Viewing Photos and Videos on PC................................. 45
Installing Bundled Software............................................ 45
Transferring Photos or Videos to a Computer .............. 45
Section 8 Uploading Files to Internet.............................................. 46
Section 9 Webcam Mode .................................................................. 49
Section 10 Specications .................................................................. 50

5
EN
Contents
Section 11 Troubleshooting............................................................... 51
Section 12 Other Information............................................................. 52
TOSHIBA Support ............................................................ 52
Operating Environment Conditions ............................... 52
Regulatory Information.................................................... 52
Additional Information..................................................... 54
About the battery pack .................................................... 54

6
EN
Section 1
Getting to Know Your Camcorder
Overview
The camcorder with 5 Mega Pixel sensor can take H.264 videos. By way of using H.264 technology,
more videos can be taken within certain amount of memory. High quality images with up to 16 mega-
pixels can also be delivered smoothly. With a color LCD monitor, users can compose images and
examine them easily.
The camcorder features 3” LCD touch panel which is an ideal platform for you to operate your
camcorder. The menu options are accessible with your nger. With the touch panel, you can select the
options directly and quickly.
The camcorder also features video recording at HD resolution of 1920x1080. You can also connect it
to an HDTV via an HDMI cable, and easily playback the recorded high-denition videos on the wide
screen HDTV.
Moreover, the camcorder has an advanced uploading feature. With the exclusive built-in CAMILEO
UPLOADER application, you can upload the videos or photos captured by the camcorder to Internet
more effortlessly.
ISO sensitivity and color balance can either be adjusted automatically or changed manually. A 120×
digital zoom helps you to control over the videos and photos you take.
The varied effect options, such as Time Lapse and Slow Motion, make recording more fun.
The built-in memory allows you to take photos and to record videos without a memory card. The
memory card slot allows users to increase the storage capacity.
Note
Partial memory of the built-in memory is used for the camcorder’s Firmware code.•
Check the Components
Unpack the package and make sure all standard accessories listed are included:
Camcorder
Quick Start
Guide
*preinstalled in camcorder device
USB Cable
CD-ROM
(Software &
User’s Manual) Cleaning Cloth
HDMI Cable
Pouch
AC-Adaptor
Remote Control
Lithiunm-ion
Rechargeable
Battery*
Lens Cover Set
(Lens cover &
strap)
MAGIX DVD (Video
Deluxe Trial Version)
(Optional)
Warranty
Leaet
Note
Pleaseremovethelensprotectlmonlensbeforeuse.

7
EN
Safety Instructions
Do not drop, puncture or disassemble the camcorder; otherwise the warranty will be voided.1.
Avoid all contact with water, and dry hands before using.2.
Do not expose the camcorder to high temperature or leave it in direct sunlight. Doing so may3.
damage the camcorder.
Use the camcorder with care. Avoid pressing hard on the camcorder body.4.
For your own safety, avoid using the camcorder when there is a storm or lightning.5.
Do not use batteries of different specications. Doing so may lead to the potential for serious 6.
damage.
Remove the battery during long periods between usage, as a deteriorated battery may affect the7.
functionality of the camcorder.
Remove the battery if it shows signs of leaking or distortion.8.
Use only the accessories supplied by the manufacturer.9.
Keep the camcorder out of the reach of infants.10.
Risk of explosion if battery is replaced by an incorrect type.11.
Dispose of used batteries according to the instructions.12.
System Requirements
OS Microsoft Windows XP, Vista, 7
Hardware
CPU Intel Pentium 4, 2.4GHz or above
512MB system memory
1GB hard disk space
4x CD-ROM
1x available USB port
16-bit Color Display
Note
The LCD screen is manufactured using extremely high-precision technology. However, some
tiny black and/or bright dots (white, red, blue or green) may appear on the LCD screen. These
dots are a normal result of the manufacturing process, and do not affect the recording.

8
EN
Front View
Rear View
Lens
Light
Speaker
[Tele]/[Wide] Button
[Photo] Button
Microphone
IR Receiver
LCD Touch
Panel
HDMI Port
Mini USB 2.0 Port
[Video] Button
[Pause] Button
Indicator Light

9
EN
Side View
Bottom View
[Power] Button
[Playback]
Button
[Light] Button
Microphone Jack
Tripod Socket Battery/SD card Cover

10
EN
Section 2
Getting Started
Loading the Battery
The battery comes pre-installed in the camcorder, however you
must remove the insulator on the battery before use.
Slide the safety latch and open the battery cover.1.
Remove the battery from the camcorder and pull the2.
insulator off.
Insert the battery according to the correct polarity marks3.
( + or -).
Close the battery cover rmly.4.
Charge your battery
You must use the supplied AC charger or the USB cable. The camcorder must be turned OFF.
A blinking light indicates active charging and a solid light indicates that charging is complete. In AC
charging mode, the full charging time is about 4- 5 hours and the light will turn off automatically after
3~5 minutes. (Actual charging time may vary. It depends on the battery condition.)
REMOVE

11
EN
Inserting and Removing an SD Card (Optional)
The camcorder comes with internal memory which allows you to store photos and videos. You can
expand the memory capacity by using an optional SD memory card.
Open the SD Card cover.1.
Insert the memory card into the slot. Please refer to the gure 2.
on the right side.
To remove the installed SD card, press the card inwards to3.
release it.
When the card pops out, gently remove it from its slot.4.
Recommended memory capacity: 1GB or above.5.
Note
When a memory card is tted, videos/photos are saved on the card rather than on the built-in •
memory.
Protecting Data on an SD Card: SD Card is read-only when it is locked. No photos or videos•
can be recorded when the SD card is locked. Make sure the lock is on the writeable position
before recording any media.
Writeable
position
Write-Protected
Position

12
EN
Turning the Camcorder On and Getting Started
To turn on the camcorder:•
Flip out the LCD panel; the c1. amcorder will turn on automatically.
Or press the [Power Button] f2. or one second to turn it on.
To record video: Press the [Video Button] to record video. To stop recording, press it again.•
To pause recording: Press the [Pause Button] to pause recording. To continue the recording,•
press it again.
To snapshot a photo during video recording: Press the [Photo Button] to capture the image.•
To take a photo: Press the [Photo Button] halfway down until the focusing frame turns green.•
Then, press it fully down to take photo.
Focusing Frame: White Focusing Frame: Green
To view stored videos and photos: Press the [Playback Button] or touch• (on-screen icon) to
switch to the Playback mode.
Turning the Camcorder Off
To turn off the camcorder: You can either press [Power Button] for one second, or you can place•
the LCD panel back to its original position.

13
EN
Section 3
Record Mode
Button Function
Video Button:
Press to begin recording a video.1.
Press it again to stop recording.2.
Pause Button:
Press to pause the recording.1.
Press it again to resume recording on the same le.2.
Photo Button:
Press halfway down to focus, then press it fully to take the photo.1.
When recording video, press to capture the image.2.
Tele Button:
Zoom In.1.
Wide Button:
Zoom out.1.
Power Button:
Press down for one second to turn on or turn off the camcorder.1.
Playback Button:
Toggle the Record Mode and Playback Mode.1.
Light Button:
Press to toggle the Light settings. (LIGHT ON/LIGHT OFF/DIGITAL 1.
LIGHT).

14
EN
LCD Monitor Information
The indicators shown below may display on LCD when videos and photos are recorded:
On-screen information icon On-screen touchable function icon
(1)
Battery: full power
Battery: medium power
Battery: low power
Battery: empty power
DC power mode (The camcorder is turned on and plugged in the
AC charger.)
(2) Macro Position Focusing
(3)
00:03:12
Recording time
00:03:12
Pause recording
250
The remaining amount of photos that can be taken at the current
resolution.
321
Number of current photo
(4) Motion Detection (Video Record Mode Only)
(5)
Scene
Skin
Night
Backlight

15
EN
(6)
Manual White Balance
Daylight
Fluorescent
Tungsten
(7) Zoom meter:
1× ~2700× (23× Optical zoom and 120× Digital zoom)
(8)
Slow Motion (Video Record Mode Only)
Time Lapse (Video Record Mode Only)
Pre-Record Mode (Video Record Mode Only)
(9)
Digital Light On
Light On
Light Off
(10)
Video Resolution
FULL HD 1080/30
60p
HD 720/60
30p
HD 720/30
VGA 480/30
WQVGA (When Slow Motion function is activated, the video
resolution is WQVGA (432 × 240).)
Photo Resolution
High-16MP
Standard-5MP
Low-3MP
(11)
Video Record Mode
Backlight On / Off
Photo Record Mode
Self-timer On / Off

16
EN
(12) Menu On
(13) Playback Mode On
(14) Photo Mode On
(15) Video Mode On
(16) Delete Mode On
Note
Tap on the screen to close the touchable function bars. Tap again to show the bars.•
Filter: Black&White / Classic / Negative can be previewed immediately without the indicator•
on the LCD screen.
Stabilization, Time Lapse, and Slow Motion functions can not be used simultaneously.•
Stabilization and Night Mode functions can not be used simultaneously.•
Pre-Record, Motion Detection, Time Lapse, and Slow Motion functions can not be used•
simultaneously.
Motion Detect, Time Lapse, Slow Motion, and Pause functions can not be used•
simultaneously.
The camcorder does not power off automatically in DC power mode.•

17
EN
Video Recording
Press the [Video Button] to start recording. When a video is being recorded, a time indicator will•
display on the LCD monitor. To stop recording, press the [Video Button] again.
To pause recording: Press the [Pause Button] to pause recording. To continue the recording, press•
it again.
To snapshot a photo during video recording: Press the [Photo Button] to capture the image.•
Press the [Playback Button] or touch• (on-screen icon) to view the recorded video.
Four resolution settings are available:•
Video Quality
FULL HD 1080/30: 1920x1080p 30
60p
HD 720/60: 1280x720p 60
30p
HD 720/30: 1280x720p 30
VGA 480/30: 640x480p 30
Note
The image resolution captured during video recording is the same as the video resolution.•
Photo Capturing
Press the• [Photo Button] halfway down until the focusing frame turns green. Then, press it fully
down to take photo.
Press the [Playback Button] or touch• (on-screen icon) to view the recorded video.
Three resolution setting• s are available:
Image Quality
HIGH-16 Mega Pixels: 4608 x 3456
STANDARD-5 Mega Pixels: 2592 x 1944
LOW-3 Mega Pixels: 2048 x 1536

18
EN
Using Digital Light or Light Function
The setting allows you to brighten the area or to extend the brightness of the objects.•
Press to toggle the Light settings. (LIGHT ON / LIGHT OFF / DIGITAL LIGHT). 1.
When the Light fun• ction is activated ( ) the light will be turned on and keeps
providing light.
When the Digital L• ight function is activated ( ), the camcorder extends dynamic range
for backlight and high contrast sense so that the objects will be brighter and clearer.
Press the [Video]/[Photo] Button to start recording or to take photo.2.
Note
To avoid the persistence of image on the screen, please turn off the Digital Light function after•
you used it in the dark situation.
The light will be disa• bled automatically when battery power is low ( ).
Using Zoom Function
The zoom magnies images when recording video or taking photo.•
To zoom in/out, press the [Tele/Wide Button]. 1. The camcorder will zoom in by optical zoom rst.
When the optical zoom factor is at maximum, zooming stops temporarily. When you want to
zoom in beyond the optical zoom range, hold the [Tele Button] again, the digital zoom will be
activated and zooming continues.
It can be set from2. 1×~2700× (23× optical zoom and 120× Digital zoom)

19
EN
Options for Menu
VIDEO SETTING PHOTO SETTING EFFECTS SETUP* DELETE
LIGHT•
RESOLUTION•
STABILIZATION•
MOTION•
DETECTION
FACE TRACKING•
SLOW MOTION•
PRE-RECORD•
TIME LAPSE•
DATE PRINTING•
CONTINUOUS•
PLAY
LIGHT•
RESOLUTION•
SELF-TIMER•
SMILE•
DETECTION
DATE PRINTING•
ISO•
SLIDESHOW•
MACRO MODE•
EXPOSURE•
MEASURE
SCENE•
FILTER•
WHITE•
BALANCE
MENU SOUND•
TV•
LANGUAGE•
TIME•
SETTING
FORMAT•
DEFAULT•
SETTING
DELETE VIDEO•
DELETE PHOTO•
SELECT &•
DELETE
DELETE ALL•
* Please refer to Section 5 for the detailed information about [Setup].
Operations
Operation Screen
T1. ouch on the screen.
The main menu will appear.2.
The options are VIDEO SETTING, PHOTO3.
SETTING, EFFECTS, SETUP, and DELETE.
Touch the4. desired icon twice or hold it down.
The option menu will pop up on the screen.5.
Touch to select the specic option you want to 6.
adjust and touch again to enter its setting menu.
Touch twice7. or hold it down to validate the setting.
Or touch the RETURN icon (8. ) twice (hold it
down) to exit.

20
EN
VIDEO SETTING
Operation Display Screen
T1. ouch on the screen. The main menu will
show on the screen.
Touch the [VIDEO SETTING2. ] icon twice on
the screen to enter its setting menu.
The Video Setting menu contains 10 options--3.
LIGHT, RESOLUTION, STABILIZATION, MOTION
DETECTION, FACE TRACKING, SLOW MOTION,
PRE-RECORD, TIME LAPSE, DATE PRINTING,
and CONTINUOUS PLAY --for you to adjust the
camcorder settings.
LIGHT
You can select the mode to brighten the shooting area or to extend the brightness of objects.
ON The light will be turned ON and provides light when recording.
OFF The light is turned OFF.
DIGITAL LIGHT Extend the dynamic range for backlight and high contrast sense, so
that the objects will be brighter and clearer.
Operation Display Screen
In the Video Setting menu, touch the [LIGHT] icon1.
twice.
Touch to select the desired option.2.
Touch again to validate the setting.3.
Or touch the RETURN icon (4. ) twice (hold it
down) to exit.
