User’s Manual
CAMILEO S20

Introduction
Welcome and thank you for choosing a TOSHIBA product.
For your convenience, your TOSHIBA product is furnished with two
guides:
a) a Quick Start Guide, and
b) this comprehensive PDF User’s Manual.

Contents
Section 1 Getting to Know Your Camcorder........................................ 6
Overview ................................................................................ 6
Check the Components........................................................ 6
Safety Instructions................................................................ 7
System Requirements .......................................................... 7
Front View.............................................................................. 8
Rear View............................................................................... 8
Side View ............................................................................... 9
Bottom View .......................................................................... 9
Section 2 Getting Started..................................................................... 10
Loading the Battery ............................................................ 10
Inserting and Removing an SD Card (Optional)............... 10
Turning the Camcorder On and Getting Started .............. 11
Turning the Camcorder Off ................................................ 11
Section 3 Record Mode........................................................................ 12
Button Function .................................................................. 12
LCD Monitor Information.................................................... 13
Movie Recording ................................................................. 15
Using the Pre-Record Function ......................................... 15

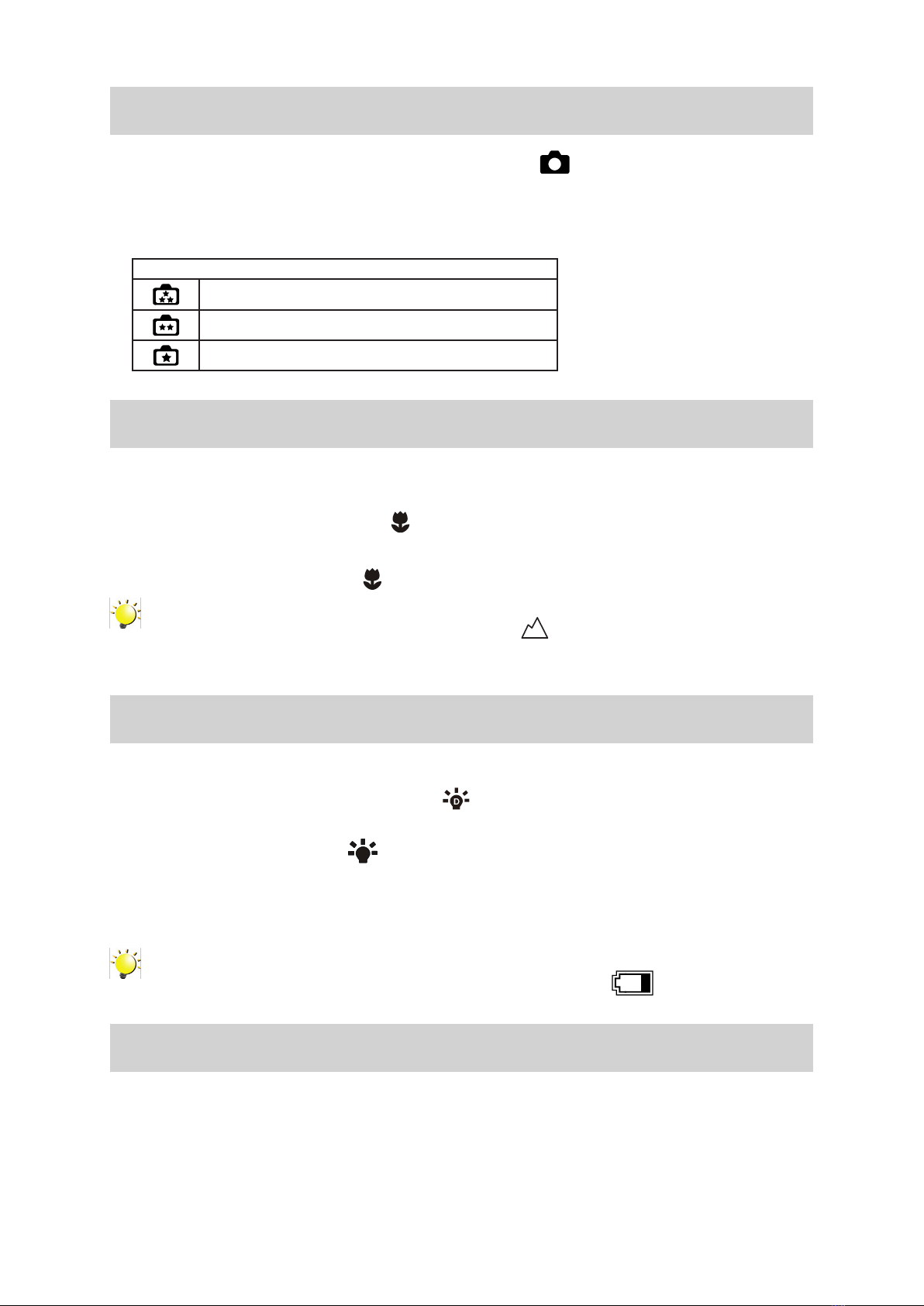

Picture Recording ............................................................... 16
Taking Close up Pictures/Movies ...................................... 16
Using Digital Light or Light Function................................ 16
Using Digital Zoom ............................................................. 16
Options for Record Menu................................................... 17
Operations for Record Mode ............................................ 17
Movie Resolution ................................................................ 18
Picture Resolution .............................................................. 18
White Balance .................................................................... 19
Scene .................................................................................. 19
Movie Effect......................................................................... 20
Picture Effect....................................................................... 22

Contents
Section 4 Playback Mode..................................................................... 23
Button Function .................................................................. 23
LCD Monitor Information.................................................... 24
Operations for Playback Mode ......................................... 25
Movie Playback ................................................................... 26
Picture Playback ................................................................. 27
Section 5 Setting Your Camcorder .................................................... 28
Setting Menu ....................................................................... 28
Section 6 Viewing Pictures and Movies on TV .................................. 32
Connecting to a High-Denition 16:9(Wide) TV ............... 32
Connecting to a non-high-denition 4:3 TV ..................... 32
Section 7 Viewing Movie & Picture on PC.......................................... 33
Installing Bundled Software............................................... 33
Transferring Pictures or Movies to a Computer............... 33
Section 8 Burning the Recorded Clip into a DVD.............................. 34
Section 9 Uploading Video Files to YouTube..................................... 37
Section 10 Video File Converter.......................................................... 42
Section 11 Specications .................................................................... 44
Section 12 Troubleshooting ................................................................ 45

Contents
Section 13 Other Information .............................................................. 46
TOSHIBA Support ............................................................... 46
Operating Environment Conditions .................................. 46
Regulatory Information ...................................................... 46
Additional Information........................................................ 48
About the battery pack ....................................................... 48

6
EN
Section 1
Getting to Know Your Camcorder
Overview
The camcorder with 5 Mega Pixel sensor can take H.264 movies. By way of using H.264 technology,
more videos can be taken within certain amount of memory. High quality images with up to 16 mega-
pixels can also be delivered smoothly. With a color LCD monitor, users can compose images and
examine them easily.
The camcorder also features movie recording at an HD resolution of 1920x1080. You can also connect
it to an HDTV via an HDMI cable, and easily playback the recorded high-denition videos on the wide
screen HDTV.
Moreover, the camcorder has an advanced uploading feature. With the exclusive built-in YouTube
Direct application, you can upload the videos captured by the camcorder to YouTube more effortlessly.
ISO sensitivity and color balance can either be adjusted automatically or changed manually. A 4x
digital zoom helps you to control over the movies and pictures you take.
The varied effect options, such as Time Lapse and Slow Motion, make recording more fun.
The built-in memory allows you to take pictures and to record movies without a memory card. The
memory card slot allows users to increase the storage capacity.
Note
Partial memory of the built-in memory is used for the camcorder’s Firmware code.

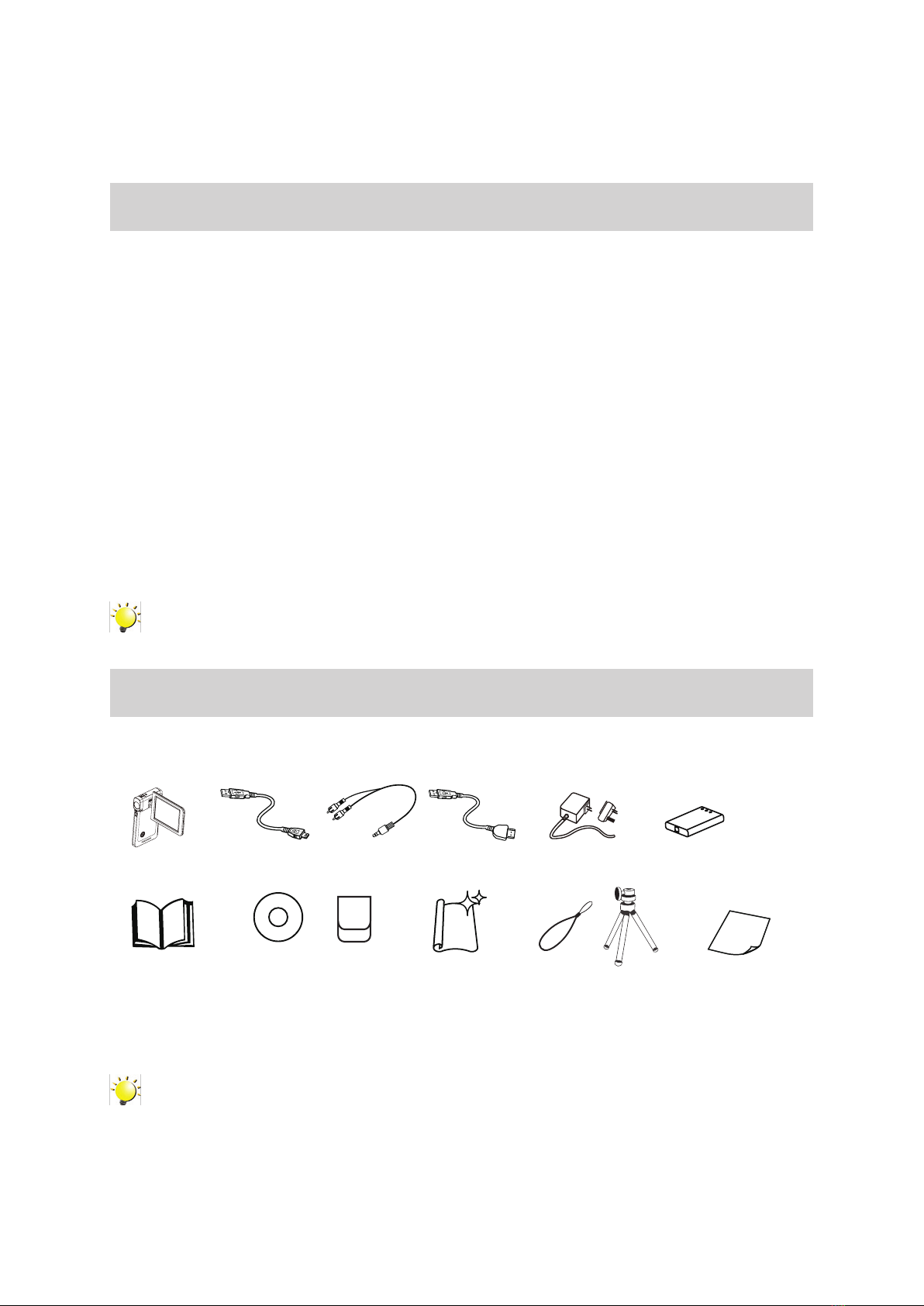

Check the Components
Unpack the package and make sure all standard accessories listed are included:
Note
Please remove the lens protect lm on lens before use.
AC-Adaptor
USB Cable AV Cable HDMI Cable Camcorder Lithium-ion
Rechargeable
Battery
Quick Start Guide CD-ROM
(Software &
User’s Manual)
Warranty LeafletCleaning Cloth
*
*preinstalled in camcorder device
Pouch
Strap
Tripod
*preinstalled in camcorder device
Camcorder USB Cable AV Cable HDMI Cable AC-Adaptor Lithium-ion
Rechargeable
Battery *
Quick Start Guide Pouch Cleaning Cloth Tripod
Warranty Leaet
Strap
CD-ROM
(Software &
User’s Manual)

7
EN
Safety Instructions
Do not drop, puncture or disassemble the camcorder; otherwise the warranty will be voided.1.
Avoid all contact with water, and dry hands before using.2.
Do not expose the camcorder to high temperature or leave it in direct sunlight. Doing so may3.
damage the camcorder.
Use the camcorder with care. Avoid pressing hard on the camcorder body.4.
For your own safety, avoid using the camcorder when there is a storm or lightning.5.
Do not use batteries of different specications. Doing so may lead to the potential for serious 6.
damage.
Remove the battery during long periods between usage, as a deteriorated battery may affect the7.
functionality of the camcorder.
Remove the battery if it shows signs of leaking or distortion.8.
Use only the accessories supplied by the manufacturer.9.
Keep the camcorder out of the reach of infants.10.
Risk of explosion if battery is replaced by an incorrect type.11.
Dispose of used batteries according to the instructions.12.
System Requirements
Microsoft Windows XP/Vista/7•
Intel Pentium 4 2.4GHz or above•
512 MB RAM•
CD-ROM Drive•
1 GB free HDD space•
Available USB port•
16-bit Color Display•
Note
The LCD screen is manufactured using extremely high-precision technology. However, some
tiny black and/or bright dots (white, red, blue or green) may appear on the LCD screen. These
dots are a normal result of the manufacturing process, and do not affect the recording.

8
EN
Front View
Rear View
Playback Button
Record Button
Picture Mode LED Indicator Movie Mode LED Indicator
Tele Button (Up Button)
HDMI Port
TV Port
Mini USB 2.0 Port
Wide Button (Down Button)
OK Button
Right Button
Left Button
SD card Cover
Lens
Light LCD Panel
Macro Switch
Microphone

9
EN
Side View
Bottom View
Mode Button
Power Button Battery Cover
Speaker
Pre-Record/YouTube
Direct Button
Tripod Socket Strap Hook

10
EN
Section 2
Getting Started
Loading the Battery
Before using the camcorder, users must load the Lithium-
ion rechargeable battery come within the package.
Insert the battery according to the correct polarity1.
marks (+ or -).
Close the battery cover rmly.2.
Note
Please remove the insulator on battery connection
before use.
Inserting and Removing an SD Card (Optional)
The camcorder comes with an internal memory which allows you to store pictures and movies. You
can expand the memory capacity by using an optional SD/SDHC memory card.
Insert the memory card into the slot. Please refer to the1.
gure on the right side.
To remove an installed SD card, press the card inwards2.
to release it.
When the card pops out, gently remove it from its slot.3.
Recommended memory capacity: 1GB or above.4.
Note
When a memory card is tted, movies/pictures are saved on the card rather than on the built-•
in memory.
Protecting Data on an SD Card: SD Card is read-only when it is locked. No pictures or•
movies can be recorded when the SD card is locked. Make sure the lock is on the writeable
position before recording any media.
Writeable
position
Write-Protected
Position

11
EN
Turning the Camcorder On and Getting Started
To turn on the camcorder:•
Flip out the LCD panel; the camcorder will turn on automatically.1.
Or press Power Button for one second to turn it on.2.
To record movies: Press• Mode Button to switch to the Movie Record mode. (The Movie Mode LED
Indicator will light up.) Press Record Button to record movies.
To take a picture: Press• Mode Button to switch to the Picture Record mode. (The Picture Mode
LED Indicator will light up.) Press Record Button to take pictures.
To take a picture during movie recording: When recording movies, press• Mode Button ( ) to
capture the image. The Dual record icon ( ) appears on the LCD monitor.
To view stored movies and pictures: Press Playback Button• to switch to the Playback mode. Press
Mode Button to switch between Movie Preview Screen and Picture Preview Screen.
Turning the Camcorder Off
To turn off the camcorder: You can either press the Power Button for one second, or you can place•
the LCD panel back to its original position.

12
EN
Section 3
Record Mode
Button Function
Mode Button:
Switch between Movie Mode and Picture Mode.1.
When recording movies, press t2. o capture the image.
Record Burron:
In Movie Record Mode, press to take movies. To stop recording, press1.
it again.
In Picture Record Mode, press to take pictures.2.
Playback Button:
Switch between Record / Playback Mode.1.
For quick review, press it after recording.2.
In Record menu, press to exit.3.
Direction Button:
Right Button: Resolution Switch (FHD (1080p30)/WVGA 60) (High
(16MP)/Std (5MP)). In Record menu, press to switch to the submenu.
Left Button: Digital Light ON/ Light ON/ Light OFF. In Record menu,
press to return to the main menu.
Tele Button (Up Button):Zoom In. Move between the option items.
Wide Button (Down Button): Zoom out. Move between the option
items.
OK Button: Menu On / Validate the setting.
Power Button: Press down for one second to turn on or turn off the
camcorder.
Pre-Record/YouTube Direct Button:
In Record Mode, press to activate the Pre-Record function and the
movies will be recorded 3 seconds before the Record Button is pressed.
Macro Switch: Switch between Macro Mode and Normal Mode.

13
EN

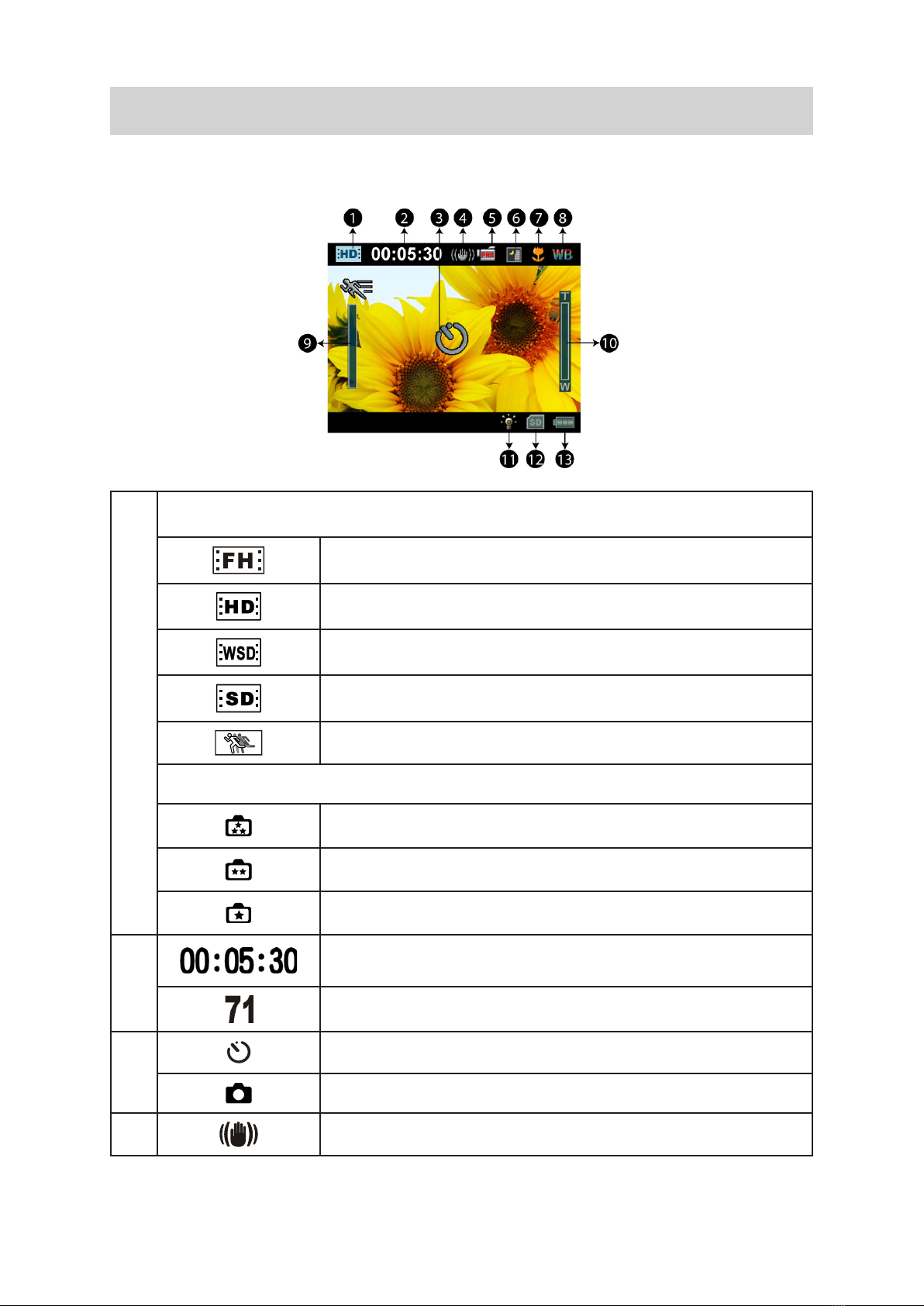

LCD Monitor Information

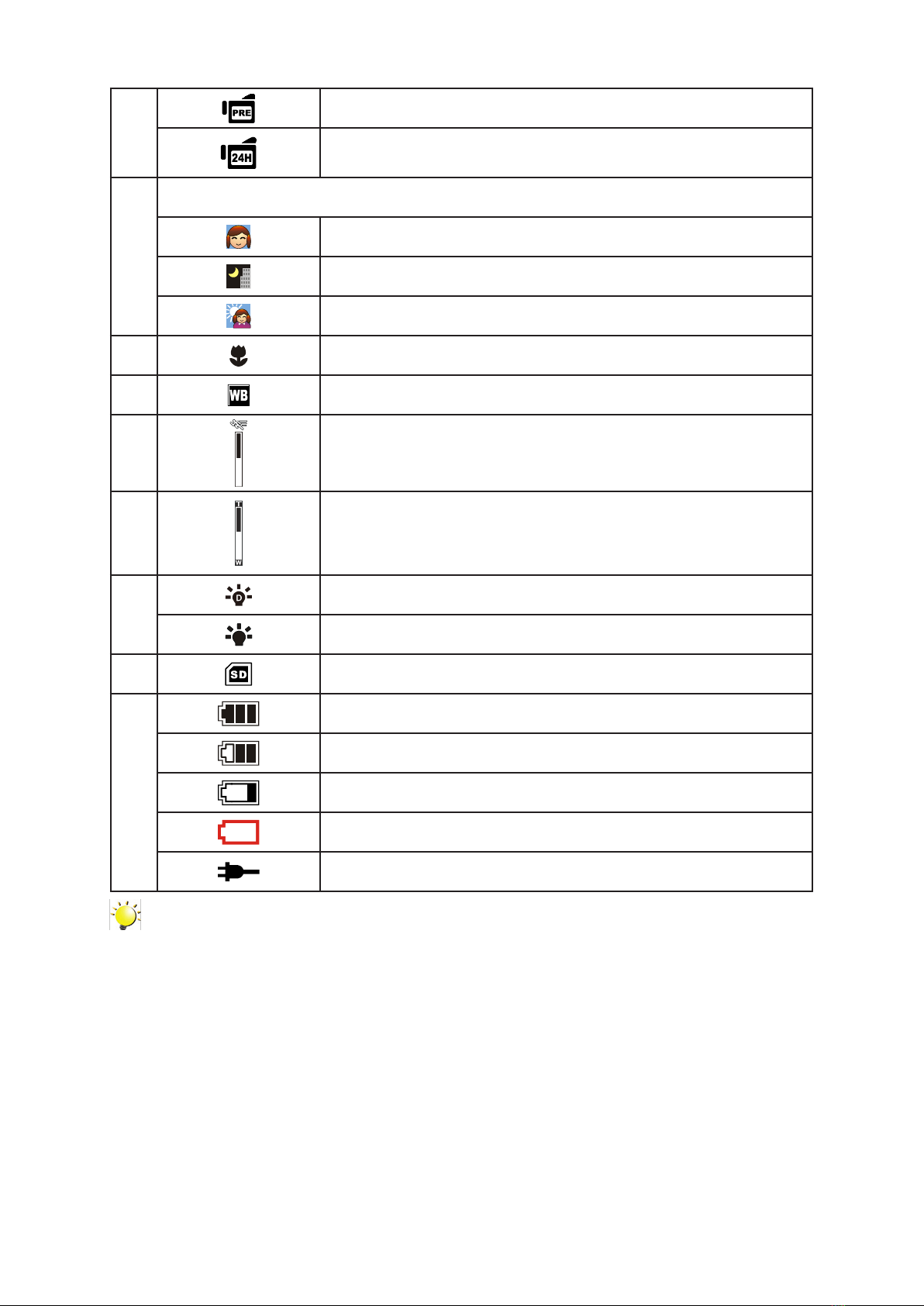

The indicators shown below may display on LCD when movies and pictures are recorded:
(1)
Movie Resolution
FHD (1080p 30)
HD (720p 30)
WVGA60
VGA (4:3)
Slow Motion (Record movies at 320x240(QVGA) resolution.)
Picture Resolution
High (16MP)
Standard (5MP)
Low (3MP)
(2)
Recording time of the movie that can still be taken at current
resolution
Number of images that can still be taken at current resolution
(3)
Self-timer enabled
Dual Record
(4) Stabilization

14
EN
(5)
Pre-Record Mode
Time Lapse
(6)
Scene
Skin
Night
Backlight
(7) Macro Position Focusing
(8) Manual White Balance
(9) Motion Detection
(10)
Zoom meter:
FHD (1080p 30): 1X (1X Digital zoom)
Other video resolution: 1X~4X (4X Digital zoom)
(11)
Digital Light On
Light On
(12) SD Card Inserted
(13)
Battery: full power
Battery: medium power
Battery: low power
Battery: empty power
DC power mode
Note
Scene: B/W / Classic / Negative effect can be previewed immediately without indicator on the
LCD.

15
EN
Movie Recording
In Movie Record Mode (The• Movie Record LED Indicator lights up), press Record Button to
start recording. When a movie is being recorded, a time indicator will display on the LCD monitor.
To stop recording, press Record Button again.
Optional function: Dual record: press• Mode Button ( ) to capture the image. The Dual record
icon ( ) appears on the LCD monitor.
Press Playback Button to view the recorded movies.•
Four resolution settings are available:•
Video Quality
FHD (1080p 30)
HD (720p 30)
WVGA60
VGA (4:3)
Note
The image resolution captured during movies recording is the same as the• video resolution.
Using the Pre-Record Function
The Pre-record function ensures that you will not miss any critical recording opportunities, The•
movies are recorded 3 seconds before the Record Button is pressed.
To use the Pre-Record function:•
Press the Pre-Record Button (1. ) in Record Mode. The Pre-Record icon ( ) appears on
the LCD monitor.
Aim the camcorder at the subject and position it securely.2.
Press the Record Button to start recording. (The camcorder records 3 seconds before you3.
actually press the Record Button.)
To use the function again, set it again.•
Note
Time Lapse function can not be used when the Pre-Record function is activated.•

16
EN
Picture Recording
In Picture Record Mode (The• Picture Record LED Indicator lights up), press Record Button to
take pictures.
Press Playback Button to view the picture.•
Three resolution settings are available:•
Image Quality
High Quality: 16 Mega Pixels
Standard Quality: 5 Mega Pixels
Low Quality: 3 Mega Pixels
Taking Close up Pictures/Movies
Slide the macro switch to change the focus range for different distances of objects.•
To take close-up pictures:•
Slide the macro switch to Macro (1. ).
Press Record Button to start recording or to take picture.2.
In Macro Mode, the macro icon (• ) will appear on the LCD monitor.
Note
Remember to turn the macro switch back to Normal ( )when you are not taking close-up
pictures.
Using Digital Light or Light Function
To use light function:•
Press Right Button, the Digital Light icon (1. ) will appear on the screen to extend dynamic
range for backlight and high contrast sense so that the objects will be brighter and clearer.
Press again, the Light icon (2. ) will appear on the screen. The light will be turned on and
keeps providing light.
Press Record Button to start recording or to take picture.3.
Press Right Button again to suspend the light.4.
Note
The light will be disabled automatically when battery power is low ( ).
Using Digital Zoom
The digital zoom magnies images when recording movies or taking pictures.•
To zoom in/out, press the Tele/Wide Button.1.
The digital zoom can be set from 1x (FHD 1080p 30)/ 1x to 4x (for other video resolution).2.

17
EN
Options for Record Menu
Movie Record Mode Menu
Movie Resolution White Balance Scene Effect
FHD (1080p 30)•
HD (720p 30)•
WVGA 60•
VGA (4:3)•
Auto•
Daylight•
Fluorescent•
Tungsten•
Auto•
Skin•
Night•
Backlight•
B/W (Black/White)•
Classic•
Negative•
Stabilization•
Motion Detect.•
(Motion Detection)
Slow Motion•
Time Lapse•
Picture Record Mode Menu
Picture Resolution White Balance Scene Effect
High (16MP)•
Std (5MP)•
Low (3MP)•
Auto•
Daylight•
Fluorescent•
Tungsten•
Auto•
Skin•
Night•
Backlight•
B/W (Black/White)•
Classic•
Negative•
Self-Timer•
ISO•
Operations for Record Mode
Operation Screen
Press OK Button in Record Mode. The wheel menu1.
will show on the screen.
Use Right/Left Buttons to move between the wheel2.
menu options, which are Resolution, White Balance,
Scene, Effect,and Setting.
The option submenu will pop up while stopping on3.
each option. Press Right Button to enter the submenu.
Use Up/Down Buttons to select the desired option,4.
and then press OK Button to validate.
Or press Playback Button to exit to Reocrd Mode5.
without any change.

18
EN
Movie Resolution
Four resolution settings are available.
FHD (1080p 30): • Record movies at 1920x1080p 30 resolution.
HD (720p 30):• Record movies at 1280x720p 30 resolution.
WVGA60:• Record movies at 848x480p 60 resolution.
VGA (4:3):• Record movies at 640x480p 30 resolution.
Operation Display Screen
In Movie Record Mode, press OK Button to1.
show the wheel menu.
Use Up/Down Buttons to select [Resolution].2.
The submenu of Resolution pops up.
Press Right Button to3. enter the submenu.
Use Up/Down Buttons to select the desired4.
option.
Press OK Button to validate the setting.5.
Picture Resolution
Three resolution settings are available.
High (16MP):• Shoot picture at 4608 x 3456, 16MP quality.
Std (5MP)• (Standard):Shoot picture at 2592 x 1944, 5MP quality.
Low (3MP):• Shoot picture at 2048 x 1536, 3MP quality.
Operation Display Screen
In Picture Record Mode, press OK Button to1.
show the wheel menu.
Use Up/Down Buttons to select [Resolution].2.
The submenu of Resolution pops up.
Press Right Button to3. enter the submenu.
Use Up/Down Buttons to select the desired4.
option.
Press OK Button to validate the setting.5.

19
EN
White Balance
The camcorder adjusts the color balance of images automatically. Three manual white balance
settings are available:
Auto: • The camcorder automatically adjusts white balance.
Daylight: • Under outdoor condition.
Fluorescent: • Under uorescent light condition.
Tungsten: • Under tungsten light condition.
Operation Display Screen
In Movie/Picture Record Mode, press OK Button1.
to show the wheel menu.
Use Up/Down Buttons to select [White Balance].2.
The submenu of White Balance pops up.
Press Right Button to3. enter the submenu.
Use Up/Down Buttons to select the desired4.
option.
Press OK Button to validate the setting.5.
Scene
You can select the mode according to the scene condition.
Auto: • Shoot without any special effect on the image.
Skin: • Shoot with an effect that makes skin tones more natural.
Night• : Use Night Mode for night scenes or low light conditions.
Backlight:• You can take shots when the bright light is behind the subject.
B/W:• The image is converted to black-and-white.
Classic: • The image is converted to a sepia look.
Negative: • The image is converted as the negative of the normal.
Operation Display Screen
In Movie/Picture Record Mode, press OK Button1.
to show the wheel menu.
Use Up/Down Buttons to select [Scene]. The2.
submenu of Scene pops up.
Press Right Button to3. enter the submenu.
Use Up/Down Buttons to select the desired4.
option.
Press OK Button to validate the setting.5.
Note
To avoid blurry pictures, place the camcorder on a at, steady surface, or use a tripod when
taking shots in the Night Mode.

20
EN
Movie Effect
Operation Display Screen
In Movie Record Mode, press OK Button to1.
show the wheel menu.
Use Up/Down Buttons to select [Effect]. The2.
submenu of Effect pops up.
Press Right Button to3. enter the submenu.
Use Up/Down Buttons to select the desired4.
option, and then press Right Button to enter its
option screen.
The Movie Effect submenu contains 45.
options-- Stabilization, Motion Detection, Slow
Motion, and Time Lapse --for you to adjust the
camcorder’s settings.
Stabilization
Record with an effect of reducing camcorder shake to result in more stable videos.
Operation Display Screen
In the Effect submenu, use Up/Down Button to1.
select [Stabilization]. Then press Right Buttton
to enter its option screen.
Use Up/Down Buttons to select the desired2.
option.
Press OK Button to validate the setting.3.
Note
Stabilization doesn’t apply on FHD (1080p 30) and WVGA 60.
Motion Detection
Record videos automatically when the camcorder detects a movement.
Operation Display Screen
In the Effect submenu, use Up/Down Button to1.
select [Motion Detect]. Then press Right Buttton
to enter its option screen.
Use Up/Down Buttons to select the desired2.
option.
Press OK Button to validate the setting.3.
Camcorder will start to record video4.
automatically if it detects a movement. Stop
recording if it does not detect a movement.
