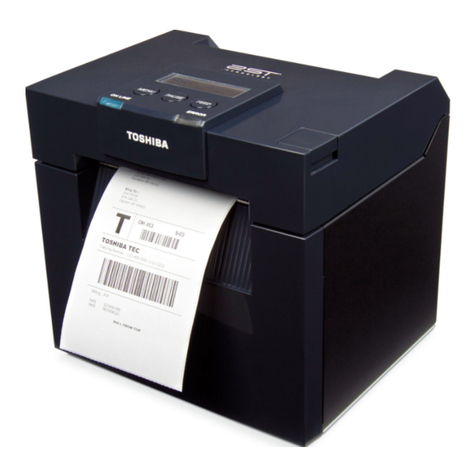

Toshiba DB-EA4D Installation instructions

DB-EA4D
Command manual
Rev.00
TOSHIBATEC SINGAPORE PTE LTD
The content of this document is " TOSHIBA TEC SINGAPORE Intellectual Property". It is strictly confidential and is not
to be disclosed, reproduced, or used without the written agreement from TOSHIBA TEC SINGAPORE PTE LTD
DB-EA4D Command manual (rev.00)

History of Changes
Rev No. Date Page *Action Description of Change
00 08Jun'11 31 1st version
-
-
Note: *Action - Change / Add / Delete
ii DB-EA4D Command manual (rev.00)

Table of Contents
1. General ......................................................................................................................1
2. Emulation ..................................................................................................................2
2.1 Command list..............................................................................................................2
2.2 Command Descriptions...............................................................................................4
2.2.1 Printer Status........................................................................................................................................ 4
2.2.2 Printer Recovery................................................................................................................................... 5
2.2.3 Get Printer ID, Remote Diagnostics Extension..................................................................................... 6
2.2.4 Select Response Format (1F 16).......................................................................................................... 7
2.2.5 Perform Knife Cut ................................................................................................................................. 7
2.2.6 Print....................................................................................................................................................... 8
2.2.7 Initialize Printer ..................................................................................................................................... 8
2.2.8 Set Form Length by dots ...................................................................................................................... 8
2.2.9 Set Paper Type..................................................................................................................................... 8
2.2.10 Advanced Raster Graphics.............................................................................................................. 9
2.2.11 Feed n1 n2 Dot Rows...................................................................................................................... 9
2.2.12 Report Printer configuration........................................................................................................... 10
2.2.13 Get File Header............................................................................................................................. 12
2.2.14 Set Printer Configuration setting ................................................................................................... 13
2.2.15 Printer configuration setting printout - transaction test.................................................................. 14
2.2.16 Rolling ASCII print test (Simplex printing) - transaction test ......................................................... 15
2.2.17 H print test (Simplex printing) - transaction test ............................................................................ 15
2.2.18 Dot check pattern print test (Simplex printing) - transaction test................................................... 16
2.2.19 Graphics print test (Simplex printing) - transaction test ................................................................ 16
2.2.20 Top margin adjustment - Adjustment or setting mode .................................................................. 17
2.2.21 Top margin adjustment for Label - Adjustment or setting mode ................................................... 17
2.2.22 Black mark cut position adjustment - Adjustment or setting mode................................................ 17
2.2.23 Label cut position adjustment - Adjustment or setting mode......................................................... 17
2.2.24 Print density adjustment - Adjustment or setting mode................................................................. 18
2.2.25 Sensor level adjustment - Adjustment or setting mode................................................................. 18
2.2.26 EEPROM reset - Adjustment or setting mode............................................................................... 18
2.2.27 Rolling ASCII print test (Duplex printing) - transaction test........................................................... 19
iii DB-EA4D Command manual (rev.00)

iv DB-EA4D Command manual (rev.00)
2.2.28 H print test (Duplex printing) - transaction test.............................................................................. 19
2.2.29 Dot check pattern print test (Duplex printing) - transaction test.................................................... 19
2.2.30 Graphics print test (Duplex printing) - transaction test.................................................................. 20
2.2.31 Switch to Flash Download Mode................................................................................................... 21
2.2.32 Return CRC................................................................................................................................... 21
2.2.33 Download to Flash Memory........................................................................................................... 21
2.2.34 Reboot the Printer to Switch to Main Firmware............................................................................. 22
2.2.35 Cancel Downloading...................................................................................................................... 22
2.2.36 Check current active FW............................................................................................................... 22
2.2.37 Reboot the Printer ......................................................................................................................... 22
2.2.38 Select Thermal Printing Modes ..................................................................................................... 23
2.2.39 Select Thermal Printing Side......................................................................................................... 23
2.2.40 Start Double Sided Printing........................................................................................................... 24
2.2.41 UDP 3000 port command.............................................................................................................. 28
2.2.42 UDP 3001 port command.............................................................................................................. 28
2.2.43 I/F Change special command........................................................................................................ 28
3. USB Interface ..........................................................................................................29
3.1 Sequence..................................................................................................................29
4. Appendix .................................................................................................................30
4.1 Printer Configuration Form........................................................................................30
4.2 Status command.......................................................................................................31

1. General
Printer basic functions
Print technology Direct Thermal printer
Print resolution 203dpi horizontal and vertical
Print head 864 dots
I/F
USB 2.0 High speed, Printer Class
Parallel (Compatible, Nibble)
Ethernet 10BASE-t, 100BASE-TX (IEEE802.3 Conforming)
Auto negotiation 10/100Mbps Full/Half Duplex
TCP/IP v4
Printer command
Raster graphics command only as a print command.
Other commands ;
Status command, Duplex mode command, Flash download command,
Online diagnostics command, Printer configuration command
Printer configuration Command and Set up mode can change the printer configuration.
Flash download Boot and Main firmware can be downloaded by using a Flash
Download Utility.
Character set ASCII 96 characters only
SBCS Font 20(H) x 34(V) , 16.9 cpi
Printable dots
Max : 832dots (104mm)
58mm: Graphics : 432dots (54mm)
SBCS : 432dots (36 Columns)
80mm: Graphics : 576dots (72mm)
SBCS : 576dots (48 Columns)
4": Graphics : 752dots (94mm)
SBCS : 744dots (62 Columns)
5.1": Graphics : 832dots (104mm)
SBCS : 832dots (68 Columns)
Print speed Maximum 6 ips
O.P. panel 2 Line LCD, 3 Switches, 2 LEDs (Power on, Error)
*) Refer to Control Panel manual for the control of LCD.
Paper Loading Automatic Paper Loading
Document length Minimum Length = 70mm
Maximum Length = 554.8mm (for each side)
Paper cutter Full cut (Rotary type) : Option
Media Max 216mm (W) x 7 inch (diameter)
Dual color Not support
Black Dot Mark Support
Label mode Support
Duplex printing Support
1 DB-EA4D Command manual (rev.00)

2. Emulation
2.1 Command list
The printer supports the following commands.
Command sequence Function Remarks
Status Commands (Real Time)
-------------------- 14H 01H 00H Printer Status
-------------------- 15H 02H n Printer Recovery
Status Commands (Batch Mode)
GS 0 EOT 1DH 30H 04H Get Printer ID, Remote Diagnostics Extension
US SYN 1FH 16H Select Response Format
Printer Function Commands
ESC i 1BH 69H Perform Knife Cut
ESC FF 1BH 0CH Print
ESC @ 1BH 40H Initialize Printer
ESC P 1BH 50H Set Form Length by dots
ESC Q 1BH 51H Set Paper Type
Print Commands
ESC . 1BH 2EH Advanced Raster Graphics
US a 1FH 61H Feed n1 n2 Dot Rows
Printer Configuration Command
GS 0 ENQ 1DH 30H 05H Report Printer configuration
GS 0 HT 1DH 30H 09H Get File Header
US DC3 1FH 13H Set Printer configuration setting
On Line Diagnostics Commands
GS d 01H 1DH 64H 01H Printer configuration setting printout
GS d 03H 1DH 64H 03H Rolling ASCII print test(Simplex Printing)
GS d 04H 1DH 64H 04H H print test(Simplex Printing)
GS d 05H 1DH 64H 05H Dot check pattern print test(Simplex Printing)
GS d 07H 1DH 64H 07H Graphics print test(Simplex Printing)
GS d 10H 1DH 64H 10H Top margin adjustment
GS d 11H 1DH 64H 10H Top margin adjustment for Label
GS d 12H 1DH 64H 12H Black mark cut position adjustment
GS d 13H 1DH 64H 12H Label cut position adjustment
GS d 14H 1DH 64H 14H Print density adjustment
GS d 15H n 1DH 64H 15H n Sensor level adjustment
GS d 16H 1DH 64H 16H EEPROM reset
2 DB-EA4D Command manual (rev.00)

Command sequence Function Remarks
GS d 23H 1DH 64H 23H Rolling ASCII print test(Duplex Printing)
GS d 24H 1DH 64H 24H H print test(Duplex Printing)
GS d 25H 1DH 64H 25H Dot check pattern print test(Duplex Printing)
GS d 27H 1DH 64H 27H Graphics print test(Duplex Printing)
Flash Download Commands
ESC [ } 1BH 5BH 7DH Switch to Flash Download Mode
GS DC2 1DH 12H Return CRC
GS DC3 1DH 13H Download to Flash Memory
GS 80H 1DH 80H Reboot the Printer to Switch to Main Firmware
GS 82H 1DH 82H Cancel downloading
GS F0H 1DH F0H Check current active FW
GS FFH 1DH FFH Reboot the Printer
Duplex printing command
US b 1FH 62H Select Thermal Printing Modes
US c 1FH 63H Select Thermal Printing Side
US d 1FH 64H Start Double Sided Printing
UDP 3001 port command
ESC n 20 1B 6E 20 All Ethernet Information
ESC n 21 1B 6E 21 Serial number
ESC n 22 1B 6E 22 Model number
ESC n 23 1B 6E 23 MAC address
3 DB-EA4D Command manual (rev.00)

2.2 Command Descriptions
2.2.1 Printer Status
ASCII: Since this command is used by Control transfer, command strings are not defined. (USB)
DC4 01 00 (Parallel I/F)
Hexadecimal: 14 01 00 (bRequest = 0x14, wValue = 0x01 0x00)
Decimal: 20 01 00
This command returns the following status.
The responses consist of 6 bytes.
Byte #1 : Sensor status-1
Bit Function 0 1
0 Undefined Fixed to 0 -
1 PE(Paper End) sensor Not PE PE
2 BM(Black Mark) sensor Not Black Black Mark
3 Cover Open sensor Close Open
4 Cutter HP(Home Position) sensor HP Not HP
5 Feed Switch Released Pushed
6 Paper Exit/Jam sensor Not Jam Jam
7 Undefined Fixed to 0 -
Byte #2 : Sensor status-2
Bit Function 0 1
0 TOF sensor* / Label Sensor (Label/Liner or off) Paper Off Paper On
1 CAM motor HP(Home Position) sensor* HP Not HP
2 Label sensor (Liner or Label) Liner Label
3 2nd CAM motor HP(Home Position) sensor* HP Not HP
4 Undefined Fixed to 0 -
5 Undefined Fixed to 0 -
6 Undefined Fixed to 0 -
7 Undefined Fixed to 0 -
Byte #3 : Printer status
Bit Function 0 1
0 Printing status Not Printing Printing***
1 Cutting status Not Cutting Cutting***
2 Receiving status Not Receiving Receiving
3 Busy status Not Busy Busy
4 Printer status (Ready/Pause) Ready Pause
5 Undefined Fixed to 0 -
6 Warning status No warning Warning*
7 Error status No error Error**
**It is set when there is an error in Error status1 and 2 (Bit #4, #5).
*** Not set during Paper loading (Bit #0, #1).
Byte #4 : Error status-1
Bit Function 0 1
0 Paper jam No error Error
1 Cutter jam (option) No error Error
2 Thermal head temperature No error Error
3 Black mark detection error No error Error
4 Paper Empty No error Error
5 Cover open Close Open
6 Unable to load paper Success Unable
7 CAM motor jam (1st or 2nd) No error Error
4 DB-EA4D Command manual (rev.00)

Byte #5 : Error status-2
Bit Function 0 1
0 Label error in Label mode (no gap or no label found) No error Error
1 Over the length of printing area in label mode No error Error
2 Memory error (EERPOM) Read/Write error No error Error
3 Perforation detection error No error Error
4 Over the length of printing area in perforation mode No error Error
5 Thermal Head Error No error Error
6 Undefined Fixed to 0 -
7 Undefined Fixed to 0 -
Byte #6 : Warning
Bit Function 0 1
0 Undefined Fixed to 0 -
1 24V Anomaly Normal Anomaly
2 Undefined Fixed to 0 -
3 Warning due to Over Heated No Warning Over Heated
4 Memory error (EERPOM) Check sum error No Warning Memory error
5 Non CG (for Diag) No Warning Non CG
6 Sensor Adjustment fail No Warning Adjustment fail
7 Thermal Head Warning No Warning Elements fail
2.2.2 Printer Recovery
ASCII: Since this command is used by Control transfer, command strings are not defined. (USB)
NAK 02 n (Parallel I/F)
Hexadecimal: 15 02 n (bRequest = 0x15, wValue = 0x02 n)
Decimal: 21 02 n
Values of n: 01 = Recover and clear buffers
02 = Reboot
The printer responds to a request from the host specified by n. The operations performed depend on the
value of n,according to the following parameters.
n = 1:
Recover from an error state after clearing the Receive buffer and Print buffers.
This sequence is ignored except when the printer is busy due to an error condition.
n = 2:
Make H/W reset by watchdog timer. Printer initializes itself same as power-on initialization.
5 DB-EA4D Command manual (rev.00)

2.2.3 Get Printer ID, Remote Diagnostics Extension
ASCII: GS 0 EOT n
Hexadecimal: 1D 30 04 n
Decimal: 29 48 04 n
Values of n: Refer to table - The printer sends the response that is set by n.
Response: n <response data> 0Dh
6 < response data length < 17
n (hex) Remote diagnostic item Function
23 Printer Serial number
(11 digit ASCII) Return Printer serial number (total 13 bytes)
n (hex) Remote diagnostic item Function
27 Printer Model number
(15 digit ASCII) Return Printer model number (total 17 bytes)
n (hex) Remote diagnostic item Function
83 Print line tally
(8 digit ASCII numeric) Return print line tally (total 10 bytes)
n (hex) Remote diagnostic item Function
87 Knife cut tally
(8 digit ASCII numeric) Return Knife cut tally (total 10 bytes)
n (hex) Remote diagnostic item Function
93 Hours on tally
(8 digit ASCII numeric) Return Hours on tally (total 10 bytes)
n (hex) Remote diagnostic item Function
97 Boot firmware version
(4 digit ASCII) Return boot firmware version (total 6 bytes)
n (hex) Remote diagnostic item Function
A3 Main firmware version
(4 digit ASCII) Return flash firmware version (total 6 bytes)
n (hex) Remote diagnostic item Function
A7 Flash cycle tally,
(8 digit ASCII numeric) Return Flash cycles tally (total 10 bytes)
n (hex) Remote diagnostic item Function
AB Cutter jam tally,
(8 digit ASCII numeric) Return Cutter jam tally (total 10 bytes)
n (hex) Remote diagnostic item Function
AF Cover open tally,
(8 digit ASCII numeric) Return Cover open tally (total 10 bytes)
n (hex) Remote diagnostic item Function
B3 Max temperature tally
(8 digit ASCII numeric) Return Max temperature tally (total 10 bytes)
6 DB-EA4D Command manual (rev.00)

n (hex) Remote diagnostic item Function
B7 SBCS font version
(4 digit ASCII) Return SBCS font version (total 6 bytes)
n (hex) Remote diagnostic item Function
BF Paper jam tally
(8 digit ASCII numeric) Return paper jam tally (total 10 bytes)
n (hex) Remote diagnostic item Function
E3 CAM motor jam tally,
(8 digit ASCII numeric) Return CAM motor jam tally (total 10 bytes)
n (hex) Remote diagnostic item Function
F3 FTP loader version
(4 digit ASCII) Return FTP loader version (total 6 bytes)
2.2.4 Select Response Format (1F 16)
ASCII: US SYN n m
Hexadecimal: 1F 16 n m
Decimal: 31 22 n m
Values of m: Reserved (0x00)
n = 00H : Only Response Data(Default)
01H : Response Data with command code and length
This command only affects the response for Batch status commands.
The setting is stored to EEPROM.
Related Information:
Refer to Status command.
Exception:
This command affects the response formant of GS 0x30 xx commands.
2.2.5 Perform Knife Cut
ASCII: ESC i
Hexadecimal: 1B 69
Decimal: 27 105
Cut the paper. After cutting the paper, the left paper in the printer is returned to the standby position
automatically before next printing job is started, if no data is sent following this cut command.
This command is ignored when the length of the cut paper is less than 70mm.
If the printer receives this command when the processed document length is less than 70mm, it is ignored.
If this command is sent without the cutter option, paper will be fed to the manual cut position. After that
paper will be returned to the standby position when Print command is sent even if that paper was not cut
manually.
7 DB-EA4D Command manual (rev.00)

2.2.6 Print
ASCII: ESC FF
Hexadecimal: 1B 0C
Decimal: 27 12
The processed data is printed and the printed paper is transported to the cut position.After processing this
command, the paper is returned to the standby position of next page by a following command except paper
cut command. In the case of the paper cut command, the paper is cut immediately and then the paper is
returned to the standby position.
This command is ignored in the duplex print mode. In the duplex print mode, Start Double Sided Printing
command (1F 64) is effective instead of FF command.
2.2.7 Initialize Printer
ASCII: ESC @
Hexadecimal: 1B 40
Decimal: 27 64
Clear the print line buffer and reset attributes. If the printer receives this command after the printer receives
any print data, the printer prints the received print data, and executes form feed and cut, and then clear the
print line buffer and resets attributes.
If the printer is in 2ST mode by the command of US b (1Fh 62h) and US c (1Fh 63h), printing mode returns
the default mode of the configuration.
2.2.8 Set Form Length by dots
ASCII: ESC P nL nH
Hexadecimal: 1B 50 nL nH
Decimal: 29 80 nL nH
Value of n: nL + nH x 256
Range of n: [for 203dpi printer] 560 (0230H)* ≤(nL + nH x 256) ≤4434 (1152H)**
[for 300dpi printer] 826 (033AH)* ≤(nL + nH x 256) ≤6553 (1999H)**
* 2.75inch(70mm)
** 21.8inch(554.8mm)
2.2.9 Set Paper Type
ASCII: ESC Q n m
Hexadecimal: 1B 51 n m
Decimal: 29 81 n m
Value of n: 00H: Black mark
01H: Document length
02H: Label
03H: Perforation (with hole)
04H: Cut Sheet
Values of m: Reserved (0x00)
8 DB-EA4D Command manual (rev.00)

2.2.10 Advanced Raster Graphics
ASCII: ESC . c rL rH i d1 d2…dn
Hexadecimal: 1B 2E c rL rH i d1 d2…dn
Decimal: 27 46 c rL rH i d1 d2…dn
Value of c: 00H : Black only
1’st data(d1 - dn) is for red&black color and 2’nd data(d1 - dn) is for black color only.
Value of r: Number of vertical dot count: (rL + rH x 256)
Range of r: [for 203dpi printer]: 0 ≤(rL + rH x 256)≤4434
Value of i: Reserved (0x00)
Value of n: Number of horizontal data count
[for 203dpi printer]: 108 x (rL + rH x 256)
Null length in left side Printable length Null length in right side
Paper width in
configuration bytes dots bytes dots bytes dots
58 mm 27 216 54 422 27 216
80 mm 18 144 72 576 18 144
4 inch 7 56 94 752 7 56
5.1 inch 2 16 104 832 2 16
When the image data size specified by this command is more than the image buffer size, overflowed image
data is discarded.
2.2.11 Feed n1 n2 Dot Rows
ASCII: US a n1 n2
Hexadecimal: 1F 61 n1 n2
Decimal: 31 97 n1 n2
Value of n: n1 + n2 x 256
Range of n:[for 203dpi printer] 0 ≤(n1 + n2 x 256) ≤4434
[for 300dpi printer] 0 ≤(n1 + n2 x 256) ≤6553
Feed the paper (n1,n2) dot rows without printing.
9 DB-EA4D Command manual (rev.00)

10 DB-EA4D Command manual (rev.00)
2.2.12 Report Printer configuration
ASCII: GS 0 ENQ ｎ
Hexadecimal: 1D 30 05 ｎ
Decimal: 29 48 05 ｎ
Values of n: Reserved (0x00)
This command returns the following configuration setting as response data.
Response data length consists of 16bytes.
Response Configuration Setting Data
(Hexadecimal) Description
1st byte Paper type
00 01
02 (Default)
03
04
BM
Document length
Label mode
Perforation
Cut Sheet
2nd byte Document length
(Low byte) 0x00 - 0xFF*1
(Default :0x30)
3rd byte Document length
(High byte) 0x02 - 0x11 (Default :0x02)
The length is defined by dots.
Min. length = 2.75” (0x0230dot)
Max. length = 21.8”(0x1152dot)
4th byte Print density for front head 0xF1 - 0x0F
(Default :0x00) Lightest = 0xF1 Darkest = 0x0F
5th byte Print density for back
head 0xF1 - 0x0F (Default :0x00) Lightest = 0xF1 Darkest = 0x0F
6th byte Power control 00(Default)
01 Low (55W) High (100W)
7th byte (Reserved)
8th byte Print speed
00(Default) 01
02
03
04
Variable
6.0 ips(203dpi)
5.0 ips
4.0 ips
3.0 ips
9th byte Error page recovery 00(Default)
01 OFF ON
10th byte (Reserved)

11th byte Black mark cut position
offset*2 0xC5–0x3B (Default : 0x05) resolution=10/203"=1.25mm (Default Offset = 6.25mm)
(Off set max = 73.82mm)
12th byte Paper width 00
01
02 (Default)
03
04
58mm
80mm
4.0”
5.1”
Not used
13th byte Max. Speed of Variable 00(Default)
01
02
03
6.0 ips
5.0 ips
4.0 ips
3.0 ips
14th byte (Reserved)
15th byte (Reserved)
16th byte Paper Loading 00(Default)
01 Auto loading Manual loading (by Feed SW)
*1When the value of n3 (Document length High byte) is 0x02, n2 (Low byte) should be set more
than 0x30, and also should be set less or equal 0x52 when n3 is 0x11.
*2 Default cut position of BM is as follows.
Default Cut Position
0.5”
6.25 mm (Default offset value = 0x05)
Paper feed direction
The origin (offset value = 0x00) of cut position is the edge of a black mark on the side of the paper feed
direction. If cut position is required to shift to any position depending on unique media, this parameter
will be used.
11 DB-EA4D Command manual (rev.00)

2.2.13 Get File Header
ASCII: GS 0 HT n
Hexadecimal: 1D 30 09 n
Decimal: 29 48 09 n
Get the File Header information specified by n.
n = 00 : Boot
01 : Main FW
02 : Reserved
03 : SBCS CG
04 : Reserved
05 : Reserved
06 : Reserved
07 : FTP Loader F/W
Response: Specified file header is returned. The file header consists of 16 byte as follows.
ex. Ack + <Byte0 – Byte15>
File Header Format :
Byte0 2 2ST 4inch Label Printer (DB-EA4D)
B Boot/Loader
M Main FW
S SBCS
Byte1
F FTP Loader F/W
Byte2 xx Number of Sector
Byte3-8 ddmmyy the date that the binary was made
Byte9-13 xx.xx xx.xx means the version number
Byte14-15 CRC 2 bytes
12 DB-EA4D Command manual (rev.00)

2.2.14 Set Printer Configuration setting
ASCII: US DC3 n1, n2 … n16
Hexadecimal: 1F 13 n1, n2 … n16
Decimal: 31 19 n1, n2 … n16
Set the printer configuration as below table. The printer is reset after receiving this command to activate
the configuration setting
Setting values become effective after 600 msec. This time is for EEPROM writing.
Configuration Setting
Data
(Hexadecimal) Description
n1 Paper type
00 01
02 (Default)
03
04
BM
Document length
Label mode
Perforation
Cut Sheet
n2 Document length
(Low byte) 0x00 - 0xFF*1
(Default :0x30)
n3 Document length
(High byte) 0x02 - 0x11 (Default :0x02)
The length is defined by dots.
Min. length = 2.75” (0x0230dot)
Max. length = 21.8”(0x1152dot)
n4 Print density for front head 0xF1 - 0x0F
(Default :0x00) Lightest = 0xF1 Darkest = 0x0F
n5 Print density for back
head 0xF1 - 0x0F (Default :0x00) Lightest = 0xF1 Darkest = 0x0F
n6 Power control 00(Default)
01 Low (55W) High (100W)
n7 (Reserved)
n8 Print speed
00(Default) 01
02
03
04
Variable
6.0 ips
5.0 ips
4.0 ips
3.0 ips
n9 Error page recovery 00(Default)
01 OFF ON
n10 (Reserved)
13 DB-EA4D Command manual (rev.00)

Configuration Setting
Data
(Hexadecimal) Description
n11 Black mark cut position
offset*20xC5–0x3B
(Default : 0x05) resolution=10/203"=1.25mm (Default Offset = 6.25mm)
(Off set max = 73.82mm)
n12 Paper width 00
01
02 (Default)
03
04
58mm
80mm
4.0”
5.1”
Not used
n13 Max. Speed of Variable 00(Default)
01
02
03
6.0 ips
5.0 ips
4.0 ips
3.0 ips
n14 (Reserved)
n15 (Reserved)
n16 Paper Loading 00(Default)
01 Auto loading Manual loading (by Feed SW)
*1When the value of n3 (Document length High byte) is 0x03, n2 (Low byte) should be set more
than 0x3A, and also should be set less or equal 0xB3 when n3 is 0x0D.
*2 Default cut position of BM is as follows.
Paper feed direction
6.25 mm (Default offset value = 0x05)
0.5”
Default Cut Position
The origin (offset value = 0x00) of cut position is the edge of a black mark on the side of the paper feed
direction. If cut position is required to shift to any position depending on unique media, this parameter
will be used.
2.2.15 Printer configuration setting printout - transaction test
ASCII: GS d 01H n
Hexadecimal: 1D 64 01 n
Decimal: 29 100 01 n
Values of n: Reserved (0x00)
This command prints the printer configuration settings. If there are any printable data when the printer
receives this command, the printer prints out previous data. After that, the printer performs this command.
As for the cut position, it is cut according to the setting of paper type.
Refer to Printer Configuration Form inAppendix.
14 DB-EA4D Command manual (rev.00)

2.2.16 Rolling ASCII print test (Simplex printing) - transaction test
ASCII: GS d 03H n
Hexadecimal: 1D 64 03 n
Decimal: 29 100 03 n
Values of n: Reserved (0x00)
This command performs rolling ASCII print test only once, so the page number is always 00000001. If
there are any printable data when the printer receives this command, the printer prints out previous data.
After that, the printer performs this command.
* It’s for the paper length mode. If the paper type is BM mode, the paper is cut at the next BM (w/ Cutter) or
fed the next BM to cut position (w/o Cutter). If the paper type is Label mode, the paper is cut at the next
gap (w/ Cutter) or fed the next gap to cut position (w/o Cutter).
2.2.17 H print test (Simplex printing) - transaction test
00000001
!!”#$%&’()*+,-./01234･･･････････････････････
!”#$%&’()*+,-./012345･･･････････････････････
”
#$%
&’
()
*+
,
-.
/
0123456･･･････････････････････ 5lpi (70mm)*
2.75inch
Page number
Depend on a paper width
(Refer to Printer Basic Function.)
ASCII: GS d 04H n
Hexadecimal: 1D 64 04 n
Decimal: 29 100 04 n
Values of n: Reserved (0x00)
This command performs H print test only once, so the page number is always 00000001.
If there are any printable data when the printer receives this command, the printer prints out previous data.
After that, the printer performs this command.
00000001
HHHHHHHHHHHHHHHHHHHH････････････････････････
HHHHHHHHHHHHHHHHHHHH････････････････････････ 5lpi
(
70mm
)
*
2.75inch
Page number
Depend on a paper width
(Refer to Printer Basic Function.)
* It’s for the paper length mode. If the paper type is BM mode, the paper is cut at the next BM (w/ Cutter) or
fed the next BM to cut position (w/o Cutter). If the paper type is Label mode, the paper is cut at the next
gap (w/ Cutter) or fed the next gap to cut position (w/o Cutter).
15 DB-EA4D Command manual (rev.00)

2.2.18 Dot check pattern print test (Simplex printing) - transaction test
ASCII: GS d 05H n
Hexadecimal: 1D 64 05 n
Decimal: 29 100 05 n
Values of n: Reserved (0x00)
This command performs dot check pattern print test only once, so the page number is always 00000001. If
there are any printable data when the printer receives this command, the printer prints out previous data.
After that, the printer performs this command.
12.5% slant line pattern 2.75inch(70mm)*
00000001
Page number
Depend on a paper width
(Refer to Printer Basic Function.)
* It’s for the paper length mode. If the paper type is BM mode, the paper is cut at the next BM (w/ Cutter) or
fed the next BM to cut position (w/o Cutter). If the paper type is Label mode, the paper is cut at the next
gap (w/ Cutter) or fed the next gap to cut position (w/o Cutter).
2.2.19 Graphics print test (Simplex printing) - transaction test
ASCII: GS d 07H n
Hexadecimal: 1D 64 07 n
Decimal: 29 100 07 n
Values of n: Reserved (0x00)
This command performs graphics pattern print test only once, so the page number is always 00000001. If
there are any printable data when the printer receives this command, the printer prints out previous data.
After that, the printer performs this command.
* In the case of the paper length mode. If the setting of paper type is BM mode, the paper is cut at the next
BM (w/ Cutter) or fed the next BM to cut position (w/o Cutter). If the paper type is Label mode, the paper is
cut at the next gap (w/ Cutter) or fed the next gap to cut position (w/o Cutter).
25% duty pattern
50% duty pattern
100% dut
y
p
attern
00000001
Depend on a paper width
(Refer to Printer Basic Function.)
Page number
2.75inch(70mm)*
16 DB-EA4D Command manual (rev.00)
