Toshiba TEC B-450-HS-QQ Series User manual

TEC Label Printer
B-450-HS-QQ SERIES
Owner’s Manual

Copyright © 2000
by TOSHIBA TEC CORPORATION
All Rights Reserved
570 Ohito, Ohito-cho, Tagata-gun, Shizuoka-ken, JAPAN
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuant
toPart15oftheFCCRules. Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful
interferencewhentheequipmentisoperatedinacommercialenvironment. Thisequipmentgenerates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operations of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense. (for USA only)
"ThisClassAdigitalapparatusmeetsallrequirementsoftheCanadianInterference-CausingEquipment
Regulations."
"Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur de Canada." (for CANADA only)
Changesormodificationsnotexpresslyapprovedbymanufacturerforcompliancecouldvoidtheuser's
authority to operate the equipment.
(for QQ only)

(i)
Safety Summary EO1-33019
Safety Summary
Personal safety in handling or maintaining the equipment is extremely important. Warnings and Cautions
necessary for safe handling are included in this manual. All warnings and cautions contained in this
manual should be read and understood before handling or maintaining the equipment.
Do not attempt to effect repairs or modifications to this equipment. If a fault occurs that cannot be rectified
using the procedures described in this manual, turn off the power, unplug the machine, then contact your
authorized TOSHIBA TEC representative for assistance.
Meanings of Each Symbol
This symbol indicates warning items (including cautions).
Specific warning contents are drawn inside the symbol.
(The symbol on the left indicates a general caution.)
This symbol indicates prohibited actions (prohibited items).
Specific prohibited contents are drawn inside or near the symbol.
(The symbol on the left indicates “no disassembling”.)
This symbol indicates actions which must be performed.
Specific instructions are drawn inside or near the symbol.
(The symbol on the left indicates “disconnect the power cord plug from the outlet”.)
Do not use voltages other than the
voltage (AC) specified on the rating
plate, as this may cause fire or
electric shock.
Any other than the
specified AC voltage
is prohibited.
WARNING This indicates that there is the risk of death or serious injury if the
machines are improperly handled contrary to this indication.
Prohibited Do not plug in or unplug the power
cord plug with wet hands as this may
cause electric shock.
Do not place metal objects or
water-filled containers such as flower
vases, flower pots or mugs, etc. on
top of the machines. If metal objects
or spilled liquid enter the machines,
this may cause fire or electric
shock.
If the machines share the same
outlet with any other electrical
appliances which consume large
amounts of power, the voltage will
fluctuate widely each time these
appliances operate. Be sure to
provide an exclusive outlet for the
machine as this may cause the
machines to malfunction.
Do not insert or drop metal,
flammable or other foreign objects into
the machines through the ventilation
slits, as this may cause fire or electric
shock.
Prohibited Prohibited
Prohibited Do not scratch, damage or modify
the power cords. Also, do not place
heavy objects on, pull on, or exces-
sively bend the cords, as this may
cause fire or electrical shock.
Prohibited
Continued use of the machines in an
abnormal condition such as when the
machines are producing smoke or
strange smells may cause fire or elec-
tric shock. In these cases, immedi-
ately turn off the power switches and
disconnect the power cord plugs from
the outlet. Then, contact your author-
ized TOSHIBA TEC representative for
assistance.
Disconnect
the plug.
If the machines are dropped or their
cabinets damaged, first turn off the
power switches and disconnect the
power cord plugs from the outlet, and
then contact your authorized
TOSHIBA TEC representative for
assistance. Continued use of the
machine in that condition may cause
fire or electric shock.
Disconnect
the plug.

(ii)
Safety Summary EO1-33019
CAUTIONThis indicates that there is the risk of personal Injury or damage to
objects if the machines are improperly handled contrary to this indication.
If foreign objects (metal fragments,
water, liquids) enter the machines,
first turn off the power switches and
disconnect the power cord plugs from
the outlet, and then contact your
authorized TOSHIBA TEC repre-
sentative for assistance. Continued
use of the machine in that condition
may cause fire or electric shock.
Disconnect
the plug.
Do not remove covers, repair or
modify the machine by yourself. You
may be injured by high voltage, very
hot parts or sharp edges inside the
machine.
No disassem-
bling.
Ensure that the equipment is
properly grounded. Extension cables
should also be grounded. Fire or
electric shock could occur on
improperly grounded equipment.
Connect a
grounding
wire.
When unplugging the power cords,
be sure to hold and pull on the plug
portion. Pulling on the cord portion
may cut or expose the internal wires
and cause fire or electric shock.
Disconnect
the plug.
Precautions
The following precautions will help to ensure that this machine will continue to function correctly.
• Try to avoid locations that have the following adverse conditions:
* Temperatures out of the specification * Direct sunlight * High humidity
* Shared power source * Excessive vibration * Dust/Gas
• The cover should be cleaned by wiping with a dry cloth or a cloth slightly dampened with a mild
detergent solution. NEVER USE THINNER OR ANY OTHER VOLATILE SOLVENT on the plastic
covers.
• USE ONLY TOSHIBA TEC SPECIFIED paper and ribbons.
• DO NOT STORE the paper or ribbons where they might be exposed to direct sunlight, high tem-
peratures, high humidity, dust, or gas.
• Ensure the printer is operated on a level surface.
• Any data stored in the memory of the printer could be lost during a printer fault.
• Try to avoid using this equipment on the same power supply as high voltage equipment or equip-
ment likely to cause mains interference.
• Unplug the machine whenever you are working inside it or cleaning it.
• Keep your work environment static free.
• Do not place heavy objects on top of the machines, as these items may become unbalanced and fall
causing injury.
• Do not block the ventilation slits of the machines, as this will cause heat to build up inside the
machines and may cause fire.
• Do not lean against the machine. It may fall on you and could cause injury.
• Care must be taken not to injure yourself with the printer paper cutter.
• Unplug the machine when it is not used for a long period of time.
Request Regarding Maintenance
• Utilize our maintenance services.
After purchasing the machine, contact your authorized TOSHIBA TEC representative for assistance
once a year to have the inside of the machine cleaned. Otherwise, dust will build up inside the
machines and may cause a fire or a malfunction. Cleaning is particularly effective before humid
rainy seasons.
• Our preventive maintenance service performs the periodic checks and other work required to
maintain the quality and performance of the machines, preventing accidents beforehand.
For details, please consult your authorized TOSHIBA TEC representative for assistance.
• Using insecticides and other chemicals
Do not expose the machines to insecticides or other volatile solvents. This will cause the cabinet or
other parts to deteriorate or cause the paint to peel.

TABLE OF CONTENTS
1. INTRODUCTION ....................................................................................1- 1
1.1 APPLICABLE MODEL ...................................................................1- 1
1.2 ACCESSORIES .............................................................................1- 1
2. SPECIFICATIONS .................................................................................2- 1
2.1 GENERAL SPECIFICATIONS.......................................................2- 1
2.2 PRINTING SPECIFICATIONS.......................................................2- 1
2.3 PAPER (LABEL) SPECIFICATIONS .............................................2- 2
2.4 RIBBON SPECIFICATIONS ..........................................................2- 2
2.5 OPTION .........................................................................................2- 2
3. APPEARANCE ......................................................................................3- 1
3.1 FRONT/REAR VIEW......................................................................3- 1
3.2 OPERATION PANEL .....................................................................3- 1
4. DIP SWITCH FUNCTIONS ....................................................................4- 1
5. SETUP PROCEDURE............................................................................5- 1
5.1 REQUIREMENTS FOR OPERATION ...........................................5- 1
5.2 SETTING UP THE PRINTER.........................................................5- 1
6. INSTALLATION PROCEDURE .............................................................6- 1
6.1 INSTALLING THE SUPPLY HOLDER UNIT .................................6- 1
6.2 INSTALLING THE SUPPLY COVER.............................................6- 1
6.3 CONNECTING THE POWER CORD AND CABLES.....................6- 2
7. LOADING THE RIBBON........................................................................7- 1
8. LOADING THE PAPER .........................................................................8- 1
9. THRESHOLD SETTING.........................................................................9- 1
10. CARE/HANDLING OF THE PAPER AND RIBBON............................10- 1
11. GENERAL MAINTENANCE ................................................................11- 1
11.1 CLEANING...................................................................................11- 1
11.2 COVERS......................................................................................11- 2
11.3 REMOVING JAMMED PAPER ....................................................11- 3
12. TROUBLESHOOTING .........................................................................12- 1
APPENDIX ..................................................................................................13- 1
INDEX
Page
CAUTION:
1. This manual may not be copied in whole or in part without prior written permission of TOSHIBA
TEC.
2. The contents of this manual may be changed without notification.
3. Please refer to your local Authorized Service representative with regard to any queries you may
have in this manual.
EO1-33019

1-1
1. INTRODUCTION EO1-33019
1.1 APPLICABLE MODEL
1. INTRODUCTION
Thank you for choosing the TEC B-450 Series thermal transfer printer. This new generation high
performancehighqualityprinterisequippedwiththelatesthardwareincludingthenewlydevelopedhigh
density(23.6dots/mm600dots/inch)printhead. Thisallowsveryclearprintatamaximumspeedof50.8
mm/sec. (2 inch/sec.). Other standard features include an external paper supply.
Optional features include a strip mechanism and cutter mechanism.
This manual contains general set-up and maintenance information and should be read carefully to help
gainmaximum performance and life fromyourprinter. For most queries please refertothis manual and
keep it safe for future reference.
1.1 APPLICABLE MODEL
•B-452-HS12-QQ
•B-452-HS12-QQ-US
Model name description
B - 4 5 2 - H S 1 2 - Q Q
Destination Code
QQ-US: North America Block, QQ: Except for QQ-US
Specification
12: with Centronics interface and expansion I/O interface
Issue mode
S: Batch
Resolution
H: 23.6 dots/mm (600 dpi)
1.2 ACCESSORIES

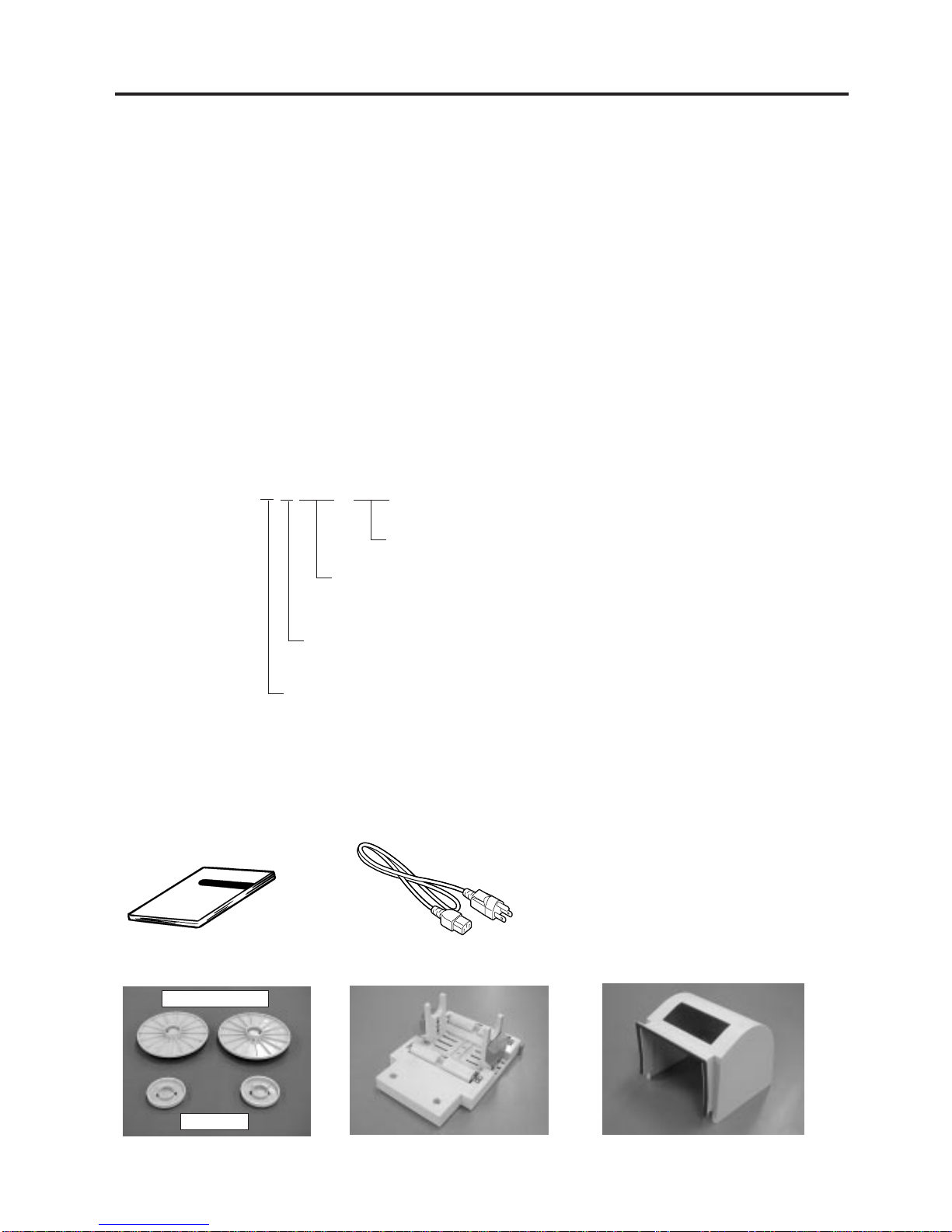

Owner's Manual
(EO1-33019) Power Cord
Supply Holder Unit
Supply Holder
Spacer
Supply Cover

2-1
2. SPECIFICATIONS EO1-33019
Supply voltage 100 - 120V, 60Hz
Power consumption 1.8 A, 140 W max. (standby: 0.22 A, 13.5 W)
Operating temperature 5˚C ~ 40˚C
Relative humidity 25% ~ 85%RH (no condensation)
Dimensions 268 mm (width) x 244 mm (height) x 198 mm (depth), with Supply holder
unit 410 mm (depth)
Weight Printer: 5.0 kg (without paper and ribbon)
Supply Holder + Supply Cover: 2.5 kg
2. SPECIFICATIONS
2.1 GENERAL SPECIFICATIONS
2.1 GENERAL SPECIFICATIONS
B-452-HS12-QQ
Item Model
∗ Data Matrix
TM
is a trademark of International Data Matrix, Inc.
PDF417 is a trademark of Symbol Technologies, Inc.
QR code is a trademark of DENSO CORPORATION.
Maxi code is a trademark of United Parcel Service of America, Inc.
2.2 PRINTING SPECIFICATIONS
Print head Thermal print head 23.6 dots per mm (600 dots per inch)
Printing method Thermal transfer
Print speeds 50.8 mm/sec. (2 inch/sec.)
Maximum print width 103.6 mm (4.08 inches)
Dispensing modes Batch (Continuous), Strip (Option) and Cut modes (Option)
(Bothcutandstripmodesareavailableonlywhentheirrespectivemodules
are fitted.)
Available bar-code types JAN8, JAN13, EAN8, EAN8 + 2 digits, EAN8 + 5 digits
EAN13, EAN13 + 2 digits, EAN13 + 5 digits
UPC-E, UPC-E + 2 digits, UPC-E + 5 digits
UPC-A, UPC-A + 2 digits, UPC-A + 5 digits, UPC-B
MSI, ITF, NW-7, CODE39, CODE93, CODE128, EAN128
Industrial 2 to 5, UCC/EAN128, Customer bar code, POSTNET
RM4SCC, KIX code
Two-dimensional code Data Matrix, PDF417, QR code, Maxi code
Graphics All types of graphic files are available when using the windows driver.
However, only BMP and PCX files are available when using the program-
ming commands.
Fonts Times Roman (6 sizes), Helvetica (6 sizes), Presentation (1 size),
Letter Gothic (1 size), Prestige Elite (2 sizes), Courier (2 sizes),
OCR (2 types), Writable characters, Outline font (7 type), Ture Type fonts
Optional True Type Fonts (20 type)
Rotations 0˚, 90˚, 180˚, 270˚
Standard interfaces Serial interface (RS-232C)
Parallel interface (Centronics)
Expansion I/O interface
Keyboard interface
B-452-HS12-QQ
Item Model

2-2
2. SPECIFICATIONS EO1-33019
2.3 PAPER (LABEL) SPECIFICATIONS
2.3 PAPER (LABEL) SPECIFICATIONS
NOTES: 1. Toensuregood print quality andmaximum print head lifeuse only TOSHIBA TECspecifiedpaper
and ribbons.
2. For further information about paper and ribbon, refer to Section 10. CARE/HANDLING OF THE
PAPER AND RIBBON.
Type Spool type
Width 60 mm ~ 110 mm
Length (270 m)
Outer diameter Ø65 mm (max.)
2.4 RIBBON SPECIFICATIONS
2.5 OPTION
[Unit: mm]
Span of one label
Label length
Width including backing paper
Label width
Gap length
Black mark length
Effective print width
Effective print length
Print speed up/slow down area
Outer roll diameter
Thickness(Backing paper + label)
Thickness of backing paper
Labeldispensingmode
Item Batch mode Strip mode Cut mode
25.4 ~ 999.0
23.4 ~ 997.0
25.4 ~ 110.0
20.0 ~ 107.0
2.0 ~ 20.0
2.0 ~ 10.0
10.0 ~ 103.6
21.4 ~ 200.0
1.0
MAX. ø152.4 (Paper Core ø38, 40, 42 or 76.2)
0.13 ~ 0.17
0.056 ~
2.0 ~ 20.0
3.0 ~ 200.0
6.0 ~ 20.0
29.0 ~ 200.0
0.1 ~ 0.17 0.1 ~ 0.17
7.0 ~ 999.0
5.0 ~ 997.0 37.0 ~ 999.0
31.0 ~ 993.0
NOTE: Topurchase the OPTIONAL KIT,pleasecontactyourauthorized TOSHIBA TEC represen-
tative or TOSHIBA TEC Head Quarter.
Description
A stop-and-cut rotary cutter
This module strips the label from the backing paper with
the take-up block and strip block.
This module is an external intelligent keyboard unit.
Option Name
Cutter module
Strip module
Keyboard module
Type
B-7204-QM
B-7904-H-QM
KB-80-QM

3-1
3. APPEARANCE EO1-33019
3. APPEARANCE
3.1 FRONT/REAR VIEW
3.1 FRONT/REAR VIEW
Front View Rear View
3.2 OPERATION PANEL
POWER LED (Green)
Lights when the power is turned on.
ON-LINE LED (Green)
1)Flasheswhencommunicatingwithahostcomputer.
2) On while printing.
ERROR LED (Red)
Lights when a communication error occurs, when the
paper/ribbon ends or the printer is not operating cor-
rectly.
FEED Key
Feeds paper.
PAUSE Key
Pauses printing.
Resets the printer when paused or when an error
occurs.
Fig. 3-2
Operation Panel
Power Switch
O : OFF
I:ON
Paper Outlet
Fig. 3-1
DIP Switch
Top Cover
Paper Guide Lock Lever
Supply Holder AC Power Inlet
Serial Interface Con-
nector (RS-232C)
Keyboard
Connector
Parallel Interface
Connector (Centronics)
Expansion I/O
Interface Connector
Supply Cover

4-1

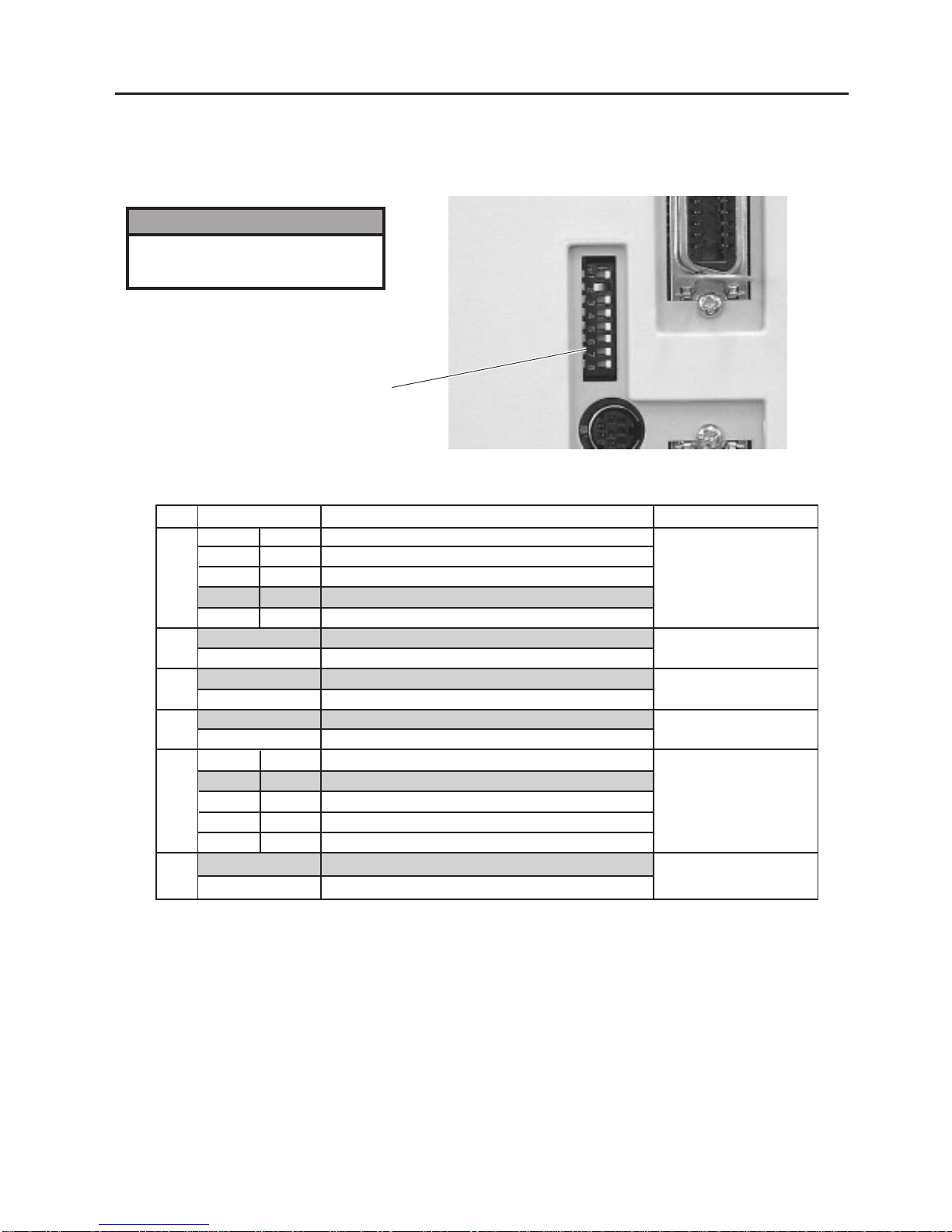

4. DIP SWITCH FUNCTIONS EO1-33019
4. DIP SWITCH FUNCTIONS
The DIP switches are located at the rear of the printer.
4. DIP SWITCH FUNCTIONS
DIP SW Fig. 4-1
WARNING!
Turn the POWER OFF before
changing the DIP switches.
No.
1
2
3
4
5
6
7
8
ON/OFF
1
OFF
ON
OFF
ON
2
OFF
OFF
ON
ON
OFF
ON
OFF
ON
OFF
ON
6
OFF
ON
OFF
ON
7
OFF
OFF
ON
ON
OFF
ON
Function
2400 bps
4800 bps
9600 bps
19200 bps
None
EVEN
Not available
Available
Available
Not available
RAM clear mode (Maintenance counter)
Threshold manual setting mode
Sensor adjustment mode
RAM clear mode (Parameter)
Normal operation mode
Program down load operation
Remarks
Transmission speed
(Baud rate)
Parity
Stacker
Auto media feed
Selectable only when
DIP SW #8 is ON.
Operating mode
DIP SW
NOTES: 1. DIP Switch settings are read at power on time.
2. ToentertheprogramdownloadmodefirstsetDIPSW#8toON. Theprinterwillthenenter
down the [FEED] or [FEED] and [PAUSE]
keys whilst turning the power on. If the printer
is turned on without pressing a key, it will enter the program download mode.
Do not set the switches to the maintenance mode as this may cause a failure.
the relevant modes, as selected by DIP SWS #6 and #7. To initialize these modes hold

5-1
5. SET UP PROCEDURE EO1-33019
5. SET UP PROCEDURE
5.1 REQUIREMENTS FOR OPERATION
This machine has the following requirements:
•The host computer must have a serial port or centronics parallel port.
•To communicate with host, either an RS-232C cable or Centronics cable is required.
(1) RS-232C cable..........9 pins
(2) Centronics cable .......36 pins
•To print a label format, create the complete program using the interface/communication manual or use
a bespoke labelling package or Windows Driver.
■Interface Cables
To prevent radiation and reception of electrical noise, the interface cables must meet the following
requirements:
•Fully shielded and fitted with metal or metalised connector housings.
•Kept as short as possible.
•Should not be bundled tightly with power cords.
•Should not be tied to power line conduits.

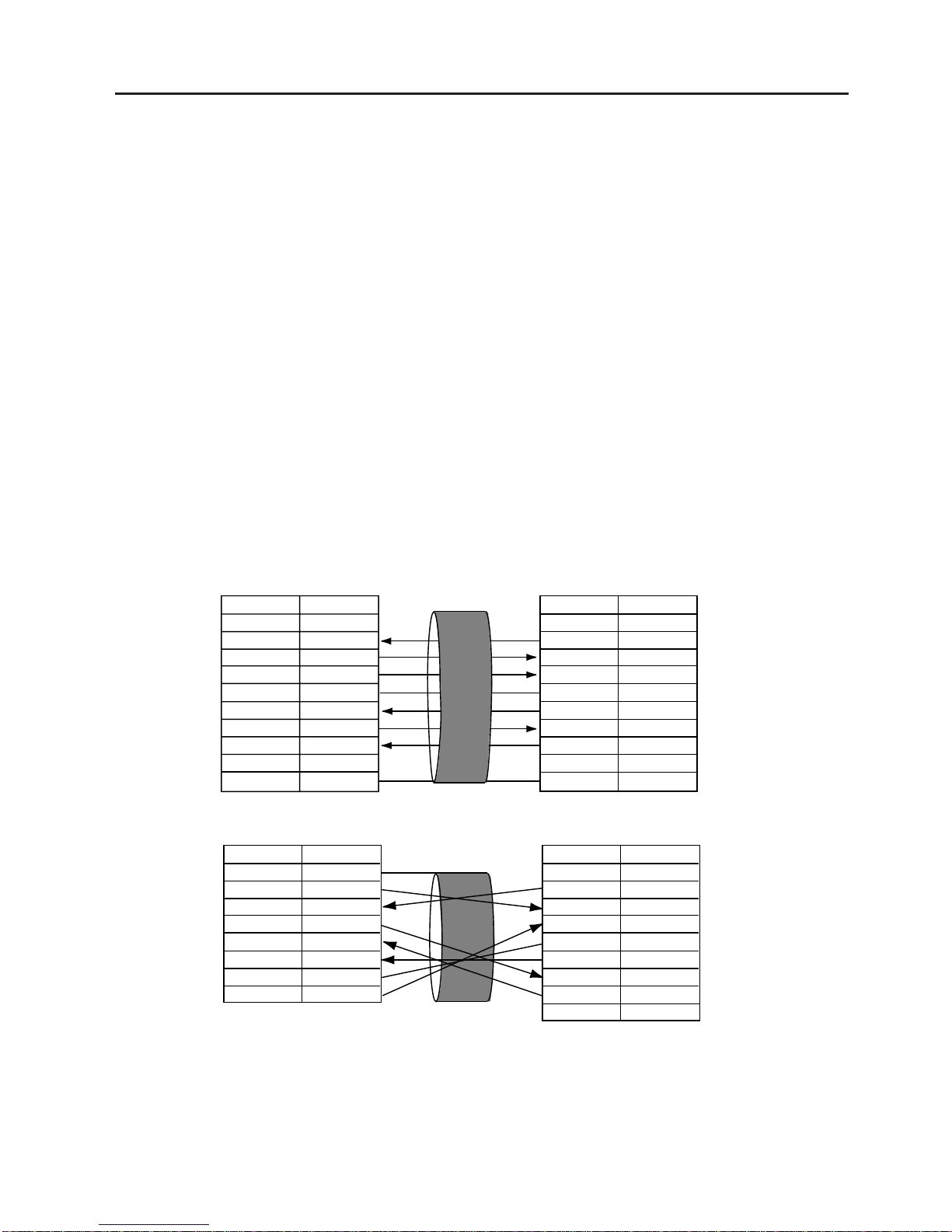

■RS-232C Cable description
The serial data cable used to connect the printer to the host computer should be one of the following two
types:
NOTE:Use an RS-232C cable with imperial (inch) connector securing screws.
5.1 REQUIREMENTS FOR OPERATION
DB-9S
Connector to PC DB-9P
Connector to Printer
DB-25S
Connector to PC DB-9P
Connector to Printer
PIN No.
1
2
3
4
5
6
7
8
9
Housing
Signal
N.C.
RXD
TXD
DTR
GND
DSR
RTS
CTS
N.C.
Shield
PIN No.
1
2
3
4
5
6
7
8
9
Housing
Signal
N.C.
TXD
RXD
DSR
GND
DTR
CTS
RTS
N.C.
Shield
PIN No.
1
2
3
4
5
6
7
20
Signal
Shield
TXD
RXD
RTS
CTS
DSR
GND
DTR
PIN No.
1
2
3
4
5
6
7
8
9
Signal
N.C.
TXD
RXD
DSR
GND
DTR
CTS
RTS
N.C.
5.2 SETTING UP THE PRINTER
•Place the printer on a flat, stable surface.
•Use a grounded electrical outlet do not use adapter plug.
•Be sure there is adequate room around the printer for easy operation and maintenance.
•Keep your work environment static free.
Fig. 5-1

6-1
6. INSTALLATION PROCEDURE EO1-33019
6. INSTALLATION PROCEDURE

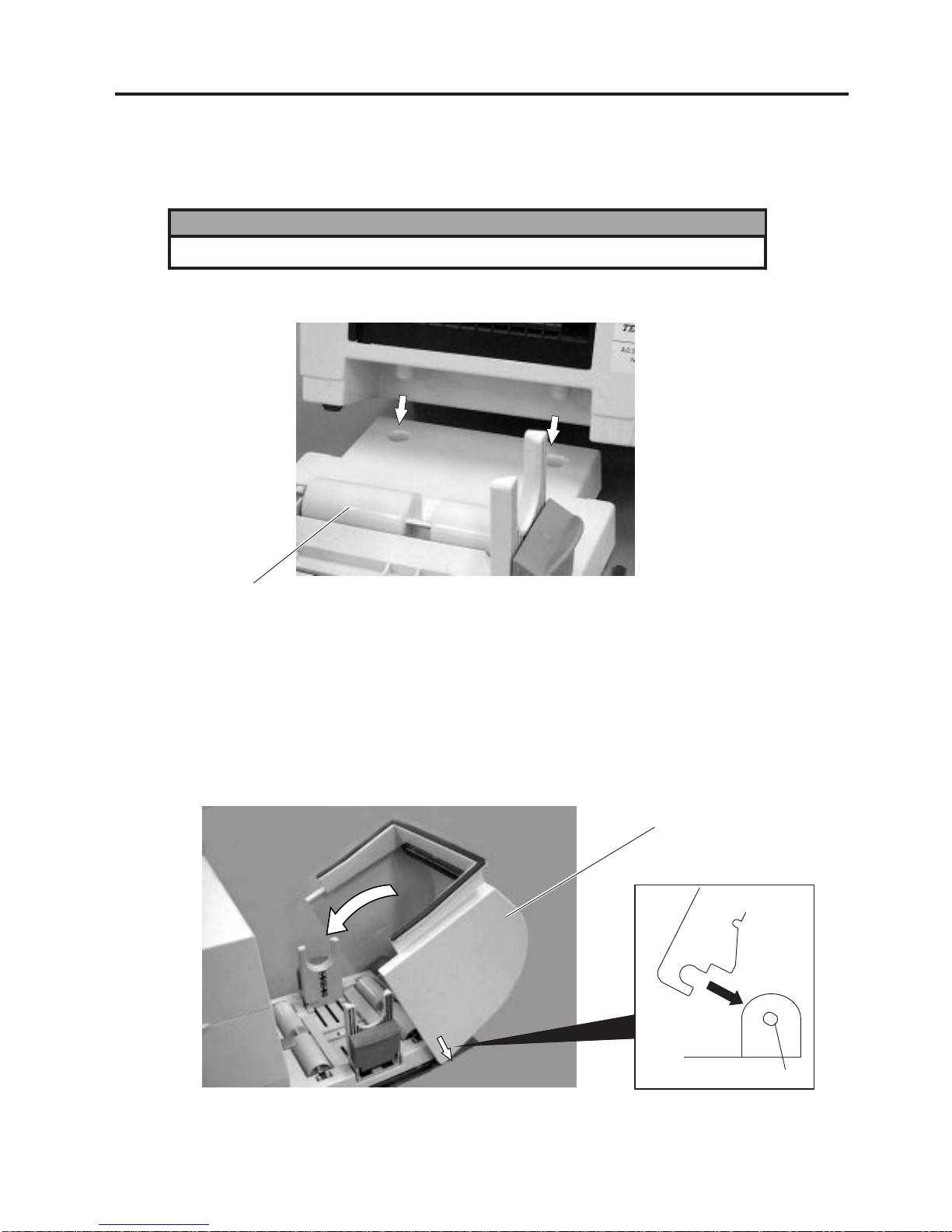

6.1 INSTALLING THE SUPPLY HOLDER UNIT
6.1 INSTALLING THE SUPPLY HOLDER UNIT
Fit the two studs on the bottom of the printer into the holes in the supply holder unit.
6.2 INSTALLING THE SUPPLY COVER
Fit both hooks of the supply cover onto the shafts of the supply holder, and then gently close the supply
cover. (Refer to Fig. 6-2)
NOTE: After this section, the supply cover will be removed in photos and figures. Please understand
that it provides clearer descriptions.
Fig. 6-1
WARNING!
Turn the power OFF before installing the supply holder unit.
Supply Holder Unit
Fig. 6-2
Supply Cover
Hook
Shaft

6-2
6. INSTALLATION PROCEDURE EO1-33019
Fig. 6-3
Power Cord
Serial Interface (RS-232C)
WARNING!
Turn the POWER SWITCH to OFF before connecting the power cord or cables.
Parallel Interface Cable
(Centronics)

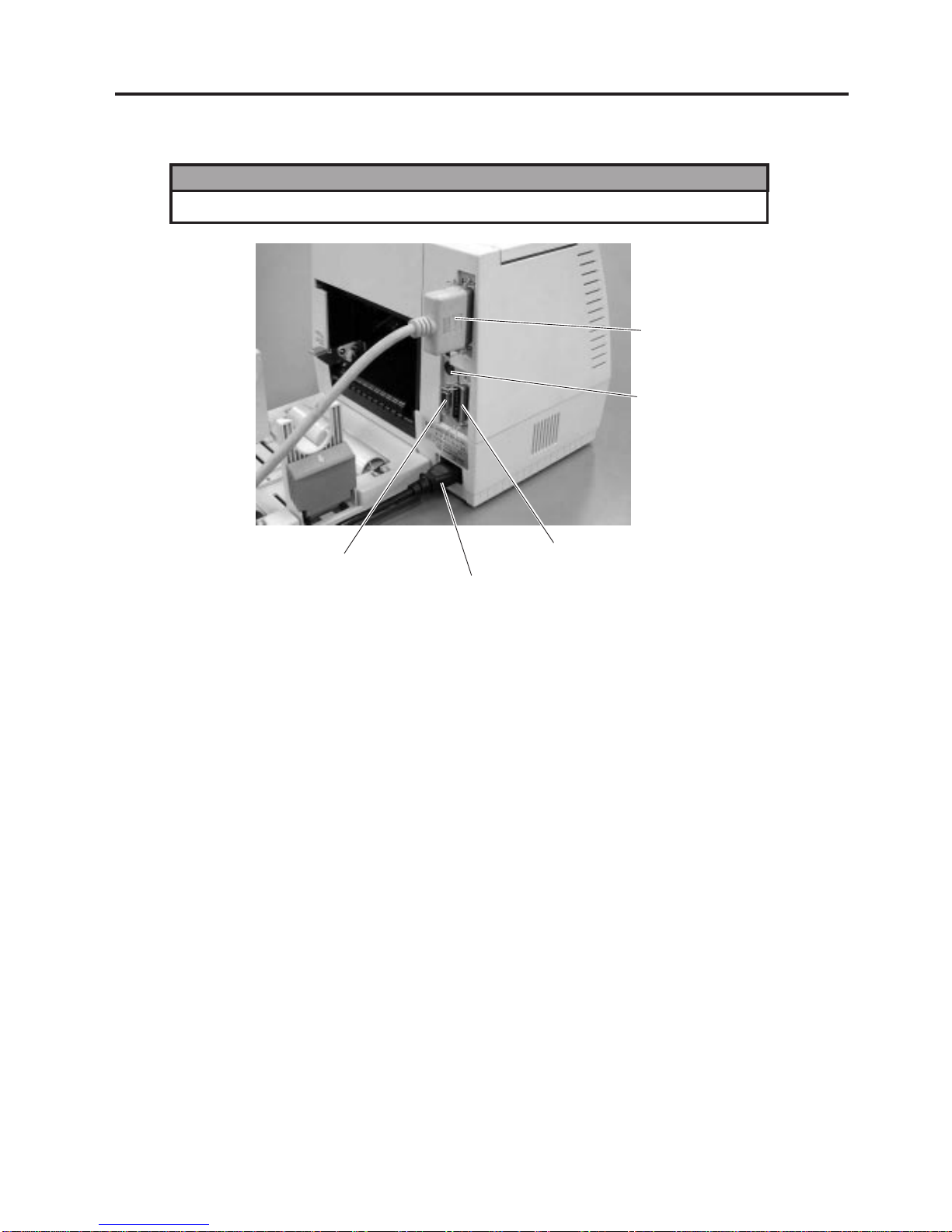

6.3 CONNECTING THE POWER CORD AND CABLES
6.3 CONNECTING THE POWER CORD AND CABLES
Keyboard Interface
Expansion I/O Interface

7-1
7. LOADING THE RIBBON EO1-33019

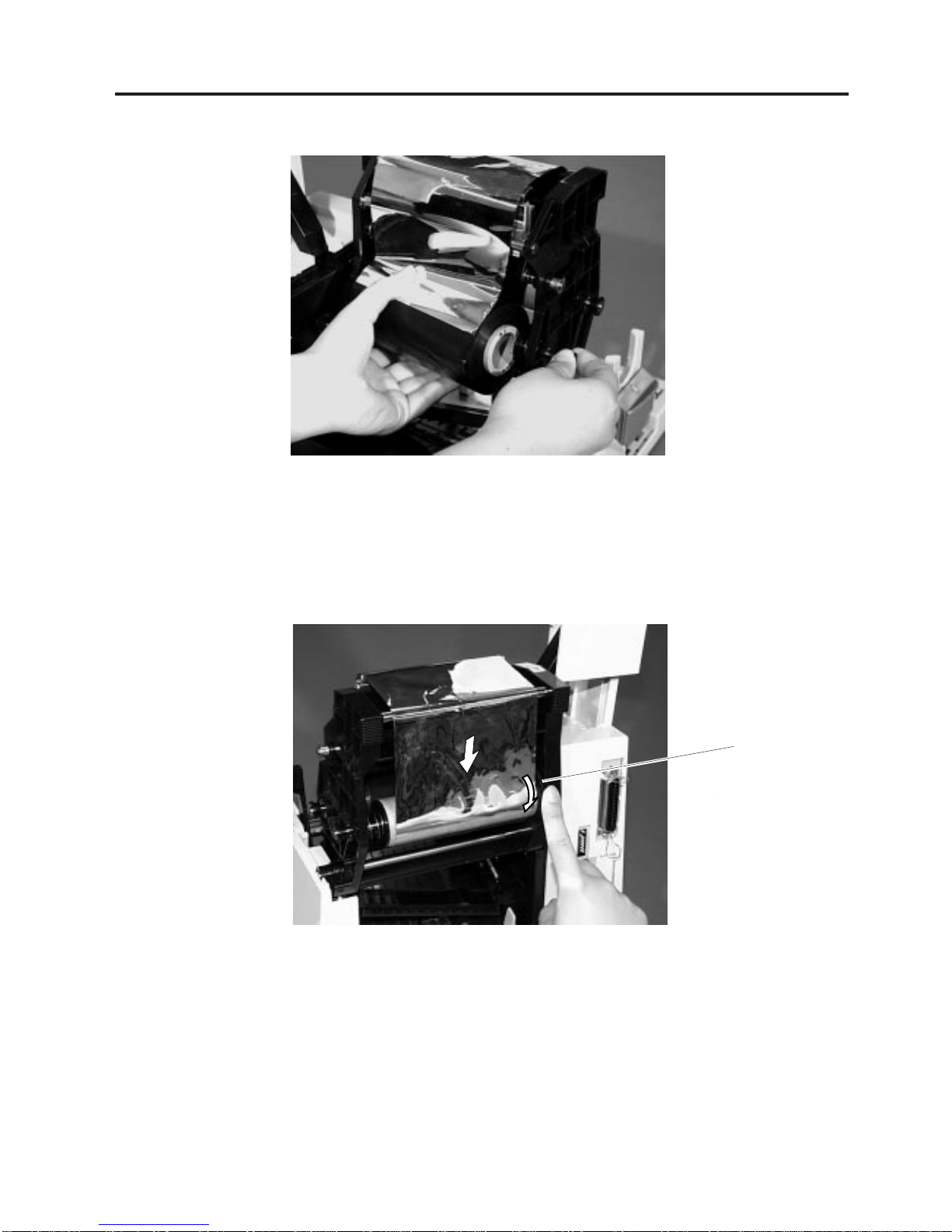

7. LOADING THE RIBBON
7. LOADING THE RIBBON
Fig. 7-2
Fig. 7-1
Print Head Block
Head Release Lever
Top Cover
3. Fit the protrusion of the guide wheel into the notch of the ribbon core (take-up side).
4. Pull the knob and set the ribbon core to the spring guide wheel.
Guide Wheel
Protrusion
Notch
Knob
Spring Guide Wheel Ribbon Core
(Take-up side)
The printer is capable of printing in thermal transfer mode only.
1. Turn the power off and open the top cover.
2. Move the head release lever toward the front of the printer and raise the print head block.
WARNING!
Be careful when handling the print head as it becomes very hot.

7-2
7. LOADING THE RIBBON EO1-33019
7. LOADING THE RIBBON
5. Set the ribbon core (supply side) by fitting the protrusion into the notch.
6. Turn the guide wheel in the direction indicated by the arrow to remove any slack on the ribbon.
NOTE: Make sure that the ribbon has no wrinkles and the protrusions are fitted into the notches of the
ribbon cores.
Fig. 7-3
Fig. 7-4
Guide Wheel

8-1
EO1-330019
8. LOADING THE PAPER
8. LOADING THE PAPER
8. LOADING THE PAPER
3. Set the supply holders to both sides of the paper roll.
Fig. 8-1
Supply Holder
Hook
Fig. 8-2
Spacer
Fig. 8-3
Paper Roll
Supply Holder

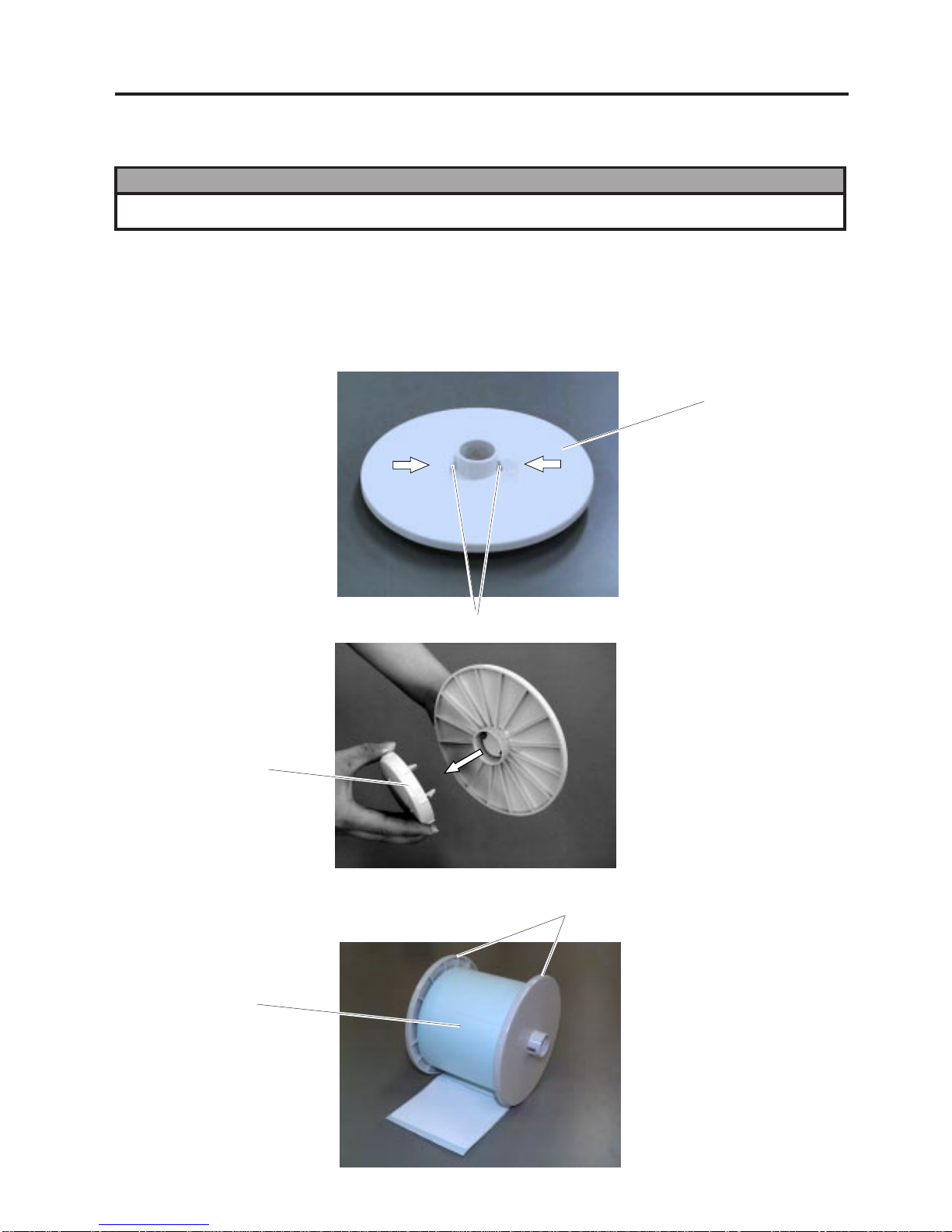

This supply holder accepts four sizes of label core: 38 mm, 40 mm, 42 mm and 76.2 mm.
When using a paper roll of 38 mm, 40 mm or 42 mm, remove the spacers from the supply holders
using the following procedure.
1. Remove the supply cover.
2. Push both hooks of the spacer to remove it from the supply holder. Keep the removed spacers safe.
WARNING!
Be careful when handling the print head as it becomes very hot.

8-2
EO1-330019
8. LOADING THE PAPER
8. LOADING THE PAPER
4. Put the paper roll and supply holders on the supply holder unit.
NOTE: The paper must be loaded so that the print side faces upward.
Fig. 8-5
Paper Roll
Supply Holder
SupplyHolderGuide
Lock Lever
5. Push both sides of the supply holder guides against the paper roll, then lock them with the lock lever.
NOTE: Make sure that the supply holders rotate slightly.
Fig. 8-4
Paper wound inside.
6. Lift up the paper guide lock lever to release the paper guides.
7. Draw the label towards the paper guides.
8. Release the lock lever in the direction indicated by the arrow, and gently lift the sensor cover.
NOTE: Lift the sensor cover gently so that it does not touch the ribbon.
9. Adjust the position of the paper guides to the label width, and return the paper guide lock lever to lock
the paper guide.
Fig. 8-6
PaperGuideLockLever
PaperGuideLockLever
Paper Guide
Free
Lock
Lock Lever
Sensor Cover

8-3
EO1-330019
8. LOADING THE PAPER
8. LOADING THE PAPER
10. For details on changing the black mark sensor position according to the black mark position, refer to
the Section “Setting the black mark sensor position”. When using the round or pre-printed label, refer
to the Section “Setting the feed gap sensor position” and adjust the sensor position.
11. Drawthelabelontotheplaten. Closethesensorcoverandreturnthelocklevertolockthesensorcover
tight.
12. Close the print head block by pressing both sides of the print head block’s top until it clicks.
Fig. 8-7
Head Block
Fig. 8-8
Supply Holder
Paper Guide Paper
Platen
A
B
A = B
.
.
NOTE: Pass the paper straight from the supply holder to paper outlet. Failure to do this may cause
skew feeding or paper jam.

8-4
EO1-330019
8. LOADING THE PAPER
8. LOADING THE PAPER
13. Close the top cover, and then attach the supply cover to the supply holder unit. (Refer to section
6.2 INSTALLING THE SUPPLY COVER.) Paper loading is now complete.
Cutter type: Whereacutterisfittedloadthepaperasstandardandfeeditthroughthecuttermodule.
NOTE: When using the cutter, be sure to cut the backing paper between the labels. Cutting on
the label will cause the glue to stick to the cutter, which may affect the cutter quality and
shorten it's life.
Cutter Module
Paper Outlet
Paper
Batch type:
Fig. 8-9
Top Cover
Fig. 8-10
Strip type:
1Strip the labels from the backing paper for about 200-mm from the top edge of the label roll.
2First push the strip lever toward the printer to release the hook, and then pull the strip lever.
3Passthe backing paper between the strip roller and the stripguideroller. Aftertaking up any slack
on the paper, set the strip lever in position.
Strip Lever
Strip Guide Roller
Fig. 8-11
Backing Paper

8-5
EO1-330019
8. LOADING THE PAPER
8. LOADING THE PAPER
■Setting the black mark sensor position
1Fold over the end of the label. Then, move sensor knob A in a the horizontal direction so that the
mark on the sensor cover aligns with the black mark. Remember the number that centre of the sensor
knob A is positioned at. Set the sensor knob B to the same position number.
2Release the lock lever in the direction indicated by the arrow, and gently lift the sensor cover.
NOTE: Lift the sensor cover gently so that it does not touch the ribbon.
3Set sensor knob B to the same position number as the sensor knob A.
NOTE: The sensor knobs A and B are set to the position #3 where the black mark is centred in the label
width as a default. Do not change the position of sensor knobs A and B except when changing
thesensordetectingposition. BesuretosetsensorknobsAandBtothe sameposition #. Failure
to do this may cause a paper feed error and paper end detecting error.
Fig. 8-12
Sensor Cover BlackMark Sensor Position
Sensor knob A
Black Mark
1 2 3 4 5
Fig. 8-13
Sensor Knob B
1 2 3 4 5
4Drawthelabelontotheplaten. Closethesensorcoverandreturnthelocklevertolockthesensorcover
tight.
