User Manual
Portable Air Conditioner
Before using your TOSOT Portable Air Conditioner,
please read this user manual in its entirety.
MO DEL NUMB ER
GPC08ASB-A6NNA1A

Welcome to the TOSOT Direct Family!
We’re extremely happy to welcome you as a new member of our family! Please
read the tips below before using your product for the first time.
Keep the original packaging material including packing foam, carton and
printed material until you decide to keep the unit. If you need to return the
unit, having all of the original packaging material will make it much easier.
1. The portable air conditioner is a heavy object, which needs two or more people
to lift and install. Failure to do so could result in injury or other accidents.
2. Allow the unit to sit upright for at least 3-4 hours before powering on. Shipping
carriers may set the unit on its side, which causes the refrigerant to pool in
certain areas. Standing the unit upright for 3-4 hours allows the refrigerant to
move freely within the coils.
3. Run the unit continuously for 24 hours after letting the unit stand upright for
3-4 hours. During this period, please pay more attention to any defective problem
of unit. To avoid any loss to your house, please make sure your unit has no any
defective problem caused by shipping damage such as leakage before using it
on the rugs or carpeting.
4. Some parts with sharp edges may cause injury, so gloves are highly recommended
for unpacking and installing.
5. For a quick start video guide of installation, please contact Customer Support.
6. If you have any problems with your product, please send us an email before
submitting a return request, as there might be a simple solution for your issue.
Tips for First-Time Use

Table of Contents
Safety and Instructions
Installation and Setup
Electrical Safety Warning
Parts Description
Operation
Open the Airflow Louver
Control Panel
Remote Control
Combination Buttons

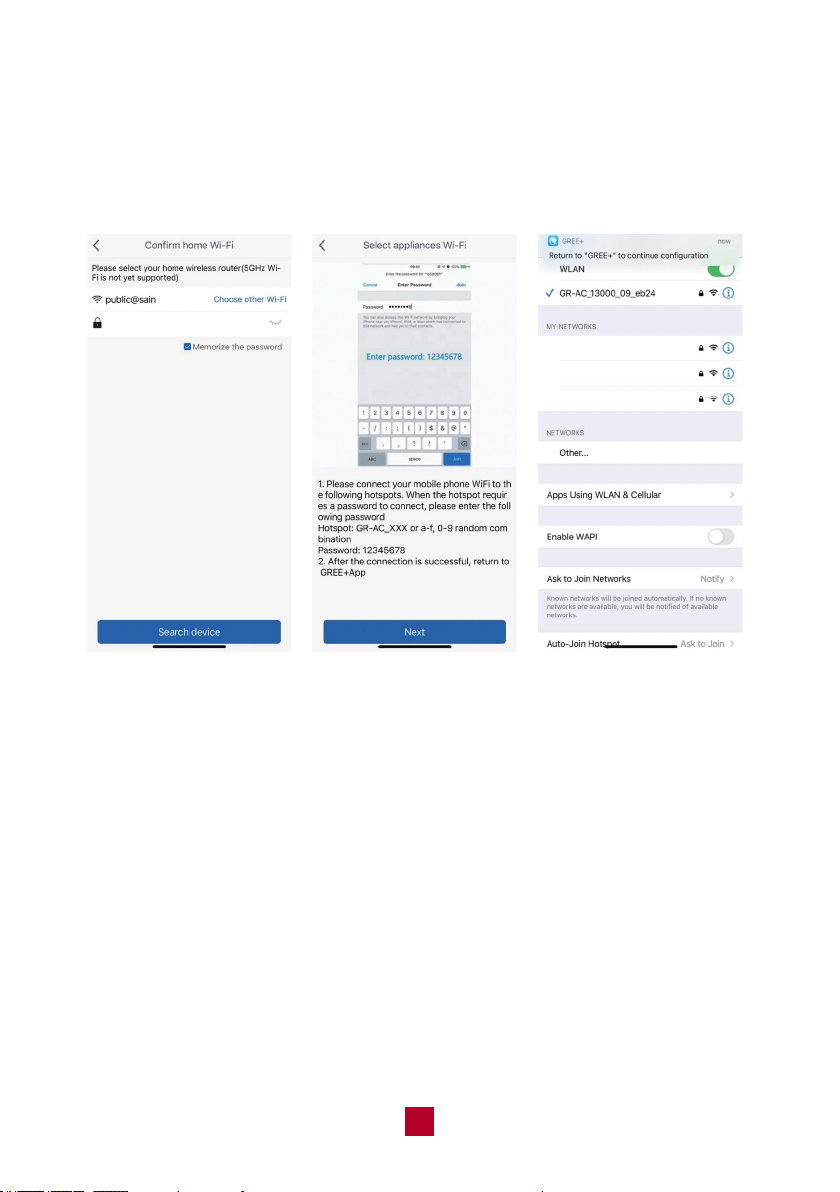

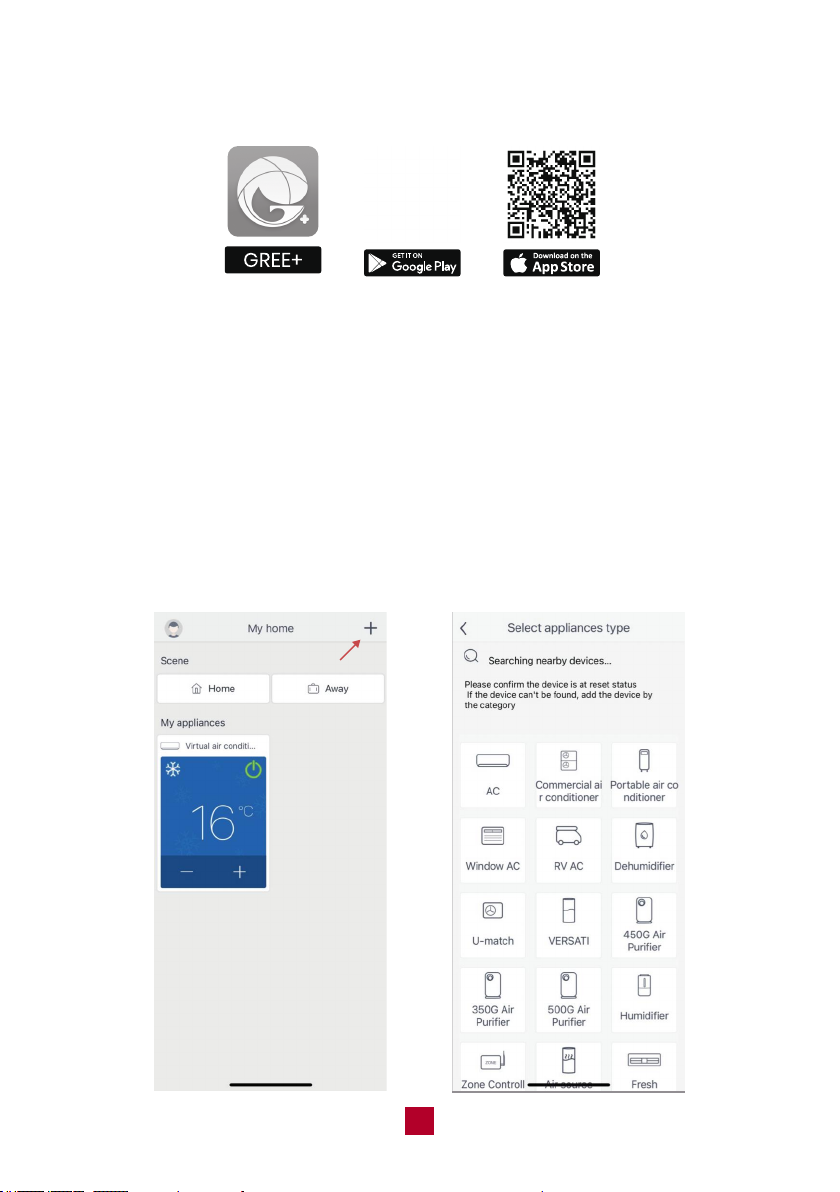

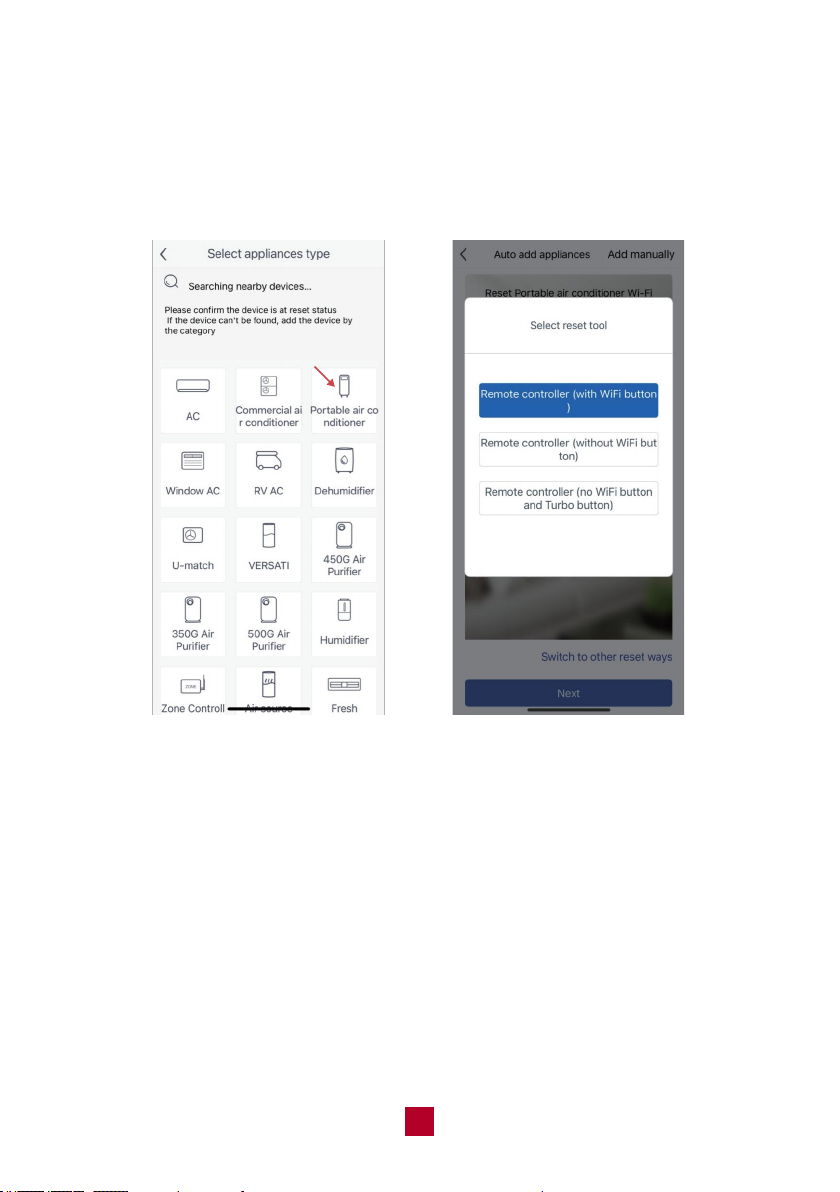

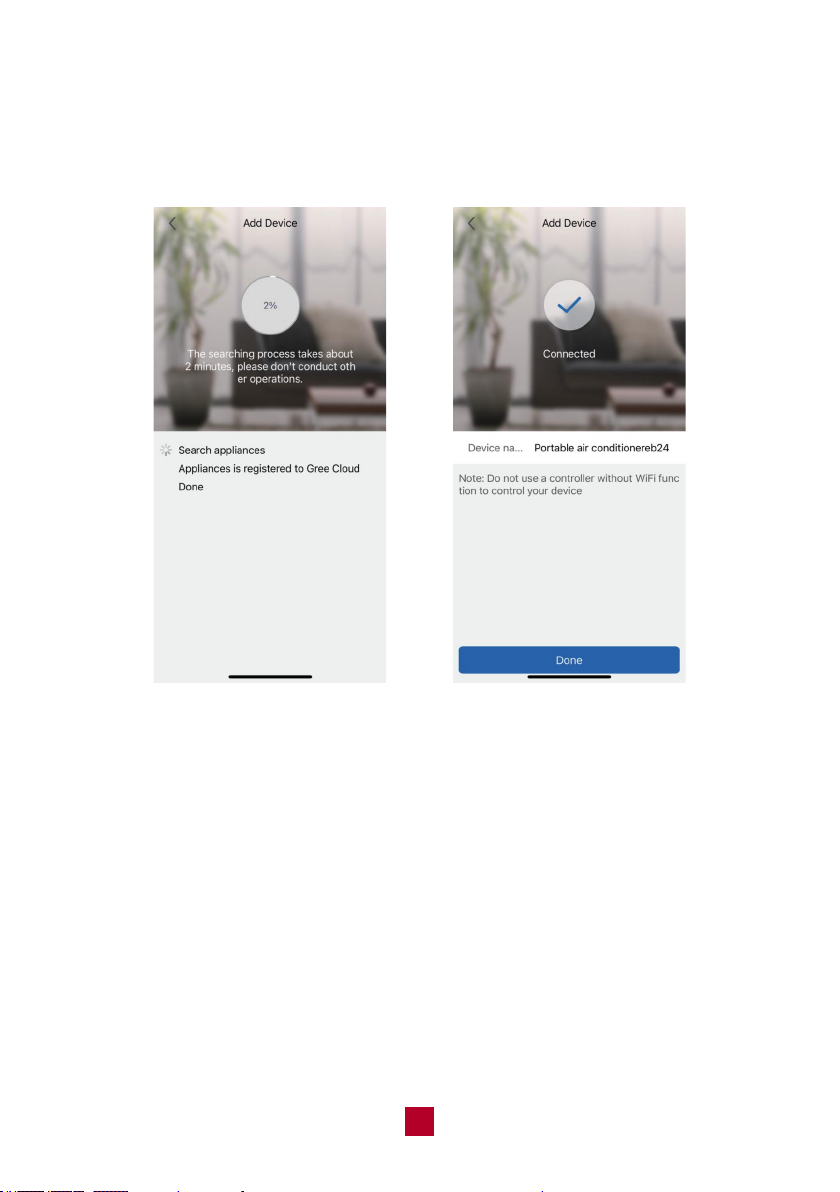

App Control
Replacing the Batteries
Installation
Tools Required
Parts List
Installing Your AC
Installing the Exhaust Hose
Removing Collected Water
Installing the Power Cord Hooks
Cleaning and Maintenance
Troubleshooting
Malfunction Codes
Warranty&Customer Support
01
01
02
05
06
06
07
09
11
11
28
28
28
29
30
35
36
37
37
39
42
43
-------------------------------------------
-------------------------------------------
---------------------------------------
-----------------------------------------------------
----------------------------------------
--------------------------------------------------
-------------------------------------------------------
--------------------------------------------
-----------------------------------------------------------
----------------------------------------------------
----------------------------------------------------------
------------------------------------------------
------------------------------------
-------------------------------------
-----------------------------
---------------------------------------
----------------------------------------------------
-------------------------------------------------
------------------------------------
---------------------------------------------------
------------------------------------------------------------
-----------------------------------------

Safety and Instructions
01
Installation and Setup
Please read all instructions before use and save this user manual for future
reference. A digital version can be obtained from Customer Support. Your safety
and the safety of others are very important to us. We have provided many important
safety messages throughout this manual and on the appliance itself. Always read
and follow all posted safety messages.
To reduce the risk of fire, electric shock, injury, or death to persons using or near
this appliance, please follow some basic safety precautions. These precautions
include, but are not limited to, the following:
● This appliance is not intended for use by any persons (including children) with
reduced or restricted physical, mental, or sensory capabilities, or lack of
experience and knowledge, unless under the direct supervision of a person
responsible for their safety.
● Please keep plastic bags and sheets out of the reach of children as they might
be mistakenly used for play. Packaging materials can become airtight chambers
and may pose a risk of suffocation if not disposed of properly.
● When installing or moving the appliance, be careful not to pinch, crush, or
damage the power cord.
● Never attempt to operate this appliance if it visibly damaged, malfunctioning,
disassembled or has missing or broken parts. This includes exposed wiring on
a damaged cord or electrical plugin. All repairs and servicing must be performed
by qualified service personnel. Use only authorized TOSOT factory OEM parts.
● Keep the product away from fire. Do not store or use flammable gases or
materials near the appliance.
● Do not use heating equipment near the appliance.
● In the event of a gas leak (propane gas, LP gas, etc.) do not operate this or any
other appliance. Open a window or door to ventilate the area immediately.
● Only use the appliance in an upright position. Make sure the angle of inclination
<10°. Always place the appliance on a stable, flat, level surface to prevent the
air conditioner from overturning.

02
Electrical Safety Warning
● If the power cable is damaged, it must be replaced by the manufacturer or an
authorized technical service center in order to avoid all risk.
● Do not damage, alter, excessively bend, twist, pull or heat the power cord.
● Do not cover the power cord with a rug or carpeting.
● Do not rest hot or heavy objects on the appliance and power cord.
● Always plug into a fixed 115V AC ground outlet.
● Specification of fuse on the main board: T3.15AH 250V; the maximum current
passing through the fuse can't be more than 3.15A.
● Never plug or unplug the appliance with wet hands.
● Push the power plug all the way into the wall outlet so that it will not loosen.
● Always grip the plug firmly and pull straight out from the outlet when taking it out.
● Never unplug the appliance by pulling on the power cord.
● Never use the appliance if the outlet is damaged or loose.
● This product should be plugged directly into a power outlet. Power outlets should
be properly rated, protected, and sized in order to avoid electrical overload. Do
not use an extension cord or power strip.
● Do not cut or remove the third (ground) prong from the power cord.
● Always unplug the unit from the outlet before cleaning or maintenance operations.
● Your air conditioner must be used in a properly grounded wall receptacle. If the
wall receptacle you intend to use is not adequately grounded or not protected by
a time-delay fuse or circuit breaker, have a qualified electrician install the proper
wall power receptacle before using this appliance.
● Be sure that the air conditioner is properly grounded. To minimize shock and fire
hazards, proper grounding is important. The power cord is equipped with a three-
prong grounding plug for protection against shock hazards.
● Do not run the air conditioner without the plastic shell in place. This could result
in mechanical damage within the air conditioner.
FCC ID Information
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.

03
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
LCDI Power Plug (Leakage Current Detection and Interruption)
The power cord used with this air conditioner contains a current detection device
designed to reduce the risk of fire. In the event that the power supply cord is
damaged, it cannot be repaired. The power supply cord must be replaced with a
replacement cord received from the manufacturer by a trained service technician.
Always finish the test of LCDI plug before use:
Follow 4 steps on the LCDI plug case, if the TEST button does not cause the circuit
breaker trip or the RESET button will not stay engaged, unplug the air conditioner
immediately and contact Customer Support.
1. Plug in the air conditioner.
2. The power supply cord will have two
buttons on the plug head. If you press
the TEST button you should notice a
clicking noise as the RESET button
pops out.
3. Press the RESET button again, and
you will notice a clicking noise as the
button engages.
4. The power supply cord is now supplying
electricity to the unit.
● Do not use the LCDI plug to turn the unit on or off
● Always make sure the RESET button is pushed in for correct operation
● The power supply must be replaced if it fails to reset when either the TEST
button is pushed, or it cannot be reset. Please contact us for more information.

04
Recommended Operating Environment
● The recommended operating temperature range for AC is 61°F-95°F (16°C-35°C),
● The appliance is for indoor use only.
● The appliance must be positioned so that the plug is easily accessible.
● This air conditioner is intended for residential use, not for commercial or industrial
purposes.
● Open space around the air conditioner should be at least 12 inches (30cm) to
ensure airflow.
● Please keep the air inlet and air outlet clean and free from obstacles.
● During operation, close doors and windows to improve the cooling effect in the
room.
● Please put the air conditioner on smooth and flat ground to avoid noise and
vibration.
● Avoid direct sunlight exposure.
Note: The following locations or conditions may cause malfunction or damage to
your air conditioner. Avoid running the air conditioner under the following conditions:
● Near strong heat sources, vapors, flammable or explosive gas, or volatile objects
spread in the air.
● Around any high-frequency devices (such as welding machines or medical
equipment.)
● Any place with oil or oil fumes in the air.
● Any place with a high concentration of sulfurated gas.
30cm(12”)
30cm(12”)
30cm(12”)

Parts Description
1
2
3
4
5
7
8
9
6
Control Panel
Airflow Louver
Wheels
Filter
Air Exhaust Outlet
Exhaust Hose
Rear Clip
Power Cord
Power Cord Hoop
Remote Control
05
Mode
Swing
Sleep
FAN
Health
On/Off
WiFi
Fan
OPER
Timer
4
765
8
9
1
2
3

Operation
Open the Airflow Louver
06
Press the position on the the airflow louver marked with "PUSH" to open before
turning on the unit.

WiFi Indicator
Indicates whether or not the air conditioner is ready to connect WiFi.
Timer/Sleep Button
Timer:
● When the unit is running, press this button to schedule when the unit will power
off by using the +/- button to adjust the length of time before powering off.
● When the unit is not running, press this button to schedule when the unit will
power on by using the +/- button to adjust the length of time before powering on.
● Press the timer button again to cancel timer mode and shut the timer
indicator light off.
Sleep:
● Long press this button for 3 seconds to set sleep mode.
● Sleep mode is not available for Fan mode and Dry mode. When in sleep mode,
the AC temperature will automatically increase by 2°F for the first hour and 4°F
for the second hour and then will keep running with this temperature.
● Long press this button for 3 seconds again to cancel sleep mode.
● Sleep indicator light is on when Sleep mode is set.
1
2
07
1
4
2
5
WiFi Indicator
+/- Button
Timer/Sleep Button
Mode Button
3
6
Fan Button
On/Off Button
Control Panel
432
1
6
5

Fan Button
Pressing this button will cycle the fan speed through one of 2 fan modes, as shown
below:
+/- Button
● Pressing this button will allow you to change the temperature setting.
● After pressing the timer button, the +/- buttons will adjust the timer setting from
0.5-24 hours in 0.5-hour increments. After the 10-hour mark, the +/- button will
adjust the timer setting in 1-hour increments. It will take 5 seconds for the timer
settings to be confirmed by the machine.
Note: This button is not valid under the dry or fan modes.
3
4
low speed high speed
08
Mode Button
Pressing this button will cycle through the following modes, as shown below:
On/Off Button
Press to power the air conditioner ON or OFF.
5
6
Cool Dry
Fan

09
Remote Control
The max range of the remote control is 25 feet with no obstacles or interference
from other devices, such as wireless phones or fluorescent lamps.
The air conditioner will emit a beep sound if the signal from the remote has been
received successfully.
ON/OFF Button
Press to power the air conditioner ON or OFF.
1
1
2
3
4
5
6
7
On/Off button
Mode button
+/- button
Swing button
(Not available for this unit.)
Fan button
Sleep button
Timer button
8
9
Health button
(Not available for this unit.)
WiFi button
FAN
On/Off Mode
Fan Swing
Sleep
OPER
Health WiFi
Timer
12
34
57
69
8
Mode Button
Press this button to cycle through the following modes. A corresponding logo indicator
on the left side of the remote will be shown.
2
Dry HeatCoolAuto Fan Only

a. Auto mode: The air conditioner will adjust the fan speed automatically to maintain
the set temperature. In this case, set temperature cannot be adjusted.
b. Cool mode: Standard cooling mode. The set temperature and fan speed can both
be adjusted.
c. Dry mode: The unit will run on low speed for dehumidification. The fan speed
cannot be adjusted.
d. Fan Only mode: The air conditioner will not produce cool air, only blow air from
the outside. The fan speed can be adjusted.
e. Heat mode: Not available for this model.
* Please make sure the heat mode is not activated in the remote control before
you turn off the unit, or the “ON” button might be not available when you need
to turn on the machine. Once the heat mode is activated via the remote control,
please turn on your unit with the app or control panel.
+/- Button
● Pressing the “+” or “-” button will increase/decrease the set temperature by 1°F.
Holding the button for 2 seconds will cause the temperature to change rapidly.
Release the button once your desired temperature is reached.
● After pressing the Timer button, each press of the +/- button will increase/
decrease the time by 0.5 hours. Holding the button for 2 seconds will cause the
timer to change rapidly. Release the button once your desired time setting has
been reached.
Swing Button
Not available for this unit.
Fan Button
Pressing this button will cycle the fan speed from low to high. Auto and medium
speeds are not available for this model.
Note: There are only 2 speeds for the Fan in this model.
Sleep Button
Press this button to enter the sleep operation mode. While in sleep mode, you can
use the Cool modes. When in sleep mode, the AC temperature will automatically
increase by 2°F for the first hour and 4°F for the second hour and then will keep
running with this temperature.
3
4
5
6
10

Timer Button
Press this button to activate the timer button. Use the +/- buttons to adjust the
length of the timer before the unit powers off. The time setting range is 0.5-24
hours, in 0.5-hour increments. Press the timer button a second time to confirm
the timer setting. If the characters on the display are blinking, you must press
the Timer button again to confirm the timer setting. If you have confirmed a time
setting, you can press this button again to cancel the timer mode.
Health Button
Not applicable to this unit.
WiFi Button
Press this button to turn on the WiFi function. An icon will be shown on the screen.
Press the button again to turn off this function.
With the remote powered off, press the “MODE” and WiFi buttons simultaneously
to reset WiFi to factory settings.
7
8
9
Combination Buttons
Light Function
Press and hold the “+” and “FAN” buttons simultaneously for 3 seconds to turn the
lights on the air conditioner on or off. The default setting after being powered on is
for the lights to be on.
Change Between °F and °C
With the remote powered off, press the Mode and “-” buttons simultaneously to
switch between Fahrenheit and Celsius displays.
11
Install App
App Control

12
2. Open the "GREE+" App after installation. You can create a new account or log
in with an existing account.
Note: Please allow the app to use your location, network and Bluetooth.
Add device
After successful login, you are at the “My Home” screen. Make sure that your
smartphone’s Wi-Fi and Bluetooth are turned on. Add a device by tapping the
“+” button as shown in the picture. It automatically starts searching for devices.
Make sure the WiFi indicator is light on.
1. Scan the QR code or search for "GREE+" in the App Store or Google Play Store
to download and install.

a. The available device icon will be displayed once discovered.
(1) Tap the icon to enter the next step. Select your preferred Wi-Fi network (5GHz
WiFi is not yet supported) , enter your WiFi password, then tap the “Next” button.
13
WIFI 1

(2) The App will start to search for new devices. Wait for 2 minutes or until the
device is connected. The Device name can be customized. Tap “Done”. Once
the device is added successfully, you will return back to the “My home” page.
14

15
b. If no device is found, please manually add your device.
(1) Tap the device category icon and follow the instruction to reset your WiFi. For
this model, Tap “Portable air conditioner” and then choose “Remote control
(with WiFi button)”.

16
(2) Tap “Add manually” and follow the instructions. Hold the remote control and
direct it to the device. With the remote control powered off, press the “Mode”
and “WiFi” buttons simultaneously for 3 seconds. Once you hear a beep sound,
wait for 5 seconds and then remove the power plug. After 3 seconds, insert the
power plug. Tap “Next” to enter the next step.

17
(3) Select your preferred Wi-Fi network (5GHz WiFi is not yet supported), enter the
password, then tap the “Search device” button. Tap “Next” to connect your mobile
phone WiFi to the hotspot “GR-AC-XXXX”, the password is 12345678. When the
connection is successful, return to the App.
WIFI 1
WIFI 1
WIFI 2
WIFI 3
